Toyota Lexus LX450D/460/570

2007-11 → present · chassis URJ20#,VDJ201 · catalogue 792360 · General

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 4 illustrations

Illustrations

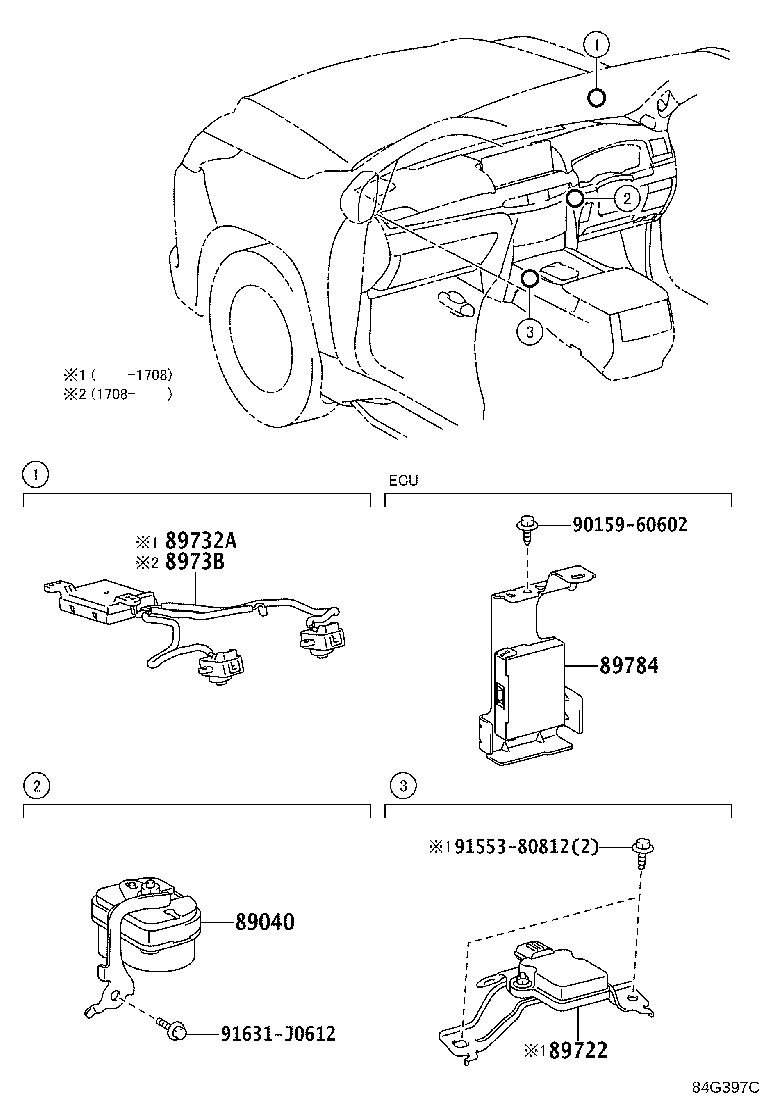

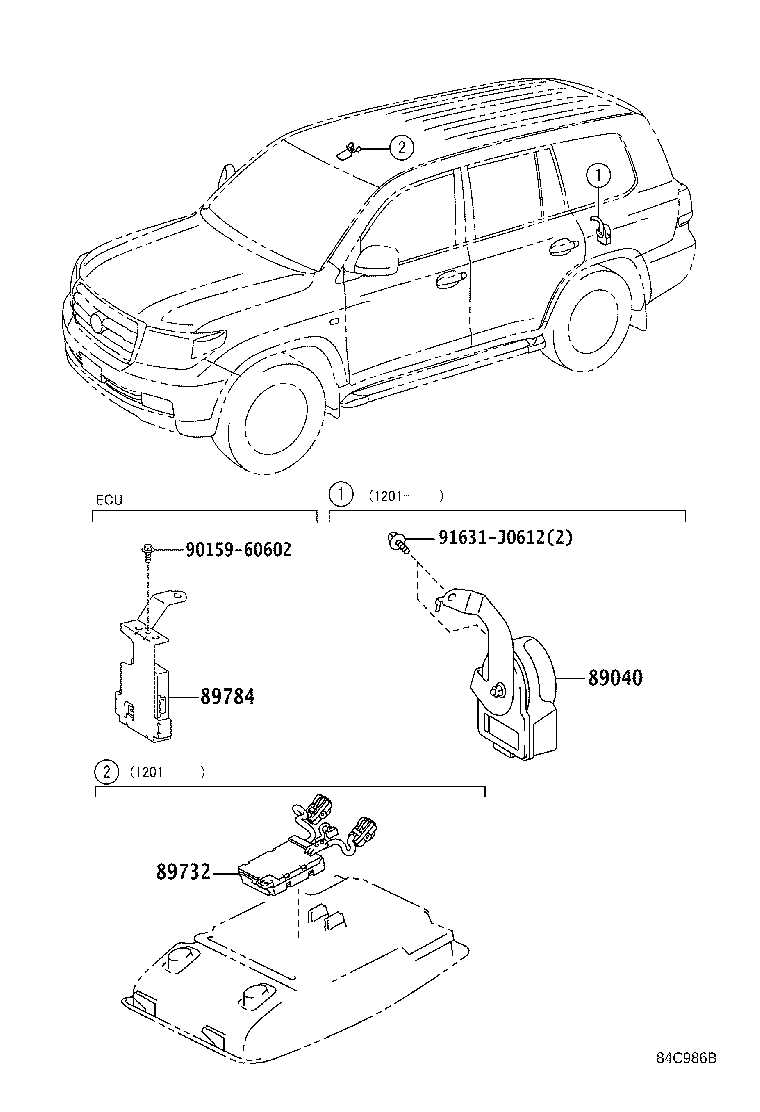

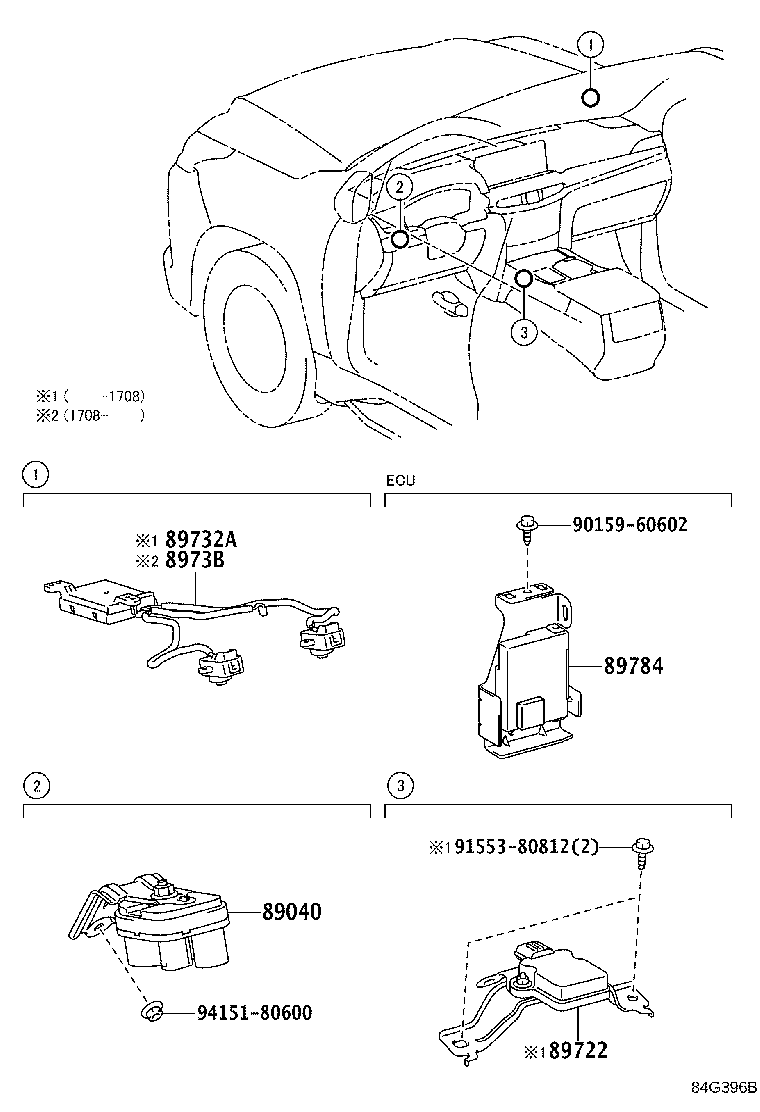

Figure 84C985B 84C985B 2007-11 → 2015-09 Figure 84C986B 84C986B 2007-11 → 2015-09 Figure 84G396B 84G396B 2015-09 → — Figure 84G397C 84G397C 2015-09 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89722 Sensor, Theft Warning Tilt
89732 Sensor, Theft Warning Radar
89732A Sensor, Theft Warning Ultrasonic
8973B Sensor, Theft Warning Ultrasonic & Tilt
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
