Toyota Lexus LX450D/460/570
2007-11 → present · chassis URJ20#,VDJ201 · catalogue 792360 · General
Supported model
Data version 2018-08
Telephone & Mayday

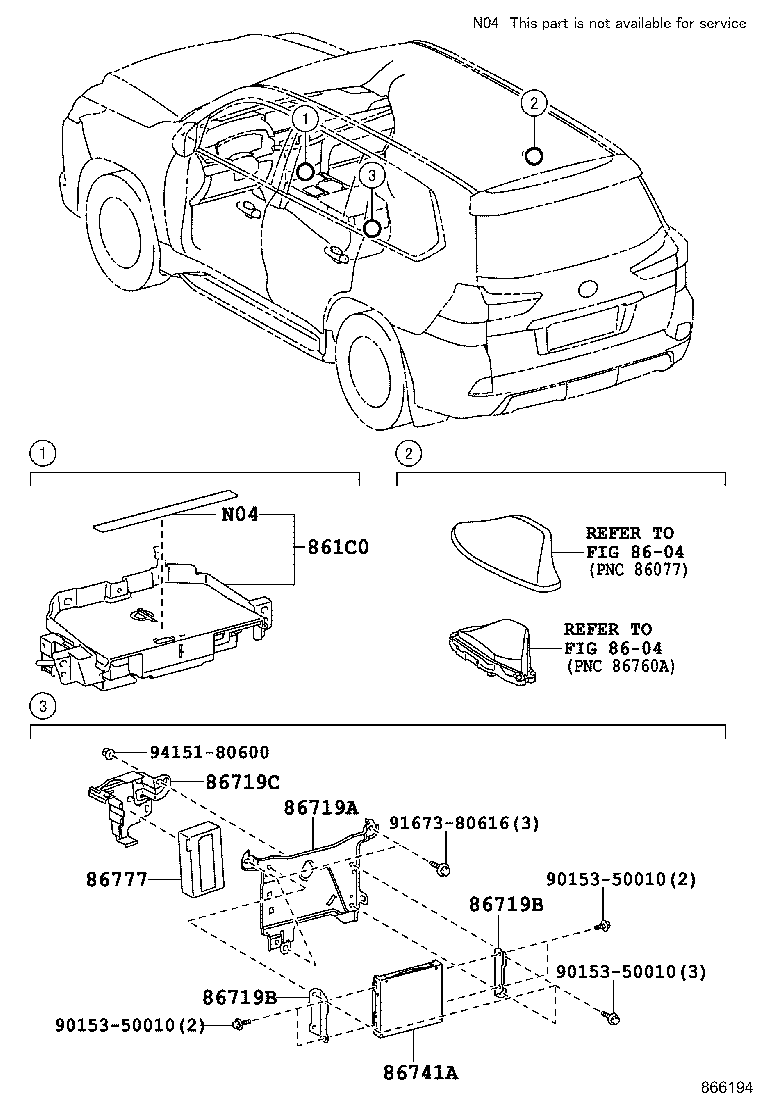

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86741A | Transceiver, Telematics |
| 86777 | Battery, Mayday |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
