Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · General

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 4 illustrations

Illustrations

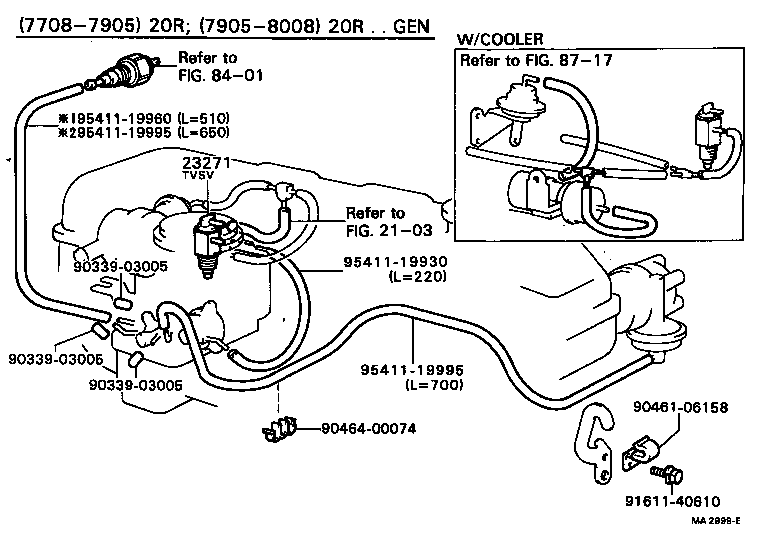

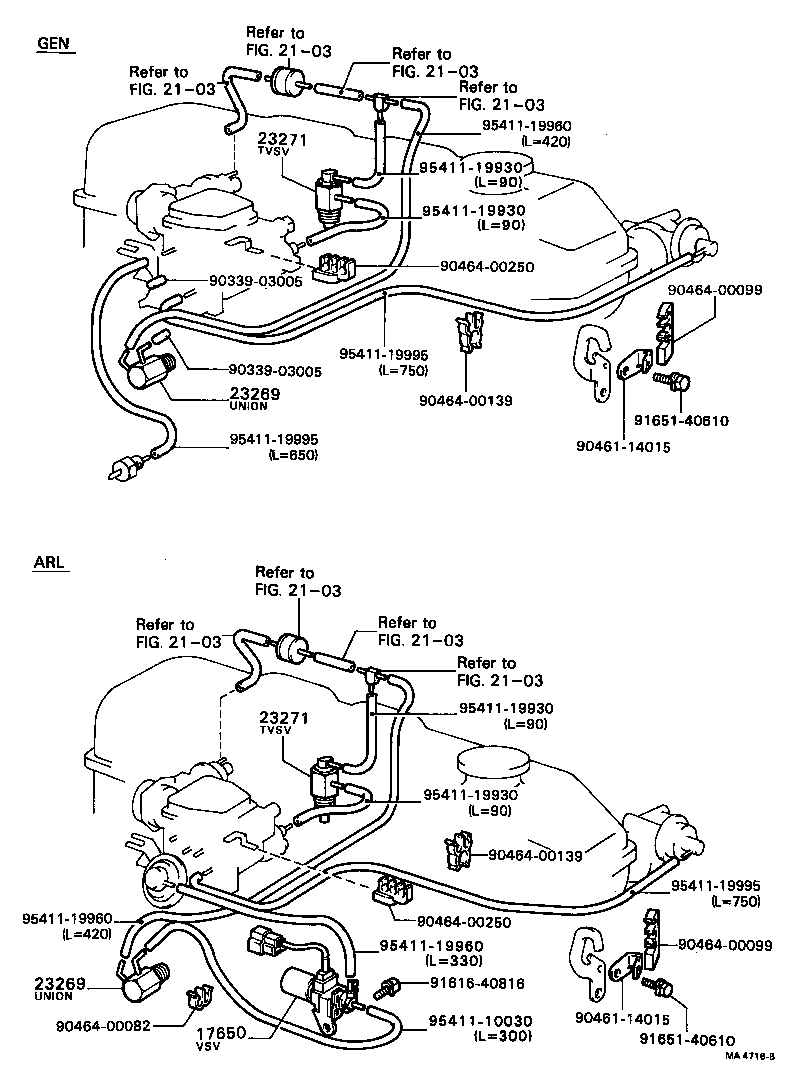

Figure MA9501 MA9501 1977-08 → — Figure MA2999E MA2999E 1977-08 → 1980-08 Figure MA3931B MA3931B 1977-08 → 1980-08 Figure MA4716B MA4716B 1980-08 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
