Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · General
Discontinued model
Data version 1982-12

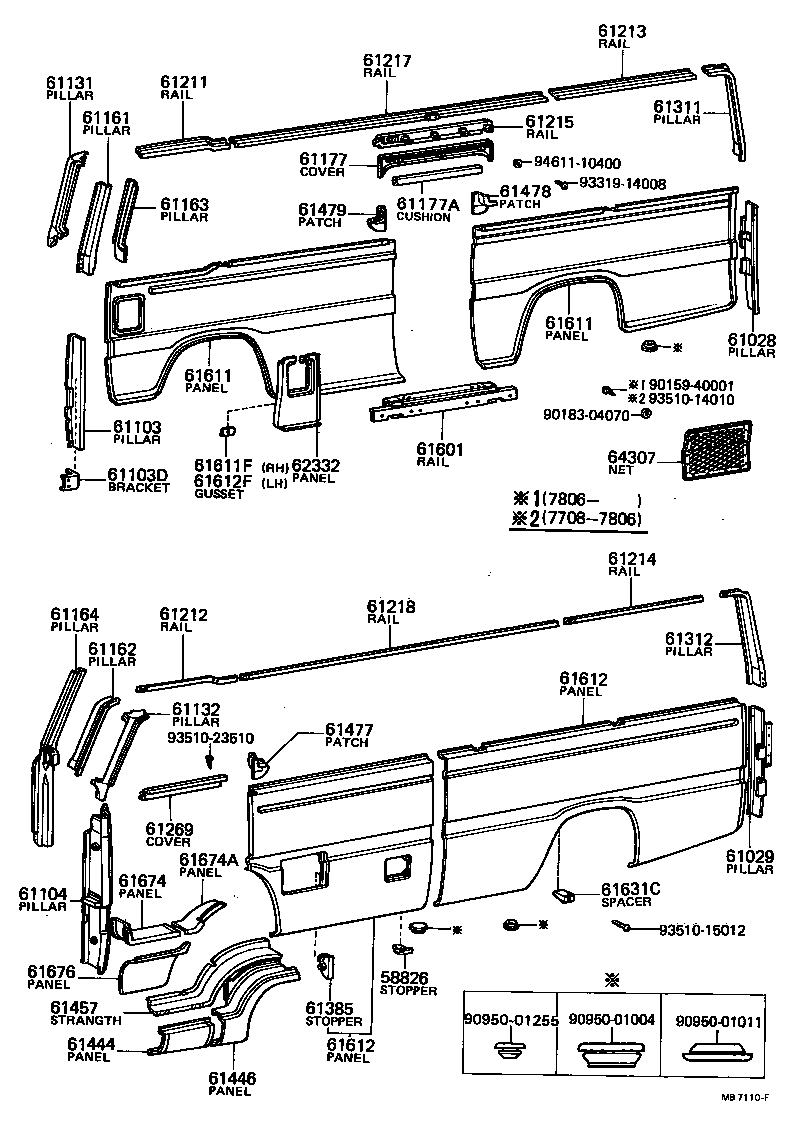

Side Member
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58826 | Stopper, Fuel Inlet Cover, Upper |
| 61028 | Pillar Sub-assy, Rear Inner, RH |
| 61029 | Pillar Sub-assy, Rear Inner, LH |
| 61103 | Pillar Sub-assy, Front Body, RH |
| 61103D | Bracket, Washer Tank, RH |
| 61104 | Pillar Sub-assy, Front Body, LH |
| 61104D | Bracket, Washer Tank, LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61161 | Pillar, Front Body, Upper Inner RH |
| 61162 | Pillar, Front Body, Upper Inner LH |
| 61163 | Pillar, Front Body, Inner RH |
| 61164 | Pillar, Front Body, Inner LH |
| 61177 | Cover, Center Door Guide |
| 61177A | Cushion, Center Door Guide |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213 | Rail, Roof Side, Outer Rear RH |
| 61214 | Rail, Roof Side, Outer Rear LH |
| 61215 | Rail, Center Door Side, RH |
| 61216 | Rail, Center Door Side, LH |
| 61217 | Rail, Roof Side, Outer Center RH |
| 61218 | Rail, Roof Side, Outer Center LH |
| 61269 | Cover, Front Door Weatherstrip Set |
| 61311 | Pillar, Rear RH |
| 61312 | Pillar, Rear LH |
| 61385 | Stopper, Air Cleaner Service Hole Cover |
| 61443 | Panel, Step Side Under Front, RH |
| 61444 | Panel, Step Side Under, Front LH |
| 61445 | Panel, Step Side, Rear RH |
| 61446 | Panel, Step Side, Rear LH |
| 61456 | Strangth, Step, RH |
| 61457 | Strangth, Step, LH |
| 61476 | Patch, Front Door Pillar, RH |
| 61477 | Patch, Front Door Pillar, LH |
| 61478 | Patch, Center Door Pillar |
| 61479 | Patch, Center Door Pillar |
| 61601 | Rail Sub-assy, Center Door, Under |
| 61611 | Panel, Quarter, RH |
| 61611F | Gusset, Quarter Panel, Lower RH |
| 61612 | Panel, Quarter, LH |
| 61612F | Gusset, Quarter Panel, Lower LH |
| 61631C | Spacer(FOR QUARTER WHEEL HOUSE) |
| 61673 | Panel, Front Door Step Front, RH |
| 61673A | Panel, Front Door Step, Rear RH |
| 61674 | Panel, Front Door Step, Front LH |
| 61674A | Panel, Front Door Step, Rear LH |
| 61675 | Panel, Front Door Step Side, RH |
| 61676 | Panel, Front Door Step Side, LH |
| 62332 | Panel Sub-assy, Side Lower Window |
| 64307 | Net Sub-assy, Condenser Air Guide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
