Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · General

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

8 part groups · 7 illustrations

Illustrations

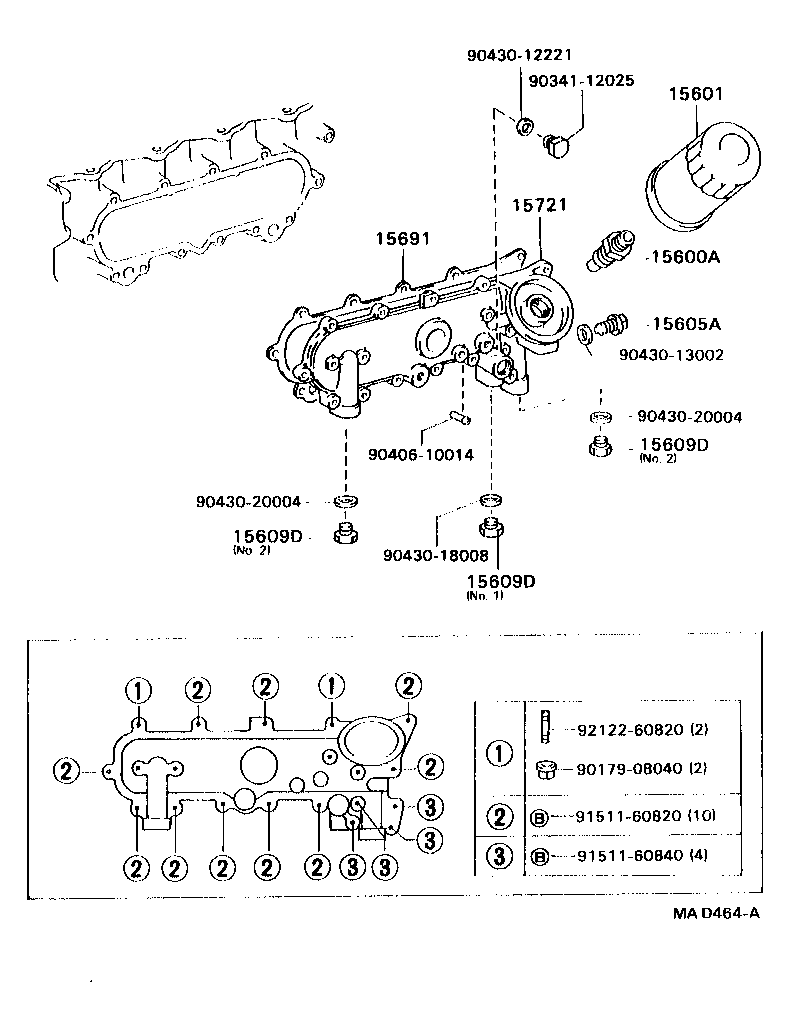

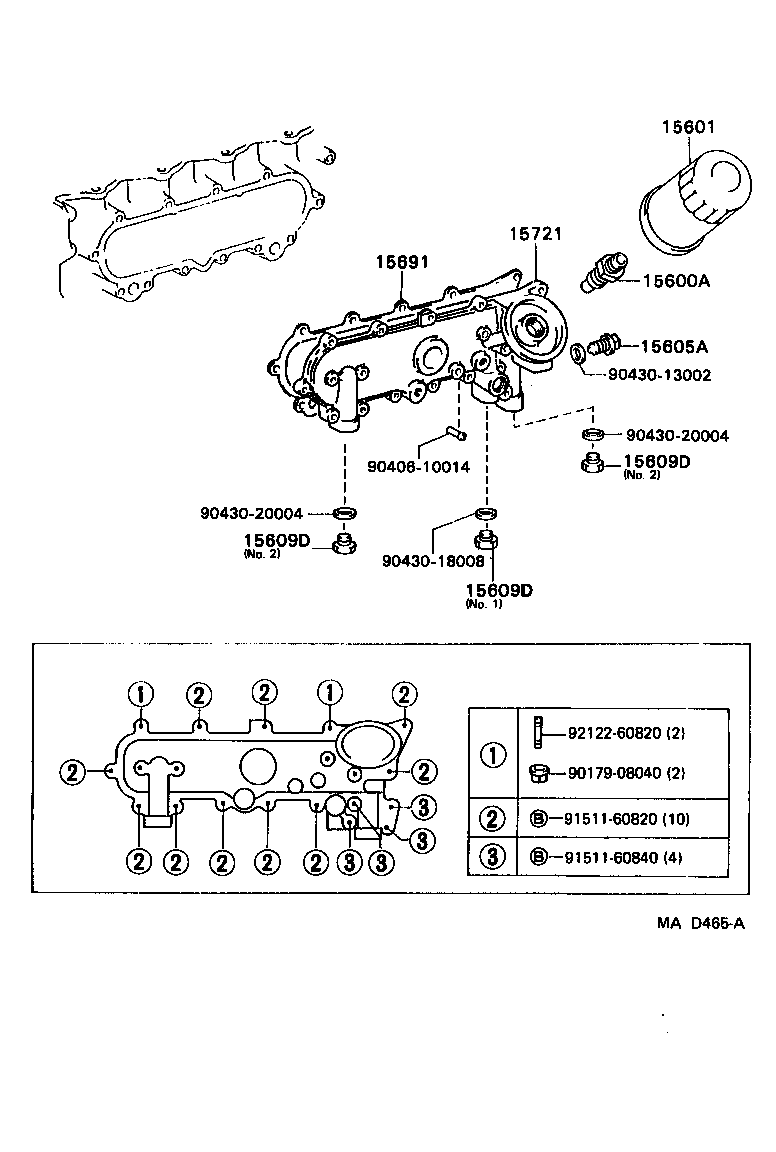

Figure MA4683E MA4683E 1982-05 → 1988-08 Figure MAB470A MAB470A 1988-08 → — Figure MA9238A MA9238A 1986-10 → — Figure MA7933 MA7933 1986-10 → 1990-01 Figure MAD465A MAD465A 1990-01 → — Figure MAD464A MAD464A 1990-01 → — Figure MA1395D MA1395D 1982-05 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15605A Valve Sub-assy, Oil Check
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15621 Gasket, Oil Filter Body
15691 Gasket, Oil Filter
15721 Cover, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
