Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

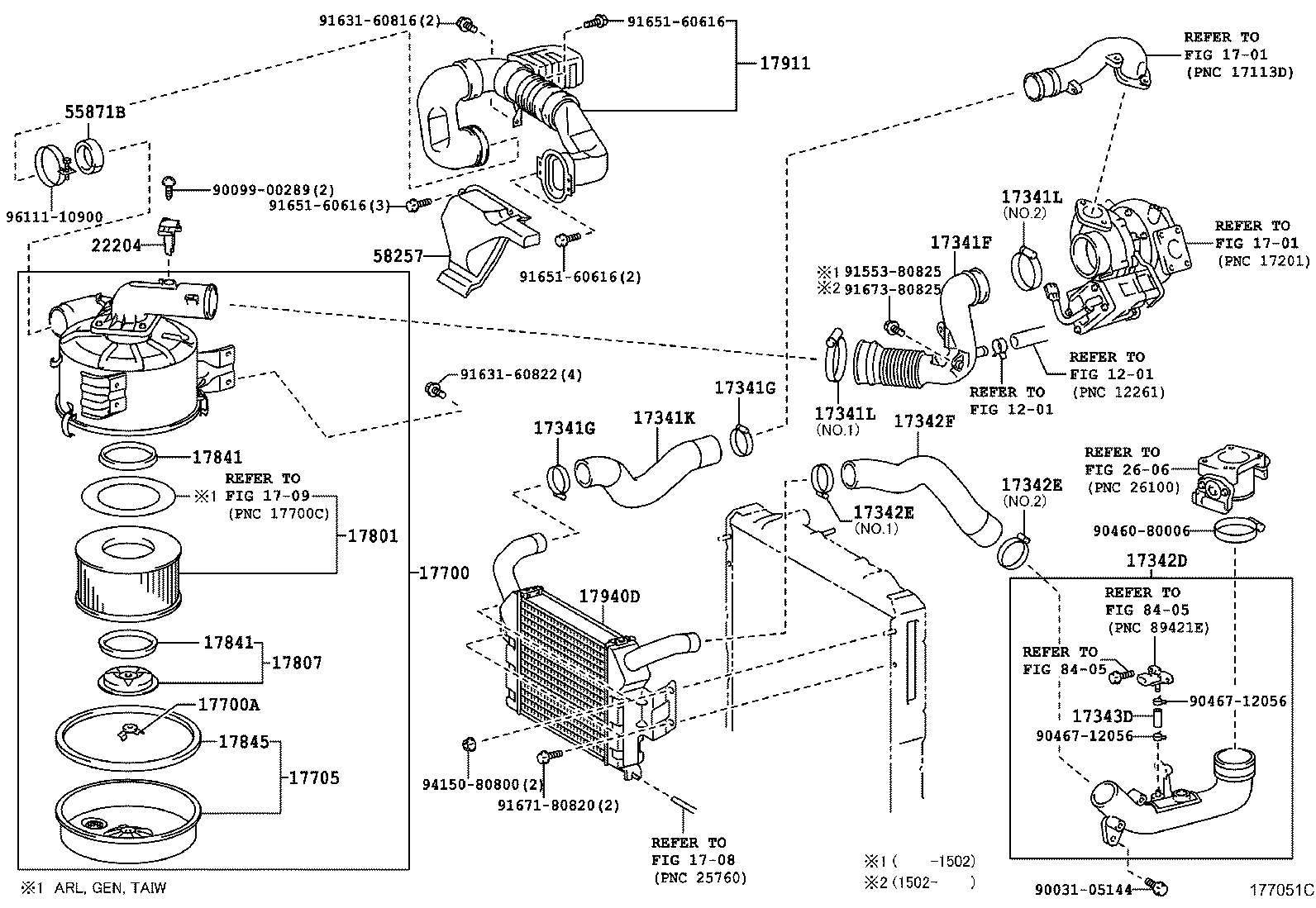

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17341F — Hose, Air, NO.1 | ||||
| 17341-58080 |
Hose, Air, NO.1
1996-05 → 1999-07
ended
|
15BFT BB50 RHD IV | — | |
| 17341-58090 |
Hose, Air, NO.1
1996-05 → 1999-07
ended
|
15BFT BB50 LHD EUR | — | |
| 17341-58111 |
Hose, Air, NO.1
1997-05 → 1999-06
ended
|
15BFT BB43,50 RHD CBU | — | |
| 17341-58121 |
Hose, Air, NO.1
1997-05 → 1999-06
ended
|
15BFT BB5# STD GEN | — | |
| 17341-58170 |
Hose, Air, NO.1
1999-06 → 1999-07
ended
|
15BFT BB43,50 RHD CBU | — | |
| 17341-58180 |
Hose, Air, NO.1
1999-06 → 1999-07
ended
|
15BFT BB5# STD GEN | — | |
| 17341-75050 |
Hose, Air, NO.1
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17341-48020 |
Hose, Air, NO.1
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17341-58160 |
Hose, Air, NO.1
1999-07 → 2004-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17341-58170 |
Hose, Air, NO.1
1999-07 → 2001-08
ended
|
15BFT BB43,50 RHD 5F | — | |
| 17341-58170 |
Hose, Air, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 RHD 6F | — | |
| 17341-58180 |
Hose, Air, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +5 | — | |
| 17341-58180 |
Hose, Air, NO.1
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +3 | — | |
| 17341-58180 |
Hose, Air, NO.1
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17341-58180 |
Hose, Air, NO.1
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17341-58250 |
Hose, Air, NO.1
2001-05 → 2004-08
ended
|
15BFTE BB50,59 RHD | — | |
| 17341-75110 |
Hose, Air, NO.1
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17341-75110 |
Hose, Air, NO.1
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17341-75110 |
Hose, Air, NO.1
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17030-78230 |
Hose, Air, NO.1
2006-08 → 2007-05
ended
|
N04C XZB5# | — | |
| 17030-78231 |
Hose, Air, NO.1
2007-06 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17030-78231 |
Hose, Air, NO.1
2007-06 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 17030-78460 |
Hose, Air, NO.1
2009-08 → 2010-07
ended
|
N04C XZB40,5# | — | |
| 17030-78490 |
Hose, Air, NO.1
2010-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17030-78490 |
Hose, Air, NO.1
2010-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17341-48020 |
Hose, Air, NO.1
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17341-48020 |
Hose, Air, NO.1
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17341-58160 |
Hose, Air, NO.1
2004-08 → 2006-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17341-58180 |
Hose, Air, NO.1
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17341-58250 |
Hose, Air, NO.1
2004-08 → 2006-08
ended
|
15BFTE BB50,59 RHD | — | |
| 17341-75110 |
Hose, Air, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17341-75110 |
Hose, Air, NO.1
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17030-78490 |
Hose, Air, NO.1
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17030-78750 |
Hose, Air, NO.1
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 17341-48020 |
Hose, Air, NO.1
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17341G — Clamp OR Clip(FOR AIR HOSE, NO.1) | ||||
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 96134-52600 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2003-01
ended
|
15BFTE BB50,59 RHD | — | |
| 90460-67004 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2003-01 → 2004-08
ended
|
15BFTE BB50,59 EX;15BFTE BB50 +2 | — | |
| 90460-67004 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2004-08
ended
|
15BFTE BB50 LHD WOC;15BFTE +4 | — | |
| 90467-38002 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2002-04
ended
|
3RZFE RZB40 22S CHI;3RZFE +6 | — | |
| 90467-38002 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 90467-38003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2002-04 → 2004-08
ended
|
3RZFE RZB40,50 GCC,GEN | — | |
| 90467-38003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2002-04 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 96134-41900 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 90460-55003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 90460-63011 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90460-63011 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90460-63011 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90460-63011 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90460-67004 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90467-38003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 90467-38003 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 96134-41900 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 96134-41900 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 90460-63011 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2015-01 → —
|
N04C XZB40,5# | — | |
| 96134-41900 |
Clamp OR Clip(FOR AIR HOSE, NO.1)
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17341K — Hose, Air, NO.1(FOR INTERCOOLER) | ||||
| 17341-58210 |
Hose, Air, NO.1(FOR INTERCOOLER)
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17341-78090 |
Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 RHD +4 | — | |
| 17341-78090 |
Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17341-78120 |
Hose, Air, NO.1(FOR INTERCOOLER)
2006-08 → 2009-08
ended
|
N04C XZB50 LHD | — | |
| 17341-78250 |
Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2013-11
ended
|
N04C XZB50 LHD IV | — | |
| 17341-78250 |
Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2015-01
ended
|
N04C XZB50 TAIW | — | |
| 17341-78260 |
Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2013-11
ended
|
N04C XZB50 RHD IV | — | |
| 17341-78260 |
Hose, Air, NO.1(FOR INTERCOOLER)
2009-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN | — | |
| 17341-78250 |
Hose, Air, NO.1(FOR INTERCOOLER)
2015-01 → —
|
N04C XZB40,50 LHD | — | |
| 17341-78260 |
Hose, Air, NO.1(FOR INTERCOOLER)
2015-01 → —
|
N04C XZB40,5# RHD | — | |
| 17341L — Clamp, Hose | ||||
| 96111-10900 note |
Clamp, Hose
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 96111-10900 note |
Clamp, Hose
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 96111-10900 note |
Clamp, Hose
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 96111-10900 note |
Clamp, Hose
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 96111-11180 note |
Clamp, Hose
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 96111-11180 note |
Clamp, Hose
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 96111-11180 note |
Clamp, Hose
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 96111-11180 note |
Clamp, Hose
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90034-60048 note |
Clamp, Hose
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 96111-10900 note |
Clamp, Hose
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 96111-11180 note |
Clamp, Hose
2015-01 → —
|
N04C XZB40,5# | — | |
| 17342D — Hose, Air, NO.2 | ||||
| 17342-58060 |
Hose, Air, NO.2
1996-05 → 1999-07
ended
|
15BFT BB50 RHD IV | — | |
| 17342-58070 |
Hose, Air, NO.2
1996-05 → 1999-07
ended
|
15BFT BB50 LHD EUR | — | |
| 17342-58090 |
Hose, Air, NO.2
1997-05 → 1999-07
ended
|
15BFT BB43,50 RHD CBU | — | |
| 17342-58100 |
Hose, Air, NO.2
1997-05 → 1999-07
ended
|
15BFT BB5# STD GEN | — | |
| 17342-58090 |
Hose, Air, NO.2
1999-07 → 2001-05
ended
|
15BFT BB50 RHD 6F | — | |
| 17342-58090 |
Hose, Air, NO.2
1999-07 → 2001-08
ended
|
15BFT BB43,50 RHD 5F | — | |
| 17342-58100 |
Hose, Air, NO.2
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +5 | — | |
| 17342-58100 |
Hose, Air, NO.2
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +3 | — | |
| 17342-58100 |
Hose, Air, NO.2
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17342-58100 |
Hose, Air, NO.2
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17342-58140 |
Hose, Air, NO.2
1999-07 → 2004-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17342-58180 |
Hose, Air, NO.2
2001-05 → 2004-08
ended
|
15BFTE BB50,59 RHD | — | |
| 17030-78370 |
Hose, Air, NO.2
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 17030-78370 |
Hose, Air, NO.2
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17030-78480 |
Hose, Air, NO.2
2009-08 → 2011-02
ended
|
N04C XZB40,5# | — | |
| 17030-78481 |
Hose, Air, NO.2
2011-03 → 2011-06
ended
|
N04C XZB40,5# | — | |
| 17030-78482 |
Hose, Air, NO.2
2011-07 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17030-78482 |
Hose, Air, NO.2
2011-07 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17342-58100 |
Hose, Air, NO.2
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17342-58140 |
Hose, Air, NO.2
2004-08 → 2006-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17342-58180 |
Hose, Air, NO.2
2004-08 → 2006-08
ended
|
15BFTE BB50,59 RHD | — | |
| 17030-78482 |
Hose, Air, NO.2
2015-01 → —
|
N04C XZB40,5# | — | |
| 17342E — Clamp OR Clip(FOR AIR HOSE, NO.2) | ||||
| 90460-65004 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2003-01
ended
|
15BFTE BB50,59 RHD | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90460-67004 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08
ended
|
15BFTE BB50 LHD WOC;15BFTE +4 | — | |
| 90460-67004 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2003-01 → 2004-08
ended
|
15BFTE BB50,59 EX;15BFTE BB50 +2 | — | |
| 90460-74002 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
1999-07 → 2004-08
ended
|
15BFTE BB50 LHD WOC;15BFTE +4 | — | |
| 90460-74002 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2003-01 → 2004-08
ended
|
15BFTE BB50,59 EX;15BFTE BB50 +2 | — | |
| 90460-63011 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90460-63011 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90460-63011 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90460-63011 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90460-65002 |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 90460-67004 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90460-67008 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90460-67008 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90460-67008 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90460-67008 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90460-74002 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90460-63011 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2015-01 → —
|
N04C XZB40,5# | — | |
| 90460-67008 note |
Clamp OR Clip(FOR AIR HOSE, NO.2)
2015-01 → —
|
N04C XZB40,5# | — | |
| 17342F — Hose, Air, NO.2(FOR INTERCOOLER) | ||||
| 17342-78050 |
Hose, Air, NO.2(FOR INTERCOOLER)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17342-78050 |
Hose, Air, NO.2(FOR INTERCOOLER)
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 RHD +4 | — | |
| 17342-78060 |
Hose, Air, NO.2(FOR INTERCOOLER)
2006-08 → 2009-08
ended
|
N04C XZB50 LHD | — | |
| 17342-78140 |
Hose, Air, NO.2(FOR INTERCOOLER)
2009-08 → 2013-11
ended
|
N04C XZB50 LHD IV | — | |
| 17342-78140 |
Hose, Air, NO.2(FOR INTERCOOLER)
2009-08 → 2015-01
ended
|
N04C XZB50 TAIW | — | |
| 17342-78150 |
Hose, Air, NO.2(FOR INTERCOOLER)
2009-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN | — | |
| 17342-78150 |
Hose, Air, NO.2(FOR INTERCOOLER)
2009-08 → 2013-11
ended
|
N04C XZB50 RHD IV | — | |
| 17342-78140 |
Hose, Air, NO.2(FOR INTERCOOLER)
2015-01 → —
|
N04C XZB40,50 LHD | — | |
| 17342-78150 |
Hose, Air, NO.2(FOR INTERCOOLER)
2015-01 → —
|
N04C XZB40,5# RHD | — | |
| 17343D — Hose, Air, NO.3 | ||||
| 17343-78020 |
Hose, Air, NO.3
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17343-78020 |
Hose, Air, NO.3
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17343-78020 |
Hose, Air, NO.3
2006-08 → 2011-07
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| SZ920-33220 |
Hose, Air, NO.3
2011-07 → 2013-11
ended
|
N04C XZB50 IV | — | |
| SZ920-33220 |
Hose, Air, NO.3
2011-07 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| SZ920-33220 |
Hose, Air, NO.3
2015-01 → —
|
N04C XZB40,5# | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-17150 |
Cleaner Assy, Air
1993-01 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17700-17160 |
Cleaner Assy, Air
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17700-58390 |
Cleaner Assy, Air
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17700-58580 |
Cleaner Assy, Air
1996-05 → 1999-07
ended
|
15BFT BB50 EUR | — | |
| 17700-58630 |
Cleaner Assy, Air
1997-05 → 1999-07
ended
|
15BFT BB43,5# GEN | — | |
| 17700-75060 note |
Cleaner Assy, Air
1995-05 → 1997-05
ended
|
3RZF RZB40,50 GEN | — | |
| 17700-75060 note |
Cleaner Assy, Air
1993-09 → 1995-05
ended
|
3RZF RZB40 HRF GEN;3RZF +3 | — | |
| 17700-75060 note |
Cleaner Assy, Air
1993-09 → 1995-05
ended
|
3RZF RZB50 GEN;3RZF RZB40 +3 | — | |
| 17700-75061 note |
Cleaner Assy, Air
1997-05 → 1999-07
ended
|
3RZF RZB40,50 GEN | — | |
| 17700-75080 |
Cleaner Assy, Air
1993-09 → 1997-05
ended
|
3RZF RZB40,50 | — | |
| 17700-75081 |
Cleaner Assy, Air
1997-05 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17700-17240 |
Cleaner Assy, Air
1999-07 → 2001-05
ended
|
15BFT BB50 IV 6F | — | |
| 17700-17240 |
Cleaner Assy, Air
1999-07 → 2004-08
ended
|
15BFTE BB50 IV | — | |
| 17700-17260 |
Cleaner Assy, Air
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17700-17260 |
Cleaner Assy, Air
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17700-17260 |
Cleaner Assy, Air
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17700-48140 |
Cleaner Assy, Air
2001-08 → 2002-03
ended
|
1BZFPE BZB40 | — | |
| 17700-48141 |
Cleaner Assy, Air
2002-03 → 2003-03
ended
|
1BZFPE BZB40,50 | — | |
| 17700-48142 |
Cleaner Assy, Air
2003-03 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17700-58680 |
Cleaner Assy, Air
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17700-58680 |
Cleaner Assy, Air
1999-07 → 2004-08
ended
|
15BFTE BB5# ARL,GEN;15BFT BB50 +4 | — | |
| 17700-58680 |
Cleaner Assy, Air
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +2 | — | |
| 17700-58680 |
Cleaner Assy, Air
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17700-58690 |
Cleaner Assy, Air
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17700-58690 |
Cleaner Assy, Air
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17700-75320 |
Cleaner Assy, Air
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17700-75320 |
Cleaner Assy, Air
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17700-75320 |
Cleaner Assy, Air
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17700-17240 |
Cleaner Assy, Air
2004-08 → 2006-08
ended
|
15BFTE BB50 IV | — | |
| 17700-17260 |
Cleaner Assy, Air
2004-08 → 2009-08
ended
|
1HZ HZB50 | — | |
| 17700-17261 |
Cleaner Assy, Air
2009-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17700-48142 |
Cleaner Assy, Air
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17700-48142 |
Cleaner Assy, Air
2004-08 → 2013-08
ended
|
1BZFPE BZB40,50 STD | — | |
| 17700-48152 |
Cleaner Assy, Air
2013-08 → 2015-01
ended
|
1BZFPE BZB40,50 | — | |
| 17700-58680 |
Cleaner Assy, Air
2004-08 → 2006-08
ended
|
15BFTE BB5# ARL,GEN | — | |
| 17700-58680 |
Cleaner Assy, Air
2004-08 → 2009-08
ended
|
15BFT BB50 | — | |
| 17700-58681 |
Cleaner Assy, Air
2009-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17700-58690 |
Cleaner Assy, Air
2004-08 → 2009-08
ended
|
14B BB42 | — | |
| 17700-58691 |
Cleaner Assy, Air
2009-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17700-58691 |
Cleaner Assy, Air
2009-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17700-75320 |
Cleaner Assy, Air
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17700-75320 |
Cleaner Assy, Air
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17700-75490 |
Cleaner Assy, Air
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17700-78300 |
Cleaner Assy, Air
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17700-78310 |
Cleaner Assy, Air
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17700-78310 |
Cleaner Assy, Air
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17700-78310 |
Cleaner Assy, Air
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17700-17261 |
Cleaner Assy, Air
2015-01 → —
|
1HZ HZB50 | — | |
| 17700-48152 |
Cleaner Assy, Air
2015-01 → 2016-12
ended
|
1BZFPE BZB40,50 | — | |
| 17700-58691 |
Cleaner Assy, Air
2015-01 → —
|
14B BB42 | — | |
| 17700-75490 |
Cleaner Assy, Air
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17700-78310 |
Cleaner Assy, Air
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17700-78410 |
Cleaner Assy, Air
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1993-01 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
2002-03 → 2003-03
ended
|
1BZFPE BZB40,50 | — | |
| 90175-06019 note |
Nut, Wing(FOR AIR CLEANER)
2003-03 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2002-03 → 2004-08
ended
|
14B,15B# BB42,5# ARL,EUR,GCC,GEN | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
2002-03 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2002-03
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40;15BFT +16 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2002-03 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 90175-06019 note |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 90175-06019 note |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01
ended
|
15BFT BB50;14B BB42 RHD;14B +3 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90175-06019 note |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
1HZ HZB50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
N04C XZB40,5# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2015-01 → —
|
14B BB42 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-17060 |
Cap Sub-assy, Air Cleaner
1993-01 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17705-17060 |
Cap Sub-assy, Air Cleaner
1997-05 → 1999-07
ended
|
15BFT BB43,5# GEN | — | |
| 17705-17070 |
Cap Sub-assy, Air Cleaner
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17705-17070 |
Cap Sub-assy, Air Cleaner
1996-05 → 1999-07
ended
|
15BFT BB50 EUR | — | |
| 17705-75030 note |
Cap Sub-assy, Air Cleaner
1993-09 → 1995-05
ended
|
3RZF RZB40 HRF GEN;3RZF +3 | — | |
| 17705-75030 note |
Cap Sub-assy, Air Cleaner
1993-09 → 1995-05
ended
|
3RZF RZB50 GEN;3RZF RZB40 +3 | — | |
| 17705-75030 note |
Cap Sub-assy, Air Cleaner
1995-05 → 1997-05
ended
|
3RZF RZB40,50 GEN | — | |
| 17705-75060 |
Cap Sub-assy, Air Cleaner
1993-09 → 1997-05
ended
|
3RZF RZB40,50 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2004-08
ended
|
15BFTE BB5#;15BFT BB50 STD +3 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17705-48090 |
Cap Sub-assy, Air Cleaner
2003-03 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17705-58310 |
Cap Sub-assy, Air Cleaner
2002-03 → 2003-03
ended
|
1BZFPE BZB40,50 | — | |
| 17705-58350 |
Cap Sub-assy, Air Cleaner
1999-07 → 2000-12
ended
|
14B BB42 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2000-12 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2000-12 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2000-12 → 2002-03
ended
|
1BZFPE BZB40 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17705-48090 |
Cap Sub-assy, Air Cleaner
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17705-48090 |
Cap Sub-assy, Air Cleaner
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
N04C XZB40,5# | — | |
| 17705-17180 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
1HZ HZB50 | — | |
| 17705-48090 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
14B BB42 | — | |
| 17705-58360 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17801-58030 |
Element Sub-assy, Air Cleaner Filter
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1993-01 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17801-68030 |
Element Sub-assy, Air Cleaner Filter
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17801-58030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-05
ended
|
15BFT BB50 IV 6F | — | |
| 17801-58030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08
ended
|
15BFTE BB50 IV | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08
ended
|
15BFTE BB5# ARL,GEN;15BFT BB50 +4 | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +2 | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17801-56050 |
Element Sub-assy, Air Cleaner Filter
2013-08 → 2015-01
ended
|
1BZFPE BZB40,50 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2013-08
ended
|
1BZFPE BZB40,50 STD | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17801-58030 |
Element Sub-assy, Air Cleaner Filter
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17801-58030 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08
ended
|
15BFTE BB50 IV | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-08
ended
|
15BFTE BB5# ARL,GEN | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17801-56050 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
14B BB42 | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17801-58040 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
N04C XZB40,5# | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
1HZ HZB50 | — | |
| 17807 — Plate Sub-assy, Air Cleaner Filter Set | ||||
| 17807-56011 |
Plate Sub-assy, Air Cleaner Filter Set
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17807-68010 |
Plate Sub-assy, Air Cleaner Filter Set
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 17807-68010 |
Plate Sub-assy, Air Cleaner Filter Set
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17807-68010 |
Plate Sub-assy, Air Cleaner Filter Set
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08
ended
|
15BFTE BB5#;15BFT BB50 STD +3 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01
ended
|
14B BB42 LHD SRF;14B,1BZFPE +3 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17807-56020 |
Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
|
N04C XZB40,5# | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2015-01 → —
|
1HZ HZB50 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-44030 |
Gasket, Filter Element
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17841-68010 |
Gasket, Filter Element
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 17841-68010 |
Gasket, Filter Element
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17841-68010 |
Gasket, Filter Element
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17841-44030 |
Gasket, Filter Element
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17841-44030 |
Gasket, Filter Element
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17841-44030 |
Gasket, Filter Element
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2004-08
ended
|
15BFTE BB5#;15BFT BB50 STD +3 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17841-68010 |
Gasket, Filter Element
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17841-44030 |
Gasket, Filter Element
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17841-44030 |
Gasket, Filter Element
2004-08 → 2015-01
ended
|
14B BB42 LHD SRF;14B,1BZFPE +3 | — | |
| 17841-44030 |
Gasket, Filter Element
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17841-44030 |
Gasket, Filter Element
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17841-68010 |
Gasket, Filter Element
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17841-68010 |
Gasket, Filter Element
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17841-68010 |
Gasket, Filter Element
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17841-68010 |
Gasket, Filter Element
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17841-68010 |
Gasket, Filter Element
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17841-68010 |
Gasket, Filter Element
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17841-68010 |
Gasket, Filter Element
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17841-68010 |
Gasket, Filter Element
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17841-68010 |
Gasket, Filter Element
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17841-44030 |
Gasket, Filter Element
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17841-44030 |
Gasket, Filter Element
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 17841-68010 |
Gasket, Filter Element
2015-01 → —
|
N04C XZB40,5# | — | |
| 17841-68010 |
Gasket, Filter Element
2015-01 → —
|
1HZ HZB50 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-17010 |
Gasket, Air Cleaner Cap
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17845-17010 |
Gasket, Air Cleaner Cap
1994-11 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 17845-17010 |
Gasket, Air Cleaner Cap
1994-11 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17845-68020 |
Gasket, Air Cleaner Cap
1993-01 → 1994-11
ended
|
1HZ# HZB50 | — | |
| 17845-68020 |
Gasket, Air Cleaner Cap
1993-09 → 1994-11
ended
|
3RZF RZB40,50 | — | |
| 17845-48020 |
Gasket, Air Cleaner Cap
2003-03 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2000-12 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2000-12 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2000-12 → 2003-03
ended
|
1BZFPE BZB40,50 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2004-08
ended
|
15BFTE BB5#;15BFT BB50 STD +3 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17845-48020 |
Gasket, Air Cleaner Cap
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17845-48020 |
Gasket, Air Cleaner Cap
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17845-48020 |
Gasket, Air Cleaner Cap
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
2015-01 → —
|
14B BB42 | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2015-01 → —
|
N04C XZB40,5# | — | |
| 17845-58010 |
Gasket, Air Cleaner Cap
2015-01 → —
|
1HZ HZB50 | — | |
| 17911 — Duct, Cool Air Intake, NO.1 | ||||
| 52810-36020 |
Duct, Cool Air Intake, NO.1
2011-08 → 2015-01
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 52810-36030 |
Duct, Cool Air Intake, NO.1
2011-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 52810-36030 |
Duct, Cool Air Intake, NO.1
2011-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 52810-36030 |
Duct, Cool Air Intake, NO.1
2011-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 52810-36020 |
Duct, Cool Air Intake, NO.1
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 52810-36030 |
Duct, Cool Air Intake, NO.1
2015-01 → —
|
1HZ HZB50 | — | |
| 52810-36030 |
Duct, Cool Air Intake, NO.1
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 52810-36040 |
Duct, Cool Air Intake, NO.1
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 17940D — Intercooler Assy | ||||
| 17940-58050 |
Intercooler Assy
1996-05 → 1999-07
ended
|
15BFT BB50 EUR | — | |
| 17940-58070 |
Intercooler Assy
1997-05 → 1999-07
ended
|
15BFT BB43,5# GEN | — | |
| 17940-58070 |
Intercooler Assy
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17940-58070 |
Intercooler Assy
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17940-58070 |
Intercooler Assy
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17940-58070 |
Intercooler Assy
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17940-58110 |
Intercooler Assy
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17940-58070 |
Intercooler Assy
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17940-58110 |
Intercooler Assy
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17940-78090 |
Intercooler Assy
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 17940-78090 |
Intercooler Assy
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17940-78150 |
Intercooler Assy
2009-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17940-78150 |
Intercooler Assy
2009-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17940-78150 |
Intercooler Assy
2015-01 → —
|
N04C XZB40,5# | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-30010 |
Meter Sub-assy, Intake Air Flow
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 22204-30010 |
Meter Sub-assy, Intake Air Flow
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 22204-30010 |
Meter Sub-assy, Intake Air Flow
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 22204-30010 |
Meter Sub-assy, Intake Air Flow
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 22204-75030 |
Meter Sub-assy, Intake Air Flow
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 22204-30010 |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 22204-30020 |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 22204-75030 |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 55871B — Seal, Air Duct | ||||
| 55871-36020 |
Seal, Air Duct
1993-01 → 1999-07
ended
|
HZB50 | — | |
| 55871-36020 |
Seal, Air Duct
1993-01 → 1999-07
ended
|
BB4#,5# | — | |
| 55871-36020 |
Seal, Air Duct
1993-09 → 1999-07
ended
|
RZB40,50 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2004-08
ended
|
BB42 .6F WC TDEFI;BB50 +13 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2004-08
ended
|
HZB50 LHD EX;HZB50 LHD +7 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2001-08
ended
|
BB50 S WOC 5F;BB50 +8 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2004-08
ended
|
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2002-11
ended
|
BB50 CHI | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;HZB50 RHD +5 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2001-08
ended
|
RZB40 WOC GCC;RZB40 22S +1 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 55871-36020 |
Seal, Air Duct
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 55871-36020 |
Seal, Air Duct
2006-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 55871-36020 |
Seal, Air Duct
2007-08 → 2015-01
ended
|
TRB40,50 | — | |
| 55871-36020 |
Seal, Air Duct
2006-08 → 2015-01
ended
|
XZB40,59;XZB50 (20S,21S) WC | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50 +2 | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2015-01
ended
|
HZB50 | — | |
| 55871-36020 |
Seal, Air Duct
2006-08 → 2013-11
ended
|
XZB50 IV | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 55871-36020 |
Seal, Air Duct
2006-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 55871-36020 |
Seal, Air Duct
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 55871-36020 |
Seal, Air Duct
2015-01 → —
|
HZB50 | — | |
| 55871-36020 |
Seal, Air Duct
2015-01 → —
|
BB42,BZB40,50 | — | |
| 55871-36020 |
Seal, Air Duct
2015-01 → —
|
TRB40,50 | — | |
| 55871-36020 |
Seal, Air Duct
2015-01 → —
|
XZB40,5# | — | |
| 58257 — Plate, Air Cleaner House | ||||
| 58257-36020 |
Plate, Air Cleaner House
1993-01 → 1999-07
ended
|
HZB50 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1993-09 → 1999-07
ended
|
RZB40,50 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1996-05 → 1999-07
ended
|
BB43,5# | — | |
| 58257-36030 |
Plate, Air Cleaner House
1993-01 → 1999-07
ended
|
BB40,42 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;HZB50 RHD +5 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2004-08
ended
|
BB58,59;BB50 EX TDEFI;BB50 (EUR,GEN) +4 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2004-08
ended
|
HZB50 LHD EX;HZB50 LHD +7 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2004-08
ended
|
RZB40 WOC GEN;RZB40,50 (17S,26S,30S) +2 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2002-11
ended
|
BB50 CHI | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB50 CBU +3 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2001-08
ended
|
RZB40 WOC GCC;RZB40 22S +1 | — | |
| 58257-36020 |
Plate, Air Cleaner House
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 58257-36030 |
Plate, Air Cleaner House
1999-07 → 2001-08
ended
|
BB42 22S;BB42 WOC GCC;BB42 +3 | — | |
| 58257-36030 |
Plate, Air Cleaner House
1999-07 → 2004-08
ended
|
BB42 WC WC GCC;BB42 +7 | — | |
| 58257-36020 |
Plate, Air Cleaner House
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 58257-36020 |
Plate, Air Cleaner House
2006-08 → 2007-08
ended
|
XZB5# | — | |
| 58257-36020 |
Plate, Air Cleaner House
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 58257-36020 |
Plate, Air Cleaner House
2004-08 → 2007-08
ended
|
HZB50 | — | |
| 58257-36020 |
Plate, Air Cleaner House
2004-08 → 2007-08
ended
|
BB50 TD | — | |
| 58257-36020 |
Plate, Air Cleaner House
2004-08 → 2006-08
ended
|
BB5# TDEFI | — | |
| 58257-36030 |
Plate, Air Cleaner House
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 58257-36030 |
Plate, Air Cleaner House
2004-08 → 2007-08
ended
|
BB42,BZB40,50 STD | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2013-11
ended
|
XZB50 IV | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2015-01
ended
|
BB50 | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2015-01
ended
|
HZB50 | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2015-01
ended
|
TRB40,50 | — | |
| 58257-36050 |
Plate, Air Cleaner House
2007-08 → 2015-01
ended
|
XZB40,59;XZB50 (20S,21S) WC | — | |
| 58257-36070 |
Plate, Air Cleaner House
2007-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 58257-36070 |
Plate, Air Cleaner House
2007-08 → 2015-01
ended
|
BB42 LHD SRF;BB42,BZB40,50 RHD | — | |
| 58257-36050 |
Plate, Air Cleaner House
2015-01 → —
|
XZB40,5# | — | |
| 58257-36050 |
Plate, Air Cleaner House
2015-01 → —
|
HZB50 | — | |
| 58257-36050 |
Plate, Air Cleaner House
2015-01 → —
|
TRB40,50 | — | |
| 58257-36070 |
Plate, Air Cleaner House
2015-01 → —
|
BB42,BZB40,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
