Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

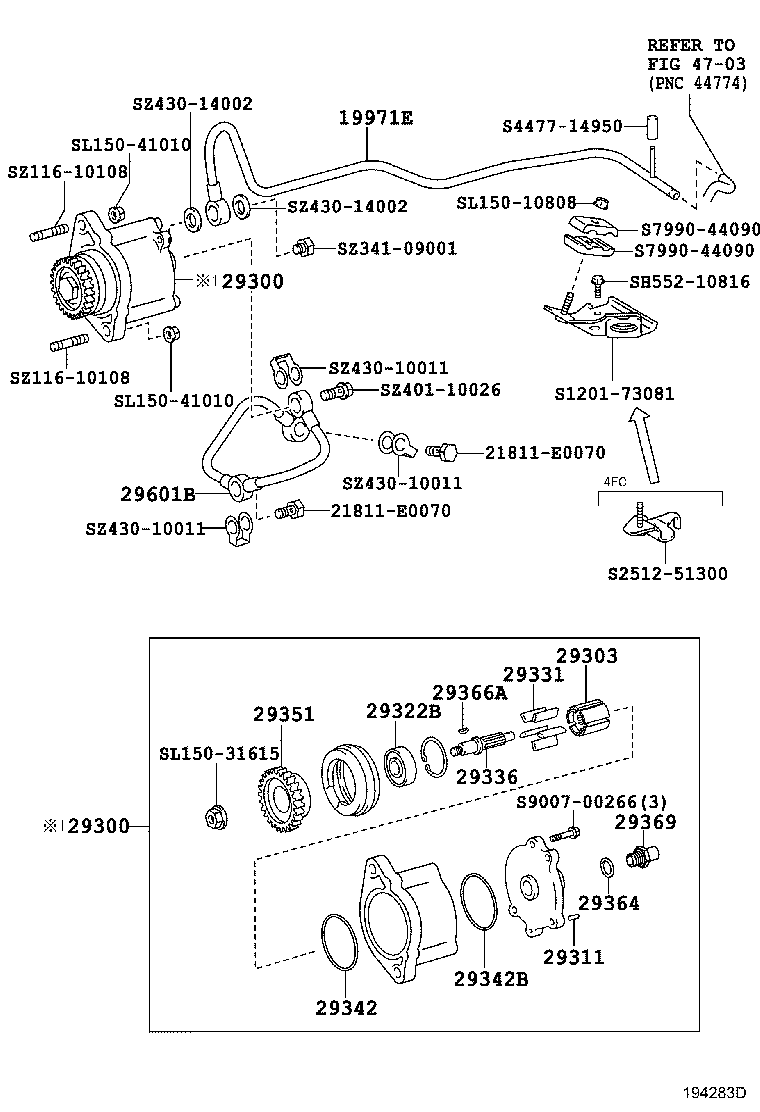

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19971E — Pipe, Vacuum | ||||
| 19971-78220 note |
Pipe, Vacuum
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 19971-78220 note |
Pipe, Vacuum
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 19971-78260 note |
Pipe, Vacuum
2009-08 → 2011-06
ended
|
N04C XZB40,5# | — | |
| 87207-E0081 note |
Pipe, Vacuum
2011-06 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 87207-E0081 note |
Pipe, Vacuum
2011-06 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 87207-E0081 |
Pipe, Vacuum
2015-01 → —
|
N04C XZB40,5# | — | |
| 29300 — Pump Assy, Vacuum | ||||
| 29300-17010 |
Pump Assy, Vacuum
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 29300-58030 |
Pump Assy, Vacuum
1996-05 → 1999-02
ended
|
15BFT BB50 EUR;15BFT BB43,50 +1 | — | |
| 29300-58050 |
Pump Assy, Vacuum
1993-01 → 1999-02
ended
|
15BFT BB50 GEN IV;14B,15BFT,3B +1 | — | |
| 29300-58060 |
Pump Assy, Vacuum
1999-02 → 1999-07
ended
|
15BFT BB50 GEN IV;14B,15BFT,3B +1 | — | |
| 29300-58070 |
Pump Assy, Vacuum
1999-02 → 1999-07
ended
|
15BFT BB50 EUR;15BFT BB43,50 +1 | — | |
| 29300-17010 |
Pump Assy, Vacuum
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29300-17010 |
Pump Assy, Vacuum
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29300-17010 |
Pump Assy, Vacuum
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29300-58040 |
Pump Assy, Vacuum
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 29300-58060 |
Pump Assy, Vacuum
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +9 | — | |
| 29300-58060 |
Pump Assy, Vacuum
1999-07 → 2004-08
ended
|
14B ZB40,50 BB42 HRF +12 | — | |
| 29300-58060 |
Pump Assy, Vacuum
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +2 | — | |
| 29300-58070 |
Pump Assy, Vacuum
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29300-58070 |
Pump Assy, Vacuum
1999-07 → 2001-08
ended
|
15BFT BB50 CBU 6F;15BFT +3 | — | |
| 29300-58070 |
Pump Assy, Vacuum
1999-07 → 2001-05
ended
|
15BFT BB50 IV 6F | — | |
| 29300-58070 |
Pump Assy, Vacuum
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 29300-17010 |
Pump Assy, Vacuum
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 29300-58040 |
Pump Assy, Vacuum
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 29300-58060 |
Pump Assy, Vacuum
2004-08 → 2015-01
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 29300-58070 |
Pump Assy, Vacuum
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 29300-78060 |
Pump Assy, Vacuum
2006-08 → 2010-10
ended
|
N04C XZB40,5# | — | |
| 29300-78061 |
Pump Assy, Vacuum
2010-10 → 2012-02
ended
|
N04C XZB40,5# | — | |
| 29300-E0051 |
Pump Assy, Vacuum
2013-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 29300-E0100 |
Pump Assy, Vacuum
2012-02 → 2013-09
ended
|
N04C XZB40,5# | — | |
| 29300-17010 |
Pump Assy, Vacuum
2015-01 → 2016-12
ended
|
1HZ HZB50 | — | |
| 29300-58060 |
Pump Assy, Vacuum
2015-01 → 2016-12
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 29300-E0051 |
Pump Assy, Vacuum
2015-01 → 2015-05
ended
|
N04C XZB40,5# | — | |
| 29300-E0090 |
Pump Assy, Vacuum
2015-06 → 2016-12
ended
|
N04C XZB40,5# | — | |
| 29303 — Rotor Sub-assy, Vacuum Pump | ||||
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
1999-02 → 1999-07
ended
|
15BFT BB50 EUR;15BFT BB43,50 +1 | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2004-08
ended
|
14B GEN BB42 CBU +16 | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29337-58040 |
Rotor Sub-assy, Vacuum Pump
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 29337-58040 |
Rotor Sub-assy, Vacuum Pump
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| S2930-31020 |
Rotor Sub-assy, Vacuum Pump
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S2930-31020 |
Rotor Sub-assy, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29303-67020 |
Rotor Sub-assy, Vacuum Pump
2015-01 → 2016-12
ended
|
1HZ HZB50 | — | |
| 29303-EV020 |
Rotor Sub-assy, Vacuum Pump
2015-06 → 2016-12
ended
|
N04C XZB40,5# | — | |
| 29337-27010 |
Rotor Sub-assy, Vacuum Pump
2015-01 → 2016-12
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| S2930-31020 |
Rotor Sub-assy, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29311 — Pin, Vacuum Pump Dowel, NO.1 | ||||
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1999-07 → 2001-08
ended
|
14B ;1HZ 50 BB42 +22 | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1999-07 → 2004-08
ended
|
14B B BB50 BB42 +28 | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
2004-08 → 2015-01
ended
|
N04C HZB50 XZB50 WOC +5 | — | |
| SM212-00518 |
Pin, Vacuum Pump Dowel, NO.1
2013-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
2015-01 → 2016-12
ended
|
14B,1BZFPE,1HZ BB42,BZB40,50,HZB50 | — | |
| SM212-00518 |
Pin, Vacuum Pump Dowel, NO.1
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29322B — Bearing, Vacuum Pump | ||||
| 90099-10185 |
Bearing, Vacuum Pump
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 90099-10185 |
Bearing, Vacuum Pump
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 90099-10185 |
Bearing, Vacuum Pump
1999-07 → 2004-08
ended
|
14B B BB50 BB42 +28 | — | |
| 90099-10185 |
Bearing, Vacuum Pump
1999-07 → 2001-08
ended
|
14B ;1HZ 50 BB42 +22 | — | |
| 90099-10185 |
Bearing, Vacuum Pump
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2008-05
ended
|
1BZFPE BZB40,50 STD | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +3 | — | |
| S2917-21160 |
Bearing, Vacuum Pump
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S2917-21160 |
Bearing, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 90099-10185 |
Bearing, Vacuum Pump
2015-01 → —
|
14B,1BZFPE,1HZ BB42,BZB40,50,HZB50 | — | |
| S2917-21160 |
Bearing, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29331 — Blade, Vacuum Pump, A | ||||
| 29331-27010 |
Blade, Vacuum Pump, A
1999-02 → 1999-07
ended
|
15BFT BB50 EUR;15BFT BB43,50 +1 | — | |
| 29331-58050 |
Blade, Vacuum Pump, A
1993-01 → 1994-05
ended
|
1HZ# HZB50 | — | |
| 29331-58050 |
Blade, Vacuum Pump, A
1993-01 → 1994-05
ended
|
14B,3B BB4# | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
1999-02 → 1999-07
ended
|
15BFT BB50 GEN IV;14B,15BFT,3B,1HZ +1 | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
1994-05 → 1999-02
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
1999-07 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| S2933-11100 |
Blade, Vacuum Pump, A
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S2933-11100 |
Blade, Vacuum Pump, A
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29331-27010 |
Blade, Vacuum Pump, A
2015-01 → 2016-12
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 29331-67020 |
Blade, Vacuum Pump, A
2015-01 → 2016-12
ended
|
1HZ HZB50 | — | |
| 29331-EV020 |
Blade, Vacuum Pump, A
2015-06 → 2016-12
ended
|
N04C XZB40,5# | — | |
| S2933-11100 |
Blade, Vacuum Pump, A
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29336 — Shaft, Vacuum Pump | ||||
| 29336-58050 |
Shaft, Vacuum Pump
1993-01 → 1999-02
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 29336-58050 |
Shaft, Vacuum Pump
1999-02 → 1999-07
ended
|
1HZ HZB50 | — | |
| 29336-58060 |
Shaft, Vacuum Pump
1999-02 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 29336-58040 |
Shaft, Vacuum Pump
1999-07 → 1999-11
ended
|
15BFTE BB58 | — | |
| 29336-58040 |
Shaft, Vacuum Pump
1999-11 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29336-58040 |
Shaft, Vacuum Pump
1999-11 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29336-58040 |
Shaft, Vacuum Pump
1999-11 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29336-58040 |
Shaft, Vacuum Pump
1999-11 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 29336-58050 |
Shaft, Vacuum Pump
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29336-58050 |
Shaft, Vacuum Pump
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29336-58050 |
Shaft, Vacuum Pump
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29336-58060 |
Shaft, Vacuum Pump
1999-07 → 1999-11
ended
|
14B,15BFT BB4#,50 | — | |
| 29336-58040 |
Shaft, Vacuum Pump
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 29336-58040 |
Shaft, Vacuum Pump
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 29336-58040 |
Shaft, Vacuum Pump
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 29336-58050 |
Shaft, Vacuum Pump
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 29336-58050 |
Shaft, Vacuum Pump
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 29336-58050 |
Shaft, Vacuum Pump
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29336-58050 |
Shaft, Vacuum Pump
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| S2933-61030 |
Shaft, Vacuum Pump
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S2933-61030 |
Shaft, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29336-58040 |
Shaft, Vacuum Pump
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 29336-58050 |
Shaft, Vacuum Pump
2015-01 → —
|
1HZ HZB50 | — | |
| S2933-61030 |
Shaft, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29342 — Packing, Vacuum Pump | ||||
| 29343-EV020 |
Packing, Vacuum Pump
2012-02 → 2013-09
ended
|
N04C XZB40,5# | — | |
| SZ010-46050 |
Packing, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 29343-EV030 |
Packing, Vacuum Pump
2015-06 → 2016-12
ended
|
N04C XZB40,5# | — | |
| SZ010-46050 |
Packing, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29342B — Ring, O | ||||
| 29342-17010 note |
Ring, O
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 29342-58010 note |
Ring, O
1993-01 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 29342-58010 note |
Ring, O
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 29342-64010 note |
Ring, O
1993-01 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 29342-17010 note |
Ring, O
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29342-17010 note |
Ring, O
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29342-17010 note |
Ring, O
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29342-58010 note |
Ring, O
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29342-64010 note |
Ring, O
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29342-64010 note |
Ring, O
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29342-64010 note |
Ring, O
1999-07 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 29342-64010 note |
Ring, O
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29342-17010 note |
Ring, O
2004-08 → 2015-01
ended
|
N04C XZB50 WOC CBU;N04C,1HZ +3 | — | |
| 29342-17010 note |
Ring, O
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29342-58010 note |
Ring, O
2004-08 → 2012-02
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29342-58010 note |
Ring, O
2004-08 → 2015-01
ended
|
N04C XZB50 WOC CBU;N04C,1HZ +3 | — | |
| 29342-58010 note |
Ring, O
2004-08 → 2015-01
ended
|
14B,15B#,1BZFPE BB42,5#,BZB40,50 | — | |
| 29342-64010 note |
Ring, O
2004-08 → 2015-01
ended
|
14B,15B#,1BZFPE BB42,5#,BZB40,50 | — | |
| SZ010-46051 |
Ring, O
2013-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 29342-17010 note |
Ring, O
2015-01 → 2016-12
ended
|
1HZ HZB50 | — | |
| 29342-58010 note |
Ring, O
2015-01 → 2016-12
ended
|
1HZ HZB50 | — | |
| 29342-58010 note |
Ring, O
2015-01 → 2016-12
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 29342-64010 note |
Ring, O
2015-01 → 2016-12
ended
|
14B,1BZFPE BB42,BZB40,50 | — | |
| SZ010-46051 |
Ring, O
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29351 — Gear, Vacuum Pump | ||||
| 29351-17010 |
Gear, Vacuum Pump
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 29351-58050 |
Gear, Vacuum Pump
1993-01 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 29351-17010 |
Gear, Vacuum Pump
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 29351-17010 |
Gear, Vacuum Pump
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 29351-17010 |
Gear, Vacuum Pump
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 29351-58050 |
Gear, Vacuum Pump
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29351-58050 |
Gear, Vacuum Pump
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 29351-58050 |
Gear, Vacuum Pump
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 29351-58050 |
Gear, Vacuum Pump
1999-07 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 29351-17010 |
Gear, Vacuum Pump
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 29351-58050 |
Gear, Vacuum Pump
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 29351-58050 |
Gear, Vacuum Pump
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 29351-58050 |
Gear, Vacuum Pump
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 29351-78061 |
Gear, Vacuum Pump
2010-10 → 2012-02
ended
|
N04C XZB40,5# | — | |
| S1363-31050 |
Gear, Vacuum Pump
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S1363-31050 |
Gear, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29351-17010 |
Gear, Vacuum Pump
2015-01 → —
|
1HZ HZB50 | — | |
| 29351-58050 |
Gear, Vacuum Pump
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| S1363-31050 |
Gear, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29364 — Washer, Vacuum Pump | ||||
| 29364-66010 |
Washer, Vacuum Pump
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 29364-66010 |
Washer, Vacuum Pump
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29364-66010 |
Washer, Vacuum Pump
1999-07 → 2001-08
ended
|
14B ;1HZ 50 BB42 +22 | — | |
| 29364-66010 |
Washer, Vacuum Pump
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 29364-66010 |
Washer, Vacuum Pump
1999-07 → 2004-08
ended
|
14B B BB50 BB42 +28 | — | |
| 29364-66010 |
Washer, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 29364-66010 |
Washer, Vacuum Pump
2010-10 → 2012-02
ended
|
N04C XZB40,5# | — | |
| 29364-66010 |
Washer, Vacuum Pump
2004-08 → 2015-01
ended
|
14B,15B#,1BZFPE,1HZ BB42,5#,BZB40,50,HZB50 | — | |
| 29364-66010 |
Washer, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29364-66010 |
Washer, Vacuum Pump
2015-01 → 2016-12
ended
|
14B,1BZFPE,1HZ BB42,BZB40,50,HZB50 | — | |
| 29366A — Key, Vacuum Pump | ||||
| SM161-00413 |
Key, Vacuum Pump
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| SM161-00413 |
Key, Vacuum Pump
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| SM161-00413 |
Key, Vacuum Pump
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29369 — Valve Sub-assy, Check | ||||
| 29369-64030 |
Valve Sub-assy, Check
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ# BB4#,5#,HZB50 | — | |
| 29369-64030 |
Valve Sub-assy, Check
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 29369-64030 |
Valve Sub-assy, Check
1999-07 → 2001-08
ended
|
14B ;1HZ 50 BB42 +22 | — | |
| 29369-64030 |
Valve Sub-assy, Check
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 29369-64030 |
Valve Sub-assy, Check
1999-07 → 2004-08
ended
|
14B B BB50 BB42 +28 | — | |
| 29369-64030 |
Valve Sub-assy, Check
2010-10 → 2012-02
ended
|
N04C XZB40,5# | — | |
| 29369-64030 |
Valve Sub-assy, Check
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 29369-64030 |
Valve Sub-assy, Check
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 29369-64030 |
Valve Sub-assy, Check
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 29369-EV020 |
Valve Sub-assy, Check
2012-02 → 2013-09
ended
|
N04C XZB40,5# | — | |
| S2930-11270 |
Valve Sub-assy, Check
2013-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S2930-11270 |
Valve Sub-assy, Check
2013-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29369-64030 |
Valve Sub-assy, Check
2015-01 → 2016-12
ended
|
14B,1BZFPE,1HZ BB42,BZB40,50,HZB50 | — | |
| 29369-EV060 |
Valve Sub-assy, Check
2015-06 → 2016-12
ended
|
N04C XZB40,5# | — | |
| S2930-11270 |
Valve Sub-assy, Check
2015-01 → 2015-06
ended
|
N04C XZB40,5# | — | |
| 29601B — Pipe Sub-assy, Oil(FOR VACUUM PUMP) | ||||
| 29601-78080 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2006-08 → 2007-07
ended
|
N04C XZB5# | — | |
| 29601-78081 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2007-07 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 29601-78081 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2007-07 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 29601-78081 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2007-07 → 2011-06
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 29601-E0320 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2011-06 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 29601-E0320 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2011-06 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 29601-E0320 |
Pipe Sub-assy, Oil(FOR VACUUM PUMP)
2015-01 → —
|
N04C XZB40,5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
