Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

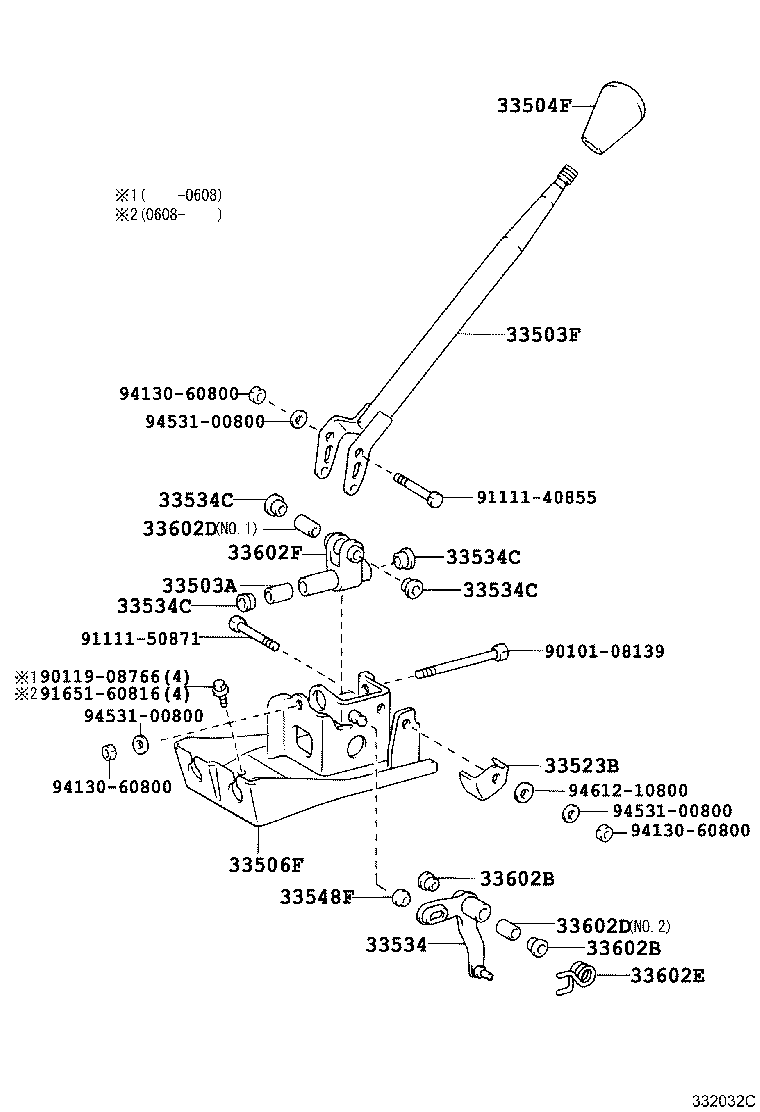

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33503A — Collar(FOR SHIFT LEVER) | ||||
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
1993-01 → 1999-07
ended
|
HZB50 RHD 5F;BB40,42,50 RHD +1 | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
1993-01 → 1999-07
ended
|
HZB50 RHD 5F;BB40,42,50 RHD +1 | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2001-08
ended
|
HZB50 RHD EX;HZB50 RHD +5 | — | |
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2001-08
ended
|
HZB50 RHD EX;HZB50 RHD +5 | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
2004-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
2004-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90387-08063 note |
Collar(FOR SHIFT LEVER)
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 90387-08065 note |
Collar(FOR SHIFT LEVER)
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 90440-13003 |
Collar(FOR SHIFT LEVER)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT) | ||||
| 33055-36050 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1993-01 → 1997-05
ended
|
BB4#,50,HZB50 RHD 5F | — | |
| 33055-36050 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB50 RHD IV | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB40,42,HZB50 RHD 5F | — | |
| 33503-36130 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1995-05 → 1999-07
ended
|
HZB50 WC GEN 4FC | — | |
| 33503-36140 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
HZB50 RHD EX;HZB50 RHD +5 | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 33503-36130 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 33503-36130 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2007-08 → 2015-01
ended
|
XZB50 4FC | — | |
| 33055-36060 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33055-36070 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 33055-36080 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 33503-36130 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
2015-01 → —
|
XZB50 4FC | — | |
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-36051-E0 note |
Knob Sub-assy, Shift Lever
1995-05 → 1999-07
ended
|
HZB50 5F DSL;BB4#,5#,RZB40,50 | — | |
| 33504-36060-E0 note |
Knob Sub-assy, Shift Lever
1993-01 → 1995-05
ended
|
BB4#,HZB50,RZB40,50 5F | — | |
| 33504-36060-E0 note |
Knob Sub-assy, Shift Lever
1995-05 → 1996-05
ended
|
HZB50 TD | — | |
| 33542-20100-E2 note |
Knob Sub-assy, Shift Lever
1995-05 → 1999-07
ended
|
HZB50 WC GEN 4FC | — | |
| 33542-20150-E0 note |
Knob Sub-assy, Shift Lever
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2004-08
ended
|
BB42,50,59,BZB40,50,HZB50,RZB40,50 (GCC,GEN) 5F | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
1999-07 → 2001-08
ended
|
BB50 EX;BB50 WOC 5F;BB50 +4 | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 33504-36080-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2004-08
ended
|
BB58 | — | |
| 33504-36080-C0 note |
Knob Sub-assy, Shift Lever
1999-07 → 2001-08
ended
|
BB5# CBU 6F | — | |
| 33504-36080-C0 note |
Knob Sub-assy, Shift Lever
1999-07 → 2001-05
ended
|
BB50 IV 6F | — | |
| 33504-36080-C0 note |
Knob Sub-assy, Shift Lever
2001-05 → 2004-08
ended
|
BB50 6F TDEFI | — | |
| 33542-20100-C0 note |
Knob Sub-assy, Shift Lever
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
2004-08 → 2015-01
ended
|
BB42,50,59,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# 5F | — | |
| 33504-36080-C0 note |
Knob Sub-assy, Shift Lever
2004-08 → 2006-08
ended
|
BB50,58 6F | — | |
| 33542-20100-C0 note |
Knob Sub-assy, Shift Lever
2007-08 → 2015-01
ended
|
XZB50 4FC | — | |
| 33504-36051-C0 note |
Knob Sub-assy, Shift Lever
2015-01 → 2016-12
ended
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 5F | — | |
| 33542-20100-C0 note |
Knob Sub-assy, Shift Lever
2015-01 → 2016-12
ended
|
XZB50 4FC | — | |
| 33506F — Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) | ||||
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 33571-36200 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1993-01 → 1999-07
ended
|
HZB50 RHD EX;BB50,HZB50 RHD +1 | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1993-01 → 1999-07
ended
|
BB40,42,HZB50 RHD (DX,STD) 5F +1 | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 33571-36200 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +3 | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 33506-36010 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33506-36020 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 33571-36210 |
Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 33523B — Pin, Shift Lever (FOR FLOOR SHIFT) | ||||
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33523-36040 |
Pin, Shift Lever (FOR FLOOR SHIFT)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33534 — Bellcrank, Selecting | ||||
| 33534-36090 |
Bellcrank, Selecting
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33534-36090 |
Bellcrank, Selecting
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33534-36090 |
Bellcrank, Selecting
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33534-36090 |
Bellcrank, Selecting
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33534-36090 |
Bellcrank, Selecting
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33534-36090 |
Bellcrank, Selecting
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33534-36090 |
Bellcrank, Selecting
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33534-36090 |
Bellcrank, Selecting
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33534-36090 |
Bellcrank, Selecting
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33534-36090 |
Bellcrank, Selecting
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33534C — Bush (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90386-13007 |
Bush (FOR SELECTING BELLCRANK NO.1)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33548F — Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33548-12021 |
Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33602B — Bushing (FOR SELECT LEVER) | ||||
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 90386-13007 |
Bushing (FOR SELECT LEVER)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 33602D — Collar (FOR SELECT LEVER) | ||||
| 90387-08063 note |
Collar (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 90387-08063 note |
Collar (FOR SELECT LEVER)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 90387-08148 note |
Collar (FOR SELECT LEVER)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 90387-08153 note |
Collar (FOR SELECT LEVER)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 90440-13002 note |
Collar (FOR SELECT LEVER)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 33602E — Spring, Torsion (FOR SELECT LEVER) | ||||
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 90949-03066 |
Spring, Torsion (FOR SELECT LEVER)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 90949-03067 |
Spring, Torsion (FOR SELECT LEVER)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33602F — Lever Sub-assy, Select (FOR FLOOR SHIFT) | ||||
| 33602-36030 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1997-05 → 1997-08
ended
|
BB50 EX | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1997-08 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1997-05 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB50,59,BZB40,50 RHD (LPG,TDEFI) | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +2 | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 33602-36031 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2015-01 → —
|
BZB40,50,XZB40,5# RHD 5F | — | |
| 33602-36040 |
Lever Sub-assy, Select (FOR FLOOR SHIFT)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
