Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

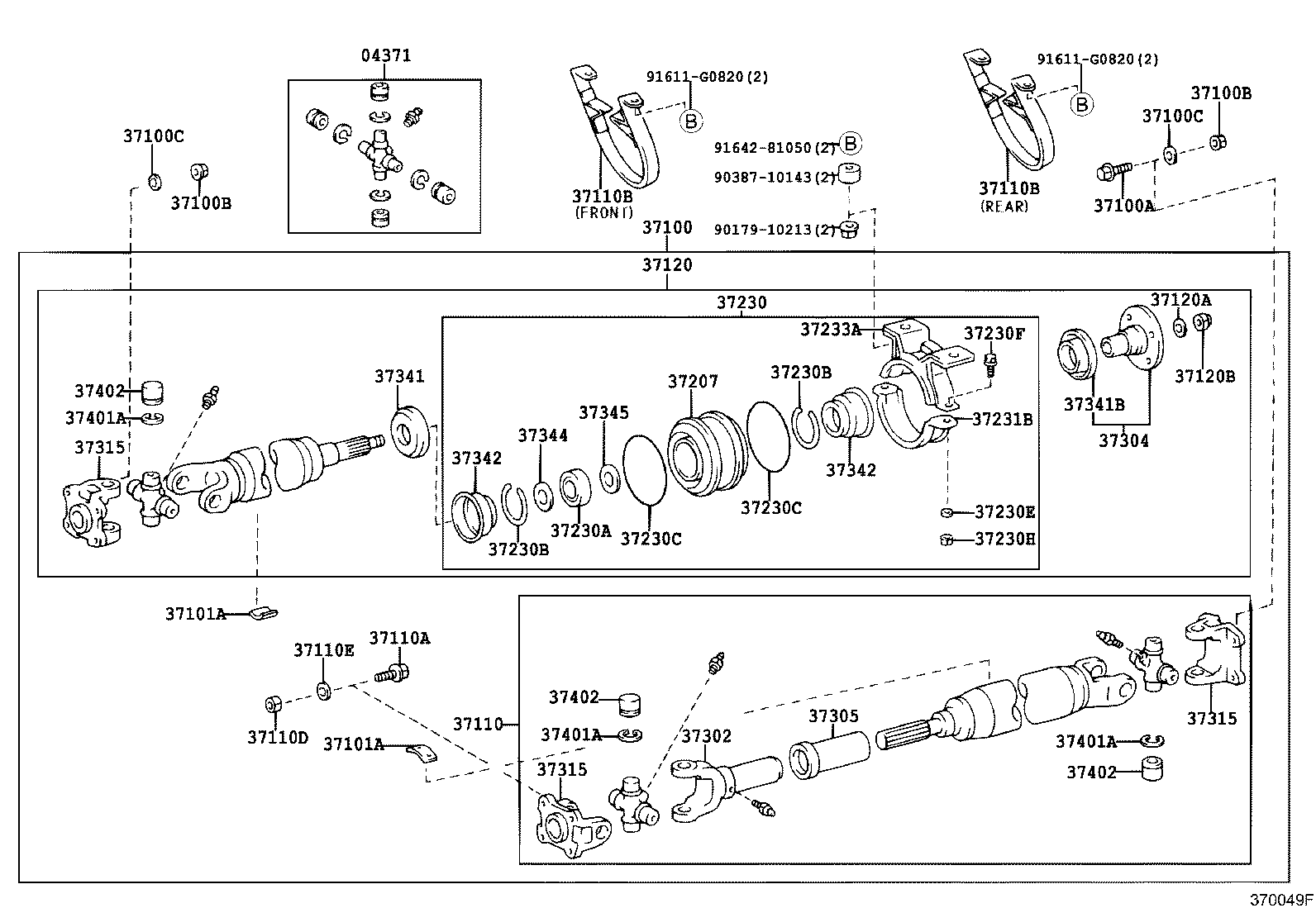

Exploded illustration 370049F 04371 — SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) (40 parts) 37100C — WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (14 parts) 37100B — NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (14 parts) 37110B — GUARD, PROPELLER SHAFT (28 parts) 91611G0820 — not listed in this catalogue 91611G0820 — not listed in this catalogue 37110B — GUARD, PROPELLER SHAFT (28 parts) 9164281050 — not listed in this catalogue 9038710143 — not listed in this catalogue 9017910213 — not listed in this catalogue 37120A — WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) (9 parts) 37230 — BEARING ASSY, CENTER SUPPORT, NO.1 (18 parts) 37120 — SHAFT ASSY, PROPELLER INTERMEDIATE (10 parts) 37120B — NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) (23 parts) 37341B — DEFLECTOR, PROPELLER SHAFT DUST, NO.5 (9 parts) 37304 — FLANGE SUB-ASSY, UNIVERSAL JOINT (9 parts) 37231B — HOUSING, CENTER SUPPORT BEARING, NO.1 (21 parts) 37230E — WASHER, NO.1 (FOR CENTER SUPPORT BEARING) (20 parts) 37230H — NUT, NO.1 (FOR CENTER SUPPORT BEARING) (21 parts) 37342 — DEFLECTOR, PROPELLER SHAFT DUST, NO.2 (20 parts) 37230B — RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) (14 parts) 37230C — RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) (20 parts) 37230F — BOLT, NO.1 (FOR CENTER SUPPORT BEARING) (21 parts) 37233A — HOUSING, CENTER SUPPORT BEARING, NO.2 (20 parts) 37207 — CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 (20 parts) 37230C — RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) (20 parts) 37230A — BEARING, NO.1 (FOR CENTER SUPPORT) (20 parts) 37345 — DEFLECTOR, PROPELLER SHAFT DUST, NO.4 (20 parts) 37344 — DEFLECTOR, PROPELLER SHAFT DUST, NO.3 (20 parts) 37230B — RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) (14 parts) 37342 — DEFLECTOR, PROPELLER SHAFT DUST, NO.2 (20 parts) 37341 — DEFLECTOR, PROPELLER SHAFT DUST, NO.1 (9 parts) 37302 — YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE (5 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (18 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (74 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (9 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (75 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (75 parts) 37110D — NUT (FOR PROPELLER SHAFT) (13 parts) 37110E — WASHER (FOR PROPELLER SHAFT) (13 parts) 37110A — BOLT (FOR PROPELLER SHAFT) (13 parts) 37110 — SHAFT ASSY, PROPELLER (4 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (18 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (74 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (9 parts) 37305 — COVER SUB-ASSY, SLIDING SHAFT DUST (5 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (74 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (18 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (9 parts) 37100B — NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (14 parts) 37100C — WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (14 parts) 37100A — BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (14 parts) 37100 — SHAFT ASSY, PROPELLER W/CENTER BEARING (48 parts)
370049F · 48 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
711 parts on this figure
Part number Description Fitment Price
04371 — Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,RZB40 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,RZB40 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
RZB40 CHI —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
04371-36030 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
RZB40 CHI —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2008-03 ended
XZB50 STD GEN —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2013-11 ended
XZB50 IV —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2011-08 ended
BB42 LHD HRF —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2013-11 ended
XZB50 IV —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2011-08 ended
BB42 LHD HRF —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2008-03 ended
XZB50 STD GEN —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-01 → 2015-11 ended
BB42,BZB40,TRB40,XZB40 —
04371-36030 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-01 → 2015-11 ended
BZB50,HZB50,TRB50,XZB5# —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
04371-36050 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
04371-60210 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-12 → —
BB42,BZB40,TRB40,XZB40 —
04371-60210 note Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
2015-12 → —
BZB50,HZB50,TRB50,XZB5# —
37100 — Shaft Assy, Propeller W/Center Bearing
37100-36710 Shaft Assy, Propeller W/Center Bearing
1993-01 → 1999-07 ended
BB40,42 —
37100-36720 Shaft Assy, Propeller W/Center Bearing
1998-02 → 1999-07 ended
BB43 —
37100-36740 Shaft Assy, Propeller W/Center Bearing
1993-01 → 1999-07 ended
BB5#,HZB50 5F —
37100-36750 Shaft Assy, Propeller W/Center Bearing
1993-01 → 1999-07 ended
HZB50 4FC —
37100-36760 Shaft Assy, Propeller W/Center Bearing
1993-09 → 1999-07 ended
RZB40 —
37100-36770 Shaft Assy, Propeller W/Center Bearing
1993-09 → 1999-07 ended
RZB50 —
37100-36710 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
37100-36710 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
BB42 WC GCC;BB42 SRF +7 —
37100-36720 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
BB43 —
37100-36720 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
BZB40 —
37100-36740 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
37100-36740 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
BB50 WOC 5F;HZB50 RHD +7 —
37100-36740 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2002-11 ended
BB50,HZB50 ARL,CHI —
37100-36740 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
HZB50 WC;BB50,BZB50 LHD (17S,21S,30S) +11 —
37100-36750 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
HZB50 4FC —
37100-36760 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
37100-36760 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40 (17S,26S) +2 —
37100-36760 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2002-11 ended
RZB40 CHI —
37100-36770 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
RZB50 GCC,GEN —
37100-36770 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2002-11 ended
RZB50 CHI —
37100-36810 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2004-08 ended
BB50,58 6F TDEFI —
37100-36810 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-08 ended
BB50 CBU 6F —
37100-36810 Shaft Assy, Propeller W/Center Bearing
1999-07 → 2001-05 ended
BB50 IV 6F —
37100-36890 Shaft Assy, Propeller W/Center Bearing
2001-04 → 2004-08 ended
BB59 —
37100-36890 Shaft Assy, Propeller W/Center Bearing
2001-04 → 2001-08 ended
BB50 EX IV —
37100-36710 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2015-01 ended
BB42 —
37100-36720 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2015-01 ended
BZB40 —
37100-36740 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2006-11 ended
BB50,BZB50,HZB50 5F —
37100-36760 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2015-01 ended
RZB40,TRB40 —
37100-36770 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2006-11 ended
RZB50 —
37100-36810 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2006-11 ended
XZB50;BB50,58 6F —
37100-36890 Shaft Assy, Propeller W/Center Bearing
2004-08 → 2006-08 ended
BB59 —
37100-36915 Shaft Assy, Propeller W/Center Bearing
2006-11 → 2015-01 ended
XZB50 5F —
37100-36917 Shaft Assy, Propeller W/Center Bearing
2006-11 → 2015-01 ended
BB50,BZB50,HZB50 —
37100-36918 Shaft Assy, Propeller W/Center Bearing
2006-11 → 2015-01 ended
RZB50,TRB50 —
37100-36924 Shaft Assy, Propeller W/Center Bearing
2007-08 → 2015-01 ended
XZB50 4FC —
37100-36926 Shaft Assy, Propeller W/Center Bearing
2006-11 → 2015-01 ended
XZB59 —
37100-36A00 Shaft Assy, Propeller W/Center Bearing
2008-03 → 2015-01 ended
XZB40 —
37100-36A30 Shaft Assy, Propeller W/Center Bearing
2006-09 → 2006-11 ended
XZB59 —
37100-36710 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
BB42 —
37100-36720 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
BZB40 —
37100-36760 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
TRB40 —
37100-36915 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
XZB50 5F —
37100-36917 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
BZB50,HZB50 —
37100-36918 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
TRB50 —
37100-36924 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
XZB50 4FC —
37100-36926 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
XZB59 —
37100-36A00 Shaft Assy, Propeller W/Center Bearing
2015-01 → —
XZB40 —
37100A — Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2013-11 ended
XZB50 IV —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90105-11013 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
37100B — Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2013-11 ended
XZB50 IV —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90179-11005 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
37100C — Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2013-11 ended
XZB50 IV —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90201-11013 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
37101A — Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37110 — Shaft Assy, Propeller
37110-36730 Shaft Assy, Propeller
1993-01 → 1999-07 ended
BB4#,RZB40 —
37110-36730 Shaft Assy, Propeller
1999-07 → 2002-11 ended
BB42 ZB40 WC (17S,26S) +14 —
37110-36730 Shaft Assy, Propeller
2002-11 → 2004-08 ended
BB42,BZB40,RZB40 —
37110-36730 Shaft Assy, Propeller
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37110A — Bolt (FOR PROPELLER SHAFT)
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
RZB40 CHI —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB42,BZB40,RZB40,TRB40,XZB40 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB50,58,BZB50,HZB50,RZB50,TRB50,XZB5# —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90105-11013 note Bolt (FOR PROPELLER SHAFT)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
37110B — Guard, Propeller Shaft
51569-36180 note Guard, Propeller Shaft
1993-01 → 1999-07 ended
BB40 —
51569-36180 note Guard, Propeller Shaft
1993-01 → 1999-07 ended
BB50,HZB50 19S,22S —
51569-36180 Guard, Propeller Shaft
1993-01 → 1999-07 ended
BB50,HZB50 EUR —
51569-36190 note Guard, Propeller Shaft
1993-01 → 1999-07 ended
BB40,50,HZB50 19S,22S —
51569-36180 note Guard, Propeller Shaft
1999-07 → 2004-08 ended
BB50 CBU 6F TDEFI —
51569-36180 Guard, Propeller Shaft
1999-07 → 2004-08 ended
BB50 IV TDEFI —
51569-36180 note Guard, Propeller Shaft
1999-07 → 2002-11 ended
HZB50 ARL —
51569-36180 Guard, Propeller Shaft
1999-07 → 2001-05 ended
BB50 IV 6F —
51569-36180 note Guard, Propeller Shaft
1999-07 → 2001-08 ended
BB50,HZB50 CBU (4FC,6F) —
51569-36190 note Guard, Propeller Shaft
1999-07 → 2002-11 ended
HZB50 ARL —
51569-36190 note Guard, Propeller Shaft
1999-07 → 2004-08 ended
BB50 CBU 6F TDEFI —
51569-36190 note Guard, Propeller Shaft
1999-07 → 2001-08 ended
BB50,HZB50 CBU (4FC,6F) —
51569-36180 note Guard, Propeller Shaft
2004-08 → 2015-01 ended
XZB50 WC ARL —
51569-36180 note Guard, Propeller Shaft
2009-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB5# GCC,GEN,TAIW —
51569-36180 note Guard, Propeller Shaft
2009-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
51569-36180 Guard, Propeller Shaft
2004-08 → 2013-11 ended
XZB50 IV —
51569-36180 note Guard, Propeller Shaft
2009-08 → 2011-08 ended
BB42 LHD HRF —
51569-36180 note Guard, Propeller Shaft
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51569-36180 Guard, Propeller Shaft
2004-08 → 2006-08 ended
BB50 IV —
51569-36180 note Guard, Propeller Shaft
2004-08 → 2006-08 ended
BB50 CBU 6F —
51569-36190 note Guard, Propeller Shaft
2004-08 → 2009-08 ended
XZB50 WOC CBU —
51569-36190 note Guard, Propeller Shaft
2009-08 → 2011-08 ended
BB42 LHD HRF —
51569-36190 note Guard, Propeller Shaft
2004-08 → 2006-08 ended
BB50 CBU 6F —
51569-36190 note Guard, Propeller Shaft
2004-08 → 2015-01 ended
XZB50 WC ARL;BB42 RHD +2 —
51569-36190 note Guard, Propeller Shaft
2009-08 → 2015-01 ended
BB42 .GCC,GEN,TAIW WOC;BB42 RHD +4 —
51569-36180 note Guard, Propeller Shaft
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
51569-36180 note Guard, Propeller Shaft
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
51569-36190 note Guard, Propeller Shaft
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
37110D — Nut (FOR PROPELLER SHAFT)
90179-11005 Nut (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90179-11005 Nut (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
RZB40 CHI —
90179-11005 Nut (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB42,BZB40,RZB40,TRB40,XZB40 —
90179-11005 Nut (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB50,58,BZB50,HZB50,RZB50,TRB50,XZB5# —
90179-11005 Nut (FOR PROPELLER SHAFT)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90179-11005 Nut (FOR PROPELLER SHAFT)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
37110E — Washer (FOR PROPELLER SHAFT)
90201-11013 Washer (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90201-11013 Washer (FOR PROPELLER SHAFT)
1999-07 → 2002-11 ended
RZB40 CHI —
90201-11013 Washer (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB42,BZB40,RZB40,TRB40,XZB40 —
90201-11013 Washer (FOR PROPELLER SHAFT)
2004-08 → 2015-01 ended
BB50,58,BZB50,HZB50,RZB50,TRB50,XZB5# —
90201-11013 Washer (FOR PROPELLER SHAFT)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90201-11013 Washer (FOR PROPELLER SHAFT)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
37120 — Shaft Assy, Propeller Intermediate
37120-36510 Shaft Assy, Propeller Intermediate
1998-02 → 1999-07 ended
BB43 —
37120-36570 Shaft Assy, Propeller Intermediate
1993-01 → 1999-07 ended
BB40,42 —
37120-36590 Shaft Assy, Propeller Intermediate
1993-09 → 1999-07 ended
RZB40 —
37120-36510 Shaft Assy, Propeller Intermediate
1999-07 → 2001-08 ended
BB43 —
37120-36510 Shaft Assy, Propeller Intermediate
1999-07 → 2004-08 ended
BZB40 —
37120-36570 Shaft Assy, Propeller Intermediate
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC;BB42 +3 —
37120-36570 Shaft Assy, Propeller Intermediate
1999-07 → 2004-08 ended
BB42 WC GCC;BB42 SRF +7 —
37120-36590 Shaft Assy, Propeller Intermediate
1999-07 → 2002-11 ended
RZB40 CHI —
37120-36590 Shaft Assy, Propeller Intermediate
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40 (17S,26S) +2 —
37120-36590 Shaft Assy, Propeller Intermediate
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
37120A — Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2002-11 ended
RZB40 CHI —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90201-20005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37120B — Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2002-11 ended
RZB40 CHI —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2008-04 → 2015-01 ended
XZB50 WC CBU;BB50,BZB50,HZB50,TRB50,XZB59 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2006-08 ended
BZB50 EX;BB50,58 TDEFI —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2008-04 → 2013-11 ended
XZB50 IV —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2007-08 ended
RZB50 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2015-01 → —
XZB50 4FC —
90179-20006 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37207 — Cushion Sub-assy, Center Support Bearing, NO.1
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2008-04 → 2015-01 ended
XZB59 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2012-08 → 2013-11 ended
XZB50 IV —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2015-01 → —
XZB50 4FC —
37207-35011 Cushion Sub-assy, Center Support Bearing, NO.1
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230 — Bearing Assy, Center Support, NO.1
37230-36140 Bearing Assy, Center Support, NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37230-36140 Bearing Assy, Center Support, NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37230-36140 Bearing Assy, Center Support, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37230-36140 Bearing Assy, Center Support, NO.1
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37230-36140 Bearing Assy, Center Support, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37230-36140 Bearing Assy, Center Support, NO.1
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
37230-36140 Bearing Assy, Center Support, NO.1
2004-08 → 2012-07 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37230-36140 Bearing Assy, Center Support, NO.1
2008-04 → 2013-11 ended
XZB50 IV —
37230-36140 Bearing Assy, Center Support, NO.1
2008-04 → 2015-01 ended
XZB50 WC CBU;BB50,BZB50,HZB50,TRB50,XZB59 —
37230-36141 Bearing Assy, Center Support, NO.1
2012-08 → 2015-01 ended
BB42,BZB40,TRB40,XZB40 —
37230-36141 Bearing Assy, Center Support, NO.1
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230-36141 Bearing Assy, Center Support, NO.1
2015-01 → —
XZB50 4FC;BB42,BZB40,TRB40,XZB40 —
37230A — Bearing, NO.1 (FOR CENTER SUPPORT)
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2008-04 → 2015-01 ended
XZB59 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2012-08 → 2013-11 ended
XZB50 IV —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2015-01 → —
XZB50 4FC —
90363-30029 Bearing, NO.1 (FOR CENTER SUPPORT)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230B — Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 (20S,21S) 5F;BB50,BZB50,HZB50,TRB50 +2 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2007-08 → 2008-04 ended
XZB50 4FC —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2015-01 ended
BZB50 I EX;XZB50 STD +2 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2015-01 ended
XZB59;XZB50 WOC CBU —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
XZB50 4FC —
90521-66077 Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230C — Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2008-04 → 2015-01 ended
XZB59 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2012-08 → 2013-11 ended
XZB50 IV —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2015-01 → —
XZB50 4FC —
90522-97001 Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230E — Washer, NO.1 (FOR CENTER SUPPORT BEARING)
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2015-01 ended
XZB59 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2013-11 ended
XZB50 IV —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
XZB50 4FC —
94512-00800 Washer, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230F — Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1995-08 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
91112-80816 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1993-01 → 1995-08 ended
BB4#,HZB50,RZB40,50 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2015-01 ended
XZB59 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2013-11 ended
XZB50 IV —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
XZB50 4FC —
90101-08157 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37230H — Nut, NO.1 (FOR CENTER SUPPORT BEARING)
94110-50800 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1993-01 → 1995-08 ended
BB4#,HZB50,RZB40,50 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1995-08 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2011-08 ended
BB42 LHD HRF —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2015-01 ended
XZB59 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2012-08 → 2013-11 ended
XZB50 IV —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2008-04 → 2009-08 ended
XZB50 WOC CBU —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2008-03 ended
XZB50 STD GEN —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
XZB50 4FC —
94130-00802 Nut, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37231B — Housing, Center Support Bearing, NO.1
37231-36020 Housing, Center Support Bearing, NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37231-36020 Housing, Center Support Bearing, NO.1
1999-07 → 2000-08 ended
BB4#,5#,HZB50,RZB40,50 —
37231-36021 Housing, Center Support Bearing, NO.1
2000-08 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37231-36021 Housing, Center Support Bearing, NO.1
2000-08 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37231-36021 Housing, Center Support Bearing, NO.1
2000-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37231-36021 Housing, Center Support Bearing, NO.1
2000-08 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37231-36021 Housing, Center Support Bearing, NO.1
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
37231-36021 Housing, Center Support Bearing, NO.1
2008-04 → 2015-01 ended
XZB59 —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37231-36021 Housing, Center Support Bearing, NO.1
2012-08 → 2013-11 ended
XZB50 IV —
37231-36021 Housing, Center Support Bearing, NO.1
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37231-36021 Housing, Center Support Bearing, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37231-36021 Housing, Center Support Bearing, NO.1
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37231-36021 Housing, Center Support Bearing, NO.1
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37231-36021 Housing, Center Support Bearing, NO.1
2015-01 → —
XZB50 4FC —
37231-36021 Housing, Center Support Bearing, NO.1
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37233A — Housing, Center Support Bearing, NO.2
37233-36080 Housing, Center Support Bearing, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37233-36080 Housing, Center Support Bearing, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37233-36080 Housing, Center Support Bearing, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37233-36080 Housing, Center Support Bearing, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37233-36080 Housing, Center Support Bearing, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37233-36080 Housing, Center Support Bearing, NO.2
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
37233-36080 Housing, Center Support Bearing, NO.2
2008-04 → 2015-01 ended
XZB59 —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37233-36080 Housing, Center Support Bearing, NO.2
2012-08 → 2013-11 ended
XZB50 IV —
37233-36080 Housing, Center Support Bearing, NO.2
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37233-36080 Housing, Center Support Bearing, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37233-36080 Housing, Center Support Bearing, NO.2
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37233-36080 Housing, Center Support Bearing, NO.2
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37233-36080 Housing, Center Support Bearing, NO.2
2015-01 → —
XZB50 4FC —
37233-36080 Housing, Center Support Bearing, NO.2
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37302 — Yoke Sub-assy, Universal Joint Sleeve
37302-36020 Yoke Sub-assy, Universal Joint Sleeve
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37302-36020 Yoke Sub-assy, Universal Joint Sleeve
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37302-36020 Yoke Sub-assy, Universal Joint Sleeve
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37302-36020 Yoke Sub-assy, Universal Joint Sleeve
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37302-36020 Yoke Sub-assy, Universal Joint Sleeve
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37304 — Flange Sub-assy, Universal Joint
37304-36030 Flange Sub-assy, Universal Joint
1993-01 → 1999-07 ended
BB4#,RZB40 —
37304-36030 Flange Sub-assy, Universal Joint
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2002-11 ended
RZB40 CHI —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37304-36030 Flange Sub-assy, Universal Joint
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37305 — Cover Sub-assy, Sliding Shaft Dust
37305-36020 Cover Sub-assy, Sliding Shaft Dust
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37305-36020 Cover Sub-assy, Sliding Shaft Dust
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37305-36020 Cover Sub-assy, Sliding Shaft Dust
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37305-36020 Cover Sub-assy, Sliding Shaft Dust
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37305-36020 Cover Sub-assy, Sliding Shaft Dust
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37315 — Yoke, Universal Joint Flange
37315-36020 Yoke, Universal Joint Flange
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37315-36020 Yoke, Universal Joint Flange
1993-01 → 1999-07 ended
BB4#,RZB40 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37315-36020 Yoke, Universal Joint Flange
1999-07 → 2002-11 ended
RZB40 CHI —
37341 — Deflector, Propeller Shaft Dust, NO.1
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1993-01 → 1999-07 ended
BB4#,RZB40 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2002-11 ended
RZB40 CHI —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37341-36010 Deflector, Propeller Shaft Dust, NO.1
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37341B — Deflector, Propeller Shaft Dust, NO.5
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1993-01 → 1999-07 ended
BB4#,RZB40 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2002-11 ended
RZB40 CHI —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37341-36010 Deflector, Propeller Shaft Dust, NO.5
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37342 — Deflector, Propeller Shaft Dust, NO.2
37342-36010 Deflector, Propeller Shaft Dust, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2012-08 → 2013-11 ended
XZB50 IV —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2008-04 → 2015-01 ended
XZB59 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2015-01 → —
XZB50 4FC —
37342-36010 Deflector, Propeller Shaft Dust, NO.2
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37344 — Deflector, Propeller Shaft Dust, NO.3
37344-36010 Deflector, Propeller Shaft Dust, NO.3
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB50 CBU —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2008-04 → 2015-01 ended
XZB59 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2012-08 → 2013-11 ended
XZB50 IV —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2008-03 ended
XZB50 STD GEN —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2015-01 → —
XZB50 4FC —
37344-36010 Deflector, Propeller Shaft Dust, NO.3
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37345 — Deflector, Propeller Shaft Dust, NO.4
37345-36010 Deflector, Propeller Shaft Dust, NO.4
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2008-04 → 2012-08 ended
XZB50 WC;XZB50 WOC IV;BB50,BZB50,HZB50,TRB50,XZB59 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2012-08 → 2015-01 ended
BB50,BZB50,HZB50,TRB50,XZB5# ARL,GCC,GEN,TAIW —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2012-08 → 2013-11 ended
XZB50 IV —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2012-04 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2011-08 ended
BB42 LHD HRF —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2008-04 → 2009-08 ended
XZB50 WOC CBU —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2008-04 ended
XZB5# IV;XZB50 20S,21S;BB50,BZB50,HZB50,TRB50 STD +1 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2008-03 ended
XZB50 STD GEN —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2004-08 → 2006-02 ended
RZB40 HRF GCC —
37345-36020 Deflector, Propeller Shaft Dust, NO.4
2012-05 → 2015-01 ended
BB42,BZB40,TRB40,XZB40 —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2015-01 → —
XZB50 4FC —
37345-36010 Deflector, Propeller Shaft Dust, NO.4
2015-01 → —
BZB50,HZB50,TRB50,XZB5# 5F —
37345-36020 Deflector, Propeller Shaft Dust, NO.4
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
37401A — Ring, Hole Snap (FOR SPIDER BEARING)
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB4#,RZB40 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
RZB40 CHI —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
RZB40 CHI —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
RZB40 CHI —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
RZB40 CHI —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
90520-29039 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29039 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29040 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29040 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29041 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29041 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29042 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29042 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29043 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29043 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29044 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29044 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29045 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29045 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29046 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29046 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29047 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29047 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29048 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2006-11 ended
XZB50;BB50,BZB50,HZB50 STD (DSL,LPG,TD) —
90520-29048 note Ring, Hole Snap (FOR SPIDER BEARING)
2005-08 → 2015-01 ended
BZB50 EX;XZB50 4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59 DCR,DSL,EFI,LPG,TDEFI —
90520-29024 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29025 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29026 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29027 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29039 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29040 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29041 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29042 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29043 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29044 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29045 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29046 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29047 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90520-29048 note Ring, Hole Snap (FOR SPIDER BEARING)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
37402 — Bearing Sub-assy, Universal Joint Spider
37402-36070 Bearing Sub-assy, Universal Joint Spider
1993-01 → 1999-07 ended
BB4#,RZB40 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1993-01 → 1999-07 ended
BB4#,RZB40 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2002-11 ended
RZB40 CHI —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37402-36070 Bearing Sub-assy, Universal Joint Spider
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2004-08 ended
HZB50 WC;BB50 (ARL,GEN) LHD +15 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2002-11 ended
RZB40 CHI —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-08 ended
BB50 50 WOC RHD +12 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
37402-36080 note Bearing Sub-assy, Universal Joint Spider
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
