Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

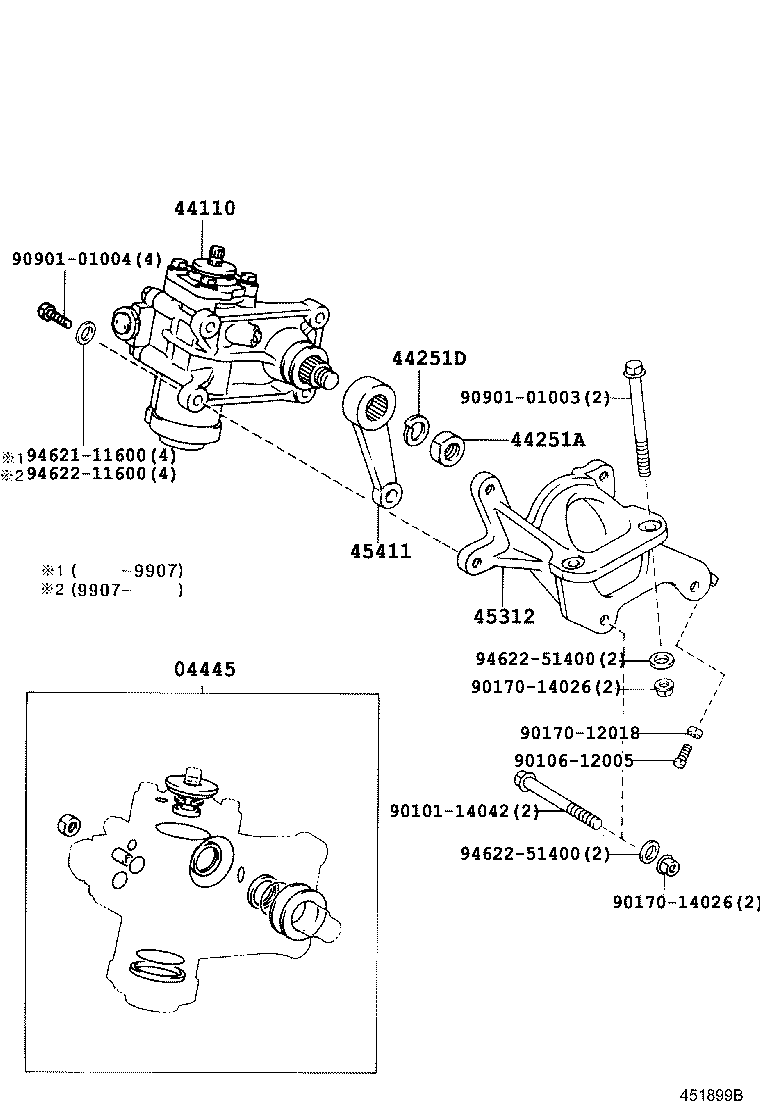

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04445 — Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) | ||||
| 04445-36100 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04445-37040 |
Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 44110 — Gear Assy, Power Steering | ||||
| 44110-36300 |
Gear Assy, Power Steering
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD | — | |
| 44110-36320 |
Gear Assy, Power Steering
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 44110-36350 |
Gear Assy, Power Steering
1999-07 → 2000-11
ended
|
BB4#,50,HZB50 RHD | — | |
| 44110-36360 |
Gear Assy, Power Steering
1999-07 → 2000-11
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 44110-36361 |
Gear Assy, Power Steering
2000-11 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 44110-36361 |
Gear Assy, Power Steering
2000-11 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 44110-36361 |
Gear Assy, Power Steering
2000-11 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 44110-36361 |
Gear Assy, Power Steering
2000-11 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 44110-36370 |
Gear Assy, Power Steering
2000-11 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 44110-36370 |
Gear Assy, Power Steering
2000-11 → 2001-08
ended
|
HZB50 WOC RHD GEN +8 | — | |
| 44110-36370 |
Gear Assy, Power Steering
2000-11 → 2002-11
ended
|
HZB50 ARL | — | |
| 44110-36370 |
Gear Assy, Power Steering
2000-11 → 2004-08
ended
|
BB42 GEN RHD 5F +9 | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 44110-36361 |
Gear Assy, Power Steering
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 44110-36370 |
Gear Assy, Power Steering
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 44110-36370 |
Gear Assy, Power Steering
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 44110-36370 |
Gear Assy, Power Steering
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 44110-36370 |
Gear Assy, Power Steering
2004-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 | — | |
| 44110-36370 |
Gear Assy, Power Steering
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 44110-36361 |
Gear Assy, Power Steering
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 44110-36370 |
Gear Assy, Power Steering
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 44251A — Nut, Castle(FOR PITMAN ARM) | ||||
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90170-30001 |
Nut, Castle(FOR PITMAN ARM)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 44251D — Washer(FOR PITMAN ARM) | ||||
| 90204-30040 |
Washer(FOR PITMAN ARM)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 90204-30040 |
Washer(FOR PITMAN ARM)
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 45312 — Bracket, Steering Gear Housing | ||||
| 45312-36210 |
Bracket, Steering Gear Housing
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD | — | |
| 45312-36220 |
Bracket, Steering Gear Housing
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
1999-07 → 2001-08
ended
|
HZB50 WOC RHD GEN +8 | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
1999-07 → 2004-08
ended
|
BB42 GEN RHD 5F +9 | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2004-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 45312-36240 |
Bracket, Steering Gear Housing
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 45312-36250 |
Bracket, Steering Gear Housing
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 45411 — Arm, Pitman | ||||
| 45411-36570 |
Arm, Pitman
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD | — | |
| 45411-36580 |
Arm, Pitman
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 45411-36610 |
Arm, Pitman
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 45411-36610 |
Arm, Pitman
1999-07 → 2001-08
ended
|
HZB50 WOC RHD GEN +8 | — | |
| 45411-36610 |
Arm, Pitman
1999-07 → 2004-08
ended
|
BB42 GEN RHD 5F +9 | — | |
| 45411-36610 |
Arm, Pitman
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 45411-36620 |
Arm, Pitman
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 45411-36620 |
Arm, Pitman
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 45411-36620 |
Arm, Pitman
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 45411-36620 |
Arm, Pitman
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 45411-36610 |
Arm, Pitman
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 45411-36610 |
Arm, Pitman
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 45411-36610 |
Arm, Pitman
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 45411-36610 |
Arm, Pitman
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 45411-36610 |
Arm, Pitman
2004-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 45411-36620 |
Arm, Pitman
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 45411-36610 |
Arm, Pitman
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 45411-36620 |
Arm, Pitman
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
