Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

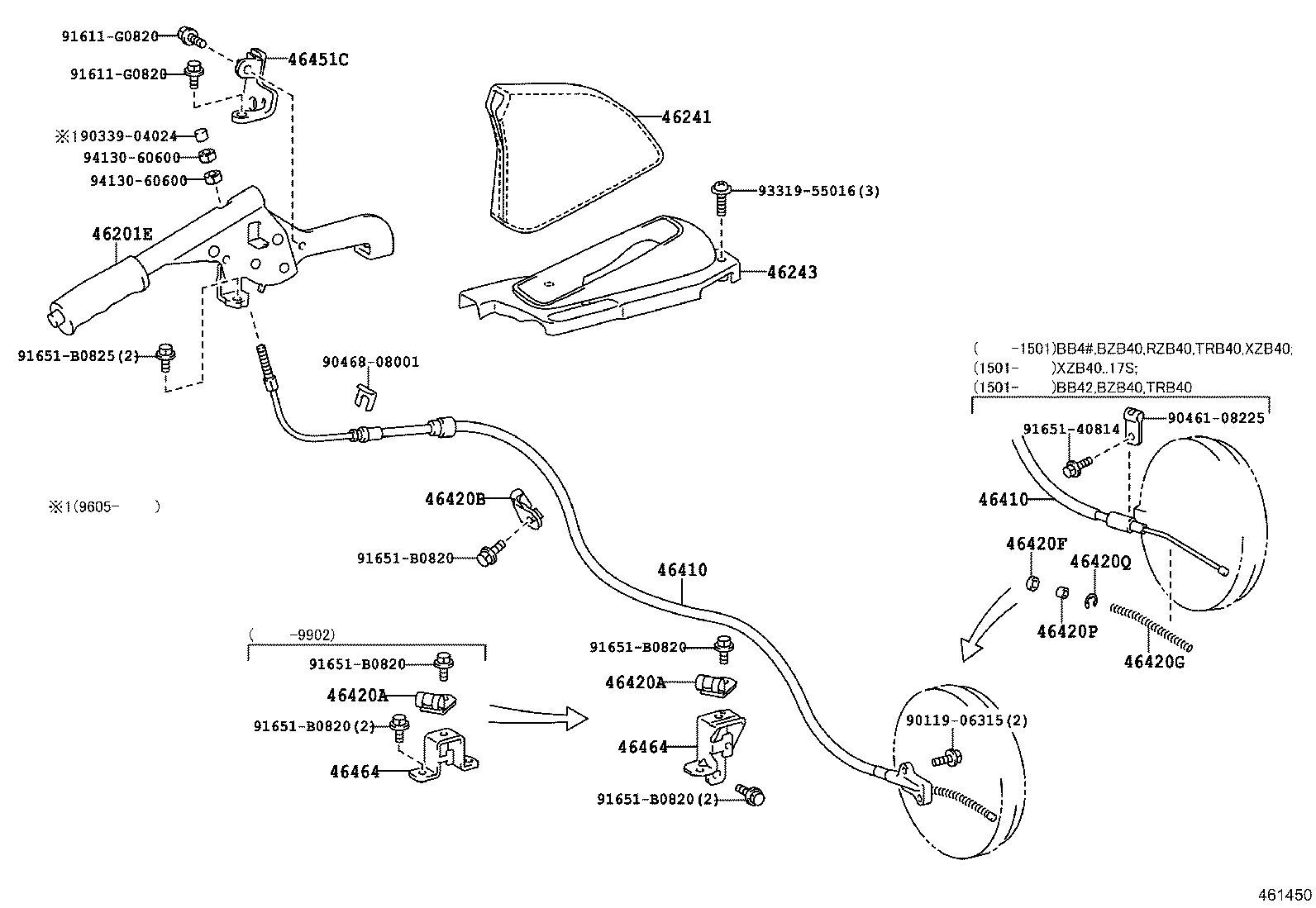

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46201E — Lever Sub-assy, Parking Brake | ||||
| 46210-36022-E1 note |
Lever Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB50,HZB50 EUR | — | |
| 46210-36040-E0 note |
Lever Sub-assy, Parking Brake
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO | — | |
| 46210-36040-B1 note |
Lever Sub-assy, Parking Brake
2001-08 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 46210-36040-B1 note |
Lever Sub-assy, Parking Brake
2001-08 → 2004-08
ended
|
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,EUR,GCC,GEN | — | |
| 46210-36040-E0 note |
Lever Sub-assy, Parking Brake
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 46210-36040-E0 note |
Lever Sub-assy, Parking Brake
1999-07 → 2001-08
ended
|
BB50 EX;BB50 WOC 5F;BB50 +2 | — | |
| 46210-36040-B1 note |
Lever Sub-assy, Parking Brake
2004-08 → 2015-01
ended
|
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# | — | |
| 46210-36040-B1 note |
Lever Sub-assy, Parking Brake
2015-01 → 2016-12
ended
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 46241 — Boot, Parking Brake Lever | ||||
| 46241-36010-E0 note |
Boot, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB50,HZB50 EUR | — | |
| 46241-36020-E0 note |
Boot, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD CBU | — | |
| 46241-36030-E0 note |
Boot, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 46241-36020-B1 note |
Boot, Parking Brake Lever
2001-08 → 2002-11
ended
|
HZB50 ARL | — | |
| 46241-36020-B1 note |
Boot, Parking Brake Lever
2001-08 → 2004-08
ended
|
HZB50 RHD GEN;BB42,50,59,BZB40,50 RHD | — | |
| 46241-36020-E0 note |
Boot, Parking Brake Lever
1999-07 → 2001-08
ended
|
BB4#,50,HZB50 RHD (4FC,5F) | — | |
| 46241-36030-B1 note |
Boot, Parking Brake Lever
2001-05 → 2001-08
ended
|
BB50 TDEFI | — | |
| 46241-36030-B1 note |
Boot, Parking Brake Lever
2001-08 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 46241-36030-B1 note |
Boot, Parking Brake Lever
2001-08 → 2004-08
ended
|
BB42,50,58,HZB50,RZB40,50 LHD (EUR,GCC,GEN) | — | |
| 46241-36030-E0 note |
Boot, Parking Brake Lever
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 46241-36030-E0 note |
Boot, Parking Brake Lever
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,5#,HZB50,RZB40,50 LHD +1 | — | |
| 46241-36020-B1 note |
Boot, Parking Brake Lever
2004-08 → 2015-01
ended
|
BB42,50,59,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) | — | |
| 46241-36030-B1 note |
Boot, Parking Brake Lever
2004-08 → 2015-01
ended
|
BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50 LHD CBU | — | |
| 46241-36020-B1 note |
Boot, Parking Brake Lever
2015-01 → 2016-12
ended
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 46241-36030-B1 note |
Boot, Parking Brake Lever
2015-01 → 2016-12
ended
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 46243 — Cover, Parking Brake Lever | ||||
| 46243-36010-E0 note |
Cover, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB50,HZB50 EUR | — | |
| 46243-36020-E0 note |
Cover, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD CBU | — | |
| 46243-36030-E0 note |
Cover, Parking Brake Lever
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 46243-36020-E0 note |
Cover, Parking Brake Lever
1999-07 → 2000-07
ended
|
BB4#,50,HZB50 RHD CBU | — | |
| 46243-36021-B1 note |
Cover, Parking Brake Lever
2001-08 → 2004-08
ended
|
HZB50 RHD GEN;BB42,50,59,BZB40,50 RHD | — | |
| 46243-36021-B1 note |
Cover, Parking Brake Lever
2001-08 → 2002-11
ended
|
HZB50 ARL | — | |
| 46243-36021-E0 note |
Cover, Parking Brake Lever
2000-07 → 2001-08
ended
|
BB4#,50,HZB50 RHD (4FC,5F) | — | |
| 46243-36030-E0 note |
Cover, Parking Brake Lever
1999-07 → 2000-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) | — | |
| 46243-36031-B1 note |
Cover, Parking Brake Lever
2001-08 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 46243-36031-B1 note |
Cover, Parking Brake Lever
2001-08 → 2004-08
ended
|
BB42,50,58,HZB50,RZB40,50 LHD (EUR,GCC,GEN) | — | |
| 46243-36031-B1 note |
Cover, Parking Brake Lever
2001-05 → 2001-08
ended
|
BB50 TDEFI | — | |
| 46243-36031-E0 note |
Cover, Parking Brake Lever
2000-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,5#,HZB50,RZB40,50 LHD +1 | — | |
| 46243-36031-E0 note |
Cover, Parking Brake Lever
2000-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 46243-36021-B1 note |
Cover, Parking Brake Lever
2004-08 → 2015-01
ended
|
BB42,50,59,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) | — | |
| 46243-36031-B1 note |
Cover, Parking Brake Lever
2004-08 → 2015-01
ended
|
BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50 LHD CBU | — | |
| 46243-36021-B1 note |
Cover, Parking Brake Lever
2015-01 → 2016-12
ended
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 46243-36031-B1 note |
Cover, Parking Brake Lever
2015-01 → 2016-12
ended
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-36370 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB4# RHD | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB42 LHD | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB50,HZB50 RHD CBU 5F | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB5#,HZB50 LHD (GCC,GEN) 5F | — | |
| 46410-36430 |
Cable Assy, Parking Brake, NO.1
1995-05 → 1999-07
ended
|
HZB50 WC GEN 4FC | — | |
| 46410-36440 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 46410-36450 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB50,HZB50 RHD IV | — | |
| 46410-36460 |
Cable Assy, Parking Brake, NO.1
1993-01 → 1999-07
ended
|
BB50,HZB50 LHD EUR | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
1993-09 → 1999-07
ended
|
RZB40 | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
1993-09 → 1999-07
ended
|
RZB50 | — | |
| 46410-36370 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,BZB40 RHD +1 | — | |
| 46410-36370 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
BB43;BB42 RHD HRF WOC | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
BB42 22S;BB42 WOC GCC | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB42 WC GCC;BB42 LHD +2 | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;BB50,HZB50 RHD +4 | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB50,59,BZB50 5F (LPG,TDEFI);HZB50 RHD +5 | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
BB50 WOC 5F | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2002-11
ended
|
BB50 CHI | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB50,HZB50 LHD (GCC,GEN) CBU +1 | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 46410-36430 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
HZB50 4FC | — | |
| 46410-36440 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
BB50 CBU 6F | — | |
| 46410-36440 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB50,58 LHD TDEFI | — | |
| 46410-36440 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-05
ended
|
BB50 LHD IV 6F | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2002-11
ended
|
RZB40 CHI | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
RZB40 WOC GEN;RZB40 (17S,26S) +2 | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-08
ended
|
RZB40 WOC GCC;RZB40 22S +1 | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2002-11
ended
|
RZB50 CHI | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
RZB50 GCC,GEN | — | |
| 46410-36510 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2004-08
ended
|
BB50 RHD 6F TDEFI | — | |
| 46410-36510 |
Cable Assy, Parking Brake, NO.1
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 46410-36370 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
BB42,BZB40 RHD | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
BB42 LHD SRF | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2006-08
ended
|
BB59,BZB50 EX;BB50 5F TDEFI | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
BZB50,HZB50 RHD STD | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
BB50,HZB50 LHD 5F | — | |
| 46410-36440 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
TRB40 | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2015-01
ended
|
TRB50 | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2007-08
ended
|
RZB50 | — | |
| 46410-36510 |
Cable Assy, Parking Brake, NO.1
2004-08 → 2006-08
ended
|
BB50 RHD 6F | — | |
| 46410-36530 |
Cable Assy, Parking Brake, NO.1
2008-03 → 2015-01
ended
|
XZB40 | — | |
| 46410-36540 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC | — | |
| 46410-36540 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 46410-36540 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46410-36540 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46410-36590 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 46410-36590 |
Cable Assy, Parking Brake, NO.1
2006-08 → 2015-01
ended
|
XZB50 TAIW | — | |
| 46410-36370 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
BB42,BZB40 RHD | — | |
| 46410-36380 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
BB42 LHD | — | |
| 46410-36410 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
BZB50,HZB50 RHD | — | |
| 46410-36420 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
HZB50 LHD | — | |
| 46410-36470 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
TRB40 | — | |
| 46410-36480 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
TRB50 | — | |
| 46410-36530 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
XZB40 17S | — | |
| 46410-36540 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
XZB5# RHD | — | |
| 46410-36590 |
Cable Assy, Parking Brake, NO.1
2015-01 → —
|
XZB40,50 LHD | — | |
| 46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → 2015-01
ended
|
BB42 ,TD) RHD;BB42 LHD +3 | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90949-01B36 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2006-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90949-01B36 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2006-08 → 2013-11
ended
|
XZB50 IV | — | |
| 90949-01B36 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2006-08 → 2015-01
ended
|
XZB59;XZB50 (20S,21S) WC | — | |
| 90949-01B36 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2006-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90949-01839 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2015-01 → —
|
XZB40 17S;BB42,BZB40,50,HZB50,TRB40,50 | — | |
| 90949-01B36 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2015-01 → —
|
XZB59;XZB40,50 20S,21S,26S,30S | — | |
| 46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1993-01 → 1999-07
ended
|
BB4#,50,HZB50 RHD | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1993-01 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2001-08
ended
|
HZB50 WOC RHD GEN +8 | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2004-08
ended
|
BB42 GEN RHD 5F +9 | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90949-01841 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 90949-01842 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 46420F — Seal, Dust(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90303-10001 |
Seal, Dust(FOR PARKING BRAKE CABLE)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46420G — Spring(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90501-14021 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46420P — Spacer, Parking Brake | ||||
| 90560-08002 |
Spacer, Parking Brake
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 90560-08002 |
Spacer, Parking Brake
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 90560-08002 |
Spacer, Parking Brake
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 90560-08002 |
Spacer, Parking Brake
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 90560-08002 |
Spacer, Parking Brake
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90560-08002 |
Spacer, Parking Brake
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 90560-08002 |
Spacer, Parking Brake
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90560-08002 |
Spacer, Parking Brake
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90560-08002 |
Spacer, Parking Brake
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46420Q — Ring, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
1993-01 → 1999-07
ended
|
BB4#,RZB40 | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
1999-07 → 2001-08
ended
|
BB42 RHD HRF WOC;BB42,RZB40 +4 | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
1999-07 → 2002-11
ended
|
BB42 ZB40 WC (17S,26S) +14 | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2002-11 → 2004-08
ended
|
BB42,BZB40,RZB40 | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 | — | |
| 96160-00700 |
Ring, E(FOR PARKING BRAKE CABLE)
2015-01 → —
|
XZB40 17S;BB42,BZB40,TRB40 | — | |
| 46451C — Bracket, Parking Brake Cable Support, NO.1 | ||||
| 46451-36030 |
Bracket, Parking Brake Cable Support, NO.1
1993-01 → 1999-07
ended
|
BB50,HZB50 EUR | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB42,HZB50 +15 | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
1999-07 → 2002-11
ended
|
BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
1999-07 → 2004-08
ended
|
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46451-36060 |
Bracket, Parking Brake Cable Support, NO.1
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 46464 — Plate, Cable Clamp Support | ||||
| 46464-36010 |
Plate, Cable Clamp Support
1993-01 → 1999-02
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 46464-36020 |
Plate, Cable Clamp Support
1999-02 → 1999-07
ended
|
BB4#,50,HZB50 RHD | — | |
| 46464-36030 |
Plate, Cable Clamp Support
1999-02 → 1999-07
ended
|
BB42,5#,HZB50,RZB40,50 LHD | — | |
| 46464-36020 |
Plate, Cable Clamp Support
1999-07 → 2004-08
ended
|
BB42 GEN RHD 5F +9 | — | |
| 46464-36020 |
Plate, Cable Clamp Support
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 46464-36020 |
Plate, Cable Clamp Support
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 46464-36020 |
Plate, Cable Clamp Support
1999-07 → 2001-08
ended
|
HZB50 WOC RHD GEN +8 | — | |
| 46464-36030 |
Plate, Cable Clamp Support
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 WOC +3 | — | |
| 46464-36030 |
Plate, Cable Clamp Support
1999-07 → 2001-05
ended
|
BB50 STD WC IV;BB50 +3 | — | |
| 46464-36030 |
Plate, Cable Clamp Support
1999-07 → 2002-11
ended
|
BB50,RZB40,50 CHI | — | |
| 46464-36030 |
Plate, Cable Clamp Support
1999-07 → 2004-08
ended
|
BB42 ) WC WC +13 | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2004-08 → 2006-08
ended
|
BZB50 EX;BB50,59 RHD | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2004-08 → 2015-01
ended
|
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2004-08 → 2013-11
ended
|
XZB50 RHD IV | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2015-01
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2013-11
ended
|
XZB50 LHD IV | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 46464-36020 |
Plate, Cable Clamp Support
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,5# RHD | — | |
| 46464-36030 |
Plate, Cable Clamp Support
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
