Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

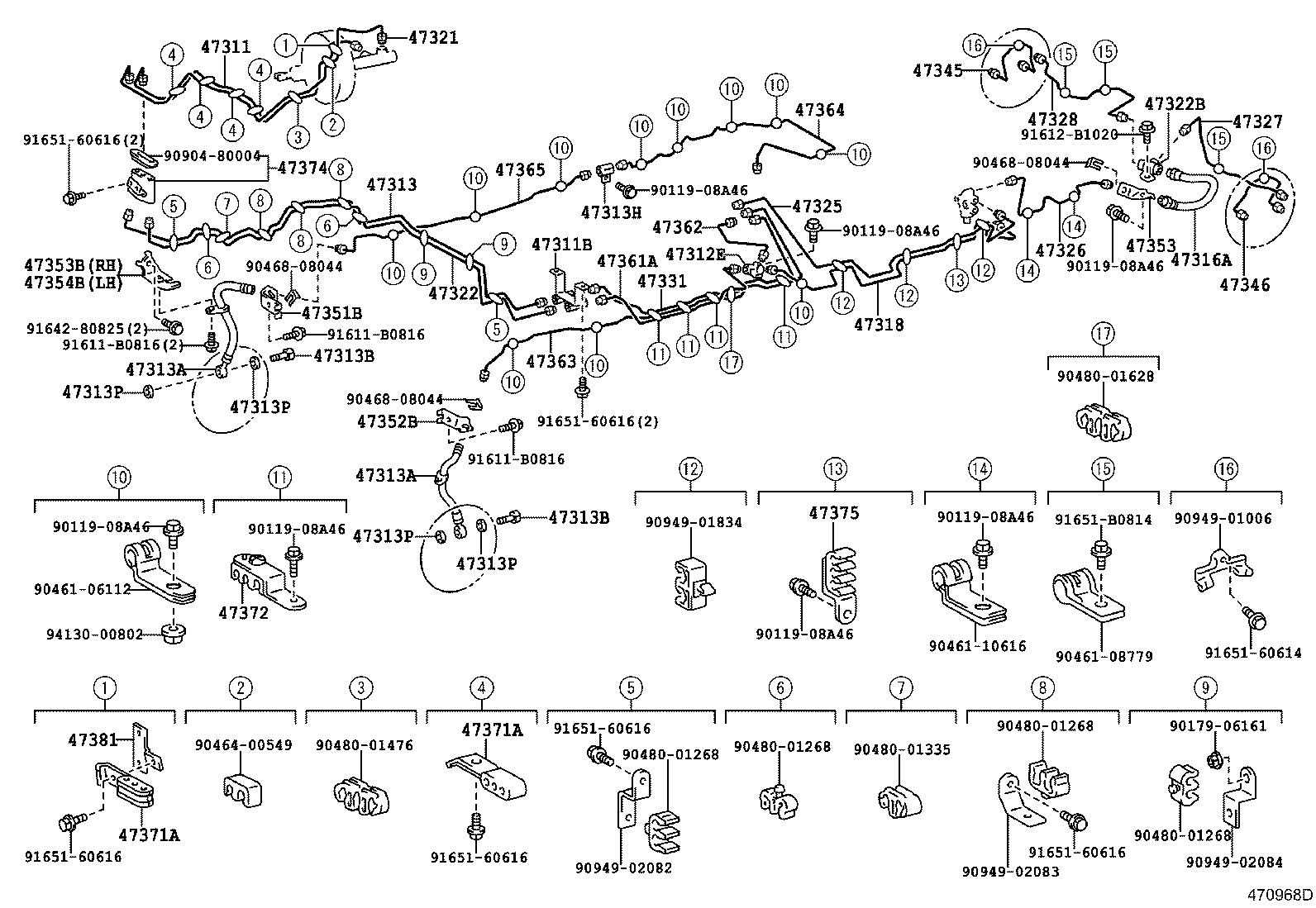

Exploded illustration 470968D 9165160616 — not listed in this catalogue 47311 — TUBE, FRONT BRAKE, NO.1 (44 parts) 9090480004 — not listed in this catalogue 47374 — CONNECTOR, TUBE (22 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (28 parts) 47321 — TUBE, REAR BRAKE, NO.1 (44 parts) 47365 — TUBE, FRONT BRAKE, NO.14 (25 parts) 47364 — TUBE, FRONT BRAKE, NO.13 (30 parts) 47345 — TUBE, WHEEL CYLINDER, REAR RH (16 parts) 47328 — TUBE, REAR BRAKE, NO.8 (30 parts) 9046808044 — not listed in this catalogue 91612B1020 — not listed in this catalogue 47322B — WAY, NO.2(FOR REAR BRAKE TUBE) (26 parts) 47327 — TUBE, REAR BRAKE, NO.7 (32 parts) 47346 — TUBE, WHEEL CYLINDER, REAR LH (16 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (14 parts) 47353 — BRACKET, FLEXIBLE HOSE(FOR REAR) (12 parts) 9011908A46 — not listed in this catalogue 47326 — TUBE, REAR BRAKE, NO.6 (4 parts) 9011908A46 — not listed in this catalogue 47325 — TUBE, REAR BRAKE, NO.5 (57 parts) 9011908A46 — not listed in this catalogue 47362 — TUBE, FRONT BRAKE, NO.11 (27 parts) 47361A — TUBE, FRONT BRAKE, NO.10 (24 parts) 47313H — WAY, NO.3(FOR FRONT BRAKE TUBE) (23 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (31 parts) 47331 — TUBE, REAR BRAKE, NO.10 (25 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (15 parts) 47322 — TUBE, REAR BRAKE, NO.2 (28 parts) 9046808044 — not listed in this catalogue 47353B — BRACKET, FLEXIBLE HOSE, NO.3 (14 parts) 47354B — BRACKET, FLEXIBLE HOSE, NO.4 (14 parts) 9164280825 — not listed in this catalogue 91611B0816 — not listed in this catalogue 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (28 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (14 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (14 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (28 parts) 47351B — BRACKET, FLEXIBLE HOSE, NO.1 (31 parts) 47352B — BRACKET, FLEXIBLE HOSE, NO.2 (31 parts) 91611B0816 — not listed in this catalogue 9046808044 — not listed in this catalogue 47363 — TUBE, FRONT BRAKE, NO.12 (23 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (32 parts) 9094901006 — not listed in this catalogue 91651B0814 — not listed in this catalogue 9011908A46 — not listed in this catalogue 47375 — CLAMP, BRAKE TUBE, NO.5 (24 parts) 9094901834 — not listed in this catalogue 9165160616 — not listed in this catalogue 91611B0816 — not listed in this catalogue 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (28 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (28 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (14 parts) 9011908A46 — not listed in this catalogue 9011908A46 — not listed in this catalogue 9046106112 — not listed in this catalogue 9413000802 — not listed in this catalogue 47372 — CLAMP, BRAKE TUBE, NO.2 (34 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (14 parts) 9011908A46 — not listed in this catalogue 9046110616 — not listed in this catalogue 9046108779 — not listed in this catalogue 9165160614 — not listed in this catalogue 9017906161 — not listed in this catalogue 9048001268 — not listed in this catalogue 9048001335 — not listed in this catalogue 9048001268 — not listed in this catalogue 9048001268 — not listed in this catalogue 9165160616 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (20 parts) 9048001476 — not listed in this catalogue 9046400549 — not listed in this catalogue 47381 — BRACKET, BRAKE TUBE CLAMP NO.1 (23 parts) 9094902084 — not listed in this catalogue 9048001268 — not listed in this catalogue 9165160616 — not listed in this catalogue 9094902083 — not listed in this catalogue 9094902082 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (20 parts) 9048001628 — not listed in this catalogue
470968D · 41 callouts, 42 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
889 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-36480 Tube, Front Brake, NO.1
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
47311-36500 Tube, Front Brake, NO.1
1993-01 → 1999-07 ended
BB50 GEN IV;BB42,58,HZB50,RZB40,50 LHD —
47311-36520 Tube, Front Brake, NO.1
1996-05 → 1999-07 ended
BB50 LHD EUR —
47311-36530 Tube, Front Brake, NO.1
1997-05 → 1999-07 ended
BB50 WC CBU —
47311-36541 Tube, Front Brake, NO.1
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
47311-36541 Tube, Front Brake, NO.1
1999-07 → 2004-08 ended
BB42 .(DSL,LPG,TDEFI) RHD SRF;HZB50 +9 —
47311-36551 Tube, Front Brake, NO.1
1999-07 → 2001-05 ended
BB50 RHD 6F —
47311-36551 Tube, Front Brake, NO.1
1999-07 → 2004-08 ended
BB50 RHD 6F TDEFI —
47311-36551 Tube, Front Brake, NO.1
1999-07 → 2001-08 ended
HZB50 4FC —
47311-36551 Tube, Front Brake, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
47311-36561 Tube, Front Brake, NO.1
1999-07 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
47311-36561 Tube, Front Brake, NO.1
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
47311-36561 Tube, Front Brake, NO.1
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 22S +3 —
47311-36561 Tube, Front Brake, NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47311-36581 Tube, Front Brake, NO.1
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47311-36581 Tube, Front Brake, NO.1
1999-07 → 2004-08 ended
BB50 LHD TDEFI —
47311-36581 Tube, Front Brake, NO.1
1999-07 → 2001-08 ended
BB50 CBU 6F —
47311-36541 Tube, Front Brake, NO.1
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
47311-36541 Tube, Front Brake, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
47311-36541 Tube, Front Brake, NO.1
2004-08 → 2011-08 ended
XZB5# EX 5F;BZB40,50,XZB40 STD —
47311-36541 Tube, Front Brake, NO.1
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
47311-36551 Tube, Front Brake, NO.1
2004-08 → 2006-08 ended
BB50 RHD 6F —
47311-36551 Tube, Front Brake, NO.1
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
47311-36551 Tube, Front Brake, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47311-36551 Tube, Front Brake, NO.1
2004-08 → 2015-01 ended
XZB50 WC ARL;XZB50 GEN +1 —
47311-36551 Tube, Front Brake, NO.1
2004-08 → 2013-11 ended
XZB50 RHD IV —
47311-36561 Tube, Front Brake, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47311-36561 Tube, Front Brake, NO.1
2004-08 → 2006-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,58,HZB50,RZB50 +2 —
47311-36562 Tube, Front Brake, NO.1
2006-08 → 2011-08 ended
BB42 LHD HRF —
47311-36562 Tube, Front Brake, NO.1
2006-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
47311-36562 Tube, Front Brake, NO.1
2006-08 → 2009-08 ended
XZB50 TAIW —
47311-36562 Tube, Front Brake, NO.1
2006-08 → 2007-08 ended
RZB40,50 —
47311-36581 Tube, Front Brake, NO.1
2004-08 → 2006-08 ended
BB50 LHD TDEFI —
47311-36582 Tube, Front Brake, NO.1
2009-08 → 2011-08 ended
XZB50 TAIW —
47311-36582 Tube, Front Brake, NO.1
2006-08 → 2011-08 ended
XZB50 LHD IV —
47311-36582 note Tube, Front Brake, NO.1
2009-08 → 2011-08 ended
HZB50 LHD HRF WC +1 —
47311-36583 Tube, Front Brake, NO.1
2011-08 → 2013-11 ended
XZB50 LHD IV —
47311-36583 Tube, Front Brake, NO.1
2011-08 → 2015-01 ended
XZB50 TAIW —
47311-36583 note Tube, Front Brake, NO.1
2011-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47311-36583 note Tube, Front Brake, NO.1
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47311-36541 Tube, Front Brake, NO.1
2015-01 → —
BB42,HZB50 RHD —
47311-36551 Tube, Front Brake, NO.1
2015-01 → —
BZB40,50,XZB40,5# RHD —
47311-36562 Tube, Front Brake, NO.1
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
47311-36583 note Tube, Front Brake, NO.1
2015-01 → —
TRB50 GCC;HZB50,XZB50 LHD —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-12045 Way, NO.1(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB4#,58,HZB50,RZB40,50 +1 —
90412-12047 Way, NO.1(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB50 STD CBU;BB50,HZB50 EUR —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2013-11 ended
XZB50 IV —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90904-12083 Way, NO.1(FOR FRONT BRAKE TUBE)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB4#,58,HZB50,RZB40,50 +1 —
90413-10271 Way, NO.2(FOR FRONT BRAKE TUBE)
1997-05 → 1999-07 ended
BB50 WC CBU —
90413-10282 Way, NO.2(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB50,HZB50 EUR —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2003-04 → 2004-08 ended
BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50 (17S,20S,21S,23S,26S,30S) (GCC,GEN) —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2003-04 ended
BB42 RF RZB50 ,26S) +27 —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 CBU 6F —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2004-08 ended
BB50 6F TDEFI —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 IV 6F —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → 2004-12 ended
BB50,BZB40,50 17S —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2005-01 → 2007-08 ended
BZB40,50 STD —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → 2007-08 ended
RZB40 ,TD) GEN;RZB40 SRF +3 —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2005-01 → 2006-08 ended
BB50 STD 5F TDEFI —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → 2006-08 ended
BB59;BB50,58,BZB50 (20S,21S,23S) GEN —
90412-10210 Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90904-12061 Way, NO.2(FOR FRONT BRAKE TUBE)
2007-08 → 2008-03 ended
XZB50 STD GEN —
90904-12061 Way, NO.2(FOR FRONT BRAKE TUBE)
2007-08 → 2009-08 ended
XZB50 TAIW —
90904-12061 Way, NO.2(FOR FRONT BRAKE TUBE)
2007-08 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40,59 —
90904-12061 Way, NO.2(FOR FRONT BRAKE TUBE)
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
90904-13517 Way, NO.2(FOR FRONT BRAKE TUBE)
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
90904-13517 Way, NO.2(FOR FRONT BRAKE TUBE)
2006-08 → 2015-01 ended
XZB50 WC ARL —
90904-13517 Way, NO.2(FOR FRONT BRAKE TUBE)
2006-08 → 2013-11 ended
XZB50 IV —
90904-13517 Way, NO.2(FOR FRONT BRAKE TUBE)
2006-08 → 2009-08 ended
XZB50 WOC CBU —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
2004-08 → 2006-08 ended
BB50 6F —
90904-13517 Way, NO.2(FOR FRONT BRAKE TUBE)
2009-08 → 2015-01 ended
XZB50 TAIW —
90904-12061 Way, NO.2(FOR FRONT BRAKE TUBE)
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
90904-13517 note Way, NO.2(FOR FRONT BRAKE TUBE)
2015-01 → —
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
47313 — Tube, Front Brake, NO.3
47313-36250 Tube, Front Brake, NO.3
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
47313-36251 Tube, Front Brake, NO.3
1997-05 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB4#,58,HZB50,RZB40,50 —
47313-36260 Tube, Front Brake, NO.3
1993-01 → 1997-05 ended
BB50,HZB50 TD —
47313-36261 Tube, Front Brake, NO.3
1997-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
47313-36311 Tube, Front Brake, NO.3
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
47313-36311 Tube, Front Brake, NO.3
1999-07 → 2004-08 ended
BB42 RF ,GEN;BB42,50 .(GCC,GEN) +28 —
47313-36311 Tube, Front Brake, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47313-36311 Tube, Front Brake, NO.3
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47313-36321 Tube, Front Brake, NO.3
1999-07 → 2001-08 ended
BB50 CBU 6F —
47313-36321 Tube, Front Brake, NO.3
1999-07 → 2001-05 ended
BB50 IV 6F —
47313-36321 Tube, Front Brake, NO.3
1999-07 → 2004-08 ended
BB50,58 6F TDEFI —
47313-36311 Tube, Front Brake, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47313-36311 Tube, Front Brake, NO.3
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
47313-36311 Tube, Front Brake, NO.3
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,BZB40,50,HZB50,RZB50 +2 —
47313-36321 Tube, Front Brake, NO.3
2004-08 → 2006-08 ended
BB50,58 6F —
47313-36360 Tube, Front Brake, NO.3
2006-08 → 2007-08 ended
XZB50 ARL,EUR,TAIW —
47313-36370 Tube, Front Brake, NO.3
2006-09 → 2007-08 ended
XZB5# GEN —
47313-36380 Tube, Front Brake, NO.3
2007-08 → 2011-08 ended
BB42 LHD HRF —
47313-36380 Tube, Front Brake, NO.3
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50 —
47313-36390 Tube, Front Brake, NO.3
2007-08 → 2011-08 ended
XZB50 WOC IV;XZB50 WC +1 —
47313-36390 Tube, Front Brake, NO.3
2007-08 → 2009-08 ended
XZB50 WOC CBU —
47313-36400 Tube, Front Brake, NO.3
2007-08 → 2015-01 ended
XZB40,59;XZB50 EX —
47313-36400 Tube, Front Brake, NO.3
2007-08 → 2008-03 ended
XZB50 STD GEN —
47313-36440 Tube, Front Brake, NO.3
2011-08 → 2013-11 ended
XZB50 IV —
47313-36440 Tube, Front Brake, NO.3
2011-08 → 2015-01 ended
XZB50 21S —
47313-36380 Tube, Front Brake, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50 —
47313-36400 Tube, Front Brake, NO.3
2015-01 → —
XZB40,5# RHD GEN —
47313-36441 Tube, Front Brake, NO.3
2015-01 → —
XZB40,50 21S,26S,30S —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02707 note Hose, Flexible, NO.1(FOR FRONT)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90947-02708 Hose, Flexible, NO.1(FOR FRONT)
1993-01 → 1999-07 ended
BB50 WOC GEN;BB42,43,58,RZB40;BB50,HZB50 20S,30S —
90947-02708 note Hose, Flexible, NO.1(FOR FRONT)
1997-05 → 1999-07 ended
HZB50 4FC —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2001-05 ended
BB50 IV 6F —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2004-08 ended
BB42 RF N;BB50 0,BZB50 +31 —
90947-02B92 Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2001-08 ended
BB50 ,HZB50 WOC RHD +13 —
90947-02B92 Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2004-08 ended
BB42 WC;BB50 6S) WC +24 —
90947-02B92 Hose, Flexible, NO.1(FOR FRONT)
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2006-08 ended
BB58,59;BB50 6F;BB50,BZB50 EX —
90947-02B91 Hose, Flexible, NO.1(FOR FRONT)
2011-08 → 2015-01 ended
BZB40,50,XZB40 —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2015-01 ended
BB42 FI,TD RHD;BB42 LHD +4 —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2013-11 ended
XZB50 IV —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90947-02B92 Hose, Flexible, NO.1(FOR FRONT)
2004-08 → 2005-01 ended
BB42,50,58,BZB40,50,HZB50,RZB40 (17S,20S,21S,23S,26S,30S) (GCC,GEN) —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2009-08 ended
XZB50 TAIW —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2008-03 ended
XZB50 STD GEN —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2006-02 ended
RZB40 HRF GCC —
90947-02B91 note Hose, Flexible, NO.1(FOR FRONT)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
90947-02E22 Hose, Flexible, NO.1(FOR FRONT)
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1993-01 → 1999-07 ended
BB50 WOC GEN;BB42,43,58,RZB40;BB50,HZB50 20S,30S —
90401-10015 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1997-05 → 1999-07 ended
HZB50 4FC —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-08 ended
BB50 .HRF WOC WOC +11 —
90401-10015 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-08 ended
HZB50 4FC —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2004-08 ended
BB42 WC;BB50 6S) WC +24 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2004-08 ended
BB42 RF N;BB50 0,BZB50 +31 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-05 ended
BB50 IV 6F —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2009-08 ended
XZB50 TAIW —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90401-10023 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2011-08 → 2015-01 ended
BZB40,50,XZB40 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2015-01 ended
BB42 FI,TD RHD;BB42 LHD +4 —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2013-11 ended
XZB50 IV —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-08 ended
BB58,59;BB50 6F;BB50,BZB50 EX —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
90401-10023 note Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47313H — Way, NO.3(FOR FRONT BRAKE TUBE)
90413-10270 Way, NO.3(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB40,HZB50 19S,22S —
90413-12008 Way, NO.3(FOR FRONT BRAKE TUBE)
1993-01 → 1999-07 ended
BB50,HZB50 EUR —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
1997-05 → 1999-07 ended
BB50 WC CBU —
90413-10270 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2001-08 ended
HZB50 4FC —
90413-10270 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90413-10270 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2003-04 ended
BB50 ARL —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 CBU 6F —
90904-12061 note Way, NO.3(FOR FRONT BRAKE TUBE)
2003-02 → 2004-08 ended
BB50 ARL —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2004-08 ended
BB50 LHD TDEFI —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
90413-10317 Way, NO.3(FOR FRONT BRAKE TUBE)
2007-08 → 2008-03 ended
XZB50 STD GEN —
90413-10317 Way, NO.3(FOR FRONT BRAKE TUBE)
2007-08 → 2009-08 ended
XZB50 TAIW —
90413-10317 Way, NO.3(FOR FRONT BRAKE TUBE)
2007-08 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40,59 —
90413-10317 Way, NO.3(FOR FRONT BRAKE TUBE)
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
90904-12061 note Way, NO.3(FOR FRONT BRAKE TUBE)
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
90904-12061 note Way, NO.3(FOR FRONT BRAKE TUBE)
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
2009-08 → 2015-01 ended
XZB50 TAIW —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
2004-08 → 2013-11 ended
XZB50 LHD IV —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
2004-08 → 2006-08 ended
BB50 ARL;BB50 LHD TDEFI —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90904-12061 Way, NO.3(FOR FRONT BRAKE TUBE)
2004-08 → 2015-01 ended
XZB50 WC ARL —
90413-10317 Way, NO.3(FOR FRONT BRAKE TUBE)
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
90904-12061 note Way, NO.3(FOR FRONT BRAKE TUBE)
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2013-11 ended
XZB50 IV —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
96912-33805 Hose, Flexible(FOR REAR BRAKE TUBE)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2011-08 ended
BB42 LHD HRF —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2013-11 ended
XZB50 IV —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
90947-02990 Hose, Flexible(FOR REAR BRAKE TUBE)
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47318 — Tube, Front Brake, NO.8
47318-36200 Tube, Front Brake, NO.8
1993-01 → 1999-07 ended
HZB50 19S,22S;BB50,HZB50 EUR —
47318-36210 Tube, Front Brake, NO.8
1993-01 → 1999-07 ended
BB40 —
47318-36270 Tube, Front Brake, NO.8
1997-05 → 1999-07 ended
BB50 WC CBU —
47318-36281 Tube, Front Brake, NO.8
1999-07 → 2003-04 ended
BB50 ARL —
47318-36281 Tube, Front Brake, NO.8
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
47318-36281 Tube, Front Brake, NO.8
1999-07 → 2001-08 ended
HZB50 4FC —
47318-36291 Tube, Front Brake, NO.8
2000-12 → 2002-11 ended
RZB40 CHI —
47318-36321 Tube, Front Brake, NO.8
1999-07 → 2001-08 ended
BB50 CBU 6F —
47318-36321 Tube, Front Brake, NO.8
1999-07 → 2003-02 ended
BB50 GEN 6F TDEFI —
47318-36321 Tube, Front Brake, NO.8
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47318-36321 Tube, Front Brake, NO.8
1999-07 → 2004-08 ended
BB50 LHD IV TDEFI —
47318-36331 Tube, Front Brake, NO.8
1999-07 → 2001-05 ended
BB50 RHD 6F —
47318-36380 note Tube, Front Brake, NO.8
2001-05 → 2003-02 ended
BB50 ARL —
47318-36380 note Tube, Front Brake, NO.8
2001-05 → 2004-08 ended
BB50 RHD IV TDEFI —
47318-36410 note Tube, Front Brake, NO.8
2003-02 → 2004-08 ended
BB50 CBU 6F —
47318-36321 Tube, Front Brake, NO.8
2004-08 → 2006-08 ended
BB50 LHD IV —
47318-36321 Tube, Front Brake, NO.8
2004-08 → 2013-11 ended
XZB50 LHD IV —
47318-36380 note Tube, Front Brake, NO.8
2004-08 → 2006-08 ended
BB50 RHD IV —
47318-36380 Tube, Front Brake, NO.8
2011-08 → 2015-01 ended
BZB50,XZB50 GEN —
47318-36380 Tube, Front Brake, NO.8
2006-08 → 2013-11 ended
XZB50 RHD IV —
47318-36390 Tube, Front Brake, NO.8
2011-08 → 2015-01 ended
BZB40,XZB40 —
47318-36410 Tube, Front Brake, NO.8
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47318-36410 Tube, Front Brake, NO.8
2006-08 → 2015-01 ended
XZB50 WC ARL —
47318-36410 Tube, Front Brake, NO.8
2009-08 → 2015-01 ended
XZB50 TAIW —
47318-36410 note Tube, Front Brake, NO.8
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47318-36410 note Tube, Front Brake, NO.8
2004-08 → 2006-08 ended
BB50 CBU 6F —
47318-36410 note Tube, Front Brake, NO.8
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47318-36420 Tube, Front Brake, NO.8
2011-08 → 2015-01 ended
XZB59 —
47318-36380 Tube, Front Brake, NO.8
2015-01 → —
BZB50,XZB50 RHD GEN —
47318-36390 Tube, Front Brake, NO.8
2015-01 → —
BZB40,XZB40 17S —
47318-36410 Tube, Front Brake, NO.8
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47318-36420 Tube, Front Brake, NO.8
2015-01 → —
XZB59 —
47321 — Tube, Rear Brake, NO.1
47321-36300 Tube, Rear Brake, NO.1
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
47321-36320 Tube, Rear Brake, NO.1
1993-01 → 1999-07 ended
BB50 GEN IV;BB42,58,HZB50,RZB40,50 LHD —
47321-36340 Tube, Rear Brake, NO.1
1996-05 → 1999-07 ended
BB50 LHD EUR —
47321-36350 Tube, Rear Brake, NO.1
1997-05 → 1999-07 ended
BB50 WC CBU —
47321-36361 Tube, Rear Brake, NO.1
1999-07 → 2004-08 ended
BB42 .(DSL,LPG,TDEFI) RHD SRF;HZB50 +9 —
47321-36361 Tube, Rear Brake, NO.1
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
47321-36371 Tube, Rear Brake, NO.1
1999-07 → 2001-05 ended
BB50 RHD 6F —
47321-36371 Tube, Rear Brake, NO.1
1999-07 → 2004-08 ended
BB50 RHD 6F TDEFI —
47321-36371 Tube, Rear Brake, NO.1
1999-07 → 2001-08 ended
HZB50 4FC —
47321-36371 Tube, Rear Brake, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
47321-36381 Tube, Rear Brake, NO.1
1999-07 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
47321-36381 Tube, Rear Brake, NO.1
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
47321-36381 Tube, Rear Brake, NO.1
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 22S +3 —
47321-36381 Tube, Rear Brake, NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47321-36411 Tube, Rear Brake, NO.1
1999-07 → 2004-08 ended
BB50 LHD TDEFI —
47321-36411 Tube, Rear Brake, NO.1
1999-07 → 2001-08 ended
BB50 CBU 6F —
47321-36411 Tube, Rear Brake, NO.1
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47321-36361 Tube, Rear Brake, NO.1
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
47321-36361 Tube, Rear Brake, NO.1
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
47321-36361 Tube, Rear Brake, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
47321-36361 Tube, Rear Brake, NO.1
2004-08 → 2011-08 ended
XZB5# EX 5F;BZB40,50,XZB40 STD —
47321-36371 Tube, Rear Brake, NO.1
2004-08 → 2006-08 ended
BB50 RHD 6F —
47321-36371 Tube, Rear Brake, NO.1
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
47321-36371 Tube, Rear Brake, NO.1
2004-08 → 2015-01 ended
XZB50 WC ARL;XZB50 GEN +1 —
47321-36371 Tube, Rear Brake, NO.1
2004-08 → 2013-11 ended
XZB50 RHD IV —
47321-36371 Tube, Rear Brake, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47321-36381 Tube, Rear Brake, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47321-36381 Tube, Rear Brake, NO.1
2004-08 → 2006-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,58,HZB50,RZB50 +2 —
47321-36382 Tube, Rear Brake, NO.1
2006-08 → 2009-08 ended
XZB50 TAIW —
47321-36382 Tube, Rear Brake, NO.1
2006-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
47321-36382 Tube, Rear Brake, NO.1
2006-08 → 2007-08 ended
RZB40,50 —
47321-36382 Tube, Rear Brake, NO.1
2006-08 → 2011-08 ended
BB42 LHD HRF —
47321-36411 Tube, Rear Brake, NO.1
2004-08 → 2006-08 ended
BB50 LHD TDEFI —
47321-36412 Tube, Rear Brake, NO.1
2009-08 → 2011-08 ended
XZB50 TAIW —
47321-36412 Tube, Rear Brake, NO.1
2006-08 → 2011-08 ended
XZB50 LHD IV —
47321-36412 note Tube, Rear Brake, NO.1
2009-08 → 2011-08 ended
HZB50 LHD HRF WC +1 —
47321-36413 Tube, Rear Brake, NO.1
2011-08 → 2013-11 ended
XZB50 LHD IV —
47321-36413 Tube, Rear Brake, NO.1
2011-08 → 2015-01 ended
XZB50 TAIW —
47321-36413 note Tube, Rear Brake, NO.1
2011-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47321-36413 note Tube, Rear Brake, NO.1
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47321-36361 Tube, Rear Brake, NO.1
2015-01 → —
BB42,HZB50 RHD —
47321-36371 Tube, Rear Brake, NO.1
2015-01 → —
BZB40,50,XZB40,5# RHD —
47321-36382 Tube, Rear Brake, NO.1
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
47321-36413 note Tube, Rear Brake, NO.1
2015-01 → —
TRB50 GCC;HZB50,XZB50 LHD —
47322 — Tube, Rear Brake, NO.2
47322-36330 Tube, Rear Brake, NO.2
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
47322-36331 Tube, Rear Brake, NO.2
1997-05 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB4#,58,HZB50,RZB40,50 —
47322-36340 Tube, Rear Brake, NO.2
1993-01 → 1997-05 ended
BB50,HZB50 TD —
47322-36341 Tube, Rear Brake, NO.2
1997-05 → 1999-07 ended
BB50 EUR;BB50 WC CBU —
47322-36401 Tube, Rear Brake, NO.2
1999-07 → 2004-08 ended
BB42 RF ,GEN;BB42,50 .(GCC,GEN) +28 —
47322-36401 Tube, Rear Brake, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47322-36401 Tube, Rear Brake, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
47322-36401 Tube, Rear Brake, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47322-36411 Tube, Rear Brake, NO.2
1999-07 → 2001-05 ended
BB50 IV 6F —
47322-36411 Tube, Rear Brake, NO.2
1999-07 → 2004-08 ended
BB50,58 6F TDEFI —
47322-36411 Tube, Rear Brake, NO.2
1999-07 → 2001-08 ended
BB50 CBU 6F —
47322-36401 Tube, Rear Brake, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47322-36401 Tube, Rear Brake, NO.2
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
47322-36401 Tube, Rear Brake, NO.2
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,BZB40,50,HZB50,RZB50 +2 —
47322-36411 Tube, Rear Brake, NO.2
2004-08 → 2006-08 ended
BB50,58 6F —
47322-36460 Tube, Rear Brake, NO.2
2006-08 → 2007-08 ended
XZB50 ARL,EUR,TAIW —
47322-36470 Tube, Rear Brake, NO.2
2006-09 → 2007-08 ended
XZB5# GEN —
47322-36480 Tube, Rear Brake, NO.2
2007-08 → 2011-08 ended
BB42 LHD HRF —
47322-36480 Tube, Rear Brake, NO.2
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50 —
47322-36490 Tube, Rear Brake, NO.2
2007-08 → 2009-08 ended
XZB50 WOC CBU —
47322-36490 Tube, Rear Brake, NO.2
2007-08 → 2011-08 ended
XZB50 WOC IV;XZB50 WC +1 —
47322-36500 Tube, Rear Brake, NO.2
2007-08 → 2008-03 ended
XZB50 STD GEN —
47322-36500 Tube, Rear Brake, NO.2
2007-08 → 2015-01 ended
XZB40,59;XZB50 EX —
47322-36540 Tube, Rear Brake, NO.2
2011-08 → 2013-11 ended
XZB50 IV —
47322-36540 Tube, Rear Brake, NO.2
2011-08 → 2015-01 ended
XZB50 21S —
47322-36480 Tube, Rear Brake, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50 —
47322-36500 Tube, Rear Brake, NO.2
2015-01 → —
XZB40,5# RHD GEN —
47322-36541 Tube, Rear Brake, NO.2
2015-01 → —
XZB40,50 21S,26S,30S —
47322B — Way, NO.2(FOR REAR BRAKE TUBE)
90413-10277 Way, NO.2(FOR REAR BRAKE TUBE)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 IV 6F —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2004-08 ended
BB50 6F TDEFI —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 CBU 6F —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2003-04 ended
BB50 ARL —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
1999-07 → 2004-08 ended
BB42 RF GCC,GEN;BB42,50 WC +27 —
47354-36120 Way, NO.2(FOR REAR BRAKE TUBE)
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47354-36120 Way, NO.2(FOR REAR BRAKE TUBE)
2009-08 → 2015-01 ended
XZB50 TAIW —
47354-36120 Way, NO.2(FOR REAR BRAKE TUBE)
2006-08 → 2015-01 ended
XZB50 WC ARL —
47354-36120 Way, NO.2(FOR REAR BRAKE TUBE)
2006-08 → 2013-11 ended
XZB50 IV —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2006-08 ended
BB50 6F —
47354-36120 Way, NO.2(FOR REAR BRAKE TUBE)
2006-08 → 2009-08 ended
XZB50 WOC CBU —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2011-08 ended
XZB5# EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2009-08 ended
XZB50 TAIW —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2008-03 ended
XZB50 STD GEN —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 5F TDEFI —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47354-36120 note Way, NO.2(FOR REAR BRAKE TUBE)
2015-01 → —
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
90904-13520 Way, NO.2(FOR REAR BRAKE TUBE)
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47325 — Tube, Rear Brake, NO.5
47325-36390 Tube, Rear Brake, NO.5
1993-01 → 1999-07 ended
HZB50 19S,22S;BB50,HZB50 EUR —
47325-36400 Tube, Rear Brake, NO.5
1993-01 → 1999-07 ended
BB58,RZB50;BB50 GEN IV;BB50,HZB50 20S,30S —
47325-36400 note Tube, Rear Brake, NO.5
1997-05 → 1999-07 ended
HZB50 4FC —
47325-36410 Tube, Rear Brake, NO.5
1993-01 → 1999-07 ended
BB42,43,RZB40 —
47325-36420 Tube, Rear Brake, NO.5
1993-01 → 1999-07 ended
BB40 —
47325-36480 Tube, Rear Brake, NO.5
1997-05 → 1999-07 ended
BB50 WC CBU —
47325-36491 Tube, Rear Brake, NO.5
1999-07 → 2001-08 ended
HZB50 4FC —
47325-36491 Tube, Rear Brake, NO.5
1999-07 → 2003-04 ended
BB50 ARL —
47325-36491 Tube, Rear Brake, NO.5
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
47325-36501 Tube, Rear Brake, NO.5
2000-12 → 2002-11 ended
RZB40 CHI —
47325-36511 note Tube, Rear Brake, NO.5
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47325-36511 Tube, Rear Brake, NO.5
2002-11 → 2004-08 ended
BB50,BZB50 (17S,21S) 5F —
47325-36511 note Tube, Rear Brake, NO.5
1999-07 → 2001-08 ended
BB50 WOC 5F;HZB50 RHD +7 —
47325-36511 note Tube, Rear Brake, NO.5
1999-07 → 2004-08 ended
HZB50 WC;BB50,58,RZB50 LHD (23S,30S) +11 —
47325-36521 Tube, Rear Brake, NO.5
1999-07 → 2001-08 ended
BB4#,RZB40 GCC,GEN —
47325-36551 Tube, Rear Brake, NO.5
1999-07 → 2003-02 ended
BB50 GEN 6F TDEFI —
47325-36551 Tube, Rear Brake, NO.5
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47325-36551 Tube, Rear Brake, NO.5
1999-07 → 2001-08 ended
BB50 CBU 6F —
47325-36551 Tube, Rear Brake, NO.5
1999-07 → 2004-08 ended
BB50 LHD IV TDEFI —
47325-36561 Tube, Rear Brake, NO.5
1999-07 → 2001-05 ended
BB50 RHD 6F —
47325-36600 Tube, Rear Brake, NO.5
2001-04 → 2004-08 ended
BB59 —
47325-36600 Tube, Rear Brake, NO.5
2001-04 → 2001-08 ended
BB50 EX IV —
47325-36610 note Tube, Rear Brake, NO.5
2001-05 → 2004-08 ended
BB50 RHD IV TDEFI —
47325-36610 note Tube, Rear Brake, NO.5
2001-05 → 2003-02 ended
BB50 ARL —
47325-36630 Tube, Rear Brake, NO.5
2001-08 → 2004-08 ended
BB42,BZB40,RZB40 GCC,GEN —
47325-36650 note Tube, Rear Brake, NO.5
2003-02 → 2004-08 ended
BB50 CBU 6F —
47325-36511 Tube, Rear Brake, NO.5
2004-08 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
47325-36511 Tube, Rear Brake, NO.5
2004-08 → 2007-08 ended
XZB50 GEN,TAIW;BB50,BZB50,HZB50,RZB50 STD (DSL,EFI,LPG,TD) —
47325-36512 Tube, Rear Brake, NO.5
2007-08 → 2015-01 ended
BB50,HZB50,TRB50 —
47325-36512 Tube, Rear Brake, NO.5
2007-08 → 2011-08 ended
BZB50;XZB50 EX —
47325-36512 Tube, Rear Brake, NO.5
2007-08 → 2008-03 ended
XZB50 STD GEN —
47325-36551 Tube, Rear Brake, NO.5
2004-08 → 2006-08 ended
BB50 LHD IV —
47325-36551 Tube, Rear Brake, NO.5
2004-08 → 2013-11 ended
XZB50 LHD IV —
47325-36600 Tube, Rear Brake, NO.5
2004-08 → 2011-08 ended
XZB59 —
47325-36600 Tube, Rear Brake, NO.5
2004-08 → 2006-08 ended
BB59 —
47325-36610 Tube, Rear Brake, NO.5
2006-08 → 2013-11 ended
XZB50 RHD IV —
47325-36610 Tube, Rear Brake, NO.5
2011-08 → 2015-01 ended
BZB50,XZB50 GEN —
47325-36610 note Tube, Rear Brake, NO.5
2004-08 → 2006-08 ended
BB50 RHD IV —
47325-36620 Tube, Rear Brake, NO.5
2011-08 → 2015-01 ended
BZB40,XZB40 —
47325-36630 Tube, Rear Brake, NO.5
2004-08 → 2011-08 ended
BZB40,XZB40;BB42 LHD HRF —
47325-36630 Tube, Rear Brake, NO.5
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
47325-36630 Tube, Rear Brake, NO.5
2004-08 → 2015-01 ended
TRB40;BB42 RHD;BB42 LHD SRF —
47325-36630 Tube, Rear Brake, NO.5
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47325-36650 note Tube, Rear Brake, NO.5
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47325-36650 note Tube, Rear Brake, NO.5
2004-08 → 2006-08 ended
BB50 CBU 6F —
47325-36650 note Tube, Rear Brake, NO.5
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47325-36650 Tube, Rear Brake, NO.5
2006-08 → 2015-01 ended
XZB50 WC ARL —
47325-36650 Tube, Rear Brake, NO.5
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47325-36650 Tube, Rear Brake, NO.5
2009-08 → 2015-01 ended
XZB50 TAIW —
47325-36690 Tube, Rear Brake, NO.5
2007-08 → 2009-08 ended
XZB50 TAIW —
47325-36700 Tube, Rear Brake, NO.5
2011-08 → 2015-01 ended
XZB59 —
47325-36512 Tube, Rear Brake, NO.5
2015-01 → —
HZB50,TRB50,XZB50 STD (GCC,GEN) —
47325-36610 Tube, Rear Brake, NO.5
2015-01 → —
BZB50,XZB50 RHD GEN —
47325-36620 Tube, Rear Brake, NO.5
2015-01 → —
BZB40,XZB40 17S —
47325-36630 Tube, Rear Brake, NO.5
2015-01 → —
BB42,TRB40,XZB40 26S —
47325-36650 note Tube, Rear Brake, NO.5
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47325-36700 Tube, Rear Brake, NO.5
2015-01 → —
XZB59 —
47326 — Tube, Rear Brake, NO.6
47326-36200 Tube, Rear Brake, NO.6
1993-01 → 1999-07 ended
HZB50 TD;BB40,50 ARL,EUR;BB50,HZB50 19S,22S —
47326-36231 Tube, Rear Brake, NO.6
1999-07 → 2003-04 ended
BB50 ARL —
47326-36231 Tube, Rear Brake, NO.6
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47326-36231 Tube, Rear Brake, NO.6
1999-07 → 2001-08 ended
HZB50 4FC —
47327 — Tube, Rear Brake, NO.7
47327-36230 Tube, Rear Brake, NO.7
1993-01 → 1997-04 ended
BB50,HZB50 TD —
47327-36231 Tube, Rear Brake, NO.7
1997-04 → 1999-07 ended
BB50 IV —
47327-36240 Tube, Rear Brake, NO.7
1993-01 → 1997-04 ended
BB4#,HZB50,RZB40,50 CBU —
47327-36241 Tube, Rear Brake, NO.7
1997-04 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
47327-36251 Tube, Rear Brake, NO.7
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
47327-36251 Tube, Rear Brake, NO.7
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47327-36251 Tube, Rear Brake, NO.7
1999-07 → 2003-04 ended
BB50 ARL —
47327-36251 Tube, Rear Brake, NO.7
1999-07 → 2004-08 ended
BB42 RF GCC,GEN;BB42,50 WC +27 —
47327-36281 note Tube, Rear Brake, NO.7
1999-07 → 2001-08 ended
BB50 CBU 6F —
47327-36281 note Tube, Rear Brake, NO.7
1999-07 → 2004-08 ended
BB50 CBU 6F TDEFI —
47327-36301 Tube, Rear Brake, NO.7
1999-07 → 2001-05 ended
BB50 IV 6F —
47327-36301 Tube, Rear Brake, NO.7
1999-07 → 2004-08 ended
BB50 IV TDEFI —
47327-36311 Tube, Rear Brake, NO.7
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47327-36311 Tube, Rear Brake, NO.7
1999-07 → 2001-08 ended
BB50 WOC 5F —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 5F TDEFI —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2008-03 ended
XZB50 STD GEN —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2009-08 ended
XZB50 TAIW —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2011-08 ended
XZB5# EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47327-36251 Tube, Rear Brake, NO.7
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
47327-36281 note Tube, Rear Brake, NO.7
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47327-36281 Tube, Rear Brake, NO.7
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47327-36281 note Tube, Rear Brake, NO.7
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47327-36281 Tube, Rear Brake, NO.7
2009-08 → 2015-01 ended
XZB50 TAIW —
47327-36281 Tube, Rear Brake, NO.7
2006-08 → 2015-01 ended
XZB50 WC ARL —
47327-36281 Tube, Rear Brake, NO.7
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47327-36281 note Tube, Rear Brake, NO.7
2004-08 → 2006-08 ended
BB50 CBU 6F —
47327-36301 Tube, Rear Brake, NO.7
2004-08 → 2013-11 ended
XZB50 IV —
47327-36301 Tube, Rear Brake, NO.7
2004-08 → 2006-08 ended
BB50 IV —
47327-36251 Tube, Rear Brake, NO.7
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47327-36281 note Tube, Rear Brake, NO.7
2015-01 → —
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
47328 — Tube, Rear Brake, NO.8
47328-36250 Tube, Rear Brake, NO.8
1993-01 → 1999-07 ended
BB50,HZB50 IV —
47328-36260 Tube, Rear Brake, NO.8
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
47328-36301 Tube, Rear Brake, NO.8
1999-07 → 2001-08 ended
BB50 ,RZB40 EX (17S,22S) +13 —
47328-36301 Tube, Rear Brake, NO.8
1999-07 → 2004-08 ended
BB42 RF GCC,GEN;BB42,50 WC +27 —
47328-36301 Tube, Rear Brake, NO.8
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47328-36301 Tube, Rear Brake, NO.8
1999-07 → 2003-04 ended
BB50 ARL —
47328-36321 note Tube, Rear Brake, NO.8
1999-07 → 2004-08 ended
BB50 CBU 6F TDEFI —
47328-36321 note Tube, Rear Brake, NO.8
1999-07 → 2001-08 ended
BB50 CBU 6F —
47328-36341 Tube, Rear Brake, NO.8
1999-07 → 2004-08 ended
BB50 IV TDEFI —
47328-36341 Tube, Rear Brake, NO.8
1999-07 → 2001-05 ended
BB50 IV 6F —
47328-36351 Tube, Rear Brake, NO.8
1999-07 → 2001-08 ended
BB50 WOC 5F —
47328-36351 Tube, Rear Brake, NO.8
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 5F TDEFI —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2008-03 ended
XZB50 STD GEN —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2009-08 ended
XZB50 TAIW —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2011-08 ended
XZB5# EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47328-36301 Tube, Rear Brake, NO.8
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
47328-36321 Tube, Rear Brake, NO.8
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47328-36321 note Tube, Rear Brake, NO.8
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47328-36321 note Tube, Rear Brake, NO.8
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47328-36321 Tube, Rear Brake, NO.8
2009-08 → 2015-01 ended
XZB50 TAIW —
47328-36321 Tube, Rear Brake, NO.8
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47328-36321 note Tube, Rear Brake, NO.8
2004-08 → 2006-08 ended
BB50 CBU 6F —
47328-36321 Tube, Rear Brake, NO.8
2006-08 → 2015-01 ended
XZB50 WC ARL —
47328-36341 Tube, Rear Brake, NO.8
2004-08 → 2013-11 ended
XZB50 IV —
47328-36341 Tube, Rear Brake, NO.8
2004-08 → 2006-08 ended
BB50 IV —
47328-36301 Tube, Rear Brake, NO.8
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47328-36321 note Tube, Rear Brake, NO.8
2015-01 → —
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
47331 — Tube, Rear Brake, NO.10
47331-36250 Tube, Rear Brake, NO.10
1997-05 → 1999-07 ended
BB50 WC CBU —
47331-36261 Tube, Rear Brake, NO.10
1999-07 → 2001-05 ended
BB50 RHD 6F —
47331-36261 Tube, Rear Brake, NO.10
1999-07 → 2003-02 ended
BB50 RHD 6F TDEFI —
47331-36261 Tube, Rear Brake, NO.10
2003-02 → 2004-08 ended
BB50 RHD IV —
47331-36271 Tube, Rear Brake, NO.10
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47331-36271 Tube, Rear Brake, NO.10
2003-02 → 2004-08 ended
BB50 ARL;BB50 LHD TDEFI —
47331-36271 Tube, Rear Brake, NO.10
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47331-36271 Tube, Rear Brake, NO.10
1999-07 → 2001-08 ended
BB50 CBU 6F —
47331-36261 Tube, Rear Brake, NO.10
2004-08 → 2006-08 ended
BB50 RHD IV —
47331-36261 Tube, Rear Brake, NO.10
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47331-36261 Tube, Rear Brake, NO.10
2004-08 → 2013-11 ended
XZB50 RHD IV —
47331-36271 Tube, Rear Brake, NO.10
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47331-36271 Tube, Rear Brake, NO.10
2004-08 → 2013-11 ended
XZB50 LHD IV —
47331-36271 Tube, Rear Brake, NO.10
2004-08 → 2015-01 ended
XZB50 WC ARL —
47331-36271 Tube, Rear Brake, NO.10
2009-08 → 2015-01 ended
XZB50 TAIW —
47331-36271 note Tube, Rear Brake, NO.10
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47331-36271 Tube, Rear Brake, NO.10
2004-08 → 2006-08 ended
BB50 ARL;BB50 LHD TDEFI —
47331-36271 note Tube, Rear Brake, NO.10
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47331-36300 Tube, Rear Brake, NO.10
2007-08 → 2009-08 ended
XZB50 TAIW —
47331-36300 Tube, Rear Brake, NO.10
2007-08 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40,59 —
47331-36300 Tube, Rear Brake, NO.10
2007-08 → 2008-03 ended
XZB50 STD GEN —
47331-36300 Tube, Rear Brake, NO.10
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
47331-36261 Tube, Rear Brake, NO.10
2015-01 → —
BZB40,50,XZB40,5# RHD GEN —
47331-36271 note Tube, Rear Brake, NO.10
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47331-36300 Tube, Rear Brake, NO.10
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47345 — Tube, Wheel Cylinder, Rear RH
47345-36050 Tube, Wheel Cylinder, Rear RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47345-36050 Tube, Wheel Cylinder, Rear RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47345-36050 Tube, Wheel Cylinder, Rear RH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47345-36050 Tube, Wheel Cylinder, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47345-36050 Tube, Wheel Cylinder, Rear RH
1999-07 → 2003-04 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47345-36050 Tube, Wheel Cylinder, Rear RH
2003-04 → 2004-08 ended
BB42,5#,BZB40,50,HZB50,RZB40,50 EUR,GCC,GEN —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2013-11 ended
XZB50 IV —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
47345-36050 Tube, Wheel Cylinder, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47345-36050 Tube, Wheel Cylinder, Rear RH
2015-01 → 2016-03 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47345-36051 Tube, Wheel Cylinder, Rear RH
2016-04 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47346 — Tube, Wheel Cylinder, Rear LH
47345-36050 Tube, Wheel Cylinder, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47345-36050 Tube, Wheel Cylinder, Rear LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47345-36050 Tube, Wheel Cylinder, Rear LH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47345-36050 Tube, Wheel Cylinder, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47345-36050 Tube, Wheel Cylinder, Rear LH
1999-07 → 2003-04 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47345-36050 Tube, Wheel Cylinder, Rear LH
2003-04 → 2004-08 ended
BB42,5#,BZB40,50,HZB50,RZB40,50 EUR,GCC,GEN —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2013-11 ended
XZB50 IV —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47345-36050 Tube, Wheel Cylinder, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
47345-36050 Tube, Wheel Cylinder, Rear LH
2015-01 → 2016-03 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47345-36051 Tube, Wheel Cylinder, Rear LH
2016-04 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47351B — Bracket, Flexible Hose, NO.1
47351-36210 Bracket, Flexible Hose, NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47351-36210 Bracket, Flexible Hose, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47351-36210 Bracket, Flexible Hose, NO.1
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47351-36210 Bracket, Flexible Hose, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47351-36210 Bracket, Flexible Hose, NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2013-11 ended
XZB50 IV —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2015-01 ended
BB42 FI,TD RHD;BB42 LHD +4 —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2006-08 ended
BB58,59;BB50 6F;BB50,BZB50 EX —
47351-36210 Bracket, Flexible Hose, NO.1
2011-08 → 2015-01 ended
BZB40,50,XZB40 —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47351-36210 Bracket, Flexible Hose, NO.1
2004-08 → 2005-01 ended
BB50,BZB40,50 17S —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2008-03 ended
XZB50 STD GEN —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2006-02 ended
RZB40 HRF GCC —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2009-08 ended
XZB50 TAIW —
47351-36240 note Bracket, Flexible Hose, NO.1
2005-01 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2009-08 ended
XZB50 TAIW —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2008-03 ended
XZB50 STD GEN —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2006-02 ended
RZB40 HRF GCC —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
47351-36250 note Bracket, Flexible Hose, NO.1
2005-01 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
47351-36210 Bracket, Flexible Hose, NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47351-36240 note Bracket, Flexible Hose, NO.1
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
47351-36250 note Bracket, Flexible Hose, NO.1
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
47352B — Bracket, Flexible Hose, NO.2
47352-36200 Bracket, Flexible Hose, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47352-36200 Bracket, Flexible Hose, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47352-36200 Bracket, Flexible Hose, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47352-36200 Bracket, Flexible Hose, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47352-36200 Bracket, Flexible Hose, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
47352-36200 Bracket, Flexible Hose, NO.2
2011-08 → 2015-01 ended
BZB40,50,XZB40 —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2015-01 ended
BB42 FI,TD RHD;BB42 LHD +4 —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2013-11 ended
XZB50 IV —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2005-01 ended
BB50,BZB40,50 17S —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2006-08 ended
BB58,59;BB50 6F;BB50,BZB50 EX —
47352-36200 Bracket, Flexible Hose, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2008-03 ended
XZB50 STD GEN —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2009-08 ended
XZB50 TAIW —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47352-36230 note Bracket, Flexible Hose, NO.2
2005-01 → 2006-02 ended
RZB40 HRF GCC —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2006-08 ended
BB50 5F TDEFI;BB58,BZB50 21S,23S —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2006-02 ended
RZB40 HRF GCC —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2009-08 ended
XZB50 TAIW —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2008-03 ended
XZB50 STD GEN —
47352-36240 note Bracket, Flexible Hose, NO.2
2005-01 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
47352-36200 Bracket, Flexible Hose, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47352-36230 note Bracket, Flexible Hose, NO.2
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
47352-36240 note Bracket, Flexible Hose, NO.2
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 26S,30S —
47353 — Bracket, Flexible Hose(FOR REAR)
47353-36190 Bracket, Flexible Hose(FOR REAR)
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47353-36230 Bracket, Flexible Hose(FOR REAR)
1999-07 → 2001-05 ended
BB50 IV 6F —
47353-36230 Bracket, Flexible Hose(FOR REAR)
1999-07 → 2001-08 ended
BB50 CBU 6F —
47353-36230 Bracket, Flexible Hose(FOR REAR)
1999-07 → 2004-08 ended
BB50 6F TDEFI —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2004-08 → 2013-11 ended
XZB50 IV —
47353-36230 note Bracket, Flexible Hose(FOR REAR)
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2009-08 → 2015-01 ended
HZB50,XZB50 LHD HRF WC +1 —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2004-08 → 2015-01 ended
XZB50 WC ARL —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2004-08 → 2006-08 ended
BB50 6F —
47353-36230 Bracket, Flexible Hose(FOR REAR)
2015-01 → —
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
47353B — Bracket, Flexible Hose, NO.3
47353-36210 Bracket, Flexible Hose, NO.3
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47353-36210 Bracket, Flexible Hose, NO.3
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47353-36210 Bracket, Flexible Hose, NO.3
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47353-36210 Bracket, Flexible Hose, NO.3
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47353-36210 Bracket, Flexible Hose, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2008-03 ended
XZB50 STD GEN —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2013-11 ended
XZB50 IV —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
47353-36210 Bracket, Flexible Hose, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47353-36210 Bracket, Flexible Hose, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47354B — Bracket, Flexible Hose, NO.4
47354-36090 Bracket, Flexible Hose, NO.4
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47354-36090 Bracket, Flexible Hose, NO.4
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47354-36090 Bracket, Flexible Hose, NO.4
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47354-36090 Bracket, Flexible Hose, NO.4
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47354-36090 Bracket, Flexible Hose, NO.4
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2008-03 ended
XZB50 STD GEN —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2011-08 ended
BB42 LHD HRF —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2013-11 ended
XZB50 IV —
47354-36090 Bracket, Flexible Hose, NO.4
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
47354-36090 Bracket, Flexible Hose, NO.4
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47361A — Tube, Front Brake, NO.10
47361-36040 Tube, Front Brake, NO.10
1993-01 → 1999-07 ended
BB50,HZB50 EUR —
47361-36060 Tube, Front Brake, NO.10
1997-05 → 1999-07 ended
BB50 WC CBU —
47361-36071 Tube, Front Brake, NO.10
1999-07 → 2003-02 ended
BB50 RHD 6F TDEFI —
47361-36071 Tube, Front Brake, NO.10
2003-02 → 2004-08 ended
BB50 RHD IV —
47361-36071 Tube, Front Brake, NO.10
1999-07 → 2001-05 ended
BB50 RHD 6F —
47361-36081 Tube, Front Brake, NO.10
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47361-36081 Tube, Front Brake, NO.10
1999-07 → 2001-08 ended
BB50 CBU 6F —
47361-36081 Tube, Front Brake, NO.10
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47361-36081 Tube, Front Brake, NO.10
2003-02 → 2004-08 ended
BB50 LHD IV —
47361-36100 Tube, Front Brake, NO.10
2003-02 → 2004-08 ended
BB50 CBU 6F —
47361-36071 Tube, Front Brake, NO.10
2004-08 → 2005-11 ended
BB50 RHD IV —
47361-36072 Tube, Front Brake, NO.10
2005-12 → 2006-08 ended
BB50 RHD IV —
47361-36072 Tube, Front Brake, NO.10
2005-12 → 2013-11 ended
XZB50 RHD IV —
47361-36072 Tube, Front Brake, NO.10
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47361-36081 Tube, Front Brake, NO.10
2004-08 → 2006-08 ended
BB50 LHD IV —
47361-36081 Tube, Front Brake, NO.10
2004-08 → 2013-11 ended
XZB50 LHD IV —
47361-36100 note Tube, Front Brake, NO.10
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47361-36100 Tube, Front Brake, NO.10
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47361-36100 note Tube, Front Brake, NO.10
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47361-36100 Tube, Front Brake, NO.10
2009-08 → 2015-01 ended
XZB50 TAIW —
47361-36100 Tube, Front Brake, NO.10
2004-08 → 2015-01 ended
XZB50 WC ARL —
47361-36100 Tube, Front Brake, NO.10
2004-08 → 2006-08 ended
BB50 CBU 6F —
47361-36072 Tube, Front Brake, NO.10
2015-01 → —
BZB40,50,XZB40,5# RHD GEN —
47361-36100 Tube, Front Brake, NO.10
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47362 — Tube, Front Brake, NO.11
47362-36020 Tube, Front Brake, NO.11
1997-05 → 1999-07 ended
BB50 WC CBU —
47362-36031 Tube, Front Brake, NO.11
2003-02 → 2004-08 ended
BB50 RHD IV —
47362-36031 Tube, Front Brake, NO.11
1999-07 → 2003-02 ended
BB50 RHD 6F TDEFI —
47362-36031 Tube, Front Brake, NO.11
1999-07 → 2001-05 ended
BB50 RHD 6F —
47362-36041 Tube, Front Brake, NO.11
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47362-36041 Tube, Front Brake, NO.11
1999-07 → 2001-08 ended
BB50 CBU 6F —
47362-36041 Tube, Front Brake, NO.11
2003-02 → 2004-08 ended
BB50 LHD IV —
47362-36041 Tube, Front Brake, NO.11
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47362-36060 Tube, Front Brake, NO.11
2003-02 → 2004-08 ended
BB50 CBU 6F —
47362-36031 Tube, Front Brake, NO.11
2004-08 → 2006-08 ended
BB50 RHD IV —
47362-36031 Tube, Front Brake, NO.11
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47362-36031 Tube, Front Brake, NO.11
2004-08 → 2013-11 ended
XZB50 RHD IV —
47362-36041 Tube, Front Brake, NO.11
2004-08 → 2006-08 ended
BB50 LHD IV —
47362-36041 Tube, Front Brake, NO.11
2004-08 → 2013-11 ended
XZB50 LHD IV —
47362-36060 Tube, Front Brake, NO.11
2004-08 → 2006-08 ended
BB50 CBU 6F —
47362-36060 Tube, Front Brake, NO.11
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47362-36060 note Tube, Front Brake, NO.11
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47362-36060 Tube, Front Brake, NO.11
2004-08 → 2015-01 ended
XZB50 WC ARL —
47362-36060 note Tube, Front Brake, NO.11
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47362-36060 Tube, Front Brake, NO.11
2009-08 → 2015-01 ended
XZB50 TAIW —
47362-36070 Tube, Front Brake, NO.11
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
47362-36070 Tube, Front Brake, NO.11
2007-08 → 2011-08 ended
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40,59 —
47362-36070 Tube, Front Brake, NO.11
2007-08 → 2009-08 ended
XZB50 TAIW —
47362-36070 Tube, Front Brake, NO.11
2007-08 → 2008-03 ended
XZB50 STD GEN —
47362-36031 Tube, Front Brake, NO.11
2015-01 → —
BZB40,50,XZB40,5# RHD GEN —
47362-36060 note Tube, Front Brake, NO.11
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47362-36070 Tube, Front Brake, NO.11
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47363 — Tube, Front Brake, NO.12
47363-36030 Tube, Front Brake, NO.12
1997-05 → 1999-07 ended
BB50 WC CBU —
47363-36041 Tube, Front Brake, NO.12
1999-07 → 2001-05 ended
BB50 RHD 6F —
47363-36051 Tube, Front Brake, NO.12
2003-02 → 2004-08 ended
BB50 LHD IV —
47363-36051 Tube, Front Brake, NO.12
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47363-36051 Tube, Front Brake, NO.12
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47363-36051 Tube, Front Brake, NO.12
1999-07 → 2001-08 ended
BB50 CBU 6F —
47363-36060 Tube, Front Brake, NO.12
2001-05 → 2003-02 ended
BB50 RHD 6F —
47363-36060 Tube, Front Brake, NO.12
2003-02 → 2004-08 ended
BB50 RHD IV —
47363-36090 Tube, Front Brake, NO.12
2003-02 → 2004-08 ended
BB50 CBU 6F —
47363-36051 Tube, Front Brake, NO.12
2004-08 → 2006-08 ended
BB50 LHD IV —
47363-36051 Tube, Front Brake, NO.12
2004-08 → 2013-11 ended
XZB50 LHD IV —
47363-36060 Tube, Front Brake, NO.12
2004-08 → 2006-08 ended
BB50 RHD IV —
47363-36060 Tube, Front Brake, NO.12
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN —
47363-36060 Tube, Front Brake, NO.12
2004-08 → 2013-11 ended
XZB50 RHD IV —
47363-36090 note Tube, Front Brake, NO.12
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47363-36090 note Tube, Front Brake, NO.12
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47363-36090 Tube, Front Brake, NO.12
2009-08 → 2015-01 ended
XZB50 TAIW —
47363-36090 Tube, Front Brake, NO.12
2004-08 → 2015-01 ended
XZB50 WC ARL —
47363-36090 Tube, Front Brake, NO.12
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47363-36090 Tube, Front Brake, NO.12
2004-08 → 2006-08 ended
BB50 CBU 6F —
47363-36100 Tube, Front Brake, NO.12
2007-08 → 2009-08 ended
XZB50 TAIW —
47363-36060 Tube, Front Brake, NO.12
2015-01 → —
BZB40,50,XZB40,5# RHD GEN —
47363-36090 Tube, Front Brake, NO.12
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47364 — Tube, Front Brake, NO.13
47364-36020 Tube, Front Brake, NO.13
1997-05 → 1999-07 ended
BB50 WC CBU —
47364-36031 Tube, Front Brake, NO.13
1999-07 → 2001-05 ended
BB50 RHD 6F —
47364-36031 Tube, Front Brake, NO.13
1999-07 → 2003-02 ended
BB50 RHD 6F TDEFI —
47364-36031 Tube, Front Brake, NO.13
2003-02 → 2004-08 ended
BB50 RHD IV —
47364-36041 Tube, Front Brake, NO.13
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47364-36041 Tube, Front Brake, NO.13
1999-07 → 2001-08 ended
BB50 CBU 6F —
47364-36041 Tube, Front Brake, NO.13
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47364-36041 Tube, Front Brake, NO.13
2003-02 → 2004-08 ended
BB50 LHD IV —
47364-36060 Tube, Front Brake, NO.13
2003-02 → 2004-08 ended
BB50 CBU 6F —
47364-36031 Tube, Front Brake, NO.13
2004-08 → 2006-08 ended
BB50 RHD IV —
47364-36031 Tube, Front Brake, NO.13
2011-08 → 2015-01 ended
BZB40,50 —
47364-36041 Tube, Front Brake, NO.13
2004-08 → 2006-08 ended
BB50 LHD IV —
47364-36041 Tube, Front Brake, NO.13
2004-08 → 2013-11 ended
XZB50 LHD IV —
47364-36060 Tube, Front Brake, NO.13
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47364-36060 Tube, Front Brake, NO.13
2004-08 → 2006-08 ended
BB50 CBU 6F —
47364-36060 Tube, Front Brake, NO.13
2004-08 → 2012-09 ended
XZB50 WC ARL —
47364-36060 Tube, Front Brake, NO.13
2009-08 → 2012-09 ended
XZB50 TAIW —
47364-36060 note Tube, Front Brake, NO.13
2009-08 → 2012-09 ended
HZB50 LHD HRF WC +1 —
47364-36080 Tube, Front Brake, NO.13
2011-08 → 2015-01 ended
XZB40,5# GEN —
47364-36080 Tube, Front Brake, NO.13
2006-08 → 2013-11 ended
XZB50 RHD IV —
47364-36100 Tube, Front Brake, NO.13
2007-08 → 2009-08 ended
XZB50 TAIW —
47364-36110 Tube, Front Brake, NO.13
2007-08 → 2008-03 ended
XZB50 STD GEN —
47364-36110 Tube, Front Brake, NO.13
2007-08 → 2011-08 ended
XZB40,59;XZB50 EX —
47364-36120 Tube, Front Brake, NO.13
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
47364-36120 Tube, Front Brake, NO.13
2007-08 → 2011-08 ended
BZB40,50;BB42 LHD HRF —
47364-36130 note Tube, Front Brake, NO.13
2012-09 → 2015-01 ended
HZB50 LHD;TRB50,XZB50 ARL,GCC,TAIW —
47364-36031 Tube, Front Brake, NO.13
2015-01 → —
BZB40,50 —
47364-36081 Tube, Front Brake, NO.13
2015-01 → —
XZB40,5# RHD GEN —
47364-36120 Tube, Front Brake, NO.13
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47364-36130 note Tube, Front Brake, NO.13
2015-01 → —
HZB50 LHD;TRB50 GCC;XZB50 DX,STD —
47365 — Tube, Front Brake, NO.14
47365-36010 Tube, Front Brake, NO.14
1997-05 → 1999-07 ended
BB50 WC CBU —
47365-36021 Tube, Front Brake, NO.14
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
47365-36021 Tube, Front Brake, NO.14
1999-07 → 2001-08 ended
BB50 CBU 6F —
47365-36021 Tube, Front Brake, NO.14
1999-07 → 2003-02 ended
BB50 LHD TDEFI —
47365-36021 Tube, Front Brake, NO.14
2003-02 → 2004-08 ended
BB50 ARL;BB50 LHD TDEFI —
47365-36021 note Tube, Front Brake, NO.14
2007-08 → 2015-01 ended
BB42 WOC;BB50,HZB50;BB42 RHD HRF;BB42 +3 —
47365-36021 note Tube, Front Brake, NO.14
2004-08 → 2015-01 ended
TRB40,50;BB42 RHD SRF WC —
47365-36021 note Tube, Front Brake, NO.14
2007-08 → 2011-08 ended
BB42 LHD HRF —
47365-36021 note Tube, Front Brake, NO.14
2004-08 → 2006-08 ended
BB50 ARL;BB50 LHD TDEFI —
47365-36070 note Tube, Front Brake, NO.14
2006-08 → 2011-08 ended
XZB50 GEN 4FC —
47365-36070 note Tube, Front Brake, NO.14
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47365-36070 Tube, Front Brake, NO.14
2007-08 → 2011-08 ended
XZB59 —
47365-36070 note Tube, Front Brake, NO.14
2007-08 → 2011-08 ended
XZB50 EX 5F —
47365-36070 note Tube, Front Brake, NO.14
2007-08 → 2015-01 ended
XZB50 TAIW —
47365-36070 note Tube, Front Brake, NO.14
2006-08 → 2013-11 ended
XZB50 LHD IV —
47365-36070 note Tube, Front Brake, NO.14
2006-08 → 2015-01 ended
XZB50 WC ARL —
47365-36080 Tube, Front Brake, NO.14
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 —
47365-36080 Tube, Front Brake, NO.14
2007-08 → 2011-08 ended
BZB40,50;BB42 LHD HRF —
47365-36090 Tube, Front Brake, NO.14
2007-08 → 2008-03 ended
XZB50 STD GEN —
47365-36090 Tube, Front Brake, NO.14
2007-08 → 2011-08 ended
XZB40;XZB50 EX —
47365-36090 Tube, Front Brake, NO.14
2007-08 → 2009-08 ended
XZB50 TAIW —
47365-36021 note Tube, Front Brake, NO.14
2015-01 → —
BB42,HZB50,TRB40,50 —
47365-36070 note Tube, Front Brake, NO.14
2015-01 → —
XZB40,50 21S,26S,30S —
47365-36080 Tube, Front Brake, NO.14
2015-01 → —
BB42,HZB50,TRB40 —
47365-36090 Tube, Front Brake, NO.14
2015-01 → —
XZB40,50 LHD GEN —
47371A — Clamp, Brake Tube, NO.1
47371-36040 Clamp, Brake Tube, NO.1
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
47371-36040 Clamp, Brake Tube, NO.1
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
47371-36110 Clamp, Brake Tube, NO.1
1999-07 → 2001-05 ended
BB50 IV 6F —
47371-36110 Clamp, Brake Tube, NO.1
1999-07 → 2001-08 ended
BB50,HZB50 CBU (4FC,6F) —
47371-36110 Clamp, Brake Tube, NO.1
1999-07 → 2004-08 ended
BB50 6F TDEFI —
47371-36110 Clamp, Brake Tube, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
47373-35040 Clamp, Brake Tube, NO.1
2002-10 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD (17S,20S,23S,26S,30S) (GCC,GEN) —
47373-35040 Clamp, Brake Tube, NO.1
2002-10 → 2002-11 ended
BB50,RZB40,50 CHI —
47373-36040 Clamp, Brake Tube, NO.1
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 22S +3 —
47373-36040 Clamp, Brake Tube, NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47373-36040 Clamp, Brake Tube, NO.1
1999-07 → 2002-10 ended
BB42 WC;BB50,58,HZB50,RZB50 WC LHD +10 —
47371-36110 note Clamp, Brake Tube, NO.1
2012-09 → 2015-01 ended
TRB50 GCC;HZB50 WOC;HZB50 SRF +3 —
47371-36110 Clamp, Brake Tube, NO.1
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
47371-36110 note Clamp, Brake Tube, NO.1
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
47371-36110 Clamp, Brake Tube, NO.1
2009-08 → 2015-01 ended
XZB50 TAIW —
47371-36110 Clamp, Brake Tube, NO.1
2004-08 → 2015-01 ended
BB50 6F;XZB50 ARL,EUR;XZB50 GEN +1 —
47373-35040 Clamp, Brake Tube, NO.1
2004-08 → 2015-01 ended
BB42,50,58,HZB50,RZB40,50,TRB40,50 LHD (23S,26S,30S) —
47373-35040 Clamp, Brake Tube, NO.1
2004-08 → 2009-08 ended
XZB50 TAIW —
47371-36110 note Clamp, Brake Tube, NO.1
2015-01 → 2016-12 ended
HZB50 LHD;TRB50 GCC;BZB40,50,XZB40,5# HRF —
47373-35040 Clamp, Brake Tube, NO.1
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
47372 — Clamp, Brake Tube, NO.2
47371-36060 Clamp, Brake Tube, NO.2
1993-01 → 1999-07 ended
BB50 GEN IV;BB42,43,58,RZB40,50;BB50,HZB50 20S,30S —
47371-36060 Clamp, Brake Tube, NO.2
1993-01 → 1999-07 ended
HZB50 TD;HZB50 19S,22S;BB40,50 ARL,EUR —
47371-36060 note Clamp, Brake Tube, NO.2
1997-05 → 1999-07 ended
HZB50 4FC —
47371-36090 Clamp, Brake Tube, NO.2
1997-05 → 1999-07 ended
BB50 WC CBU —
47371-36100 Clamp, Brake Tube, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
47371-36100 Clamp, Brake Tube, NO.2
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
47371-36100 Clamp, Brake Tube, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
47371-36100 Clamp, Brake Tube, NO.2
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
47373-35040 Clamp, Brake Tube, NO.2
2002-10 → 2002-11 ended
HZB50 ARL —
47373-35040 Clamp, Brake Tube, NO.2
2002-10 → 2004-08 ended
BB50 RHD 6F —
47373-35040 Clamp, Brake Tube, NO.2
2002-10 → 2004-08 ended
BB42,50,59,BZB40,50,HZB50 RHD GEN —
47373-36040 Clamp, Brake Tube, NO.2
1999-07 → 2001-08 ended
HZB50 4FC —
47373-36040 Clamp, Brake Tube, NO.2
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
47373-36040 Clamp, Brake Tube, NO.2
1999-07 → 2002-10 ended
BB50,HZB50 RHD (ARL,EUR) (DSL,TDEFI) —
47373-36040 Clamp, Brake Tube, NO.2
1999-07 → 2002-10 ended
BB42 PG,TDEFI) RHD SRF;HZB50 +9 —
47373-36040 Clamp, Brake Tube, NO.2
1999-07 → 2001-05 ended
BB50 RHD 6F —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2013-11 ended
XZB50 LHD IV —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47371-36100 Clamp, Brake Tube, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2011-08 ended
XZB5# EX 5F;BZB40,50,XZB40 STD —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2006-08 ended
BB50 RHD 6F —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2013-11 ended
XZB50 RHD IV —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2015-01 ended
XZB50 WC ARL;XZB50 GEN +1 —
47373-35040 Clamp, Brake Tube, NO.2
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
47373-35040 Clamp, Brake Tube, NO.2
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
47371-36100 Clamp, Brake Tube, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
47373-35040 Clamp, Brake Tube, NO.2
2015-01 → —
BB42,HZB50 RHD —
47373-35040 Clamp, Brake Tube, NO.2
2015-01 → —
BZB40,50,XZB40,5# RHD —
47374 — Connector, Tube
47307-36010 Connector, Tube
1993-01 → 1999-07 ended
BB50 EX;BB50 GEN IV;BB4#,58,HZB50,RZB40,50 +1 —
47307-36020 Connector, Tube
1993-01 → 1994-05 ended
HZB50 TD —
47307-36030 Connector, Tube
1994-05 → 1999-07 ended
BB50 STD CBU;BB50,HZB50 EUR —
47307-36080 Connector, Tube
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47307-36080 Connector, Tube
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
47307-36080 Connector, Tube
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47307-36080 Connector, Tube
1999-07 → 2003-04 ended
BB42 RF RZB50 ,26S) +27 —
47307-36080 Connector, Tube
2003-04 → 2004-08 ended
BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50 (17S,20S,21S,23S,26S,30S) (GCC,GEN) —
47307-36090 note Connector, Tube
1999-07 → 2001-05 ended
BB50 IV 6F —
47307-36090 note Connector, Tube
1999-07 → 2001-08 ended
BB50 CBU 6F —
47307-36090 note Connector, Tube
1999-07 → 2004-08 ended
BB50 6F TDEFI —
47307-36080 Connector, Tube
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47307-36080 Connector, Tube
2004-08 → 2007-08 ended
RZB40 LPG,TD) SRF GCC;RZB40,XZB5# +3 —
47307-36080 Connector, Tube
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 5F TDEFI —
47307-36090 Connector, Tube
2006-08 → 2007-08 ended
XZB50 ARL,EUR —
47307-36090 note Connector, Tube
2004-08 → 2006-08 ended
BB50 6F —
47307-36100 Connector, Tube
2007-08 → 2008-03 ended
XZB50 STD GEN —
47307-36100 Connector, Tube
2007-08 → 2009-08 ended
XZB50 WOC CBU —
47307-36100 Connector, Tube
2007-08 → 2011-08 ended
BB42 LHD HRF —
47307-36100 Connector, Tube
2007-08 → 2013-11 ended
XZB50 IV —
47307-36100 Connector, Tube
2007-08 → 2015-01 ended
BB42 9 RHD;BB42 LHD +3 —
47307-36100 Connector, Tube
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
47375 — Clamp, Brake Tube, NO.5
47371-36050 Clamp, Brake Tube, NO.5
1997-05 → 1999-07 ended
BB50 WC CBU —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2001-08 ended
BB50 .(17S,22S) WOC GEN;BB42,HZB50 +11 —
47371-36060 Clamp, Brake Tube, NO.5
2003-04 → 2004-08 ended
BB50 RHD IV —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2004-08 ended
BB42 RF GCC,GEN;BB42,50 WC +27 —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2003-04 ended
BB50 RHD 6F TDEFI —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2001-08 ended
HZB50 4FC —
47371-36060 note Clamp, Brake Tube, NO.5
1999-07 → 2001-08 ended
HZB50 4FC —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2001-05 ended
BB50 RHD 6F —
47371-36060 Clamp, Brake Tube, NO.5
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47371-36060 Clamp, Brake Tube, NO.5
2007-08 → 2011-08 ended
BB42 LHD HRF —
47371-36060 Clamp, Brake Tube, NO.5
2007-08 → 2015-01 ended
BB42 26S) WOC;BB42 5F +6 —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2015-01 ended
TRB40,50,XZB40;XZB50 GEN 4FC;BB42 RHD +2 —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2013-11 ended
XZB50 RHD IV —
47371-36060 Clamp, Brake Tube, NO.5
2007-08 → 2009-08 ended
XZB50 TAIW —
47371-36060 Clamp, Brake Tube, NO.5
2007-08 → 2008-03 ended
XZB50 STD GEN —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2007-08 ended
RZB40 ,TD) GEN;RZB40 SRF +3 —
47371-36060 Clamp, Brake Tube, NO.5
2005-01 → 2006-08 ended
BB50 STD 5F TDEFI —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2006-08 ended
BB50 RHD IV —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2006-08 ended
BB59;BB50,58,BZB50 (20S,21S,23S) GEN —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47371-36060 Clamp, Brake Tube, NO.5
2004-08 → 2004-12 ended
BB50,BZB40,50 17S —
47371-36060 Clamp, Brake Tube, NO.5
2005-01 → 2007-08 ended
BZB40,50 STD —
47371-36060 Clamp, Brake Tube, NO.5
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# GCC,GEN —
47381 — Bracket, Brake Tube Clamp NO.1
47381-36120 Bracket, Brake Tube Clamp NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
47381-36120 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2004-08 ended
BB42 RF GCC,GEN;BB42,50 WC +27 —
47381-36120 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
47381-36120 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
47381-36120 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2001-08 ended
BB50 .(17S,22S) WOC GEN;BB42,HZB50 +11 —
47381-36160 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
47381-36160 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
47381-36160 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
47381-36160 note Bracket, Brake Tube Clamp NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
47381-36120 note Bracket, Brake Tube Clamp NO.1
2004-08 → 2009-08 ended
XZB50 TAIW —
47381-36120 note Bracket, Brake Tube Clamp NO.1
2004-08 → 2015-01 ended
BB59,BZB50 ,30S EX;XZB50 STD +2 —
47381-36120 Bracket, Brake Tube Clamp NO.1
2004-08 → 2011-08 ended
XZB5# EX 5F;BZB40,50,XZB40 STD —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2006-08 → 2008-03 ended
XZB50 STD GEN —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,BZB40,50,HZB50,RZB50 +2 —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2006-08 → 2009-08 ended
XZB50 WOC CBU —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2007-08 → 2011-08 ended
BB42 LHD HRF —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2006-08 → 2013-11 ended
XZB50 IV —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2006-08 → 2015-01 ended
TRB40,50,XZB40,59;BB42 RHD SRF WC;XZB50 +2 —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2007-08 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
47381-36120 note Bracket, Brake Tube Clamp NO.1
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
47381-36160 note Bracket, Brake Tube Clamp NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
