Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

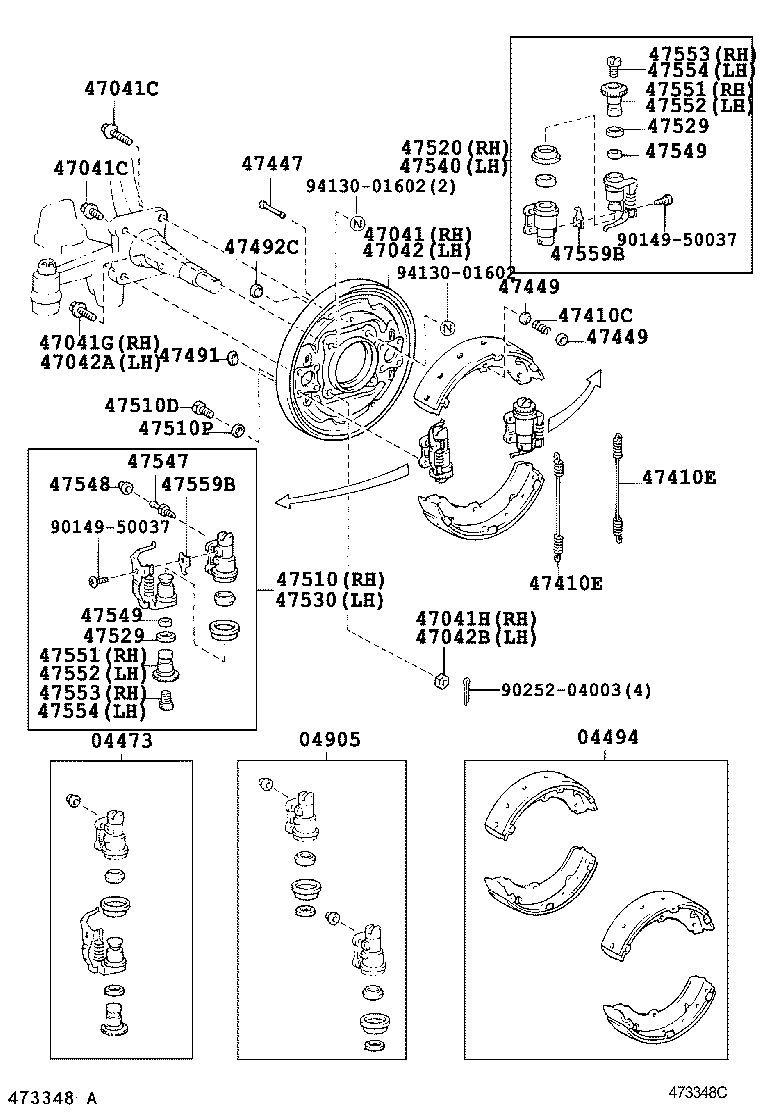

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04473 — Cylinder Kit, Front Wheel | ||||
| 04473-36030 note |
Cylinder Kit, Front Wheel
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 04473-36050 note |
Cylinder Kit, Front Wheel
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 04473-36050 note |
Cylinder Kit, Front Wheel
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 04473-36060 note |
Cylinder Kit, Front Wheel
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 04473-36060 note |
Cylinder Kit, Front Wheel
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2004-08
ended
|
BB42,50,58,HZB50,RZB40 17S,20S,23S,26S,30S | — | |
| 04473-36050 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 04473-36050 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 04473-36050 note |
Cylinder Kit, Front Wheel
1999-07 → 2003-07
ended
|
BZB40,50 | — | |
| 04473-36051 note |
Cylinder Kit, Front Wheel
2003-07 → 2004-08
ended
|
BZB40,50 | — | |
| 04473-36060 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 04473-36060 note |
Cylinder Kit, Front Wheel
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 04473-36060 note |
Cylinder Kit, Front Wheel
1999-07 → 2003-07
ended
|
BZB40,50 | — | |
| 04473-36061 note |
Cylinder Kit, Front Wheel
2003-07 → 2004-08
ended
|
BZB40,50 | — | |
| 04473-36061 note |
Cylinder Kit, Front Wheel
2004-08 → 2004-08
ended
|
BZB40,50 | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04473-36051 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 04473-36051 note |
Cylinder Kit, Front Wheel
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 04473-36061 note |
Cylinder Kit, Front Wheel
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 04473-36061 note |
Cylinder Kit, Front Wheel
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 04473-36030 note |
Cylinder Kit, Front Wheel
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 04473-36040 note |
Cylinder Kit, Front Wheel
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 04494 — Shoe Kit, Front Brake | ||||
| 04494-36180 |
Shoe Kit, Front Brake
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 04494-36180 |
Shoe Kit, Front Brake
1997-05 → 1997-09
ended
|
BB50 EX;BB42,58,HZB50,RZB40 GCC,GEN,SCO | — | |
| 04494-36180 |
Shoe Kit, Front Brake
1997-09 → 1998-12
ended
|
BB50 WOC GEN;BB42,58,HZB50,RZB40 GCC,GEN | — | |
| 04494-36180 |
Shoe Kit, Front Brake
1998-12 → 1999-07
ended
|
BB42,58,HZB50,RZB40 GCC,GEN | — | |
| 04494-36220 |
Shoe Kit, Front Brake
1997-09 → 1998-12
ended
|
BB42,43,50 17S,20S | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1998-12 → 1999-07
ended
|
HZB50 LHD EX;BB42 LHD +5 | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1998-12 → 1999-07
ended
|
BB50 WOC GEN;BB43,50 RHD +1 | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1999-07 → 2004-08
ended
|
BB42 ;HZB50 26S) RHD +20 | — | |
| 04494-36240 note |
Shoe Kit, Front Brake
1999-07 → 2004-08
ended
|
HZB50 LHD EX;HZB50 LHD +6 | — | |
| 04494-36310 note |
Shoe Kit, Front Brake
2004-08 → 2004-11
ended
|
BB42,50,58,BZB40,50,HZB50,RZB40 (17S,20S,21S,23S,26S,30S) (GCC,GEN) | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 04494-36320 note |
Shoe Kit, Front Brake
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 04905 — Cup Kit, Front Wheel Cylinder | ||||
| 04905-36110 |
Cup Kit, Front Wheel Cylinder
1993-01 → 1995-06
ended
|
BB42,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
1995-06 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 04905-36150 |
Cup Kit, Front Wheel Cylinder
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 04905-36150 |
Cup Kit, Front Wheel Cylinder
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 04905-36150 |
Cup Kit, Front Wheel Cylinder
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 04905-36150 |
Cup Kit, Front Wheel Cylinder
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 04905-36150 |
Cup Kit, Front Wheel Cylinder
1999-07 → 2003-07
ended
|
BZB40,50 | — | |
| 04905-36151 |
Cup Kit, Front Wheel Cylinder
2003-07 → 2004-08
ended
|
BZB40,50 | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 04905-36151 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 04905-36151 |
Cup Kit, Front Wheel Cylinder
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47041 — Plate Sub-assy, Brake Backing, Front RH | ||||
| 47041-36180 |
Plate Sub-assy, Brake Backing, Front RH
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47041-36180 |
Plate Sub-assy, Brake Backing, Front RH
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47041-36180 |
Plate Sub-assy, Brake Backing, Front RH
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 47041-36180 |
Plate Sub-assy, Brake Backing, Front RH
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 47041-36180 |
Plate Sub-assy, Brake Backing, Front RH
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47041-36181 |
Plate Sub-assy, Brake Backing, Front RH
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47041C — Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2001-08
ended
|
BB50 .HRF WOC WOC +11 | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2001-08
ended
|
BB50 .HRF WOC WOC +11 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90105-16044 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 90105-16045 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47041G — Bolt(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT RH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47041H — Nut(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1997-05 → 1997-10
ended
|
BB50 EX;BB42,58,HZB50,RZB40 GCC,GEN,SCO | — | |
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1997-10 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT RH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47042 — Plate Sub-assy, Brake Backing, Front LH | ||||
| 47042-36180 |
Plate Sub-assy, Brake Backing, Front LH
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47042-36180 |
Plate Sub-assy, Brake Backing, Front LH
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47042-36180 |
Plate Sub-assy, Brake Backing, Front LH
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47042-36180 |
Plate Sub-assy, Brake Backing, Front LH
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 47042-36180 |
Plate Sub-assy, Brake Backing, Front LH
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47042-36181 |
Plate Sub-assy, Brake Backing, Front LH
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47042A — Bolt(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90102-16001 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 90102-16002 note |
Bolt(FOR BRAKE BACKING PLATE FRONT LH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47042B — Nut(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1997-05 → 1997-10
ended
|
BB50 EX;BB42,58,HZB50,RZB40 GCC,GEN,SCO | — | |
| 94145-71600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1997-10 → 1999-07
ended
|
BB50 EX;BB50 GEN IV;BB42,43,58,HZB50,RZB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 94142-61600 |
Nut(FOR BRAKE BACKING PLATE FRONT LH)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47410C — Spring(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90501-20012 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47410E — Spring, Tension(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90507-29006 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47447 — Pin, Shoe Hold Down Spring(FOR FRONT BRAKE) | ||||
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47447-36030 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47449 — Cup, Shoe Hold Down Spring(FOR FRONT BRAKE) | ||||
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47491 — Plug, Hole(FOR FRONT BRAKE) | ||||
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-11
ended
|
BZB40 | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-11
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47491-36010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2001-11 → 2004-07
ended
|
BZB40,50 | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2001-11 → 2004-08
ended
|
BB42,50,58,HZB50,RZB40 (17S,20S,23S,26S,30S) (GCC,GEN) | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47491-36020 |
Plug, Hole(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47492C — Plug, Hole(FOR FRONT BRAKE) | ||||
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47492-28010 |
Plug, Hole(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47510 — Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER) | ||||
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47510-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47510-36170 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47510D — Bolt(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90101-10127 |
Bolt(FOR FRONT WHEEL CYLINDER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47510P — Washer(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2009-08
ended
|
XZB50 TAIW | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2004-11 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 90201-10287 |
Washer(FOR FRONT WHEEL CYLINDER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47520 — Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47520-36190 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47520-36180 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47529 — Seal, Front Wheel Brake Cylinder Adjust Dust | ||||
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47529-36010 |
Seal, Front Wheel Brake Cylinder Adjust Dust
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47530 — Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER) | ||||
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47530-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47530-36170 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47540 — Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47540-36190 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47540-36180 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47547 — Plug, Bleeder(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1997-05 → 1999-05
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-05 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN) 5F | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47547-27020 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47548 — Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1993-01 → 1997-05
ended
|
BB42,RZB40;HZB50 20S,30S | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB42,43,58,HZB50,RZB40 +1 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1999-07 → 2004-08
ended
|
BB42 WC;BB50 6S) WC +24 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1999-07 → 2001-08
ended
|
BB50 ,HZB50 WOC RHD +13 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2006-08
ended
|
BB50 5F TDEFI;BB58,BZB50 21S,23S | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF;BZB40,50,XZB40 +1 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47549 — Seat, Front Brake Automatic Adjust Nut | ||||
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47549-36010 |
Seat, Front Brake Automatic Adjust Nut
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47551 — Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) | ||||
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47506-36020 |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47552 — Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) | ||||
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47507-36020 |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47553 — Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) | ||||
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47553-36070 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47553-36060 |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47554 — Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) | ||||
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1993-01 → 1999-07
ended
|
BB50 EX;BB42,43,58,HZB50,RZB40 (GCC,GEN,SCO) 5F | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 ;BB4#,50,RZB40 RHD (17S,20S,22S) +10 | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BB42 RF 0S,26S) WC +27 | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40 +1 | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BB50,58 17S,20S,23S | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
XZB50 EX;BB42 LHD HRF | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2007-08
ended
|
RZB40 GEN;RZB40 SRF GCC | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47554-36070 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
| 47554-36060 |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
2015-01 → —
|
BB42,HZB50,TRB40,XZB40,50 26S,30S | — | |
| 47559B — Sping, Front Automatic Adjust Lever Support | ||||
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
1993-01 → 1997-05
ended
|
HZB50 30S 4FC | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
1997-05 → 1999-07
ended
|
HZB50 4FC;BB50 WOC GEN +1 | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
1999-07 → 2001-08
ended
|
HZB50 4FC;BB50 WOC 5F | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
1999-07 → 2004-08
ended
|
BZB40,50 | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 47559-36010 |
Sping, Front Automatic Adjust Lever Support
2004-08 → 2011-08
ended
|
BZB40,50,XZB40 STD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
