Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

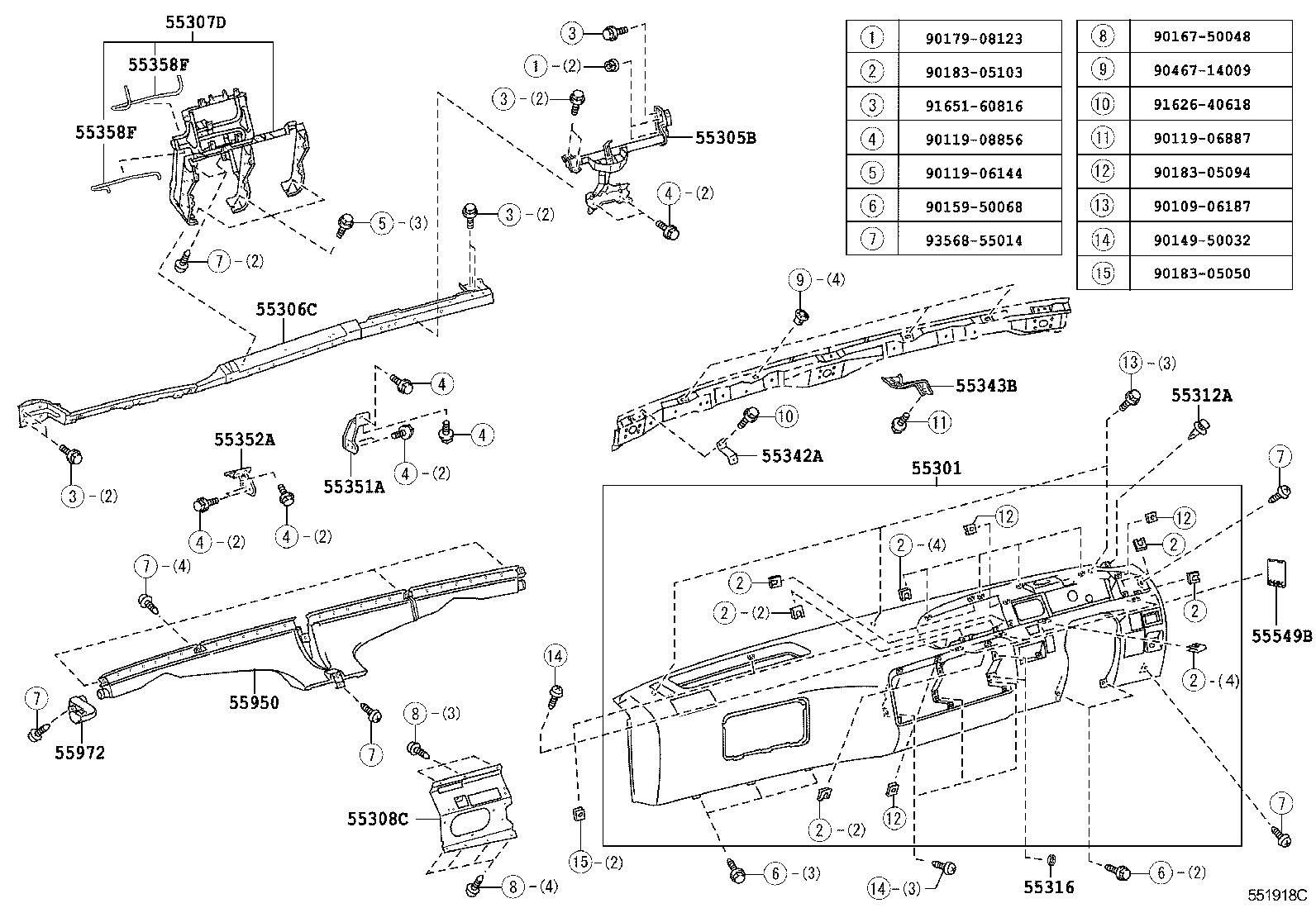

Exploded illustration 551918C 9014950032 — not listed in this catalogue 9010906187 — not listed in this catalogue 9356855014 — not listed in this catalogue 9015950068 — not listed in this catalogue 9011906144 — not listed in this catalogue 9011908856 — not listed in this catalogue 9165160816 — not listed in this catalogue 9018305103 — not listed in this catalogue 9017908123 — not listed in this catalogue 9018305094 — not listed in this catalogue 9011906887 — not listed in this catalogue 9162640618 — not listed in this catalogue 9046714009 — not listed in this catalogue 9016750048 — not listed in this catalogue 55301 — PANEL SUB-ASSY, INSTRUMENT (39 parts) 55316 — SPACER, INSTRUMENT PANEL, NO.2 (13 parts) 55312A — CLIP, INSTRUMENT PANEL (10 parts) 55343B — BRACE, INSTRUMENT PANEL TO COWL, CENTER (5 parts) 55342A — BRACE, INSTRUMENT PANEL TO COWL, NO.2 (28 parts) 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (28 parts) 55972 — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (35 parts) 55950 — NOZZLE ASSY, DEFROSTER (39 parts) 55352A — BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 (22 parts) 55351A — BRACE, INSTRUMENT PANEL TO FLOOR (22 parts) 55306C — REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2 (32 parts) 55305B — REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 (31 parts) 55307D — REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3 (17 parts) 55358F — PROTECTOR, EDGE (4 parts) 55358F — PROTECTOR, EDGE (4 parts) 55549B — COVER, INSTRUMENT PANEL HOLE, NO.2 (8 parts) 9018305050 — not listed in this catalogue
551918C · 16 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
333 parts on this figure
Part number Description Fitment Price
55301 — Panel Sub-assy, Instrument
55301-36010-E0 note Panel Sub-assy, Instrument
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55301-36020-E0 note Panel Sub-assy, Instrument
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
55301-36010-B0 note Panel Sub-assy, Instrument
2001-08 → 2004-08 ended
BB42,50,59,BZB40,50,HZB50 RHD GEN —
55301-36010-E0 note Panel Sub-assy, Instrument
1999-07 → 2001-08 ended
BB4#,50,HZB50 RHD GEN 5F —
55301-36020-B0 note Panel Sub-assy, Instrument
2001-05 → 2001-08 ended
BB50 LHD TDEFI —
55301-36020-B0 note Panel Sub-assy, Instrument
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
55301-36020-B0 note Panel Sub-assy, Instrument
2001-08 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD (EUR,GCC,GEN) —
55301-36020-E0 note Panel Sub-assy, Instrument
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,5#,HZB50,RZB40,50 LHD +1 —
55301-36020-E0 note Panel Sub-assy, Instrument
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
55301-36060-B0 note Panel Sub-assy, Instrument
2001-05 → 2001-08 ended
BB50 RHD TDEFI —
55301-36060-B0 note Panel Sub-assy, Instrument
2001-08 → 2002-11 ended
HZB50 ARL —
55301-36060-B0 note Panel Sub-assy, Instrument
2001-08 → 2004-08 ended
BB50 RHD 6F —
55301-36060-E0 note Panel Sub-assy, Instrument
1999-07 → 2001-05 ended
BB50 RHD 6F —
55301-36060-E0 note Panel Sub-assy, Instrument
1999-07 → 2001-08 ended
HZB50 22S —
55301-36010-B0 note Panel Sub-assy, Instrument
2004-08 → 2005-11 ended
BB42,50,59,BZB40,50,HZB50 RHD 5F —
55301-36012-B0 note Panel Sub-assy, Instrument
2005-12 → 2007-05 ended
BB42,50,59,BZB40,50,HZB50,XZB5# RHD GEN —
55301-36013-B0 note Panel Sub-assy, Instrument
2007-05 → 2007-08 ended
BB42,BZB40,50,HZB50,XZB5# RHD GEN —
55301-36020-B0 note Panel Sub-assy, Instrument
2004-08 → 2007-04 ended
BB42,50,58,HZB50,RZB40,50,XZB50 LHD —
55301-36021-B0 note Panel Sub-assy, Instrument
2007-05 → 2007-08 ended
RZB40,50 —
55301-36021-B0 note Panel Sub-assy, Instrument
2007-05 → 2008-04 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD —
55301-36022-B0 note Panel Sub-assy, Instrument
2008-05 → 2008-12 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD —
55301-36023-B0 note Panel Sub-assy, Instrument
2009-01 → 2013-11 ended
BB42,XZB50 LHD HRF (EUR,GEN) —
55301-36023-B0 note Panel Sub-assy, Instrument
2009-01 → 2012-09 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
55301-36060-B0 note Panel Sub-assy, Instrument
2004-08 → 2005-11 ended
BB50 RHD 6F —
55301-36061-B0 note Panel Sub-assy, Instrument
2005-12 → 2007-05 ended
BB50,XZB50 RHD (ARL,EUR) —
55301-36062-B0 note Panel Sub-assy, Instrument
2007-05 → 2008-12 ended
XZB50 RHD IV —
55301-36062-B0 note Panel Sub-assy, Instrument
2007-05 → 2007-08 ended
XZB50 ARL —
55301-36063-B0 note Panel Sub-assy, Instrument
2009-01 → 2013-11 ended
XZB50 RHD IV —
55301-36090-B0 note Panel Sub-assy, Instrument
2007-08 → 2008-12 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD GEN 5F —
55301-36091-B0 note Panel Sub-assy, Instrument
2009-01 → 2011-08 ended
BZB40,50,XZB40,5# GEN 5F —
55301-36091-B0 note Panel Sub-assy, Instrument
2009-01 → 2015-01 ended
BB42,HZB50 RHD —
55301-36100-B0 note Panel Sub-assy, Instrument
2007-08 → 2008-12 ended
XZB50 ARL;XZB50 GEN 4FC —
55301-36101-B0 note Panel Sub-assy, Instrument
2009-01 → 2009-03 ended
XZB50 WOC CBU —
55301-36101-B0 note Panel Sub-assy, Instrument
2009-01 → 2015-01 ended
XZB50 WC ARL;XZB50 GEN +1 —
55301-36101-B0 note Panel Sub-assy, Instrument
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
55301-36120-B0 note Panel Sub-assy, Instrument
2012-09 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
55301-36091-B0 note Panel Sub-assy, Instrument
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
55301-36101-B0 note Panel Sub-assy, Instrument
2015-01 → 2016-12 ended
BZB40,50,XZB40,5# RHD —
55301-36120-B0 note Panel Sub-assy, Instrument
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55305B — Reinforcement Sub-assy, Instrument Panel, NO.1
55305-36010 Reinforcement Sub-assy, Instrument Panel, NO.1
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55305-36020 Reinforcement Sub-assy, Instrument Panel, NO.1
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
55305-36011 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
55305-36011 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2004-08 ended
BB42 RF RHD STD +11 —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
55305-36030 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
55305-36030 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2001-08 ended
HZB50 4FC —
55305-36030 Reinforcement Sub-assy, Instrument Panel, NO.1
1999-07 → 2004-08 ended
BB50 ARL —
55305-36011 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD (EUR,GEN) —
55305-36011 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2007-05 ended
XZB59;BB42,BZB40,50,HZB50,XZB50 RHD (17S,20S,26S,30S) —
55305-36011 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2007-08 ended
XZB50 RHD IV —
55305-36012 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2015-01 ended
XZB50 EX 5F;BB42,BZB40,50,HZB50,XZB40,59 RHD —
55305-36012 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-08 → 2013-11 ended
XZB50 RHD IV —
55305-36012 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2008-03 ended
XZB50 STD GEN —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2007-04 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50,XZB50 +2 —
55305-36021 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55305-36022 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2007-08 ended
RZB40,50 —
55305-36022 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2011-08 ended
BB42 LHD HRF —
55305-36022 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2013-11 ended
XZB50 LHD IV —
55305-36022 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
55305-36030 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2007-05 ended
XZB50 ARL —
55305-36030 Reinforcement Sub-assy, Instrument Panel, NO.1
2004-08 → 2006-08 ended
BB50 ARL —
55305-36031 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2009-08 ended
XZB50 WOC CBU —
55305-36031 Reinforcement Sub-assy, Instrument Panel, NO.1
2007-05 → 2015-01 ended
XZB50 WC ARL;XZB50 GEN +1 —
55305-36012 Reinforcement Sub-assy, Instrument Panel, NO.1
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD GEN 5F —
55305-36022 Reinforcement Sub-assy, Instrument Panel, NO.1
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55305-36031 Reinforcement Sub-assy, Instrument Panel, NO.1
2015-01 → —
XZB50 ARL;XZB50 GEN 4FC —
55306C — Reinforcement Sub-assy, Instrument Panel, NO.2
55306-36020 Reinforcement Sub-assy, Instrument Panel, NO.2
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55306-36030 Reinforcement Sub-assy, Instrument Panel, NO.2
1993-01 → 1997-05 ended
BB42,50,HZB50,RZB40,50 LHD —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
55306-36020 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55306-36020 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55306-36020 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
55306-36020 Reinforcement Sub-assy, Instrument Panel, NO.2
2004-08 → 2006-03 ended
BB42,50,59,BZB40,50,HZB50 RHD —
55306-36022 Reinforcement Sub-assy, Instrument Panel, NO.2
2006-04 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55306-36022 Reinforcement Sub-assy, Instrument Panel, NO.2
2006-04 → 2007-04 ended
XZB5# ARL,GEN;BB42,BZB40,50,HZB50 RHD STD —
55306-36022 Reinforcement Sub-assy, Instrument Panel, NO.2
2006-04 → 2007-08 ended
XZB50 RHD IV —
55306-36023 Reinforcement Sub-assy, Instrument Panel, NO.2
2007-04 → 2007-08 ended
BB42,BZB40,50,HZB50,XZB5# RHD (ARL,GEN) —
55306-36024 Reinforcement Sub-assy, Instrument Panel, NO.2
2007-08 → 2010-11 ended
XZB50 RHD IV;XZB50 RHD +3 —
55306-36024 Reinforcement Sub-assy, Instrument Panel, NO.2
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55306-36024 Reinforcement Sub-assy, Instrument Panel, NO.2
2007-08 → 2008-03 ended
XZB50 STD GEN —
55306-36025 Reinforcement Sub-assy, Instrument Panel, NO.2
2010-12 → 2012-06 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55306-36026 Reinforcement Sub-assy, Instrument Panel, NO.2
2012-07 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
55306-36026 Reinforcement Sub-assy, Instrument Panel, NO.2
2012-07 → 2013-11 ended
XZB50 RHD IV —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
2004-08 → 2006-03 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,58,HZB50,RZB50 +1 —
55306-36040 Reinforcement Sub-assy, Instrument Panel, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55306-36042 Reinforcement Sub-assy, Instrument Panel, NO.2
2006-04 → 2006-08 ended
BB50,58 LHD TDEFI —
55306-36042 Reinforcement Sub-assy, Instrument Panel, NO.2
2006-04 → 2007-07 ended
BB42,50,HZB50,RZB40,50,XZB50 LHD 5F —
55306-36043 Reinforcement Sub-assy, Instrument Panel, NO.2
2007-08 → 2010-09 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD —
55306-36044 Reinforcement Sub-assy, Instrument Panel, NO.2
2010-10 → 2011-08 ended
BB42 LHD HRF —
55306-36044 Reinforcement Sub-assy, Instrument Panel, NO.2
2010-10 → 2012-02 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD —
55306-36045 Reinforcement Sub-assy, Instrument Panel, NO.2
2012-03 → 2013-11 ended
XZB50 LHD IV —
55306-36045 Reinforcement Sub-assy, Instrument Panel, NO.2
2012-03 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
55306-36026 Reinforcement Sub-assy, Instrument Panel, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55306-36045 Reinforcement Sub-assy, Instrument Panel, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55307D — Reinforcement Sub-assy, Instrument Panel, NO.3
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2013-11 ended
XZB50 IV —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2012-09 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;RZB50,XZB5# +3 —
55307-36010 Reinforcement Sub-assy, Instrument Panel, NO.3
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
55307-36020 Reinforcement Sub-assy, Instrument Panel, NO.3
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55307-36020 Reinforcement Sub-assy, Instrument Panel, NO.3
2007-08 → 2008-03 ended
XZB50 STD GEN —
55307-36020 Reinforcement Sub-assy, Instrument Panel, NO.3
2007-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
55307-36040 Reinforcement Sub-assy, Instrument Panel, NO.3
2012-09 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
55307-36020 Reinforcement Sub-assy, Instrument Panel, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55307-36040 Reinforcement Sub-assy, Instrument Panel, NO.3
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-36010 Bracket Sub-assy, Instrument Panel, Center
1993-01 → 1997-05 ended
BB4#,50,HZB50 RHD —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2002-11 ended
HZB50 ARL —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2001-05 ended
BB50 RHD 6F —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55308-36011 Bracket Sub-assy, Instrument Panel, Center
2004-08 → 2007-07 ended
XZB5# RHD;BB42,BZB40,50,HZB50 RHD STD —
55308-36012 Bracket Sub-assy, Instrument Panel, Center
2007-08 → 2008-03 ended
XZB50 STD GEN —
55308-36012 Bracket Sub-assy, Instrument Panel, Center
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55308-36012 Bracket Sub-assy, Instrument Panel, Center
2007-08 → 2010-11 ended
XZB50 RHD IV;XZB50 RHD +3 —
55308-36013 Bracket Sub-assy, Instrument Panel, Center
2010-12 → 2012-08 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55308-36014 Bracket Sub-assy, Instrument Panel, Center
2012-09 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
55308-36014 Bracket Sub-assy, Instrument Panel, Center
2012-09 → 2013-11 ended
XZB50 RHD IV —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
2004-08 → 2007-07 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50,XZB50 +2 —
55308-36020 Bracket Sub-assy, Instrument Panel, Center
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55308-36021 Bracket Sub-assy, Instrument Panel, Center
2007-08 → 2011-08 ended
BB42 LHD HRF —
55308-36021 Bracket Sub-assy, Instrument Panel, Center
2007-08 → 2012-08 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD —
55308-36022 Bracket Sub-assy, Instrument Panel, Center
2012-09 → 2013-11 ended
XZB50 LHD IV —
55308-36022 Bracket Sub-assy, Instrument Panel, Center
2012-09 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
55308-36014 Bracket Sub-assy, Instrument Panel, Center
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55308-36022 Bracket Sub-assy, Instrument Panel, Center
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55312A — Clip, Instrument Panel
90467-07071-E3 note Clip, Instrument Panel
1993-01 → 1995-05 ended
BB42 GCC,SCO;BB42 LHD GEN;HZB50,RZB40,50 +1 —
90467-07071-E3 note Clip, Instrument Panel
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
90467-07071-E3 note Clip, Instrument Panel
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
90467-07071-E3 note Clip, Instrument Panel
1999-07 → 2001-08 ended
BB50 EX;BB50 WOC 5F;BB50 +2 —
90467-07071-P3 note Clip, Instrument Panel
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
90467-07071-P3 note Clip, Instrument Panel
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,EUR,GCC,GEN —
90467-07071-P3 note Clip, Instrument Panel
2001-05 → 2001-08 ended
BB50 TDEFI —
90467-07071-P3 note Clip, Instrument Panel
2004-08 → 2009-03 ended
XZB50 WOC CBU —
90467-07071-P3 note Clip, Instrument Panel
2004-08 → 2015-01 ended
XZB50 WC;XZB50 WOC IV;BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,59 —
90467-07071-P3 note Clip, Instrument Panel
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
55316 — Spacer, Instrument Panel, NO.2
55316-36010 Spacer, Instrument Panel, NO.2
1997-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 —
55316-36010 Spacer, Instrument Panel, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
55316-36010 Spacer, Instrument Panel, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
55316-36010 Spacer, Instrument Panel, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
55316-36010 Spacer, Instrument Panel, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2013-11 ended
XZB50 LHD IV —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2012-09 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2007-08 ended
RZB40 42,BZB40,50,HZB50 GEN;RZB50,XZB59;XZB50 RHD +8 —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55316-36010 Spacer, Instrument Panel, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
55342A — Brace, Instrument Panel TO Cowl, NO.2
55342-36010 Brace, Instrument Panel TO Cowl, NO.2
1993-01 → 1998-08 ended
BB4#,50,HZB50 RHD —
55342-36020 Brace, Instrument Panel TO Cowl, NO.2
1993-01 → 1998-06 ended
BB42,5#,HZB50,RZB40,50 LHD —
55342-36020 Brace, Instrument Panel TO Cowl, NO.2
1998-06 → 1998-08 ended
BB50 LHD EUR;BB42,5#,HZB50,RZB40,50 LHD +1 —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
1998-08 → 1999-07 ended
BB4#,50,HZB50 RHD —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
1998-08 → 1999-07 ended
BB50 LHD EUR;BB42,5#,HZB50,RZB40,50 LHD +1 —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2001-05 ended
BB50 RHD 6F —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2001-05 ended
BB50 LHD IV 6F —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55342-36030 Brace, Instrument Panel TO Cowl, NO.2
2004-08 → 2007-08 ended
XZB5# RHD;BB42,BZB40,50,HZB50 RHD STD —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55342-36040 Brace, Instrument Panel TO Cowl, NO.2
2004-08 → 2007-05 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50,XZB50 +2 —
55342-36050 Brace, Instrument Panel TO Cowl, NO.2
2007-08 → 2008-03 ended
XZB50 STD GEN —
55342-36050 Brace, Instrument Panel TO Cowl, NO.2
2007-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
55342-36050 Brace, Instrument Panel TO Cowl, NO.2
2007-08 → 2013-11 ended
XZB50 RHD IV —
55342-36050 Brace, Instrument Panel TO Cowl, NO.2
2007-08 → 2009-03 ended
XZB50 WOC CBU —
55342-36060 Brace, Instrument Panel TO Cowl, NO.2
2007-05 → 2011-08 ended
BB42 LHD HRF —
55342-36060 Brace, Instrument Panel TO Cowl, NO.2
2007-05 → 2013-11 ended
XZB50 LHD IV —
55342-36060 Brace, Instrument Panel TO Cowl, NO.2
2007-05 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
55342-36060 Brace, Instrument Panel TO Cowl, NO.2
2007-05 → 2007-08 ended
RZB40,50 —
55342-36050 Brace, Instrument Panel TO Cowl, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55342-36060 Brace, Instrument Panel TO Cowl, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55343B — Brace, Instrument Panel TO Cowl, Center
55343-36010 Brace, Instrument Panel TO Cowl, Center
2007-08 → 2008-03 ended
XZB50 STD GEN —
55343-36010 Brace, Instrument Panel TO Cowl, Center
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55343-36010 Brace, Instrument Panel TO Cowl, Center
2007-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
55343-36010 Brace, Instrument Panel TO Cowl, Center
2015-01 → 2015-04 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55343-36020 Brace, Instrument Panel TO Cowl, Center
2015-05 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55351A — Brace, Instrument Panel TO Floor
55351-36010 Brace, Instrument Panel TO Floor
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55351-36020 Brace, Instrument Panel TO Floor
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD —
55351-36010 Brace, Instrument Panel TO Floor
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55351-36010 Brace, Instrument Panel TO Floor
1999-07 → 2002-11 ended
HZB50 ARL —
55351-36010 Brace, Instrument Panel TO Floor
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55351-36020 Brace, Instrument Panel TO Floor
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55351-36020 Brace, Instrument Panel TO Floor
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
55351-36020 Brace, Instrument Panel TO Floor
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55351-36020 Brace, Instrument Panel TO Floor
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55351-36010 Brace, Instrument Panel TO Floor
2004-08 → 2013-11 ended
XZB50 RHD IV —
55351-36010 Brace, Instrument Panel TO Floor
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
55351-36010 Brace, Instrument Panel TO Floor
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55351-36010 Brace, Instrument Panel TO Floor
2004-08 → 2008-03 ended
XZB50 STD GEN —
55351-36010 Brace, Instrument Panel TO Floor
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2011-08 ended
BB42 LHD HRF —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2013-11 ended
XZB50 LHD IV —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
55351-36020 Brace, Instrument Panel TO Floor
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55351-36010 Brace, Instrument Panel TO Floor
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55351-36020 Brace, Instrument Panel TO Floor
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55352A — Brace, Instrument Panel TO Floor, NO.2
55352-36010 Brace, Instrument Panel TO Floor, NO.2
1993-01 → 1999-07 ended
HZB50 RHD;BB4#,50 RHD CBU —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
1993-01 → 1999-07 ended
BB50 WOC GEN;BB42,HZB50,RZB40,50 LHD —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2013-11 ended
XZB50 RHD IV —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2013-11 ended
XZB50 LHD IV —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
55352-36010 Brace, Instrument Panel TO Floor, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55352-36020 Brace, Instrument Panel TO Floor, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55358F — Protector, Edge
55358-36030 Protector, Edge
2007-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
55358-36030 Protector, Edge
2007-08 → 2008-03 ended
XZB50 STD GEN —
55358-36030 Protector, Edge
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55358-36030 Protector, Edge
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55549B — Cover, Instrument Panel Hole, NO.2
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
1999-07 → 2004-08 ended
HZB50 22S;BB50 RHD 6F —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2004-08 → 2007-05 ended
XZB50 RHD IV —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2004-08 → 2007-08 ended
XZB50 ARL;BB50 RHD 6F —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2007-08 → 2009-03 ended
XZB50 WOC CBU —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2007-05 → 2015-01 ended
XZB50 4FC;XZB50 RHD IV —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2011-08 → 2015-01 ended
BZB40,50,XZB40,5# GEN 5F —
55549-36010-B0 note Cover, Instrument Panel Hole, NO.2
2015-01 → 2016-12 ended
BZB40,50,XZB40,5# RHD —
55950 — Nozzle Assy, Defroster
55950-36010 Nozzle Assy, Defroster
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55950-36020 note Nozzle Assy, Defroster
1995-05 → 1999-07 ended
HZB50 LHD HRF STD +3 —
55950-36020 note Nozzle Assy, Defroster
1997-05 → 1999-07 ended
RZB50 HRF GEN;BB42,HZB50,RZB40 LHD +3 —
55950-36020 note Nozzle Assy, Defroster
1995-05 → 1999-07 ended
BB42 LHD WOC GEN;HZB50 +3 —
55950-36020 Nozzle Assy, Defroster
1995-05 → 1999-07 ended
BB5# LHD LHD;RZB40 HRF +14 —
55950-36020 note Nozzle Assy, Defroster
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
55950-36020 note Nozzle Assy, Defroster
1993-01 → 1995-05 ended
RZB40,50 2S) GEN;BB42 SRF +8 —
55950-36020 Nozzle Assy, Defroster
1993-01 → 1995-05 ended
HZB50 GEN 4FC;BB42,HZB50,RZB40,50 LHD +1 —
55950-36020 note Nozzle Assy, Defroster
1993-01 → 1995-05 ended
HZB50 LHD STD WC +6 —
55950-36020 note Nozzle Assy, Defroster
1995-05 → 1997-05 ended
RZB40,50 HRF GEN;BB42,HZB50 LHD +1 —
55950-36010 Nozzle Assy, Defroster
1999-07 → 2001-05 ended
BB50 RHD 6F —
55950-36010 Nozzle Assy, Defroster
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55950-36010 Nozzle Assy, Defroster
1999-07 → 2002-11 ended
HZB50 ARL —
55950-36010 Nozzle Assy, Defroster
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55950-36020 Nozzle Assy, Defroster
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55950-36020 note Nozzle Assy, Defroster
1999-07 → 2004-08 ended
HZB50 LHD EX;BB42 SRF +5 —
55950-36020 note Nozzle Assy, Defroster
1999-07 → 2004-08 ended
BB42 LHD HRF 26S +1 —
55950-36020 note Nozzle Assy, Defroster
1999-07 → 2004-08 ended
HZB50 LHD STD WC +5 —
55950-36020 Nozzle Assy, Defroster
1999-07 → 2004-08 ended
RZB40 7S,26S) WOC WC +12 —
55950-36020 note Nozzle Assy, Defroster
1999-07 → 2001-08 ended
BB42 22S —
55950-36020 Nozzle Assy, Defroster
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55950-36020 Nozzle Assy, Defroster
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
55950-36010 Nozzle Assy, Defroster
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55950-36010 Nozzle Assy, Defroster
2004-08 → 2007-08 ended
XZB5# ARL,GEN;BB42,BZB40,50,HZB50 RHD STD —
55950-36010 Nozzle Assy, Defroster
2004-08 → 2013-07 ended
XZB50 RHD IV —
55950-36011 Nozzle Assy, Defroster
2013-08 → 2013-11 ended
XZB50 RHD IV —
55950-36020 Nozzle Assy, Defroster
2004-08 → 2013-07 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
55950-36020 Nozzle Assy, Defroster
2004-08 → 2011-08 ended
BB42 LHD HRF —
55950-36020 Nozzle Assy, Defroster
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55950-36020 Nozzle Assy, Defroster
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55950-36020 Nozzle Assy, Defroster
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55950-36021 Nozzle Assy, Defroster
2013-08 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
55950-36021 Nozzle Assy, Defroster
2013-08 → 2013-11 ended
XZB50 LHD IV —
55950-36030 Nozzle Assy, Defroster
2007-08 → 2008-03 ended
XZB50 STD GEN —
55950-36030 Nozzle Assy, Defroster
2007-08 → 2009-08 ended
XZB50 WOC CBU —
55950-36030 Nozzle Assy, Defroster
2007-08 → 2013-07 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
55950-36031 Nozzle Assy, Defroster
2013-08 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
55950-36021 Nozzle Assy, Defroster
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
55950-36031 Nozzle Assy, Defroster
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55972 — Duct, Side Defroster Nozzle, NO.2
55972-36010 Duct, Side Defroster Nozzle, NO.2
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1995-05 → 1997-05 ended
RZB40,50 HRF GEN;BB42,HZB50 LHD +1 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1997-05 → 1999-07 ended
RZB50 HRF GEN;BB42,HZB50,RZB40 LHD +3 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1995-05 → 1999-07 ended
BB42 LHD WOC GEN;HZB50 +3 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1995-05 → 1999-07 ended
HZB50 LHD HRF STD +3 —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1995-05 → 1999-07 ended
BB5# LHD LHD;RZB40 HRF +14 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1993-01 → 1995-05 ended
HZB50 LHD STD WC +6 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1993-01 → 1995-05 ended
RZB40,50 2S) GEN;BB42 SRF +8 —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1993-01 → 1995-05 ended
HZB50 GEN 4FC;BB42,HZB50,RZB40,50 LHD +1 —
55972-36010 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
55972-36010 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
55972-36010 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
55972-36010 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2001-05 ended
BB50 RHD 6F —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1999-07 → 2001-08 ended
BB42 22S —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1999-07 → 2004-08 ended
HZB50 LHD STD WC +5 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1999-07 → 2004-08 ended
HZB50 LHD EX;BB42 SRF +5 —
55972-36020 note Duct, Side Defroster Nozzle, NO.2
1999-07 → 2004-08 ended
BB42 LHD HRF 26S +1 —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2004-08 ended
RZB40 7S,26S) WOC WC +12 —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
55972-36020 Duct, Side Defroster Nozzle, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2013-11 ended
XZB50 RHD IV —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2013-11 ended
XZB50 LHD IV —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55972-36010 Duct, Side Defroster Nozzle, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
55972-36020 Duct, Side Defroster Nozzle, NO.2
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
