Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

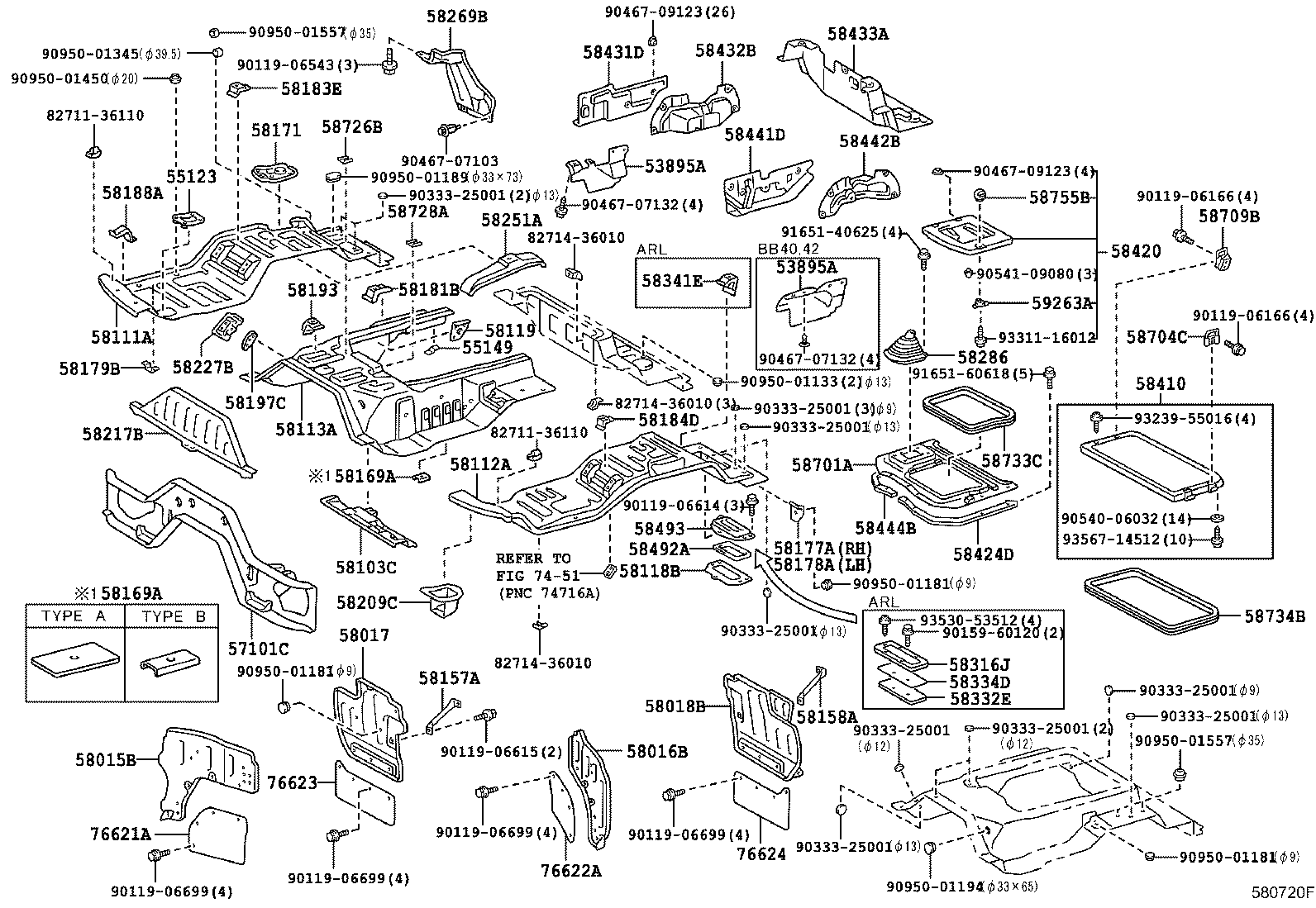

Exploded illustration 580720F 7451 — not listed in this catalogue 8271136110 — not listed in this catalogue 9095001450 — not listed in this catalogue 9095001345 — not listed in this catalogue 58188A — BRACKET, ACCELERATOR PEDAL STOPPER (22 parts) 55123 — REINFORCEMENT, STEERING SUPPORT (14 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (25 parts) 58183E — BRACKET, FRONT SEAT MOUNTING, OUTSIDE (14 parts) 9095001557 — not listed in this catalogue 9095001133 — not listed in this catalogue 9011906543 — not listed in this catalogue 58726B — PLATE, ENGINE SERVICE COVER, FRONT UPPER (14 parts) 9046707103 — not listed in this catalogue 9095001189 — not listed in this catalogue 9011906699 — not listed in this catalogue 58269B — COVER, PARKING BRAKE CABLE, RH (11 parts) 58728A — PLATE, ENGINE SERVICE COVER, NO.2 (14 parts) 58251A — REINFORCEMENT, FRONT SEAT, FRONT RH (11 parts) 8271436010 — not listed in this catalogue 58431D — SILENCER, ENGINE ROOM SIDE, FRONT RH (41 parts) 58432B — SILENCER, ENGINE ROOM SIDE, REAR RH (22 parts) 9046709123 — not listed in this catalogue 58441D — SILENCER, ENGING ROOM SIDE, FRONT LH (37 parts) 58433A — SILENCER, ENGINE ROOM SIDE END (31 parts) 58442B — SILENCER, ENGING ROOM SIDE, REAR LH (21 parts) 9165140625 — not listed in this catalogue 9046709123 — not listed in this catalogue 58755B — HANDLE, ENGINE SERVICE COVER CATCH (15 parts) 9011906166 — not listed in this catalogue 58709B — CATCH SUB-ASSY, ENGINE SERVICE COVER (19 parts) 58420 — COVER ASSY, ENGINE SERVICE HOLE, NO.2 (39 parts) 58704C — HOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR (20 parts) 58410 — COVER, ENGINE SERVICE HOLE (31 parts) 9011906166 — not listed in this catalogue 9323955016 — not listed in this catalogue 9054109080 — not listed in this catalogue 59263A — HOOK, ENGINE COVER LOCK (15 parts) 9331116012 — not listed in this catalogue 58286 — BOOT, SHIFT & SELECT LEVER, NO.1 (14 parts) 76622A — MUDGUARD, FRONT BODY, FRONT LH (16 parts) 76624 — MUDGUARD, FRONT BODY, REAR LH (13 parts) 9033325001 — not listed in this catalogue 58184D — BRACKET, FRONT SEAT MOUNTING, OUTSIDE (14 parts) 8271436010 — not listed in this catalogue 8271136110 — not listed in this catalogue 55149 — BRACKET, DASH WIRING HARNESS (11 parts) 58181B — BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH (11 parts) 58193 — BRACKET, INSTRUMENT PANEL BRACE MOUNTING (16 parts) 58113A — PANEL, FRONT FLOOR, CENTER (43 parts) 58197C — PLATE, VACUUM TUBE BRACKET, RH (11 parts) 58111A — PAN, FRONT FLOOR, RH (114 parts) 58179B — BRACKET, ACCELERATOR CABLE CLAMP (11 parts) 58217B — PLATE, FRONT FLOOR (14 parts) 58103C — REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT (23 parts) 58112A — PANEL, FRONT FLOOR, LH (64 parts) 8271436010 — not listed in this catalogue 9011906699 — not listed in this catalogue 58492A — PACKING, RELAY BLOCK HOLE COVER (14 parts) 58493 — RETAINER, ENGINE COVER, NO.3 (10 parts) 9011906614 — not listed in this catalogue 58118B — REINFORCEMENT, FRONT FLOOR PANEL, NO.2 (14 parts) 58701A — PANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT (52 parts) 58444B — PACKING, ENGINE SUB COVER (16 parts) 58177A — EXTENSION, FRONT FLOOR PANEL, RH (14 parts) 58178A — EXTENSION, FRONT FLOOR PANEL, LH (14 parts) 9165160618 — not listed in this catalogue 9095001194 — not listed in this catalogue 58424D — PACKING, ENGINE COVER (1 parts) 58733C — WEATHERSTRIP, ENGINE SERVICE COVER, FRONT (24 parts) 9356714512 — not listed in this catalogue 9054006032 — not listed in this catalogue 58734B — WEATHERSTRIP, ENGINE SERVICE COVER, REAR (22 parts) 9033325001 — not listed in this catalogue 9095001181 — not listed in this catalogue 9033325001 — not listed in this catalogue 9095001557 — not listed in this catalogue 9033325001 — not listed in this catalogue 9033325001 — not listed in this catalogue 9033325001 — not listed in this catalogue 58158A — STAY, FRONT FLOOR HOUSING, REAR LH (15 parts) 58018B — PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH (23 parts) 9033325001 — not listed in this catalogue 58016B — PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH (24 parts) 9011906615 — not listed in this catalogue 58157A — STAY, FRONT FLOOR HOUSING, REAR RH (15 parts) 58209C — COVER SUB-ASSY, HEATER AIR INTAKE (18 parts) 58017 — PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH (23 parts) 76623 — MUDGUARD, FRONT BODY, REAR RH (13 parts) 57101C — CROSSMEMBER SUB-ASSY, FLOOR, NO.1 (15 parts) 9011906699 — not listed in this catalogue 58015B — PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH (29 parts) 9011906699 — not listed in this catalogue 76621A — MUDGUARD, FRONT BODY, FRONT RH (16 parts) 58227B — PLATE, FRONT FLOOR PANEL SIDE, RH (9 parts) 58119 — PLATE, FRONT FLOOR SIDE, FRONT (5 parts) 58169A — RETAINER, REAR HEATER MOUNTING (15 parts) 58169A — RETAINER, REAR HEATER MOUNTING (15 parts) 58341E — LEG, RH FOOTREST, LH (2 parts) 9353053512 — not listed in this catalogue 9015960120 — not listed in this catalogue 58316J — PLATE, FOOTREST, REAR (6 parts) 58334D — MAT, FRONT FOOTREST, NO.2 (6 parts) 58332E — BOARD, FRONT FOOTREST, NO.2 (2 parts) 53895A — SHIELD, SIDE FLOOR APRON, FRONT (2 parts) 9046707132 — not listed in this catalogue 53895A — SHIELD, SIDE FLOOR APRON, FRONT (2 parts) 9046707132 — not listed in this catalogue 9033325001 — not listed in this catalogue 9095001181 — not listed in this catalogue 9095001181 — not listed in this catalogue 9033325001 — not listed in this catalogue
580720F · 63 callouts, 48 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1210 parts on this figure
Part number Description Fitment Price
53895A — Shield, Side Floor Apron, Front
53895-36030 Shield, Side Floor Apron, Front
1993-01 → 1995-05 ended
BB4# —
53896-36020 Shield, Side Floor Apron, Front
1993-01 → 1995-05 ended
HZB50,RZB40,50 CBU —
55123 — Reinforcement, Steering Support
55123-36010 Reinforcement, Steering Support
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
55123-36020 Reinforcement, Steering Support
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
55123-36020 Reinforcement, Steering Support
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
55123-36020 Reinforcement, Steering Support
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
55123-36020 Reinforcement, Steering Support
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
55123-36020 Reinforcement, Steering Support
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
55123-36020 Reinforcement, Steering Support
2004-08 → 2013-11 ended
XZB50 IV —
55123-36020 Reinforcement, Steering Support
2004-08 → 2011-08 ended
BB42 LHD HRF —
55123-36020 Reinforcement, Steering Support
2004-08 → 2009-08 ended
XZB50 WOC CBU —
55123-36020 Reinforcement, Steering Support
2004-08 → 2008-03 ended
XZB50 STD GEN —
55123-36020 Reinforcement, Steering Support
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55123-36020 Reinforcement, Steering Support
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
55123-36020 Reinforcement, Steering Support
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55123-36020 Reinforcement, Steering Support
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
55149 — Bracket, Dash Wiring Harness
55149-36010 Bracket, Dash Wiring Harness
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
55149-36010 Bracket, Dash Wiring Harness
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2006-02 ended
RZB40 HRF GCC —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50 +2 —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2011-08 ended
BB42 LHD HRF —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
55149-36010 Bracket, Dash Wiring Harness
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
55149-36010 Bracket, Dash Wiring Harness
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50 —
57101C — Crossmember Sub-assy, Floor, NO.1
57101-36020 Crossmember Sub-assy, Floor, NO.1
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
57101-36040 Crossmember Sub-assy, Floor, NO.1
1997-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
57101-36040 Crossmember Sub-assy, Floor, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
57101-36040 Crossmember Sub-assy, Floor, NO.1
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
57101-36040 Crossmember Sub-assy, Floor, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
57101-36040 Crossmember Sub-assy, Floor, NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
57101-36040 Crossmember Sub-assy, Floor, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
57101-36040 Crossmember Sub-assy, Floor, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
57101-36040 Crossmember Sub-assy, Floor, NO.1
2004-08 → 2007-08 ended
RZB40 DSL,EFI,LPG,TD) SRF GCC;RZB40,XZB5# +3 —
57101-36070 Crossmember Sub-assy, Floor, NO.1
2007-08 → 2009-07 ended
XZB50 IV;XZB50 20S,21S;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,59 —
57101-36070 Crossmember Sub-assy, Floor, NO.1
2007-08 → 2008-03 ended
XZB50 STD GEN —
57101-36071 Crossmember Sub-assy, Floor, NO.1
2009-08 → 2011-08 ended
BB42 LHD HRF —
57101-36071 Crossmember Sub-assy, Floor, NO.1
2009-08 → 2013-11 ended
XZB50 IV —
57101-36071 Crossmember Sub-assy, Floor, NO.1
2009-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5# +1 —
57101-36071 Crossmember Sub-assy, Floor, NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58015B — Panel Sub-assy, Front Floor Housing, Front RH
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,HZB50,RZB40,50 GCC;BB42,50,RZB40 +2 —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
1999-07 → 2004-08 ended
BB50 LHD TDEFI;BB42,50,58,HZB50,RZB40,50 LHD +2 —
58015-36040 Panel Sub-assy, Front Floor Housing, Front RH
2001-08 → 2004-08 ended
BB42,HZB50,RZB40,50 GCC —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58015-36010 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2007-08 ended
XZB5# RHD;BB42,BZB40,50,HZB50 RHD STD —
58015-36011 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
58015-36011 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2013-11 ended
XZB50 RHD IV —
58015-36011 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
58015-36011 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2006-08 ended
BB50 LHD TDEFI —
58015-36020 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2007-08 ended
BB42,50,HZB50,RZB40,50,XZB50 LHD (EUR,GEN) 5F —
58015-36021 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
58015-36021 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2013-11 ended
XZB50 LHD IV —
58015-36021 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +2 —
58015-36040 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50,XZB50 GCC,TAIW —
58015-36040 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2006-08 ended
BB58 —
58015-36040 Panel Sub-assy, Front Floor Housing, Front RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58015-36041 Panel Sub-assy, Front Floor Housing, Front RH
2007-08 → 2015-01 ended
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
58015-36011 Panel Sub-assy, Front Floor Housing, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58015-36021 Panel Sub-assy, Front Floor Housing, Front RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
58015-36041 Panel Sub-assy, Front Floor Housing, Front RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
58016B — Panel Sub-assy, Front Floor Housing, Front LH
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-05 → 2004-08 ended
BB50 RHD IV —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2002-11 ended
HZB50 ARL —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
1999-07 → 2004-05 ended
BB50 RHD IV TDEFI —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2006-08 ended
BB50,58 (EUR,GEN) 6F —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2013-11 ended
XZB50 IV —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58016-36010 Panel Sub-assy, Front Floor Housing, Front LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58016-36020 Panel Sub-assy, Front Floor Housing, Front LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58017 — Panel Sub-assy, Front Floor Housing, Rear RH
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2002-11 ended
HZB50 ARL —
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58017-36010 Panel Sub-assy, Front Floor Housing, Rear RH
2004-08 → 2006-07 ended
BB42,50,59,BZB40,50,HZB50 RHD —
58017-36011 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
58017-36011 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2013-11 ended
XZB50 RHD IV —
58017-36011 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2009-08 ended
XZB50 WOC CBU —
58017-36011 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2008-03 ended
XZB50 STD GEN —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
2004-08 → 2006-07 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,58,HZB50,RZB50 +1 —
58017-36020 Panel Sub-assy, Front Floor Housing, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58017-36021 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2011-08 ended
BB42 LHD HRF —
58017-36021 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2013-11 ended
XZB50 LHD IV —
58017-36021 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
58017-36021 Panel Sub-assy, Front Floor Housing, Rear RH
2006-08 → 2007-08 ended
RZB40,50 —
58017-36011 Panel Sub-assy, Front Floor Housing, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58017-36021 Panel Sub-assy, Front Floor Housing, Rear RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58018B — Panel Sub-assy, Front Floor Housing, Rear LH
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
1999-07 → 2002-11 ended
HZB50 ARL —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2013-11 ended
XZB50 LHD IV —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58018-36010 Panel Sub-assy, Front Floor Housing, Rear LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58018-36020 Panel Sub-assy, Front Floor Housing, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58103C — Reinforcement Sub-assy, Front Floor, Front
58103-36010 Reinforcement Sub-assy, Front Floor, Front
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2002-11 ended
HZB50 ARL —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2001-05 ended
BB50 RHD 6F —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2008-03 ended
XZB50 STD GEN —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2013-11 ended
XZB50 RHD IV —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2013-11 ended
XZB50 LHD IV —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2011-08 ended
BB42 LHD HRF —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58103-36010 Reinforcement Sub-assy, Front Floor, Front
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58103-36020 Reinforcement Sub-assy, Front Floor, Front
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58111A — Pan, Front Floor, RH
58111-36020 Pan, Front Floor, RH
1993-01 → 1994-02 ended
BB4#,HZB50 RHD HRF WC +1 —
58111-36020 Pan, Front Floor, RH
1994-02 → 1995-01 ended
BB4# RHD WC;HZB50 RHD +3 —
58111-36021 Pan, Front Floor, RH
1995-05 → 1995-08 ended
BB42 RHD WC;HZB50 RHD +4 —
58111-36021 Pan, Front Floor, RH
1995-01 → 1995-05 ended
BB4# RHD WC;HZB50 RHD +3 —
58111-36021 note Pan, Front Floor, RH
1994-07 → 1995-01 ended
BB42 SCO —
58111-36022 Pan, Front Floor, RH
1997-05 → 1998-07 ended
BB42,43,HZB50 RHD HRF WC +2 —
58111-36022 Pan, Front Floor, RH
1995-08 → 1997-05 ended
BB42,HZB50 RHD HRF WC +2 —
58111-36022 Pan, Front Floor, RH
1998-07 → 1999-07 ended
BB42,HZB50 RHD HRF WC +2 —
58111-36030 Pan, Front Floor, RH
1994-02 → 1995-01 ended
HZB50 SCO —
58111-36030 note Pan, Front Floor, RH
1993-01 → 1994-02 ended
BB4#,HZB50 RHD HRF WC +1 —
58111-36030 Pan, Front Floor, RH
1993-01 → 1994-02 ended
BB42,HZB50 SCO —
58111-36030 note Pan, Front Floor, RH
1994-02 → 1995-01 ended
BB4# RHD WC;HZB50 RHD +3 —
58111-36031 Pan, Front Floor, RH
1995-01 → 1995-05 ended
HZB50 SCO —
58111-36031 note Pan, Front Floor, RH
1995-01 → 1995-05 ended
BB4# RHD WC;HZB50 RHD +3 —
58111-36031 Pan, Front Floor, RH
1995-05 → 1995-08 ended
HZB50 SCO;BB40,HZB50 (19S,22S) WC —
58111-36031 note Pan, Front Floor, RH
1995-05 → 1995-08 ended
BB42 RHD WC;HZB50 RHD +4 —
58111-36032 note Pan, Front Floor, RH
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD HRF WC +1 —
58111-36032 note Pan, Front Floor, RH
1997-05 → 1998-08 ended
BB42 SCO —
58111-36032 note Pan, Front Floor, RH
1995-08 → 1997-05 ended
BB4#,HZB50 RHD HRF WC +1 —
58111-36040 Pan, Front Floor, RH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD CBU —
58111-36050 note Pan, Front Floor, RH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD CBU —
58111-36060 note Pan, Front Floor, RH
1993-10 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD CBU —
58111-36060 note Pan, Front Floor, RH
1993-01 → 1993-10 ended
HZB50 LHD EX —
58111-36060 Pan, Front Floor, RH
1997-05 → 1999-07 ended
BB50 STD GEN —
58111-36060 note Pan, Front Floor, RH
1993-01 → 1993-10 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
58111-36070 Pan, Front Floor, RH
1997-05 → 1999-07 ended
BB58 —
58111-36070 note Pan, Front Floor, RH
1993-01 → 1997-05 ended
BB42 LHD SRF;BB42 LHD +3 —
58111-36070 note Pan, Front Floor, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
58111-36070 note Pan, Front Floor, RH
1997-05 → 1999-07 ended
BB50 WC CBU —
58111-36070 note Pan, Front Floor, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD —
58111-36080 Pan, Front Floor, RH
1995-05 → 1995-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +2 —
58111-36080 Pan, Front Floor, RH
1993-01 → 1995-05 ended
HZB50 RHD SRF;BB4#,HZB50 RHD +1 —
58111-36081 Pan, Front Floor, RH
1995-08 → 1999-07 ended
HZB50 RHD SRF;BB42,HZB50 RHD +2 —
58111-36090 note Pan, Front Floor, RH
1995-05 → 1995-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +2 —
58111-36090 Pan, Front Floor, RH
1995-05 → 1995-08 ended
BB40,HZB50 WOC ARL —
58111-36090 note Pan, Front Floor, RH
1993-01 → 1995-05 ended
HZB50 RHD SRF;BB4#,HZB50 RHD +1 —
58111-36091 Pan, Front Floor, RH
1995-08 → 1999-07 ended
BB40,HZB50 WOC ARL —
58111-36091 note Pan, Front Floor, RH
1995-08 → 1999-07 ended
HZB50 RHD SRF;BB42,HZB50 RHD +2 —
58111-36100 note Pan, Front Floor, RH
1994-02 → 1994-07 ended
BB42 SCO —
58111-36122 Pan, Front Floor, RH
1998-07 → 1999-07 ended
BB42,43 17S —
58111-36023 Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42,HZB50 RHD HRF STD +3 —
58111-36023 Pan, Front Floor, RH
1999-07 → 2001-08 ended
HZB50 RHD EX —
58111-36033 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB43,50 RHD 5F;HZB50 RHD +2 —
58111-36033 note Pan, Front Floor, RH
1999-07 → 2002-11 ended
HZB50 WC ARL —
58111-36033 note Pan, Front Floor, RH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
58111-36033 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42,59,BZB40 (LPG,TDEFI) RHD WC;HZB50 +8 —
58111-36041 Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
58111-36041 Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
58111-36051 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
58111-36051 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
58111-36061 Pan, Front Floor, RH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58111-36061 Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB50 WOC 5F —
58111-36061 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
58111-36061 note Pan, Front Floor, RH
2000-08 → 2004-08 ended
BB58 —
58111-36061 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 ) WC WC +14 —
58111-36061 note Pan, Front Floor, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58111-36071 note Pan, Front Floor, RH
1999-07 → 2002-11 ended
BB50 CHI —
58111-36071 note Pan, Front Floor, RH
2000-12 → 2004-08 ended
BB50 GEN 6F TDEFI —
58111-36071 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
58111-36071 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
58111-36071 Pan, Front Floor, RH
1999-07 → 2000-08 ended
BB58 —
58111-36071 note Pan, Front Floor, RH
2000-12 → 2002-11 ended
RZB40,50 CHI —
58111-36082 Pan, Front Floor, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
58111-36082 Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 RHD +2 —
58111-36082 Pan, Front Floor, RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58111-36092 note Pan, Front Floor, RH
1999-07 → 2002-11 ended
HZB50 WOC ARL —
58111-36092 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
58111-36092 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB42 RHD SRF —
58111-36092 Pan, Front Floor, RH
2002-11 → 2004-08 ended
BB50 WOC CBU TDEFI —
58111-36123 note Pan, Front Floor, RH
1999-07 → 2001-08 ended
BB43 —
58111-36123 note Pan, Front Floor, RH
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
58111-36023 Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42,HZB50 RHD WC —
58111-36033 Pan, Front Floor, RH
2006-08 → 2008-03 ended
XZB50 STD GEN —
58111-36033 note Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50 RHD WC;BB59,BZB50 EX —
58111-36033 Pan, Front Floor, RH
2006-08 → 2015-01 ended
XZB40,59;XZB50 RHD (20S,21S) WC —
58111-36033 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42,BZB40,50,HZB50 RHD HRF STD —
58111-36033 note Pan, Front Floor, RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
58111-36041 Pan, Front Floor, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58111-36041 Pan, Front Floor, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58111-36041 Pan, Front Floor, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58111-36041 Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
58111-36051 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
58111-36051 note Pan, Front Floor, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58111-36051 note Pan, Front Floor, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58111-36051 note Pan, Front Floor, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2013-11 ended
XZB50 LHD IV —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58111-36061 note Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58111-36071 note Pan, Front Floor, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58111-36071 note Pan, Front Floor, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58111-36071 note Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
58111-36071 note Pan, Front Floor, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58111-36071 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
58111-36082 Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 RHD WOC —
58111-36082 Pan, Front Floor, RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58111-36082 Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50 RHD IV —
58111-36092 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BB42 RHD WOC —
58111-36092 note Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50 WOC CBU TDEFI —
58111-36092 note Pan, Front Floor, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58111-36123 note Pan, Front Floor, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58111-36123 note Pan, Front Floor, RH
2004-08 → 2015-01 ended
BZB40,50,XZB40 STD —
58111-36123 note Pan, Front Floor, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
58111-36160 Pan, Front Floor, RH
2015-01 → —
BB42,HZB50 RHD WC —
58111-36170 note Pan, Front Floor, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD WC —
58111-36180 Pan, Front Floor, RH
2015-01 → —
BB42 RHD WOC —
58111-36190 note Pan, Front Floor, RH
2015-01 → —
BB42 RHD WOC —
58111-36200 Pan, Front Floor, RH
2015-01 → —
BZB40,50,XZB40 HRF —
58111-36210 Pan, Front Floor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
58111-36220 note Pan, Front Floor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
58111-36230 note Pan, Front Floor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58111-36240 note Pan, Front Floor, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
58112A — Panel, Front Floor, LH
58112-36010 Panel, Front Floor, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD GEN 5F —
58112-36020 note Panel, Front Floor, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD GEN 5F —
58112-36030 note Panel, Front Floor, LH
1998-02 → 1999-07 ended
BB43 —
58112-36030 Panel, Front Floor, LH
1993-01 → 1997-05 ended
BB4#,HZB50 ARL,SCO —
58112-36030 Panel, Front Floor, LH
1997-05 → 1999-07 ended
HZB50 ARL;BB40,50 RHD CBU —
58112-36030 note Panel, Front Floor, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD GEN 5F —
58112-36030 note Panel, Front Floor, LH
1997-05 → 1998-08 ended
BB42 SCO —
58112-36040 note Panel, Front Floor, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD GEN 5F —
58112-36040 Panel, Front Floor, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
58112-36040 note Panel, Front Floor, LH
1997-05 → 1999-07 ended
BB50 EX —
58112-36040 note Panel, Front Floor, LH
1993-01 → 1995-05 ended
BB42,HZB50 SCO —
58112-36060 Panel, Front Floor, LH
1993-01 → 1999-07 ended
RZB50 5F GCC;HZB50 GCC +6 —
58112-36080 Panel, Front Floor, LH
1993-01 → 1999-07 ended
RZB50 SRF GEN;HZB50 30S +5 —
58112-36110 Panel, Front Floor, LH
1997-05 → 1998-07 ended
BB42,43 17S —
58112-36011 Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58112-36011 Panel, Front Floor, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +5 —
58112-36021 note Panel, Front Floor, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +5 —
58112-36021 note Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58112-36031 Panel, Front Floor, LH
1999-07 → 2001-08 ended
BB43;BB50 EX IV —
58112-36031 note Panel, Front Floor, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB50,HZB50 RHD +6 —
58112-36031 note Panel, Front Floor, LH
1999-07 → 2002-11 ended
HZB50 ARL —
58112-36031 note Panel, Front Floor, LH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58112-36031 Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB50,59,BZB40,50 RHD (EUR,GEN) (LPG,TDEFI) —
58112-36031 note Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58112-36041 note Panel, Front Floor, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +6 —
58112-36041 note Panel, Front Floor, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
58112-36041 note Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58112-36061 Panel, Front Floor, LH
1999-07 → 2001-05 ended
BB50 STD WC IV —
58112-36061 Panel, Front Floor, LH
1999-07 → 2001-08 ended
BB42,50,RZB40 (19S,22S) GEN —
58112-36061 Panel, Front Floor, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58112-36061 Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB50 CC,GEN) LHD WC +5 —
58112-36081 Panel, Front Floor, LH
1999-07 → 2001-05 ended
BB50 LHD WOC 6F —
58112-36081 Panel, Front Floor, LH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +1 —
58112-36081 Panel, Front Floor, LH
1999-07 → 2004-08 ended
BB50 LHD WOC TDEFI;BB42,50,HZB50,RZB40 +4 —
58112-36120 Panel, Front Floor, LH
2002-11 → 2004-08 ended
BB50 ARL —
58112-36011 Panel, Front Floor, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
58112-36021 note Panel, Front Floor, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
58112-36031 note Panel, Front Floor, LH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58112-36031 Panel, Front Floor, LH
2008-03 → 2015-01 ended
XZB40 —
58112-36031 note Panel, Front Floor, LH
2004-08 → 2015-01 ended
XZB5# EX;BB42,BZB40,50,HZB50 RHD STD —
58112-36031 note Panel, Front Floor, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58112-36031 note Panel, Front Floor, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD (EUR,GEN) —
58112-36041 note Panel, Front Floor, LH
2004-08 → 2015-01 ended
BB42,HZB50,XZB50 RHD (20S,26S,30S) —
58112-36041 note Panel, Front Floor, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
58112-36061 Panel, Front Floor, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58112-36061 Panel, Front Floor, LH
2004-08 → 2006-08 ended
RZB40 WC GEN;RZB40 SRF +3 —
58112-36062 Panel, Front Floor, LH
2006-08 → 2007-08 ended
BB42,50,HZB50,RZB40,50,XZB50 LHD WC —
58112-36081 Panel, Front Floor, LH
2004-08 → 2006-08 ended
BB42,50,HZB50,RZB40 LHD WOC —
58112-36082 Panel, Front Floor, LH
2006-08 → 2007-08 ended
BB42,50,HZB50,RZB40,XZB50 LHD WOC —
58112-36120 Panel, Front Floor, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58112-36120 Panel, Front Floor, LH
2004-08 → 2015-01 ended
XZB50 WC ARL —
58112-36120 Panel, Front Floor, LH
2004-08 → 2006-08 ended
BB50 ARL —
58112-36140 Panel, Front Floor, LH
2007-08 → 2013-11 ended
XZB50 LHD WC IV —
58112-36140 Panel, Front Floor, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
58112-36140 Panel, Front Floor, LH
2007-08 → 2015-01 ended
BB42 LHD SRF WC;BB50,HZB50,TRB40,50,XZB50 +3 —
58112-36150 Panel, Front Floor, LH
2007-08 → 2013-11 ended
XZB50 WOC IV —
58112-36150 Panel, Front Floor, LH
2007-08 → 2015-01 ended
BB42,50,HZB50,TRB40 LHD WOC —
58112-36160 Panel, Front Floor, LH
2015-01 → —
BB42,HZB50 RHD —
58112-36170 note Panel, Front Floor, LH
2015-01 → —
BB42,HZB50 RHD —
58112-36180 note Panel, Front Floor, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD GEN —
58112-36190 note Panel, Front Floor, LH
2015-01 → —
BB42,HZB50,XZB50 RHD GEN —
58112-36220 Panel, Front Floor, LH
2015-01 → —
XZB50 ARL —
58112-36230 Panel, Front Floor, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD WC —
58112-36240 Panel, Front Floor, LH
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 LHD WOC —
58113A — Panel, Front Floor, Center
58113-36020 Panel, Front Floor, Center
1993-01 → 1997-05 ended
HZB50 SCO;BB4# ARL,SCO;HZB50 19S,22S —
58113-36020 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50 RHD GEN 5F —
58113-36030 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
58113-36030 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
58113-36050 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
58113-36060 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
58113-36060 Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
58113-36070 note Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
58113-36080 Panel, Front Floor, Center
1993-01 → 1997-05 ended
BB42,HZB50 RHD GEN 5F —
58113-36110 note Panel, Front Floor, Center
1994-02 → 1994-07 ended
BB42 SCO —
58113-36120 note Panel, Front Floor, Center
1994-07 → 1997-05 ended
BB42 SCO —
58113-36130 Panel, Front Floor, Center
1997-05 → 1998-07 ended
BB4#,50,HZB50 RHD CBU —
58113-36131 Panel, Front Floor, Center
1998-07 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58113-36140 Panel, Front Floor, Center
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58113-36150 note Panel, Front Floor, Center
1998-07 → 1999-07 ended
BB42,43 17S —
58113-36131 Panel, Front Floor, Center
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58113-36131 Panel, Front Floor, Center
2003-05 → 2004-08 ended
BB50,BZB50 17S —
58113-36131 Panel, Front Floor, Center
1999-07 → 2004-08 ended
BB42 EFI);HZB50 RHD RHD +13 —
58113-36131 Panel, Front Floor, Center
1999-07 → 2002-11 ended
HZB50 ARL —
58113-36131 Panel, Front Floor, Center
1999-07 → 2001-05 ended
BB50 RHD 6F —
58113-36140 Panel, Front Floor, Center
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58113-36140 Panel, Front Floor, Center
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58113-36140 Panel, Front Floor, Center
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58113-36140 Panel, Front Floor, Center
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58113-36150 note Panel, Front Floor, Center
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
58113-36150 note Panel, Front Floor, Center
1999-07 → 2001-08 ended
BB43 —
58113-36131 Panel, Front Floor, Center
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58113-36131 Panel, Front Floor, Center
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58113-36131 Panel, Front Floor, Center
2004-08 → 2013-11 ended
XZB50 RHD IV —
58113-36131 Panel, Front Floor, Center
2004-08 → 2008-03 ended
XZB50 STD GEN —
58113-36131 Panel, Front Floor, Center
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58113-36140 Panel, Front Floor, Center
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58113-36140 Panel, Front Floor, Center
2004-08 → 2013-11 ended
XZB50 LHD IV —
58113-36140 Panel, Front Floor, Center
2004-08 → 2011-08 ended
BB42 LHD HRF —
58113-36140 Panel, Front Floor, Center
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58113-36140 Panel, Front Floor, Center
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58113-36140 Panel, Front Floor, Center
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58113-36150 note Panel, Front Floor, Center
2004-08 → 2015-01 ended
BZB40,50,XZB40 STD —
58113-36150 note Panel, Front Floor, Center
2004-08 → 2008-03 ended
XZB50 STD GEN —
58113-36150 note Panel, Front Floor, Center
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
58113-36131 note Panel, Front Floor, Center
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58113-36140 Panel, Front Floor, Center
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58113-36150 Panel, Front Floor, Center
2015-01 → —
BZB40,50,XZB40 HRF —
58118B — Reinforcement, Front Floor Panel, NO.2
58118-36010 Reinforcement, Front Floor Panel, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58118-36010 Reinforcement, Front Floor Panel, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58118-36010 Reinforcement, Front Floor Panel, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58118-36010 Reinforcement, Front Floor Panel, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58118-36010 Reinforcement, Front Floor Panel, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2013-11 ended
XZB50 IV —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
58118-36010 Reinforcement, Front Floor Panel, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58119 — Plate, Front Floor Side, Front
58119-36010 note Plate, Front Floor Side, Front
1994-02 → 1994-07 ended
BB42 SCO —
58119-36020 Plate, Front Floor Side, Front
1994-07 → 1997-05 ended
BB42 SCO —
58119-36030 Plate, Front Floor Side, Front
1998-07 → 1998-08 ended
BB42,43 17S —
58119-36030 Plate, Front Floor Side, Front
2004-08 → 2015-01 ended
BB50,BZB40,50,XZB40,50 17S —
58119-36030 Plate, Front Floor Side, Front
2015-01 → 2016-12 ended
BZB40,50,XZB40 HRF —
58157A — Stay, Front Floor Housing, Rear RH
58157-36010 Stay, Front Floor Housing, Rear RH
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58157-36010 Stay, Front Floor Housing, Rear RH
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58157-36010 Stay, Front Floor Housing, Rear RH
1999-07 → 2001-05 ended
BB50 IV 6F —
58157-36010 Stay, Front Floor Housing, Rear RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
58157-36010 Stay, Front Floor Housing, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58157-36010 Stay, Front Floor Housing, Rear RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2013-11 ended
XZB50 IV —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58157-36010 Stay, Front Floor Housing, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58157-36010 Stay, Front Floor Housing, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58158A — Stay, Front Floor Housing, Rear LH
58158-36010 Stay, Front Floor Housing, Rear LH
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58158-36010 Stay, Front Floor Housing, Rear LH
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58158-36010 Stay, Front Floor Housing, Rear LH
1999-07 → 2001-05 ended
BB50 IV 6F —
58158-36010 Stay, Front Floor Housing, Rear LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
58158-36010 Stay, Front Floor Housing, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58158-36010 Stay, Front Floor Housing, Rear LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2013-11 ended
XZB50 IV —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58158-36010 Stay, Front Floor Housing, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58158-36010 Stay, Front Floor Housing, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58169A — Retainer, Rear Heater Mounting
58129-36010 note Retainer, Rear Heater Mounting
1994-01 → 1997-05 ended
BB42 SCO —
58129-36010 note Retainer, Rear Heater Mounting
1997-11 → 1999-07 ended
BB42,43 17S —
58169-90A00 Retainer, Rear Heater Mounting
1993-01 → 1994-01 ended
BB42 SCO —
58169-90A00 note Retainer, Rear Heater Mounting
1997-11 → 1999-07 ended
BB42,43 17S —
58169-90A00 note Retainer, Rear Heater Mounting
1994-01 → 1997-05 ended
BB42 SCO —
58129-36010 note Retainer, Rear Heater Mounting
1999-07 → 2001-08 ended
BB43 —
58129-36010 note Retainer, Rear Heater Mounting
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
58169-90A00 note Retainer, Rear Heater Mounting
1999-07 → 2001-08 ended
BB43 —
58169-90A00 note Retainer, Rear Heater Mounting
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
58129-36010 note Retainer, Rear Heater Mounting
2004-08 → 2006-04 ended
BZB40,50 STD —
58129-36010 note Retainer, Rear Heater Mounting
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
58169-90A00 note Retainer, Rear Heater Mounting
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
58169-90A00 note Retainer, Rear Heater Mounting
2004-08 → 2008-03 ended
XZB50 STD GEN —
58169-90A00 note Retainer, Rear Heater Mounting
2004-08 → 2015-01 ended
BZB40,50,XZB40 STD —
58169-90A00 note Retainer, Rear Heater Mounting
2015-01 → —
BZB40,XZB40 17S —
58171 — Reinforcement, Parking Brake Base
58107-36010 Reinforcement, Parking Brake Base
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58107-36020 Reinforcement, Parking Brake Base
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58107-36010 Reinforcement, Parking Brake Base
1999-07 → 2001-05 ended
BB50 RHD 6F —
58107-36010 Reinforcement, Parking Brake Base
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58107-36010 Reinforcement, Parking Brake Base
1999-07 → 2002-11 ended
HZB50 ARL —
58107-36010 Reinforcement, Parking Brake Base
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58107-36020 Reinforcement, Parking Brake Base
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58107-36020 Reinforcement, Parking Brake Base
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58107-36020 Reinforcement, Parking Brake Base
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58107-36020 Reinforcement, Parking Brake Base
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58107-36010 Reinforcement, Parking Brake Base
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58107-36010 Reinforcement, Parking Brake Base
2004-08 → 2007-12 ended
XZB5# RHD;BB42,BZB40,50,HZB50 RHD STD —
58107-36011 Reinforcement, Parking Brake Base
2007-12 → 2008-03 ended
XZB50 STD GEN —
58107-36011 Reinforcement, Parking Brake Base
2007-12 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40,59 +1 —
58107-36011 Reinforcement, Parking Brake Base
2007-12 → 2013-11 ended
XZB50 RHD IV —
58107-36011 Reinforcement, Parking Brake Base
2007-12 → 2009-08 ended
XZB50 WOC CBU —
58107-36020 Reinforcement, Parking Brake Base
2004-08 → 2007-12 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD 5F —
58107-36020 Reinforcement, Parking Brake Base
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58107-36020 Reinforcement, Parking Brake Base
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58107-36020 Reinforcement, Parking Brake Base
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58107-36021 Reinforcement, Parking Brake Base
2007-12 → 2011-08 ended
BB42 LHD HRF —
58107-36021 Reinforcement, Parking Brake Base
2007-12 → 2013-11 ended
XZB50 LHD IV —
58107-36021 Reinforcement, Parking Brake Base
2007-12 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
58107-36011 Reinforcement, Parking Brake Base
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58107-36021 Reinforcement, Parking Brake Base
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58177A — Extension, Front Floor Panel, RH
58177-36010 Extension, Front Floor Panel, RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58177-36010 Extension, Front Floor Panel, RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58177-36010 Extension, Front Floor Panel, RH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58177-36010 Extension, Front Floor Panel, RH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58177-36010 Extension, Front Floor Panel, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2013-11 ended
XZB50 IV —
58177-36010 Extension, Front Floor Panel, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58177-36010 Extension, Front Floor Panel, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58178A — Extension, Front Floor Panel, LH
58178-36010 Extension, Front Floor Panel, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58178-36010 Extension, Front Floor Panel, LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58178-36010 Extension, Front Floor Panel, LH
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58178-36010 Extension, Front Floor Panel, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58178-36010 Extension, Front Floor Panel, LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2013-11 ended
XZB50 IV —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58178-36010 Extension, Front Floor Panel, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58178-36010 Extension, Front Floor Panel, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58179B — Bracket, Accelerator Cable Clamp
58179-36010 Bracket, Accelerator Cable Clamp
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58179-36010 Bracket, Accelerator Cable Clamp
1999-07 → 2001-05 ended
BB50 RHD 6F —
58179-36010 Bracket, Accelerator Cable Clamp
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58179-36010 Bracket, Accelerator Cable Clamp
1999-07 → 2002-11 ended
HZB50 ARL —
58179-36010 Bracket, Accelerator Cable Clamp
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58179-36010 Bracket, Accelerator Cable Clamp
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58179-36010 Bracket, Accelerator Cable Clamp
2004-08 → 2008-03 ended
XZB50 STD GEN —
58179-36010 Bracket, Accelerator Cable Clamp
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58179-36010 Bracket, Accelerator Cable Clamp
2004-08 → 2013-11 ended
XZB50 RHD IV —
58179-36010 Bracket, Accelerator Cable Clamp
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58179-36010 Bracket, Accelerator Cable Clamp
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58181B — Bracket, Front Seat Inside Mounting, Front RH
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58181-36010 Bracket, Front Seat Inside Mounting, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58183E — Bracket, Front Seat Mounting, Outside
58184-36010 Bracket, Front Seat Mounting, Outside
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2013-11 ended
XZB50 IV —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2011-08 ended
BB42 LHD HRF —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2008-03 ended
XZB50 STD GEN —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58184-36030 Bracket, Front Seat Mounting, Outside
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58184D — Bracket, Front Seat Mounting, Outside
58184-36010 Bracket, Front Seat Mounting, Outside
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58184-36010 Bracket, Front Seat Mounting, Outside
1999-07 → 2004-08 ended
BB42 RF FI;BB58,59,BZB40,50,RZB50 RZB40 +32 —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2013-11 ended
XZB50 IV —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2011-08 ended
BB42 LHD HRF —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58184-36010 Bracket, Front Seat Mounting, Outside
2004-08 → 2008-03 ended
XZB50 STD GEN —
58184-36030 Bracket, Front Seat Mounting, Outside
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58188A — Bracket, Accelerator Pedal Stopper
58188-36010 Bracket, Accelerator Pedal Stopper
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58188-36020 Bracket, Accelerator Pedal Stopper
1993-01 → 1997-12 ended
BB50 WOC GEN;BB42,5#,HZB50,RZB40,50 LHD +1 —
58188-36020 Bracket, Accelerator Pedal Stopper
1997-12 → 1999-07 ended
BB50 WOC GEN;BB42,50,HZB50,RZB40,50 LHD +1 —
58188-36010 Bracket, Accelerator Pedal Stopper
1999-07 → 2001-05 ended
BB50 RHD 6F —
58188-36010 Bracket, Accelerator Pedal Stopper
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58188-36010 Bracket, Accelerator Pedal Stopper
1999-07 → 2002-11 ended
HZB50 ARL —
58188-36010 Bracket, Accelerator Pedal Stopper
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58188-36020 Bracket, Accelerator Pedal Stopper
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58188-36020 Bracket, Accelerator Pedal Stopper
1999-07 → 2004-08 ended
BB42 BB50,HZB50,RZB50 WC LHD +12 —
58188-36020 Bracket, Accelerator Pedal Stopper
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58188-36010 Bracket, Accelerator Pedal Stopper
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58188-36010 Bracket, Accelerator Pedal Stopper
2004-08 → 2013-11 ended
XZB50 RHD IV —
58188-36010 Bracket, Accelerator Pedal Stopper
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58188-36010 Bracket, Accelerator Pedal Stopper
2004-08 → 2008-03 ended
XZB50 STD GEN —
58188-36010 Bracket, Accelerator Pedal Stopper
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58188-36020 Bracket, Accelerator Pedal Stopper
2004-08 → 2006-11 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 GCC —
58188-36020 Bracket, Accelerator Pedal Stopper
2004-08 → 2007-08 ended
RZB40,50 GEN —
58188-36020 Bracket, Accelerator Pedal Stopper
2004-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +3 —
58188-36020 Bracket, Accelerator Pedal Stopper
2004-08 → 2011-08 ended
BB42 LHD HRF —
58188-36020 Bracket, Accelerator Pedal Stopper
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58188-36010 Bracket, Accelerator Pedal Stopper
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58188-36020 Bracket, Accelerator Pedal Stopper
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
58193 — Bracket, Instrument Panel Brace Mounting
58193-36010 Bracket, Instrument Panel Brace Mounting
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58193-36010 Bracket, Instrument Panel Brace Mounting
1997-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58193-36010 Bracket, Instrument Panel Brace Mounting
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58193-36010 Bracket, Instrument Panel Brace Mounting
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58193-36010 Bracket, Instrument Panel Brace Mounting
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58193-36010 Bracket, Instrument Panel Brace Mounting
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2008-03 ended
XZB50 STD GEN —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58193-36010 Bracket, Instrument Panel Brace Mounting
2004-08 → 2011-05 ended
XZB5# L,EFI,LPG,TD) IV;XZB50 (20S,21S) +3 —
58193-36011 Bracket, Instrument Panel Brace Mounting
2011-06 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5# +1 —
58193-36011 Bracket, Instrument Panel Brace Mounting
2011-06 → 2013-11 ended
XZB50 IV —
58193-36011 Bracket, Instrument Panel Brace Mounting
2011-06 → 2011-08 ended
BB42 LHD HRF —
58193-36011 Bracket, Instrument Panel Brace Mounting
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58197C — Plate, Vacuum Tube Bracket, RH
58197-36010 Plate, Vacuum Tube Bracket, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58197-36010 Plate, Vacuum Tube Bracket, RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58197-36010 Plate, Vacuum Tube Bracket, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58197-36010 Plate, Vacuum Tube Bracket, RH
1999-07 → 2002-11 ended
HZB50 ARL —
58197-36010 Plate, Vacuum Tube Bracket, RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58197-36010 Plate, Vacuum Tube Bracket, RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58197-36010 Plate, Vacuum Tube Bracket, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58197-36010 Plate, Vacuum Tube Bracket, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58197-36010 Plate, Vacuum Tube Bracket, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58197-36010 Plate, Vacuum Tube Bracket, RH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58197-36010 Plate, Vacuum Tube Bracket, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58209C — Cover Sub-assy, Heater Air Intake
58209-36010 Cover Sub-assy, Heater Air Intake
1993-01 → 1997-05 ended
BB42 RHD;BB42 LHD SRF;BB42 +3 —
58209-36010 note Cover Sub-assy, Heater Air Intake
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
58209-36010 Cover Sub-assy, Heater Air Intake
1997-05 → 1999-07 ended
BB5# GEN;BB4#,HZB50 RHD (17S,19S,22S) —
58209-36010 note Cover Sub-assy, Heater Air Intake
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 (GCC,GEN) 5F —
58209-36010 Cover Sub-assy, Heater Air Intake
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58209-36010 note Cover Sub-assy, Heater Air Intake
1999-07 → 2004-08 ended
BB42 LHD HRF 26S +1 —
58209-36010 Cover Sub-assy, Heater Air Intake
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58209-36010 Cover Sub-assy, Heater Air Intake
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58209-36010 Cover Sub-assy, Heater Air Intake
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2013-11 ended
XZB50 IV —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2011-08 ended
BB42 LHD HRF —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2008-03 ended
XZB50 STD GEN —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58209-36010 Cover Sub-assy, Heater Air Intake
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58209-36010 Cover Sub-assy, Heater Air Intake
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58217B — Plate, Front Floor
58217-36010 Plate, Front Floor
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58217-36010 Plate, Front Floor
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58217-36010 Plate, Front Floor
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58217-36010 Plate, Front Floor
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58217-36010 Plate, Front Floor
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58217-36010 Plate, Front Floor
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58217-36010 Plate, Front Floor
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58217-36010 Plate, Front Floor
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58217-36010 Plate, Front Floor
2004-08 → 2008-03 ended
XZB50 STD GEN —
58217-36010 Plate, Front Floor
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58217-36010 Plate, Front Floor
2004-08 → 2011-08 ended
BB42 LHD HRF —
58217-36010 Plate, Front Floor
2004-08 → 2013-11 ended
XZB50 IV —
58217-36010 Plate, Front Floor
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58217-36010 Plate, Front Floor
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58227B — Plate, Front Floor Panel Side, RH
58227-36010 note Plate, Front Floor Panel Side, RH
1994-02 → 1994-07 ended
BB42 SCO —
58227-36020 Plate, Front Floor Panel Side, RH
1994-07 → 1997-05 ended
BB42 SCO —
58227-36020 Plate, Front Floor Panel Side, RH
1998-07 → 1999-07 ended
BB42,43 17S —
58227-36020 Plate, Front Floor Panel Side, RH
1999-07 → 2001-08 ended
BB43 —
58227-36020 Plate, Front Floor Panel Side, RH
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
58227-36020 Plate, Front Floor Panel Side, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
58227-36020 Plate, Front Floor Panel Side, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58227-36020 Plate, Front Floor Panel Side, RH
2004-08 → 2015-01 ended
BZB40,50,XZB40 STD —
58227-36020 Plate, Front Floor Panel Side, RH
2015-01 → —
BZB40,50,XZB40 HRF —
58251A — Reinforcement, Front Seat, Front RH
58251-36010 Reinforcement, Front Seat, Front RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58251-36010 Reinforcement, Front Seat, Front RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58251-36010 Reinforcement, Front Seat, Front RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58251-36010 Reinforcement, Front Seat, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
58251-36010 Reinforcement, Front Seat, Front RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58251-36010 Reinforcement, Front Seat, Front RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58251-36010 Reinforcement, Front Seat, Front RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58251-36010 Reinforcement, Front Seat, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58251-36010 Reinforcement, Front Seat, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58251-36010 Reinforcement, Front Seat, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58251-36010 Reinforcement, Front Seat, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58269B — Cover, Parking Brake Cable, RH
58269-36010 Cover, Parking Brake Cable, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
58269-36010 Cover, Parking Brake Cable, RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58269-36010 Cover, Parking Brake Cable, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58269-36010 Cover, Parking Brake Cable, RH
1999-07 → 2002-11 ended
HZB50 ARL —
58269-36010 Cover, Parking Brake Cable, RH
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58269-36010 Cover, Parking Brake Cable, RH
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58269-36010 Cover, Parking Brake Cable, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58269-36010 Cover, Parking Brake Cable, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58269-36010 Cover, Parking Brake Cable, RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58269-36010 Cover, Parking Brake Cable, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58269-36010 Cover, Parking Brake Cable, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58286 — Boot, Shift & Select Lever, NO.1
58280-36010 Boot, Shift & Select Lever, NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 5F —
58280-36010 Boot, Shift & Select Lever, NO.1
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58280-36010 Boot, Shift & Select Lever, NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58280-36010 Boot, Shift & Select Lever, NO.1
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58280-36010 Boot, Shift & Select Lever, NO.1
1999-07 → 2001-08 ended
BB50 .RHD WOC HRF +11 —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2015-01 ended
BB42 50,XZB40 LHD STD +6 —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2013-11 ended
XZB50 IV —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58280-36010 Boot, Shift & Select Lever, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58280-36010 Boot, Shift & Select Lever, NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 5F —
58316J — Plate, Footrest, Rear
58316-36010-E0 note Plate, Footrest, Rear
1993-01 → 1999-07 ended
BB40,HZB50 ARL —
58316-36010-B0 note Plate, Footrest, Rear
2001-08 → 2002-11 ended
HZB50 ARL —
58316-36010-B0 note Plate, Footrest, Rear
2002-11 → 2004-08 ended
BB50 ARL —
58316-36010-E0 note Plate, Footrest, Rear
1999-07 → 2001-08 ended
HZB50 ARL —
58316-36010-B0 note Plate, Footrest, Rear
2004-08 → 2015-01 ended
BB50,XZB50 ARL —
58316-36010-B0 note Plate, Footrest, Rear
2015-01 → 2016-12 ended
XZB50 ARL —
58332E — Board, Front Footrest, NO.2
58332-36020 Board, Front Footrest, NO.2
1993-01 → 1999-07 ended
BB40,HZB50 ARL —
58332-36020 Board, Front Footrest, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
58334D — Mat, Front Footrest, NO.2
58334-36010-E0 note Mat, Front Footrest, NO.2
1993-01 → 1999-07 ended
BB40,HZB50 ARL —
58334-36010-B0 note Mat, Front Footrest, NO.2
2001-08 → 2002-11 ended
HZB50 ARL —
58334-36010-E0 note Mat, Front Footrest, NO.2
1999-07 → 2001-08 ended
HZB50 ARL —
58343-36010-B0 note Mat, Front Footrest, NO.2
2002-11 → 2004-08 ended
BB50 ARL —
58343-36010-B0 note Mat, Front Footrest, NO.2
2004-08 → 2015-01 ended
BB50,XZB50 ARL —
58343-36010-B0 note Mat, Front Footrest, NO.2
2015-01 → 2016-12 ended
XZB50 ARL —
58341E — Leg, RH Footrest, LH
58341-36040 Leg, RH Footrest, LH
1993-01 → 1999-07 ended
BB40,HZB50 ARL —
58341-36040 Leg, RH Footrest, LH
1999-07 → 2002-11 ended
HZB50 ARL —
58410 — Cover, Engine Service Hole
58410-36011-E1 note Cover, Engine Service Hole
1995-03 → 1996-03 ended
BB4#,HZB50,RZB40,50 STD (ARL,GCC,GEN) —
58410-36021-E1 note Cover, Engine Service Hole
1995-03 → 1996-03 ended
BB42 SCO;HZB50 DX —
58410-36030 Cover, Engine Service Hole
1993-01 → 1993-06 ended
BB4#,HZB50 DSL —
58410-36030 Cover, Engine Service Hole
1993-06 → 1993-09 ended
BB4#,HZB50 (19S,20S,22S,26S,30S) (EX,STD) —
58410-36030 Cover, Engine Service Hole
1993-09 → 1995-03 ended
HZB50,RZB40 EX —
58410-36031 Cover, Engine Service Hole
1993-06 → 1993-09 ended
HZB50 DX —
58410-36031 Cover, Engine Service Hole
1993-09 → 1995-03 ended
BB4#,HZB50,RZB40,50 (DX,STD) (ARL,GCC,GEN) —
58410-36031 Cover, Engine Service Hole
1995-03 → 1995-05 ended
HZB50 EX ARL —
58410-36031-E0 note Cover, Engine Service Hole
1996-03 → 1996-06 ended
BB4#,HZB50,RZB40,50 CBU —
58410-36031-E0 note Cover, Engine Service Hole
1996-06 → 1997-05 ended
BB4#,HZB50,RZB40,50 DX,STD —
58410-36031-E0 note Cover, Engine Service Hole
1996-06 → 1997-05 ended
HZB50,RZB40 EX —
58410-36070 Cover, Engine Service Hole
1997-05 → 1999-07 ended
HZB50 DX,EX;BB42,RZB40 17S —
58410-36080 Cover, Engine Service Hole
1997-11 → 1999-07 ended
BB43,5# GEN —
58410-36080 Cover, Engine Service Hole
1997-05 → 1997-11 ended
BB5# CBU —
58410-36100 Cover, Engine Service Hole
1997-05 → 1999-07 ended
BB40,42,HZB50,RZB40,50 STD (ARL,GCC,GEN) —
58410-36070 Cover, Engine Service Hole
1999-07 → 2001-08 ended
HZB50 DX,EX —
58410-36070-B0 note Cover, Engine Service Hole
2001-08 → 2002-11 ended
HZB50 DX —
58410-36070-B0 note Cover, Engine Service Hole
2001-08 → 2004-08 ended
HZB50 EX —
58410-36081 Cover, Engine Service Hole
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58410-36081 Cover, Engine Service Hole
1999-07 → 2001-08 ended
BB50 EX;BB50 WOC 5F;BB43,5#,RZB40,50 +1 —
58410-36081 Cover, Engine Service Hole
1999-07 → 2004-08 ended
BB50 IV TDEFI —
58410-36081-B0 note Cover, Engine Service Hole
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
58410-36081-B0 note Cover, Engine Service Hole
2001-08 → 2004-08 ended
BB5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
58410-36100 Cover, Engine Service Hole
1999-07 → 2001-08 ended
BB42,HZB50 STD —
58410-36100-B0 note Cover, Engine Service Hole
2001-08 → 2002-11 ended
HZB50 STD ARL —
58410-36100-B0 note Cover, Engine Service Hole
2001-08 → 2004-08 ended
BB42,HZB50 STD (GCC,GEN) —
58410-36081 Cover, Engine Service Hole
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI;RZB40 HRF +1 —
58410-36081-B4 note Cover, Engine Service Hole
2004-08 → 2015-01 ended
RZB40 STD SRF (DCR,EFI,LPG,TD) +2 —
58410-36100-B1 note Cover, Engine Service Hole
2004-08 → 2015-01 ended
BB42,HZB50 —
58410-36081-B4 note Cover, Engine Service Hole
2015-01 → 2016-12 ended
BZB40,50,TRB40,50,XZB40,5# —
58410-36100-B1 note Cover, Engine Service Hole
2015-01 → 2016-12 ended
BB42,HZB50 —
58420 — Cover Assy, Engine Service Hole, NO.2
58420-36010 Cover Assy, Engine Service Hole, NO.2
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU 5F —
58420-36030 Cover Assy, Engine Service Hole, NO.2
1993-01 → 1997-05 ended
BB4#,HZB50 RHD DSL —
58420-36050 Cover Assy, Engine Service Hole, NO.2
1993-01 → 1997-05 ended
HZB50 30S 4FC —
58420-36080 Cover Assy, Engine Service Hole, NO.2
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD —
58420-36090 Cover Assy, Engine Service Hole, NO.2
1997-05 → 1997-11 ended
BB5# WC CBU —
58420-36090 Cover Assy, Engine Service Hole, NO.2
1997-11 → 1999-01 ended
BB5# STD GEN —
58420-36091 Cover Assy, Engine Service Hole, NO.2
1999-01 → 1999-07 ended
BB5# STD GEN —
58420-36110 Cover Assy, Engine Service Hole, NO.2
1997-05 → 1999-07 ended
BB43,50 RHD CBU —
58420-36120 Cover Assy, Engine Service Hole, NO.2
1997-05 → 1999-01 ended
BB42,HZB50,RZB40,50 LHD —
58420-36121 Cover Assy, Engine Service Hole, NO.2
1999-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD —
58420-36080 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58420-36080 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +6 —
58420-36080 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2002-11 ended
HZB50 ARL —
58420-36091 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58420-36091 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2004-08 ended
RZB40 3S,30S) WOC (GCC,GEN) +7 —
58420-36091 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-08 ended
BB50 WOC 5F;RZB40 WOC +3 —
58420-36091 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58420-36110 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-08 ended
BB43,50 RHD 5F —
58420-36110 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-05 ended
BB50 RHD 6F —
58420-36110 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2004-08 ended
BB50,59,BZB40,50 RHD (LPG,TDEFI) —
58420-36121 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2004-08 ended
HZB50 LHD;BB42 WC GCC;BB42 +3 —
58420-36121 Cover Assy, Engine Service Hole, NO.2
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC —
58420-36080 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2015-01 ended
BB50,TRB40,50,XZB50 LHD CBU 5F —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2013-11 ended
XZB50 LHD IV —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2013-11 ended
XZB50 RHD IV —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2015-01 ended
XZB59;BZB40,50,XZB40 STD;XZB50 RHD (20S,21S) +1 —
58420-36121 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
58420-36121 Cover Assy, Engine Service Hole, NO.2
2004-08 → 2015-01 ended
HZB50 LHD;BB42 LHD SRF —
58420-36080 Cover Assy, Engine Service Hole, NO.2
2015-01 → —
BB42,HZB50 RHD —
58420-36091 Cover Assy, Engine Service Hole, NO.2
2015-01 → —
TRB40,50,XZB40,50 LHD —
58420-36110 Cover Assy, Engine Service Hole, NO.2
2015-01 → —
BZB40,50,XZB40,5# RHD —
58420-36121 Cover Assy, Engine Service Hole, NO.2
2015-01 → —
BB42,HZB50 LHD —
58424D — Packing, Engine Cover
58424-36020 Packing, Engine Cover
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
58431D — Silencer, Engine Room Side, Front RH
58431-36030 note Silencer, Engine Room Side, Front RH
1994-02 → 1994-07 ended
BB42 SCO —
58431-36030 Silencer, Engine Room Side, Front RH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD DSL —
58431-36040 Silencer, Engine Room Side, Front RH
1993-01 → 1997-05 ended
BB42,HZB50 LHD DSL —
58431-36091 note Silencer, Engine Room Side, Front RH
1998-08 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) —
58431-36100 Silencer, Engine Room Side, Front RH
1997-05 → 1998-08 ended
BB4#,50,HZB50 RHD CBU —
58431-36101 Silencer, Engine Room Side, Front RH
1998-08 → 1999-07 ended
BB50,HZB50 RHD EX —
58431-36110 Silencer, Engine Room Side, Front RH
1998-06 → 1999-07 ended
BB42,5#,HZB50 LHD (GCC,GEN) —
58431-36110 Silencer, Engine Room Side, Front RH
1997-05 → 1998-06 ended
BB42,5#,HZB50 LHD CBU —
58431-36140 Silencer, Engine Room Side, Front RH
1998-08 → 1999-07 ended
BB43 —
58431-36091 Silencer, Engine Room Side, Front RH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58431-36091 note Silencer, Engine Room Side, Front RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
58431-36091 note Silencer, Engine Room Side, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
58431-36091 Silencer, Engine Room Side, Front RH
1999-07 → 2004-08 ended
BZB40,50;BB50 RHD (DX,STD) TDEFI —
58431-36091 note Silencer, Engine Room Side, Front RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58431-36101 Silencer, Engine Room Side, Front RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
58431-36101 Silencer, Engine Room Side, Front RH
1999-07 → 2004-05 ended
BB50,59 EX TDEFI —
58431-36102 Silencer, Engine Room Side, Front RH
2004-05 → 2004-08 ended
BB50,59 EX —
58431-36110 Silencer, Engine Room Side, Front RH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42 WOC +2 —
58431-36110 Silencer, Engine Room Side, Front RH
1999-07 → 2004-08 ended
BB42 S) WC (GCC,GEN) +8 —
58431-36110 Silencer, Engine Room Side, Front RH
1999-07 → 2002-11 ended
BB50 CHI —
58431-36110 Silencer, Engine Room Side, Front RH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58431-36091 Silencer, Engine Room Side, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB50 RHD (DX,STD) —
58431-36091 Silencer, Engine Room Side, Front RH
2004-08 → 2015-01 ended
BB42,BZB40,50,HZB50 RHD STD —
58431-36102 Silencer, Engine Room Side, Front RH
2004-08 → 2006-08 ended
BB50,59 EX —
58431-36102 note Silencer, Engine Room Side, Front RH
2006-09 → 2008-03 ended
XZB50 STD GEN —
58431-36102 note Silencer, Engine Room Side, Front RH
2006-09 → 2015-01 ended
XZB40 —
58431-36102 Silencer, Engine Room Side, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58431-36102 Silencer, Engine Room Side, Front RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
58431-36102 Silencer, Engine Room Side, Front RH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58431-36110 Silencer, Engine Room Side, Front RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50 LHD +1 —
58431-36110 Silencer, Engine Room Side, Front RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58431-36110 Silencer, Engine Room Side, Front RH
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58431-36160 Silencer, Engine Room Side, Front RH
2006-08 → 2015-01 ended
XZB50 TAIW —
58431-36160 Silencer, Engine Room Side, Front RH
2006-08 → 2013-11 ended
XZB50 LHD IV —
58431-36170 Silencer, Engine Room Side, Front RH
2006-09 → 2008-03 ended
XZB50 STD GEN —
58431-36170 Silencer, Engine Room Side, Front RH
2006-09 → 2015-01 ended
XZB40 —
58431-36091 Silencer, Engine Room Side, Front RH
2015-01 → —
BB42,BZB40,50,HZB50 RHD —
58431-36102 note Silencer, Engine Room Side, Front RH
2015-01 → —
XZB40,5# RHD —
58431-36110 Silencer, Engine Room Side, Front RH
2015-01 → —
BB42,HZB50 LHD —
58431-36160 Silencer, Engine Room Side, Front RH
2015-01 → —
XZB40,50 LHD —
58431-36170 Silencer, Engine Room Side, Front RH
2015-01 → —
XZB40 17S —
58432B — Silencer, Engine Room Side, Rear RH
58432-36010 Silencer, Engine Room Side, Rear RH
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58432-36010 Silencer, Engine Room Side, Rear RH
1997-05 → 1998-06 ended
HZB50 LHD EX;BB4#,5#,HZB50,RZB40,50 17S,19S,22S,26S,30S —
58432-36010 Silencer, Engine Room Side, Rear RH
1998-06 → 1999-07 ended
BB50 STD GEN;HZB50 LHD +2 —
58432-36050 Silencer, Engine Room Side, Rear RH
1997-05 → 1999-07 ended
BB50,HZB50 RHD EX —
58432-36010 Silencer, Engine Room Side, Rear RH
1999-07 → 2004-08 ended
BB42 LHD 0 RL,GCC,GEN) +24 —
58432-36010 Silencer, Engine Room Side, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58432-36010 Silencer, Engine Room Side, Rear RH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 WOC (17S,19S,22S) +10 —
58432-36010 Silencer, Engine Room Side, Rear RH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58432-36050 Silencer, Engine Room Side, Rear RH
1999-07 → 2004-08 ended
BB50,59 EX TDEFI —
58432-36050 Silencer, Engine Room Side, Rear RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
58432-36010 Silencer, Engine Room Side, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58432-36010 Silencer, Engine Room Side, Rear RH
2004-08 → 2006-08 ended
RZB40 SRF GCC;BZB50,RZB40 (21S,26S) +2 —
58432-36010 Silencer, Engine Room Side, Rear RH
2004-08 → 2007-08 ended
BZB40,50 STD —
58432-36050 Silencer, Engine Room Side, Rear RH
2004-08 → 2006-08 ended
BB50,59 EX —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2009-08 ended
XZB50 WOC CBU —
58432-36080 Silencer, Engine Room Side, Rear RH
2007-08 → 2015-01 ended
BZB40,50 —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;XZB50 +2 —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2013-11 ended
XZB50 IV —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2011-08 ended
BB42 LHD HRF —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2008-03 ended
XZB50 STD GEN —
58432-36080 Silencer, Engine Room Side, Rear RH
2006-08 → 2007-08 ended
RZB40,50 —
58432-36080 Silencer, Engine Room Side, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58433A — Silencer, Engine Room Side End
58433-36020 Silencer, Engine Room Side End
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58433-36070 Silencer, Engine Room Side End
1997-05 → 1998-06 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58433-36070 Silencer, Engine Room Side End
1998-06 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58433-36070 Silencer, Engine Room Side End
1999-07 → 2004-08 ended
BB42 0S ,50 ) +29 —
58433-36070 Silencer, Engine Room Side End
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58433-36070 Silencer, Engine Room Side End
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
58433-36070 Silencer, Engine Room Side End
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB4#,RZB40 +15 —
58433-36080 Silencer, Engine Room Side End
1999-07 → 2001-08 ended
BB50 TDEFI;BB5# CBU 6F —
58433-36080 Silencer, Engine Room Side End
1999-07 → 2001-05 ended
BB50 IV 6F —
58433-36110 Silencer, Engine Room Side End
2001-08 → 2004-08 ended
BB50,58 6F —
58433-36120 Silencer, Engine Room Side End
2001-08 → 2004-08 ended
BZB40,50 —
58433-36062 Silencer, Engine Room Side End
2005-07 → 2006-07 ended
RZB40 SRF GCC;BB42,59,HZB50,RZB50;BB50,RZB40 (20S,26S,30S) +1 —
58433-36062 Silencer, Engine Room Side End
2006-08 → 2007-01 ended
BB42,50,HZB50,RZB40,50 —
58433-36062 Silencer, Engine Room Side End
2005-07 → 2006-08 ended
BB50 STD 5F TDEFI —
58433-36062 Silencer, Engine Room Side End
2005-07 → 2006-02 ended
RZB40 HRF GCC —
58433-36063 Silencer, Engine Room Side End
2007-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
58433-36063 Silencer, Engine Room Side End
2007-02 → 2007-08 ended
RZB40,50 —
58433-36063 Silencer, Engine Room Side End
2007-02 → 2011-08 ended
BB42 LHD HRF —
58433-36070 Silencer, Engine Room Side End
2004-08 → 2005-06 ended
BB42,50,59,HZB50,RZB40,50 5F —
58433-36110 Silencer, Engine Room Side End
2004-08 → 2006-08 ended
BB50,58 6F —
58433-36111 Silencer, Engine Room Side End
2006-08 → 2007-01 ended
XZB5# —
58433-36112 Silencer, Engine Room Side End
2007-02 → 2015-01 ended
XZB40,59;XZB50 (20S,21S) WC —
58433-36112 Silencer, Engine Room Side End
2007-02 → 2013-11 ended
XZB50 IV —
58433-36112 Silencer, Engine Room Side End
2007-02 → 2008-03 ended
XZB50 STD GEN —
58433-36112 Silencer, Engine Room Side End
2007-02 → 2009-08 ended
XZB50 WOC CBU —
58433-36120 Silencer, Engine Room Side End
2004-08 → 2006-07 ended
BZB40,50 —
58433-36121 Silencer, Engine Room Side End
2006-08 → 2007-01 ended
BZB40,50 —
58433-36122 Silencer, Engine Room Side End
2007-02 → 2015-01 ended
BZB40,50 —
58433-36063 Silencer, Engine Room Side End
2015-01 → —
BB42,HZB50,TRB40,50 —
58433-36112 Silencer, Engine Room Side End
2015-01 → —
XZB40,5# —
58433-36122 Silencer, Engine Room Side End
2015-01 → —
BZB40,50 —
58441D — Silencer, Enging Room Side, Front LH
58441-36030 Silencer, Enging Room Side, Front LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD DSL —
58441-36040 Silencer, Enging Room Side, Front LH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
58441-36090 Silencer, Enging Room Side, Front LH
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD (DX,STD) (ARL,GEN) —
58441-36090 note Silencer, Enging Room Side, Front LH
1997-05 → 1999-07 ended
BB42,43 17S —
58441-36100 Silencer, Enging Room Side, Front LH
1997-05 → 1999-07 ended
BB50,HZB50 RHD EX —
58441-36110 Silencer, Enging Room Side, Front LH
1997-05 → 1998-06 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
58441-36110 Silencer, Enging Room Side, Front LH
1998-06 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58441-36130 Silencer, Enging Room Side, Front LH
1997-05 → 1998-08 ended
BB42,43 17S —
58441-36090 Silencer, Enging Room Side, Front LH
1999-07 → 2001-05 ended
BB50 RHD 6F —
58441-36090 Silencer, Enging Room Side, Front LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB42,HZB50 +4 —
58441-36090 note Silencer, Enging Room Side, Front LH
1999-07 → 2001-08 ended
BB43 —
58441-36090 Silencer, Enging Room Side, Front LH
1999-07 → 2002-11 ended
HZB50 ARL —
58441-36090 Silencer, Enging Room Side, Front LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 RHD +8 —
58441-36100 Silencer, Enging Room Side, Front LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
58441-36100 Silencer, Enging Room Side, Front LH
1999-07 → 2004-08 ended
BB50,59 EX TDEFI —
58441-36110 Silencer, Enging Room Side, Front LH
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58441-36110 Silencer, Enging Room Side, Front LH
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58441-36110 Silencer, Enging Room Side, Front LH
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58441-36110 Silencer, Enging Room Side, Front LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58441-36140 Silencer, Enging Room Side, Front LH
2001-08 → 2004-08 ended
BZB40,50 —
58441-36090 Silencer, Enging Room Side, Front LH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) —
58441-36090 Silencer, Enging Room Side, Front LH
2004-08 → 2015-01 ended
BB42,HZB50,XZB40,59 RHD;XZB50 RHD (20S,21S) +1 —
58441-36090 Silencer, Enging Room Side, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58441-36090 Silencer, Enging Room Side, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58441-36090 Silencer, Enging Room Side, Front LH
2004-08 → 2013-11 ended
XZB50 RHD IV —
58441-36100 Silencer, Enging Room Side, Front LH
2004-08 → 2006-08 ended
BB50,59 EX —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2013-11 ended
XZB50 LHD IV —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58441-36110 Silencer, Enging Room Side, Front LH
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58441-36140 Silencer, Enging Room Side, Front LH
2004-08 → 2006-08 ended
BZB50 EX —
58441-36140 Silencer, Enging Room Side, Front LH
2004-08 → 2015-01 ended
BZB40,50 STD —
58441-36090 Silencer, Enging Room Side, Front LH
2015-01 → —
BB42,HZB50,XZB40,5# RHD —
58441-36110 Silencer, Enging Room Side, Front LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58441-36140 Silencer, Enging Room Side, Front LH
2015-01 → —
BZB40,50 —
58442B — Silencer, Enging Room Side, Rear LH
58442-36010 Silencer, Enging Room Side, Rear LH
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58442-36060 Silencer, Enging Room Side, Rear LH
1997-05 → 1999-07 ended
BB50,HZB50 RHD EX —
58442-36070 Silencer, Enging Room Side, Rear LH
1997-05 → 1998-06 ended
BB5# WC CBU —
58442-36070 Silencer, Enging Room Side, Rear LH
1998-06 → 1999-07 ended
BB5# STD GEN —
58442-36100 Silencer, Enging Room Side, Rear LH
1997-05 → 1999-07 ended
HZB50 LHD EX;BB4#,HZB50,RZB40,50 17S,19S,22S,26S,30S —
58442-36060 Silencer, Enging Room Side, Rear LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
58442-36060 Silencer, Enging Room Side, Rear LH
1999-07 → 2004-08 ended
BB50,59 EX TDEFI —
58442-36100 Silencer, Enging Room Side, Rear LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 WOC (17S,19S,22S) +10 —
58442-36100 Silencer, Enging Room Side, Rear LH
1999-07 → 2004-08 ended
BB42 LHD 0 N) +24 —
58442-36100 Silencer, Enging Room Side, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58442-36100 Silencer, Enging Room Side, Rear LH
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58442-36061 Silencer, Enging Room Side, Rear LH
2004-08 → 2006-08 ended
BB50,59 EX —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2015-01 ended
BB42 L,EFI,TD RHD;BB42 LHD +4 —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2006-08 ended
BB50,58 (DX,STD) TDEFI —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2013-11 ended
XZB50 IV —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58442-36100 Silencer, Enging Room Side, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58442-36100 Silencer, Enging Room Side, Rear LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,5# —
58444B — Packing, Engine Sub Cover
58444-36010 Packing, Engine Sub Cover
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58444-36050 Packing, Engine Sub Cover
1997-05 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58444-36050 Packing, Engine Sub Cover
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58444-36050 Packing, Engine Sub Cover
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58444-36050 Packing, Engine Sub Cover
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58444-36050 Packing, Engine Sub Cover
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58444-36050 Packing, Engine Sub Cover
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2013-11 ended
XZB50 IV —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2011-08 ended
BB42 LHD HRF —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2008-03 ended
XZB50 STD GEN —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58444-36050 Packing, Engine Sub Cover
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58444-36050 Packing, Engine Sub Cover
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58492A — Packing, Relay Block Hole Cover
58492-36010 Packing, Relay Block Hole Cover
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58492-36010 Packing, Relay Block Hole Cover
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58492-36010 Packing, Relay Block Hole Cover
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58492-36010 Packing, Relay Block Hole Cover
1999-07 → 2001-05 ended
BB50 IV 6F —
58492-36010 Packing, Relay Block Hole Cover
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2008-03 ended
XZB50 STD GEN —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2011-08 ended
BB42 LHD HRF —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2013-11 ended
XZB50 IV —
58492-36010 Packing, Relay Block Hole Cover
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58492-36010 Packing, Relay Block Hole Cover
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58493 — Retainer, Engine Cover, NO.3
58493-36010-E0 note Retainer, Engine Cover, NO.3
1993-01 → 1994-06 ended
BB4#,HZB50,RZB40,50 CBU —
58493-36010-E0 note Retainer, Engine Cover, NO.3
1994-06 → 1995-05 ended
BB42 SCO —
58493-36010-E0 note Retainer, Engine Cover, NO.3
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58493-36010-B1 note Retainer, Engine Cover, NO.3
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58493-36010-B1 note Retainer, Engine Cover, NO.3
2001-05 → 2004-08 ended
BB50 WC ARL;BB50 WOC +3 —
58493-36010-B1 note Retainer, Engine Cover, NO.3
2001-08 → 2004-08 ended
BB50 WC GEN TD;BB42,58,HZB50,RZB40,50 +1 —
58493-36010-E0 note Retainer, Engine Cover, NO.3
1999-07 → 2001-05 ended
BB50 IV 6F —
58493-36010-E0 note Retainer, Engine Cover, NO.3
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
58493-36010-B1 note Retainer, Engine Cover, NO.3
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# —
58493-36010-B1 note Retainer, Engine Cover, NO.3
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58701A — Panel Sub-assy, Engine Service Cover, Front
58701-36010 Panel Sub-assy, Engine Service Cover, Front
1993-01 → 1995-05 ended
BB4#,HZB50 RHD DSL —
58701-36011 Panel Sub-assy, Engine Service Cover, Front
1995-05 → 1997-05 ended
BB4#,HZB50 RHD 5F DSL —
58701-36021 Panel Sub-assy, Engine Service Cover, Front
1995-05 → 1997-05 ended
HZB50 WC GEN 4FC —
58701-36030 Panel Sub-assy, Engine Service Cover, Front
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU 5F —
58701-36031 Panel Sub-assy, Engine Service Cover, Front
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU 5F —
58701-36040 Panel Sub-assy, Engine Service Cover, Front
1993-01 → 1995-05 ended
HZB50 4FC —
58701-36041 Panel Sub-assy, Engine Service Cover, Front
1995-05 → 1997-05 ended
HZB50 30S 4FC —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD 5F —
58701-36090 Panel Sub-assy, Engine Service Cover, Front
1997-05 → 1997-11 ended
BB5# WC CBU —
58701-36090 Panel Sub-assy, Engine Service Cover, Front
1997-11 → 1999-07 ended
BB5# STD GEN —
58701-36100 Panel Sub-assy, Engine Service Cover, Front
1997-05 → 1997-08 ended
BB50 EX —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
1997-08 → 1999-07 ended
BB43,50 RHD CBU —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD —
58701-36120 Panel Sub-assy, Engine Service Cover, Front
1997-05 → 1999-07 ended
HZB50 4FC —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +5 —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2002-11 ended
HZB50 ARL —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-05 ended
BB50 RHD 6F —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-08 ended
BB43,50 RHD 5F —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2004-08 ended
BB50,59 RHD TDEFI —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2004-08 ended
HZB50 LHD;BB42 WC GCC;BB42 +3 —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC —
58701-36120 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-08 ended
HZB50 4FC —
58701-36160 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-08 ended
BB50 WOC 5F;RZB40 WOC +3 —
58701-36160 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2004-04 ended
RZB40 3S,30S) WOC (GCC,GEN) +7 —
58701-36160 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58701-36160 Panel Sub-assy, Engine Service Cover, Front
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-05 → 2004-08 ended
BB50,58,RZB40,50 LHD —
58701-36180 Panel Sub-assy, Engine Service Cover, Front
2001-08 → 2004-08 ended
BZB40,50 —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2006-08 ended
BB50,59 RHD —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2008-03 ended
XZB50 STD GEN —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2013-11 ended
XZB50 RHD IV —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
XZB40,59;XZB50 RHD (20S,21S) WC +1 —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
HZB50 LHD;BB42 LHD SRF —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2011-08 ended
BB42 LHD HRF —
58701-36130 Panel Sub-assy, Engine Service Cover, Front
2007-08 → 2015-01 ended
XZB50 4FC —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
TRB40,50,XZB50 LHD CBU —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2013-11 ended
XZB50 LHD IV —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58701-36180 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2006-08 ended
BZB50 EX —
58701-36180 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
BZB40,50 STD —
58701-36210 Panel Sub-assy, Engine Service Cover, Front
2004-08 → 2015-01 ended
BB50 TD —
58701-36080 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
BB42,HZB50 RHD —
58701-36101 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
XZB40,5# RHD 5F —
58701-36110 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
BB42,HZB50 LHD —
58701-36130 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
XZB50 4FC —
58701-36161 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
TRB40,50,XZB40,50 LHD —
58701-36180 Panel Sub-assy, Engine Service Cover, Front
2015-01 → —
BZB40,50 —
58704C — Hook Sub-assy, Engine Service Cover Catch, Rear
58704-36010-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
58704-36010-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1995-05 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58704-36010-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1993-09 → 1995-05 ended
BB42 SCO;HZB50 (DX,EX) ARL —
58704-36040-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1997-05 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58704-36040-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2001-08 → 2004-08 ended
BB50 WC GEN TD;BB42,58,HZB50,RZB40,50 +1 —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2001-05 → 2004-08 ended
BB50 WC ARL;BB50 WOC +3 —
58704-36040-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1999-07 → 2001-08 ended
BB50 EX;BB50 WOC 5F;BB50 +2 —
58704-36040-E0 note Hook Sub-assy, Engine Service Cover Catch, Rear
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2008-03 ended
XZB50 STD GEN —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58704-36040-B0 note Hook Sub-assy, Engine Service Cover Catch, Rear
2004-08 → 2009-09 ended
XZB5# L,EFI,LPG,TD) IV;XZB50 (20S,21S) +3 —
58704-36041 Hook Sub-assy, Engine Service Cover Catch, Rear
2009-10 → 2011-08 ended
BB42 LHD HRF —
58704-36041 Hook Sub-assy, Engine Service Cover Catch, Rear
2009-10 → 2013-11 ended
XZB50 IV —
58704-36041 Hook Sub-assy, Engine Service Cover Catch, Rear
2009-10 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5# +1 —
58704-36041 Hook Sub-assy, Engine Service Cover Catch, Rear
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58709B — Catch Sub-assy, Engine Service Cover
58709-36010-E0 note Catch Sub-assy, Engine Service Cover
1993-01 → 1994-02 ended
BB4#,HZB50,RZB40,50 CBU —
58709-36011-E0 note Catch Sub-assy, Engine Service Cover
1994-02 → 1997-05 ended
BB42 ,30S LHD 22S;RZB40 +4 —
58709-36030-E0 note Catch Sub-assy, Engine Service Cover
1997-05 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58709-36030-E0 note Catch Sub-assy, Engine Service Cover
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2001-05 → 2004-08 ended
BB50 WC ARL;BB50 WOC +3 —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2001-08 → 2004-08 ended
BB50 WC GEN TD;BB42,58,HZB50,RZB40,50 +1 —
58709-36030-E0 note Catch Sub-assy, Engine Service Cover
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58709-36030-E0 note Catch Sub-assy, Engine Service Cover
1999-07 → 2001-08 ended
BB50 EX;BB50 WOC 5F;BB50 +2 —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2008-03 ended
XZB50 STD GEN —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58709-36030-B0 note Catch Sub-assy, Engine Service Cover
2004-08 → 2009-09 ended
XZB5# L,EFI,LPG,TD) IV;XZB50 (20S,21S) +3 —
58709-36031 Catch Sub-assy, Engine Service Cover
2009-10 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5# +1 —
58709-36031 Catch Sub-assy, Engine Service Cover
2009-10 → 2011-08 ended
BB42 LHD HRF —
58709-36031 Catch Sub-assy, Engine Service Cover
2009-10 → 2013-11 ended
XZB50 IV —
58709-36031 Catch Sub-assy, Engine Service Cover
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58726B — Plate, Engine Service Cover, Front Upper
58726-36010 Plate, Engine Service Cover, Front Upper
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58726-36010 Plate, Engine Service Cover, Front Upper
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58726-36010 Plate, Engine Service Cover, Front Upper
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58726-36010 Plate, Engine Service Cover, Front Upper
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58726-36010 Plate, Engine Service Cover, Front Upper
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2013-11 ended
XZB50 IV —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2011-08 ended
BB42 LHD HRF —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2008-03 ended
XZB50 STD GEN —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58726-36010 Plate, Engine Service Cover, Front Upper
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58726-36010 Plate, Engine Service Cover, Front Upper
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58728A — Plate, Engine Service Cover, NO.2
58728-36010 Plate, Engine Service Cover, NO.2
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58728-36010 Plate, Engine Service Cover, NO.2
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58728-36010 Plate, Engine Service Cover, NO.2
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58728-36010 Plate, Engine Service Cover, NO.2
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58728-36010 Plate, Engine Service Cover, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2008-03 ended
XZB50 STD GEN —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2013-11 ended
XZB50 IV —
58728-36010 Plate, Engine Service Cover, NO.2
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58728-36010 Plate, Engine Service Cover, NO.2
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
58733C — Weatherstrip, Engine Service Cover, Front
58733-36010 Weatherstrip, Engine Service Cover, Front
1993-01 → 1999-07 ended
HZB50 30S 4FC;BB4#,50,HZB50 RHD +1 —
58733-36020 Weatherstrip, Engine Service Cover, Front
1993-01 → 1997-11 ended
BB42,5#,HZB50,RZB40,50 LHD CBU 5F —
58733-36020 Weatherstrip, Engine Service Cover, Front
1997-11 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD (GCC,GEN) —
58733-36050 Weatherstrip, Engine Service Cover, Front
1999-07 → 2001-05 ended
BB50 RHD 6F —
58733-36050 Weatherstrip, Engine Service Cover, Front
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
58733-36050 Weatherstrip, Engine Service Cover, Front
1999-07 → 2002-11 ended
HZB50 ARL —
58733-36050 Weatherstrip, Engine Service Cover, Front
1999-07 → 2004-08 ended
BB42 GEN RHD 5F +9 —
58733-36060 Weatherstrip, Engine Service Cover, Front
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58733-36060 Weatherstrip, Engine Service Cover, Front
1999-07 → 2004-08 ended
BB42 ) WC WC +13 —
58733-36060 Weatherstrip, Engine Service Cover, Front
1999-07 → 2001-08 ended
BB50 WOC 5F;BB42,RZB40 WOC +3 —
58733-36060 Weatherstrip, Engine Service Cover, Front
1999-07 → 2001-05 ended
BB50 STD WC IV;BB50 +3 —
58733-36050 Weatherstrip, Engine Service Cover, Front
2004-08 → 2013-11 ended
XZB50 RHD IV —
58733-36050 Weatherstrip, Engine Service Cover, Front
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
58733-36050 Weatherstrip, Engine Service Cover, Front
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58733-36050 Weatherstrip, Engine Service Cover, Front
2004-08 → 2008-03 ended
XZB50 STD GEN —
58733-36050 Weatherstrip, Engine Service Cover, Front
2004-08 → 2006-08 ended
BZB50 EX;BB50,59 RHD —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2006-08 ended
BB50,58 LHD TDEFI —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2011-08 ended
BB42 LHD HRF —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2013-11 ended
XZB50 LHD IV —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
58733-36060 Weatherstrip, Engine Service Cover, Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58733-36050 Weatherstrip, Engine Service Cover, Front
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
58733-36060 Weatherstrip, Engine Service Cover, Front
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
58734B — Weatherstrip, Engine Service Cover, Rear
58734-36010 Weatherstrip, Engine Service Cover, Rear
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
58734-36030 Weatherstrip, Engine Service Cover, Rear
1997-05 → 1999-07 ended
BB40,42,HZB50,RZB40,50 —
58734-36040 Weatherstrip, Engine Service Cover, Rear
1997-05 → 1997-11 ended
BB5# CBU —
58734-36040 Weatherstrip, Engine Service Cover, Rear
1997-11 → 1999-07 ended
BB43,5# GEN —
58734-36060 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58734-36060 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2004-08 ended
BB50 RL,GEN);RZB40 EX (17S,26S) +11 —
58734-36060 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
58734-36060 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2001-08 ended
BB50 WOC 5F;RZB40 WOC +5 —
58734-36090 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2001-08 ended
BB42 D 22S;BB42 HRF +10 —
58734-36090 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2002-11 ended
HZB50 ARL —
58734-36090 Weatherstrip, Engine Service Cover, Rear
1999-07 → 2004-08 ended
BB42 B50 WC LHD +15 —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2008-03 ended
XZB50 STD GEN —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2013-11 ended
XZB50 IV —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2015-01 ended
XZB59;XZB50 (20S,21S) WC;BB50,BZB40,50,TRB40,50,XZB40 STD +1 —
58734-36090 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2011-08 ended
BB42 LHD HRF —
58734-36090 Weatherstrip, Engine Service Cover, Rear
2004-08 → 2015-01 ended
HZB50;BB42 RHD;BB42 LHD SRF —
58734-36060 Weatherstrip, Engine Service Cover, Rear
2015-01 → —
BZB40,50,TRB40,50,XZB40,5# —
58734-36090 Weatherstrip, Engine Service Cover, Rear
2015-01 → —
BB42,HZB50 —
58755B — Handle, Engine Service Cover Catch
58755-95D00 Handle, Engine Service Cover Catch
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
58755-95D00 Handle, Engine Service Cover Catch
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
58755-95D00 Handle, Engine Service Cover Catch
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
58755-95D00 Handle, Engine Service Cover Catch
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
58755-95D00 Handle, Engine Service Cover Catch
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
58755-95D00 Handle, Engine Service Cover Catch
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2006-02 ended
RZB40 HRF GCC —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2008-03 ended
XZB50 STD GEN —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2009-08 ended
XZB50 WOC CBU —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2011-08 ended
BB42 LHD HRF —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2013-11 ended
XZB50 IV —
58755-95D00 Handle, Engine Service Cover Catch
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
58755-95D00 Handle, Engine Service Cover Catch
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
59263A — Hook, Engine Cover Lock
59263-95D00 Hook, Engine Cover Lock
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
59263-95D00 Hook, Engine Cover Lock
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
59263-95D00 Hook, Engine Cover Lock
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
59263-95D00 Hook, Engine Cover Lock
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
59263-95D00 Hook, Engine Cover Lock
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB58,59,BZB40,50,RZB50 ;HZB50,RZB40 +29 —
59263-95D00 Hook, Engine Cover Lock
1999-07 → 2001-05 ended
BB50 WOC 6F;BB50 STD +2 —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2011-08 ended
BB42 LHD HRF —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2013-11 ended
XZB50 IV —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2009-08 ended
XZB50 WOC CBU —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2008-03 ended
XZB50 STD GEN —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2006-08 ended
BZB50 EX;BB5# TDEFI —
59263-95D00 Hook, Engine Cover Lock
2004-08 → 2006-02 ended
RZB40 HRF GCC —
59263-95D00 Hook, Engine Cover Lock
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
76621A — Mudguard, Front Body, Front RH
76621-36010 Mudguard, Front Body, Front RH
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
76621-36010 Mudguard, Front Body, Front RH
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
76621-36020 note Mudguard, Front Body, Front RH
1993-01 → 1999-07 ended
HZB50 SRF GEN;HZB50 LHD +5 —
76621-36010 Mudguard, Front Body, Front RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
76621-36010 Mudguard, Front Body, Front RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
76621-36010 Mudguard, Front Body, Front RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
76621-36020 note Mudguard, Front Body, Front RH
1999-07 → 2004-08 ended
HZB50 LHD STD WC +5 —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
76621-36010 Mudguard, Front Body, Front RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
76621-36020 note Mudguard, Front Body, Front RH
2004-08 → 2007-01 ended
HZB50 LHD WC GEN;BB42,HZB50 +3 —
76621-36010 Mudguard, Front Body, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
76622A — Mudguard, Front Body, Front LH
76622-36010 Mudguard, Front Body, Front LH
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
76622-36010 Mudguard, Front Body, Front LH
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
76622-36020 note Mudguard, Front Body, Front LH
1993-01 → 1999-07 ended
HZB50 SRF GEN;HZB50 LHD +5 —
76622-36010 Mudguard, Front Body, Front LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
76622-36010 Mudguard, Front Body, Front LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
76622-36010 Mudguard, Front Body, Front LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
76622-36020 note Mudguard, Front Body, Front LH
1999-07 → 2004-08 ended
HZB50 LHD STD WC +5 —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
76622-36010 Mudguard, Front Body, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
76622-36020 note Mudguard, Front Body, Front LH
2004-08 → 2007-01 ended
HZB50 LHD WC GEN;BB42,HZB50 +3 —
76622-36010 Mudguard, Front Body, Front LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
76623 — Mudguard, Front Body, Rear RH
76623-36010 Mudguard, Front Body, Rear RH
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
76623-36011 Mudguard, Front Body, Rear RH
1993-09 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
76623-36011 Mudguard, Front Body, Rear RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
76623-36011 Mudguard, Front Body, Rear RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
76623-36011 Mudguard, Front Body, Rear RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
76623-36011 Mudguard, Front Body, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
76623-36011 Mudguard, Front Body, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
76624 — Mudguard, Front Body, Rear LH
76624-36010 Mudguard, Front Body, Rear LH
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
76624-36011 Mudguard, Front Body, Rear LH
1993-09 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
76624-36011 Mudguard, Front Body, Rear LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
76624-36011 Mudguard, Front Body, Rear LH
1999-07 → 2002-11 ended
—
76624-36011 Mudguard, Front Body, Rear LH
1999-07 → 2001-08 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2006-02 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2006-08 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2007-08 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2008-03 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2009-08 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2011-08 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2004-08 → 2015-01 ended
—
76624-36011 Mudguard, Front Body, Rear LH
2015-01 → —
—
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
