Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

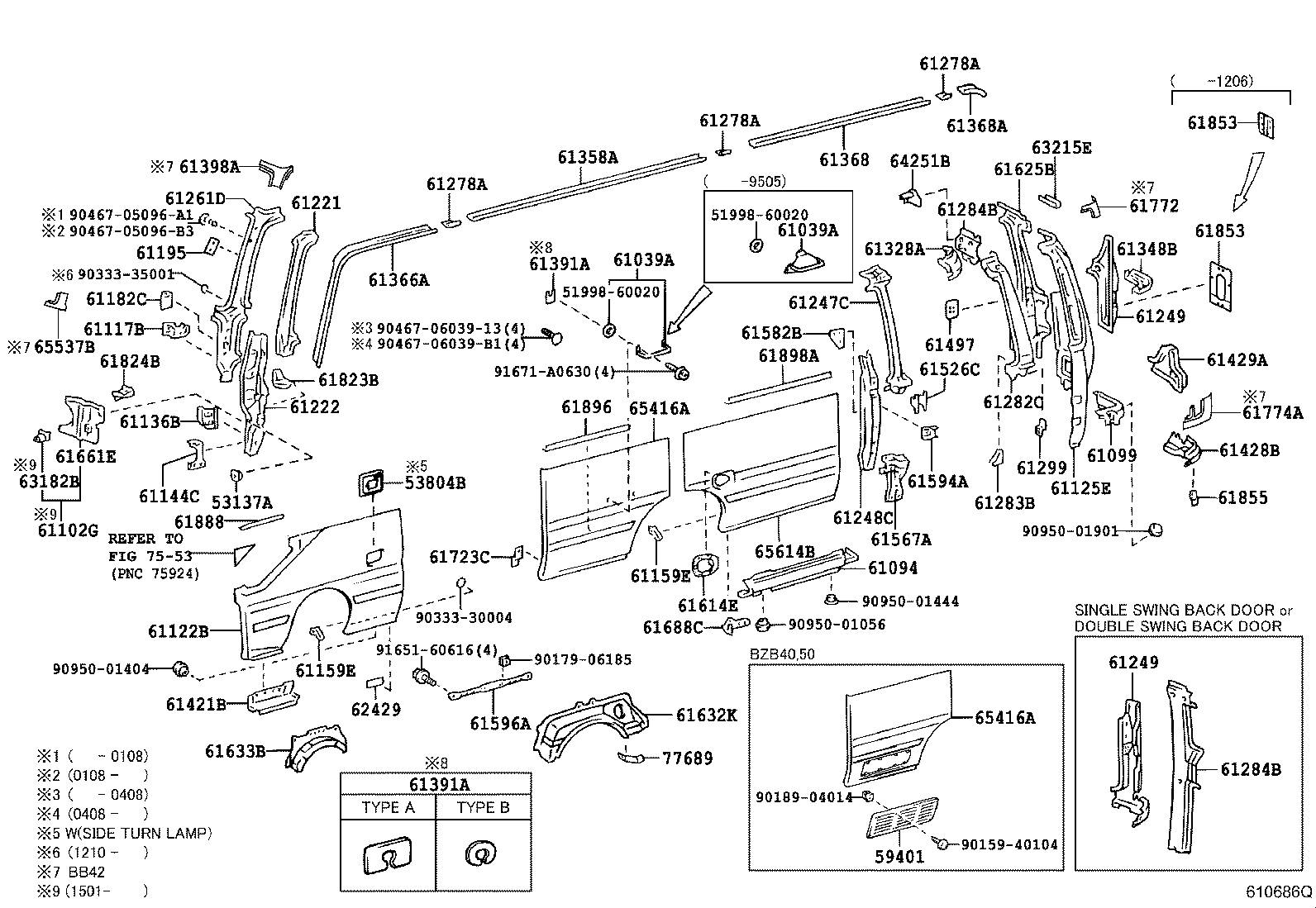

Exploded illustration 610686Q 9046705096A1 — not listed in this catalogue 61195 — RETAINER, OUTER SIDE MIRROR, LH (8 parts) 61261D — PILLAR, NO.1 INNER, LH (30 parts) 61398A — PATCH, CENTER BODY PILLAR, INNER LH (3 parts) 61182C — BRACKET, INSTRUMENT SIDE, LH (20 parts) 61221 — PILLAR, NO.1 OUTER, UPPER LH (23 parts) 61391A — PACKING, CENTER BODY PILLAR, NO.1 (16 parts) 61366A — CHANNEL, ROOF DRIP SIDE, FRONT LH (12 parts) 61278A — JOINT, ROOF DRIP CHANNEL, LH (25 parts) 5199860020 — not listed in this catalogue 61358A — CHANNEL, ROOF DRIP SIDE, CENTER NO.1 (15 parts) 61391A — PACKING, CENTER BODY PILLAR, NO.1 (16 parts) 61039A — STEP SUB-ASSY, EMERGENCY (25 parts) 61278A — JOINT, ROOF DRIP CHANNEL, LH (25 parts) 91671A0630 — not listed in this catalogue 61368 — CHANNEL, ROOF DRIP SIDE, CENTER NO.1 (19 parts) 61328A — RAIL, NO.6 UPPER OUTER, LH (16 parts) 61247C — PILLAR, NO.9 OUTER, UPPER LH (12 parts) 64251B — BRACKET, REAR SEATBACK STOP, LH (9 parts) 61278A — JOINT, ROOF DRIP CHANNEL, LH (25 parts) 61368A — CHANNEL, ROOF DRIP SIDE, REAR LH (12 parts) 61284B — PILLAR, NO.10 INNER, LH (27 parts) 61625B — PILLAR, NO.10 OUTER, UPPER LH (14 parts) 63215E — CHANNEL, ROOF DRIP, REAR, LH (14 parts) 61772 — PATCH, BACK DOOR OPENING, UPPER LH (3 parts) 61774A — PATCH, BACK DOOR OPENING, LOWER LH (3 parts) 61348B — RAIL, REAR SIDE NO.2, LH (12 parts) 61249 — RETAINER, ROOF SIDE RAIL, OUTER LH (25 parts) 61429A — RAIL, NO.9 LOWER OUTER, LH (10 parts) 61428B — RAIL, NO.8 LOWER OUTER, LH (15 parts) 61855 — BRACKET, REAR WASHER TANK, UPPER (10 parts) 61099 — STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH (12 parts) 61125E — PANEL, NO.4 SIDE, LH (27 parts) 61283B — PILLAR, NO.9 INNER, LOWER LH (13 parts) 61282C — PILLAR, NO.9 INNER, LH (22 parts) 9095001901 — not listed in this catalogue 61497 — REINFORCEMENT, NO.10 PILLAR, UPPER LH (2 parts) 61594A — BRACKET, STIFFENER, NO.4 LH (12 parts) 61526C — BRACKET, SEAT ANCHOR, NO.2 LH (35 parts) 61248C — PILLAR, NO.9 OUTER, LOWER LH (12 parts) 61567A — GUSSET, PILLAR TO RAIL, NO.2 LH (12 parts) 61094 — RAIL SUB-ASSY, NO.3 LOWER INNER, LH (12 parts) 61582B — BRACKET, REAR SEAT, NO.2 LH (12 parts) 61898A — RAIL, SIDE PANEL DUST PROOF, NO.3 LH (12 parts) 65614B — PANEL, REAR BODY, REAR LH (17 parts) 65416A — PANEL, REAR BODY, FRONT LH (59 parts) 61896 — RAIL, SIDE PANEL DUST PROOF, NO.2 LH (19 parts) 61159E — RETAINER, SIDE PANEL, NO.2 LH (13 parts) 65416A — PANEL, REAR BODY, FRONT LH (59 parts) 61723C — BRACKET, SWITCH RELAY (1 parts) 61823B — PLATE, DUST PROOF, NO.1 LH (19 parts) 61222 — PILLAR, NO.1 OUTER, LOWER LH (9 parts) 61888 — RAIL, SIDE PANEL DUST PROOF, NO.1 LH (21 parts) 61117B — RETAINER, WASHER TANK (19 parts) 65537B — PATCH, SIDE PANEL REINFORCEMENT, LH (3 parts) 61824B — PLATE, DUST PLOOF, NO.2 LH (9 parts) 61136B — REINFORCEMENT, FRONT BODY PILLAR, OUTER (9 parts) 61144C — SUPPORT, FRONT BUMPER SIDE, LH (6 parts) 61122B — PANEL, NO.2 SIDE, LH (44 parts) 9095001404 — not listed in this catalogue 61421B — RAIL, NO.1 LOWER OUTER, LH (9 parts) 61633B — PANEL, WHEEL HOUSE (15 parts) 61159E — RETAINER, SIDE PANEL, NO.2 LH (13 parts) 62429 — COVER, CENTER PILLAR SERVICE HOLE (12 parts) 9165160616 — not listed in this catalogue 9033330004 — not listed in this catalogue 61596A — BRACKET, COMPUTER SET, LOWER LH (9 parts) 9017906185 — not listed in this catalogue 61688C — BRACKET, MUDGUARD, REAR LH (12 parts) 61614E — PANEL, QUARTER, INNER LH (12 parts) 77689 — BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3 (12 parts) 61632K — PANEL, REAR WHEEL HOUSE, OUTER LH (12 parts) 9095001056 — not listed in this catalogue 9095001444 — not listed in this catalogue 61249 — RETAINER, ROOF SIDE RAIL, OUTER LH (25 parts) 61284B — PILLAR, NO.10 INNER, LH (27 parts) 9046705096B3 — not listed in this catalogue 9015940104 — not listed in this catalogue 9018904014 — not listed in this catalogue 59401 — COVER SUB-ASSY, COOLER CONDENSER (10 parts) 5199860020 — not listed in this catalogue 61039A — STEP SUB-ASSY, EMERGENCY (25 parts) 904670603913 — not listed in this catalogue 9046706039B1 — not listed in this catalogue 53804B — BRACKET SUB-ASSY, FRONT SIDE PANEL, LH (5 parts) 61299 — BRACKET, NO.9 INNER PILLAR BLOWER (5 parts) 53137A — RETAINER, HEADLAMP DOOR (12 parts) 7553 — not listed in this catalogue 9033335001 — not listed in this catalogue 61661E — GUSSET, PILLAR SHEAR, NO.1 LH (25 parts) 63182B — BRACKET, SIGNAL, FRONT LH (1 parts) 61102G — GUSSET, FRONT BODY PILLAR, LOWER LH (1 parts) 61853 — CHANNEL, QUARTER INSIDE PANEL CENTER, RH (12 parts) 61853 — CHANNEL, QUARTER INSIDE PANEL CENTER, RH (12 parts)
610686Q · 76 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
973 parts on this figure
Part number Description Fitment Price
53137A — Retainer, Headlamp Door
53137-36010 Retainer, Headlamp Door
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
53137-36010 Retainer, Headlamp Door
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
53137-36010 Retainer, Headlamp Door
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
53137-36010 Retainer, Headlamp Door
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
53137-36010 Retainer, Headlamp Door
2004-08 → 2006-02 ended
RZB40 HRF GCC —
53137-36010 Retainer, Headlamp Door
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
53137-36010 Retainer, Headlamp Door
2004-08 → 2011-08 ended
BB42 LHD HRF —
53137-36010 Retainer, Headlamp Door
2004-08 → 2009-08 ended
XZB50 WOC CBU —
53137-36010 Retainer, Headlamp Door
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
53137-36010 Retainer, Headlamp Door
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
53137-36010 Retainer, Headlamp Door
2004-08 → 2008-03 ended
XZB50 STD GEN —
53137-36010 Retainer, Headlamp Door
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
53804B — Bracket Sub-assy, Front Side Panel, LH
53804-36010 Bracket Sub-assy, Front Side Panel, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
53804-36010 Bracket Sub-assy, Front Side Panel, LH
2007-08 → 2009-08 ended
XZB50 ARL —
53804-36010 Bracket Sub-assy, Front Side Panel, LH
2007-08 → 2015-01 ended
XZB50 EX;BZB40,50,XZB40,59 —
53804-36010 Bracket Sub-assy, Front Side Panel, LH
2009-08 → 2015-01 ended
XZB50 ARL —
53804-36010 Bracket Sub-assy, Front Side Panel, LH
2015-01 → —
BZB40,50,XZB40,5# RHD —
59401 — Cover Sub-assy, Cooler Condenser
59401-36020-A0 note Cover Sub-assy, Cooler Condenser
2001-08 → 2004-08 ended
BZB40,50 —
59401-36020-F0 note Cover Sub-assy, Cooler Condenser
2002-11 → 2004-08 ended
BZB50 EX —
59401-36020-K0 note Cover Sub-assy, Cooler Condenser
2001-08 → 2004-08 ended
BZB40,50 STD —
59401-36020-K1 note Cover Sub-assy, Cooler Condenser
2002-11 → 2004-08 ended
BZB50 EX —
59401-36020-A0 note Cover Sub-assy, Cooler Condenser
2004-08 → 2006-08 ended
BZB50 EX —
59401-36020-A0 note Cover Sub-assy, Cooler Condenser
2004-08 → 2015-01 ended
BZB40,50 STD —
59401-36020-E0 note Cover Sub-assy, Cooler Condenser
2004-08 → 2006-08 ended
BZB50 EX —
59401-36020-K0 note Cover Sub-assy, Cooler Condenser
2004-08 → 2015-01 ended
BZB40,50 STD —
59401-36020-A0 note Cover Sub-assy, Cooler Condenser
2015-01 → 2016-12 ended
BZB40,50 —
59401-36020-K0 note Cover Sub-assy, Cooler Condenser
2015-01 → 2016-12 ended
BZB40,50 —
61039A — Step Sub-assy, Emergency
61039-36010-A0 note Step Sub-assy, Emergency
1993-01 → 1993-07 ended
HZB50 EX ARL —
61039-36010-A0 note Step Sub-assy, Emergency
1993-01 → 1993-07 ended
BB40,HZB50 (DX,STD) ARL —
61039-36010-A1 note Step Sub-assy, Emergency
1993-01 → 1993-07 ended
HZB50 DX —
61039-36010-A1 note Step Sub-assy, Emergency
1993-01 → 1993-07 ended
BB40,HZB50 STD ARL —
61039-36011-A0 note Step Sub-assy, Emergency
1993-07 → 1994-08 ended
HZB50 EX ARL —
61039-36011-A0 note Step Sub-assy, Emergency
1993-07 → 1994-08 ended
BB40,HZB50 (DX,STD) ARL —
61039-36011-A1 note Step Sub-assy, Emergency
1993-07 → 1994-08 ended
HZB50 DX —
61039-36011-A1 note Step Sub-assy, Emergency
1993-07 → 1994-08 ended
BB40,HZB50 STD ARL —
61039-36012-A0 note Step Sub-assy, Emergency
1994-08 → 1995-05 ended
HZB50 EX ARL —
61039-36012-A0 note Step Sub-assy, Emergency
1994-08 → 1995-05 ended
BB40,HZB50 (DX,STD) ARL —
61039-36012-A1 note Step Sub-assy, Emergency
1994-08 → 1995-05 ended
HZB50 DX —
61039-36012-A1 note Step Sub-assy, Emergency
1994-08 → 1995-05 ended
BB40,HZB50 STD ARL —
61039-36020-A0 note Step Sub-assy, Emergency
1995-05 → 1997-05 ended
HZB50 DX —
61039-36020-A0 note Step Sub-assy, Emergency
1995-05 → 1997-05 ended
BB40,HZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
1997-05 → 1999-07 ended
HZB50 DX —
61039-36020-A2 note Step Sub-assy, Emergency
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
2001-08 → 2002-11 ended
HZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
2001-08 → 2004-08 ended
BB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
1999-07 → 2004-08 ended
BB50 DX —
61039-36020-A2 note Step Sub-assy, Emergency
1999-07 → 2002-11 ended
HZB50 DX —
61039-36020-A2 note Step Sub-assy, Emergency
1999-07 → 2001-08 ended
HZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
2004-08 → 2015-01 ended
BB50,XZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
2004-08 → 2015-01 ended
BB50,XZB50 DX —
61039-36020-A2 note Step Sub-assy, Emergency
2015-01 → 2016-12 ended
XZB50 STD ARL —
61039-36020-A2 note Step Sub-assy, Emergency
2015-01 → 2016-12 ended
XZB50 DX —
61094 — Rail Sub-assy, NO.3 Lower Inner, LH
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61094-36030 Rail Sub-assy, NO.3 Lower Inner, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61099 — Stiffener Sub-assy, Pillar NO.10, Inner LH
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61099-36010 Stiffener Sub-assy, Pillar NO.10, Inner LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61102G — Gusset, Front Body Pillar, Lower LH
51032-36030 Gusset, Front Body Pillar, Lower LH
2015-01 → —
BZB40,50,XZB40,5# RHD —
61117B — Retainer, Washer Tank
61117-36010 Retainer, Washer Tank
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61117-36020 Retainer, Washer Tank
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61117-36010 Retainer, Washer Tank
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61117-36010 Retainer, Washer Tank
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61117-36010 Retainer, Washer Tank
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61117-36020 Retainer, Washer Tank
1999-07 → 2002-11 ended
HZB50 ARL —
61117-36020 Retainer, Washer Tank
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61117-36020 Retainer, Washer Tank
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61117-36010 Retainer, Washer Tank
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61117-36010 Retainer, Washer Tank
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61117-36010 Retainer, Washer Tank
2004-08 → 2011-08 ended
BB42 LHD HRF —
61117-36010 Retainer, Washer Tank
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61117-36010 Retainer, Washer Tank
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61117-36020 Retainer, Washer Tank
2004-08 → 2008-03 ended
XZB50 STD GEN —
61117-36020 Retainer, Washer Tank
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61117-36020 Retainer, Washer Tank
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61117-36020 Retainer, Washer Tank
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61117-36010 Retainer, Washer Tank
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61117-36020 Retainer, Washer Tank
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61122B — Panel, NO.2 Side, LH
61122-36010 Panel, NO.2 Side, LH
1993-01 → 1999-07 ended
BB42,43,50,HZB50 RHD (GEN,SCO) —
61122-36020 Panel, NO.2 Side, LH
1993-01 → 1999-07 ended
BB40,HZB50 ARL —
61122-36060 Panel, NO.2 Side, LH
1993-01 → 1999-07 ended
RZB50 SRF GEN;HZB50 30S +5 —
61122-36070 Panel, NO.2 Side, LH
1993-01 → 1999-07 ended
RZB50 GCC;HZB50 GCC 4FC;RZB50 +6 —
61122-36010 Panel, NO.2 Side, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61122-36010 Panel, NO.2 Side, LH
1999-07 → 2004-08 ended
BB42 .(DSL,LPG,TDEFI) RHD SRF;HZB50 +9 —
61122-36020 Panel, NO.2 Side, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61122-36020 Panel, NO.2 Side, LH
1999-07 → 2004-08 ended
BB50 ARL —
61122-36060 Panel, NO.2 Side, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61122-36060 Panel, NO.2 Side, LH
1999-07 → 2004-08 ended
BB42,50,HZB50,RZB40 LHD WOC GEN +1 —
61122-36070 Panel, NO.2 Side, LH
1999-07 → 2001-08 ended
BB42,5#,RZB40 (19S,22S,23S) GEN —
61122-36070 Panel, NO.2 Side, LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB42,50,HZB50,RZB40,50 +4 —
61122-36120 Panel, NO.2 Side, LH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61122-36120 Panel, NO.2 Side, LH
2001-08 → 2004-08 ended
BB58 —
61122-36010 Panel, NO.2 Side, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
61122-36010 Panel, NO.2 Side, LH
2004-08 → 2007-08 ended
XZB59;BZB40,50,XZB50 17S,20S —
61122-36010 Panel, NO.2 Side, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
61122-36020 Panel, NO.2 Side, LH
2004-08 → 2007-08 ended
XZB50 ARL —
61122-36020 Panel, NO.2 Side, LH
2004-08 → 2006-08 ended
BB50 ARL —
61122-36060 Panel, NO.2 Side, LH
2004-08 → 2007-08 ended
RZB40 WOC —
61122-36060 Panel, NO.2 Side, LH
2004-08 → 2015-01 ended
BB42,50,HZB50,TRB40 LHD WOC 5F —
61122-36070 Panel, NO.2 Side, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;BB42,HZB50 GCC;RZB40 +2 —
61122-36070 Panel, NO.2 Side, LH
2004-08 → 2015-01 ended
BB42 LHD SRF WC +5 —
61122-36070 Panel, NO.2 Side, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61122-36070 Panel, NO.2 Side, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61122-36070 Panel, NO.2 Side, LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61122-36120 Panel, NO.2 Side, LH
2004-08 → 2006-08 ended
BB58 —
61122-36120 Panel, NO.2 Side, LH
2004-08 → 2015-01 ended
XZB50 TAIW —
61122-36150 note Panel, NO.2 Side, LH
2009-08 → 2015-01 ended
XZB50 ARL —
61122-36150 note Panel, NO.2 Side, LH
2012-09 → 2015-01 ended
BZB40,50,XZB40,50 GEN —
61122-36160 Panel, NO.2 Side, LH
2007-08 → 2009-08 ended
XZB50 ARL —
61122-36160 Panel, NO.2 Side, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61122-36160 Panel, NO.2 Side, LH
2007-08 → 2015-01 ended
XZB5# EX —
61122-36160 Panel, NO.2 Side, LH
2007-08 → 2012-09 ended
BZB40,50,XZB40 —
61122-36180 Panel, NO.2 Side, LH
2007-08 → 2015-01 ended
BB42,HZB50,TRB40,50 GCC —
61122-36200 note Panel, NO.2 Side, LH
2012-09 → 2015-01 ended
XZB59 —
61122-36010 Panel, NO.2 Side, LH
2015-01 → —
BB42,HZB50 RHD —
61122-36060 Panel, NO.2 Side, LH
2015-01 → —
BB42,HZB50,TRB40,XZB40,50 LHD WOC —
61122-36070 Panel, NO.2 Side, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD WC GEN —
61122-36120 Panel, NO.2 Side, LH
2015-01 → —
XZB50 TAIW —
61122-36150 Panel, NO.2 Side, LH
2015-01 → —
BZB40,50,XZB40,50 RHD —
61122-36160 note Panel, NO.2 Side, LH
2015-01 → —
XZB5# EX 5F —
61122-36180 Panel, NO.2 Side, LH
2015-01 → —
BB42,HZB50,TRB40,50 GCC —
61122-36200 Panel, NO.2 Side, LH
2015-01 → —
XZB59 —
61125E — Panel, NO.4 Side, LH
61125-36010 note Panel, NO.4 Side, LH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61125-36020 Panel, NO.4 Side, LH
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
61125-36020 note Panel, NO.4 Side, LH
1995-05 → 1999-07 ended
HZB50 SCO;BB4#,5#,RZB50 CBU;HZB50,RZB40 (DX,STD) +1 —
61125-36010 note Panel, NO.4 Side, LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61125-36010 Panel, NO.4 Side, LH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
61125-36010 note Panel, NO.4 Side, LH
1999-07 → 2004-08 ended
BB42 C;HZB50,RZB40 7S,26S,30S) WC +21 —
61125-36010 Panel, NO.4 Side, LH
2000-08 → 2004-08 ended
BB50 WOC CBU TD;BB50 +3 —
61125-36020 note Panel, NO.4 Side, LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 EX (17S,19S,22S) +10 —
61125-36020 Panel, NO.4 Side, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61125-36020 note Panel, NO.4 Side, LH
1999-07 → 2004-08 ended
BB42 RF 0S,26S) ) +29 —
61125-36020 Panel, NO.4 Side, LH
2001-08 → 2004-08 ended
BB59,BZB50;BB50 RHD (DX,STD) CBU —
61125-36010 Panel, NO.4 Side, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61125-36010 Panel, NO.4 Side, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61125-36010 Panel, NO.4 Side, LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61125-36010 Panel, NO.4 Side, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61125-36010 Panel, NO.4 Side, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2011-08 ended
BB50 WC TD —
61125-36020 note Panel, NO.4 Side, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2015-01 ended
XZB59;BB42 RHD WOC;XZB50 (20S,21S) +5 —
61125-36020 note Panel, NO.4 Side, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
61125-36020 note Panel, NO.4 Side, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61125-36010 Panel, NO.4 Side, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61125-36020 Panel, NO.4 Side, LH
2015-01 → —
XZB5# EX 5F —
61125-36020 note Panel, NO.4 Side, LH
2015-01 → —
XZB50 (DX,STD) GEN WC +7 —
61136B — Reinforcement, Front Body Pillar, Outer
61135-36010 Reinforcement, Front Body Pillar, Outer
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61135-36010 Reinforcement, Front Body Pillar, Outer
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61135-36010 Reinforcement, Front Body Pillar, Outer
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61135-36010 Reinforcement, Front Body Pillar, Outer
1999-07 → 2002-11 ended
HZB50 ARL —
61135-36010 Reinforcement, Front Body Pillar, Outer
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61135-36010 Reinforcement, Front Body Pillar, Outer
2004-08 → 2008-03 ended
XZB50 STD GEN —
61135-36010 Reinforcement, Front Body Pillar, Outer
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61135-36010 Reinforcement, Front Body Pillar, Outer
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61135-36010 Reinforcement, Front Body Pillar, Outer
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61144C — Support, Front Bumper Side, LH
61144-36010 Support, Front Bumper Side, LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61144-36010 Support, Front Bumper Side, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61144-36010 Support, Front Bumper Side, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61144-36010 Support, Front Bumper Side, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61144-36010 Support, Front Bumper Side, LH
2004-08 → 2015-01 ended
BB42,50,59,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
61144-36010 Support, Front Bumper Side, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61159E — Retainer, Side Panel, NO.2 LH
61159-36010 Retainer, Side Panel, NO.2 LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61159-36010 Retainer, Side Panel, NO.2 LH
1999-07 → 2001-08 ended
HZB50 RF RHD WOC +11 —
61159-36010 Retainer, Side Panel, NO.2 LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB42,50 S,26S) +26 —
61159-36010 Retainer, Side Panel, NO.2 LH
2001-04 → 2001-08 ended
BB50 EX IV —
61159-36010 Retainer, Side Panel, NO.2 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61159-36010 Retainer, Side Panel, NO.2 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61159-36010 Retainer, Side Panel, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61182C — Bracket, Instrument Side, LH
61182-36010 Bracket, Instrument Side, LH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
61182-36020 Bracket, Instrument Side, LH
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61183-36010 Bracket, Instrument Side, LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61182-36020 Bracket, Instrument Side, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61182-36020 Bracket, Instrument Side, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61182-36020 Bracket, Instrument Side, LH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61183-36010 Bracket, Instrument Side, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61183-36010 Bracket, Instrument Side, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61183-36010 Bracket, Instrument Side, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61182-36020 Bracket, Instrument Side, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61182-36020 Bracket, Instrument Side, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61182-36020 Bracket, Instrument Side, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61182-36020 Bracket, Instrument Side, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61182-36020 Bracket, Instrument Side, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61183-36010 Bracket, Instrument Side, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61183-36010 Bracket, Instrument Side, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61183-36010 Bracket, Instrument Side, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61183-36010 Bracket, Instrument Side, LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61182-36020 Bracket, Instrument Side, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61183-36010 Bracket, Instrument Side, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61195 — Retainer, Outer Side Mirror, LH
61195-36010 Retainer, Outer Side Mirror, LH
1993-01 → 1997-05 ended
BB42,HZB50 SCO;HZB50 22S 4FC —
61195-36010 Retainer, Outer Side Mirror, LH
1997-05 → 1999-07 ended
BB42,43,50 17S,20S —
61195-36010 Retainer, Outer Side Mirror, LH
1999-07 → 2001-08 ended
BB43,50 RHD 5F —
61195-36010 Retainer, Outer Side Mirror, LH
1999-07 → 2004-08 ended
BB50,59,BZB40,50 5F (LPG,TDEFI) —
61195-36010 Retainer, Outer Side Mirror, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
61195-36010 Retainer, Outer Side Mirror, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61195-36010 Retainer, Outer Side Mirror, LH
2004-08 → 2015-01 ended
XZB5# EX;BZB40,50,XZB40 STD —
61195-36010 Retainer, Outer Side Mirror, LH
2015-01 → —
BZB40,50,XZB40,5# RHD GEN —
61221 — Pillar, NO.1 Outer, Upper LH
61221-36010 Pillar, NO.1 Outer, Upper LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD (ARL,GEN) 5F —
61221-36010 note Pillar, NO.1 Outer, Upper LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
61221-36010 Pillar, NO.1 Outer, Upper LH
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD (ARL,GEN) —
61221-36020 Pillar, NO.1 Outer, Upper LH
1993-01 → 1997-05 ended
BB42,HZB50 SCO;HZB50 22S 4FC —
61221-36020 Pillar, NO.1 Outer, Upper LH
1997-05 → 1999-07 ended
BB42,43,50 17S,20S —
61221-36010 note Pillar, NO.1 Outer, Upper LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
61221-36010 note Pillar, NO.1 Outer, Upper LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
61221-36010 Pillar, NO.1 Outer, Upper LH
1999-07 → 2004-08 ended
BB50 ARL;BB42 RHD SRF;BB42,HZB50 +6 —
61221-36010 Pillar, NO.1 Outer, Upper LH
1999-07 → 2002-11 ended
HZB50 ARL —
61221-36010 Pillar, NO.1 Outer, Upper LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;HZB50 RHD +6 —
61221-36020 Pillar, NO.1 Outer, Upper LH
1999-07 → 2001-08 ended
BB43,50 RHD 5F —
61221-36020 Pillar, NO.1 Outer, Upper LH
1999-07 → 2004-08 ended
BB50,59,BZB40,50 5F (LPG,TDEFI) —
61221-36010 Pillar, NO.1 Outer, Upper LH
2004-08 → 2006-08 ended
BB50 ARL —
61221-36010 note Pillar, NO.1 Outer, Upper LH
2004-08 → 2006-08 ended
BB50 EX —
61221-36010 Pillar, NO.1 Outer, Upper LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61221-36010 Pillar, NO.1 Outer, Upper LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD;XZB50 WC ARL +1 —
61221-36010 note Pillar, NO.1 Outer, Upper LH
2004-08 → 2015-01 ended
XZB50 EX;XZB50 ARL 4FC —
61221-36020 Pillar, NO.1 Outer, Upper LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 5F TDEFI —
61221-36020 Pillar, NO.1 Outer, Upper LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61221-36020 Pillar, NO.1 Outer, Upper LH
2004-08 → 2015-01 ended
XZB5# EX;BZB40,50,XZB40 STD —
61221-36010 Pillar, NO.1 Outer, Upper LH
2015-01 → —
XZB50 ARL 4FC;BB42,HZB50,XZB50 RHD +1 —
61221-36020 Pillar, NO.1 Outer, Upper LH
2015-01 → —
BZB50,XZB40,59 HRF —
61221-36020 note Pillar, NO.1 Outer, Upper LH
2015-01 → —
BZB40,XZB50 RHD GEN —
61222 — Pillar, NO.1 Outer, Lower LH
61222-36010 Pillar, NO.1 Outer, Lower LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61222-36010 Pillar, NO.1 Outer, Lower LH
1999-07 → 2002-11 ended
HZB50 ARL —
61222-36010 Pillar, NO.1 Outer, Lower LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61222-36010 Pillar, NO.1 Outer, Lower LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61222-36010 Pillar, NO.1 Outer, Lower LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61222-36010 Pillar, NO.1 Outer, Lower LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61222-36010 Pillar, NO.1 Outer, Lower LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61222-36010 Pillar, NO.1 Outer, Lower LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61222-36010 Pillar, NO.1 Outer, Lower LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61247C — Pillar, NO.9 Outer, Upper LH
61247-36010 Pillar, NO.9 Outer, Upper LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61247-36010 Pillar, NO.9 Outer, Upper LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61247-36010 Pillar, NO.9 Outer, Upper LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61247-36010 Pillar, NO.9 Outer, Upper LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61247-36010 Pillar, NO.9 Outer, Upper LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61247-36010 Pillar, NO.9 Outer, Upper LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61248C — Pillar, NO.9 Outer, Lower LH
61248-36010 Pillar, NO.9 Outer, Lower LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61248-36010 Pillar, NO.9 Outer, Lower LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61248-36010 Pillar, NO.9 Outer, Lower LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61248-36010 Pillar, NO.9 Outer, Lower LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61248-36010 Pillar, NO.9 Outer, Lower LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61248-36010 Pillar, NO.9 Outer, Lower LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61249 — Retainer, Roof Side Rail, Outer LH
61041-36020 note Retainer, Roof Side Rail, Outer LH
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
61041-36020 note Retainer, Roof Side Rail, Outer LH
1995-05 → 1999-07 ended
HZB50 SCO;BB4#,5#,RZB50 CBU;HZB50,RZB40 (DX,STD) +1 —
61249-36010 Retainer, Roof Side Rail, Outer LH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61041-36020 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2004-08 ended
BB42 RF 0S,26S) ) +29 —
61041-36020 Retainer, Roof Side Rail, Outer LH
2001-08 → 2004-08 ended
BB59,BZB50;BB50 RHD (DX,STD) CBU —
61041-36020 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2002-11 ended
HZB50 ARL —
61041-36020 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 EX (17S,19S,22S) +10 —
61249-36010 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61249-36010 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61249-36010 note Retainer, Roof Side Rail, Outer LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61041-36020 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61041-36020 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61041-36020 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2007-08 ended
BB42 G,TD) RHD WOC;XZB5# +6 —
61041-36020 note Retainer, Roof Side Rail, Outer LH
2007-01 → 2007-08 ended
BB42 RHD WC;HZB50 HRF +1 —
61041-36021 note Retainer, Roof Side Rail, Outer LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61041-36021 note Retainer, Roof Side Rail, Outer LH
2007-08 → 2009-08 ended
XZB50 20S,21S;BB50,HZB50 HRF WC;BB42,BZB40,50,XZB40,59 +1 —
61041-36040 note Retainer, Roof Side Rail, Outer LH
2009-08 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +4 —
61041-36040 note Retainer, Roof Side Rail, Outer LH
2009-08 → 2011-08 ended
BB50 WC;HZB50 HRF GCC —
61249-36010 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61249-36010 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61249-36010 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61249-36010 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61249-36010 note Retainer, Roof Side Rail, Outer LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61041-36040 note Retainer, Roof Side Rail, Outer LH
2015-01 → —
HZB50,TRB50 26S;HZB50 HRF 30S +4 —
61249-36010 Retainer, Roof Side Rail, Outer LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61261D — Pillar, NO.1 Inner, LH
61261-36020 Pillar, NO.1 Inner, LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61261-36030 Pillar, NO.1 Inner, LH
1998-07 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD GEN CBU —
61261-36030 Pillar, NO.1 Inner, LH
1993-01 → 1998-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61261-36050 Pillar, NO.1 Inner, LH
1998-07 → 1999-07 ended
BB42,HZB50,RZB40,50 GCC —
61261-36020 Pillar, NO.1 Inner, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61261-36020 Pillar, NO.1 Inner, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61261-36020 Pillar, NO.1 Inner, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61261-36030 Pillar, NO.1 Inner, LH
1999-07 → 2001-08 ended
BB42,50,RZB40 (19S,22S) GEN —
61261-36030 Pillar, NO.1 Inner, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61261-36030 Pillar, NO.1 Inner, LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB42,50,58,HZB50,RZB40,50 +3 —
61261-36050 Pillar, NO.1 Inner, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
61261-36050 Pillar, NO.1 Inner, LH
1999-07 → 2004-08 ended
BB42,HZB50,RZB40,50 WC GCC —
61261-36020 Pillar, NO.1 Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61261-36020 Pillar, NO.1 Inner, LH
2004-08 → 2012-09 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61261-36020 Pillar, NO.1 Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61261-36020 Pillar, NO.1 Inner, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61261-36021 Pillar, NO.1 Inner, LH
2012-09 → 2013-03 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
61261-36022 Pillar, NO.1 Inner, LH
2013-03 → 2015-01 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
61261-36030 Pillar, NO.1 Inner, LH
2004-08 → 2007-08 ended
RZB40,50 GEN —
61261-36030 Pillar, NO.1 Inner, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61261-36030 Pillar, NO.1 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61261-36030 Pillar, NO.1 Inner, LH
2004-08 → 2012-09 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50,XZB50 +3 —
61261-36031 Pillar, NO.1 Inner, LH
2012-09 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD (GEN,TAIW) —
61261-36050 Pillar, NO.1 Inner, LH
2004-08 → 2007-08 ended
RZB50 GCC;RZB40 SRF GCC —
61261-36050 Pillar, NO.1 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61261-36050 Pillar, NO.1 Inner, LH
2004-08 → 2012-09 ended
BB42,HZB50,TRB40,50 GCC —
61261-36051 Pillar, NO.1 Inner, LH
2012-09 → 2015-01 ended
BB42,HZB50,TRB40,50 GCC —
61261-36022 Pillar, NO.1 Inner, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61261-36031 Pillar, NO.1 Inner, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GEN,TAIW) —
61261-36051 Pillar, NO.1 Inner, LH
2015-01 → —
BB42,HZB50,TRB40,50 GCC —
61278A — Joint, Roof Drip Channel, LH
61277-36010 Joint, Roof Drip Channel, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61277-36010 Joint, Roof Drip Channel, LH
1999-07 → 2001-08 ended
HZB50 RF RHD WOC +11 —
61277-36010 Joint, Roof Drip Channel, LH
2001-04 → 2004-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel, LH
1999-07 → 2004-08 ended
BB42 RF 50,RZB40 0S) +26 —
61277-36010 Joint, Roof Drip Channel, LH
2001-04 → 2001-08 ended
BB50 EX IV —
61277-36010 Joint, Roof Drip Channel, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61298-36010 note Joint, Roof Drip Channel, LH
2001-04 → 2001-08 ended
BB50 EX IV —
61298-36010 note Joint, Roof Drip Channel, LH
2001-04 → 2004-08 ended
BB59 —
61277-36010 note Joint, Roof Drip Channel, LH
2004-08 → 2015-01 ended
XZB59 —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2015-01 ended
XZB59 —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2015-01 ended
BB42 STD RHD;BB42 (DCR,DSL,EFI,LPG,TD) +4 —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2006-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2006-08 ended
BB50 CBU TDEFI;BB58,BZB50 21S,23S —
61277-36010 note Joint, Roof Drip Channel, LH
2004-08 → 2006-08 ended
BB59 —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61277-36010 Joint, Roof Drip Channel, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61298-36010 note Joint, Roof Drip Channel, LH
2004-08 → 2006-08 ended
BB59 —
61298-36010 note Joint, Roof Drip Channel, LH
2004-08 → 2015-01 ended
XZB59 —
61277-36010 Joint, Roof Drip Channel, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 —
61277-36010 Joint, Roof Drip Channel, LH
2015-01 → —
XZB59 —
61277-36010 note Joint, Roof Drip Channel, LH
2015-01 → —
XZB59 —
61298-36010 note Joint, Roof Drip Channel, LH
2015-01 → —
XZB59 —
61282C — Pillar, NO.9 Inner, LH
61282-36060 Pillar, NO.9 Inner, LH
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
61282-36060 Pillar, NO.9 Inner, LH
1997-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU 5F —
61282-36140 Pillar, NO.9 Inner, LH
1997-05 → 1999-07 ended
HZB50 4FC —
61282-36060 Pillar, NO.9 Inner, LH
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 MTM CBU —
61282-36061 Pillar, NO.9 Inner, LH
2000-01 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61282-36061 Pillar, NO.9 Inner, LH
2000-01 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61282-36061 Pillar, NO.9 Inner, LH
2000-01 → 2001-08 ended
HZB50 GEN;BB4#,50,RZB40 RHD (17S,19S,22S) +9 —
61282-36140 Pillar, NO.9 Inner, LH
1999-07 → 2000-01 ended
HZB50 4FC —
61282-36141 Pillar, NO.9 Inner, LH
2000-01 → 2001-08 ended
HZB50 4FC —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61282-36061 Pillar, NO.9 Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61282-36150 Pillar, NO.9 Inner, LH
2015-01 → —
BB42,BZB40,50,TRB40,XZB40,59;HZB50,TRB50,XZB50 20S,21S,30S —
61282-36160 note Pillar, NO.9 Inner, LH
2015-01 → —
TRB40,XZB40 26S;TRB50,XZB50 30S —
61282-36200 note Pillar, NO.9 Inner, LH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50,XZB50 30S WC —
61282-36210 note Pillar, NO.9 Inner, LH
2015-01 → —
TRB40 GCC;TRB50,XZB50 30S WC —
61282-36220 Pillar, NO.9 Inner, LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61282-36230 note Pillar, NO.9 Inner, LH
2015-01 → —
HZB50,TRB50,XZB50 26S —
61283B — Pillar, NO.9 Inner, Lower LH
61283-36010 Pillar, NO.9 Inner, Lower LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61283-36010 Pillar, NO.9 Inner, Lower LH
1999-07 → 2000-01 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61283-36030 Pillar, NO.9 Inner, Lower LH
2000-01 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61283-36030 Pillar, NO.9 Inner, Lower LH
2000-01 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61283-36030 Pillar, NO.9 Inner, Lower LH
2000-01 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61283-36030 Pillar, NO.9 Inner, Lower LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61283-36030 Pillar, NO.9 Inner, Lower LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61284B — Pillar, NO.10 Inner, LH
61284-36010 Pillar, NO.10 Inner, LH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61284-36020 note Pillar, NO.10 Inner, LH
1995-05 → 1997-05 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
61284-36020 note Pillar, NO.10 Inner, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61284-36020 Pillar, NO.10 Inner, LH
1993-01 → 1997-05 ended
HZB50 SCO;BB4# ARL,SCO;HZB50 19S,22S —
61284-36030 note Pillar, NO.10 Inner, LH
1997-05 → 1999-07 ended
BB4#,5#,RZB50 CBU;HZB50,RZB40 DX,STD —
61284-36010 Pillar, NO.10 Inner, LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61284-36010 Pillar, NO.10 Inner, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61284-36010 Pillar, NO.10 Inner, LH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61284-36030 Pillar, NO.10 Inner, LH
2001-08 → 2004-08 ended
BB59,BZB50;BB50 RHD (DX,STD) CBU —
61284-36030 note Pillar, NO.10 Inner, LH
1999-07 → 2004-08 ended
BB42 RF 0S,26S) ) +29 —
61284-36030 note Pillar, NO.10 Inner, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61284-36030 note Pillar, NO.10 Inner, LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 EX (17S,19S,22S) +10 —
61284-36010 Pillar, NO.10 Inner, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61284-36010 Pillar, NO.10 Inner, LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61284-36010 Pillar, NO.10 Inner, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61284-36010 Pillar, NO.10 Inner, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61284-36010 Pillar, NO.10 Inner, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61284-36030 note Pillar, NO.10 Inner, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2015-01 ended
XZB59;BB42 RHD WOC;XZB50 (20S,21S) +5 —
61284-36030 note Pillar, NO.10 Inner, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2011-08 ended
BB50 WC TD —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61284-36030 note Pillar, NO.10 Inner, LH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61284-36010 Pillar, NO.10 Inner, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61284-36030 note Pillar, NO.10 Inner, LH
2015-01 → —
HZB50,TRB50 26S;HZB50 HRF 30S +4 —
61299 — Bracket, NO.9 Inner Pillar Blower
61299-36010 Bracket, NO.9 Inner Pillar Blower
2007-08 → 2008-03 ended
XZB50 STD GEN —
61299-36010 Bracket, NO.9 Inner Pillar Blower
2007-08 → 2009-08 ended
XZB50 WOC CBU —
61299-36010 Bracket, NO.9 Inner Pillar Blower
2007-08 → 2011-08 ended
BB42 LHD HRF —
61299-36010 Bracket, NO.9 Inner Pillar Blower
2007-08 → 2015-01 ended
BB42 9 RHD;BB42 LHD +3 —
61299-36010 Bracket, NO.9 Inner Pillar Blower
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61328A — Rail, NO.6 Upper Outer, LH
61328-36010 Rail, NO.6 Upper Outer, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61317-36010 note Rail, NO.6 Upper Outer, LH
2003-11 → 2004-08 ended
BB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61328-36010 Rail, NO.6 Upper Outer, LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61317-36010 note Rail, NO.6 Upper Outer, LH
2004-08 → 2006-08 ended
BB59 —
61317-36010 note Rail, NO.6 Upper Outer, LH
2004-08 → 2015-01 ended
XZB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61328-36010 Rail, NO.6 Upper Outer, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61317-36010 note Rail, NO.6 Upper Outer, LH
2015-01 → —
XZB59 —
61328-36010 Rail, NO.6 Upper Outer, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61348B — Rail, Rear Side NO.2, LH
61348-36010 Rail, Rear Side NO.2, LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61348-36010 Rail, Rear Side NO.2, LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61348-36010 Rail, Rear Side NO.2, LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61348-36010 Rail, Rear Side NO.2, LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61348-36010 Rail, Rear Side NO.2, LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61348-36010 Rail, Rear Side NO.2, LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61358A — Channel, Roof Drip Side, Center NO.1
61357-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB50,58,BZB50,RZB50 +12 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
BB59,BZB40;BB42 HD WC HRF +13 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
RZB40 CHI —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
HZB50 EN RHD SRF;BB50 +8 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
BB50 EX IV;BB42 RHD +6 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61357-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61366A — Channel, Roof Drip Side, Front LH
61366-36010 Channel, Roof Drip Side, Front LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61366-36010 Channel, Roof Drip Side, Front LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61366-36010 Channel, Roof Drip Side, Front LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61366-36010 Channel, Roof Drip Side, Front LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61366-36010 Channel, Roof Drip Side, Front LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61366-36010 Channel, Roof Drip Side, Front LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61368 — Channel, Roof Drip Side, Center NO.1
61357-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61367-36010 Channel, Roof Drip Side, Center NO.1
1993-01 → 1999-07 ended
BB4#,RZB40 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
HZB50 EN RHD SRF;BB50 +8 —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61357-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB50,58,BZB50,RZB50 +12 —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2002-11 ended
RZB40 CHI —
61367-36010 Channel, Roof Drip Side, Center NO.1
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-08 ended
BB50 CBU TDEFI;BB58,BZB50 21S,23S —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB50 —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61357-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61367-36010 Channel, Roof Drip Side, Center NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
61357-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BZB50,HZB50,TRB50,XZB50 —
61367-36010 Channel, Roof Drip Side, Center NO.1
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61368A — Channel, Roof Drip Side, Rear LH
61368-36010 Channel, Roof Drip Side, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61368-36010 Channel, Roof Drip Side, Rear LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61368-36010 Channel, Roof Drip Side, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61368-36010 Channel, Roof Drip Side, Rear LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61368-36010 Channel, Roof Drip Side, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61368-36010 Channel, Roof Drip Side, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61391A — Packing, Center Body Pillar, NO.1
61391-36020 Packing, Center Body Pillar, NO.1
1993-01 → 1993-02 ended
BB40,HZB50 ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
1993-02 → 1999-07 ended
BB40,HZB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
1993-02 → 1995-05 ended
BB40,HZB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
1995-05 → 1999-07 ended
BB40,HZB50 ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
1999-07 → 2004-08 ended
BB50 ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
1999-07 → 2002-11 ended
HZB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
1999-07 → 2004-08 ended
BB50 ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
2004-08 → 2006-08 ended
BB50 ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61391-36020 note Packing, Center Body Pillar, NO.1
2004-08 → 2015-01 ended
XZB50 WC ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
2004-08 → 2006-08 ended
BB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61391-36030 note Packing, Center Body Pillar, NO.1
2004-08 → 2015-01 ended
XZB50 WC ARL —
61391-36020 note Packing, Center Body Pillar, NO.1
2015-01 → —
XZB50 ARL —
61391-36030 note Packing, Center Body Pillar, NO.1
2015-01 → —
XZB50 ARL —
61398A — Patch, Center Body Pillar, Inner LH
61398-36030 Patch, Center Body Pillar, Inner LH
2004-02 → 2004-08 ended
BB42 RHD WOC —
61398-36030 Patch, Center Body Pillar, Inner LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61398-36030 Patch, Center Body Pillar, Inner LH
2015-01 → —
BB42 RHD —
61421B — Rail, NO.1 Lower Outer, LH
61421-36010 Rail, NO.1 Lower Outer, LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61421-36010 Rail, NO.1 Lower Outer, LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61421-36010 Rail, NO.1 Lower Outer, LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61421-36010 Rail, NO.1 Lower Outer, LH
1999-07 → 2002-11 ended
HZB50 ARL —
61421-36010 Rail, NO.1 Lower Outer, LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61421-36010 Rail, NO.1 Lower Outer, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61421-36010 Rail, NO.1 Lower Outer, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61421-36010 Rail, NO.1 Lower Outer, LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61421-36010 Rail, NO.1 Lower Outer, LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61428B — Rail, NO.8 Lower Outer, LH
61428-36010 Rail, NO.8 Lower Outer, LH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61428-36010 Rail, NO.8 Lower Outer, LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61428-36010 Rail, NO.8 Lower Outer, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61428-36010 Rail, NO.8 Lower Outer, LH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61429-36030 Rail, NO.8 Lower Outer, LH
2003-11 → 2004-08 ended
BB59 —
61428-36010 Rail, NO.8 Lower Outer, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61428-36010 Rail, NO.8 Lower Outer, LH
2004-08 → 2012-06 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61428-36010 Rail, NO.8 Lower Outer, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61428-36010 Rail, NO.8 Lower Outer, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61428-36010 Rail, NO.8 Lower Outer, LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61428-36040 Rail, NO.8 Lower Outer, LH
2012-06 → 2015-01 ended
BB42,50,HZB50,TRB40,50 —
61429-36030 Rail, NO.8 Lower Outer, LH
2004-08 → 2006-08 ended
BB59 —
61429-36030 Rail, NO.8 Lower Outer, LH
2004-08 → 2015-01 ended
XZB59 —
61428-36040 Rail, NO.8 Lower Outer, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61429-36030 Rail, NO.8 Lower Outer, LH
2015-01 → —
XZB59 —
61429A — Rail, NO.9 Lower Outer, LH
61429-36010 Rail, NO.9 Lower Outer, LH
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61429-36010 Rail, NO.9 Lower Outer, LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61429-36010 Rail, NO.9 Lower Outer, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61429-36010 Rail, NO.9 Lower Outer, LH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61429-36010 Rail, NO.9 Lower Outer, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61429-36010 Rail, NO.9 Lower Outer, LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61429-36010 Rail, NO.9 Lower Outer, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61429-36010 Rail, NO.9 Lower Outer, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61429-36010 Rail, NO.9 Lower Outer, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61429-36010 Rail, NO.9 Lower Outer, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61497 — Reinforcement, NO.10 Pillar, Upper LH
61487-36010 Reinforcement, NO.10 Pillar, Upper LH
1997-05 → 1999-07 ended
HZB50 4FC —
61487-36010 Reinforcement, NO.10 Pillar, Upper LH
1999-07 → 2001-08 ended
HZB50 4FC —
61526C — Bracket, Seat Anchor, NO.2 LH
61525-36010 note Bracket, Seat Anchor, NO.2 LH
1997-05 → 1999-07 ended
BB42 CBU GCC,SCO;BB42 LHD +4 —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1997-05 → 1998-08 ended
HZB50 (GCC,GEN) 5F;BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1998-08 → 1999-07 ended
BB42,43,50,HZB50,RZB40,50 (GCC,GEN) CBU 5F —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
1999-07 → 1999-10 ended
BB42,HZB50 RHD STD GEN +1 —
61525-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 2001-08 ended
BB50 EX IV —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU;BB43,HZB50 +2 —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2001-08 → 2004-08 ended
BB42 RHD —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
61525-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 2004-08 ended
BB58,59,BZB40,50;BB50 RHD CBU TDEFI —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2001-08 → 2004-08 ended
BB50 WOC TD;BB50 GEN +1 —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2001-08 → 2002-11 ended
BB50,HZB50 RHD (20S,22S) (EX,STD) +1 —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 1999-10 ended
BB43,50 RHD 5F —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61526-36010 Bracket, Seat Anchor, NO.2 LH
1999-07 → 2004-08 ended
BB42 C;HZB50,RZB40 7S,26S,30S) WC +21 —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
61525-36010 Bracket, Seat Anchor, NO.2 LH
2007-08 → 2015-01 ended
XZB40;XZB50 4FC —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2015-01 ended
XZB59;BZB40,50,HZB50 RHD STD;XZB50 RHD +3 —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2011-08 ended
XZB50 TAIW —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2006-08 ended
BB58,59;BZB50 EX;BB50 RHD CBU —
61525-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61525-36060 note Bracket, Seat Anchor, NO.2 LH
2011-08 → 2015-01 ended
XZB50 TAIW —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61526-36010 note Bracket, Seat Anchor, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61525-36080 note Bracket, Seat Anchor, NO.2 LH
2015-01 → —
HZB50 RHD —
61525-36080 Bracket, Seat Anchor, NO.2 LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61525-36080 note Bracket, Seat Anchor, NO.2 LH
2015-01 → —
TRB40 GCC —
61525-36080 Bracket, Seat Anchor, NO.2 LH
2015-01 → —
BZB40,50,XZB40,59 HRF;HZB50,TRB50,XZB50 20S,21S,26S —
61567A — Gusset, Pillar TO Rail, NO.2 LH
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61567-36010 Gusset, Pillar TO Rail, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61582B — Bracket, Rear Seat, NO.2 LH
61582-36010 Bracket, Rear Seat, NO.2 LH
1993-12 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61582-36010 Bracket, Rear Seat, NO.2 LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61582-36010 Bracket, Rear Seat, NO.2 LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61582-36010 Bracket, Rear Seat, NO.2 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61582-36010 Bracket, Rear Seat, NO.2 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61582-36030 Bracket, Rear Seat, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61594A — Bracket, Stiffener, NO.4 LH
61594-36010 Bracket, Stiffener, NO.4 LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61594-36010 Bracket, Stiffener, NO.4 LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61594-36010 Bracket, Stiffener, NO.4 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61594-36010 Bracket, Stiffener, NO.4 LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61594-36010 Bracket, Stiffener, NO.4 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61594-36010 Bracket, Stiffener, NO.4 LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61596A — Bracket, Computer Set, Lower LH
61596-36010 Bracket, Computer Set, Lower LH
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61596-36010 Bracket, Computer Set, Lower LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61596-36010 Bracket, Computer Set, Lower LH
1999-07 → 2002-11 ended
HZB50 ARL —
61596-36010 Bracket, Computer Set, Lower LH
1999-07 → 2004-06 ended
BB42 D RHD WC +11 —
61596-36011 Bracket, Computer Set, Lower LH
2004-06 → 2004-08 ended
BB42,50,59,BZB40,50,HZB50 RHD (ARL,GEN) —
61596-36011 Bracket, Computer Set, Lower LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61596-36011 Bracket, Computer Set, Lower LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61596-36011 Bracket, Computer Set, Lower LH
2004-08 → 2011-08 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61596-36011 Bracket, Computer Set, Lower LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61614E — Panel, Quarter, Inner LH
61704-12060 Panel, Quarter, Inner LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61704-12060 Panel, Quarter, Inner LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61704-12060 Panel, Quarter, Inner LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61704-12060 Panel, Quarter, Inner LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61704-12060 Panel, Quarter, Inner LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61704-12060 Panel, Quarter, Inner LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61625B — Pillar, NO.10 Outer, Upper LH
61625-36010 Pillar, NO.10 Outer, Upper LH
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
61625-36010 Pillar, NO.10 Outer, Upper LH
1995-05 → 1999-07 ended
HZB50 SCO;BB4#,5#,RZB50 CBU;HZB50,RZB40 (DX,STD) +1 —
61625-36010 Pillar, NO.10 Outer, Upper LH
1999-07 → 2002-11 ended
HZB50 ARL —
61625-36010 Pillar, NO.10 Outer, Upper LH
1999-07 → 2004-08 ended
BB42 RF ARL,GEN);BB58,59,BZB40,50,RZB50 FI) +26 —
61625-36010 Pillar, NO.10 Outer, Upper LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 EX (17S,19S,22S) +10 —
61625-36010 Pillar, NO.10 Outer, Upper LH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
61625-36010 Pillar, NO.10 Outer, Upper LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61625-36010 Pillar, NO.10 Outer, Upper LH
2004-08 → 2007-08 ended
BB42 G,TD) RHD WOC;XZB5# +6 —
61625-36010 Pillar, NO.10 Outer, Upper LH
2007-01 → 2007-08 ended
BB42 RHD WC;HZB50 HRF +1 —
61625-36011 Pillar, NO.10 Outer, Upper LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61625-36011 Pillar, NO.10 Outer, Upper LH
2007-08 → 2009-08 ended
XZB50 20S,21S;BB50,HZB50 HRF WC;BB42,BZB40,50,XZB40,59 +1 —
61625-36030 Pillar, NO.10 Outer, Upper LH
2009-08 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +4 —
61625-36030 Pillar, NO.10 Outer, Upper LH
2009-08 → 2011-08 ended
BB50 WC;HZB50 HRF GCC —
61625-36030 Pillar, NO.10 Outer, Upper LH
2015-01 → —
HZB50,TRB50 26S;HZB50 HRF 30S +4 —
61632K — Panel, Rear Wheel House, Outer LH
61632-36010 Panel, Rear Wheel House, Outer LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61632-36010 Panel, Rear Wheel House, Outer LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61632-36010 Panel, Rear Wheel House, Outer LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61632-36010 Panel, Rear Wheel House, Outer LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61632-36010 Panel, Rear Wheel House, Outer LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61632-36010 Panel, Rear Wheel House, Outer LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61633B — Panel, Wheel House
61633-36010 Panel, Wheel House
1993-01 → 1997-05 ended
BB4#,HZB50,RZB40,50 CBU —
61633-36011 Panel, Wheel House
1999-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61633-36011 Panel, Wheel House
1997-05 → 1999-01 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61633-36020 Panel, Wheel House
1999-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61633-36011 Panel, Wheel House
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61633-36011 Panel, Wheel House
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61633-36011 Panel, Wheel House
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61633-36011 Panel, Wheel House
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61633-36011 Panel, Wheel House
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61633-36011 Panel, Wheel House
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61633-36011 Panel, Wheel House
2004-08 → 2008-03 ended
XZB50 STD GEN —
61633-36011 Panel, Wheel House
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61633-36011 Panel, Wheel House
2004-08 → 2011-08 ended
BB42 LHD HRF —
61633-36011 Panel, Wheel House
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61633-36011 Panel, Wheel House
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61661E — Gusset, Pillar Shear, NO.1 LH
61661-36010 Gusset, Pillar Shear, NO.1 LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61661-36020 Gusset, Pillar Shear, NO.1 LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61661-36010 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61661-36010 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61661-36010 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61661-36020 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61661-36020 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61661-36020 Gusset, Pillar Shear, NO.1 LH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
51032-36021 Gusset, Pillar Shear, NO.1 LH
2009-08 → 2015-01 ended
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
51032-36021 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2009-07 ended
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
51032-36030 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
51032-36030 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2015-01 ended
BZB40,50,XZB40,59;XZB50 RHD (20S,21S) WC —
51032-36030 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
61661-36010 Gusset, Pillar Shear, NO.1 LH
2004-08 → 2007-08 ended
XZB5# ARL,GEN;BB42,BZB40,50,HZB50 RHD STD —
61661-36010 Gusset, Pillar Shear, NO.1 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61661-36020 Gusset, Pillar Shear, NO.1 LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61661-36020 Gusset, Pillar Shear, NO.1 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61661-36020 Gusset, Pillar Shear, NO.1 LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50,XZB50 +3 —
61661-36041 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2009-07 ended
BB42,50,HZB50,TRB40,50 LHD GEN —
61661-36041 Gusset, Pillar Shear, NO.1 LH
2009-08 → 2011-08 ended
BB42 LHD HRF —
61661-36041 Gusset, Pillar Shear, NO.1 LH
2009-08 → 2015-01 ended
BB42 LHD SRF GEN;BB50,HZB50,TRB40,50 +2 —
61661-36050 Gusset, Pillar Shear, NO.1 LH
2007-08 → 2011-08 ended
BB42,HZB50 RHD —
51032-36021 Gusset, Pillar Shear, NO.1 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB50 GCC,TAIW —
61661-36041 Gusset, Pillar Shear, NO.1 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
61661-36050 Gusset, Pillar Shear, NO.1 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61688C — Bracket, Mudguard, Rear LH
61688-36010 Bracket, Mudguard, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61688-36010 Bracket, Mudguard, Rear LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61688-36010 Bracket, Mudguard, Rear LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61688-36010 Bracket, Mudguard, Rear LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61688-36010 Bracket, Mudguard, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61688-36010 Bracket, Mudguard, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
61723C — Bracket, Switch Relay
61723-36010 Bracket, Switch Relay
1993-01 → 1996-10 ended
BB4#,HZB50 RHD DSL —
61772 — Patch, Back Door Opening, Upper LH
61772-36020 Patch, Back Door Opening, Upper LH
2004-02 → 2004-08 ended
BB42 RHD WOC —
61772-36020 Patch, Back Door Opening, Upper LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61772-36020 Patch, Back Door Opening, Upper LH
2015-01 → —
BB42 RHD —
61774A — Patch, Back Door Opening, Lower LH
61774-36030 Patch, Back Door Opening, Lower LH
2004-02 → 2004-08 ended
BB42 RHD WOC —
61774-36030 Patch, Back Door Opening, Lower LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
61774-36030 Patch, Back Door Opening, Lower LH
2015-01 → —
BB42 RHD —
61823B — Plate, Dust Proof, NO.1 LH
61823-36010 Plate, Dust Proof, NO.1 LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61823-36020 Plate, Dust Proof, NO.1 LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61823-36010 Plate, Dust Proof, NO.1 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61823-36010 Plate, Dust Proof, NO.1 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61823-36010 Plate, Dust Proof, NO.1 LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61823-36020 Plate, Dust Proof, NO.1 LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61823-36020 Plate, Dust Proof, NO.1 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61823-36020 Plate, Dust Proof, NO.1 LH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61823-36010 Plate, Dust Proof, NO.1 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61823-36010 Plate, Dust Proof, NO.1 LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61823-36010 Plate, Dust Proof, NO.1 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61823-36010 Plate, Dust Proof, NO.1 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61823-36020 Plate, Dust Proof, NO.1 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61823-36020 Plate, Dust Proof, NO.1 LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61823-36020 Plate, Dust Proof, NO.1 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61823-36020 Plate, Dust Proof, NO.1 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61823-36020 Plate, Dust Proof, NO.1 LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61823-36010 Plate, Dust Proof, NO.1 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61823-36020 Plate, Dust Proof, NO.1 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61824B — Plate, Dust Ploof, NO.2 LH
61824-36010 Plate, Dust Ploof, NO.2 LH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61824-36010 Plate, Dust Ploof, NO.2 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61824-36010 Plate, Dust Ploof, NO.2 LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61824-36010 Plate, Dust Ploof, NO.2 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61824-36010 Plate, Dust Ploof, NO.2 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61824-36010 Plate, Dust Ploof, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61824-36010 Plate, Dust Ploof, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61824-36010 Plate, Dust Ploof, NO.2 LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61824-36010 Plate, Dust Ploof, NO.2 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61853 — Channel, Quarter Inside Panel Center, RH
61852-36011 Channel, Quarter Inside Panel Center, RH
1994-04 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61853-36010 Channel, Quarter Inside Panel Center, RH
1993-01 → 1994-04 ended
BB42,HZB50,RZB40,50 GCC,GEN —
61852-36011 Channel, Quarter Inside Panel Center, RH
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61852-36011 Channel, Quarter Inside Panel Center, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61852-36011 Channel, Quarter Inside Panel Center, RH
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61852-36011 Channel, Quarter Inside Panel Center, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61852-36011 Channel, Quarter Inside Panel Center, RH
2004-08 → 2012-06 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61852-36011 Channel, Quarter Inside Panel Center, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61852-36011 Channel, Quarter Inside Panel Center, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
61852-36011 Channel, Quarter Inside Panel Center, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61852-36020 Channel, Quarter Inside Panel Center, RH
2012-06 → 2015-01 ended
BB42,50,HZB50,TRB40,50 —
61852-36020 Channel, Quarter Inside Panel Center, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61855 — Bracket, Rear Washer Tank, Upper
61855-36010 Bracket, Rear Washer Tank, Upper
1993-01 → 1999-07 ended
HZB50 (20S,30S) (GCC,GEN);BB42,50,RZB40,50 (17S,22S,26S,30S) +1 —
61855-36010 Bracket, Rear Washer Tank, Upper
1999-07 → 2001-08 ended
HZB50 BB42,HZB50 RHD RHD +10 —
61855-36010 Bracket, Rear Washer Tank, Upper
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61855-36010 Bracket, Rear Washer Tank, Upper
1999-07 → 2004-08 ended
BB42 LHD ,GEN);BB42,50,HZB50 WC +21 —
61855-36010 Bracket, Rear Washer Tank, Upper
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61855-36010 Bracket, Rear Washer Tank, Upper
2004-08 → 2006-08 ended
BB50 GEN 6F —
61855-36010 Bracket, Rear Washer Tank, Upper
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61855-36010 Bracket, Rear Washer Tank, Upper
2004-08 → 2011-08 ended
BB42 LHD HRF —
61855-36010 Bracket, Rear Washer Tank, Upper
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
61855-36010 Bracket, Rear Washer Tank, Upper
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
61888 — Rail, Side Panel Dust Proof, NO.1 LH
61888-36010 Rail, Side Panel Dust Proof, NO.1 LH
1993-01 → 1994-06 ended
BB4#,HZB50 RHD DSL —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
1995-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
1994-06 → 1995-05 ended
BB42,HZB50 RHD (GEN,SCO) —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2002-11 ended
HZB50 ARL —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
61888-36020 Rail, Side Panel Dust Proof, NO.1 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
61888-36030 Rail, Side Panel Dust Proof, NO.1 LH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
61896 — Rail, Side Panel Dust Proof, NO.2 LH
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 CBU —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
1993-01 → 1999-07 ended
BB4#,RZB40 —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2001-08 ended
BB50 22S) EX GEN +10 —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2004-08 ended
HZB50 20S) LHD TDEFI;BB58,59,BZB50,RZB50 +13 —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB50 ARL,CHI —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2002-11 ended
RZB40 CHI —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2001-08 ended
BB42 RHD HRF WOC;BB42,RZB40 +4 —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
1999-07 → 2004-08 ended
BB42 (17S,26S) WC WC;RZB40 +12 —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2015-01 ended
XZB59;XZB50 (20S,21S) WC;BB50,BZB50,HZB50,TRB50 STD +1 —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2007-08 ended
RZB50 —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BZB40,TRB40,XZB40 —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
61896-36030 Rail, Side Panel Dust Proof, NO.2 LH
2015-01 → —
BZB50,HZB50,TRB50,XZB5# —
61896-36040 Rail, Side Panel Dust Proof, NO.2 LH
2015-01 → —
BB42,BZB40,TRB40,XZB40 —
61898A — Rail, Side Panel Dust Proof, NO.3 LH
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61898-36010 Rail, Side Panel Dust Proof, NO.3 LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62429 — Cover, Center Pillar Service Hole
62429-36010 Cover, Center Pillar Service Hole
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62429-36010 Cover, Center Pillar Service Hole
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2011-08 ended
BB42 LHD HRF —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2008-03 ended
XZB50 STD GEN —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62429-36010 Cover, Center Pillar Service Hole
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62429-36010 Cover, Center Pillar Service Hole
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
63182B — Bracket, Signal, Front LH
63182-36010 Bracket, Signal, Front LH
2015-01 → —
BZB40,50,XZB40,5# RHD —
63215E — Channel, Roof Drip, Rear, LH
63215-36010 Channel, Roof Drip, Rear, LH
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
63215-36010 Channel, Roof Drip, Rear, LH
1995-05 → 1999-07 ended
HZB50 SCO;BB4#,5#,RZB50 CBU;HZB50,RZB40 (DX,STD) +1 —
63215-36010 Channel, Roof Drip, Rear, LH
1999-07 → 2001-08 ended
BB50 BB4#,50,HZB50,RZB40 EX (17S,19S,22S) +10 —
63215-36010 Channel, Roof Drip, Rear, LH
1999-07 → 2002-11 ended
HZB50 ARL —
63215-36010 Channel, Roof Drip, Rear, LH
1999-07 → 2004-08 ended
BB42 RF ARL,GEN);BB58,59,BZB40,50,RZB50 FI) +26 —
63215-36010 Channel, Roof Drip, Rear, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2015-01 ended
XZB59;BB42 RHD WOC;XZB50 (20S,21S) +5 —
63215-36010 Channel, Roof Drip, Rear, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2011-08 ended
BB50 WC TD —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2006-02 ended
BB42,RZB40 GCC —
63215-36010 Channel, Roof Drip, Rear, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
63215-36010 Channel, Roof Drip, Rear, LH
2015-01 → —
HZB50,TRB50 26S;HZB50 HRF 30S +4 —
64251B — Bracket, Rear Seatback Stop, LH
64251-36010 Bracket, Rear Seatback Stop, LH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
64251-36010 Bracket, Rear Seatback Stop, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
64251-36010 Bracket, Rear Seatback Stop, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
64251-36010 Bracket, Rear Seatback Stop, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
64251-36010 Bracket, Rear Seatback Stop, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
64251-36010 Bracket, Rear Seatback Stop, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
64251-36010 Bracket, Rear Seatback Stop, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
64251-36010 Bracket, Rear Seatback Stop, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
64251-36020 Bracket, Rear Seatback Stop, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
65416A — Panel, Rear Body, Front LH
65416-36010 Panel, Rear Body, Front LH
1993-01 → 1999-07 ended
BB42,43 RHD —
65416-36020 Panel, Rear Body, Front LH
1993-01 → 1999-07 ended
BB50,HZB50 RHD (GEN,SCO) —
65416-36040 Panel, Rear Body, Front LH
1993-01 → 1995-05 ended
HZB50 ARL —
65416-36070 Panel, Rear Body, Front LH
1993-01 → 1999-07 ended
BB42,RZB40 LHD —
65416-36080 Panel, Rear Body, Front LH
1993-01 → 1999-07 ended
BB5#,HZB50,RZB50 LHD CBU —
65416-36090 Panel, Rear Body, Front LH
1995-05 → 1999-07 ended
BB40 —
65416-36100 Panel, Rear Body, Front LH
1995-05 → 1999-07 ended
HZB50 ARL —
65416-36010 Panel, Rear Body, Front LH
1999-07 → 2001-08 ended
BB43;BB42 RHD HRF WOC —
65416-36010 Panel, Rear Body, Front LH
1999-07 → 2004-08 ended
BB42 RHD WC;BB42 RHD +1 —
65416-36020 Panel, Rear Body, Front LH
1999-07 → 2001-08 ended
BB50 EX GEN;HZB50 RHD +7 —
65416-36020 Panel, Rear Body, Front LH
1999-07 → 2004-08 ended
BB50,59 5F TDEFI;HZB50 RHD +5 —
65416-36070 Panel, Rear Body, Front LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
65416-36070 Panel, Rear Body, Front LH
1999-07 → 2004-08 ended
BB42 WC GCC;RZB40 WOC +7 —
65416-36080 Panel, Rear Body, Front LH
1999-07 → 2001-08 ended
BB5# CBU 6F —
65416-36080 Panel, Rear Body, Front LH
1999-07 → 2004-08 ended
BB50 GEN 6F TDEFI;BB50,HZB50,RZB50 +4 —
65416-36100 Panel, Rear Body, Front LH
1999-07 → 2002-11 ended
HZB50 ARL —
65416-36100 Panel, Rear Body, Front LH
1999-07 → 2004-08 ended
BB50 ARL —
65416-36130 Panel, Rear Body, Front LH
2000-12 → 2002-11 ended
RZB40 CHI —
65416-36140 Panel, Rear Body, Front LH
2000-08 → 2002-11 ended
BB50,RZB50 CHI —
65416-36140 Panel, Rear Body, Front LH
2001-08 → 2004-08 ended
BB58 —
65416-36150 Panel, Rear Body, Front LH
2001-08 → 2004-08 ended
BZB40 —
65416-36160 Panel, Rear Body, Front LH
2002-11 → 2004-08 ended
BZB50 —
65416-36010 Panel, Rear Body, Front LH
2004-08 → 2012-09 ended
XZB40 —
65416-36010 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
BB42 RHD —
65416-36020 Panel, Rear Body, Front LH
2004-08 → 2006-08 ended
BB50,59 5F TDEFI —
65416-36020 Panel, Rear Body, Front LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
65416-36020 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
XZB59;HZB50,XZB50 RHD (20S,30S) —
65416-36070 Panel, Rear Body, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
65416-36070 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
TRB40;BB42 LHD SRF —
65416-36070 Panel, Rear Body, Front LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC —
65416-36070 Panel, Rear Body, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
65416-36080 Panel, Rear Body, Front LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
65416-36080 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD 5F —
65416-36080 Panel, Rear Body, Front LH
2004-08 → 2007-08 ended
RZB50 —
65416-36100 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
XZB50 WC ARL —
65416-36100 Panel, Rear Body, Front LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
65416-36100 Panel, Rear Body, Front LH
2004-08 → 2006-08 ended
BB50 ARL —
65416-36140 Panel, Rear Body, Front LH
2004-08 → 2006-08 ended
BB58 —
65416-36140 Panel, Rear Body, Front LH
2004-08 → 2015-01 ended
XZB50 TAIW —
65416-36150 Panel, Rear Body, Front LH
2004-08 → 2012-09 ended
BZB40 —
65416-36160 Panel, Rear Body, Front LH
2004-08 → 2006-08 ended
BZB50 EX —
65416-36160 Panel, Rear Body, Front LH
2004-08 → 2012-09 ended
BZB50 STD —
65416-36190 Panel, Rear Body, Front LH
2012-09 → 2015-01 ended
XZB40 —
65416-36200 note Panel, Rear Body, Front LH
2012-09 → 2015-01 ended
XZB50 GEN —
65416-36210 Panel, Rear Body, Front LH
2012-09 → 2015-01 ended
BZB40 —
65416-36220 Panel, Rear Body, Front LH
2012-09 → 2015-01 ended
BZB50 —
65416-36270 note Panel, Rear Body, Front LH
2012-09 → 2015-01 ended
XZB59 —
65416-36010 Panel, Rear Body, Front LH
2015-01 → —
BB42 RHD —
65416-36020 Panel, Rear Body, Front LH
2015-01 → —
HZB50 RHD —
65416-36020 note Panel, Rear Body, Front LH
2015-01 → —
XZB5# EX 5F —
65416-36070 Panel, Rear Body, Front LH
2015-01 → —
BB42,TRB40,XZB40 LHD —
65416-36080 Panel, Rear Body, Front LH
2015-01 → —
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
65416-36100 Panel, Rear Body, Front LH
2015-01 → —
XZB50 ARL —
65416-36140 Panel, Rear Body, Front LH
2015-01 → —
XZB50 TAIW —
65416-36190 Panel, Rear Body, Front LH
2015-01 → —
XZB40 17S —
65416-36200 Panel, Rear Body, Front LH
2015-01 → —
XZB50 EX —
65416-36210 Panel, Rear Body, Front LH
2015-01 → —
BZB40 —
65416-36220 Panel, Rear Body, Front LH
2015-01 → —
BZB50 —
65416-36270 Panel, Rear Body, Front LH
2015-01 → —
XZB59 —
65537B — Patch, Side Panel Reinforcement, LH
65537-36010 Patch, Side Panel Reinforcement, LH
2004-02 → 2004-08 ended
BB42 RHD WOC —
65537-36010 Patch, Side Panel Reinforcement, LH
2004-08 → 2015-01 ended
BB42 RHD SRF —
65537-36010 Patch, Side Panel Reinforcement, LH
2015-01 → —
BB42 RHD —
65614B — Panel, Rear Body, Rear LH
65614-36010 Panel, Rear Body, Rear LH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
65614-36010 Panel, Rear Body, Rear LH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
65614-36010 Panel, Rear Body, Rear LH
1999-07 → 2004-08 ended
BB42 RF (ARL,GEN);BB42,50 S,26S) +26 —
65614-36010 Panel, Rear Body, Rear LH
1999-07 → 2002-11 ended
HZB50 ARL —
65614-36050 Panel, Rear Body, Rear LH
2001-08 → 2004-08 ended
BB58 —
65614-36050 Panel, Rear Body, Rear LH
2000-08 → 2002-11 ended
BB50,RZB40,50 CHI —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 CBU TDEFI —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
65614-36010 Panel, Rear Body, Rear LH
2004-08 → 2015-01 ended
BB42 ,50,XZB40 LHD STD +6 —
65614-36050 Panel, Rear Body, Rear LH
2004-08 → 2006-08 ended
BB58 —
65614-36050 Panel, Rear Body, Rear LH
2004-08 → 2015-01 ended
XZB50 TAIW —
65614-36010 Panel, Rear Body, Rear LH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# ARL,GCC,GEN —
65614-36050 Panel, Rear Body, Rear LH
2015-01 → —
XZB50 TAIW —
77689 — Bracket, Fuel Tank Filler Pipe Protector, NO.3
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2006-02 ended
RZB40 HRF GCC —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2008-03 ended
XZB50 STD GEN —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2009-08 ended
XZB50 WOC CBU —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2011-08 ended
BB42 LHD HRF —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
77689-36010 Bracket, Fuel Tank Filler Pipe Protector, NO.3
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
