Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

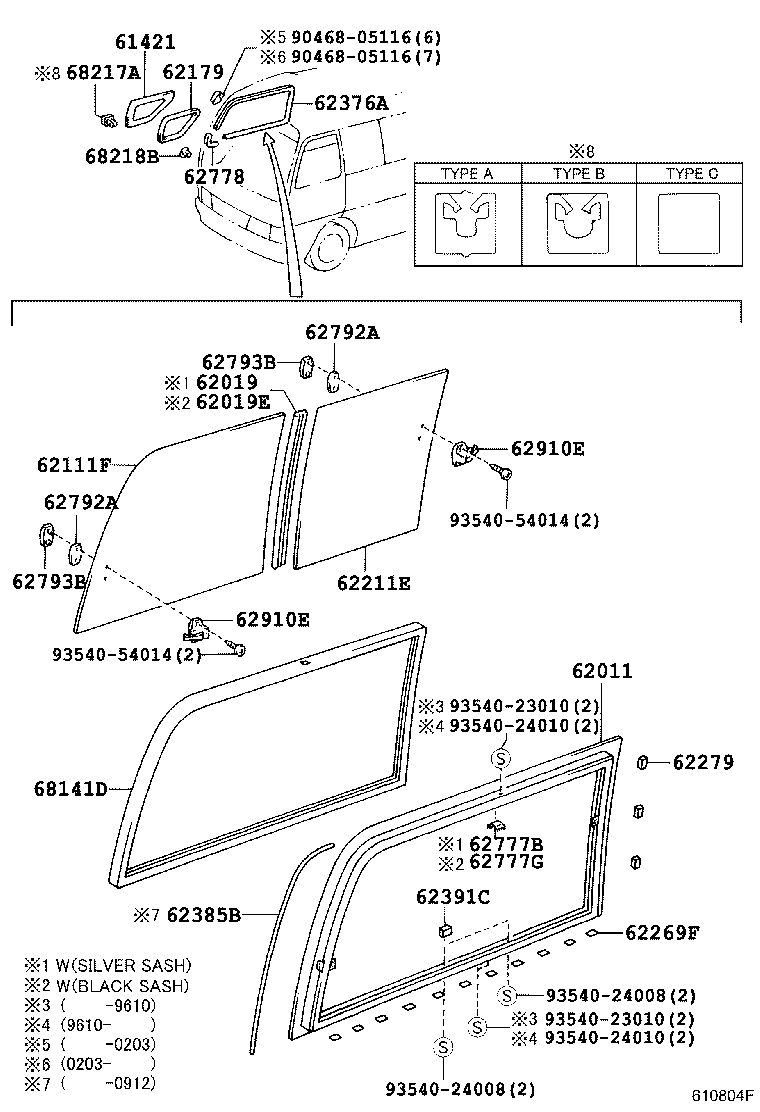

Exploded illustration 610804F 61421 — GLASS, SIDE LOWER WINDOW (21 parts) 68217A — PIN, SIDE WINDOW , NO.1 (38 parts) 68218B — BUSH, SIDE WINDOW (12 parts) 62778 — CAP, SIDE WINDOW FRONT SASH (8 parts) 62179 — DAM, SIDE LOWER WINDOW (12 parts) 9046805116 — not listed in this catalogue 62376A — CLIP, SIDE WINDOW, NO.2 (9 parts) 62792A — PACKING, SIDE WINDOW LOCK, RH (19 parts) 62793B — RETAINER, SIDE WINDOW LOCK, RH (20 parts) 62019 — FRAME SUB-ASSY, SIDE WINDOW, CENTER RH (16 parts) 62019E — FRAME SUB-ASSY, SIDE WINDOW, CENTER RH (11 parts) 62111F — GLASS, FRONT SIDE WINDOW, FRONT RH (22 parts) 62792A — PACKING, SIDE WINDOW LOCK, RH (19 parts) 62793B — RETAINER, SIDE WINDOW LOCK, RH (20 parts) 62910E — LOCK ASSY, SIDE WINDOW (20 parts) 62211E — GLASS, SIDE WINDOW, REAR RH (29 parts) 62910E — LOCK ASSY, SIDE WINDOW (20 parts) 9354054014 — not listed in this catalogue 62011 — FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER RH (29 parts) 9354023010 — not listed in this catalogue 9354054014 — not listed in this catalogue 68141D — RUN, SIDE FRONT WINDOW, RH (25 parts) 62777B — CAP, SIDE WINDOW CENTER SASH (14 parts) 62777G — CAP, SIDE WINDOW CENTER SASH (9 parts) 62279 — SPACER, SIDE WINDOW FRAME, UPPER (14 parts) 62269F — FILM, SIDE WINDOW FRAME (13 parts) 9354024008 — not listed in this catalogue 9354024008 — not listed in this catalogue 9354023010 — not listed in this catalogue 62391C — STOPPER, SIDE WINDOW, NO.1 RH (10 parts) 62385B — SEAL, SIDE WINDOW, NO.5 (8 parts) 9354024010 — not listed in this catalogue 9354024010 — not listed in this catalogue 9046805116 — not listed in this catalogue
610804F · 24 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
359 parts on this figure
Part number Description Fitment Price
61421 — Glass, Side Lower Window
62171-36020 note Glass, Side Lower Window
1993-01 → 1997-05 ended
BB4#,HZB50 RHD DSL —
62171-36050 note Glass, Side Lower Window
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
62171-36080 note Glass, Side Lower Window
1997-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
62171-36090 note Glass, Side Lower Window
1997-05 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62171-36080 note Glass, Side Lower Window
1999-07 → 2002-11 ended
HZB50 ARL —
62171-36080 note Glass, Side Lower Window
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
62171-36080 note Glass, Side Lower Window
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
62171-36090 note Glass, Side Lower Window
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
62171-36090 note Glass, Side Lower Window
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
62171-36090 note Glass, Side Lower Window
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
62171-36080 note Glass, Side Lower Window
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62171-36080 note Glass, Side Lower Window
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62171-36080 note Glass, Side Lower Window
2004-08 → 2008-03 ended
XZB50 STD GEN —
62171-36080 note Glass, Side Lower Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62171-36090 note Glass, Side Lower Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
62171-36090 note Glass, Side Lower Window
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62171-36090 note Glass, Side Lower Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62171-36090 note Glass, Side Lower Window
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62171-36090 note Glass, Side Lower Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62171-36080 note Glass, Side Lower Window
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62171-36090 note Glass, Side Lower Window
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62011 — Frame Sub-assy, Front Side Window, Outer RH
62011-36010 Frame Sub-assy, Front Side Window, Outer RH
1993-01 → 1994-10 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62011-36011 Frame Sub-assy, Front Side Window, Outer RH
1994-10 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
1995-11 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
62011-36020 Frame Sub-assy, Front Side Window, Outer RH
1993-01 → 1994-10 ended
HZB50,RZB40 LHD EX —
62011-36021 note Frame Sub-assy, Front Side Window, Outer RH
1994-10 → 1995-11 ended
HZB50,RZB40 LHD EX —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
1995-11 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62011-36030 note Frame Sub-assy, Front Side Window, Outer RH
1995-05 → 1995-11 ended
RZB40 EX —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
1995-11 → 1999-07 ended
RZB40 EX —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) (DSL,EFI,TDEFI) —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
2001-08 → 2002-11 ended
RZB40 CHI —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
2000-08 → 2002-11 ended
BB50,RZB50 STD CHI —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2002-11 ended
BB50 EX CHI —
62011-36022 note Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2001-08 ended
BB50 CBU 6F —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
1999-07 → 2004-08 ended
RZB40 EX —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2006-08 ended
BB58 —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62011-36022 Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
2004-08 → 2011-08 ended
BB50 WC TD —
62011-36012 Frame Sub-assy, Front Side Window, Outer RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62011-36031 note Frame Sub-assy, Front Side Window, Outer RH
2015-01 → —
TRB50 HRF GCC —
62019 — Frame Sub-assy, Side Window, Center RH
62019-36010 Frame Sub-assy, Side Window, Center RH
1993-01 → 1994-10 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62019-36030 Frame Sub-assy, Side Window, Center RH
1994-10 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62019-36030 Frame Sub-assy, Side Window, Center RH
1995-05 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62019-36031 Frame Sub-assy, Side Window, Center RH
1995-11 → 1998-01 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62019-36032 Frame Sub-assy, Side Window, Center RH
1998-01 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62019-36033 Frame Sub-assy, Side Window, Center RH
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62019-36033 Frame Sub-assy, Side Window, Center RH
1999-07 → 2000-05 ended
BB42,5#,HZB50,RZB40,50 LHD (17S,22S,23S,26S,30S) —
62019-36034 Frame Sub-assy, Side Window, Center RH
2000-05 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
62019-36034 Frame Sub-assy, Side Window, Center RH
2000-05 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62019-36034 Frame Sub-assy, Side Window, Center RH
2000-05 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62019-36034 Frame Sub-assy, Side Window, Center RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62019-36034 Frame Sub-assy, Side Window, Center RH
2004-08 → 2006-08 ended
BB58 —
62019-36034 Frame Sub-assy, Side Window, Center RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62019-36034 Frame Sub-assy, Side Window, Center RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62019-36034 Frame Sub-assy, Side Window, Center RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62019-36034 Frame Sub-assy, Side Window, Center RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62019E — Frame Sub-assy, Side Window, Center RH
62019-36020 Frame Sub-assy, Side Window, Center RH
1993-01 → 1994-10 ended
HZB50,RZB40 LHD EX —
62019-36040 Frame Sub-assy, Side Window, Center RH
1994-10 → 1995-11 ended
HZB50,RZB40 LHD EX —
62019-36041 Frame Sub-assy, Side Window, Center RH
1995-11 → 1998-01 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62019-36042 Frame Sub-assy, Side Window, Center RH
1998-01 → 1999-02 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62019-36043 Frame Sub-assy, Side Window, Center RH
1999-02 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62019-36043 Frame Sub-assy, Side Window, Center RH
1999-07 → 2000-05 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
62019-36044 Frame Sub-assy, Side Window, Center RH
2000-05 → 2001-08 ended
BB50 CBU 6F —
62019-36044 Frame Sub-assy, Side Window, Center RH
2000-05 → 2002-11 ended
BB50,RZB50 CHI —
62019-36044 Frame Sub-assy, Side Window, Center RH
2001-08 → 2002-11 ended
RZB40 CHI —
62019-36044 Frame Sub-assy, Side Window, Center RH
2000-05 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) (DSL,EFI,TDEFI) —
62019-36044 Frame Sub-assy, Side Window, Center RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62111F — Glass, Front Side Window, Front RH
62111-36010 note Glass, Front Side Window, Front RH
1993-01 → 1995-11 ended
RZB50 SRF GEN;HZB50 30S +5 —
62111-36011 note Glass, Front Side Window, Front RH
1995-11 → 1997-05 ended
RZB50 SRF GEN;HZB50 30S +5 —
62111-36020 note Glass, Front Side Window, Front RH
1993-08 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
62111-36020 note Glass, Front Side Window, Front RH
1993-01 → 1993-08 ended
BB42 WOC GCC;HZB50 GCC +5 —
62111-36020 note Glass, Front Side Window, Front RH
1995-05 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62111-36021 note Glass, Front Side Window, Front RH
1995-11 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62111-36030 note Glass, Front Side Window, Front RH
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
62111-36031 note Glass, Front Side Window, Front RH
1995-11 → 1997-05 ended
HZB50,RZB40 LHD EX —
62111-36050 note Glass, Front Side Window, Front RH
1997-05 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62111-36060 note Glass, Front Side Window, Front RH
1997-05 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62111-36050 note Glass, Front Side Window, Front RH
2001-08 → 2004-08 ended
HZB50 EX —
62111-36050 note Glass, Front Side Window, Front RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
62111-36050 note Glass, Front Side Window, Front RH
2001-08 → 2002-11 ended
BB50 EX TD —
62111-36050 note Glass, Front Side Window, Front RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62111-36050 note Glass, Front Side Window, Front RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62111-36060 note Glass, Front Side Window, Front RH
1999-07 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62111-36050 note Glass, Front Side Window, Front RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62111-36050 note Glass, Front Side Window, Front RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62111-36050 note Glass, Front Side Window, Front RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62111-36050 note Glass, Front Side Window, Front RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62111-36050 note Glass, Front Side Window, Front RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62111-36050 Glass, Front Side Window, Front RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62179 — Dam, Side Lower Window
62179-36010 Dam, Side Lower Window
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62179-36010 Dam, Side Lower Window
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62179-36010 Dam, Side Lower Window
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62179-36010 Dam, Side Lower Window
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62179-36010 Dam, Side Lower Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62179-36010 Dam, Side Lower Window
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62179-36010 Dam, Side Lower Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62179-36010 Dam, Side Lower Window
2004-08 → 2008-03 ended
XZB50 STD GEN —
62179-36010 Dam, Side Lower Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62179-36010 Dam, Side Lower Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
62179-36010 Dam, Side Lower Window
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62179-36010 Dam, Side Lower Window
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62211E — Glass, Side Window, Rear RH
62221-36010 note Glass, Side Window, Rear RH
1993-01 → 1997-05 ended
RZB50 SRF GEN;HZB50 30S +5 —
62221-36020 note Glass, Side Window, Rear RH
1993-08 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62221-36020 note Glass, Side Window, Rear RH
1993-01 → 1993-08 ended
BB42 WOC GCC;HZB50 GCC +6 —
62221-36070 note Glass, Side Window, Rear RH
1997-05 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD —
62711-36010 note Glass, Side Window, Rear RH
1993-01 → 1995-05 ended
HZB50,RZB40 LHD EX —
62711-36010 note Glass, Side Window, Rear RH
1995-05 → 1997-05 ended
RZB40 EX —
62711-36030 note Glass, Side Window, Rear RH
1993-01 → 1997-05 ended
HZB50,RZB40 LHD EX —
62711-36070 note Glass, Side Window, Rear RH
1997-05 → 1999-07 ended
RZB40 EX —
62711-36080 note Glass, Side Window, Rear RH
1997-05 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62221-36070 note Glass, Side Window, Rear RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62221-36070 note Glass, Side Window, Rear RH
1999-07 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
62221-36070 note Glass, Side Window, Rear RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62711-36070 note Glass, Side Window, Rear RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62711-36070 note Glass, Side Window, Rear RH
1999-07 → 2004-08 ended
RZB40 EX —
62711-36070 note Glass, Side Window, Rear RH
2001-08 → 2004-08 ended
BB50 WC GEN TD —
62711-36080 note Glass, Side Window, Rear RH
1999-07 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62711-36090 note Glass, Side Window, Rear RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
62711-36090 note Glass, Side Window, Rear RH
2001-08 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) (GCC,GEN) —
62221-36070 note Glass, Side Window, Rear RH
2006-08 → 2015-01 ended
TRB40,50,XZB50 LHD CBU —
62221-36070 note Glass, Side Window, Rear RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50 LHD +1 —
62221-36070 note Glass, Side Window, Rear RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62221-36070 note Glass, Side Window, Rear RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62221-36070 note Glass, Side Window, Rear RH
2004-08 → 2006-08 ended
BB58 —
62221-36070 note Glass, Side Window, Rear RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62711-36070 note Glass, Side Window, Rear RH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
62711-36070 note Glass, Side Window, Rear RH
2004-08 → 2011-08 ended
BB50 WC TD —
62711-36090 note Glass, Side Window, Rear RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62221-36070 note Glass, Side Window, Rear RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62711-36070 note Glass, Side Window, Rear RH
2015-01 → —
TRB50 HRF GCC —
62269F — Film, Side Window Frame
62269-90K01 Film, Side Window Frame
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62269-90K01 Film, Side Window Frame
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62269-90K01 Film, Side Window Frame
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62269-90K01 Film, Side Window Frame
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62269-90K01 Film, Side Window Frame
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62269-90K01 Film, Side Window Frame
2009-10 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5# +1 —
62269-90K01 Film, Side Window Frame
2009-10 → 2011-08 ended
BB42 LHD HRF —
62269-90K01 Film, Side Window Frame
2004-08 → 2009-10 ended
XZB59;XZB50 I,LPG,TD) (20S,21S) WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40 +2 —
62269-90K01 Film, Side Window Frame
2004-08 → 2008-03 ended
XZB50 STD GEN —
62269-90K01 Film, Side Window Frame
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62269-90K01 Film, Side Window Frame
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62269-90K01 Film, Side Window Frame
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62269-90K01 Film, Side Window Frame
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62279 — Spacer, Side Window Frame, Upper
62279-36010 Spacer, Side Window Frame, Upper
1993-01 → 1995-10 ended
BB4#,HZB50,RZB40,50 CBU —
62279-36010 Spacer, Side Window Frame, Upper
1995-10 → 1999-02 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62279-36030 Spacer, Side Window Frame, Upper
1999-02 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62279-36030 Spacer, Side Window Frame, Upper
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62279-36030 Spacer, Side Window Frame, Upper
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62279-36030 Spacer, Side Window Frame, Upper
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2008-03 ended
XZB50 STD GEN —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2011-08 ended
BB42 LHD HRF —
62279-36030 Spacer, Side Window Frame, Upper
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62279-36030 Spacer, Side Window Frame, Upper
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62376A — Clip, Side Window, NO.2
62376-36010-A0 note Clip, Side Window, NO.2
1993-09 → 1995-05 ended
BB42,HZB50 SCO —
62376-36010-A0 note Clip, Side Window, NO.2
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
62376-36010-A1 note Clip, Side Window, NO.2
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62376-36010-A1 note Clip, Side Window, NO.2
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
62376-36010-B0 note Clip, Side Window, NO.2
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62376-36010-B0 note Clip, Side Window, NO.2
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
62376-36010-B0 note Clip, Side Window, NO.2
2004-08 → 2015-01 ended
BB50,59,BZB50,XZB5# EX —
62376-36010-B0 note Clip, Side Window, NO.2
2004-08 → 2015-01 ended
BB42,50,58,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,50 (DX,STD) CBU —
62376-36010-B0 note Clip, Side Window, NO.2
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62385B — Seal, Side Window, NO.5
62385-36020 Seal, Side Window, NO.5
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 EX —
62385-36020 Seal, Side Window, NO.5
1999-07 → 2004-08 ended
HZB50 LHD EX;BB59,BZB50,RZB40 EX;BB50 +2 —
62385-36020 Seal, Side Window, NO.5
2001-08 → 2002-11 ended
HZB50,RZB40 ARL,CHI —
62385-36020 Seal, Side Window, NO.5
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 RHD +1 —
62385-36020 Seal, Side Window, NO.5
1999-07 → 2002-11 ended
BB50,RZB50 CHI —
62385-36020 Seal, Side Window, NO.5
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 19S,20S,21S —
62385-36020 Seal, Side Window, NO.5
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62385-36020 Seal, Side Window, NO.5
2004-08 → 2009-12 ended
XZB59;XZB50 RHD (20S,21S) WC —
62391C — Stopper, Side Window, NO.1 RH
62391-36010 Stopper, Side Window, NO.1 RH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62391-36010 Stopper, Side Window, NO.1 RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
62391-36010 Stopper, Side Window, NO.1 RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
62391-36010 Stopper, Side Window, NO.1 RH
1999-07 → 2004-08 ended
BB42 6S) WC GEN +12 —
62391-36010 Stopper, Side Window, NO.1 RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62391-36010 Stopper, Side Window, NO.1 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62391-36010 Stopper, Side Window, NO.1 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62391-36010 Stopper, Side Window, NO.1 RH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62391-36010 Stopper, Side Window, NO.1 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62391-36010 Stopper, Side Window, NO.1 RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62777B — Cap, Side Window Center Sash
62777-36010 Cap, Side Window Center Sash
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62777-36010 Cap, Side Window Center Sash
1995-05 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62777-36020 Cap, Side Window Center Sash
1995-11 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62777-36021 Cap, Side Window Center Sash
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62777-36021 Cap, Side Window Center Sash
1999-07 → 2000-05 ended
BB42,5#,HZB50,RZB40,50 LHD (17S,22S,23S,26S,30S) —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2006-08 ended
BB58 —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2011-08 ended
BB42 LHD HRF —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62777-36050 Cap, Side Window Center Sash
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62777G — Cap, Side Window Center Sash
62777-36010 Cap, Side Window Center Sash
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
62777-36020 Cap, Side Window Center Sash
1995-11 → 1999-02 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62777-36021 Cap, Side Window Center Sash
1999-02 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62777-36021 Cap, Side Window Center Sash
1999-07 → 2000-05 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2001-08 ended
BB50 CBU 6F —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2002-11 ended
BB50,RZB50 CHI —
62777-36050 Cap, Side Window Center Sash
2001-08 → 2002-11 ended
RZB40 CHI —
62777-36050 Cap, Side Window Center Sash
2000-05 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) (DSL,EFI,TDEFI) —
62777-36050 Cap, Side Window Center Sash
2004-08 → 2006-08 ended
BB50 GEN 6F —
62778 — Cap, Side Window Front Sash
62778-36010-A0 note Cap, Side Window Front Sash
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
62778-36010-A0 note Cap, Side Window Front Sash
1993-09 → 1995-05 ended
BB42,HZB50 SCO —
62778-36010-A1 note Cap, Side Window Front Sash
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62778-36010-A1 note Cap, Side Window Front Sash
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
62778-36010-B0 note Cap, Side Window Front Sash
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62778-36010-B0 note Cap, Side Window Front Sash
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
62778-36010-B0 note Cap, Side Window Front Sash
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
62778-36010-B0 note Cap, Side Window Front Sash
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62792A — Packing, Side Window Lock, RH
62792-95A00 Packing, Side Window Lock, RH
1995-11 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62792-95A00 Packing, Side Window Lock, RH
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
62792-95A00 Packing, Side Window Lock, RH
1993-01 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62792-95A00 note Packing, Side Window Lock, RH
1999-07 → 2001-08 ended
BB50 CBU 6F —
62792-95A00 Packing, Side Window Lock, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62792-95A00 note Packing, Side Window Lock, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
62792-95A00 Packing, Side Window Lock, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
62792-95A00 note Packing, Side Window Lock, RH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
62792-95A00 Packing, Side Window Lock, RH
1999-07 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
62792-95A00 Packing, Side Window Lock, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62792-95A00 note Packing, Side Window Lock, RH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
62792-95A00 Packing, Side Window Lock, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62792-95A00 note Packing, Side Window Lock, RH
2004-08 → 2011-08 ended
BB50 WC TD —
62792-95A00 Packing, Side Window Lock, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62792-95A00 Packing, Side Window Lock, RH
2004-08 → 2006-08 ended
BB58 —
62792-95A00 note Packing, Side Window Lock, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62792-95A00 Packing, Side Window Lock, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62792-95A00 note Packing, Side Window Lock, RH
2015-01 → —
TRB50 HRF GCC —
62792-95A00 Packing, Side Window Lock, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62793B — Retainer, Side Window Lock, RH
62793-95J00 Retainer, Side Window Lock, RH
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
62793-95J00 Retainer, Side Window Lock, RH
1993-01 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62793-95J00 Retainer, Side Window Lock, RH
1995-11 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62793-95J00 Retainer, Side Window Lock, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
62793-95J00 note Retainer, Side Window Lock, RH
2001-08 → 2004-08 ended
HZB50 EX —
62793-95J00 Retainer, Side Window Lock, RH
2001-08 → 2004-08 ended
BB50 GEN 6F —
62793-95J00 Retainer, Side Window Lock, RH
1999-07 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
62793-95J00 note Retainer, Side Window Lock, RH
2000-12 → 2001-08 ended
RZB40,50 CHI —
62793-95J00 Retainer, Side Window Lock, RH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
62793-95J00 note Retainer, Side Window Lock, RH
2001-08 → 2002-11 ended
BB50 EX TD;RZB40,50 CHI —
62793-95J00 note Retainer, Side Window Lock, RH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
62793-95J00 Retainer, Side Window Lock, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62793-95J00 Retainer, Side Window Lock, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62793-95J00 note Retainer, Side Window Lock, RH
2004-08 → 2011-08 ended
BB50 WC TD —
62793-95J00 Retainer, Side Window Lock, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62793-95J00 Retainer, Side Window Lock, RH
2004-08 → 2006-08 ended
BB58 —
62793-95J00 note Retainer, Side Window Lock, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62793-95J00 Retainer, Side Window Lock, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62793-95J00 note Retainer, Side Window Lock, RH
2015-01 → —
TRB50 HRF GCC —
62793-95J00 Retainer, Side Window Lock, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62910E — Lock Assy, Side Window
62910-95702 Lock Assy, Side Window
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
62910-95702 Lock Assy, Side Window
1993-01 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
62910-95702 Lock Assy, Side Window
1995-11 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62910-95702 note Lock Assy, Side Window
2001-08 → 2004-08 ended
HZB50 EX —
62910-95702 Lock Assy, Side Window
2001-08 → 2004-08 ended
BB50 GEN 6F —
62910-95702 Lock Assy, Side Window
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
62910-95702 Lock Assy, Side Window
1999-07 → 2004-08 ended
BB42 BB50,58,HZB50,RZB50 WC LHD +11 —
62910-95702 note Lock Assy, Side Window
2000-12 → 2001-08 ended
RZB40,50 CHI —
62910-95702 note Lock Assy, Side Window
2001-08 → 2002-11 ended
BB50 EX TD;RZB40,50 CHI —
62910-95702 Lock Assy, Side Window
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
62910-95702 Lock Assy, Side Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62910-95702 note Lock Assy, Side Window
2004-08 → 2006-08 ended
BB50 GEN 6F —
62910-95702 Lock Assy, Side Window
2004-08 → 2006-08 ended
BB58 —
62910-95702 Lock Assy, Side Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62910-95702 note Lock Assy, Side Window
2004-08 → 2011-08 ended
BB50 WC TD —
62910-95702 Lock Assy, Side Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
62910-95702 Lock Assy, Side Window
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62910-95702 note Lock Assy, Side Window
2011-08 → 2015-01 ended
TRB50 HRF GCC —
62910-95702 note Lock Assy, Side Window
2015-01 → —
TRB50 HRF GCC —
62910-95702 Lock Assy, Side Window
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
68141D — Run, Side Front Window, RH
68141-36010 Run, Side Front Window, RH
1993-01 → 1995-11 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
68141-36011 Run, Side Front Window, RH
1995-11 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
68141-36012 Run, Side Front Window, RH
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD —
68141-36020 Run, Side Front Window, RH
1993-01 → 1995-11 ended
HZB50,RZB40 LHD EX —
68141-36021 Run, Side Front Window, RH
1995-11 → 1999-02 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
68141-36022 Run, Side Front Window, RH
1999-02 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
68141-36012 Run, Side Front Window, RH
1999-07 → 2000-05 ended
BB42,5#,HZB50,RZB40,50 LHD (22S,23S,26S,30S) —
68141-36022 Run, Side Front Window, RH
1999-07 → 2000-05 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
68141-36030 Run, Side Front Window, RH
2000-05 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
68141-36030 Run, Side Front Window, RH
2000-05 → 2002-11 ended
BB50,RZB40,50 STD CHI —
68141-36030 Run, Side Front Window, RH
2000-05 → 2004-08 ended
BB42 8,HZB50,RZB50 WC LHD +11 —
68141-36040 note Run, Side Front Window, RH
2000-05 → 2001-08 ended
BB50 CBU 6F —
68141-36040 note Run, Side Front Window, RH
2001-08 → 2004-08 ended
BB50 LHD WC GEN —
68141-36040 note Run, Side Front Window, RH
2000-05 → 2002-11 ended
BB50,RZB40,50 CHI —
68141-36040 note Run, Side Front Window, RH
2000-05 → 2004-08 ended
HZB50,RZB40 LHD EX —
68141-36030 Run, Side Front Window, RH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
68141-36030 Run, Side Front Window, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
68141-36030 Run, Side Front Window, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68141-36030 Run, Side Front Window, RH
2004-08 → 2006-08 ended
BB58 —
68141-36030 Run, Side Front Window, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68141-36040 note Run, Side Front Window, RH
2004-08 → 2006-08 ended
BB50 GEN 6F —
68141-36040 note Run, Side Front Window, RH
2004-08 → 2011-08 ended
BB50 WC TD —
68141-36040 note Run, Side Front Window, RH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
68141-36030 Run, Side Front Window, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
68141-36040 note Run, Side Front Window, RH
2015-01 → —
TRB50 HRF GCC —
68217A — Pin, Side Window , NO.1
68217-36010 note Pin, Side Window , NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68217-36020 note Pin, Side Window , NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68217-36030 note Pin, Side Window , NO.1
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68217-36010 note Pin, Side Window , NO.1
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68217-36010 note Pin, Side Window , NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68217-36010 note Pin, Side Window , NO.1
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68217-36020 note Pin, Side Window , NO.1
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68217-36020 note Pin, Side Window , NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68217-36020 note Pin, Side Window , NO.1
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68217-36030 note Pin, Side Window , NO.1
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68217-36030 note Pin, Side Window , NO.1
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68217-36030 note Pin, Side Window , NO.1
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68217-36010 note Pin, Side Window , NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68217-36020 note Pin, Side Window , NO.1
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2015-01 ended
BB42 50,HZB50,TRB40,50,XZB40 WOC;BB42 STD +8 —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
68217-36020 note Pin, Side Window , NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2015-01 ended
BB42 50,HZB50,TRB40,50,XZB40 WOC;BB42 STD +8 —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68217-36030 note Pin, Side Window , NO.1
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
68217-36030 note Pin, Side Window , NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68217-36010 note Pin, Side Window , NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
68217-36020 note Pin, Side Window , NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
68217-36030 note Pin, Side Window , NO.1
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
68218B — Bush, Side Window
68218-36010 Bush, Side Window
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68218-36010 Bush, Side Window
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68218-36010 Bush, Side Window
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68218-36010 Bush, Side Window
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68218-36010 Bush, Side Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68218-36010 Bush, Side Window
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68218-36010 Bush, Side Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68218-36010 Bush, Side Window
2004-08 → 2008-03 ended
XZB50 STD GEN —
68218-36010 Bush, Side Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68218-36010 Bush, Side Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
68218-36010 Bush, Side Window
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
68218-36010 Bush, Side Window
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
