Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

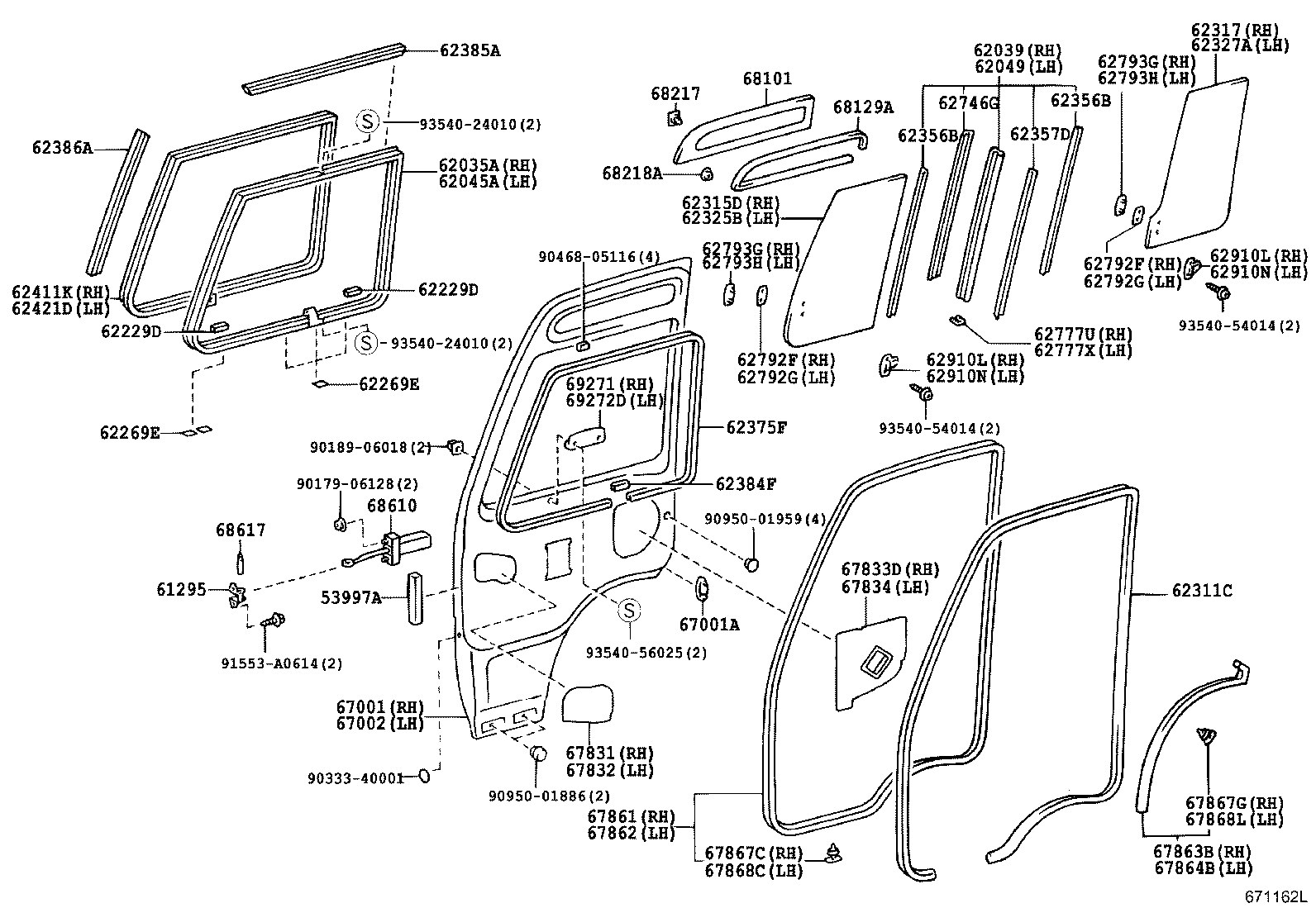

Exploded illustration 671162L 62386A — SEAL, FRONT DOOR WINDOW, NO.2 (8 parts) 62411K — RUN, FRONT DOOR WINDOW, RH (9 parts) 62421D — RUN, FRONT DOOR WINDOW, LH (10 parts) 62229D — PACKING, FRONT DOOR WINDOW (8 parts) 62269E — FILM, FRONT DOOR WINDOW FRAME, RH (12 parts) 62269E — FILM, FRONT DOOR WINDOW FRAME, RH (12 parts) 68617 — PIN, FRONT DOOR CHECK (13 parts) 61295 — BRACKET, FRONT DOOR CHECK ARM (12 parts) 53997A — PACKING, AIR CLEANER INLET (7 parts) 91553A0614 — not listed in this catalogue 62229D — PACKING, FRONT DOOR WINDOW (8 parts) 9354024010 — not listed in this catalogue 9018906018 — not listed in this catalogue 9017906128 — not listed in this catalogue 68610 — CHECK ASSY, FRONT DOOR (14 parts) 9033340001 — not listed in this catalogue 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (58 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (11 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (15 parts) 9354056025 — not listed in this catalogue 67001A — CUSHION, FRONT DOOR PANEL (11 parts) 62384F — CAP,FRONT DOOR WINDOW (8 parts) 9095001959 — not listed in this catalogue 67861 — WEATHERSTRIP, FRONT DOOR, RH (9 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (10 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (13 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (11 parts) 67833D — COVER, FRONT DOOR SERVICE HOLE, NO.2 RH (15 parts) 67863B — WEATHERSTRIP, FRONT DOOR, NO.2 RH (9 parts) 67864B — WEATHERSTRIP, FRONT DOOR, NO.2 LH (10 parts) 67867G — RETAINER, DOOR WEATHERSTRIP, RH (10 parts) 67868L — RETAINER, DOOR WEATHERSTRIP, LH (12 parts) 9354054014 — not listed in this catalogue 62777U — CAP, FRONT DOOR WINDOW CENTER SASH, RH (11 parts) 62777X — CAP, FRONT DOOR WINDOW CENTER SASH, LH (15 parts) 9354054014 — not listed in this catalogue 62375F — CLIP, FRONT DOOR WINDOW (7 parts) 62792F — PACKING, SIDE WINDOW LOCK (10 parts) 62792G — PACKING, SIDE WINDOW LOCK (12 parts) 69272D — HANDLE, FRONT DOOR INSIDE, LH (6 parts) 69271 — HANDLE, FRONT DOOR INSIDE, RH (7 parts) 62385A — SEAL, FRONT DOOR WINDOW, NO.1 (8 parts) 9354024010 — not listed in this catalogue 62035A — FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH (21 parts) 62045A — FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH (20 parts) 9046805116 — not listed in this catalogue 68218A — BUSH, FRONT DOOR FIX WINDOW (9 parts) 68217 — PIN, FRONT DOOR FIX WINDOW (18 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (9 parts) 68129A — DAM, FRONT DOOR FIX WINDOW GLASS ADHESIVE (9 parts) 62315D — GLASS, FRONT DOOR WINDOW, FRONT RH (16 parts) 62325B — GLASS, FRONT DOOR WINDOW, FRONT LH (17 parts) 62910L — LOCK ASSY, SIDE WINDOW (10 parts) 62356B — WEATHERSTRIP, FRONT DOOR WINDOW, CENTER (12 parts) 62746G — PACKING, QUARTER WINDOW (13 parts) 62357D — WEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR (13 parts) 62356B — WEATHERSTRIP, FRONT DOOR WINDOW, CENTER (12 parts) 62792F — PACKING, SIDE WINDOW LOCK (10 parts) 62039 — FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH (21 parts) 62049 — FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH (20 parts) 62793G — RETAINER, SIDE WINDOW LOCK (10 parts) 62793H — RETAINER, SIDE WINDOW LOCK (12 parts) 62327A — GLASS, FRONT DOOR WINDOW, REAR LH (17 parts) 62317 — GLASS, FRONT DOOR WINDOW, REAR RH (16 parts) 62910N — LOCK ASSY, SIDE WINDOW (12 parts) 62910L — LOCK ASSY, SIDE WINDOW (10 parts) 62910N — LOCK ASSY, SIDE WINDOW (12 parts) 62793H — RETAINER, SIDE WINDOW LOCK (12 parts) 62793G — RETAINER, SIDE WINDOW LOCK (10 parts) 62792G — PACKING, SIDE WINDOW LOCK (12 parts) 9095001886 — not listed in this catalogue 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (4 parts) 67834 — COVER, FRONT DOOR SERVICE HOLE, NO.2 LH (4 parts) 62311C — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (6 parts)
671162L · 62 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
660 parts on this figure
Part number Description Fitment Price
53997A — Packing, Air Cleaner Inlet
53997-36010 Packing, Air Cleaner Inlet
1993-01 → 1999-07 ended
BB42 LHD;HZB50 RHD GEN +1 —
53997-36010 Packing, Air Cleaner Inlet
1999-07 → 2001-08 ended
BB42 ) 22S;BB42 GEN +9 —
53997-36010 Packing, Air Cleaner Inlet
1999-07 → 2004-08 ended
BB42 WC GCC;BB42 LHD +8 —
53997-36010 Packing, Air Cleaner Inlet
2004-08 → 2007-08 ended
BB42 GCC —
53997-36010 Packing, Air Cleaner Inlet
2004-08 → 2015-01 ended
HZB50 RHD;BB42 LHD SRF +1 —
53997-36010 Packing, Air Cleaner Inlet
2004-08 → 2011-08 ended
BB42 LHD HRF —
53997-36010 Packing, Air Cleaner Inlet
2015-01 → —
HZB50 RHD;BB42 LHD GEN —
61295 — Bracket, Front Door Check Arm
61295-36010 Bracket, Front Door Check Arm
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
61295-36010 Bracket, Front Door Check Arm
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
61295-36010 Bracket, Front Door Check Arm
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
61295-36010 Bracket, Front Door Check Arm
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2011-08 ended
BB42 LHD HRF —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2009-08 ended
XZB50 WOC CBU —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2008-03 ended
XZB50 STD GEN —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
61295-36010 Bracket, Front Door Check Arm
2004-08 → 2006-02 ended
RZB40 HRF GCC —
61295-36010 Bracket, Front Door Check Arm
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62035A — Frame Sub-assy, Front Door Window, Outer RH
62035-36010 Frame Sub-assy, Front Door Window, Outer RH
1993-01 → 1993-08 ended
BB4#,HZB50 RHD (DX,STD) DSL —
62035-36020 Frame Sub-assy, Front Door Window, Outer RH
1993-01 → 1993-08 ended
HZB50 RHD EX —
62035-36030 Frame Sub-assy, Front Door Window, Outer RH
1993-08 → 1999-02 ended
BB4#,HZB50 RHD (DX,STD) CBU —
62035-36031 Frame Sub-assy, Front Door Window, Outer RH
1999-02 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) —
62035-36040 Frame Sub-assy, Front Door Window, Outer RH
1993-08 → 1999-02 ended
BB50,HZB50 RHD EX —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
1999-02 → 1999-07 ended
BB50,HZB50 RHD EX —
62035-36031 Frame Sub-assy, Front Door Window, Outer RH
1999-07 → 2002-11 ended
HZB50 ARL —
62035-36031 Frame Sub-assy, Front Door Window, Outer RH
1999-07 → 2004-08 ended
BB42 N RHD 5F +9 —
62035-36031 Frame Sub-assy, Front Door Window, Outer RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2001-08 → 2002-11 ended
HZB50 ARL —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2001-08 → 2004-08 ended
BB59,BZB50 EX;BB50 (20S,21S) TDEFI —
62035-36031 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) CBU —
62035-36031 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62035-36031 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62035-36031 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2015-01 ended
XZB50 WC ARL;BB42,BZB40,50,HZB50,XZB40 RHD +1 —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2006-08 ended
BB50 20S,21S;BB59,BZB50 EX —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
62035-36031 note Frame Sub-assy, Front Door Window, Outer RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40 RHD —
62035-36041 note Frame Sub-assy, Front Door Window, Outer RH
2015-01 → —
XZB5# RHD —
62039 — Frame Sub-assy, Front Door Window, Center RH
62039-36010 Frame Sub-assy, Front Door Window, Center RH
1993-01 → 1999-02 ended
BB4#,HZB50 RHD (DX,STD) CBU —
62039-36011 Frame Sub-assy, Front Door Window, Center RH
1999-02 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) —
62039-36020 Frame Sub-assy, Front Door Window, Center RH
1993-01 → 1999-02 ended
BB50,HZB50 RHD EX —
62039-36021 Frame Sub-assy, Front Door Window, Center RH
1999-02 → 1999-07 ended
BB50,HZB50 RHD EX —
62039-36011 Frame Sub-assy, Front Door Window, Center RH
1999-07 → 2000-05 ended
BB4#,HZB50 RHD (DX,STD) —
62039-36012 Frame Sub-assy, Front Door Window, Center RH
2000-05 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
62039-36012 Frame Sub-assy, Front Door Window, Center RH
2000-05 → 2004-08 ended
BB42 N RHD 5F +9 —
62039-36012 Frame Sub-assy, Front Door Window, Center RH
2000-05 → 2002-11 ended
HZB50 ARL —
62039-36021 Frame Sub-assy, Front Door Window, Center RH
1999-07 → 2000-05 ended
BB50,HZB50 RHD EX —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2000-05 → 2001-08 ended
BB50,HZB50 RHD EX —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2001-08 → 2002-11 ended
HZB50 ARL —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2001-08 → 2004-08 ended
BB59,BZB50 EX;BB50 (20S,21S) TDEFI —
62039-36012 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2006-08 ended
BB50 RHD (DX,STD) CBU —
62039-36012 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62039-36012 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62039-36012 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2015-01 ended
XZB50 WC ARL;BB42,BZB40,50,HZB50,XZB40 RHD +1 —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2006-08 ended
BB50 20S,21S;BB59,BZB50 EX —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
62039-36012 note Frame Sub-assy, Front Door Window, Center RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40 RHD —
62039-36022 note Frame Sub-assy, Front Door Window, Center RH
2015-01 → —
XZB5# RHD —
62045A — Frame Sub-assy, Front Door Window, Outer LH
62045-36010 Frame Sub-assy, Front Door Window, Outer LH
1993-01 → 1993-08 ended
BB42,HZB50 LHD STD DSL —
62045-36020 Frame Sub-assy, Front Door Window, Outer LH
1993-01 → 1993-08 ended
HZB50 LHD EX —
62045-36030 Frame Sub-assy, Front Door Window, Outer LH
1993-08 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
62045-36030 note Frame Sub-assy, Front Door Window, Outer LH
1995-05 → 1999-02 ended
RZB40 EX —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62045-36040 note Frame Sub-assy, Front Door Window, Outer LH
1993-08 → 1999-02 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62045-36041 note Frame Sub-assy, Front Door Window, Outer LH
1999-02 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
1999-07 → 2002-11 ended
BB42 WC;BB50,58,HZB50,RZB50 WC LHD +10 —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD (17S,23S,26S,30S) —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62045-36041 note Frame Sub-assy, Front Door Window, Outer LH
1999-07 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62045-36041 note Frame Sub-assy, Front Door Window, Outer LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI;BB50,HZB50,RZB40 LHD (17S,19S,20S) +1 —
62045-36041 note Frame Sub-assy, Front Door Window, Outer LH
2002-11 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2006-08 ended
BB58 —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62045-36041 note Frame Sub-assy, Front Door Window, Outer LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62045-36031 note Frame Sub-assy, Front Door Window, Outer LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62049 — Frame Sub-assy, Front Door Window, Center LH
62049-36010 note Frame Sub-assy, Front Door Window, Center LH
1993-01 → 1999-02 ended
BB42,58,HZB50,RZB40,50 LHD STD CBU —
62049-36010 note Frame Sub-assy, Front Door Window, Center LH
1995-05 → 1999-02 ended
RZB40 EX —
62049-36011 note Frame Sub-assy, Front Door Window, Center LH
1999-02 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62049-36020 note Frame Sub-assy, Front Door Window, Center LH
1993-01 → 1999-02 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62049-36021 note Frame Sub-assy, Front Door Window, Center LH
1999-02 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62049-36011 note Frame Sub-assy, Front Door Window, Center LH
1999-07 → 2000-05 ended
BB42,5#,HZB50,RZB40,50 LHD (17S,22S,23S,26S,30S) —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2000-05 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD (17S,23S,26S,30S) —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2000-05 → 2002-11 ended
BB42 WC;BB50,58,HZB50,RZB50 WC LHD +10 —
62049-36021 note Frame Sub-assy, Front Door Window, Center LH
1999-07 → 2000-05 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
62049-36022 note Frame Sub-assy, Front Door Window, Center LH
2000-05 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62049-36022 note Frame Sub-assy, Front Door Window, Center LH
2002-11 → 2004-08 ended
BB50,HZB50,RZB40 LHD (17S,19S,20S) —
62049-36022 note Frame Sub-assy, Front Door Window, Center LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI;BB50,HZB50,RZB40 LHD (17S,19S,20S) +1 —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2006-08 ended
BB58 —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62049-36022 note Frame Sub-assy, Front Door Window, Center LH
2004-08 → 2006-08 ended
BB50 GEN 6F —
62049-36012 note Frame Sub-assy, Front Door Window, Center LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62229D — Packing, Front Door Window
62229-95J00 Packing, Front Door Window
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 EX —
62229-95J00 Packing, Front Door Window
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,RZB50 STD +2 —
62229-95J00 Packing, Front Door Window
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI;BB50,59 GEN TDEFI;HZB50,RZB40 +2 —
62229-95J00 Packing, Front Door Window
2002-11 → 2004-08 ended
BB50 19S,20S,21S;BB59,BZB50,HZB50,RZB40 EX —
62229-95J00 Packing, Front Door Window
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 19S,20S,21S —
62229-95J00 Packing, Front Door Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62229-95J00 Packing, Front Door Window
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
62229-95J00 Packing, Front Door Window
2015-01 → —
XZB5# RHD —
62269E — Film, Front Door Window Frame, RH
62269-90K01 Film, Front Door Window Frame, RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62269-90K01 Film, Front Door Window Frame, RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62269-90K01 Film, Front Door Window Frame, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62269-90K01 Film, Front Door Window Frame, RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62269-90K01 Film, Front Door Window Frame, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62269-90K01 Film, Front Door Window Frame, RH
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62311C — Weatherstrip, Front Door Opening Trim, RH
62311-36010-A0 note Weatherstrip, Front Door Opening Trim, RH
1997-05 → 1999-07 ended
BB50 CBU —
62311-36010-A0 note Weatherstrip, Front Door Opening Trim, RH
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,HZB50 EX —
62311-36010-B0 note Weatherstrip, Front Door Opening Trim, RH
2001-08 → 2002-11 ended
BB50 EX TD —
62311-36010-B0 note Weatherstrip, Front Door Opening Trim, RH
2001-08 → 2004-08 ended
BB59,BZB50,HZB50 EX;BB50 (19S,20S) TDEFI —
62311-36010-B0 note Weatherstrip, Front Door Opening Trim, RH
2004-08 → 2015-01 ended
BB50 19S,20S;BB59,BZB50,XZB5# EX —
62311-36010-B0 note Weatherstrip, Front Door Opening Trim, RH
2015-01 → 2016-12 ended
XZB5# EX —
62315D — Glass, Front Door Window, Front RH
62315-36010 note Glass, Front Door Window, Front RH
1993-01 → 1997-05 ended
HZB50 RHD SRF;BB4#,HZB50 RHD +1 —
62315-36020 note Glass, Front Door Window, Front RH
1993-01 → 1993-08 ended
BB4# RHD WC;HZB50 RHD +3 —
62315-36020 note Glass, Front Door Window, Front RH
1995-05 → 1997-05 ended
BB42 RHD;HZB50 SCO;HZB50 RHD +6 —
62315-36020 note Glass, Front Door Window, Front RH
1993-08 → 1995-05 ended
BB40 WC;BB42 RHD;HZB50 RHD +5 —
62315-36030 note Glass, Front Door Window, Front RH
1993-01 → 1997-05 ended
HZB50 RHD EX (ARL,GEN) —
62315-36050 note Glass, Front Door Window, Front RH
1997-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +1 —
62315-36060 note Glass, Front Door Window, Front RH
1997-05 → 1999-07 ended
HZB50 RHD EX —
62315-36050 note Glass, Front Door Window, Front RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
62315-36050 note Glass, Front Door Window, Front RH
1999-07 → 2002-11 ended
HZB50 ARL —
62315-36050 note Glass, Front Door Window, Front RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
62315-36060 note Glass, Front Door Window, Front RH
1999-07 → 2001-08 ended
HZB50 RHD EX —
62315-36050 note Glass, Front Door Window, Front RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62315-36050 note Glass, Front Door Window, Front RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62315-36050 note Glass, Front Door Window, Front RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62315-36050 note Glass, Front Door Window, Front RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62315-36050 note Glass, Front Door Window, Front RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62317 — Glass, Front Door Window, Rear RH
62317-36010 note Glass, Front Door Window, Rear RH
1993-01 → 1997-05 ended
HZB50 RHD SRF;BB4#,HZB50 RHD +1 —
62317-36020 note Glass, Front Door Window, Rear RH
1993-01 → 1993-08 ended
BB4# RHD WC;HZB50 RHD +3 —
62317-36020 note Glass, Front Door Window, Rear RH
1993-08 → 1995-05 ended
BB40 WC;BB42 RHD;HZB50 RHD +5 —
62317-36020 note Glass, Front Door Window, Rear RH
1995-05 → 1997-05 ended
BB42 RHD;HZB50 SCO;HZB50 RHD +6 —
62317-36030 note Glass, Front Door Window, Rear RH
1993-01 → 1997-05 ended
HZB50 RHD EX (ARL,GEN) —
62317-36050 note Glass, Front Door Window, Rear RH
1997-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +1 —
62317-36060 note Glass, Front Door Window, Rear RH
1997-05 → 1999-07 ended
HZB50 RHD EX —
62317-36050 note Glass, Front Door Window, Rear RH
1999-07 → 2002-11 ended
HZB50 ARL —
62317-36050 note Glass, Front Door Window, Rear RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
62317-36050 note Glass, Front Door Window, Rear RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
62317-36060 note Glass, Front Door Window, Rear RH
1999-07 → 2001-08 ended
HZB50 RHD EX —
62317-36050 note Glass, Front Door Window, Rear RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62317-36050 note Glass, Front Door Window, Rear RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62317-36050 note Glass, Front Door Window, Rear RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62317-36050 note Glass, Front Door Window, Rear RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62317-36050 Glass, Front Door Window, Rear RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62325B — Glass, Front Door Window, Front LH
62325-36010 note Glass, Front Door Window, Front LH
1993-01 → 1997-05 ended
RZB50 SRF GEN;HZB50 30S +5 —
62325-36020 note Glass, Front Door Window, Front LH
1993-01 → 1993-08 ended
BB42 WOC GCC;HZB50 GCC +5 —
62325-36020 note Glass, Front Door Window, Front LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62325-36020 note Glass, Front Door Window, Front LH
1993-08 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
62325-36030 note Glass, Front Door Window, Front LH
1993-01 → 1997-05 ended
HZB50,RZB40 LHD EX —
62325-36040 note Glass, Front Door Window, Front LH
1997-05 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62325-36050 note Glass, Front Door Window, Front LH
1997-05 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62325-36040 note Glass, Front Door Window, Front LH
1999-07 → 2001-08 ended
BB42,5#,HZB50,RZB40,50 LHD (17S,22S,23S,26S,30S) —
62325-36040 note Glass, Front Door Window, Front LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
62325-36040 note Glass, Front Door Window, Front LH
2001-08 → 2002-11 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
62325-36050 note Glass, Front Door Window, Front LH
1999-07 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62325-36040 note Glass, Front Door Window, Front LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62325-36040 note Glass, Front Door Window, Front LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62325-36040 note Glass, Front Door Window, Front LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62325-36040 note Glass, Front Door Window, Front LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62325-36040 note Glass, Front Door Window, Front LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62325-36040 Glass, Front Door Window, Front LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62327A — Glass, Front Door Window, Rear LH
62327-36010 note Glass, Front Door Window, Rear LH
1993-01 → 1997-05 ended
RZB50 SRF GEN;HZB50 30S +5 —
62327-36020 note Glass, Front Door Window, Rear LH
1993-01 → 1993-08 ended
BB42 WOC GCC;HZB50 GCC +5 —
62327-36020 note Glass, Front Door Window, Rear LH
1993-08 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
62327-36020 note Glass, Front Door Window, Rear LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62327-36030 note Glass, Front Door Window, Rear LH
1993-01 → 1997-05 ended
HZB50,RZB40 LHD EX —
62327-36040 note Glass, Front Door Window, Rear LH
1997-05 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD (17S,22S,26S,30S) —
62327-36050 note Glass, Front Door Window, Rear LH
1997-05 → 1999-07 ended
BB50 STD CBU;HZB50,RZB40 LHD +1 —
62327-36040 note Glass, Front Door Window, Rear LH
1999-07 → 2001-08 ended
BB42,5#,HZB50,RZB40,50 LHD (17S,22S,23S,26S,30S) —
62327-36040 note Glass, Front Door Window, Rear LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
62327-36040 note Glass, Front Door Window, Rear LH
2001-08 → 2002-11 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
62327-36050 note Glass, Front Door Window, Rear LH
1999-07 → 2001-08 ended
BB50,RZB50 STD CHI;BB50,HZB50,RZB40 LHD +1 —
62327-36040 note Glass, Front Door Window, Rear LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62327-36040 note Glass, Front Door Window, Rear LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62327-36040 note Glass, Front Door Window, Rear LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62327-36040 note Glass, Front Door Window, Rear LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62327-36040 note Glass, Front Door Window, Rear LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62327-36040 Glass, Front Door Window, Rear LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62356B — Weatherstrip, Front Door Window, Center
62255-36010 Weatherstrip, Front Door Window, Center
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62255-36010 Weatherstrip, Front Door Window, Center
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62255-36010 Weatherstrip, Front Door Window, Center
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62255-36010 Weatherstrip, Front Door Window, Center
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2011-08 ended
BB42 LHD HRF —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2008-03 ended
XZB50 STD GEN —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62255-36010 Weatherstrip, Front Door Window, Center
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62255-36010 Weatherstrip, Front Door Window, Center
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62357D — Weatherstrip, Front Door Window, Center Rear
62256-36010 Weatherstrip, Front Door Window, Center Rear
1993-01 → 1999-02 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62357-36011 Weatherstrip, Front Door Window, Center Rear
1999-02 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62357-36011 Weatherstrip, Front Door Window, Center Rear
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62357-36011 Weatherstrip, Front Door Window, Center Rear
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62357-36011 Weatherstrip, Front Door Window, Center Rear
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2011-08 ended
BB42 LHD HRF —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2008-03 ended
XZB50 STD GEN —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62357-36011 Weatherstrip, Front Door Window, Center Rear
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62375F — Clip, Front Door Window
62376-36010-A0 note Clip, Front Door Window
1993-01 → 1995-05 ended
BB4#,HZB50 DSL —
62376-36010-A1 note Clip, Front Door Window
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62376-36010-A1 note Clip, Front Door Window
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
62376-36010-A1 note Clip, Front Door Window
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62376-36010-A1 note Clip, Front Door Window
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
62376-36010-B0 note Clip, Front Door Window
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
62376-36010-B0 note Clip, Front Door Window
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62384F — Cap,Front Door Window
62384-36010-A0 note Cap,Front Door Window
1993-01 → 1993-09 ended
BB4#,HZB50 DSL —
62384-36010-A0 note Cap,Front Door Window
1993-09 → 1995-05 ended
BB42,HZB50 SCO —
62384-36010-A1 note Cap,Front Door Window
1995-05 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62384-36010-A1 note Cap,Front Door Window
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
62384-36010-B0 note Cap,Front Door Window
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62384-36010-B0 note Cap,Front Door Window
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
62384-36010-B0 note Cap,Front Door Window
2004-08 → 2015-01 ended
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# ARL,GCC,GEN,TAIW —
62384-36010-B0 note Cap,Front Door Window
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62385A — Seal, Front Door Window, NO.1
62386-36010 Seal, Front Door Window, NO.1
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 EX —
62386-36010 Seal, Front Door Window, NO.1
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,RZB50 STD +2 —
62386-36010 Seal, Front Door Window, NO.1
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI;BB50,59 GEN TDEFI;HZB50,RZB40 +2 —
62386-36010 Seal, Front Door Window, NO.1
2002-11 → 2004-08 ended
BB50 19S,20S,21S;BB59,BZB50,HZB50,RZB40 EX —
62386-36010 Seal, Front Door Window, NO.1
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 19S,20S,21S —
62386-36010 Seal, Front Door Window, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62386-36010 Seal, Front Door Window, NO.1
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
62386-36010 Seal, Front Door Window, NO.1
2015-01 → —
XZB5# RHD —
62386A — Seal, Front Door Window, NO.2
62386-36010 Seal, Front Door Window, NO.2
1993-01 → 1999-07 ended
BB50 CBU;HZB50,RZB40 EX —
62386-36010 Seal, Front Door Window, NO.2
1999-07 → 2001-08 ended
BB50 CBU 6F;BB50,RZB50 STD +2 —
62386-36010 Seal, Front Door Window, NO.2
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI;BB50,59 GEN TDEFI;HZB50,RZB40 +2 —
62386-36010 Seal, Front Door Window, NO.2
2002-11 → 2004-08 ended
BB50 19S,20S,21S;BB59,BZB50,HZB50,RZB40 EX —
62386-36010 Seal, Front Door Window, NO.2
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 19S,20S,21S —
62386-36010 Seal, Front Door Window, NO.2
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62386-36010 Seal, Front Door Window, NO.2
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC —
62386-36010 Seal, Front Door Window, NO.2
2015-01 → —
XZB5# RHD —
62411K — Run, Front Door Window, RH
62411-36010 Run, Front Door Window, RH
1993-01 → 1993-08 ended
BB4#,HZB50 RHD DSL —
62411-36020 Run, Front Door Window, RH
1993-08 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
62411-36020 Run, Front Door Window, RH
1999-07 → 2000-05 ended
BB4#,50,HZB50 RHD CBU —
62411-36021 Run, Front Door Window, RH
2000-05 → 2004-08 ended
BB4#,50,59,BZB40,50,HZB50 RHD (ARL,GEN) —
62411-36021 Run, Front Door Window, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62411-36021 Run, Front Door Window, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62411-36021 Run, Front Door Window, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62411-36021 Run, Front Door Window, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62411-36021 Run, Front Door Window, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62421D — Run, Front Door Window, LH
62421-36010 Run, Front Door Window, LH
1993-01 → 1993-08 ended
BB42,HZB50 LHD DSL —
62421-36020 Run, Front Door Window, LH
1993-08 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62421-36020 Run, Front Door Window, LH
1999-07 → 2000-05 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62421-36030 Run, Front Door Window, LH
2000-05 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
62421-36030 Run, Front Door Window, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62421-36030 Run, Front Door Window, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62421-36030 Run, Front Door Window, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62421-36030 Run, Front Door Window, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62421-36030 Run, Front Door Window, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62421-36030 Run, Front Door Window, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62746G — Packing, Quarter Window
62746-36010 Packing, Quarter Window
1999-02 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62746-90K00 Packing, Quarter Window
1993-01 → 1999-02 ended
BB4#,5#,HZB50,RZB40,50 CBU —
62746-36010 Packing, Quarter Window
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62746-36010 Packing, Quarter Window
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62746-36010 Packing, Quarter Window
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62746-36010 Packing, Quarter Window
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
62746-36010 Packing, Quarter Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
62746-36010 Packing, Quarter Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62746-36010 Packing, Quarter Window
2004-08 → 2008-03 ended
XZB50 STD GEN —
62746-36010 Packing, Quarter Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62746-36010 Packing, Quarter Window
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
62746-36010 Packing, Quarter Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62746-36010 Packing, Quarter Window
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
62777U — Cap, Front Door Window Center Sash, RH
62777-36010 Cap, Front Door Window Center Sash, RH
1993-01 → 1999-02 ended
BB4#,50,HZB50 RHD CBU —
62777-36012 Cap, Front Door Window Center Sash, RH
1999-02 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
62777-36012 Cap, Front Door Window Center Sash, RH
1999-07 → 2000-05 ended
BB4#,HZB50 RHD (DX,STD) —
62777-36030 Cap, Front Door Window Center Sash, RH
2000-05 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
62777-36030 Cap, Front Door Window Center Sash, RH
2000-05 → 2002-11 ended
HZB50 ARL —
62777-36030 Cap, Front Door Window Center Sash, RH
2000-05 → 2004-08 ended
BB42 N RHD 5F +9 —
62777-36030 Cap, Front Door Window Center Sash, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62777-36030 Cap, Front Door Window Center Sash, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62777-36030 Cap, Front Door Window Center Sash, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62777-36030 Cap, Front Door Window Center Sash, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
62777-36030 Cap, Front Door Window Center Sash, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62777X — Cap, Front Door Window Center Sash, LH
62777-36010 Cap, Front Door Window Center Sash, LH
1993-01 → 1999-02 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62777-36012 Cap, Front Door Window Center Sash, LH
1999-02 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
62777-36012 Cap, Front Door Window Center Sash, LH
1999-07 → 2000-05 ended
BB50 CBU;HZB50 EX;BB42,58,HZB50,RZB40,50 LHD +1 —
62777-36030 Cap, Front Door Window Center Sash, LH
2001-08 → 2004-08 ended
BB59,BZB50 EX;BB50 (20S,21S) TDEFI —
62777-36030 Cap, Front Door Window Center Sash, LH
2001-08 → 2002-11 ended
HZB50 ARL —
62777-36030 Cap, Front Door Window Center Sash, LH
2000-05 → 2001-08 ended
BB50,HZB50 RHD EX —
62777-36040 Cap, Front Door Window Center Sash, LH
2000-05 → 2002-11 ended
BB50,RZB40,50 CHI —
62777-36040 Cap, Front Door Window Center Sash, LH
2000-05 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
62777-36040 Cap, Front Door Window Center Sash, LH
2000-05 → 2004-08 ended
BB42 6S) WC GEN +12 —
62777-36040 Cap, Front Door Window Center Sash, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62777-36040 Cap, Front Door Window Center Sash, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62777-36040 Cap, Front Door Window Center Sash, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62777-36040 Cap, Front Door Window Center Sash, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
62777-36040 Cap, Front Door Window Center Sash, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62777-36040 Cap, Front Door Window Center Sash, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62792F — Packing, Side Window Lock
62792-95A00 Packing, Side Window Lock
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
62792-95A00 Packing, Side Window Lock
1995-05 → 1999-07 ended
HZB50 ARL,GCC,GEN;BB4#,5#,RZB40,50 CBU —
62792-95A00 Packing, Side Window Lock
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62792-95A00 Packing, Side Window Lock
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62792-95A00 Packing, Side Window Lock
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62792-95A00 Packing, Side Window Lock
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62792-95A00 Packing, Side Window Lock
2004-08 → 2008-03 ended
XZB50 STD GEN —
62792-95A00 Packing, Side Window Lock
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62792-95A00 Packing, Side Window Lock
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62792-95A00 Packing, Side Window Lock
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62792G — Packing, Side Window Lock
62792-95A00 Packing, Side Window Lock
1993-01 → 1993-09 ended
BB42,HZB50 LHD STD DSL —
62792-95A00 Packing, Side Window Lock
1993-01 → 1999-07 ended
HZB50 LHD EX;BB43,RZB40 17S —
62792-95A00 Packing, Side Window Lock
1993-09 → 1999-07 ended
RZB50 SRF GEN;HZB50 30S +5 —
62792-95A00 Packing, Side Window Lock
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62792-95A00 Packing, Side Window Lock
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62792-95A00 Packing, Side Window Lock
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62792-95A00 Packing, Side Window Lock
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62792-95A00 Packing, Side Window Lock
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62792-95A00 Packing, Side Window Lock
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62792-95A00 Packing, Side Window Lock
2004-08 → 2011-08 ended
BB42 LHD HRF —
62792-95A00 Packing, Side Window Lock
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62792-95A00 Packing, Side Window Lock
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62793G — Retainer, Side Window Lock
62793-95J00 Retainer, Side Window Lock
1995-05 → 1999-07 ended
HZB50 ARL,GCC,GEN;BB4#,5#,RZB40,50 CBU —
62793-95J00 Retainer, Side Window Lock
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2008-03 ended
XZB50 STD GEN —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62793-95J00 Retainer, Side Window Lock
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62793H — Retainer, Side Window Lock
62793-95J00 Retainer, Side Window Lock
1993-01 → 1993-09 ended
BB42,HZB50 LHD STD DSL —
62793-95J00 Retainer, Side Window Lock
1993-01 → 1999-07 ended
HZB50 LHD EX;BB43,RZB40 17S —
62793-95J00 Retainer, Side Window Lock
1993-09 → 1999-07 ended
RZB50 SRF GEN;HZB50 30S +5 —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2001-08 ended
BB50 D EX;HZB50 HRF +11 —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2004-08 ended
BB42 RF RZB50 SL,TDEFI) +26 —
62793-95J00 Retainer, Side Window Lock
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 (DX,STD) (ARL,CHI) —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2011-08 ended
BB42 LHD HRF —
62793-95J00 Retainer, Side Window Lock
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62793-95J00 Retainer, Side Window Lock
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
62910L — Lock Assy, Side Window
62910-95702 Lock Assy, Side Window
1995-05 → 1999-07 ended
HZB50 ARL,GCC,GEN;BB4#,5#,RZB40,50 CBU —
62910-95702 Lock Assy, Side Window
1993-01 → 1995-05 ended
BB4#,HZB50,RZB40,50 CBU —
62910-95702 Lock Assy, Side Window
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62910-95702 Lock Assy, Side Window
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62910-95702 Lock Assy, Side Window
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62910-95702 Lock Assy, Side Window
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
62910-95702 Lock Assy, Side Window
2004-08 → 2008-03 ended
XZB50 STD GEN —
62910-95702 Lock Assy, Side Window
2004-08 → 2009-08 ended
XZB50 WOC CBU —
62910-95702 Lock Assy, Side Window
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
62910-95702 Lock Assy, Side Window
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
62910N — Lock Assy, Side Window
62910-95702 Lock Assy, Side Window
1993-01 → 1993-09 ended
BB42,HZB50 LHD STD DSL —
62910-95702 Lock Assy, Side Window
1993-01 → 1999-07 ended
HZB50 LHD EX;BB43,RZB40 17S —
62910-95702 Lock Assy, Side Window
1993-09 → 1999-07 ended
RZB50 SRF GEN;HZB50 30S +5 —
62910-95702 Lock Assy, Side Window
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
62910-95702 Lock Assy, Side Window
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
62910-95702 Lock Assy, Side Window
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
62910-95702 Lock Assy, Side Window
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
62910-95702 Lock Assy, Side Window
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
62910-95702 Lock Assy, Side Window
2004-08 → 2011-08 ended
BB42 LHD HRF —
62910-95702 Lock Assy, Side Window
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
62910-95702 Lock Assy, Side Window
2004-08 → 2006-02 ended
RZB40 HRF GCC —
62910-95702 Lock Assy, Side Window
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
67001 — Panel Sub-assy, Front Door, RH
67001-36050 Panel Sub-assy, Front Door, RH
1993-01 → 1999-07 ended
BB42,43 17S —
67001-36060 Panel Sub-assy, Front Door, RH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
67001-36070 Panel Sub-assy, Front Door, RH
1993-01 → 1994-03 ended
HZB50 EX ARL —
67001-36070 Panel Sub-assy, Front Door, RH
1994-03 → 1999-07 ended
HZB50 (DX,EX) ARL —
67001-36100 Panel Sub-assy, Front Door, RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN —
67001-36100 Panel Sub-assy, Front Door, RH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
67001-36110 Panel Sub-assy, Front Door, RH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
67001-36120 Panel Sub-assy, Front Door, RH
1994-03 → 1995-05 ended
BB40,HZB50 STD ARL —
67001-36120 Panel Sub-assy, Front Door, RH
1993-01 → 1994-03 ended
BB40,HZB50 (DX,STD) ARL —
67001-36130 note Panel Sub-assy, Front Door, RH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
67001-36180 Panel Sub-assy, Front Door, RH
1995-05 → 1999-07 ended
BB40,HZB50 STD ARL —
67001-36190 Panel Sub-assy, Front Door, RH
1995-05 → 1997-05 ended
HZB50 WC GEN 4FC —
67001-36050 Panel Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
BB43 —
67001-36050 Panel Sub-assy, Front Door, RH
1999-07 → 2004-08 ended
BB50,BZB40,50 17S —
67001-36060 note Panel Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
BB50 EX GEN —
67001-36060 note Panel Sub-assy, Front Door, RH
1999-07 → 2004-08 ended
BB50,59,BZB50 EX (LPG,TDEFI) —
67001-36070 note Panel Sub-assy, Front Door, RH
1999-07 → 2002-11 ended
HZB50 DX —
67001-36070 note Panel Sub-assy, Front Door, RH
1999-07 → 2004-08 ended
BB50 DX —
67001-36100 Panel Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB42,HZB50 +4 —
67001-36100 Panel Sub-assy, Front Door, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,HZB50 RHD +5 —
67001-36110 note Panel Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
HZB50 RHD EX —
67001-36130 note Panel Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
67001-36130 note Panel Sub-assy, Front Door, RH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
67001-36180 note Panel Sub-assy, Front Door, RH
1999-07 → 2002-11 ended
HZB50 STD ARL —
67001-36180 note Panel Sub-assy, Front Door, RH
1999-07 → 2004-08 ended
BB50 STD ARL —
67001-36220 note Panel Sub-assy, Front Door, RH
2002-11 → 2004-08 ended
BZB50 EX —
67001-36050 Panel Sub-assy, Front Door, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67001-36050 Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
BZB40,50,XZB40 STD —
67001-36050 Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
67001-36060 note Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50,59,BZB50 EX —
67001-36060 Panel Sub-assy, Front Door, RH
2007-08 → 2009-08 ended
XZB50 GEN 4FC —
67001-36060 note Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
XZB5# EX 5F —
67001-36070 note Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
XZB50 DX 5F —
67001-36070 Panel Sub-assy, Front Door, RH
2007-08 → 2009-08 ended
XZB50 ARL 4FC —
67001-36070 note Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50 DX —
67001-36100 Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
BB42,HZB50 RHD —
67001-36130 note Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
XZB50 EX 5F —
67001-36130 note Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50 EX —
67001-36130 note Panel Sub-assy, Front Door, RH
2007-08 → 2009-08 ended
XZB50 GEN 4FC —
67001-36180 note Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
67001-36180 note Panel Sub-assy, Front Door, RH
2004-08 → 2009-08 ended
XZB50 STD ARL —
67001-36220 note Panel Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BZB50 EX —
67001-36230 Panel Sub-assy, Front Door, RH
2009-08 → 2012-09 ended
BZB40,50,XZB40 —
67001-36240 note Panel Sub-assy, Front Door, RH
2009-08 → 2012-09 ended
XZB50 GEN —
67001-36240 note Panel Sub-assy, Front Door, RH
2009-08 → 2015-01 ended
XZB59 —
67001-36250 Panel Sub-assy, Front Door, RH
2009-08 → 2015-01 ended
XZB50 DX —
67001-36260 Panel Sub-assy, Front Door, RH
2009-08 → 2015-01 ended
BB42,HZB50 RHD —
67001-36270 note Panel Sub-assy, Front Door, RH
2009-08 → 2015-01 ended
XZB50 GEN —
67001-36300 Panel Sub-assy, Front Door, RH
2009-08 → 2015-01 ended
XZB50 STD ARL —
67001-36320 Panel Sub-assy, Front Door, RH
2012-09 → 2015-01 ended
BZB40,50,XZB40 —
67001-36330 Panel Sub-assy, Front Door, RH
2012-09 → 2015-01 ended
XZB50 GEN —
67001-36240 note Panel Sub-assy, Front Door, RH
2015-01 → —
XZB59 —
67001-36250 Panel Sub-assy, Front Door, RH
2015-01 → —
XZB50 DX —
67001-36260 Panel Sub-assy, Front Door, RH
2015-01 → —
BB42,HZB50 RHD —
67001-36270 note Panel Sub-assy, Front Door, RH
2015-01 → —
XZB50 EX 5F —
67001-36300 Panel Sub-assy, Front Door, RH
2015-01 → —
XZB50 STD ARL —
67001-36320 Panel Sub-assy, Front Door, RH
2015-01 → —
BZB40,50,XZB40 HRF —
67001-36330 Panel Sub-assy, Front Door, RH
2015-01 → —
XZB50 EX —
67001A — Cushion, Front Door Panel
67887-36010 Cushion, Front Door Panel
1993-01 → 1999-07 ended
BB42,43,58,HZB50,RZB40,50 STD (GCC,GEN,SCO) —
67887-36010 Cushion, Front Door Panel
1999-07 → 2004-08 ended
BB42 C 40,50,RZB50 WC +20 —
67887-36010 Cushion, Front Door Panel
1999-07 → 2001-08 ended
HZB50 40 RHD (17S,22S) +8 —
67887-36010 Cushion, Front Door Panel
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
67887-36010 Cushion, Front Door Panel
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67887-36010 Cushion, Front Door Panel
2004-08 → 2006-08 ended
BB50,58 17S,23S —
67887-36010 Cushion, Front Door Panel
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67887-36010 Cushion, Front Door Panel
2004-08 → 2008-03 ended
XZB50 STD GEN —
67887-36010 Cushion, Front Door Panel
2004-08 → 2011-08 ended
BB42 LHD HRF —
67887-36010 Cushion, Front Door Panel
2004-08 → 2015-01 ended
BB42 ,DSL,EFI,LPG,TD) RHD;XZB50 TAIW;BB42 +4 —
67887-36010 Cushion, Front Door Panel
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 STD (GCC,GEN,TAIW) —
67002 — Panel Sub-assy, Front Door, LH
67002-36020 Panel Sub-assy, Front Door, LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
67002-36020 Panel Sub-assy, Front Door, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
67002-36020 Panel Sub-assy, Front Door, LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
67002-36020 Panel Sub-assy, Front Door, LH
1999-07 → 2002-11 ended
BB42 ZB50 WC LHD +12 —
67002-36020 Panel Sub-assy, Front Door, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67002-36020 Panel Sub-assy, Front Door, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
67002-36020 Panel Sub-assy, Front Door, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67002-36020 Panel Sub-assy, Front Door, LH
2004-08 → 2009-08 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU 5F —
67002-36090 Panel Sub-assy, Front Door, LH
2009-08 → 2011-08 ended
BB42 LHD HRF —
67002-36090 Panel Sub-assy, Front Door, LH
2009-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 —
67002-36090 Panel Sub-assy, Front Door, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
67831 — Cover, Front Door Service Hole, RH
67831-36010 Cover, Front Door Service Hole, RH
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
67831-36010 Cover, Front Door Service Hole, RH
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
67831-36010 Cover, Front Door Service Hole, RH
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
67831-36010 Cover, Front Door Service Hole, RH
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2009-08 ended
XZB59;XZB50 DX;XZB50 WOC CBU —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67831-36010 Cover, Front Door Service Hole, RH
2004-08 → 2015-01 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
67831-36020 note Cover, Front Door Service Hole, RH
2009-08 → 2015-01 ended
XZB5# DX,EX —
67831-36020 note Cover, Front Door Service Hole, RH
2009-08 → 2011-08 ended
BB42 RHD WOC —
67831-36010 Cover, Front Door Service Hole, RH
2015-01 → —
HZB50 GEN;TRB50 30S;HZB50 30S +3 —
67831-36020 note Cover, Front Door Service Hole, RH
2015-01 → —
XZB5# DX,EX —
67832 — Cover, Front Door Service Hole, LH
67832-36010 Cover, Front Door Service Hole, LH
2009-08 → 2011-08 ended
BB50 WC;HZB50 HRF GCC —
67832-36010 Cover, Front Door Service Hole, LH
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
67832-36010 Cover, Front Door Service Hole, LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
67832-36010 Cover, Front Door Service Hole, LH
2015-01 → —
HZB50 26S GCC;TRB50 HRF +1 —
67833D — Cover, Front Door Service Hole, NO.2 RH
67833-36010 Cover, Front Door Service Hole, NO.2 RH
1993-01 → 1999-07 ended
BB42,43,58,HZB50,RZB40,50 STD (GCC,GEN,SCO) —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
1993-01 → 1999-07 ended
RZB40 EX;BB40,50,HZB50 (19S,20S,22S) 5F —
67833-36010 Cover, Front Door Service Hole, NO.2 RH
1999-07 → 2000-05 ended
BB4#,5#,HZB50,RZB40,50 (17S,22S,23S,26S,30S) STD (GCC,GEN) —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
1999-07 → 2000-05 ended
HZB50 (20S,22S) 5F;BB50,RZB40 17S,19S,20S —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2000-05 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2000-05 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2000-05 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
67833-36020 Cover, Front Door Service Hole, NO.2 RH
2015-01 → —
HZB50 GEN;TRB50 30S;HZB50 30S +1 —
67834 — Cover, Front Door Service Hole, NO.2 LH
67833-36020 Cover, Front Door Service Hole, NO.2 LH
2009-08 → 2011-08 ended
BB50 WC;HZB50 HRF GCC —
67833-36020 Cover, Front Door Service Hole, NO.2 LH
2011-08 → 2015-01 ended
TRB50 HRF GCC —
67833-36020 Cover, Front Door Service Hole, NO.2 LH
2009-08 → 2015-01 ended
HZB50 LHD HRF WC +1 —
67833-36020 Cover, Front Door Service Hole, NO.2 LH
2015-01 → —
HZB50 26S GCC;TRB50 HRF +1 —
67861 — Weatherstrip, Front Door, RH
67861-36010 Weatherstrip, Front Door, RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
67861-36010 Weatherstrip, Front Door, RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
67861-36010 Weatherstrip, Front Door, RH
1999-07 → 2002-11 ended
HZB50 ARL —
67861-36010 Weatherstrip, Front Door, RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
67861-36010 Weatherstrip, Front Door, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
67861-36010 Weatherstrip, Front Door, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
67861-36010 Weatherstrip, Front Door, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67861-36010 Weatherstrip, Front Door, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
67861-36010 Weatherstrip, Front Door, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
67862 — Weatherstrip, Front Door, LH
67862-36010 Weatherstrip, Front Door, LH
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD CBU —
67862-36010 Weatherstrip, Front Door, LH
1999-07 → 2002-11 ended
BB42 ZB50 WC LHD +12 —
67862-36010 Weatherstrip, Front Door, LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
67862-36010 Weatherstrip, Front Door, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
67862-36010 Weatherstrip, Front Door, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67862-36010 Weatherstrip, Front Door, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
67862-36010 Weatherstrip, Front Door, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67862-36010 Weatherstrip, Front Door, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67862-36010 Weatherstrip, Front Door, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
67862-36010 Weatherstrip, Front Door, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
67863B — Weatherstrip, Front Door, NO.2 RH
67863-36010 Weatherstrip, Front Door, NO.2 RH
1993-01 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
67863-36010 Weatherstrip, Front Door, NO.2 RH
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
67863-36010 Weatherstrip, Front Door, NO.2 RH
1999-07 → 2004-08 ended
BB42 D RHD WC +11 —
67863-36010 Weatherstrip, Front Door, NO.2 RH
1999-07 → 2002-11 ended
HZB50 ARL —
67863-36010 Weatherstrip, Front Door, NO.2 RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
67863-36010 Weatherstrip, Front Door, NO.2 RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67863-36010 Weatherstrip, Front Door, NO.2 RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
67863-36010 Weatherstrip, Front Door, NO.2 RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
67863-36010 Weatherstrip, Front Door, NO.2 RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
67864B — Weatherstrip, Front Door, NO.2 LH
67863-36010 Weatherstrip, Front Door, NO.2 LH
1993-01 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD CBU —
67863-36010 Weatherstrip, Front Door, NO.2 LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
67863-36010 Weatherstrip, Front Door, NO.2 LH
1999-07 → 2002-11 ended
BB42 ZB50 WC LHD +12 —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
67863-36010 Weatherstrip, Front Door, NO.2 LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD CBU —
67867-12150 Retainer, Front Door Weatherstrip, RH
1997-05 → 1999-07 ended
BB50 EX —
67868-22020 Retainer, Front Door Weatherstrip, RH
1993-01 → 1995-05 ended
BB4#,HZB50 RHD DSL —
67867-12150 Retainer, Front Door Weatherstrip, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
67867-12150 Retainer, Front Door Weatherstrip, RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
67867-12150 Retainer, Front Door Weatherstrip, RH
1999-07 → 2002-11 ended
HZB50 ARL —
67867-12150 Retainer, Front Door Weatherstrip, RH
1999-07 → 2004-08 ended
BB42 N RHD 5F +9 —
67867-12150 Retainer, Front Door Weatherstrip, RH
1999-07 → 2004-08 ended
BB50,59,BZB50 EX (LPG,TDEFI) —
67867-12150 Retainer, Front Door Weatherstrip, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
67867-12150 Retainer, Front Door Weatherstrip, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
67867-12150 Retainer, Front Door Weatherstrip, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
67867-12150 Retainer, Front Door Weatherstrip, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67867-12150 Retainer, Front Door Weatherstrip, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
67867G — Retainer, Door Weatherstrip, RH
67867-12150 Retainer, Door Weatherstrip, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD CBU —
67868-22020 Retainer, Door Weatherstrip, RH
1993-01 → 1995-05 ended
BB4#,HZB50 RHD DSL —
67867-12150 Retainer, Door Weatherstrip, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
67867-12150 Retainer, Door Weatherstrip, RH
1999-07 → 2002-11 ended
HZB50 ARL —
67867-12150 Retainer, Door Weatherstrip, RH
1999-07 → 2004-08 ended
BB42 N RHD 5F +9 —
67867-12150 Retainer, Door Weatherstrip, RH
2004-08 → 2015-01 ended
XZB59;XZB50 RHD (20S,21S) WC;BB42,BZB40,50,HZB50,XZB40 +2 —
67867-12150 Retainer, Door Weatherstrip, RH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
67867-12150 Retainer, Door Weatherstrip, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
67867-12150 Retainer, Door Weatherstrip, RH
2004-08 → 2006-08 ended
BB59,BZB50 EX;BB50 RHD CBU —
67867-12150 Retainer, Door Weatherstrip, RH
2015-01 → —
BB42,BZB40,50,HZB50,XZB40,5# RHD —
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
1993-01 → 1998-12 ended
BB42,58,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Front Door Weatherstrip, LH
1998-12 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Front Door Weatherstrip, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
67867-12150 Retainer, Front Door Weatherstrip, LH
1999-07 → 2002-11 ended
BB42 ZB50 WC LHD +12 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Front Door Weatherstrip, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67867-12150 Retainer, Front Door Weatherstrip, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67867-12150 Retainer, Front Door Weatherstrip, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67867-12150 Retainer, Front Door Weatherstrip, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
67867-12150 Retainer, Front Door Weatherstrip, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
67868L — Retainer, Door Weatherstrip, LH
67867-12150 Retainer, Door Weatherstrip, LH
1995-05 → 1998-12 ended
BB42,58,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Door Weatherstrip, LH
1998-12 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
67868-22020 Retainer, Door Weatherstrip, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Door Weatherstrip, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,50,RZB40 (19S,22S) +1 —
67867-12150 Retainer, Door Weatherstrip, LH
1999-07 → 2002-11 ended
BB42 ZB50 WC LHD +12 —
67867-12150 Retainer, Door Weatherstrip, LH
2002-11 → 2004-08 ended
BB42,50,58,HZB50,RZB40,50 LHD CBU —
67867-12150 Retainer, Door Weatherstrip, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
67867-12150 Retainer, Door Weatherstrip, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 —
67867-12150 Retainer, Door Weatherstrip, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
67867-12150 Retainer, Door Weatherstrip, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
67867-12150 Retainer, Door Weatherstrip, LH
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
67867-12150 Retainer, Door Weatherstrip, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
68101 — Glass Sub-assy, Front Door, RH
68111-36010 note Glass Sub-assy, Front Door, RH
1993-01 → 1994-03 ended
HZB50 RHD EX —
68111-36010 note Glass Sub-assy, Front Door, RH
1994-03 → 1997-05 ended
HZB50 22S 4FC;HZB50 RHD +1 —
68111-36030 note Glass Sub-assy, Front Door, RH
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
68111-36030 note Glass Sub-assy, Front Door, RH
1999-07 → 2001-08 ended
BB50,HZB50 RHD (DX,EX) —
68111-36040 note Glass Sub-assy, Front Door, RH
2001-08 → 2004-08 ended
BB50,59,BZB50 RHD (DX,EX) —
68111-36040 note Glass Sub-assy, Front Door, RH
2001-08 → 2002-11 ended
HZB50 DX —
68111-36040 note Glass Sub-assy, Front Door, RH
2004-08 → 2015-01 ended
XZB5# DX,EX —
68111-36040 note Glass Sub-assy, Front Door, RH
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
68111-36040 Glass Sub-assy, Front Door, RH
2015-01 → —
XZB5# DX,EX —
68129A — Dam, Front Door Fix Window Glass Adhesive
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1993-01 → 1994-03 ended
HZB50 RHD EX —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1994-03 → 1997-05 ended
HZB50 22S 4FC;HZB50 RHD +1 —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1999-07 → 2002-11 ended
HZB50 DX —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
1999-07 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
2004-08 → 2015-01 ended
XZB5# DX,EX —
68129-36010 Dam, Front Door Fix Window Glass Adhesive
2015-01 → —
XZB5# DX,EX —
68217 — Pin, Front Door Fix Window
68217-36010 note Pin, Front Door Fix Window
1993-01 → 1994-03 ended
HZB50 RHD EX —
68217-36010 note Pin, Front Door Fix Window
1994-03 → 1997-05 ended
HZB50 22S 4FC;HZB50 RHD +1 —
68217-36010 note Pin, Front Door Fix Window
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
68217-36020 note Pin, Front Door Fix Window
1993-01 → 1994-03 ended
HZB50 RHD EX —
68217-36020 note Pin, Front Door Fix Window
1994-03 → 1997-05 ended
HZB50 22S 4FC;HZB50 RHD +1 —
68217-36020 note Pin, Front Door Fix Window
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
68217-36010 note Pin, Front Door Fix Window
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
68217-36010 note Pin, Front Door Fix Window
1999-07 → 2002-11 ended
HZB50 DX —
68217-36010 note Pin, Front Door Fix Window
1999-07 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
68217-36020 note Pin, Front Door Fix Window
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
68217-36020 note Pin, Front Door Fix Window
1999-07 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
68217-36020 note Pin, Front Door Fix Window
1999-07 → 2002-11 ended
HZB50 DX —
68217-36010 note Pin, Front Door Fix Window
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
68217-36010 note Pin, Front Door Fix Window
2004-08 → 2015-01 ended
XZB5# DX,EX —
68217-36020 note Pin, Front Door Fix Window
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
68217-36020 note Pin, Front Door Fix Window
2004-08 → 2015-01 ended
XZB5# DX,EX —
68217-36010 note Pin, Front Door Fix Window
2015-01 → —
XZB5# DX,EX —
68217-36020 note Pin, Front Door Fix Window
2015-01 → —
XZB5# DX,EX —
68218A — Bush, Front Door Fix Window
68218-36010 Bush, Front Door Fix Window
1993-01 → 1994-03 ended
HZB50 RHD EX —
68218-36010 Bush, Front Door Fix Window
1994-03 → 1997-05 ended
HZB50 22S 4FC;HZB50 RHD +1 —
68218-36010 Bush, Front Door Fix Window
1997-05 → 1999-07 ended
BB50,HZB50 RHD (DX,EX) —
68218-36010 Bush, Front Door Fix Window
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX —
68218-36010 Bush, Front Door Fix Window
1999-07 → 2002-11 ended
HZB50 DX —
68218-36010 Bush, Front Door Fix Window
1999-07 → 2004-08 ended
BB50,59,BZB50 (DX,EX) (LPG,TDEFI) —
68218-36010 Bush, Front Door Fix Window
2004-08 → 2006-08 ended
BB50,59,BZB50 DX,EX —
68218-36010 Bush, Front Door Fix Window
2004-08 → 2015-01 ended
XZB5# DX,EX —
68218-36010 Bush, Front Door Fix Window
2015-01 → —
XZB5# DX,EX —
68610 — Check Assy, Front Door
68610-36010 Check Assy, Front Door
1993-10 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68610-36010 Check Assy, Front Door
1993-01 → 1993-10 ended
BB4#,HZB50 RHD DSL —
68620-36010 Check Assy, Front Door
1993-01 → 1993-10 ended
BB42,HZB50,RZB40,50 LHD CBU —
68610-36010 Check Assy, Front Door
1999-07 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68610-36010 Check Assy, Front Door
1999-07 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68610-36010 Check Assy, Front Door
1999-07 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68610-36010 Check Assy, Front Door
2004-08 → 2011-08 ended
BB42 LHD HRF —
68610-36010 Check Assy, Front Door
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
68610-36010 Check Assy, Front Door
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68610-36010 Check Assy, Front Door
2004-08 → 2008-03 ended
XZB50 STD GEN —
68610-36010 Check Assy, Front Door
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68610-36010 Check Assy, Front Door
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68610-36010 Check Assy, Front Door
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68610-36010 Check Assy, Front Door
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
68617 — Pin, Front Door Check
68617-20011 Pin, Front Door Check
1993-01 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68617-20011 Pin, Front Door Check
1999-07 → 2000-05 ended
BB4#,5#,HZB50,RZB40,50 CBU —
68617-50010 Pin, Front Door Check
2000-05 → 2001-08 ended
BB50 ,HZB50 EX RHD +13 —
68617-50010 Pin, Front Door Check
2000-05 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
68617-50010 Pin, Front Door Check
2000-05 → 2004-08 ended
BB42 RF RZB50 ,20S,26S) +27 —
68617-50010 Pin, Front Door Check
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
68617-50010 Pin, Front Door Check
2004-08 → 2015-01 ended
BB42 ZB40 LHD STD +5 —
68617-50010 Pin, Front Door Check
2004-08 → 2011-08 ended
BB42 LHD HRF —
68617-50010 Pin, Front Door Check
2004-08 → 2009-08 ended
XZB50 WOC CBU —
68617-50010 Pin, Front Door Check
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
68617-50010 Pin, Front Door Check
2004-08 → 2006-02 ended
RZB40 HRF GCC —
68617-50010 Pin, Front Door Check
2004-08 → 2008-03 ended
XZB50 STD GEN —
68617-50010 Pin, Front Door Check
2015-01 → —
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# —
69271 — Handle, Front Door Inside, RH
69271-36010-E0 note Handle, Front Door Inside, RH
1993-01 → 1995-05 ended
BB42 SCO —
69271-36010-E0 note Handle, Front Door Inside, RH
1995-05 → 1999-07 ended
BB4#,50,HZB50 RHD CBU —
69271-36010-B0 note Handle, Front Door Inside, RH
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
69271-36010-B0 note Handle, Front Door Inside, RH
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
69271-36010-E0 note Handle, Front Door Inside, RH
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
69271-36010-B0 note Handle, Front Door Inside, RH
2004-08 → 2015-01 ended
BB42,50,59,BZB40,50,HZB50,XZB40,5# RHD (ARL,GEN) —
69271-36010-B0 note Handle, Front Door Inside, RH
2015-01 → 2016-12 ended
BB42,BZB40,50,HZB50,XZB40,5# RHD —
69272D — Handle, Front Door Inside, LH
69271-36010-E0 note Handle, Front Door Inside, LH
1993-01 → 1999-07 ended
BB42,5#,HZB50,RZB40,50 LHD CBU —
69271-36010-B0 note Handle, Front Door Inside, LH
2001-08 → 2002-11 ended
BB50,HZB50,RZB40,50 ARL,CHI —
69271-36010-B0 note Handle, Front Door Inside, LH
2001-08 → 2004-08 ended
HZB50 GCC,GEN;BB42,5#,BZB40,50,RZB40,50 ARL,GCC,GEN —
69271-36010-E0 note Handle, Front Door Inside, LH
1999-07 → 2001-08 ended
BB50 EX;BB50 STD CBU;BB4#,58,HZB50,RZB40,50 —
69271-36010-B0 note Handle, Front Door Inside, LH
2004-08 → 2015-01 ended
BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50 LHD CBU —
69271-36010-B0 note Handle, Front Door Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
