Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

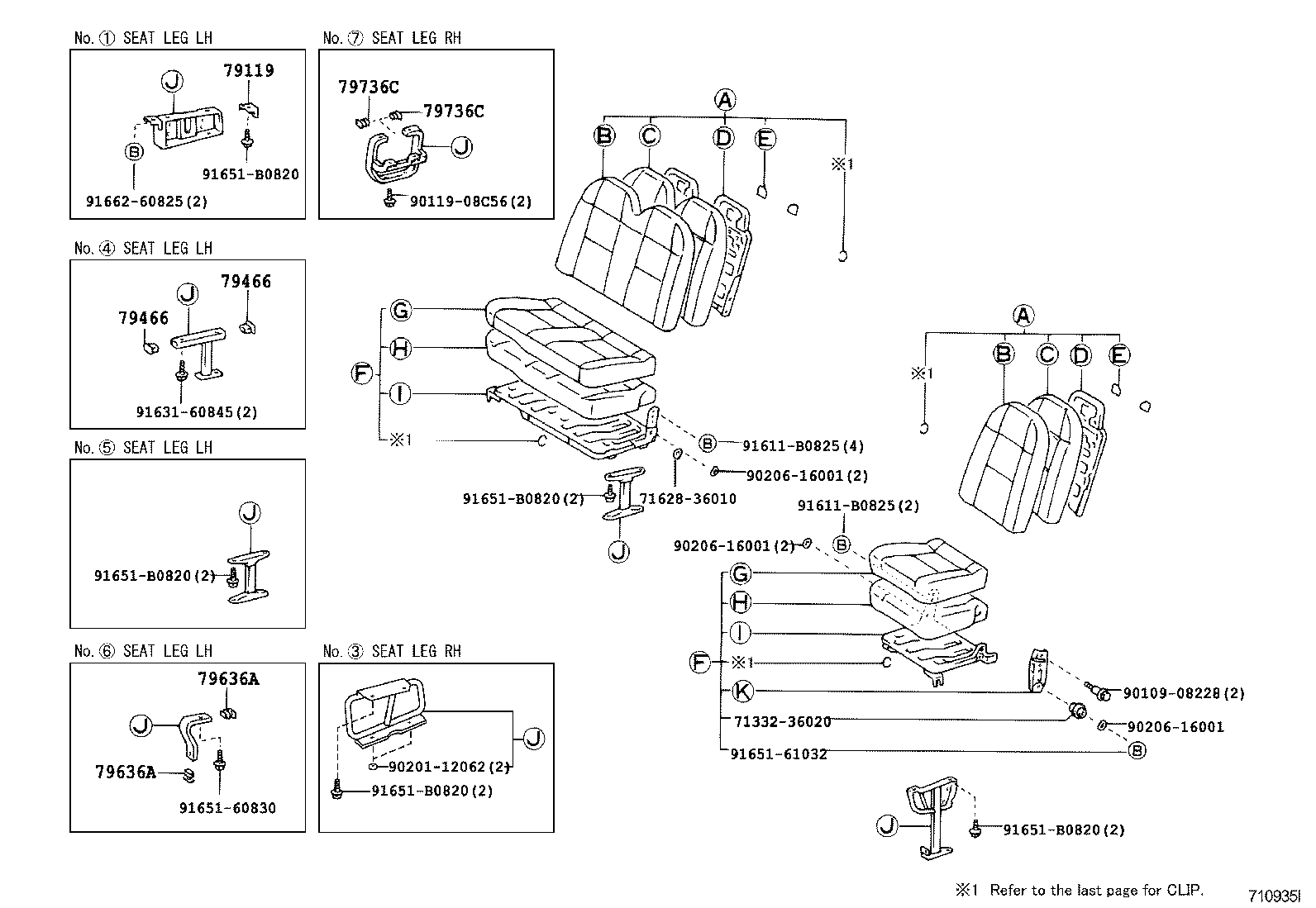

Exploded illustration 710935I 79119 — BRACKET, NO.1 SEAT LEG, NO.2 (22 parts) 91651B0820 — not listed in this catalogue 9166260825 — not listed in this catalogue 79466 — COVER, NO.4 SEAT LEG, NO.1 (17 parts) 79466 — COVER, NO.4 SEAT LEG, NO.1 (17 parts) 9163160845 — not listed in this catalogue 9020112062 — not listed in this catalogue 91651B0820 — not listed in this catalogue 91651B0820 — not listed in this catalogue 79636A — COVER, NO.6 SEAT LEG, LH (8 parts) 79636A — COVER, NO.6 SEAT LEG, LH (8 parts) 79736C — COVER, NO.7 SEAT LEG, RH (15 parts) 79736C — COVER, NO.7 SEAT LEG, RH (15 parts) 9011908C56 — not listed in this catalogue 91651B0820 — not listed in this catalogue 91611B0825 — not listed in this catalogue 9020616001 — not listed in this catalogue 91611B0825 — not listed in this catalogue 9020616001 — not listed in this catalogue 7133236020 — not listed in this catalogue 9165161032 — not listed in this catalogue 9010908228 — not listed in this catalogue 9020616001 — not listed in this catalogue 91651B0820 — not listed in this catalogue 9165160830 — not listed in this catalogue 7162836010 — not listed in this catalogue
710935I · 7 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
79119 — Bracket, NO.1 Seat Leg, NO.2
79107-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
1995-05 → 1999-07 ended
BB40,HZB50 ARL —
79107-36020-E0 note Bracket, NO.1 Seat Leg, NO.2
1993-01 → 1995-05 ended
BB40,HZB50 ARL —
79119-36010-C0 note Bracket, NO.1 Seat Leg, NO.2
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79119-36010-E0 note Bracket, NO.1 Seat Leg, NO.2
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
79119-36012-C0 note Bracket, NO.1 Seat Leg, NO.2
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79119-36012-E0 note Bracket, NO.1 Seat Leg, NO.2
1997-05 → 1999-07 ended
RZB40 EX;BB58,HZB50 (20S,22S) GEN +1 —
79107-36012-E0 note Bracket, NO.1 Seat Leg, NO.2
1999-07 → 2000-08 ended
HZB50 LHD EX —
79107-36020-B0 note Bracket, NO.1 Seat Leg, NO.2
2001-08 → 2002-11 ended
HZB50 DX —
79107-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
1999-07 → 2001-08 ended
HZB50 ARL —
79107-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2001-08 → 2002-11 ended
HZB50 STD ARL —
79119-36012-C0 note Bracket, NO.1 Seat Leg, NO.2
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79119-36012-E0 note Bracket, NO.1 Seat Leg, NO.2
1999-07 → 2001-08 ended
BB58,HZB50,RZB40 17S,20S,23S —
79119-36020-B0 note Bracket, NO.1 Seat Leg, NO.2
2001-08 → 2004-08 ended
BB58,HZB50,RZB40 17S,20S,23S —
79119-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79119-36020 Bracket, NO.1 Seat Leg, NO.2
2007-01 → 2007-08 ended
RZB40,50 —
79119-36020-B0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2009-12 ended
XZB50 TAIW —
79119-36020-B0 note Bracket, NO.1 Seat Leg, NO.2
2011-08 → 2015-01 ended
XZB50 TAIW —
79119-36020-B0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2015-01 ended
BB58 —
79119-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2011-08 ended
BB42 LHD HRF —
79119-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79119-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79119-36020-C0 note Bracket, NO.1 Seat Leg, NO.2
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79466 — Cover, NO.4 Seat Leg, NO.1
79366-36020 Cover, NO.4 Seat Leg, NO.1
1993-01 → 1995-05 ended
HZB50 GCC,SCO;HZB50 LHD GEN;BB42,RZB40,50 +2 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1995-05 → 1999-07 ended
HZB50 26S,30S SCO;HZB50 LHD +4 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1999-07 → 2001-08 ended
HZB50 .HRF 4FC;HZB50 WOC +8 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1999-07 → 2002-11 ended
HZB50 DX;BB50,RZB40,50 (26S,30S) CHI —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1999-07 → 2002-11 ended
HZB50 STD ARL —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1999-07 → 2004-08 ended
BB42 RF (20S,21S,26S) WC +28 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
1999-07 → 2004-08 ended
BB50 ARL —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2003-09 → 2004-08 ended
BB50,BZB50 17S —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2012-05 ended
BB42 B40 RHD;BB42 STD +6 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2011-08 ended
BB42 LHD HRF —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2009-08 ended
XZB50 WOC CBU —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2006-08 ended
BZB50 EX;BB50 RHD CBU —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2005-12 ended
BB58 —
79366-36020 Cover, NO.4 Seat Leg, NO.1
2004-08 → 2008-03 ended
XZB50 STD GEN —
79366-36040 Cover, NO.4 Seat Leg, NO.1
2012-06 → 2015-01 ended
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 ARL,GCC,GEN —
79636A — Cover, NO.6 Seat Leg, LH
79236-36010 Cover, NO.6 Seat Leg, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (17S,26S,30S) —
79236-36010 Cover, NO.6 Seat Leg, LH
1995-05 → 1999-07 ended
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +3 —
79236-36010 Cover, NO.6 Seat Leg, LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 —
79236-36010 Cover, NO.6 Seat Leg, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79236-36010 Cover, NO.6 Seat Leg, LH
1999-07 → 2004-08 ended
BB42 C RHD SRF;BB50 +6 —
79236-36010 Cover, NO.6 Seat Leg, LH
2004-08 → 2006-08 ended
BB50,BZB50 20S,21S —
79236-36010 Cover, NO.6 Seat Leg, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
79236-36010 Cover, NO.6 Seat Leg, LH
2004-08 → 2015-01 ended
XZB50 RHD (20S,21S) WC;BB42,BZB40,HZB50,XZB40 +1 —
79736C — Cover, NO.7 Seat Leg, RH
79236-36010 Cover, NO.7 Seat Leg, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
1997-05 → 1999-07 ended
BB40,HZB50 ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
1995-05 → 1999-07 ended
HZB50,RZB40 LHD EX —
79236-36010 Cover, NO.7 Seat Leg, RH
1995-05 → 1997-05 ended
HZB50 DX —
79236-36010 Cover, NO.7 Seat Leg, RH
1993-01 → 1995-05 ended
BB40,HZB50 (DX,STD) ARL;BB42,HZB50,RZB40 LHD +1 —
79236-36010 Cover, NO.7 Seat Leg, RH
1999-07 → 2001-08 ended
HZB50 RHD EX;BB42,RZB40 22S +1 —
79236-36010 Cover, NO.7 Seat Leg, RH
1999-07 → 2002-11 ended
BB50,RZB40 (20S,22S) CHI —
79236-36010 Cover, NO.7 Seat Leg, RH
1999-07 → 2002-11 ended
HZB50 ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
1999-07 → 2004-08 ended
HZB50 LHD EX;BB50,BZB50,RZB40 17S —
79236-36010 Cover, NO.7 Seat Leg, RH
1999-07 → 2004-08 ended
BB50 ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79236-36010 Cover, NO.7 Seat Leg, RH
2004-08 → 2006-08 ended
BB50 ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
2004-08 → 2007-08 ended
XZB50 ARL —
79236-36010 Cover, NO.7 Seat Leg, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79236-36010 Cover, NO.7 Seat Leg, RH
2004-08 → 2015-01 ended
BZB50 STD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
