Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

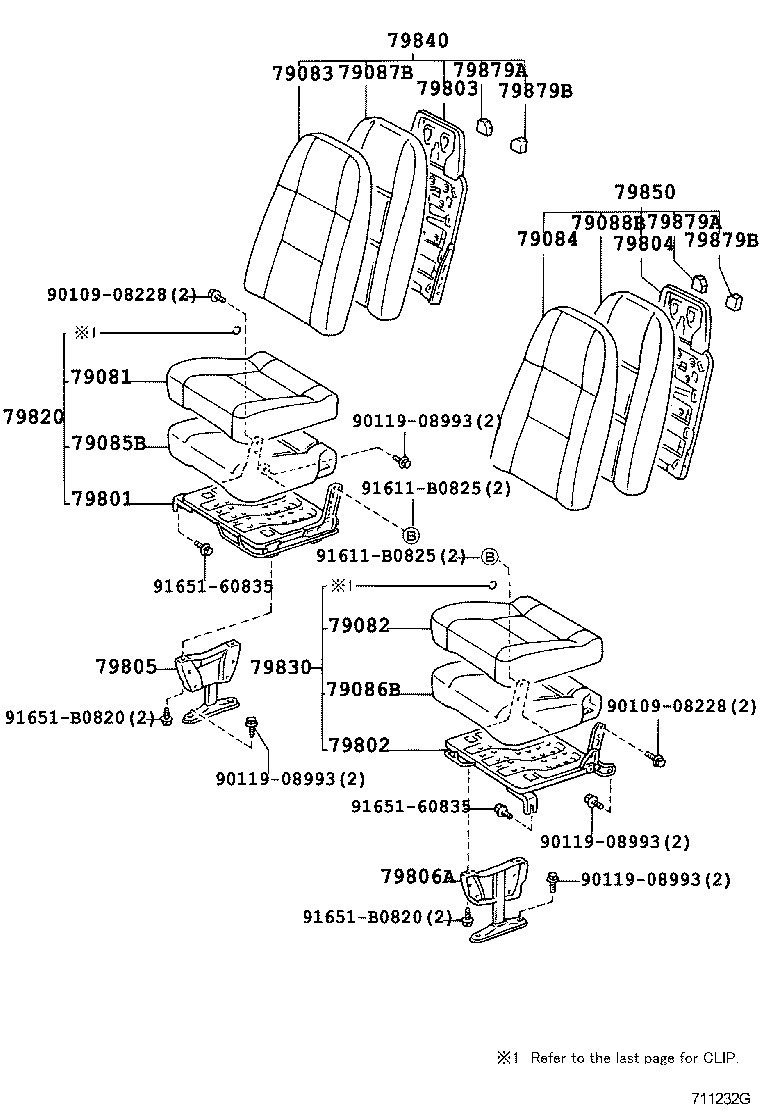

Exploded illustration 711232G 79840 — BACK ASSY, NO.8 SEAT, RH (52 parts) 79850 — BACK ASSY, NO.8 SEAT, LH (47 parts) 79083 — COVER SUB-ASSY, NO.8 SEATBACK, RH (108 parts) 79084 — COVER SUB-ASSY, NO.8 SEATBACK, LH (93 parts) 79087B — PAD SUB-ASSY, NO.8 SEATBACK, RH (70 parts) 79088B — PAD SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79803 — FRAME SUB-ASSY, NO.8 SEATBACK, RH (64 parts) 79804 — FRAME SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79879A — PAD, NO.8 SEATBACK HEADREST, RH (3 parts) 79879A — PAD, NO.8 SEATBACK HEADREST, RH (3 parts) 79879B — PAD, NO.8 SEATBACK HEADREST, LH (5 parts) 79879B — PAD, NO.8 SEATBACK HEADREST, LH (5 parts) 79820 — CUSHION ASSY, NO.8 SEAT, RH (35 parts) 79830 — CUSHION ASSY, NO.8 SEAT, LH (28 parts) 79081 — COVER SUB-ASSY, NO.8 SEAT CUSHION, RH (50 parts) 79082 — COVER SUB-ASSY, NO.8 SEAT CUSHION, LH (46 parts) 79801 — FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH (27 parts) 79802 — FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH (21 parts) 79085B — PAD SUB-ASSY, NO.8 SEAT CUSHION, RH (28 parts) 79086B — PAD SUB-ASSY, NO.8 SEAT CUSHION, LH (24 parts) 79805 — LEG SUB-ASSY, NO.8 SEAT, RH (34 parts) 79806A — LEG SUB-ASSY, NO.8 SEAT, LH (22 parts) 91651B0820 — not listed in this catalogue 91651B0820 — not listed in this catalogue 9011908993 — not listed in this catalogue 9011908993 — not listed in this catalogue 9011908993 — not listed in this catalogue 9011908993 — not listed in this catalogue 91611B0825 — not listed in this catalogue 91611B0825 — not listed in this catalogue 9010908228 — not listed in this catalogue 9010908228 — not listed in this catalogue 9165160835 — not listed in this catalogue 9165160835 — not listed in this catalogue
711232G · 22 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
887 parts on this figure
Part number Description Fitment Price
79081 — Cover Sub-assy, NO.8 Seat Cushion, RH
79011-36120-E3 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79021-36030-E0 note Cover Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
HZB50 DX —
79021-36031-E0 note Cover Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79021-36140-E4 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79021-36140-E4 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79021-36141-E4 note Cover Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD (17S,19S,22S) STD —
79021-36141-E4 note Cover Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79021-36142-E4 note Cover Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB4#,HZB50 RHD STD —
79021-36150-E3 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79021-36150-E3 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79021-36150-E3 note Cover Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79021-36151-E5 note Cover Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79021-36151-E5 note Cover Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79021-36152-E5 note Cover Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79011-36200-E0 note Cover Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB58 —
79011-36201-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB58 —
79021-36060-E1 note Cover Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2002-11 → 2004-08 ended
BB50 STD ARL —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BZB40 —
79021-36110-E0 note Cover Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79021-36111-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79021-36280-E0 note Cover Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
HZB50 DX;BB50 EX GEN +1 —
79021-36281-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2002-11 ended
HZB50 DX —
79021-36281-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79021-36281-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2002-11 → 2004-08 ended
BB50,BZB50 21S (DX,EX) —
79021-36410-B0 note Cover Sub-assy, NO.8 Seat Cushion, RH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79011-36202-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2005-12 ended
BB58 —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79021-36061-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2004-10 ended
BZB40 —
79021-36112-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
HZB50 RHD —
79021-36112-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-01 → 2007-08 ended
BB42 RHD —
79021-36113-B5 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79021-36282-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79021-36282-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79021-36283-K2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
XZB50 EX —
79021-36410-B0 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79021-36410-B0 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79021-36410-B0 note Cover Sub-assy, NO.8 Seat Cushion, RH
2004-10 → 2007-08 ended
BZB40 —
79021-36410-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79021-36410-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79021-36410-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79021-36510-K2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
XZB50 DX —
79021-36640-B3 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79021-36650-J2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
XZB50 EX —
79021-36670-B3 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
HZB50 RHD —
79021-36830-B2 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
HZB50 RHD —
79021-36880-B1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79021-36890-J1 note Cover Sub-assy, NO.8 Seat Cushion, RH
2015-01 → 2016-12 ended
XZB50 DX —
79082 — Cover Sub-assy, NO.8 Seat Cushion, LH
79012-36080-E0 note Cover Sub-assy, NO.8 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 DX —
79012-36081-E0 note Cover Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58;BB50 EX;HZB50 DX —
79012-36140-E4 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79012-36140-E4 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79012-36141-E4 note Cover Sub-assy, NO.8 Seat Cushion, LH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD STD DSL —
79012-36142-E4 note Cover Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB4#,HZB50 RHD STD —
79012-36160-E3 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79012-36160-E3 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79012-36160-E3 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79012-36160-E3 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79012-36161-E5 note Cover Sub-assy, NO.8 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 SCO —
79012-36161-E5 note Cover Sub-assy, NO.8 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36162-E5 note Cover Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36170-E1 note Cover Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79012-36130-E1 note Cover Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD —
79012-36131-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79012-36131-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79012-36240-E0 note Cover Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36241-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79012-36350-E0 note Cover Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 DX;BB5# (20S,23S) GEN —
79012-36351-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 DX —
79012-36351-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,BZB50 RHD (DX,EX) —
79012-36351-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58 —
79012-36620-B0 note Cover Sub-assy, NO.8 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79012-36131-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79012-36131-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79012-36131-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79012-36242-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79012-36242-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-01 → 2007-08 ended
BB42 RHD —
79012-36243-B5 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79012-36352-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79012-36352-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79012-36352-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79012-36353-K2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 EX —
79012-36620-B0 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79012-36620-B0 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79012-36620-B0 note Cover Sub-assy, NO.8 Seat Cushion, LH
2004-10 → 2007-08 ended
BZB40 —
79012-36620-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79012-36620-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79012-36620-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79012-36660-K2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-11 → 2015-01 ended
XZB50 DX —
79032-36220-K2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2007-11 ended
XZB50 DX —
79011-36600-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79012-36D00-J1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 DX,EX —
79012-36D30-B1 note Cover Sub-assy, NO.8 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79012-36D30-B2 note Cover Sub-assy, NO.8 Seat Cushion, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79083 — Cover Sub-assy, NO.8 Seatback, RH
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB40,42,HZB50 STD (ARL,SCO) —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36040-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36060-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB58 —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42 SCO —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79023-36041-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79023-36041-E4 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79023-36060-E0 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79023-36070-E0 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,43 17S —
79083-36020-E3 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 STD +1 —
79083-36030-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79083-36042-E3 note Cover Sub-assy, NO.8 Seatback, RH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79083-36050-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79083-36080-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79083-36080-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79083-36080-E3 note Cover Sub-assy, NO.8 Seatback, RH
1997-07 → 1999-07 ended
HZB50,RZB40 EX —
79083-36100-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79083-36120-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB58 —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB58 —
79023-36070-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BZB40 —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79023-36100-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79023-36120-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 DX;BB50 EX GEN +1 —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB50,BZB50 21S (DX,EX) —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
HZB50 DX —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79083-36042-E3 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
HZB50 TD);RZB40,50 SRF STD +10 —
79083-36140-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79083-36141-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79083-36141-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79083-36150-E1 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79083-36151-B1 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79083-36151-B1 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79083-36170-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79083-36171-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79083-36171-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79023-36122-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79023-36122-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79023-36123-K2 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 DX,EX —
79023-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
HZB50 RHD —
79023-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
BB42 RHD —
79023-36203-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-10 → 2007-08 ended
BZB40 —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2007-11 ended
XZB50 STD ARL —
79023-36260-B0 note Cover Sub-assy, NO.8 Seatback, RH
2007-11 → 2015-01 ended
XZB50 STD WC ARL —
79023-36260-B0 note Cover Sub-assy, NO.8 Seatback, RH
2007-11 → 2009-08 ended
XZB50 WOC CBU —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +1 —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
HZB50;RZB40 WC GEN;BB42,RZB50 LHD;RZB40 +2 —
79083-36153-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-01 ended
BB42,50,HZB50,TRB40,50 —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-02 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-02 → 2011-08 ended
BB42 LHD HRF —
79083-36172-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79083-36172-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
HZB50 HRF GCC —
79083-36173-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79083-36173-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-08 ended
HZB50 HRF GCC —
79013-36690-B5 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79013-36740-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 EX —
79013-36830-B2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79013-36840-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 DX —
79014-36270-B3 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36280-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36320-B4 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
HZB50 RHD —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36043-B8 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36156-B6 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36156-B8 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36175-B6 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79083-36175-B7 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79084 — Cover Sub-assy, NO.8 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79013-36100-E0 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79014-36030-E0 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79014-36060-E4 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 SCO —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79084-36010-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 STD +1 —
79084-36020-E2 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79084-36032-E3 note Cover Sub-assy, NO.8 Seatback, LH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79084-36040-E0 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79084-36070-E0 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79084-36070-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-09 → 1995-05 ended
RZB40 EX GEN —
79084-36070-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +1 —
79084-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79084-36110-E1 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79013-36100-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2002-11 → 2004-08 ended
BB50 STD ARL —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BZB40 —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36120-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 4FC —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, LH
2000-08 → 2001-08 ended
BB58 —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX;BB5# (20S,23S) GEN —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB58;BB50,BZB50 21S (DX,EX) —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79013-36210-E0 note Cover Sub-assy, NO.8 Seatback, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79013-36211-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79084-36032-E3 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
HZB50 TD);RZB40,50 SRF STD +10 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79084-36130-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79084-36131-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79084-36131-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79084-36140-E1 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79084-36141-B1 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79084-36141-B1 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79084-36160-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79084-36161-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79084-36161-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36203-K2 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX,EX —
79013-36212-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79013-36212-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD —
79013-36213-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-08 ended
BZB40 —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +1 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50;RZB40 WC GEN;BB42,RZB50 LHD;RZB40 +2 —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79084-36143-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-01 ended
BB42,50,HZB50,TRB40,50 —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-02 → 2011-08 ended
BB42 LHD HRF —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-02 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
79084-36162-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
HZB50 HRF GCC —
79084-36162-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79084-36163-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-08 ended
HZB50 HRF GCC —
79084-36163-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79013-36820-B2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79014-36270-B3 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36280-J2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36033-B8 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36146-B6 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36146-B8 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36165-B6 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79084-36165-B7 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79085B — Pad Sub-assy, NO.8 Seat Cushion, RH
79015-36070 note Pad Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79015-36071 Pad Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB58 —
79035-36030 Pad Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79035-36050 Pad Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1997-05 ended
HZB50 SCO;BB4#,HZB50 RHD (DX,STD) +1 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +1 —
79015-36071 Pad Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2004-08 ended
BB58 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2002-11 ended
HZB50 ARL —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2004-08 ended
BZB40;BB50,BZB50 (20S,21S) (LPG,TDEFI) —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42 RHD —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU;BB43,HZB50 +2 —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79015-36071 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2005-12 ended
BB58 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2004-10 ended
BZB40 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50,BZB50 20S,21S —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
XZB50 ARL —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79035-36051 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2015-01 ended
HZB50,XZB50 RHD (20S,30S) —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-10 → 2015-01 ended
BZB40 —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2015-01 ended
XZB50 ARL 4FC;BZB50,XZB40 STD —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79035-36090 Pad Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79235-36100 Pad Sub-assy, NO.8 Seat Cushion, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79235-36110 Pad Sub-assy, NO.8 Seat Cushion, RH
2015-01 → —
HZB50 RHD —
79235-36170 note Pad Sub-assy, NO.8 Seat Cushion, RH
2015-01 → —
HZB50 RHD —
79235-36200 Pad Sub-assy, NO.8 Seat Cushion, RH
2015-01 → —
XZB50 ARL —
79086B — Pad Sub-assy, NO.8 Seat Cushion, LH
79016-36090 Pad Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79016-36120 note Pad Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79016-36120 Pad Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1997-05 ended
HZB50 SCO;BB4#,HZB50 RHD (DX,STD) +1 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58;BB4#,50 RHD CBU;HZB50 RHD +1 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU;BB43,HZB50 +2 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2004-08 ended
BB58,BZB40;BB50,BZB50 (20S,21S) (LPG,TDEFI) —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42 RHD —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 20S,21S —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79016-36121 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2015-01 ended
HZB50,XZB50 RHD (20S,30S) —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-10 → 2015-01 ended
BZB40 —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79016-36170 Pad Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 ARL 4FC;BZB50,XZB40 STD —
79135-36110 Pad Sub-assy, NO.8 Seat Cushion, LH
2015-01 → —
HZB50 RHD —
79136-36180 Pad Sub-assy, NO.8 Seat Cushion, LH
2015-01 → —
BZB40,XZB40,50 RHD —
79087B — Pad Sub-assy, NO.8 Seatback, RH
79017-36130 Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB5# WC CBU —
79017-36130 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
HZB50 DX;BB42,50 RHD GEN;HZB50 +4 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 (DX,EX) (ARL,SCO) —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 ARL,SCO —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79037-36010 note Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +4 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79017-36040 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB58 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42 RHD —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 DX —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,BZB50 (DX,EX) (LPG,TDEFI) —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43 —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,RZB40 .GEN LHD (17S,30S) +4 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 WOC +8 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD EX;BB42,RZB40 22S +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 WOC TD —
79017-36040 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
HZB50 RHD —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-10 → 2015-01 ended
BZB40 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB50;BB42 RHD WOC;BB42 RHD +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 SRF WC;HZB50,TRB40,50;BB42 LHD +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79175-36200 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
HZB50 RHD —
79175-36220 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79175-36230 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
XZB50 ARL —
79185-36020 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79185-36030 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
XZB50 ARL —
79088B — Pad Sub-assy, NO.8 Seatback, LH
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1998-02 → 1999-07 ended
BB43 —
79017-36070 Pad Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79017-36090 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79017-36090 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB40,42,HZB50 STD (ARL,SCO) —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36130 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB58;BB50 EX;HZB50 (DX,EX) (ARL,SCO) —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +4 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43 —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 4FC;BB50 EX GEN +1 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42 RHD —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 DX —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB58,BZB50 21S,23S;BB50 (DX,EX) TDEFI —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 WOC +8 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB50,RZB40 .GEN LHD (17S,30S) +4 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;BB42,RZB40 22S +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 WOC TD —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
HZB50 RHD —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-10 → 2015-01 ended
BZB40 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB50;BB42 RHD WOC;BB42 RHD +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 SRF WC;HZB50,TRB40,50;BB42 LHD +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79175-36180 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
HZB50 RHD —
79185-36020 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79801 — Frame Sub-assy, NO.8 Seat Cushion, RH
79101-36040-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +2 —
79801-36040-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1997-05 ended
HZB50 SCO;BB4#,HZB50 RHD (17S,19S,22S,26S,30S) +1 —
79801-36050-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79801-36051-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1997-05 → 1999-07 ended
BB58 —
79801-36060-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1995-05 → 1997-05 ended
HZB50 WC GEN 4FC —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2002-11 ended
HZB50 ARL —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BZB40;BB50,BZB50 RHD (20S,21S) —
79101-36040-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB43,50 RHD CBU —
79101-36040-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
HZB50 ARL —
79101-36040-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79101-36230-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79601-36110-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79801-36051-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2001-08 → 2004-08 ended
BB58 —
79801-36051-E0 note Frame Sub-assy, NO.8 Seat Cushion, RH
1999-07 → 2001-08 ended
BB58 —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50,BZB50 20S,21S —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2007-08 ended
XZB50 ARL —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2015-01 ended
HZB50,XZB50 RHD (20S,30S) —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79101-36040-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2004-10 ended
BZB40 —
79101-36230-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79101-36230-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79101-36230-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2015-01 ended
BZB50,XZB40 STD —
79101-36230-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-10 → 2015-01 ended
BZB40 —
79801-36051-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2004-08 → 2005-12 ended
BB58 —
79801-36160-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79801-36160-B0 note Frame Sub-assy, NO.8 Seat Cushion, RH
2007-08 → 2015-01 ended
XZB50 WC ARL —
79802 — Frame Sub-assy, NO.8 Seat Cushion, LH
79802-36010-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1997-05 ended
HZB50 SCO;BB4#,HZB50 RHD (17S,19S,22S,26S,30S) —
79802-36010-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58;HZB50 RHD (DX,STD);BB40,42,50 RHD +1 —
79802-36010-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79802-36011-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 ARL —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,BZB40,HZB50 RHD GEN;BB50,58,BZB50 (20S,21S,23S) +1 —
79802-36011-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 22S;BB43,5# (17S,20S,23S) GEN —
79802-36011-E0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2015-01 ended
HZB50,XZB50 RHD (20S,30S) —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2005-12 → 2006-08 ended
BB50,BZB50 20S,21S —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2005-12 ended
BB50,58,BZB50 20S,21S,23S —
79802-36011-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 ARL 4FC;BZB50,XZB40 STD —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-10 → 2015-01 ended
BZB40 —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79802-36030-B0 note Frame Sub-assy, NO.8 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79803 — Frame Sub-assy, NO.8 Seatback, RH
79103-36010 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79103-36010 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79103-36011 note Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79103-36021 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79103-36060 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79103-36060 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79103-36060 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (DX,EX) (ARL,SCO) —
79104-36070 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB58 —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC;BB50 EX GEN +1 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 DX —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42 RHD —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,BZB50 (DX,EX) (LPG,TDEFI) —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB58 —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 WOC TD —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
HZB50 RHD —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-10 → 2015-01 ended
BZB40 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2010-01 ended
BB42,50,HZB50,TRB40,50 26S,30S —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79803-36011 Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79803-36011 Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2010-01 ended
BB50;BB42 RHD —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2010-01 ended
HZB50;BB42,TRB40,50 LHD —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79803-36011 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79804 — Frame Sub-assy, NO.8 Seatback, LH
79103-36040 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79103-36040 note Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36050 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 (DX,EX) (ARL,SCO) —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB40;HZB50 (20S,22S) (ARL,SCO) —
79104-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79104-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43 —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2000-03 ended
HZB50 DX;HZB50 4FC;BB5# 20S,23S —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB58;BB50 (DX,EX) TDEFI;BB42,BZB50 RHD +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 WOC TD —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 5F TDEFI;BB50,BZB50 21S +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-08 ended
XZB50 DX,EX —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-07 ended
BZB50 STD —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-07 ended
BZB40,XZB50 STD GEN —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79103-36071 Frame Sub-assy, NO.8 Seatback, LH
2008-03 → 2015-01 ended
XZB40 —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;XZB50 RHD +4 —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2010-01 ended
BB42,50,HZB50,TRB40,50 26S,30S —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79804-36011 Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79804-36011 Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2010-01 ended
HZB50;BB42,TRB40,50 LHD —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2010-01 ended
BB50;BB42 RHD —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79804-36011 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79805 — Leg Sub-assy, NO.8 Seat, RH
71308-36020-E0 note Leg Sub-assy, NO.8 Seat, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79305-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) CBU +1 —
79505-36010-E0 note Leg Sub-assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
HZB50 SCO;BB4#,HZB50 RHD (17S,19S,22S,26S,30S) —
79505-36010-E0 note Leg Sub-assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
71308-36021-B0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2004-08 ended
BB58 —
71308-36021-E0 note Leg Sub-assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB58 —
79305-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79505-36010-B0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 DX —
79505-36010-B0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2004-08 ended
BB50,BZB50 RHD (DX,EX) —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 ARL —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB43 —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2004-08 ended
BB50,BZB40,50 RHD STD CBU —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79505-36010-E0 note Leg Sub-assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
71308-36021-B0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2005-12 ended
BB58 —
79305-36090-B0 note Leg Sub-assy, NO.8 Seat, RH
2007-08 → 2015-01 ended
XZB50 DX —
79305-36090-C0 note Leg Sub-assy, NO.8 Seat, RH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79305-36090-C0 note Leg Sub-assy, NO.8 Seat, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79505-36010-B0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2005-12 ended
BB50,BZB50 DX,EX —
79505-36010-B0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2007-08 ended
XZB50 DX —
79505-36010-B0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2015-01 ended
XZB50 EX —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2015-01 ended
BZB40,50,HZB50,XZB40 RHD STD —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2005-12 → 2006-08 ended
BB50,BZB50 20S,21S —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, RH
2004-08 → 2005-12 ended
BB50 STD ARL —
79105-36470 Leg Sub-assy, NO.8 Seat, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79105-36580 Leg Sub-assy, NO.8 Seat, RH
2015-01 → —
HZB50 RHD —
79105-36850 Leg Sub-assy, NO.8 Seat, RH
2015-01 → —
XZB50 ARL —
79806A — Leg Sub-assy, NO.8 Seat, LH
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
HZB50 SCO;BB42,HZB50 RHD (17S,22S) +1 —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB58;BB42 SCO —
79505-36010-C0 note Leg Sub-assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42 LHD GEN;BB42,HZB50 (17S,19S,20S,26S) +1 —
71309-36052-B0 note Leg Sub-assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 DX —
71309-36052-B0 note Leg Sub-assy, NO.8 Seat, LH
2001-08 → 2004-08 ended
BB50,BZB50 RHD (DX,EX) —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB43,HZB50 17S,22S —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2001-08 → 2004-08 ended
BB42,50,BZB40,50,HZB50 RHD (17S,21S,26S,30S) STD —
71309-36052-E0 note Leg Sub-assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79841-36020 Leg Sub-assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
71309-36052-B0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
71309-36052-B0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2015-01 ended
XZB50 DX,EX —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2015-01 ended
XZB50 STD WC ARL;BZB40,50,HZB50,XZB40 +2 —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
71309-36052-C0 note Leg Sub-assy, NO.8 Seat, LH
2004-08 → 2006-08 ended
BB50 RHD STD CBU —
79106-36600 Leg Sub-assy, NO.8 Seat, LH
2015-01 → —
HZB50 RHD —
79106-36640 Leg Sub-assy, NO.8 Seat, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79106-36810 Leg Sub-assy, NO.8 Seat, LH
2015-01 → —
XZB50 ARL —
79820 — Cushion Assy, NO.8 Seat, RH
79220-36062-E3 note Cushion Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB42,43 17S —
79820-36140-E0 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
HZB50 DX —
79820-36141-E0 note Cushion Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79820-36150-E2 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79820-36150-E2 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79820-36151-E2 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD STD 5F +1 —
79820-36151-E2 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
BB40,HZB50 STD ARL —
79820-36160-E2 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79820-36161-E2 note Cushion Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB58 —
79820-36190-E2 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79820-36260-E0 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79820-36260-E0 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79820-36260-E0 note Cushion Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79820-36261-E3 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79820-36261-E3 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79820-36262-E3 note Cushion Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79820-36360-E0 note Cushion Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
HZB50 WC GEN 4FC —
79820-36361-E0 note Cushion Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
HZB50 4FC —
79220-36230-E0 note Cushion Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79220-36230-E0 note Cushion Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB43 —
79220-36231-B4 note Cushion Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79220-36231-B4 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79220-36231-B4 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BZB40;BB50 STD ARL —
79220-36290-E0 note Cushion Assy, NO.8 Seat, RH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79220-36291-B2 note Cushion Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BB42,HZB50 RHD —
79220-36291-B2 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB42,HZB50 RHD GEN —
79220-36410-E0 note Cushion Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79220-36560-B0 note Cushion Assy, NO.8 Seat, RH
2003-02 → 2004-04 ended
BB50,BZB50 17S —
79820-36420-E0 note Cushion Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 DX;BB50 EX GEN +1 —
79820-36421-B2 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB50,BZB50 RHD (DX,EX) —
79820-36421-B2 note Cushion Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BB50,BZB50 DX,EX —
79820-36421-B2 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 DX —
79820-36430-E0 note Cushion Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB58 —
79820-36431-B2 note Cushion Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB58 —
79820-36431-B2 note Cushion Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BB58 —
79830 — Cushion Assy, NO.8 Seat, LH
79830-36010-E0 note Cushion Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB58 —
79830-36030-E1 note Cushion Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79830-36030-E1 note Cushion Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79830-36031-E1 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
BB4#,HZB50 RHD (17S,19S,22S) STD —
79830-36031-E1 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79830-36032-E1 note Cushion Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB4#,HZB50 RHD STD —
79830-36040-E2 note Cushion Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB40,HZB50 (DX,STD) ARL —
79830-36040-E2 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
BB42 LHD HRF 26S —
79830-36040-E2 note Cushion Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
HZB50 SCO;BB42 LHD HRF +4 —
79830-36040-E2 note Cushion Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB58 —
79830-36041-E5 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
HZB50 SCO —
79830-36041-E5 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79830-36042-E5 note Cushion Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79830-36050-E2 note Cushion Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79830-36080-E0 note Cushion Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
HZB50 DX —
79830-36081-E0 note Cushion Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79830-36100-E0 note Cushion Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD —
79830-36101-B3 note Cushion Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79830-36101-B3 note Cushion Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BZB40;BB50 STD ARL —
79830-36101-B3 note Cushion Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79830-36110-E0 note Cushion Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
HZB50 DX;BB5# (20S,23S) GEN —
79830-36111-B2 note Cushion Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 DX —
79830-36111-B2 note Cushion Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB58,BZB50 21S,23S;BB50 (DX,EX) TDEFI —
79830-36111-B2 note Cushion Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
BB58;BB50,BZB50 DX,EX —
79830-36120-E0 note Cushion Assy, NO.8 Seat, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79830-36121-B1 note Cushion Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB42,HZB50 RHD GEN —
79830-36121-B1 note Cushion Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
BB42,HZB50 RHD —
79830-36130-B0 note Cushion Assy, NO.8 Seat, LH
2003-02 → 2004-04 ended
BB50,BZB50 17S —
79840 — Back Assy, NO.8 Seat, RH
79240-36031-E3 note Back Assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79250-36090-E4 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79250-36090-E4 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79250-36091-E4 note Back Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79250-36091-E4 note Back Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79250-36100-E2 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79250-36100-E2 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79250-36100-E2 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79250-36101-E5 note Back Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79250-36170-E0 note Back Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB42,43 17S —
79250-36200-E0 note Back Assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
HZB50 DX —
79250-36200-E1 note Back Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB50 EX —
79750-36040-E0 note Back Assy, NO.8 Seat, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79750-36040-E0 note Back Assy, NO.8 Seat, RH
1997-05 → 1999-07 ended
BB58 —
79840-36020-E0 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79840-36050-E0 note Back Assy, NO.8 Seat, RH
1993-01 → 1999-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79840-36050-E0 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79840-36070-E1 note Back Assy, NO.8 Seat, RH
1993-01 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 STD +1 —
79840-36090-E1 note Back Assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79840-36100-E3 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79840-36100-E3 note Back Assy, NO.8 Seat, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79840-36100-E3 note Back Assy, NO.8 Seat, RH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79840-36102-E3 note Back Assy, NO.8 Seat, RH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79840-36110-E2 note Back Assy, NO.8 Seat, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79840-36120-E1 note Back Assy, NO.8 Seat, RH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79240-36140-E0 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79240-36141-B1 note Back Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79240-36141-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BZB40;BB50 STD ARL —
79240-36141-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79240-36160-E0 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 DX;BB50 EX GEN +1 —
79240-36161-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB50,BZB50 RHD (DX,EX) —
79240-36161-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
HZB50 DX —
79240-36161-B3 note Back Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BB50,BZB50 DX,EX —
79240-36240-E0 note Back Assy, NO.8 Seat, RH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79240-36241-B0 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB42,HZB50 RHD GEN —
79840-36102-E3 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79840-36103-B2 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79840-36160-E1 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79840-36161-B3 note Back Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79840-36161-B3 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79840-36180-E0 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79840-36181-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79840-36181-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79840-36190-E1 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79840-36191-B2 note Back Assy, NO.8 Seat, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79840-36191-B2 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
HZB50,RZB40 EX —
79840-36191-B2 note Back Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
HZB50,RZB40 EX —
79840-36210-E0 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
BB58 —
79840-36211-B1 note Back Assy, NO.8 Seat, RH
2001-08 → 2003-08 ended
BB58 —
79840-36211-B1 note Back Assy, NO.8 Seat, RH
2003-08 → 2004-08 ended
BB58 —
79840-36220-E0 note Back Assy, NO.8 Seat, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79840-36260-B0 note Back Assy, NO.8 Seat, RH
2003-05 → 2004-04 ended
BB50,BZB50 17S —
79850 — Back Assy, NO.8 Seat, LH
79150-36090-E3 note Back Assy, NO.8 Seat, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79150-36090-E3 note Back Assy, NO.8 Seat, LH
1993-01 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79150-36140-E1 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79150-36140-E1 note Back Assy, NO.8 Seat, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79150-36140-E1 note Back Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB58 —
79150-36140-E1 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79150-36140-E1 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79150-36141-E4 note Back Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
HZB50 SCO —
79150-36141-E4 note Back Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79150-36200-E0 note Back Assy, NO.8 Seat, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79150-36240-E3 note Back Assy, NO.8 Seat, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79850-36040-E0 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79850-36070-E0 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79850-36070-E0 note Back Assy, NO.8 Seat, LH
1993-01 → 1999-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79850-36090-E1 note Back Assy, NO.8 Seat, LH
1993-01 → 1999-07 ended
HZB50 30S GEN 4FC;BB40,42,HZB50,RZB40,50 +3 —
79850-36110-E1 note Back Assy, NO.8 Seat, LH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79850-36120-E3 note Back Assy, NO.8 Seat, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79850-36120-E3 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79850-36120-E3 note Back Assy, NO.8 Seat, LH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79850-36122-E3 note Back Assy, NO.8 Seat, LH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79850-36130-E2 note Back Assy, NO.8 Seat, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79850-36140-E1 note Back Assy, NO.8 Seat, LH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79850-36150-E0 note Back Assy, NO.8 Seat, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79850-36122-E3 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79850-36123-B2 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79850-36190-E1 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79850-36191-B3 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79850-36191-B3 note Back Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79850-36210-E0 note Back Assy, NO.8 Seat, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79850-36211-B0 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB42,HZB50 RHD GEN —
79850-36230-E0 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79850-36231-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79850-36231-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79850-36240-E1 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79850-36241-B2 note Back Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79850-36241-B2 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
HZB50,RZB40 EX —
79850-36241-B2 note Back Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
HZB50,RZB40 EX —
79850-36260-E0 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
HZB50 DX;BB5# (20S,23S) GEN —
79850-36261-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 DX —
79850-36261-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BB58,BZB50 21S,23S;BB50 (DX,EX) TDEFI —
79850-36261-B1 note Back Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
BB58;BB50,BZB50 DX,EX —
79850-36270-E0 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
HZB50 4FC —
79850-36280-E0 note Back Assy, NO.8 Seat, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79850-36281-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79850-36281-B1 note Back Assy, NO.8 Seat, LH
2003-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79850-36281-B1 note Back Assy, NO.8 Seat, LH
2001-08 → 2003-08 ended
BZB40;BB50 STD ARL —
79850-36310-B0 note Back Assy, NO.8 Seat, LH
2003-05 → 2004-04 ended
BB50,BZB50 17S —
79879A — Pad, NO.8 Seatback Headrest, RH
79179-36010 note Pad, NO.8 Seatback Headrest, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79179-36010 Pad, NO.8 Seatback Headrest, RH
1995-05 → 1999-07 ended
BB42,50 RHD GEN;HZB50 RHD +5 —
79179-36010 Pad, NO.8 Seatback Headrest, RH
1997-05 → 1999-07 ended
BB5# WC CBU —
79879B — Pad, NO.8 Seatback Headrest, LH
79179-36010 Pad, NO.8 Seatback Headrest, LH
1993-01 → 1995-05 ended
HZB50 SCO;BB4#,HZB50 RHD (19S,22S,26S,30S) —
79179-36010 note Pad, NO.8 Seatback Headrest, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79179-36010 Pad, NO.8 Seatback Headrest, LH
1995-05 → 1999-07 ended
BB42,50 RHD GEN;HZB50 RHD +5 —
79179-36010 Pad, NO.8 Seatback Headrest, LH
1997-05 → 1999-07 ended
BB58 —
79179-36010 note Pad, NO.8 Seatback Headrest, LH
1997-05 → 1999-07 ended
BB58 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
