Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

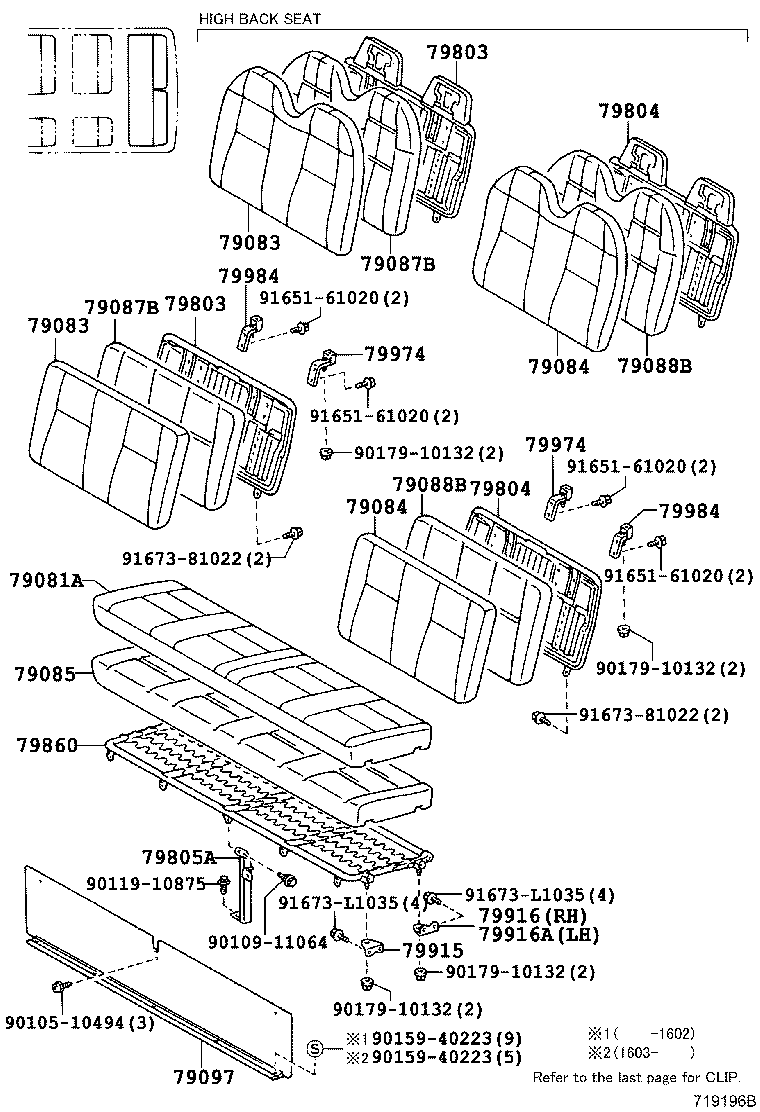

Exploded illustration 719196B 79984 — BRACKET, SEATBACK ASSIST, LH (9 parts) 79803 — FRAME SUB-ASSY, NO.8 SEATBACK, RH (64 parts) 79087B — PAD SUB-ASSY, NO.8 SEATBACK, RH (70 parts) 79083 — COVER SUB-ASSY, NO.8 SEATBACK, RH (108 parts) 79974 — BRACKET, SEATBACK ASSIST, RH (9 parts) 79084 — COVER SUB-ASSY, NO.8 SEATBACK, LH (93 parts) 79804 — FRAME SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79088B — PAD SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79805A — LEG SUB-ASSY, FOLD SEAT, FRONT (15 parts) 79081A — COVER SUB-ASSY, NO.8 SEAT CUSHION (45 parts) 79085 — PAD SUB-ASSY, NO.8 SEAT CUSHION (9 parts) 79860 — SPRING ASSY, NO.8 SEAT CUSHION (24 parts) 79097 — PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL (24 parts) 79916 — BRACKET, SEAT LEG, NO.2 (8 parts) 79916A — BRACKET, SEAT LEG, NO.2 (1 parts) 79915 — BRACKET, SEAT LEG (20 parts) 79974 — BRACKET, SEATBACK ASSIST, RH (9 parts) 79984 — BRACKET, SEATBACK ASSIST, LH (9 parts) 9165161020 — not listed in this catalogue 9165161020 — not listed in this catalogue 9165161020 — not listed in this catalogue 9165161020 — not listed in this catalogue 9017910132 — not listed in this catalogue 9017910132 — not listed in this catalogue 9011910875 — not listed in this catalogue 9010911064 — not listed in this catalogue 9017910132 — not listed in this catalogue 9015940223 — not listed in this catalogue 9015940223 — not listed in this catalogue 9017910132 — not listed in this catalogue 9010510494 — not listed in this catalogue 9167381022 — not listed in this catalogue 9167381022 — not listed in this catalogue 91673L1035 — not listed in this catalogue 91673L1035 — not listed in this catalogue 79803 — FRAME SUB-ASSY, NO.8 SEATBACK, RH (64 parts) 79087B — PAD SUB-ASSY, NO.8 SEATBACK, RH (70 parts) 79083 — COVER SUB-ASSY, NO.8 SEATBACK, RH (108 parts) 79804 — FRAME SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79088B — PAD SUB-ASSY, NO.8 SEATBACK, LH (65 parts) 79084 — COVER SUB-ASSY, NO.8 SEATBACK, LH (93 parts)
719196B · 24 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
629 parts on this figure
Part number Description Fitment Price
79081A — Cover Sub-assy, NO.8 Seat Cushion
79081-36020-E1 note Cover Sub-assy, NO.8 Seat Cushion
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79081-36040-E1 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1993-03 ended
BB42,HZB50 STD GEN —
79081-36050-E0 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1995-05 ended
HZB50 EX ARL —
79081-36070-E3 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79081-36070-E3 note Cover Sub-assy, NO.8 Seat Cushion
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79081-36070-E3 note Cover Sub-assy, NO.8 Seat Cushion
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79081-36080-E0 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79081-36081-E2 note Cover Sub-assy, NO.8 Seat Cushion
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79081-36110-E0 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1993-03 ended
HZB50 EX GEN —
79081-36110-E0 note Cover Sub-assy, NO.8 Seat Cushion
1993-01 → 1993-03 ended
BB42,HZB50 STD GEN —
79081-36280-E1 note Cover Sub-assy, NO.8 Seat Cushion
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79081-36280-E1 note Cover Sub-assy, NO.8 Seat Cushion
1993-09 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79081-36280-E1 note Cover Sub-assy, NO.8 Seat Cushion
1993-03 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79081-36290-E2 note Cover Sub-assy, NO.8 Seat Cushion
1993-03 → 1999-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79081-36290-E2 note Cover Sub-assy, NO.8 Seat Cushion
1993-03 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79081-36120-E1 note Cover Sub-assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79081-36121-B1 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79081-36121-B1 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79081-36140-E0 note Cover Sub-assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79081-36141-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79081-36141-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2004-08 ended
HZB50 TD);RZB40,50 SRF STD +10 —
79081-36141-B0 note Cover Sub-assy, NO.8 Seat Cushion
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79081-36170-E0 note Cover Sub-assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79081-36171-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79081-36171-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79081-36260-E0 note Cover Sub-assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79081-36261-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79081-36261-B0 note Cover Sub-assy, NO.8 Seat Cushion
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79081-36122-B2 note Cover Sub-assy, NO.8 Seat Cushion
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79081-36122-B2 note Cover Sub-assy, NO.8 Seat Cushion
2004-08 → 2007-08 ended
HZB50;RZB40 WC GEN;BB42,RZB50 LHD;RZB40 +2 —
79081-36122-B2 note Cover Sub-assy, NO.8 Seat Cushion
2007-01 → 2007-08 ended
RZB40 WOC —
79081-36123-B5 note Cover Sub-assy, NO.8 Seat Cushion
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
79081-36123-B5 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2011-08 ended
BB42 LHD HRF —
79081-36123-B5 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
79081-36141-B0 note Cover Sub-assy, NO.8 Seat Cushion
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79081-36141-B0 note Cover Sub-assy, NO.8 Seat Cushion
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +1 —
79081-36141-B4 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79081-36141-B4 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2011-08 ended
BB42 LHD HRF —
79081-36172-B1 note Cover Sub-assy, NO.8 Seat Cushion
2007-01 → 2007-08 ended
HZB50 HRF GCC —
79081-36172-B1 note Cover Sub-assy, NO.8 Seat Cushion
2004-08 → 2007-08 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79081-36173-B5 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2011-08 ended
HZB50 HRF GCC —
79081-36173-B5 note Cover Sub-assy, NO.8 Seat Cushion
2007-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79081-36125-B6 note Cover Sub-assy, NO.8 Seat Cushion
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79081-36142-B4 note Cover Sub-assy, NO.8 Seat Cushion
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79081-36175-B6 note Cover Sub-assy, NO.8 Seat Cushion
2015-01 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79083 — Cover Sub-assy, NO.8 Seatback, RH
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB40,42,HZB50 STD (ARL,SCO) —
79013-36040-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36060-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB58 —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42 SCO —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79023-36010-E4 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79023-36040-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (20S,22S) (DX,EX) (ARL,SCO) —
79023-36041-E4 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79023-36041-E4 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 SCO —
79023-36060-E0 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79023-36070-E0 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,43 17S —
79083-36020-E3 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 STD +1 —
79083-36030-E2 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79083-36040-E3 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79083-36042-E3 note Cover Sub-assy, NO.8 Seatback, RH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79083-36050-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79083-36080-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79083-36080-E0 note Cover Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79083-36080-E3 note Cover Sub-assy, NO.8 Seatback, RH
1997-07 → 1999-07 ended
HZB50,RZB40 EX —
79083-36100-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79083-36120-E1 note Cover Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB58 —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB58 —
79023-36070-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BZB40 —
79023-36100-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79023-36120-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 DX;BB50 EX GEN +1 —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB50,BZB50 21S (DX,EX) —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
HZB50 DX —
79023-36121-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79083-36042-E3 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
HZB50 TD);RZB40,50 SRF STD +10 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79083-36140-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79083-36141-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79083-36141-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79083-36150-E1 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79083-36151-B1 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79083-36151-B1 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79083-36170-E0 note Cover Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79083-36171-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79083-36171-B0 note Cover Sub-assy, NO.8 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79023-36071-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79023-36122-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79023-36122-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79023-36123-K2 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 DX,EX —
79023-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
HZB50 RHD —
79023-36202-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
BB42 RHD —
79023-36203-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79023-36210-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-10 → 2007-08 ended
BZB40 —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2007-11 ended
XZB50 STD ARL —
79023-36211-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79023-36260-B0 note Cover Sub-assy, NO.8 Seatback, RH
2007-11 → 2015-01 ended
XZB50 STD WC ARL —
79023-36260-B0 note Cover Sub-assy, NO.8 Seatback, RH
2007-11 → 2009-08 ended
XZB50 WOC CBU —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +1 —
79083-36043-B0 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79083-36152-B2 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
HZB50;RZB40 WC GEN;BB42,RZB50 LHD;RZB40 +2 —
79083-36153-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-01 ended
BB42,50,HZB50,TRB40,50 —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-02 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
79083-36154-B5 note Cover Sub-assy, NO.8 Seatback, RH
2011-02 → 2011-08 ended
BB42 LHD HRF —
79083-36172-B1 note Cover Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
HZB50 HRF GCC —
79083-36172-B1 note Cover Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79083-36173-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2011-08 ended
HZB50 HRF GCC —
79083-36173-B5 note Cover Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79013-36690-B5 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79013-36740-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 EX —
79013-36830-B2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79013-36840-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 DX —
79014-36270-B3 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36280-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36320-B4 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2016-12 ended
HZB50 RHD —
79083-36043-B4 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36043-B8 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36156-B6 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36156-B8 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79083-36175-B6 note Cover Sub-assy, NO.8 Seatback, RH
2015-01 → 2015-11 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79083-36175-B7 note Cover Sub-assy, NO.8 Seatback, RH
2015-11 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79084 — Cover Sub-assy, NO.8 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79013-36030-E4 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36100-E0 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79014-36030-E0 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 DX —
79014-36060-E4 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79014-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79014-36091-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 SCO —
79084-36010-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 STD +1 —
79084-36020-E2 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79084-36030-E3 note Cover Sub-assy, NO.8 Seatback, LH
1997-05 → 1998-09 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79084-36032-E3 note Cover Sub-assy, NO.8 Seatback, LH
1998-09 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79084-36040-E0 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79084-36070-E0 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79084-36070-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-09 → 1995-05 ended
RZB40 EX GEN —
79084-36070-E3 note Cover Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +1 —
79084-36090-E1 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79084-36110-E1 note Cover Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 30S GEN;BB42,RZB40,50 GEN —
79013-36100-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BZB40 —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2002-11 → 2004-08 ended
BB50 STD ARL —
79013-36120-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 4FC —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, LH
2000-08 → 2001-08 ended
BB58 —
79013-36200-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX;BB5# (20S,23S) GEN —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB58;BB50,BZB50 21S (DX,EX) —
79013-36201-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79013-36210-E0 note Cover Sub-assy, NO.8 Seatback, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79013-36211-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79084-36032-E3 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
HZB50 TD);RZB40,50 SRF STD +10 —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79084-36130-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79084-36131-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79084-36131-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79084-36140-E1 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79084-36141-B1 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79084-36141-B1 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79084-36160-E0 note Cover Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GEN) CBU +1 —
79084-36161-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79084-36161-B0 note Cover Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) GEN —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36101-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79013-36202-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX,EX —
79013-36203-K2 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX,EX —
79013-36212-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79013-36212-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD —
79013-36213-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42,HZB50 RHD +1 —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79014-36210-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-08 ended
BZB40 —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79014-36210-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79084-36033-B0 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +1 —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50;RZB40 WC GEN;BB42,RZB50 LHD;RZB40 +2 —
79084-36142-B2 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79084-36143-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-01 ended
BB42,50,HZB50,TRB40,50 —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-08 → 2015-01 ended
BB42 RHD SRF WC —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-02 → 2015-01 ended
BB42 WOC;BB42 RHD HRF;BB42 +3 —
79084-36144-B5 note Cover Sub-assy, NO.8 Seatback, LH
2011-02 → 2011-08 ended
BB42 LHD HRF —
79084-36162-B1 note Cover Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
HZB50 HRF GCC —
79084-36162-B1 note Cover Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79084-36163-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79084-36163-B5 note Cover Sub-assy, NO.8 Seatback, LH
2007-08 → 2011-08 ended
HZB50 HRF GCC —
79013-36820-B2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79014-36270-B3 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36280-J2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79084-36033-B4 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36033-B8 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36146-B6 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36146-B8 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79084-36165-B6 note Cover Sub-assy, NO.8 Seatback, LH
2015-01 → 2015-11 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79084-36165-B7 note Cover Sub-assy, NO.8 Seatback, LH
2015-11 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79085 — Pad Sub-assy, NO.8 Seat Cushion
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
1993-01 → 1999-07 ended
BB42,RZB40,50 GCC,GEN;HZB50 (20S,30S) (GCC,GEN) —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
1999-07 → 2004-08 ended
BB42 LHD 0 WC +20 —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
HZB50 0 RHD RHD +10 —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
2004-08 → 2011-08 ended
BB42 LHD HRF —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79085-36020 Pad Sub-assy, NO.8 Seat Cushion
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79087B — Pad Sub-assy, NO.8 Seatback, RH
79017-36130 Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB5# WC CBU —
79017-36130 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
HZB50 DX;BB42,50 RHD GEN;HZB50 +4 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 (DX,EX) (ARL,SCO) —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 ARL,SCO —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79037-36010 note Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +4 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79017-36040 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB58 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 DX —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42 RHD —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,BZB50 (DX,EX) (LPG,TDEFI) —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43 —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD EX;BB42,RZB40 22S +1 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,RZB40 .GEN LHD (17S,30S) +4 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 WOC +8 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 WOC TD —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79017-36040 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
HZB50 RHD —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-10 → 2015-01 ended
BZB40 —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79027-36030 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79027-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79037-36010 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
BB50;BB42 RHD WOC;BB42 RHD +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 SRF WC;HZB50,TRB40,50;BB42 LHD +1 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79087-36030 Pad Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79087-36010 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79087-36020 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79087-36030 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79175-36200 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
HZB50 RHD —
79175-36220 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79175-36230 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
XZB50 ARL —
79185-36020 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79185-36030 note Pad Sub-assy, NO.8 Seatback, RH
2015-01 → —
XZB50 ARL —
79088B — Pad Sub-assy, NO.8 Seatback, LH
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1998-02 → 1999-07 ended
BB43 —
79017-36070 Pad Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79017-36090 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79017-36090 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB40,42,HZB50 STD (ARL,SCO) —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79017-36130 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB58;BB50 EX;HZB50 (DX,EX) (ARL,SCO) —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79017-36130 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 EX GEN;RZB40 EX +4 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB42 RHD —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 4FC;BB50 EX GEN +1 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 DX —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB58,BZB50 21S,23S;BB50 (DX,EX) TDEFI —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB42,HZB50 RHD +3 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;BB42,RZB40 22S +1 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB50 WOC +8 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB50,RZB40 .GEN LHD (17S,30S) +4 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 WOC TD —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79017-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
HZB50 RHD —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-10 → 2015-01 ended
BZB40 —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79017-36040 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79017-36040 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB50;BB42 RHD WOC;BB42 RHD +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 SRF WC;HZB50,TRB40,50;BB42 LHD +1 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79088-36030 Pad Sub-assy, NO.8 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79088-36010 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79088-36020 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79088-36030 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79175-36180 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
HZB50 RHD —
79185-36020 note Pad Sub-assy, NO.8 Seatback, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79097 — Partition Sub-assy, Luggage Compartment Wall
79097-36010-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-01 → 1993-03 ended
BB42,HZB50 STD (GCC,GEN) —
79097-36020-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-01 → 1993-03 ended
HZB50 EX GEN —
79097-36020-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-01 → 1993-03 ended
BB42,HZB50 STD GEN —
79097-36050-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-03 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79097-36051-E0 note Partition Sub-assy, Luggage Compartment Wall
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79097-36060-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-03 → 1995-05 ended
HZB50,RZB40 EX (GCC,GEN) —
79097-36060-E0 note Partition Sub-assy, Luggage Compartment Wall
1993-03 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GEN —
79097-36061-E0 note Partition Sub-assy, Luggage Compartment Wall
1995-05 → 1999-07 ended
RZB40 EX;BB42,RZB40,50 GEN;HZB50 (20S,30S) +1 —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 (26S,30S) (GCC,GEN) —
79097-36051-E0 note Partition Sub-assy, Luggage Compartment Wall
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79097-36061-E0 note Partition Sub-assy, Luggage Compartment Wall
1999-07 → 2001-08 ended
BB50,RZB40 LHD (17S,20S,30S);BB42,HZB50,RZB40,50 (CHI,GEN) +1 —
79097-36062-B0 note Partition Sub-assy, Luggage Compartment Wall
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79097-36062-B0 note Partition Sub-assy, Luggage Compartment Wall
2001-08 → 2004-08 ended
RZB40 EX;BB42,50,HZB50,RZB40,50 GEN (DSL,EFI,TD) —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2004-08 → 2011-08 ended
BB42 LHD HRF —
79097-36051-B0 note Partition Sub-assy, Luggage Compartment Wall
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79097-36062-B0 note Partition Sub-assy, Luggage Compartment Wall
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79097-36062-B0 note Partition Sub-assy, Luggage Compartment Wall
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79097-36052-B0 note Partition Sub-assy, Luggage Compartment Wall
2015-01 → 2016-02 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79097-36053-B0 note Partition Sub-assy, Luggage Compartment Wall
2016-03 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79097-36063-B0 note Partition Sub-assy, Luggage Compartment Wall
2015-01 → 2016-02 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79097-36064-B0 note Partition Sub-assy, Luggage Compartment Wall
2016-03 → 2016-12 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79803 — Frame Sub-assy, NO.8 Seatback, RH
79103-36010 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB4#,HZB50 STD (ARL,SCO) —
79103-36010 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79103-36011 note Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36021 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79103-36060 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79103-36060 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
HZB50 (DX,EX) (ARL,SCO) —
79103-36060 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79104-36070 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB58 —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
BB43 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 4FC;BB50 EX GEN +1 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB42 RHD —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB50,BZB50 (DX,EX) (LPG,TDEFI) —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
HZB50 DX —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB58 —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79803-36010 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2001-08 → 2004-08 ended
BB50 WOC TD —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD ARL —
79103-36011 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2004-10 ended
BZB40 —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
XZB50 DX,EX;BZB50,XZB40 STD —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
HZB50 RHD —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-10 → 2015-01 ended
BZB40 —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79103-36061 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50,BZB50 DX,EX —
79103-36061 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79104-36070 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2010-01 ended
BB42,50,HZB50,TRB40,50 26S,30S —
79803-36010 Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79803-36011 Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79803-36011 Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2010-01 ended
HZB50;BB42,TRB40,50 LHD —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2007-08 → 2010-01 ended
BB50;BB42 RHD —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79803-36020 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79803-36011 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79803-36021 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79803-36030 note Frame Sub-assy, NO.8 Seatback, RH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79804 — Frame Sub-assy, NO.8 Seatback, LH
79103-36040 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (17S,19S,22S) STD +1 —
79103-36040 note Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36050 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
HZB50 WC GEN 4FC —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB40;HZB50 (20S,22S) (ARL,SCO) —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 (DX,EX) (ARL,SCO) —
79104-36070 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79104-36070 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1997-05 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
BB43 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BZB40;BB50 STD ARL —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2000-03 ended
HZB50 DX;HZB50 4FC;BB5# 20S,23S —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB58;BB50 (DX,EX) TDEFI;BB42,BZB50 RHD +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2000-03 → 2004-08 ended
HZB50 RHD HRF STD +3 —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2001-08 → 2004-08 ended
BB50 WOC TD —
79804-36010 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 LHD N) WC +17 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79103-36040 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-08 ended
BB50 5F TDEFI;BB50,BZB50 21S +1 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-07 ended
BZB50 STD —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-07 ended
BZB40,XZB50 STD GEN —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79103-36070 Frame Sub-assy, NO.8 Seatback, LH
2004-10 → 2007-08 ended
XZB50 DX,EX —
79103-36070 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD —
79103-36071 Frame Sub-assy, NO.8 Seatback, LH
2008-03 → 2015-01 ended
XZB40 —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79103-36071 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;XZB50 RHD +4 —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79804-36010 Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2010-01 ended
BB42,50,HZB50,TRB40,50 26S,30S —
79804-36011 Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79804-36011 Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2010-01 ended
HZB50;BB42,TRB40,50 LHD —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79804-36020 note Frame Sub-assy, NO.8 Seatback, LH
2007-08 → 2010-01 ended
BB50;BB42 RHD —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2011-08 ended
BB42 LHD HRF —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2010-02 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79804-36011 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79804-36021 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79804-36030 note Frame Sub-assy, NO.8 Seatback, LH
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79805A — Leg Sub-assy, Fold Seat, Front
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
1995-05 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79805-36010-E0 note Leg Sub-assy, Fold Seat, Front
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 GCC,GEN —
79805-36010-E0 note Leg Sub-assy, Fold Seat, Front
1995-05 → 1999-07 ended
HZB50,RZB40 EX (GCC,GEN) —
79805-36010-B0 note Leg Sub-assy, Fold Seat, Front
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79805-36010-B0 note Leg Sub-assy, Fold Seat, Front
2001-08 → 2002-11 ended
BB50 EX TD —
79805-36010-B0 note Leg Sub-assy, Fold Seat, Front
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2001-08 → 2004-08 ended
BB50 WC GEN TD;BB42,HZB50,RZB40,50 +2 —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2001-08 → 2004-08 ended
BB50 WOC TD —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 STD (CHI,GCC,GEN) CBU +1 —
79805-36010-E0 note Leg Sub-assy, Fold Seat, Front
1999-07 → 2001-08 ended
BB50 EX CHI;HZB50,RZB40 EX —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2004-08 → 2011-08 ended
BB42 LHD HRF —
79805-36010-C0 note Leg Sub-assy, Fold Seat, Front
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79805-36011-C0 note Leg Sub-assy, Fold Seat, Front
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79860 — Spring Assy, NO.8 Seat Cushion
79860-36010 note Spring Assy, NO.8 Seat Cushion
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) 5F —
79860-36010 note Spring Assy, NO.8 Seat Cushion
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79860-36010 note Spring Assy, NO.8 Seat Cushion
1995-05 → 1997-05 ended
HZB50 RHD STD GEN +1 —
79860-36010 Spring Assy, NO.8 Seat Cushion
1995-05 → 1997-05 ended
HZB50 LHD STD DSL;BB42,RZB40,50 +2 —
79860-36010 Spring Assy, NO.8 Seat Cushion
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD (GCC,GEN) —
79860-36020 note Spring Assy, NO.8 Seat Cushion
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79860-36010 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79860-36010 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79860-36010 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79860-36020 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79860-36020 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79860-36020 note Spring Assy, NO.8 Seat Cushion
1999-07 → 2004-08 ended
RZB40 GEN;HZB50,RZB40 EX;BB42 LHD +16 —
79860-36020 Spring Assy, NO.8 Seat Cushion
2001-08 → 2004-08 ended
BB50 WOC TD —
79860-36010 Spring Assy, NO.8 Seat Cushion
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79860-36010 Spring Assy, NO.8 Seat Cushion
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79860-36010 Spring Assy, NO.8 Seat Cushion
2004-08 → 2011-08 ended
BB42 LHD HRF —
79860-36010 Spring Assy, NO.8 Seat Cushion
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79860-36020 note Spring Assy, NO.8 Seat Cushion
2004-08 → 2009-10 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79860-36020 note Spring Assy, NO.8 Seat Cushion
2007-01 → 2009-10 ended
HZB50 HRF GCC —
79860-36021 note Spring Assy, NO.8 Seat Cushion
2009-11 → 2011-08 ended
HZB50 HRF GCC —
79860-36021 note Spring Assy, NO.8 Seat Cushion
2009-11 → 2011-12 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79860-36022 note Spring Assy, NO.8 Seat Cushion
2012-01 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +3 —
79860-36011-B0 note Spring Assy, NO.8 Seat Cushion
2015-01 → 2015-07 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79860-36023-B0 note Spring Assy, NO.8 Seat Cushion
2015-01 → 2015-07 ended
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79915 — Bracket, Seat Leg
79915-36020 Bracket, Seat Leg
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79915-36030 note Bracket, Seat Leg
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79915-36020 Bracket, Seat Leg
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79915-36020 Bracket, Seat Leg
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79915-36020 Bracket, Seat Leg
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79915-36030 note Bracket, Seat Leg
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79915-36030 note Bracket, Seat Leg
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79915-36030 note Bracket, Seat Leg
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79915-36020 Bracket, Seat Leg
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79915-36020 Bracket, Seat Leg
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79915-36020 Bracket, Seat Leg
2004-08 → 2011-08 ended
BB42 LHD HRF —
79915-36020 Bracket, Seat Leg
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79915-36030 note Bracket, Seat Leg
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79915-36030 note Bracket, Seat Leg
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79915-36021 note Bracket, Seat Leg
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79915-36031 note Bracket, Seat Leg
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79915-36170 note Bracket, Seat Leg
2015-01 → —
BZB40,HZB50,XZB40,50 RHD —
79915-36180 note Bracket, Seat Leg
2015-01 → —
BZB40,HZB50,XZB40,50 RHD —
79915-36190 note Bracket, Seat Leg
2015-01 → —
BZB40,HZB50,XZB40,50 RHD —
79915-36200 note Bracket, Seat Leg
2015-01 → —
BZB40,HZB50,XZB40,50 RHD —
79916 — Bracket, Seat Leg, NO.2
79916-36020 Bracket, Seat Leg, NO.2
1993-01 → 1999-07 ended
RZB40 EX GCC;BB42,RZB40,50 GEN;HZB50 +2 —
79916-36020 Bracket, Seat Leg, NO.2
1999-07 → 2001-08 ended
HZB50 RHD EX;HZB50 RHD +7 —
79916-36020 Bracket, Seat Leg, NO.2
1999-07 → 2002-11 ended
BB50,RZB40,50 CHI —
79916-36020 Bracket, Seat Leg, NO.2
1999-07 → 2004-08 ended
BB42 SRF N SRF +17 —
79916-36020 Bracket, Seat Leg, NO.2
2007-01 → 2011-08 ended
HZB50 HRF GCC —
79916-36020 Bracket, Seat Leg, NO.2
2004-08 → 2015-01 ended
BB42 RHD WOC;BB50,HZB50 LHD +4 —
79915-36230 note Bracket, Seat Leg, NO.2
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79916-36021 note Bracket, Seat Leg, NO.2
2015-01 → —
BB42 RHD WOC;HZB50,XZB50 LHD +4 —
79916A — Bracket, Seat Leg, NO.2
79916-36050 Bracket, Seat Leg, NO.2
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79974 — Bracket, Seatback Assist, RH
79974-36020 Bracket, Seatback Assist, RH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79974-36020 Bracket, Seatback Assist, RH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79974-36020 Bracket, Seatback Assist, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79974-36020 Bracket, Seatback Assist, RH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79974-36020 Bracket, Seatback Assist, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79974-36020 Bracket, Seatback Assist, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79974-36020 Bracket, Seatback Assist, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79974-36020 Bracket, Seatback Assist, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79974-36021 Bracket, Seatback Assist, RH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
79984 — Bracket, Seatback Assist, LH
79984-36010 Bracket, Seatback Assist, LH
1993-01 → 1999-07 ended
HZB50 30S;BB42,RZB40,50 STD (GCC,GEN) —
79984-36010 Bracket, Seatback Assist, LH
1999-07 → 2001-08 ended
HZB50 C RHD GEN +8 —
79984-36010 Bracket, Seatback Assist, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79984-36010 Bracket, Seatback Assist, LH
1999-07 → 2004-08 ended
BB42 C (26S,30S) WC +19 —
79984-36010 Bracket, Seatback Assist, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79984-36010 Bracket, Seatback Assist, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79984-36010 Bracket, Seatback Assist, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79984-36010 Bracket, Seatback Assist, LH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79984-36011 Bracket, Seatback Assist, LH
2015-01 → —
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 30S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
