Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

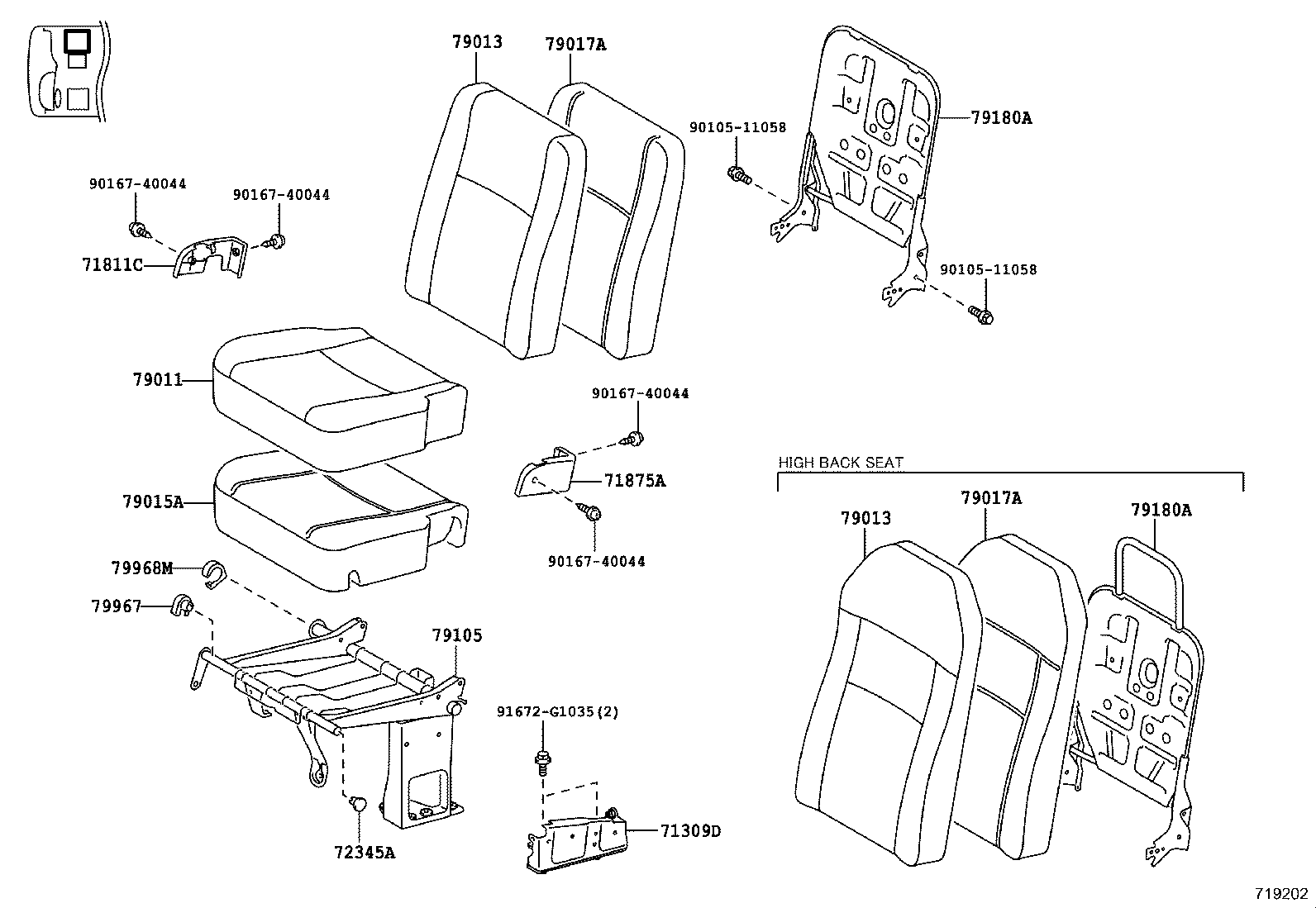

Exploded illustration 719202 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9010511058 — not listed in this catalogue 9010511058 — not listed in this catalogue 91672G1035 — not listed in this catalogue 79105 — LEG SUB-ASSY, NO.1 SEAT, RH (25 parts) 79967 — COVER, REAR SEAT LEG SIDE, NO.4 (1 parts) 79968M — COVER, REAR SEAT LEG SIDE, NO.5 (1 parts) 72345A — PIPE, RECLINING CONNECTING (2 parts) 79011 — COVER SUB-ASSY, NO.1 SEAT CUSHION, RH (94 parts) 79013 — COVER SUB-ASSY, NO.1 SEATBACK, RH (50 parts) 79017A — PAD SUB-ASSY, NO.1 SEATBACK, RH (36 parts) 79013 — COVER SUB-ASSY, NO.1 SEATBACK, RH (50 parts) 79017A — PAD SUB-ASSY, NO.1 SEATBACK, RH (36 parts) 79180A — SPRING ASSY, NO.1 SEATBACK, RH (3 parts) 71811C — COVER, RECLINING ADJUSTER, RH (2 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (2 parts) 79180A — SPRING ASSY, NO.1 SEATBACK, RH (3 parts) 79015A — PAD SUB-ASSY, NO.1 SEAT CUSHION, RH (41 parts) 71309D — LEG SUB-ASSY, REAR SEAT, LH (1 parts)
719202 · 15 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
258 parts on this figure
Part number Description Fitment Price
71309D — Leg Sub-assy, Rear Seat, LH
71309-36080 Leg Sub-assy, Rear Seat, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
71811C — Cover, Reclining Adjuster, RH
71811-36010-B0 note Cover, Reclining Adjuster, RH
2015-01 → 2016-12 ended
XZB50 TAIW —
71811-36120-B0 note Cover, Reclining Adjuster, RH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71875A — Cover, Reclining Adjuster Inside, RH
71812-36080-B0 note Cover, Reclining Adjuster Inside, RH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71812-36200-B0 note Cover, Reclining Adjuster Inside, RH
2015-01 → 2016-12 ended
XZB50 TAIW —
72345A — Pipe, Reclining Connecting
72345-36010 Pipe, Reclining Connecting
2015-01 → —
XZB50 EX —
72345-36010 Pipe, Reclining Connecting
2015-01 → —
BB42,BZB40,HZB50,TRB40,50,XZB40,50 —
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
79011-36050-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GCC —
79011-36050-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36051-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 LHD STD WC +2 —
79011-36051-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 WC GCC —
79011-36060-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 STD GCC —
79011-36060-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36061-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36061-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 WC GCC —
79011-36061-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42 WOC GCC;RZB40,50 STD +1 —
79011-36062-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1998-07 ended
BB42,HZB50,RZB40,50 STD GCC —
79011-36062-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1998-07 ended
RZB40,50 GEN;BB42,HZB50 LHD HRF +2 —
79011-36062-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1998-07 ended
BB42,HZB50 LHD SRF GEN —
79011-36062-E6 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-07 → 1998-11 ended
RZB40,50 GEN;BB42,HZB50 LHD HRF +2 —
79011-36062-E6 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-07 → 1998-11 ended
BB42,HZB50 LHD SRF GEN —
79011-36062-E6 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-07 → 1998-11 ended
BB42,HZB50,RZB40,50 STD GCC —
79011-36062-E7 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-11 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79011-36062-E7 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-11 → 1999-07 ended
RZB40,50 GEN;BB42,HZB50 LHD HRF +2 —
79011-36062-E7 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-11 → 1999-07 ended
BB42,HZB50,RZB40,50 STD GCC —
79011-36070-E1 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1996-11 ended
HZB50,RZB40 LHD EX —
79011-36070-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1996-11 → 1998-07 ended
HZB50,RZB40 LHD EX —
79011-36070-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-07 → 1998-11 ended
HZB50,RZB40 LHD EX —
79011-36070-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-11 → 1999-07 ended
HZB50,RZB40 LHD EX —
79011-36100-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36101-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42,HZB50 LHD STD WC +2 —
79011-36102-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36120-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36120-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
1995-05 → 1997-05 ended
BB42 LHD HRF;BB42 LHD +5 —
79011-36122-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79011-36122-E5 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79011-36190-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1993-12 ended
BB42 LHD HRF 26S —
79011-36210-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1993-12 → 1997-05 ended
BB42 LHD HRF 26S —
79011-36210-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1998-07 ended
BB58 —
79011-36210-E1 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-07 → 1998-11 ended
BB58 —
79011-36210-E2 note Cover Sub-assy, NO.1 Seat Cushion, RH
1998-11 → 1999-07 ended
BB58 —
79011-36040-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-08 → 2001-08 ended
BB50,RZB40,50 STD CHI —
79011-36041-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79011-36052-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42,HZB50 LHD STD —
79011-36053-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 LHD STD —
79011-36102-E4 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42,HZB50 LHD STD GEN —
79011-36103-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 LHD STD GEN —
79011-36150-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42,HZB50 LHD STD —
79011-36151-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 LHD STD —
79011-36240-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB58 —
79011-36241-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB58 —
79011-36260-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
HZB50,RZB40 LHD EX —
79011-36261-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79011-36270-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB50,RZB40,50 STD GEN CBU +1 —
79011-36271-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB50,RZB40,50 LHD GEN 5F —
79011-36280-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB50,RZB40,50 STD GEN CBU +1 —
79011-36281-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB50,RZB40,50 LHD GEN 5F —
79011-36290-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79011-36291-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79011-36300-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB50,RZB40,50 STD (GCC,GEN) CBU +1 —
79011-36301-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79011-36310-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-12 → 2001-08 ended
RZB50 CHI —
79011-36310-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-08 → 2001-08 ended
BB50 STD CHI —
79011-36311-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79011-36320-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-08 → 2001-08 ended
BB50 EX CHI —
79011-36321-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50 EX TD —
79011-36350-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42,HZB50 LHD STD GEN —
79011-36351-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB42,HZB50 LHD STD GEN —
79011-36360-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50 EX TD —
79011-36390-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
HZB50 EX —
79011-36400-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79011-36410-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79011-36053-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79011-36053-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB42,HZB50 LHD —
79011-36053-B6 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79011-36053-B6 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2011-12 ended
TRB40,50 GEN;BB42 LHD SRF;BB50,HZB50 +1 —
79011-36053-B8 note Cover Sub-assy, NO.1 Seat Cushion, RH
2011-12 → 2015-01 ended
TRB40,50 GEN;BB42,50,HZB50 LHD —
79011-36103-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB42,HZB50 LHD GEN —
79011-36103-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79011-36152-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB42,HZB50 LHD —
79011-36152-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79011-36153-B4 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2015-01 ended
TRB40,50 GEN;BB42 LHD SRF;BB50,HZB50 +1 —
79011-36153-B4 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79011-36242-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
XZB50 TAIW —
79011-36242-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2006-08 ended
BB58 —
79011-36243-K2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2009-12 ended
XZB50 TAIW —
79011-36271-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB50,RZB40,50 LHD GEN 5F —
79011-36282-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB50,RZB40,50 LHD WC GEN +1 —
79011-36291-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
RZB40 GEN;BB50,RZB50 30S;RZB40 SRF +1 —
79011-36291-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79011-36291-B5 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2011-12 ended
BB50,TRB40,50 —
79011-36291-B7 note Cover Sub-assy, NO.1 Seat Cushion, RH
2011-12 → 2015-01 ended
BB50,TRB40,50 —
79011-36302-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
RZB40 WC GEN;RZB40 SRF +3 —
79011-36302-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79011-36303-B5 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2015-01 ended
BB50,TRB40,50 —
79011-36352-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB42,HZB50 LHD GEN —
79011-36352-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79021-36570-K0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2011-08 → 2015-01 ended
XZB50 TAIW —
79011-36450-B4 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79011-36490-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79012-36D90-J1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-01 → 2016-12 ended
XZB50 TAIW —
79013 — Cover Sub-assy, NO.1 Seatback, RH
79013-36030-E4 note Cover Sub-assy, NO.1 Seatback, RH
1993-01 → 1993-10 ended
BB42,HZB50 LHD STD WC +2 —
79013-36030-E4 note Cover Sub-assy, NO.1 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79013-36050-E3 note Cover Sub-assy, NO.1 Seatback, RH
1993-01 → 1995-05 ended
BB42 LHD SRF;BB42 LHD +4 —
79013-36050-E3 note Cover Sub-assy, NO.1 Seatback, RH
1993-01 → 1995-05 ended
BB42 LHD HRF 26S —
79013-36050-E3 note Cover Sub-assy, NO.1 Seatback, RH
1997-05 → 1999-07 ended
BB42 LHD HRF 26S —
79013-36050-E3 note Cover Sub-assy, NO.1 Seatback, RH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79013-36050-E3 note Cover Sub-assy, NO.1 Seatback, RH
1997-05 → 1999-07 ended
BB58 —
79013-36060-E1 note Cover Sub-assy, NO.1 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79013-36060-E1 note Cover Sub-assy, NO.1 Seatback, RH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 STD GCC —
79023-36050-E2 note Cover Sub-assy, NO.1 Seatback, RH
1993-01 → 1996-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E5 note Cover Sub-assy, NO.1 Seatback, RH
1996-11 → 1998-07 ended
HZB50,RZB40 LHD EX —
79023-36050-E6 note Cover Sub-assy, NO.1 Seatback, RH
1998-07 → 1998-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E8 note Cover Sub-assy, NO.1 Seatback, RH
1998-11 → 1999-07 ended
HZB50,RZB40 LHD EX —
79013-36030-E4 note Cover Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB42,HZB50 WC GCC;BB42,HZB50 LHD +5 —
79013-36030-E4 note Cover Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB42,HZB50 LHD STD WC +1 —
79013-36031-B0 note Cover Sub-assy, NO.1 Seatback, RH
2002-11 → 2004-08 ended
BB42 GCC;HZB50 LHD HRF +3 —
79013-36031-B0 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2002-11 ended
BB42 GCC;HZB50 LHD HRF +3 —
79013-36031-B0 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2004-08 ended
BB42 STD LHD (GCC,GEN) +9 —
79013-36150-E0 note Cover Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD CBU +1 —
79013-36151-B1 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79013-36151-B1 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79013-36160-E0 note Cover Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB58 —
79013-36161-B0 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2004-08 ended
BB58 —
79023-36110-E0 note Cover Sub-assy, NO.1 Seatback, RH
2000-08 → 2001-08 ended
BB50 EX CHI —
79023-36110-E0 note Cover Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
HZB50,RZB40 LHD EX —
79023-36111-B2 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79023-36111-B2 note Cover Sub-assy, NO.1 Seatback, RH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79013-36031-B0 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79013-36031-B0 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79013-36031-B4 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2015-01 ended
BB42,HZB50,TRB40,50 GCC —
79013-36152-B2 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79013-36152-B2 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79013-36152-B2 note Cover Sub-assy, NO.1 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79013-36153-B6 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79013-36153-B6 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79013-36162-B1 note Cover Sub-assy, NO.1 Seatback, RH
2005-12 → 2006-08 ended
BB58 —
79013-36162-B1 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2007-08 ended
XZB50 TAIW —
79013-36162-B1 note Cover Sub-assy, NO.1 Seatback, RH
2004-08 → 2005-12 ended
BB58 —
79013-36163-K2 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2009-08 ended
XZB50 TAIW —
79013-36360-K0 note Cover Sub-assy, NO.1 Seatback, RH
2009-08 → 2009-12 ended
XZB50 TAIW —
79013-36560-K0 note Cover Sub-assy, NO.1 Seatback, RH
2011-08 → 2015-01 ended
XZB50 TAIW —
79013-36620 note Cover Sub-assy, NO.1 Seatback, RH
2011-08 → 2015-01 ended
XZB50 TAIW —
79014-36061-B0 note Cover Sub-assy, NO.1 Seatback, RH
2007-01 → 2007-08 ended
RZB40,50 GEN;HZB50 SRF GEN —
79014-36061-B0 note Cover Sub-assy, NO.1 Seatback, RH
2006-10 → 2007-08 ended
BB42 LHD WOC;HZB50 LHD +2 —
79014-36061-B3 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79014-36061-B3 note Cover Sub-assy, NO.1 Seatback, RH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79013-36670-B4 note Cover Sub-assy, NO.1 Seatback, RH
2015-01 → 2016-12 ended
BB42,TRB40 GCC;HZB50,TRB50 30S GCC —
79013-36730-J2 note Cover Sub-assy, NO.1 Seatback, RH
2015-01 → 2016-12 ended
XZB50 TAIW —
79013-36850-B1 note Cover Sub-assy, NO.1 Seatback, RH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79013-36860-B1 note Cover Sub-assy, NO.1 Seatback, RH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79015A — Pad Sub-assy, NO.1 Seat Cushion, RH
79015-36010 note Pad Sub-assy, NO.1 Seat Cushion, RH
1993-12 → 1997-05 ended
BB42 LHD HRF 26S —
79015-36010 Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1999-07 ended
RZB40 EX;BB58,HZB50 LHD (20S,22S) —
79015-36020 Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 STD GCC —
79015-36020 note Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79015-36021 note Pad Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79015-36050 note Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1993-12 ended
BB42 LHD HRF 26S —
79015-36070 Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79015-36070 note Pad Sub-assy, NO.1 Seat Cushion, RH
1993-01 → 1993-10 ended
BB42,HZB50 LHD STD WC +2 —
79015-36071 Pad Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD GEN —
79015-36071 note Pad Sub-assy, NO.1 Seat Cushion, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79015-36010 Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB5#,HZB50,RZB40 LHD (17S,20S,23S) —
79015-36010 note Pad Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2004-08 ended
BB58,HZB50,RZB40 17S,20S,23S —
79015-36010 note Pad Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50 EX TD —
79015-36021 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2004-08 ended
BB42 WC GCC;HZB50 LHD +4 —
79015-36021 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2002-11 ended
BB50,RZB50 STD CHI —
79015-36021 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC —
79015-36071 Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
BB42 22S —
79015-36071 Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2004-08 ended
BB42 LHD 26S GEN;HZB50 +4 —
79015-36071 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2004-08 ended
HZB50 LHD SRF GEN —
79015-36100 Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
RZB40 22S GEN —
79015-36100 Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2004-08 ended
BB50,RZB40,50 (26S,30S) GEN —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2004-08 ended
RZB40 WOC GEN;RZB40 26S +4 —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
79015-36160 Pad Sub-assy, NO.1 Seat Cushion, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79015-36010 Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2006-08 ended
BB58 —
79015-36010 Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2009-12 ended
XZB50 TAIW —
79015-36021 Pad Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2015-01 ended
BB50 —
79015-36021 Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2015-01 ended
HZB50 LHD;TRB40,50 GEN;BB42 LHD +1 —
79015-36021 Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79015-36021 Pad Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79015-36071 note Pad Sub-assy, NO.1 Seat Cushion, RH
2007-01 → 2007-08 ended
RZB40,50 GEN —
79015-36071 note Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB42,HZB50 LHD GEN —
79015-36100 note Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
BB50,RZB40,50 LHD GEN 5F —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
2007-08 → 2015-01 ended
TRB40,50 —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2015-01 ended
BB50 TD —
79015-36110 note Pad Sub-assy, NO.1 Seat Cushion, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79015-36200 Pad Sub-assy, NO.1 Seat Cushion, RH
2011-08 → 2015-01 ended
XZB50 TAIW —
79135-36110 Pad Sub-assy, NO.1 Seat Cushion, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79135-36190 Pad Sub-assy, NO.1 Seat Cushion, RH
2015-01 → —
XZB50 TAIW —
79017A — Pad Sub-assy, NO.1 Seatback, RH
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1997-05 → 1999-07 ended
BB42,58,HZB50,RZB40,50 LHD STD —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD SRF;BB42 LHD +4 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36080 Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1999-07 ended
HZB50,RZB40 LHD EX —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1993-10 → 1999-07 ended
BB42,HZB50 LHD STD GEN —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1993-10 ended
BB42,HZB50 LHD STD WC +2 —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1993-10 ended
HZB50 GEN 4FC;BB42,HZB50 LHD +2 —
79017-36090 Pad Sub-assy, NO.1 Seatback, RH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2004-08 ended
BB42 ;HZB50 RZB50 RHD +22 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2004-08 ended
BB42 LHD HRF 26S +1 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
HZB50 HRF RHD WOC +7 —
79017-36080 Pad Sub-assy, NO.1 Seatback, RH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79017-36080 Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB50,HZB50,RZB40 LHD EX —
79017-36080 Pad Sub-assy, NO.1 Seatback, RH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
BB42 22S —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2001-08 ended
RZB40 22S GEN;BB42,RZB40 WOC +1 —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2004-08 ended
BB42,HZB50 0,RZB40 WC LHD +8 —
79017-36090 note Pad Sub-assy, NO.1 Seatback, RH
1999-07 → 2004-08 ended
BB42,HZB50 LHD (26S,30S) WC +1 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2007-08 → 2015-01 ended
BB50 WOC —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2015-01 ended
BB50 WC TD;BB42 LHD +2 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2009-12 ended
XZB50 TAIW —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2007-01 → 2007-08 ended
RZB40 WOC —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79017-36070 note Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2006-08 ended
BB58 —
79017-36090 Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79017-36090 Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79017-36090 Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2015-01 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50,TRB40,50 +1 —
79017-36090 Pad Sub-assy, NO.1 Seatback, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79017-36230 Pad Sub-assy, NO.1 Seatback, RH
2011-08 → 2015-01 ended
XZB50 TAIW —
79175-36150 Pad Sub-assy, NO.1 Seatback, RH
2015-01 → —
XZB50 TAIW —
79175-36190 note Pad Sub-assy, NO.1 Seatback, RH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50 30S GCC —
79175-36240 note Pad Sub-assy, NO.1 Seatback, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79105 — Leg Sub-assy, NO.1 Seat, RH
79105-36020-E0 note Leg Sub-assy, NO.1 Seat, RH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD CBU —
79105-36020-E0 note Leg Sub-assy, NO.1 Seat, RH
1995-05 → 1997-05 ended
BB42 LHD HRF 26S;HZB50,RZB40 +2 —
79105-36021-C0 note Leg Sub-assy, NO.1 Seat, RH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79105-36021-E0 note Leg Sub-assy, NO.1 Seat, RH
1997-05 → 1999-07 ended
RZB40 EX;BB58,HZB50 LHD (20S,22S) —
79105-36022-B0 note Leg Sub-assy, NO.1 Seat, RH
2001-08 → 2004-08 ended
BB58,HZB50,RZB40 17S,20S,23S —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +2 —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79105-36022-E0 note Leg Sub-assy, NO.1 Seat, RH
1999-07 → 2001-08 ended
BB58,HZB50,RZB40 LHD (17S,20S,23S) —
79105-36050-B0 note Leg Sub-assy, NO.1 Seat, RH
2001-08 → 2002-03 ended
RZB40 CHI —
79105-36050-B0 note Leg Sub-assy, NO.1 Seat, RH
2001-08 → 2002-11 ended
BB50 EX TD —
79105-36050-E0 note Leg Sub-assy, NO.1 Seat, RH
1999-07 → 2001-08 ended
BB50,RZB50 CHI —
79105-36050-E0 note Leg Sub-assy, NO.1 Seat, RH
1999-07 → 2000-08 ended
HZB50 LHD EX —
79105-36100-C0 note Leg Sub-assy, NO.1 Seat, RH
2001-08 → 2002-03 ended
BB50,RZB40,50 STD CHI —
79105-36100-C0 note Leg Sub-assy, NO.1 Seat, RH
2000-08 → 2001-08 ended
BB50,RZB40,50 STD CHI —
79105-36022-B0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2006-08 ended
BB42 LHD SRF;BB50,HZB50 LHD +1 —
79105-36022-B0 note Leg Sub-assy, NO.1 Seat, RH
2011-08 → 2015-01 ended
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU —
79105-36022-B0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2015-01 ended
BB58 —
79105-36022-B0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2009-12 ended
XZB50 TAIW —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2006-08 → 2011-08 ended
BB42 LHD SRF;BB50,HZB50 LHD —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2011-08 ended
TRB40,50;BB42 LHD HRF —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79105-36022-C0 note Leg Sub-assy, NO.1 Seat, RH
2004-08 → 2006-08 ended
BB42 LHD SRF;BB50,HZB50 LHD +1 —
79105-36520 Leg Sub-assy, NO.1 Seat, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79105-36840 Leg Sub-assy, NO.1 Seat, RH
2015-01 → —
XZB50 TAIW —
79180A — Spring Assy, NO.1 Seatback, RH
79280-36060 note Spring Assy, NO.1 Seatback, RH
2015-01 → —
XZB50 TAIW —
79280-36070 note Spring Assy, NO.1 Seatback, RH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79290-36080 note Spring Assy, NO.1 Seatback, RH
2015-01 → —
BB42,TRB40 GCC;HZB50,TRB50 30S GCC —
79967 — Cover, Rear Seat Leg Side, NO.4
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD —
79968M — Cover, Rear Seat Leg Side, NO.5
79968-36020-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
