Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

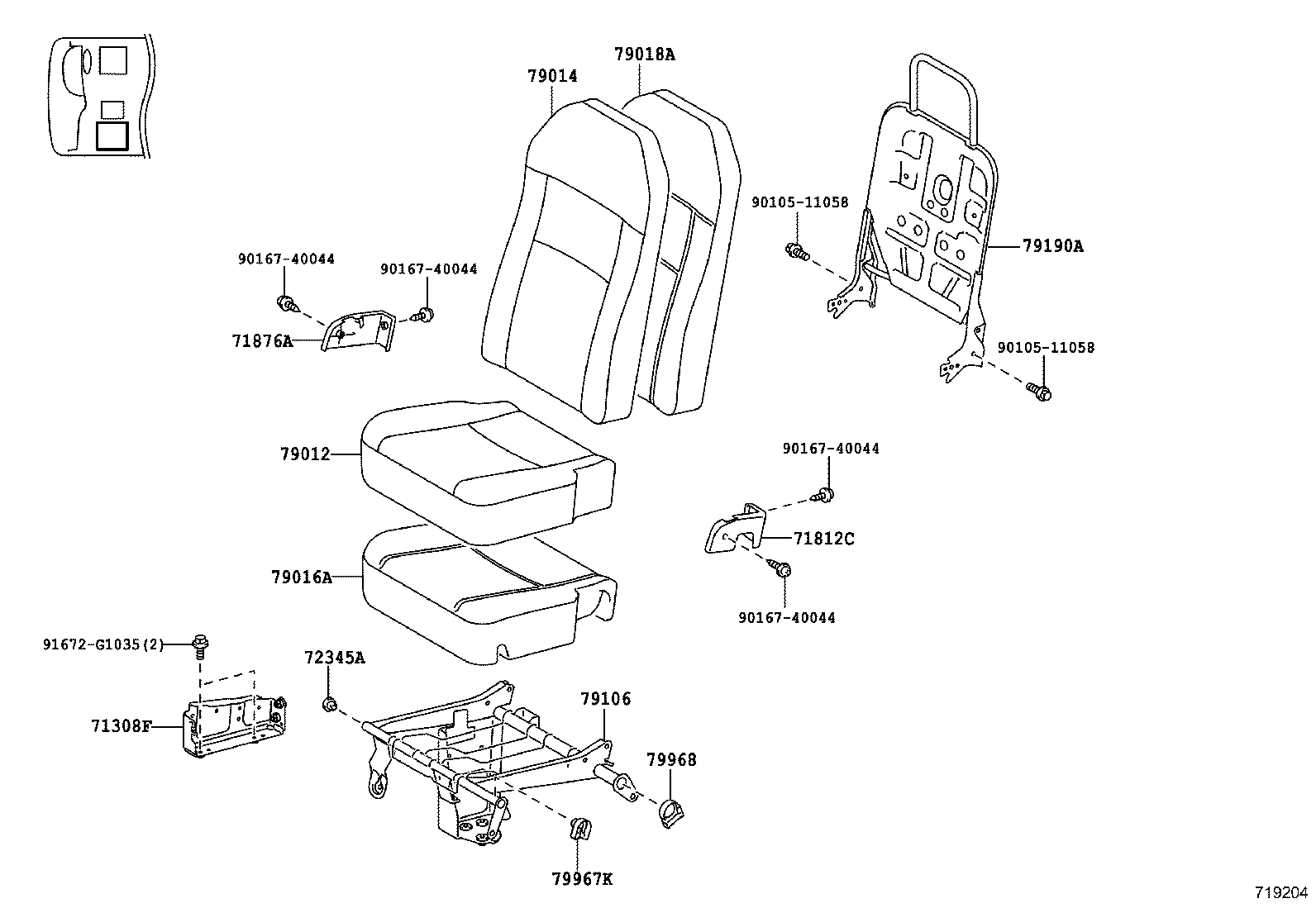

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71308F — Leg Sub-assy, Rear Seat, RH | ||||
| 71308-36080 |
Leg Sub-assy, Rear Seat, RH
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 71812C — Cover, Reclining Adjuster, LH | ||||
| 71811-36130-B0 note |
Cover, Reclining Adjuster, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 71876A — Cover, Reclining Adjuster Inside, LH | ||||
| 71812-36130-B0 note |
Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 72345A — Pipe, Reclining Connecting | ||||
| 72345-36010 |
Pipe, Reclining Connecting
2015-01 → —
|
XZB50 EX | — | |
| 72345-36010 |
Pipe, Reclining Connecting
2015-01 → —
|
BB42,BZB40,HZB50,TRB40,50,XZB40,50 | — | |
| 79012 — Cover Sub-assy, NO.1 Seat Cushion, LH | ||||
| 79012-36010-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36011-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36012-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36030-E3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36031-E5 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36032-E5 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1998-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36032-E6 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-07 → 1998-11
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36032-E7 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-11 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36110-E2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1996-11
ended
|
HZB50 RHD EX GEN | — | |
| 79012-36110-E5 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1996-11 → 1998-07
ended
|
HZB50 RHD EX GEN | — | |
| 79012-36110-E6 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-07 → 1998-11
ended
|
HZB50 RHD EX | — | |
| 79012-36110-E7 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-11 → 1999-07
ended
|
HZB50 RHD EX | — | |
| 79012-36140-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36141-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36142-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36160-E3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36161-E5 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36162-E5 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36250-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB40,HZB50 STD ARL | — | |
| 79012-36251-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
BB40,HZB50 STD ARL | — | |
| 79012-36252-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB40,HZB50 STD ARL | — | |
| 79012-36260-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
HZB50 DX | — | |
| 79012-36260-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
BB40,HZB50 STD ARL | — | |
| 79012-36261-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1995-05 → 1997-05
ended
|
HZB50 DX | — | |
| 79012-36262-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1998-07
ended
|
HZB50 DX | — | |
| 79012-36262-E3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-07 → 1998-11
ended
|
HZB50 DX | — | |
| 79012-36262-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1998-11 → 1999-07
ended
|
HZB50 DX | — | |
| 79022-36180-E1 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1995-05
ended
|
HZB50 EX ARL | — | |
| 79012-36012-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36013-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79012-36142-E4 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79012-36143-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79012-36252-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 STD ARL | — | |
| 79012-36253-B1 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 79012-36310-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 DX | — | |
| 79012-36311-B1 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2002-11
ended
|
HZB50 DX | — | |
| 79012-36420-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 79012-36540-E1 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36541-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79012-36550-E0 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79012-36551-B1 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79012-36013-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79012-36013-B6 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2007-08 → 2011-12
ended
|
BB42,HZB50 RHD | — | |
| 79012-36013-B8 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2011-12 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 79012-36143-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79012-36542 |
Cover Sub-assy, NO.1 Seat Cushion, LH
2007-01 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79012-36542-B3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2007-01 → 2007-08
ended
|
BB42 RHD WC | — | |
| 79012-36542-B3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2007-08
ended
|
HZB50 RHD;BB42 RHD WOC | — | |
| 79012-36543-B6 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2007-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 79012-36552-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2007-01 → 2007-08
ended
|
BB42 RHD WC | — | |
| 79012-36552-B2 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2007-08
ended
|
HZB50 RHD;BB42 RHD WOC | — | |
| 79012-36A20-B3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 79012-36A30-B3 note |
Cover Sub-assy, NO.1 Seat Cushion, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 79014 — Cover Sub-assy, NO.1 Seatback, LH | ||||
| 79013-36030-E4 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1999-07
ended
|
BB40,42,HZB50 RHD STD (ARL,GEN) | — | |
| 79013-36050-E3 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79013-36060-E1 note |
Cover Sub-assy, NO.1 Seatback, LH
1995-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79014-36030-E0 note |
Cover Sub-assy, NO.1 Seatback, LH
1995-05 → 1999-07
ended
|
HZB50 DX | — | |
| 79014-36090-E1 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
BB40,HZB50 STD ARL | — | |
| 79014-36090-E1 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
HZB50 DX | — | |
| 79014-36100-E1 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
HZB50 EX ARL | — | |
| 79023-36050-E2 note |
Cover Sub-assy, NO.1 Seatback, LH
1993-01 → 1996-11
ended
|
HZB50 RHD EX GEN | — | |
| 79023-36050-E5 note |
Cover Sub-assy, NO.1 Seatback, LH
1996-11 → 1998-07
ended
|
HZB50 RHD EX GEN | — | |
| 79023-36050-E6 note |
Cover Sub-assy, NO.1 Seatback, LH
1998-07 → 1998-11
ended
|
HZB50 RHD EX | — | |
| 79023-36050-E8 note |
Cover Sub-assy, NO.1 Seatback, LH
1998-11 → 1999-07
ended
|
HZB50 RHD EX | — | |
| 79013-36030-E4 note |
Cover Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79013-36031-B0 note |
Cover Sub-assy, NO.1 Seatback, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79013-36070-E0 note |
Cover Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 STD ARL | — | |
| 79013-36071-B0 note |
Cover Sub-assy, NO.1 Seatback, LH
2001-08 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 79013-36150-E0 note |
Cover Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79013-36151-B1 note |
Cover Sub-assy, NO.1 Seatback, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79014-36080-E0 note |
Cover Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 DX | — | |
| 79014-36081-B0 note |
Cover Sub-assy, NO.1 Seatback, LH
2001-08 → 2002-11
ended
|
HZB50 DX | — | |
| 79023-36110-E0 note |
Cover Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 79013-36031-B0 note |
Cover Sub-assy, NO.1 Seatback, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79013-36152-B2 note |
Cover Sub-assy, NO.1 Seatback, LH
2004-08 → 2007-08
ended
|
HZB50 RHD;BB42 RHD WOC | — | |
| 79013-36152-B2 note |
Cover Sub-assy, NO.1 Seatback, LH
2007-01 → 2007-08
ended
|
BB42 RHD WC | — | |
| 79013-36153-B6 note |
Cover Sub-assy, NO.1 Seatback, LH
2007-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 79014-36061-B0 note |
Cover Sub-assy, NO.1 Seatback, LH
2007-01 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79014-36061-B3 note |
Cover Sub-assy, NO.1 Seatback, LH
2007-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 79013-36890-B1 note |
Cover Sub-assy, NO.1 Seatback, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 79013-36A00-B1 note |
Cover Sub-assy, NO.1 Seatback, LH
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 79016A — Pad Sub-assy, NO.1 Seat Cushion, LH | ||||
| 79016-36010 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1999-07
ended
|
HZB50 RHD EX (ARL,GEN) | — | |
| 79016-36020 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1997-05
ended
|
BB40,HZB50 (DX,STD) ARL | — | |
| 79016-36020 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79016-36021 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB40,42,HZB50 RHD (DX,STD) (ARL,GEN) +1 | — | |
| 79016-36120 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1993-01 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79016-36121 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1997-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79016-36010 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 79016-36021 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +3 | — | |
| 79016-36021 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 79016-36021 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 79016-36121 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 | — | |
| 79016-36121 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2002-11
ended
|
HZB50 ARL | — | |
| 79016-36121 |
Pad Sub-assy, NO.1 Seat Cushion, LH
1999-07 → 2004-08
ended
|
BB58;BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 79016-36021 note |
Pad Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2015-01
ended
|
BB42 RHD WOC;BB42,HZB50 RHD +1 | — | |
| 79016-36021 |
Pad Sub-assy, NO.1 Seat Cushion, LH
2011-08 → 2015-01
ended
|
BB42 RHD SRF WC | — | |
| 79016-36121 |
Pad Sub-assy, NO.1 Seat Cushion, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79135-36110 |
Pad Sub-assy, NO.1 Seat Cushion, LH
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 79018A — Pad Sub-assy, NO.1 Seatback, LH | ||||
| 79017-36070 note |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN +1 | — | |
| 79017-36080 |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1999-07
ended
|
HZB50 RHD EX GEN | — | |
| 79017-36090 |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1999-07
ended
|
BB40,42,HZB50 RHD STD (ARL,GEN) | — | |
| 79017-36120 |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
HZB50 EX ARL | — | |
| 79017-36130 |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1999-07
ended
|
HZB50 DX | — | |
| 79017-36130 note |
Pad Sub-assy, NO.1 Seatback, LH
1993-01 → 1995-05
ended
|
BB40,HZB50 STD ARL | — | |
| 79017-36070 note |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +3 | — | |
| 79017-36070 note |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 79017-36080 |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 79017-36090 |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB42,HZB50 +4 | — | |
| 79017-36090 |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 79017-36090 |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2004-08
ended
|
BB42 RHD SRF;BB42,HZB50 RHD +5 | — | |
| 79017-36130 |
Pad Sub-assy, NO.1 Seatback, LH
1999-07 → 2002-11
ended
|
HZB50 DX | — | |
| 79017-36070 note |
Pad Sub-assy, NO.1 Seatback, LH
2004-08 → 2015-01
ended
|
HZB50 RHD;BB42 RHD WOC | — | |
| 79017-36070 |
Pad Sub-assy, NO.1 Seatback, LH
2011-08 → 2015-01
ended
|
BB42 RHD SRF WC | — | |
| 79017-36070 note |
Pad Sub-assy, NO.1 Seatback, LH
2007-01 → 2015-01
ended
|
BB42 RHD HRF | — | |
| 79017-36090 note |
Pad Sub-assy, NO.1 Seatback, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79185-36040 |
Pad Sub-assy, NO.1 Seatback, LH
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 79106 — Leg Sub Assy, NO.1 Seat, LH | ||||
| 79106-36030-C0 note |
Leg Sub Assy, NO.1 Seat, LH
1995-05 → 1997-05
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79106-36030-E0 note |
Leg Sub Assy, NO.1 Seat, LH
1993-01 → 1995-05
ended
|
BB42,HZB50 RHD GEN | — | |
| 79106-36030-E0 note |
Leg Sub Assy, NO.1 Seat, LH
1995-05 → 1997-05
ended
|
HZB50 RHD EX GEN | — | |
| 79106-36031-C0 note |
Leg Sub Assy, NO.1 Seat, LH
1997-05 → 1999-07
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79106-36031-E0 note |
Leg Sub Assy, NO.1 Seat, LH
1997-05 → 1999-07
ended
|
HZB50 RHD EX | — | |
| 79106-36040-C0 note |
Leg Sub Assy, NO.1 Seat, LH
1995-05 → 1999-07
ended
|
BB40,HZB50 ARL | — | |
| 79106-36040-E0 note |
Leg Sub Assy, NO.1 Seat, LH
1993-01 → 1995-05
ended
|
BB40,HZB50 ARL | — | |
| 79106-36032-C0 note |
Leg Sub Assy, NO.1 Seat, LH
1999-07 → 2001-08
ended
|
BB42,HZB50 RHD STD GEN | — | |
| 79106-36032-C0 note |
Leg Sub Assy, NO.1 Seat, LH
2001-08 → 2004-08
ended
|
BB42,HZB50 RHD GEN | — | |
| 79106-36032-E0 note |
Leg Sub Assy, NO.1 Seat, LH
1999-07 → 2001-08
ended
|
HZB50 RHD EX | — | |
| 79106-36040-B0 note |
Leg Sub Assy, NO.1 Seat, LH
2001-08 → 2002-11
ended
|
HZB50 DX | — | |
| 79106-36040-C0 note |
Leg Sub Assy, NO.1 Seat, LH
1999-07 → 2001-08
ended
|
HZB50 ARL | — | |
| 79106-36040-C0 note |
Leg Sub Assy, NO.1 Seat, LH
2001-08 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 79106-36032-B0 note |
Leg Sub Assy, NO.1 Seat, LH
2004-08 → 2011-08
ended
|
HZB50 RHD;BB42 RHD WOC | — | |
| 79106-36032-B0 note |
Leg Sub Assy, NO.1 Seat, LH
2007-01 → 2011-08
ended
|
BB42 RHD WC | — | |
| 79106-36032-B0 note |
Leg Sub Assy, NO.1 Seat, LH
2011-08 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 79106-36032-C0 note |
Leg Sub Assy, NO.1 Seat, LH
2004-08 → 2007-08
ended
|
BB42,HZB50 RHD | — | |
| 79106-36032-C0 note |
Leg Sub Assy, NO.1 Seat, LH
2007-08 → 2011-08
ended
|
BB42,HZB50 RHD | — | |
| 79106-36750 |
Leg Sub Assy, NO.1 Seat, LH
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 79190A — Spring Assy, NO.1 Seatback, LH | ||||
| 79280-36070 note |
Spring Assy, NO.1 Seatback, LH
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 79967K — Cover, Rear Seat Leg Side, NO.4 | ||||
| 79967-36020-C0 note |
Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12
ended
|
BB42,HZB50 RHD | — | |
| 79968 — Cover, Rear Seat Leg Side, NO.5 | ||||
| 79968-36030-B0 note |
Cover, Rear Seat Leg Side, NO.5
2015-01 → —
|
BB42,HZB50 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
