Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

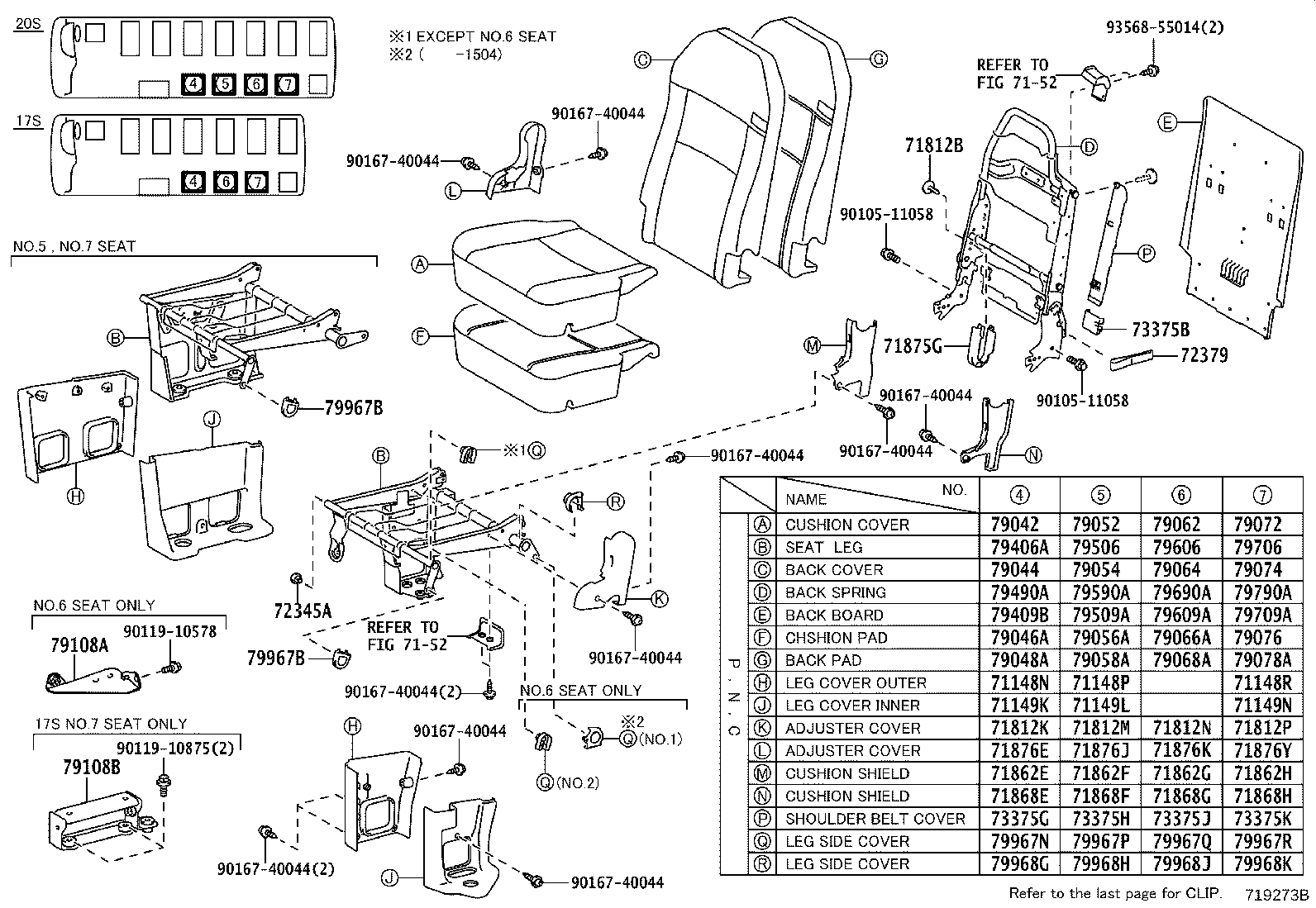

Exploded illustration 719273B 79967B — COVER, REAR SEAT LEG SIDE NO.2 (1 parts) 79967B — COVER, REAR SEAT LEG SIDE NO.2 (1 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (2 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (1 parts) 72379 — BELT, SEAT RECLINING HANDLE (5 parts) 9356855014 — not listed in this catalogue 73375B — COVER, REAR SEAT SHOULDER BELT HOLE, LH (2 parts) 7152 — not listed in this catalogue 9010511058 — not listed in this catalogue 9010511058 — not listed in this catalogue 72345A — PIPE, RECLINING CONNECTING (2 parts) 79108B — LEG SUB-ASSY, NO.7 SEAT, REAR (1 parts) 7152 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9011910875 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 79042 — COVER SUB-ASSY, NO.4 SEAT CUSHION, LH (94 parts) 79052 — COVER SUB-ASSY, NO.5 SEAT CUSHION, LH (75 parts) 79062 — COVER SUB-ASSY, NO.6 SEAT CUSHION, LH (101 parts) 79072 — COVER SUB-ASSY, NO.7 SEAT CUSHION, LH (95 parts) 79406A — LEG SUB-ASSY, NO.4 SEAT, LH (54 parts) 79506 — LEG SUB-ASSY, NO.5 SEAT, LH (38 parts) 79606 — LEG SUB-ASSY, NO.6 SEAT, LH (104 parts) 79706 — LEG SUB-ASSY, NO.7 SEAT, LH (62 parts) 79044 — COVER SUB-ASSY, NO.4 SEATBACK, LH (95 parts) 79054 — COVER SUB-ASSY, NO.5 SEATBACK, LH (68 parts) 79064 — COVER SUB-ASSY, NO.6 SEATBACK, LH (94 parts) 79074 — COVER SUB-ASSY, NO.7 SEATBACK, LH (96 parts) 79490A — SPRING ASSY, NO.4 SEATBACK, LH (6 parts) 79590A — SPRING ASSY, NO.5 SEATBACK, LH (6 parts) 79690A — SPRING ASSY, NO.6 SEATBACK, LH (6 parts) 79790A — SPRING ASSY, NO.7 SEATBACK, LH (6 parts) 79046A — PAD SUB-ASSY, NO.4 SEAT CUSHION, LH (47 parts) 79056A — PAD SUB-ASSY, NO.5 SEAT CUSHION, LH (35 parts) 79066A — PAD SUB-ASSY, NO.6 SEAT CUSHION, LH (46 parts) 79076 — PAD SUB-ASSY, NO.7 SEAT CUSHION, LH (48 parts) 79048A — PAD SUB-ASSY, NO.4 SEATBACK, LH (68 parts) 79058A — PAD SUB-ASSY, NO.5 SEATBACK, LH (50 parts) 79068A — PAD SUB-ASSY, NO.6 SEATBACK, LH (65 parts) 79078A — PAD SUB-ASSY, NO.7 SEATBACK, LH (64 parts) 71148N — COVER, REAR SEAT LEG, OUTER (3 parts) 71148P — COVER, REAR SEAT LEG, OUTER (3 parts) 71148R — COVER, REAR SEAT LEG, OUTER (3 parts) 71149K — COVER, REAR SEAT LEG, INNER (2 parts) 71149L — COVER, REAR SEAT LEG, INNER (1 parts) 71149N — COVER, REAR SEAT LEG, INNER (3 parts) 71876E — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71876J — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71876Y — COVER, RECLINING ADJUSTER INSIDE, LH (5 parts) 71812K — COVER, RECLINING ADJUSTER, LH (4 parts) 71812M — COVER, RECLINING ADJUSTER, LH (4 parts) 71812N — COVER, RECLINING ADJUSTER, LH (6 parts) 71876K — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71812P — COVER, RECLINING ADJUSTER, LH (5 parts) 71862E — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71862F — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71862G — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71862H — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (1 parts) 71868E — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71868F — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71868G — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 71868H — SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (2 parts) 73375G — COVER, REAR SEAT SHOULDER BELT, LH (1 parts) 73375H — COVER, REAR SEAT SHOULDER BELT, LH (1 parts) 73375J — COVER, REAR SEAT SHOULDER BELT, LH (1 parts) 73375K — COVER, REAR SEAT SHOULDER BELT, LH (1 parts) 79967N — COVER, REAR SEAT LEG SIDE, NO.4 (1 parts) 79967P — COVER, REAR SEAT LEG SIDE, NO.4 (1 parts) 79967Q — COVER, REAR SEAT LEG SIDE, NO.4 (4 parts) 79967R — COVER, REAR SEAT LEG SIDE, NO.4 (1 parts) 79968G — COVER, REAR SEAT LEG SIDE, NO.5 (2 parts) 79968H — COVER, REAR SEAT LEG SIDE, NO.5 (2 parts) 79968J — COVER, REAR SEAT LEG SIDE, NO.5 (1 parts) 79968K — COVER, REAR SEAT LEG SIDE, NO.5 (2 parts) 79409B — BOARD SUB-ASSY, NO.4 SEATBACK, LH (12 parts) 79509A — BOARD SUB-ASSY, NO.5 SEATBACK, LH (4 parts) 79609A — BOARD SUB-ASSY, NO.6 SEATBACK, LH (16 parts) 79709A — BOARD SUB-ASSY, NO.7 SEATBACK, LH (12 parts) 79108A — LEG SUB-ASSY, NO.6 SEAT, REAR (1 parts) 9011910578 — not listed in this catalogue
719273B · 71 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1566 parts on this figure
Part number Description Fitment Price
71148N — Cover, Rear Seat Leg, Outer
71148-36020-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71148-36090-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,BZB40,HZB50,XZB40,50 RHD —
71148-36180-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,XZB40 LHD WOC;HZB50,XZB50 LHD +3 —
71148P — Cover, Rear Seat Leg, Outer
71148-36020-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
71148-36180-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
HZB50,XZB50 LHD HRF 30S +1 —
71148-36180-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
HZB50,XZB50 RHD —
71148R — Cover, Rear Seat Leg, Outer
71148-36020-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71148-36180-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,BZB40,HZB50,XZB40,50 RHD —
71148-36180-B0 note Cover, Rear Seat Leg, Outer
2015-01 → 2016-12 ended
BB42,XZB40 LHD WOC;HZB50,XZB50 LHD +3 —
71149K — Cover, Rear Seat Leg, Inner
71149-36060-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
BB42,BZB40,HZB50,XZB40,50 RHD —
71149-36130-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71149L — Cover, Rear Seat Leg, Inner
71149-36130-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 ARL,GCC,GEN —
71149N — Cover, Rear Seat Leg, Inner
71149-36070-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
71149-36100-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 (21S,26S) (ARL,GCC,GEN) —
71149-36130-B0 note Cover, Rear Seat Leg, Inner
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 26S;HZB50,TRB50,XZB50 20S,30S —
71812B — Clip(FOR REAR SEAT CUSHION COVER)
90467-07049-S0 note Clip(FOR REAR SEAT CUSHION COVER)
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
90467-07049-S0 note Clip(FOR REAR SEAT CUSHION COVER)
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71812K — Cover, Reclining Adjuster, LH
71811-36040-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71812-36130-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
71812-36140-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36160-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 (26S,30S) GEN —
71812M — Cover, Reclining Adjuster, LH
71811-36040-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
XZB50 EX —
71812-36130-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 STD (GCC,GEN) —
71812-36140-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36160-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 STD GEN —
71812N — Cover, Reclining Adjuster, LH
71811-36040-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71812-36070-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
71812-36130-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
71812-36140-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36160-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
71812-36180-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
71812P — Cover, Reclining Adjuster, LH
71811-36040-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71812-36070-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
71812-36140-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36180-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
71812-36180-B0 note Cover, Reclining Adjuster, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
71862E — Shield, Rear Seat Cushion, Inner NO.1 LH
71867-36090-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71867-36110-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71862F — Shield, Rear Seat Cushion, Inner NO.1 LH
71867-36090-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 EX —
71867-36110-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71862G — Shield, Rear Seat Cushion, Inner NO.1 LH
71867-36090-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71867-36110-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71862H — Shield, Rear Seat Cushion, Inner NO.1 LH
71867-36110-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71868E — Shield, Rear Seat Cushion, Inner NO.1 LH
71868-36040-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71868-36200-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71868F — Shield, Rear Seat Cushion, Inner NO.1 LH
71868-36040-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 EX —
71868-36200-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71868G — Shield, Rear Seat Cushion, Inner NO.1 LH
71868-36040-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71868-36200-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71868H — Shield, Rear Seat Cushion, Inner NO.1 LH
71868-36040-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71868-36200-B0 note Shield, Rear Seat Cushion, Inner NO.1 LH
2015-01 → 2016-12 ended
XZB50 ARL —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-36010-B0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71876E — Cover, Reclining Adjuster Inside, LH
71811-36110-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
71811-36130-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 (26S,30S) GEN —
71811-36180-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36060-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71876J — Cover, Reclining Adjuster Inside, LH
71811-36110-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 STD (GCC,GEN) —
71811-36130-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 STD GEN —
71811-36180-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36060-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 EX —
71876K — Cover, Reclining Adjuster Inside, LH
71811-36110-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
71811-36130-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 (26S,30S) GEN —
71811-36180-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36060-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
71876Y — Cover, Reclining Adjuster Inside, LH
71811-36110-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 26S,30S —
71811-36130-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 (26S,30S) GEN —
71811-36180-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 ARL —
71812-36060-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
71812-36110-B0 note Cover, Reclining Adjuster Inside, LH
2015-01 → 2016-12 ended
XZB50 EX —
72345A — Pipe, Reclining Connecting
72345-36010 Pipe, Reclining Connecting
2015-01 → —
XZB50 EX —
72345-36010 Pipe, Reclining Connecting
2015-01 → —
BB42,BZB40,HZB50,TRB40,50,XZB40,50 —
72379 — Belt, Seat Reclining Handle
72379-36010-B1 note Belt, Seat Reclining Handle
2015-01 → 2015-11 ended
BZB40,XZB40 17S —
72379-36010-B2 note Belt, Seat Reclining Handle
2015-11 → 2016-12 ended
XZB50 TAIW —
72379-36010-B2 note Belt, Seat Reclining Handle
2015-11 → 2016-12 ended
BZB40,XZB40,50 RHD GEN —
72379-36010-J0 note Belt, Seat Reclining Handle
2015-01 → 2015-11 ended
XZB50 TAIW —
72379-36010-J0 note Belt, Seat Reclining Handle
2015-01 → 2015-11 ended
XZB50 EX —
73375B — Cover, Rear Seat Shoulder Belt Hole, LH
73375-36020 Cover, Rear Seat Shoulder Belt Hole, LH
2015-01 → —
XZB50 EX —
73375-36020 Cover, Rear Seat Shoulder Belt Hole, LH
2015-01 → —
BZB40,XZB40,50 RHD —
73375G — Cover, Rear Seat Shoulder Belt, LH
73375-36010 Cover, Rear Seat Shoulder Belt, LH
2015-01 → —
BZB40,XZB40,50 RHD —
73375H — Cover, Rear Seat Shoulder Belt, LH
73375-36010 Cover, Rear Seat Shoulder Belt, LH
2015-01 → —
XZB50 RHD —
73375J — Cover, Rear Seat Shoulder Belt, LH
73375-36010 Cover, Rear Seat Shoulder Belt, LH
2015-01 → —
BZB40,XZB40,50 RHD —
73375K — Cover, Rear Seat Shoulder Belt, LH
73375-36010 Cover, Rear Seat Shoulder Belt, LH
2015-01 → —
BZB40,XZB40,50 RHD —
79042 — Cover Sub-assy, NO.4 Seat Cushion, LH
79012-36020-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36021-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36022-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36050-E2 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36051-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36052-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79012-36140-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (17S,26S,30S) —
79012-36141-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD (GEN,SCO) —
79012-36142-E4 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,43,HZB50 RHD STD (GEN,SCO) —
79012-36160-E3 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (26S,30S) —
79012-36161-E5 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36162-E5 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36170-E1 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79012-36270-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79012-36290-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79012-36291-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
BB40,HZB50 STD ARL —
79012-36292-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79012-36300-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79012-36300-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 DX —
79012-36301-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 DX —
79012-36302-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 DX —
79012-36320-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
79021-36260-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79021-36260-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58 —
79022-36160-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 LHD EX —
79032-36020-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79012-36130-E1 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB4#,HZB50 RHD STD GEN —
79012-36131-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79012-36131-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BZB40 —
79012-36241-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79012-36340-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 DX —
79012-36400-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79012-36401-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79012-36430-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79012-36450-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD (26S,30S) (GCC,GEN) —
79012-36451-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36461-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79012-36461-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36590-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50 STD ARL —
79012-36620-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79021-36330-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB58 —
79021-36331-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58 —
79022-36020-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50 LHD EX —
79022-36021-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (20S,26S,30S) CHI —
79022-36021-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 EX —
79032-36170-E0 note Cover Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79032-36171-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79012-36131-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79012-36131-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79012-36131-B5 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79012-36242-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79012-36242-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79012-36243-B5 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79012-36342-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 DX —
79012-36342-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 DX —
79012-36402-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 EX —
79012-36402-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79012-36403-K2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 EX —
79012-36451-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79012-36451-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36451-B6 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36451-B6 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36462-B3 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36462-B3 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79012-36462-B3 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79012-36463-B6 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36463-B6 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36591-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79012-36620-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-10 → 2007-08 ended
BZB40 —
79012-36620-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79012-36620-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79012-36620-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79012-36620-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79012-36620-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79012-36660-K2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 DX —
79021-36332-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79032-36172-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79032-36172-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79032-36173-B5 note Cover Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79012-36C50-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79012-36C50-B2 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79012-36C60-J1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 DX,EX —
79012-36E30-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79012-36E40-B0 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79022-36240-B6 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79022-36250-B5 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79022-36310-B5 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,XZB50 LHD 30S GEN;BB42,TRB40,50,XZB40 +2 —
79022-36320-B4 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79032-36250-B1 note Cover Sub-assy, NO.4 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 30S GEN —
79044 — Cover Sub-assy, NO.4 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.4 Seatback, LH
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD STD (ARL,GEN) —
79013-36030-E4 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1997-05 ended
HZB50 RHD STD DSL;BB4# +2 —
79013-36050-E3 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (26S,30S) —
79013-36050-E3 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
BB42 LHD HRF 26S —
79013-36050-E3 note Cover Sub-assy, NO.4 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
79013-36060-E1 note Cover Sub-assy, NO.4 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36070-E0 note Cover Sub-assy, NO.4 Seatback, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79014-36020-E2 note Cover Sub-assy, NO.4 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79014-36030-E0 note Cover Sub-assy, NO.4 Seatback, LH
1995-05 → 1999-07 ended
HZB50 DX —
79014-36070-E3 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79014-36090-E1 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
HZB50 DX —
79014-36090-E1 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79014-36100-E1 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79023-36010-E4 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79023-36050-E2 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1996-11 ended
HZB50 LHD EX —
79023-36050-E2 note Cover Sub-assy, NO.4 Seatback, LH
1993-01 → 1996-11 ended
HZB50 RHD EX GEN —
79023-36050-E5 note Cover Sub-assy, NO.4 Seatback, LH
1996-11 → 1998-07 ended
HZB50 LHD EX —
79023-36050-E5 note Cover Sub-assy, NO.4 Seatback, LH
1996-11 → 1998-07 ended
HZB50 RHD EX GEN —
79023-36050-E6 note Cover Sub-assy, NO.4 Seatback, LH
1998-07 → 1998-11 ended
HZB50 LHD EX —
79023-36050-E6 note Cover Sub-assy, NO.4 Seatback, LH
1998-07 → 1998-11 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.4 Seatback, LH
1998-11 → 1999-07 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.4 Seatback, LH
1998-11 → 1999-07 ended
HZB50 LHD EX —
79033-36020-E0 note Cover Sub-assy, NO.4 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79013-36030-E4 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN —
79013-36031-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36070-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BZB40 —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36150-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36151-B1 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36160-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB58 —
79013-36161-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB58 —
79013-36170-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79013-36171-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79014-36061-B0 note Cover Sub-assy, NO.4 Seatback, LH
2003-02 → 2003-05 ended
BB50,BZB50 17S —
79014-36080-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX —
79014-36081-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79014-36081-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB50 DX —
79014-36110-E1 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD (26S,30S) —
79014-36111-B1 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79014-36111-B1 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79014-36200-B0 note Cover Sub-assy, NO.4 Seatback, LH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79023-36010-E4 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD (26S,30S) (GCC,GEN) —
79023-36012-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79023-36110-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79023-36110-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB50,HZB50 LHD EX —
79023-36111-B2 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (20S,26S,30S) CHI —
79023-36111-B2 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
HZB50 EX —
79033-36030-E0 note Cover Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79033-36031-B0 note Cover Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79013-36031-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79013-36031-B4 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79013-36152-B2 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79013-36152-B2 note Cover Sub-assy, NO.4 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79013-36153-B6 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36162-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36172-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79013-36172-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
XZB50 EX —
79013-36173-K2 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
XZB50 EX —
79014-36082-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79014-36082-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX —
79014-36083-K2 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX —
79014-36112-B2 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79014-36112-B2 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79014-36112-B2 note Cover Sub-assy, NO.4 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79014-36113-B5 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79014-36113-B5 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79014-36200-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-10 → 2007-08 ended
BZB40 —
79014-36200-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79014-36200-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79014-36200-B1 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
79014-36200-B1 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79014-36230-B1 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79014-36230-B1 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79023-36012-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79023-36012-B0 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79023-36012-B4 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79023-36012-B4 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79033-36032-B1 note Cover Sub-assy, NO.4 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79033-36032-B1 note Cover Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79033-36033-B4 note Cover Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79013-36670-B4 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79013-36820-B2 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79014-36240-B6 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36260-J2 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36280-B6 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79023-36320-B4 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79033-36040-B0 note Cover Sub-assy, NO.4 Seatback, LH
2015-01 → 2015-11 ended
HZB50 30S GEN —
79033-36040-B1 note Cover Sub-assy, NO.4 Seatback, LH
2015-11 → 2016-12 ended
HZB50 30S GEN —
79046A — Pad Sub-assy, NO.4 Seat Cushion, LH
79016-36090 Pad Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50,HZB50 RHD EX —
79016-36120 Pad Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1997-05 ended
BB4# RHD (17S,19S,26S);HZB50 RHD +2 —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) —
79036-36010 Pad Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79036-36030 Pad Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1999-07 ended
BB58,HZB50 LHD (20S,22S) —
79036-36030 note Pad Sub-assy, NO.4 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79036-36040 note Pad Sub-assy, NO.4 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79016-36090 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
79016-36090 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50,BZB50 EX (LPG,TDEFI) —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50 ARL —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,BZB40,HZB50 RHD +5 —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 DX —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79036-36030 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79036-36030 Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
BB58,HZB50 LHD (20S,23S) —
79036-36030 note Pad Sub-assy, NO.4 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79036-36040 note Pad Sub-assy, NO.4 Seat Cushion, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79016-36090 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79016-36090 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 EX —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 ARL —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79016-36121 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-10 → 2015-01 ended
BZB40 —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 ARL 4FC;BZB50,XZB40 STD —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79016-36170 Pad Sub-assy, NO.4 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79036-36011 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79036-36030 Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79036-36040 note Pad Sub-assy, NO.4 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79036-36040 note Pad Sub-assy, NO.4 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79036-36040 note Pad Sub-assy, NO.4 Seat Cushion, LH
2015-01 → —
HZB50 30S GEN —
79135-36110 Pad Sub-assy, NO.4 Seat Cushion, LH
2015-01 → —
BB42,HZB50 RHD —
79136-36180 Pad Sub-assy, NO.4 Seat Cushion, LH
2015-01 → —
BZB40,XZB40,50 RHD —
79235-36110 Pad Sub-assy, NO.4 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79235-36170 note Pad Sub-assy, NO.4 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79048A — Pad Sub-assy, NO.4 Seatback, LH
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
HZB50 SCO;BB42,50 RHD (20S,26S);HZB50 +4 —
79017-36080 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79017-36080 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
HZB50 LHD EX —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
HZB50 RHD STD DSL;BB4# +2 —
79017-36120 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79017-36130 note Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
HZB50 DX —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD (26S,30S) —
79037-36040 note Pad Sub-assy, NO.4 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB50 EX +6 —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2002-11 → 2004-08 ended
BZB50 EX —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB50,58,BZB50 17S,23S —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB42 ,TDEFI) RHD SRF;HZB50 +10 —
79017-36080 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD EX —
79017-36080 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79017-36080 note Pad Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79017-36080 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB42 RHD SRF;BB42,BZB40,HZB50 RHD +5 —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB50 STD ARL —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2002-11 ended
HZB50 DX —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
2002-11 → 2004-08 ended
BB50 DX —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79037-36040 note Pad Sub-assy, NO.4 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD SRF;HZB50,XZB50 RHD +1 —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
BZB50,XZB40 STD —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2004-10 → 2015-01 ended
BZB40 —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79017-36070 note Pad Sub-assy, NO.4 Seatback, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79017-36070 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB42 RHD WOC;BB42 RHD +1 —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
HZB50 RHD;BB42 RHD SRF +1 —
79017-36090 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
XZB50 DX —
79017-36130 Pad Sub-assy, NO.4 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79037-36010 Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2007-08 → 2015-01 ended
BB50 WOC —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2015-01 ended
BB50 WC TD;BB42 LHD +2 —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79037-36020 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79037-36040 note Pad Sub-assy, NO.4 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79037-36040 note Pad Sub-assy, NO.4 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79037-36040 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
HZB50 30S GEN —
79175-36180 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
BB42,HZB50 RHD —
79175-36190 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
BB42,HZB50 RHD —
79175-36200 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79175-36210 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79185-36010 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79185-36030 note Pad Sub-assy, NO.4 Seatback, LH
2015-01 → —
XZB50 ARL —
79052 — Cover Sub-assy, NO.5 Seat Cushion, LH
79012-36020-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50,RZB50 LHD STD CBU —
79012-36020-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1993-03 ended
HZB50 LHD WOC DSL;HZB50 +4 —
79012-36021-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50,RZB50 LHD STD CBU —
79012-36022-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50,RZB50 LHD STD —
79012-36050-E2 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50,RZB50 LHD STD CBU —
79012-36051-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50,RZB50 LHD STD CBU —
79012-36052-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50,RZB50 LHD STD —
79012-36140-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 RHD STD GEN —
79012-36141-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 RHD STD GEN —
79012-36142-E4 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 RHD STD GEN —
79012-36160-E3 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 RHD STD GEN —
79012-36161-E5 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 RHD STD GEN +1 —
79012-36162-E5 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 RHD STD GEN +1 —
79012-36170-E1 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79012-36290-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 STD ARL —
79012-36291-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 STD ARL —
79012-36292-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 STD ARL —
79012-36300-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 DX —
79012-36300-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 STD ARL —
79012-36301-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 DX —
79012-36302-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 DX —
79012-36320-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
79021-36260-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58 —
79032-36020-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 LHD SRF GEN —
79012-36130-E1 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD STD GEN —
79012-36131-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 RHD GEN —
79012-36241-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 RHD GEN —
79012-36340-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2002-11 → 2004-08 ended
BB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 DX —
79012-36400-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79012-36401-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79012-36450-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +2 —
79012-36451-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +1 —
79012-36461-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79012-36461-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +1 —
79012-36590-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2002-11 → 2004-08 ended
BB50 STD ARL —
79021-36330-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
BB58 —
79021-36331-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58 —
79022-36021-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79032-36170-E0 note Cover Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;HZB50 LHD +3 —
79032-36171-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;HZB50 SRF +2 —
79012-36131-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79012-36131-B5 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-07 → 2015-01 ended
HZB50 RHD —
79012-36242-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79012-36243-B5 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
HZB50 RHD —
79012-36342-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 DX —
79012-36342-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 DX —
79012-36402-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79012-36402-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 EX —
79012-36403-K2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 EX —
79012-36451-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
BB50,HZB50,RZB50 LHD 5F —
79012-36451-B6 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD —
79012-36462-B3 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
BB50 WC TD;HZB50,RZB50 LHD —
79012-36463-B6 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD —
79012-36591-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79012-36620-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79012-36620-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79012-36660-K2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 DX —
79021-36332-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79032-36172-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79032-36172-B2 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79032-36173-B5 note Cover Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79011-36590-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79011-36600-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79012-36D00-J1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 DX,EX —
79012-36D30-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79022-36240-B6 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD 30S —
79022-36250-B5 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
79022-36310-B5 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD 30S GEN —
79022-36320-B4 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD GEN —
79032-36250-B1 note Cover Sub-assy, NO.5 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 30S GEN —
79054 — Cover Sub-assy, NO.5 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50 STD ARL —
79013-36030-E4 note Cover Sub-assy, NO.5 Seatback, LH
1995-05 → 1999-07 ended
HZB50 RHD STD DSL —
79013-36050-E3 note Cover Sub-assy, NO.5 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79013-36050-E3 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50 SCO;BB42,HZB50 RHD (17S,19S,30S) —
79013-36050-E3 note Cover Sub-assy, NO.5 Seatback, LH
1995-05 → 1998-08 ended
BB42,HZB50 SCO —
79013-36060-E1 note Cover Sub-assy, NO.5 Seatback, LH
1995-05 → 1999-07 ended
HZB50 RHD STD GEN +1 —
79014-36020-E2 note Cover Sub-assy, NO.5 Seatback, LH
1995-05 → 1999-07 ended
HZB50,RZB50 LHD STD CBU —
79014-36030-E0 note Cover Sub-assy, NO.5 Seatback, LH
1995-05 → 1999-07 ended
HZB50 DX —
79014-36070-E3 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50,RZB50 LHD STD CBU —
79014-36090-E1 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50 DX —
79014-36090-E1 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50 STD ARL —
79023-36010-E4 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1993-03 ended
HZB50 LHD WOC DSL;HZB50 +4 —
79023-36010-E4 note Cover Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
HZB50,RZB50 LHD STD CBU —
79033-36020-E0 note Cover Sub-assy, NO.5 Seatback, LH
1997-05 → 1999-07 ended
HZB50 LHD SRF GEN —
79013-36030-E4 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD STD GEN —
79013-36031-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
HZB50 RHD GEN —
79013-36070-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
BB50 STD ARL —
79013-36150-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD STD GEN +1 —
79013-36151-B1 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
HZB50 RHD GEN —
79013-36160-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
BB58 —
79013-36161-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
BB58 —
79013-36170-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79013-36171-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79014-36080-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX —
79014-36081-B0 note Cover Sub-assy, NO.5 Seatback, LH
2002-11 → 2004-08 ended
BB50 DX —
79014-36081-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79014-36110-E1 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB50 LHD STD CBU +1 —
79014-36111-B1 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79014-36111-B1 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +1 —
79023-36010-E4 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 SRF GCC;HZB50 LHD +7 —
79023-36010-E4 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;HZB50 LHD +3 —
79023-36012-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +1 —
79023-36111-B2 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79033-36030-E0 note Cover Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;HZB50 LHD +3 —
79033-36031-B0 note Cover Sub-assy, NO.5 Seatback, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;HZB50 SRF +2 —
79013-36031-B0 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79013-36031-B4 note Cover Sub-assy, NO.5 Seatback, LH
2007-07 → 2015-01 ended
HZB50 RHD —
79013-36071-B0 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36152-B2 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD —
79013-36153-B6 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
HZB50 RHD —
79013-36162-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36172-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79013-36172-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
XZB50 EX —
79013-36173-K2 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
XZB50 EX —
79014-36082-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79014-36082-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX —
79014-36083-K2 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX —
79014-36112-B2 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
BB50 WC TD;HZB50,RZB50 LHD —
79014-36113-B5 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD —
79014-36230-B1 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79014-36230-B1 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79023-36012-B0 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
BB50,HZB50,RZB50 LHD 5F —
79023-36012-B4 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD —
79033-36032-B1 note Cover Sub-assy, NO.5 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79033-36032-B1 note Cover Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79033-36033-B4 note Cover Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79013-36670-B4 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79013-36820-B2 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
HZB50 RHD —
79014-36260-J2 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36280-B6 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD 30S —
79023-36320-B4 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
79033-36040-B0 note Cover Sub-assy, NO.5 Seatback, LH
2015-01 → 2015-11 ended
HZB50 30S GEN —
79033-36040-B1 note Cover Sub-assy, NO.5 Seatback, LH
2015-11 → 2016-12 ended
HZB50 30S GEN —
79056A — Pad Sub-assy, NO.5 Seat Cushion, LH
79016-36090 Pad Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
79016-36120 Pad Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1997-05 ended
HZB50 RHD (DX,STD) DSL —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 RHD (DX,STD) —
79036-36010 Pad Sub-assy, NO.5 Seat Cushion, LH
1993-01 → 1997-05 ended
HZB50,RZB50 LHD STD CBU —
79036-36011 Pad Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50,RZB50 LHD STD —
79036-36030 Pad Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58 —
79036-36040 note Pad Sub-assy, NO.5 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 LHD SRF GEN —
79016-36090 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79016-36090 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50,BZB50 EX (LPG,TDEFI) —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;HZB50 +3 —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50 ARL;HZB50 RHD HRF +4 —
79036-36011 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50,RZB50 STD CHI —
79036-36011 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +2 —
79036-36030 Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2001-08 ended
BB58,HZB50,RZB40 LHD (17S,20S,23S) —
79036-36030 note Pad Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79036-36030 note Pad Sub-assy, NO.5 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58,HZB50,RZB40 17S,20S,23S —
79036-36040 note Pad Sub-assy, NO.5 Seat Cushion, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;HZB50 LHD +3 —
79016-36090 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 EX —
79016-36090 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 ARL —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79016-36121 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2015-01 ended
HZB50 RHD —
79016-36170 Pad Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79016-36170 Pad Sub-assy, NO.5 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL —
79036-36011 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB50 —
79036-36011 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD 5F —
79036-36030 Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79036-36040 note Pad Sub-assy, NO.5 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79036-36040 note Pad Sub-assy, NO.5 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79036-36040 note Pad Sub-assy, NO.5 Seat Cushion, LH
2015-01 → —
HZB50 30S GEN —
79135-36110 Pad Sub-assy, NO.5 Seat Cushion, LH
2015-01 → —
HZB50 RHD —
79136-36180 Pad Sub-assy, NO.5 Seat Cushion, LH
2015-01 → —
XZB50 RHD —
79235-36110 Pad Sub-assy, NO.5 Seat Cushion, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
79235-36170 note Pad Sub-assy, NO.5 Seat Cushion, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD GEN —
79058A — Pad Sub-assy, NO.5 Seatback, LH
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO;HZB50 RHD +3 —
79017-36070 Pad Sub-assy, NO.5 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
HZB50 RHD STD DSL —
79017-36130 note Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1995-05 ended
HZB50 STD ARL —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
HZB50 DX —
79037-36010 note Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1993-03 ended
HZB50 LHD WOC DSL;HZB50 +4 —
79037-36010 Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
HZB50,RZB50 LHD STD CBU —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
1993-01 → 1999-07 ended
HZB50,RZB50 LHD STD CBU —
79037-36040 note Pad Sub-assy, NO.5 Seatback, LH
1997-05 → 1999-07 ended
HZB50 LHD SRF GEN —
79017-36070 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
BB58 —
79017-36070 Pad Sub-assy, NO.5 Seatback, LH
2002-11 → 2004-08 ended
BZB50 EX —
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
BB50 EX TDEFI;HZB50 RHD +5 —
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB50 EX +5 —
79017-36080 note Pad Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB50 STD CHI —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2002-11 ended
HZB50 STD ARL —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
BB50 STD ARL;HZB50 RHD +5 —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2001-08 ended
HZB50 4FC;HZB50 RHD SRF;HZB50 +3 —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2002-11 ended
HZB50 DX —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
BB50 DX —
79037-36010 Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
HZB50 SRF GCC;BB50 WOC +6 —
79037-36010 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;HZB50 LHD +6 —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB50 STD CHI —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
BB50,HZB50,RZB50 LHD STD (GCC,GEN) +2 —
79037-36040 note Pad Sub-assy, NO.5 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;HZB50 LHD +3 —
79017-36070 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79017-36070 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
HZB50 RHD —
79017-36070 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
XZB50 EX —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
HZB50 RHD —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79017-36090 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
XZB50 DX —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79017-36130 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79037-36010 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
RZB50 —
79037-36010 Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
BB50,HZB50,TRB50 LHD 5F —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2015-01 ended
BB50 WC TD;HZB50,TRB50 LHD —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
RZB50 —
79037-36020 note Pad Sub-assy, NO.5 Seatback, LH
2007-08 → 2015-01 ended
BB50 WOC —
79037-36040 note Pad Sub-assy, NO.5 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79037-36040 note Pad Sub-assy, NO.5 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79037-36040 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
HZB50 30S GEN —
79175-36180 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
HZB50 RHD —
79175-36190 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
HZB50 RHD —
79175-36200 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD (GCC,GEN) —
79175-36210 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
HZB50,TRB50,XZB50 LHD 30S —
79185-36010 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
XZB50 EX —
79185-36030 note Pad Sub-assy, NO.5 Seatback, LH
2015-01 → —
XZB50 ARL —
79062 — Cover Sub-assy, NO.6 Seat Cushion, LH
79012-36020-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36021-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36022-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79012-36050-E2 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36051-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36052-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79012-36140-E4 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42 RHD 22S —
79012-36160-E3 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42 RHD 22S —
79012-36170-E1 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79012-36270-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79012-36330-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
79021-36260-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58 —
79021-36260-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79022-36160-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50,RZB40 LHD EX —
79032-36020-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79032-36090-E2 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (17S,26S,30S) —
79032-36091-E2 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD (GEN,SCO) —
79032-36092-E2 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,43,HZB50 RHD STD (GEN,SCO) —
79032-36100-E1 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD (26S,30S) —
79032-36101-E3 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79032-36102-E3 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79032-36130-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79032-36131-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
BB40,HZB50 STD ARL —
79032-36132-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79032-36140-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79032-36140-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 DX —
79032-36141-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 DX —
79032-36142-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 DX —
79012-36360-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 DX —
79012-36361-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 DX —
79012-36361-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2002-11 → 2004-08 ended
BB50 DX —
79012-36410-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79012-36411-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79012-36430-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79012-36450-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +2 —
79012-36451-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36461-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 (26S,30S) CHI —
79012-36461-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36620-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79021-36330-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB58 —
79021-36331-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58 —
79022-36020-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB40 LHD EX —
79022-36021-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79022-36021-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79032-36080-E1 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB4#,HZB50 RHD STD GEN —
79032-36081-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79032-36081-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BZB40 —
79032-36150-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79032-36151-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79032-36170-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79032-36171-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79032-36180-E0 note Cover Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79032-36181-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50 STD ARL —
79032-36181-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79012-36362-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 DX —
79012-36362-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 DX —
79012-36412-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 EX —
79012-36412-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79012-36413-K2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 EX —
79012-36451-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79012-36451-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36451-B6 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36451-B6 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36462-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79012-36462-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79012-36462-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36463-B6 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36463-B6 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36620-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79012-36620-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79012-36620-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79012-36620-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BZB50 —
79021-36332-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79032-36081-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79032-36081-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79032-36081-B5 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79032-36152-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79032-36152-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79032-36153-B5 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79032-36172-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79032-36172-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79032-36173-B5 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79032-36181-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79032-36181-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79032-36190-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2004-10 → 2007-08 ended
BZB40 —
79032-36190-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2007-11 ended
XZB50 STD ARL —
79032-36190-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
BZB40,XZB40 —
79032-36220-K2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 DX —
79032-36230-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-11 → 2015-01 ended
XZB50 STD WC ARL —
79032-36230-B0 note Cover Sub-assy, NO.6 Seat Cushion, LH
2007-11 → 2009-08 ended
XZB50 WOC CBU —
79012-36B50-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79012-36B60-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79012-36D10-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79012-36D20-J1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 EX —
79012-36D40-J1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 DX —
79012-36D50-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79022-36290-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79022-36300-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79022-36330-B3 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,XZB50 LHD 30S GEN;BB42,TRB40,50,XZB40 +2 —
79022-36340-B2 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79032-36250-B1 note Cover Sub-assy, NO.6 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 30S GEN —
79064 — Cover Sub-assy, NO.6 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD STD (ARL,GEN) —
79013-36030-E4 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD STD DSL —
79013-36050-E3 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79013-36050-E3 note Cover Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79013-36050-E3 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79013-36050-E3 note Cover Sub-assy, NO.6 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
79013-36060-E1 note Cover Sub-assy, NO.6 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36070-E0 note Cover Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79014-36020-E2 note Cover Sub-assy, NO.6 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79014-36070-E3 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79014-36100-E1 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79023-36010-E4 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79023-36050-E2 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1996-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E2 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1996-11 ended
HZB50 RHD EX GEN —
79023-36050-E5 note Cover Sub-assy, NO.6 Seatback, LH
1996-11 → 1998-07 ended
HZB50,RZB40 LHD EX —
79023-36050-E5 note Cover Sub-assy, NO.6 Seatback, LH
1996-11 → 1998-07 ended
HZB50 RHD EX GEN —
79023-36050-E6 note Cover Sub-assy, NO.6 Seatback, LH
1998-07 → 1998-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E6 note Cover Sub-assy, NO.6 Seatback, LH
1998-07 → 1998-11 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.6 Seatback, LH
1998-11 → 1999-07 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.6 Seatback, LH
1998-11 → 1999-07 ended
HZB50,RZB40 LHD EX —
79024-36050-E0 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
HZB50 DX —
79024-36050-E0 note Cover Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79033-36020-E0 note Cover Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79013-36030-E4 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN —
79013-36031-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36070-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79013-36071-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36150-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36151-B1 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36160-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB58 —
79013-36161-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB58 —
79013-36170-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79013-36171-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79014-36061-B0 note Cover Sub-assy, NO.6 Seatback, LH
2003-02 → 2003-05 ended
BB50,BZB50 17S —
79014-36110-E1 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD CBU +1 —
79014-36111-B1 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79014-36111-B1 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79014-36200-B0 note Cover Sub-assy, NO.6 Seatback, LH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79023-36010-E4 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +2 —
79023-36012-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79023-36110-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB40 LHD EX —
79023-36110-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79023-36111-B2 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79023-36111-B2 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79024-36040-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX —
79024-36041-B0 note Cover Sub-assy, NO.6 Seatback, LH
2002-11 → 2004-08 ended
BB50 DX —
79024-36041-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79033-36030-E0 note Cover Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79033-36031-B0 note Cover Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79013-36031-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79013-36031-B4 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36071-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79013-36071-B1 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79013-36071-B1 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79013-36152-B2 note Cover Sub-assy, NO.6 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79013-36152-B2 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79013-36153-B6 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36162-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36172-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
XZB50 EX —
79013-36172-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79013-36173-K2 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
XZB50 EX —
79014-36112-B2 note Cover Sub-assy, NO.6 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79014-36112-B2 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79014-36112-B2 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79014-36113-B5 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79014-36113-B5 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79014-36200-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-10 → 2007-08 ended
BZB40 —
79014-36200-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79014-36200-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79014-36200-B1 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
79014-36200-B1 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79023-36012-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79023-36012-B0 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79023-36012-B4 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79023-36012-B4 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79024-36042-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79024-36042-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX —
79024-36043-K2 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX —
79033-36032-B1 note Cover Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79033-36032-B1 note Cover Sub-assy, NO.6 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79033-36033-B4 note Cover Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79013-36670-B4 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79013-36820-B2 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79014-36240-B6 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36260-J2 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36280-B6 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79023-36320-B4 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79033-36040-B0 note Cover Sub-assy, NO.6 Seatback, LH
2015-01 → 2015-11 ended
HZB50 30S GEN —
79033-36040-B1 note Cover Sub-assy, NO.6 Seatback, LH
2015-11 → 2016-12 ended
HZB50 30S GEN —
79066A — Pad Sub-assy, NO.6 Seat Cushion, LH
79016-36090 Pad Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50,HZB50 RHD EX —
79016-36120 Pad Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD (DX,STD) DSL —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) —
79036-36010 Pad Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79036-36030 note Pad Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79036-36030 Pad Sub-assy, NO.6 Seat Cushion, LH
1993-01 → 1999-07 ended
RZB40 EX;BB58,HZB50 LHD (20S,22S) —
79036-36040 note Pad Sub-assy, NO.6 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79016-36090 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
79016-36090 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50,BZB50 EX (LPG,TDEFI) —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50 ARL;BB42 RHD SRF;BB42,BZB40,HZB50 +6 —
79016-36170 Pad Sub-assy, NO.6 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
79036-36030 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79036-36030 Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2004-08 ended
BB58,HZB50,RZB40 LHD (17S,20S,23S) —
79036-36030 note Pad Sub-assy, NO.6 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79036-36040 note Pad Sub-assy, NO.6 Seat Cushion, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79016-36090 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 EX —
79016-36090 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 ARL —
79016-36131 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79016-36170 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79016-36170 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79016-36170 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2015-01 ended
BZB50 STD —
79016-36180 Pad Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79016-36180 Pad Sub-assy, NO.6 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79016-36180 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-10 → 2015-01 ended
BZB40,XZB40;XZB50 ARL 4FC —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79036-36011 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
79036-36030 Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79036-36040 note Pad Sub-assy, NO.6 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79036-36040 note Pad Sub-assy, NO.6 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79036-36040 note Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
HZB50 30S GEN —
79136-36190 Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79136-36240 Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
BB42,HZB50 RHD —
79136-36260 Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
XZB50 ARL —
79245-36100 Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79245-36120 note Pad Sub-assy, NO.6 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79068A — Pad Sub-assy, NO.6 Seatback, LH
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
HZB50 SCO;BB42,50 RHD GEN;HZB50 +4 —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36080 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
HZB50,RZB40 LHD EX —
79017-36080 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) CBU —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
BB4#,HZB50 RHD STD DSL —
79017-36120 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79017-36130 note Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79017-36130 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
HZB50 DX —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1993-09 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1993-09 ended
BB42,HZB50 LHD (26S,30S) —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1993-01 → 1993-09 ended
BB42 LHD 22S —
79037-36040 note Pad Sub-assy, NO.6 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB50 EX +6 —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
BB42 ,TDEFI) RHD SRF;HZB50 +10 —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2002-11 → 2004-08 ended
BB50,BZB50 (17S,21S) 5F —
79017-36080 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79017-36080 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
79017-36080 note Pad Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79017-36080 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
BB50 ARL;BB42 RHD SRF;BB42,BZB40,HZB50 +6 —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
RZB40 C,GEN) WOC GEN;BB42 +8 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD STD;BB42 LHD +6 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
RZB40 WOC GCC;BB42,RZB40 22S +1 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
BB42 WOC GCC —
79037-36040 note Pad Sub-assy, NO.6 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2004-10 → 2015-01 ended
BZB40 —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79017-36070 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD SRF;HZB50,XZB50 RHD +1 —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2015-01 ended
BZB50,XZB40 STD —
79017-36070 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2015-01 ended
XZB50 WC ARL;BB42,HZB50 RHD —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2009-08 ended
XZB50 WOC CBU —
79017-36090 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-08 ended
BB50 ARL —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79037-36010 Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2007-08 → 2015-01 ended
BB50 WOC —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2015-01 ended
BB50 WC TD;BB42 LHD +2 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
RZB50;RZB40 WC GEN;RZB40 SRF +1 —
79037-36020 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79037-36040 note Pad Sub-assy, NO.6 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79037-36040 note Pad Sub-assy, NO.6 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79037-36040 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
HZB50 30S GEN —
79175-36180 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
BB42,HZB50 RHD —
79175-36190 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
BB42,HZB50 RHD —
79175-36200 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79175-36210 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79185-36010 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
BZB40,XZB40,50 RHD GEN —
79185-36030 note Pad Sub-assy, NO.6 Seatback, LH
2015-01 → —
XZB50 ARL —
79072 — Cover Sub-assy, NO.7 Seat Cushion, LH
79012-36020-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36021-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36022-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79012-36050-E2 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36051-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79012-36052-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79012-36140-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD (GEN,SCO) —
79012-36141-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD (GEN,SCO) —
79012-36142-E4 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79012-36160-E3 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79012-36161-E5 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36162-E5 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79012-36170-E1 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79012-36270-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79012-36290-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79012-36291-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
BB40,HZB50 STD ARL —
79012-36292-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB40,HZB50 STD ARL —
79012-36300-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
HZB50 DX —
79012-36300-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79012-36301-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1995-05 → 1997-05 ended
HZB50 DX —
79012-36302-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
HZB50 DX —
79012-36320-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1999-07 ended
BB50 EX;HZB50 SCO —
79021-36260-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79021-36260-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB58 —
79022-36160-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50,RZB40 LHD EX —
79032-36020-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79012-36130-E1 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB4#,HZB50 RHD STD GEN —
79012-36131-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79012-36241-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79012-36340-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2002-11 → 2004-08 ended
BB50 DX —
79012-36341-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 DX —
79012-36400-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79012-36401-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB50,BZB50 EX GEN —
79012-36430-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79012-36450-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +2 —
79012-36451-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36461-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79012-36461-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79012-36590-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2002-11 → 2004-08 ended
BB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79012-36630-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79012-36650-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BZB40 —
79021-36330-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB58 —
79021-36331-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
BB58 —
79022-36020-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB40 LHD EX —
79022-36021-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79022-36021-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79032-36170-E0 note Cover Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79032-36171-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79012-36131-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79012-36131-B5 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79012-36242-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79012-36242-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79012-36243-B5 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79012-36342-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 DX —
79012-36342-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 DX —
79012-36402-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 EX —
79012-36402-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79012-36403-K2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 EX —
79012-36451-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79012-36451-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36451-B6 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36451-B6 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36462-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79012-36462-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79012-36462-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79012-36463-B6 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79012-36463-B6 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79012-36591-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79012-36591-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79012-36620-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40;XZB50 STD WC ARL —
79012-36620-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79012-36620-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79012-36630-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79012-36630-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-10 → 2007-08 ended
BZB40 —
79012-36630-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79012-36650-B0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79012-36660-K2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 DX —
79021-36332-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79032-36172-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79032-36172-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79032-36173-B5 note Cover Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79012-36A90-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79012-36B00-J2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 DX —
79012-36D30-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79012-36E00-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79012-36E10-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79012-36E60-J0 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
XZB50 EX —
79022-36290-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79022-36300-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79022-36330-B3 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50,XZB50 LHD 30S GEN;BB42,TRB40,50,XZB40 +2 —
79022-36340-B2 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79032-36250-B1 note Cover Sub-assy, NO.7 Seat Cushion, LH
2015-01 → 2016-12 ended
HZB50 30S GEN —
79074 — Cover Sub-assy, NO.7 Seatback, LH
79013-36030-E4 note Cover Sub-assy, NO.7 Seatback, LH
1997-05 → 1999-07 ended
BB40,42,HZB50 RHD STD (ARL,GEN) —
79013-36030-E4 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD STD DSL —
79013-36050-E3 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50 RHD STD GEN —
79013-36050-E3 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB42 LHD HRF 26S —
79013-36050-E3 note Cover Sub-assy, NO.7 Seatback, LH
1995-05 → 1999-07 ended
BB50 EX;HZB50 SCO —
79013-36060-E1 note Cover Sub-assy, NO.7 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36070-E0 note Cover Sub-assy, NO.7 Seatback, LH
1997-05 → 1999-07 ended
BB42,43 17S —
79014-36020-E2 note Cover Sub-assy, NO.7 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79014-36070-E3 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79014-36100-E1 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79023-36010-E4 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79023-36050-E2 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1996-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E2 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1996-11 ended
HZB50 RHD EX GEN —
79023-36050-E5 note Cover Sub-assy, NO.7 Seatback, LH
1996-11 → 1998-07 ended
HZB50,RZB40 LHD EX —
79023-36050-E5 note Cover Sub-assy, NO.7 Seatback, LH
1996-11 → 1998-07 ended
HZB50 RHD EX GEN —
79023-36050-E6 note Cover Sub-assy, NO.7 Seatback, LH
1998-07 → 1998-11 ended
HZB50,RZB40 LHD EX —
79023-36050-E6 note Cover Sub-assy, NO.7 Seatback, LH
1998-07 → 1998-11 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.7 Seatback, LH
1998-11 → 1999-07 ended
HZB50 RHD EX —
79023-36050-E8 note Cover Sub-assy, NO.7 Seatback, LH
1998-11 → 1999-07 ended
HZB50,RZB40 LHD EX —
79024-36050-E0 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
HZB50 DX —
79024-36050-E0 note Cover Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79033-36020-E0 note Cover Sub-assy, NO.7 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79013-36030-E4 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN —
79013-36031-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36070-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB43,HZB50 (17S,22S) STD 5F —
79013-36071-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BZB40;BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
HZB50 STD ARL —
79013-36150-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42,HZB50 RHD STD GEN +1 —
79013-36151-B1 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79013-36160-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB58 —
79013-36161-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB58 —
79013-36170-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB50 EX GEN CBU —
79013-36171-B0 note Cover Sub-assy, NO.7 Seatback, LH
2002-11 → 2004-08 ended
BZB50 EX —
79013-36171-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB50 EX TDEFI —
79014-36061-B0 note Cover Sub-assy, NO.7 Seatback, LH
2003-02 → 2003-05 ended
BB50,BZB50 17S —
79014-36110-E1 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD CBU +1 —
79014-36111-B1 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79014-36111-B1 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79014-36200-B0 note Cover Sub-assy, NO.7 Seatback, LH
2003-05 → 2004-08 ended
BB50,BZB50 17S —
79023-36010-E4 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +2 —
79023-36012-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB42,50,HZB50,RZB40,50 LHD STD (GCC,GEN) +1 —
79023-36110-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB50,HZB50,RZB40 LHD EX —
79023-36110-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79023-36111-B2 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 CHI —
79023-36111-B2 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
HZB50,RZB40 EX —
79023-36200-E0 note Cover Sub-assy, NO.7 Seatback, LH
2000-03 → 2001-08 ended
HZB50 RHD HRF STD +3 —
79023-36201-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
BB42,HZB50 RHD GEN —
79024-36040-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 DX —
79024-36041-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
HZB50 DX —
79024-36041-B0 note Cover Sub-assy, NO.7 Seatback, LH
2002-11 → 2004-08 ended
BB50 DX —
79033-36030-E0 note Cover Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79033-36031-B0 note Cover Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
HZB50 WOC GEN;BB42 LHD +5 —
79013-36031-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
BB42,HZB50 RHD —
79013-36031-B4 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36071-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD ARL —
79013-36071-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2004-10 ended
BZB40 —
79013-36071-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
XZB50 STD ARL —
79013-36071-B1 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
XZB50 STD WC ARL —
79013-36071-B1 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79013-36152-B2 note Cover Sub-assy, NO.7 Seatback, LH
2007-01 → 2007-08 ended
BB42 RHD WC —
79013-36152-B2 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
HZB50 RHD;BB42 RHD WOC —
79013-36153-B6 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
BB42,HZB50 RHD —
79013-36162-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79013-36172-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
XZB50 EX —
79013-36172-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79013-36173-K2 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
XZB50 EX —
79014-36112-B2 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
RZB40 SRF GCC;BB42,HZB50,RZB50 LHD;BB50,RZB40 +4 —
79014-36112-B2 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79014-36112-B2 note Cover Sub-assy, NO.7 Seatback, LH
2007-01 → 2007-08 ended
RZB40 WOC —
79014-36113-B5 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79014-36113-B5 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79014-36200-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
BZB50,XZB50 STD GEN —
79014-36200-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-10 → 2007-08 ended
BZB40 —
79014-36200-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79014-36200-B1 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
BZB40,50,XZB40 —
79014-36200-B1 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2008-03 ended
XZB50 STD GEN —
79023-36012-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79023-36012-B0 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
RZB40 GEN;RZB40 SRF GCC;BB42,50,HZB50,RZB50 +2 —
79023-36012-B4 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2011-08 ended
BB42 LHD HRF —
79023-36012-B4 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD —
79024-36042-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50 DX —
79024-36042-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
XZB50 DX —
79024-36043-K2 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
XZB50 DX —
79033-36032-B1 note Cover Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79033-36032-B1 note Cover Sub-assy, NO.7 Seatback, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79033-36033-B4 note Cover Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
HZB50 LHD GEN —
79013-36670-B4 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79013-36820-B2 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50 RHD —
79014-36240-B6 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
BZB40,XZB40 17S —
79014-36260-J2 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
XZB50 EX —
79014-36350-B2 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
XZB50 STD ARL —
79014-36360-J2 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
XZB50 DX —
79023-36280-B6 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
BB42,TRB40,XZB40 LHD;HZB50,TRB50,XZB50 LHD 30S —
79023-36320-B4 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79033-36040-B0 note Cover Sub-assy, NO.7 Seatback, LH
2015-01 → 2015-11 ended
HZB50 30S GEN —
79033-36040-B1 note Cover Sub-assy, NO.7 Seatback, LH
2015-11 → 2016-12 ended
HZB50 30S GEN —
79076 — Pad Sub-assy, NO.7 Seat Cushion, LH
79016-36090 Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1999-07 ended
HZB50 RHD EX —
79016-36120 Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1997-05 ended
BB4#,HZB50 RHD (DX,STD) DSL —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB4#,50 RHD CBU;HZB50 RHD +1 —
79036-36010 note Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1995-05 ended
BB42 LHD HRF 26S —
79036-36010 Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD —
79036-36030 note Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79036-36030 Pad Sub-assy, NO.7 Seat Cushion, LH
1993-01 → 1999-07 ended
RZB40 EX;BB58,HZB50 LHD (20S,22S) —
79036-36040 note Pad Sub-assy, NO.7 Seat Cushion, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79016-36090 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50,BZB50 EX (LPG,TDEFI) —
79016-36090 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB50,HZB50 RHD EX CBU —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2004-08 ended
BB50 ARL;BB42 RHD SRF;BB42,BZB40,HZB50 +6 —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2003-02 → 2004-08 ended
BB50,BZB50 17S —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79036-36030 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79036-36030 note Pad Sub-assy, NO.7 Seat Cushion, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79036-36030 Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2004-08 ended
BB58,HZB50,RZB40 LHD (17S,20S,23S) —
79036-36040 note Pad Sub-assy, NO.7 Seat Cushion, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79016-36090 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 EX —
79016-36090 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 ARL —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
XZB50 ARL —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
79016-36121 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2004-10 ended
BZB40 —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-10 → 2015-01 ended
BZB40 —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2015-01 ended
XZB50 WC ARL 5F —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2015-01 ended
XZB50 ARL 4FC;BZB50,XZB40 STD —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79016-36170 Pad Sub-assy, NO.7 Seat Cushion, LH
2007-08 → 2009-08 ended
XZB50 WOC CBU —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50,TRB40,50 LHD +1 —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2011-08 ended
BB42 LHD HRF —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
79036-36011 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2006-02 ended
RZB40 HRF GCC —
79036-36030 Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2005-12 ended
BB58 —
79036-36040 note Pad Sub-assy, NO.7 Seat Cushion, LH
2004-08 → 2007-08 ended
HZB50 SRF GEN —
79036-36040 note Pad Sub-assy, NO.7 Seat Cushion, LH
2007-01 → 2007-08 ended
HZB50 LHD HRF GEN —
79036-36040 note Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
HZB50 30S GEN —
79136-36180 Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
BZB40,XZB40 17S —
79136-36210 Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
XZB50 ARL —
79136-36220 Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
XZB50 EX —
79136-36250 Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
BB42,HZB50 RHD —
79245-36100 Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD (GCC,GEN) —
79245-36120 note Pad Sub-assy, NO.7 Seat Cushion, LH
2015-01 → —
BB42,HZB50,TRB40,50,XZB40,50 LHD GEN —
79078A — Pad Sub-assy, NO.7 Seatback, LH
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
1997-05 → 1999-07 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1997-05 ended
BB42 LHD HRF 26S —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
BB42,50 RHD GEN;HZB50 RHD +3 —
79017-36080 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
HZB50,RZB40 LHD EX —
79017-36080 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
HZB50 RHD EX GEN —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB4#,HZB50 RHD STD DSL —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
1995-05 → 1999-07 ended
BB4#,HZB50 RHD (DX,STD) CBU —
79017-36120 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
HZB50 EX ARL —
79017-36130 note Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB40,HZB50 STD ARL —
79017-36130 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
HZB50 DX —
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1995-05 → 1999-07 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1993-01 → 1995-05 ended
BB42,HZB50,RZB40,50 LHD STD CBU —
79037-36040 note Pad Sub-assy, NO.7 Seatback, LH
1997-05 → 1999-07 ended
BB42,HZB50 LHD SRF GEN —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB50 EX +6 —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2002-11 → 2004-08 ended
BB50,BZB50 (17S,21S) 5F —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
BB58 —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
BB42 ,TDEFI) RHD SRF;HZB50 +10 —
79017-36080 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
HZB50,RZB40 LHD EX —
79017-36080 note Pad Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79017-36080 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2002-11 ended
BB50 EX CHI —
79017-36080 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD EX —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2002-11 ended
HZB50 ARL —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
HZB50 RHD SRF;BB43,HZB50 (17S,22S) +5 —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
BB50 ARL;BB42 RHD SRF;BB42,BZB40,HZB50 +6 —
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42,RZB40 WOC GCC;BB42,RZB40 22S +1 —
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
BB42 ZB50,RZB50 WC LHD +13 —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
RZB40 WOC GCC;RZB40 22S +1 —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
RZB40 C,GEN) WOC GEN;BB42 +8 —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD STD;BB42 LHD +6 —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
BB42 22S;BB42 WOC GCC —
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2002-11 ended
BB50,RZB40,50 STD CHI —
79037-36040 note Pad Sub-assy, NO.7 Seatback, LH
1999-07 → 2004-08 ended
HZB50 LHD WOC;BB42 LHD +6 —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50,BZB50 EX —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
2007-01 → 2015-01 ended
BB42 RHD HRF —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2004-10 → 2015-01 ended
BZB40 —
79017-36070 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2015-01 ended
BB42 RHD SRF;HZB50,XZB50 RHD +1 —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2015-01 ended
BZB50,XZB40 STD —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2008-03 ended
XZB50 STD GEN —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2005-12 ended
BB58 —
79017-36070 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
BB50 STD 5F TDEFI —
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-08 ended
—
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2004-10 ended
—
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2015-01 ended
—
79017-36090 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2009-08 ended
—
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
—
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2015-01 ended
—
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-02 ended
—
79037-36010 Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2011-08 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2011-08 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2006-02 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2007-01 → 2007-08 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2015-01 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
—
79037-36020 note Pad Sub-assy, NO.7 Seatback, LH
2007-08 → 2015-01 ended
—
79037-36040 note Pad Sub-assy, NO.7 Seatback, LH
2007-01 → 2007-08 ended
—
79037-36040 note Pad Sub-assy, NO.7 Seatback, LH
2004-08 → 2007-08 ended
—
79037-36040 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79175-36180 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79175-36190 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79175-36200 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79175-36210 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79185-36010 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79185-36030 note Pad Sub-assy, NO.7 Seatback, LH
2015-01 → —
—
79108A — Leg Sub-assy, NO.6 Seat, Rear
79644-36120 Leg Sub-assy, NO.6 Seat, Rear
2015-01 → 2016-12 ended
—
79108B — Leg Sub-assy, NO.7 Seat, Rear
79606-36070 Leg Sub-assy, NO.7 Seat, Rear
2015-01 → —
—
79406A — Leg Sub-assy, NO.4 Seat, LH
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1995-05 → 1999-07 ended
—
79306-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1995-05 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1995-05 → 1999-07 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1995-05 → 1999-07 ended
—
79406-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1997-05 ended
—
79406-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1995-05 ended
—
79406-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1997-05 → 1999-07 ended
—
79406-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1995-05 → 1997-05 ended
—
79505-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1999-07 ended
—
79505-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1995-05 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
1997-05 → 1999-07 ended
—
79505-36040-E0 note Leg Sub-assy, NO.4 Seat, LH
1993-01 → 1995-05 ended
—
79306-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2002-11 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2002-11 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79406-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79406-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2002-11 ended
—
79505-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2003-02 → 2003-09 ended
—
79505-36010-E0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
2001-08 → 2004-08 ended
—
79505-36100-C0 note Leg Sub-assy, NO.4 Seat, LH
2003-09 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2006-02 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2015-01 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2007-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2011-08 ended
—
79406-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2005-12 ended
—
79406-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2015-01 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2005-12 → 2006-08 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2015-01 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2009-08 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2007-08 ended
—
79406-36010-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2005-12 ended
—
79406-36040-C0 note Leg Sub-assy, NO.4 Seat, LH
2007-08 → 2015-01 ended
—
79505-36010-B0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2005-12 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2015-01 ended
—
79505-36020-C0 note Leg Sub-assy, NO.4 Seat, LH
2007-01 → 2015-01 ended
—
79505-36100-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2015-01 ended
—
79505-36100-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2008-03 ended
—
79505-36100-C0 note Leg Sub-assy, NO.4 Seat, LH
2004-08 → 2006-08 ended
—
79106-36410 Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79106-36560 Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79106-36660 Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79106-36730 note Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79106-36780 Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79406-36060-B0 note Leg Sub-assy, NO.4 Seat, LH
2015-01 → 2016-12 ended
—
79409B — Board Sub-assy, NO.4 Seatback, LH
79207-36010-D0 note Board Sub-assy, NO.4 Seatback, LH
1993-09 → 1995-05 ended
—
79207-36020-D0 note Board Sub-assy, NO.4 Seatback, LH
1993-01 → 1993-09 ended
—
79207-36020-D0 note Board Sub-assy, NO.4 Seatback, LH
1993-09 → 1999-07 ended
—
79207-36010-B0 note Board Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36010-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.4 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.4 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36180-B0 note Board Sub-assy, NO.4 Seatback, LH
2015-01 → 2016-12 ended
—
79490A — Spring Assy, NO.4 Seatback, LH
79280-36070 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79280-36100 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79290-36070 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79290-36080 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79290-36100 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79290-36110 note Spring Assy, NO.4 Seatback, LH
2015-01 → —
—
79506 — Leg Sub-assy, NO.5 Seat, LH
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
1995-05 → 1999-07 ended
—
79306-36010-E0 note Leg Sub-assy, NO.5 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
1995-05 → 1999-07 ended
—
79505-36010-E0 note Leg Sub-assy, NO.5 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-E0 note Leg Sub-assy, NO.5 Seat, LH
1995-05 → 1999-07 ended
—
79505-36020-C0 note Leg Sub-assy, NO.5 Seat, LH
1997-05 → 1999-07 ended
—
79306-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2002-11 ended
—
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2002-11 ended
—
79505-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2002-11 → 2004-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2002-11 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.5 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.5 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2007-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010 Leg Sub-assy, NO.5 Seat, LH
2005-12 → 2006-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2005-12 ended
—
79505-36010-B0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2005-12 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2009-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.5 Seat, LH
2004-08 → 2015-01 ended
—
79505-36020-C0 note Leg Sub-assy, NO.5 Seat, LH
2007-01 → 2015-01 ended
—
79106-36420 Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79106-36570 Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79106-36610 Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79106-36670 note Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79106-36680 Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79406-36060-B0 note Leg Sub-assy, NO.5 Seat, LH
2015-01 → 2016-12 ended
—
79509A — Board Sub-assy, NO.5 Seatback, LH
79207-36010-D0 note Board Sub-assy, NO.5 Seatback, LH
1993-01 → 1997-05 ended
—
79207-36010-B0 note Board Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.5 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36180-B0 note Board Sub-assy, NO.5 Seatback, LH
2015-01 → 2016-12 ended
—
79590A — Spring Assy, NO.5 Seatback, LH
79280-36070 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79280-36100 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79290-36070 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79290-36080 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79290-36100 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79290-36110 note Spring Assy, NO.5 Seatback, LH
2015-01 → —
—
79606 — Leg Sub-assy, NO.6 Seat, LH
79306-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79306-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1997-05 → 1999-07 ended
—
79505-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1999-07 ended
—
79505-36020-C0 note Leg Sub-assy, NO.6 Seat, LH
1997-05 → 1999-07 ended
—
79505-36040-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79606-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79606-36030-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79643-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1998-08 ended
—
79643-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79643-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79643-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1998-08 → 1999-07 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1997-05 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1999-07 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1997-05 → 1999-07 ended
—
79644-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1997-05 ended
—
79644-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1997-05 → 1999-07 ended
—
79705-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1995-05 → 1997-05 ended
—
79705-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1993-01 → 1995-05 ended
—
79705-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1997-05 → 1999-07 ended
—
79306-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79306-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2003-02 → 2004-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79606-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79606-36030-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79606-36030-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79643-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79643-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2002-11 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79644-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79705-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2001-08 → 2004-08 ended
—
79705-36010-E0 note Leg Sub-assy, NO.6 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2008-03 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2006-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2007-01 → 2015-01 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2011-08 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2006-02 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79606-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2007-08 ended
—
79606-36030-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2006-08 ended
—
79606-36030-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2007-08 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2006-08 ended
—
79606-36030-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2007-08 ended
—
79606-36050-B0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2015-01 ended
—
79606-36050-B0 note Leg Sub-assy, NO.6 Seat, LH
2011-08 → 2015-01 ended
—
79606-36050-C0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2009-08 ended
—
79606-36050-C0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2011-08 ended
—
79606-36050-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-10 → 2011-08 ended
—
79643-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79643-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2006-08 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79643-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2004-10 ended
—
79643-36060-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-10 → 2015-01 ended
—
79643-36070-B0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2015-01 ended
—
79643-36070-C0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2015-01 ended
—
79643-36070-C0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2009-08 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2007-08 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2011-08 → 2015-01 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2015-01 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2005-12 ended
—
79644-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2005-12 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2007-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2005-12 → 2011-08 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2004-10 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2005-12 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2005-12 ended
—
79644-36010-C0 note Leg Sub-assy, NO.6 Seat, LH
2005-12 → 2006-08 ended
—
79644-36040-B0 note Leg Sub-assy, NO.6 Seat, LH
2007-08 → 2015-01 ended
—
79644-36040-C0 note Leg Sub-assy, NO.6 Seat, LH
2004-10 → 2015-01 ended
—
79705-36010-B0 note Leg Sub-assy, NO.6 Seat, LH
2004-08 → 2005-12 ended
—
79106-36430 Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79106-36580 Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79106-36620 Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79106-36690 note Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79106-36790 Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79606-36130-B0 note Leg Sub-assy, NO.6 Seat, LH
2015-01 → 2016-12 ended
—
79609A — Board Sub-assy, NO.6 Seatback, LH
79207-36010-D0 note Board Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
—
79207-36010-D0 note Board Sub-assy, NO.6 Seatback, LH
1993-09 → 1995-05 ended
—
79207-36020-D0 note Board Sub-assy, NO.6 Seatback, LH
1993-01 → 1993-09 ended
—
79207-36020-D0 note Board Sub-assy, NO.6 Seatback, LH
1995-05 → 1999-07 ended
—
79207-36020-D0 note Board Sub-assy, NO.6 Seatback, LH
1993-09 → 1995-05 ended
—
79207-36020-D0 note Board Sub-assy, NO.6 Seatback, LH
1993-01 → 1995-05 ended
—
79207-36010-B0 note Board Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36010-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.6 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.6 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36180-B0 note Board Sub-assy, NO.6 Seatback, LH
2015-01 → 2016-12 ended
—
79690A — Spring Assy, NO.6 Seatback, LH
79280-36070 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79280-36100 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79290-36070 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79290-36080 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79290-36100 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79290-36110 note Spring Assy, NO.6 Seatback, LH
2015-01 → —
—
79706 — Leg Sub-assy, NO.7 Seat, LH
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1995-05 → 1999-07 ended
—
79306-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1995-05 → 1997-05 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1995-05 → 1999-07 ended
—
79505-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1993-01 → 1995-05 ended
—
79505-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1993-01 → 1997-05 ended
—
79505-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1995-05 → 1999-07 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1995-05 → 1999-07 ended
—
79706-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1993-01 → 1995-05 ended
—
79706-36020-E0 note Leg Sub-assy, NO.7 Seat, LH
1993-01 → 1995-05 ended
—
79306-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2002-11 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2002-11 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36010-E0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79505-36020-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79505-36090-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79706-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79706-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2002-11 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2004-08 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2001-08 → 2002-11 ended
—
79706-36030-E0 note Leg Sub-assy, NO.7 Seat, LH
1999-07 → 2001-08 ended
—
79706-36050-C0 note Leg Sub-assy, NO.7 Seat, LH
2003-02 → 2004-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2011-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2007-08 ended
—
79306-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2006-02 ended
—
79505-36010 Leg Sub-assy, NO.7 Seat, LH
2005-12 → 2006-08 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79505-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2005-12 ended
—
79505-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79505-36020-C0 note Leg Sub-assy, NO.7 Seat, LH
2007-01 → 2015-01 ended
—
79505-36020-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79505-36090-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2007-08 ended
—
79505-36140-C0 note Leg Sub-assy, NO.7 Seat, LH
2007-08 → 2015-01 ended
—
79706-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2006-08 ended
—
79706-36010-B0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2009-08 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2006-08 ended
—
79706-36010-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2015-01 ended
—
79706-36050-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2007-08 ended
—
79706-36050-C0 note Leg Sub-assy, NO.7 Seat, LH
2004-08 → 2006-08 ended
—
79706-36060-C0 note Leg Sub-assy, NO.7 Seat, LH
2007-08 → 2015-01 ended
—
79706-36060-C0 note Leg Sub-assy, NO.7 Seat, LH
2007-08 → 2008-03 ended
—
79106-36440 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79106-36590 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79106-36630 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79106-36700 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79106-36710 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79106-36720 Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79706-36070-B0 note Leg Sub-assy, NO.7 Seat, LH
2015-01 → 2016-12 ended
—
79709A — Board Sub-assy, NO.7 Seatback, LH
79207-36010-D0 note Board Sub-assy, NO.7 Seatback, LH
1993-09 → 1995-05 ended
—
79207-36020-D0 note Board Sub-assy, NO.7 Seatback, LH
1993-01 → 1993-09 ended
—
79207-36020-D0 note Board Sub-assy, NO.7 Seatback, LH
1993-09 → 1999-07 ended
—
79207-36010-B0 note Board Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36010-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36010-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.7 Seatback, LH
1999-07 → 2001-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2004-08 ended
—
79207-36020-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36020-B0 note Board Sub-assy, NO.7 Seatback, LH
2001-08 → 2002-11 ended
—
79207-36180-B0 note Board Sub-assy, NO.7 Seatback, LH
2015-01 → 2016-12 ended
—
79790A — Spring Assy, NO.7 Seatback, LH
79280-36070 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79280-36100 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79290-36070 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79290-36080 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79290-36100 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79290-36110 note Spring Assy, NO.7 Seatback, LH
2015-01 → —
—
79967B — Cover, Rear Seat Leg Side NO.2
79967-36160-C0 note Cover, Rear Seat Leg Side NO.2
2015-04 → 2016-12 ended
—
79967N — Cover, Rear Seat Leg Side, NO.4
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12 ended
—
79967P — Cover, Rear Seat Leg Side, NO.4
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12 ended
—
79967Q — Cover, Rear Seat Leg Side, NO.4
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2015-04 ended
—
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-04 → —
—
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12 ended
—
79967-36130-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2015-04 ended
—
79967R — Cover, Rear Seat Leg Side, NO.4
79967-36020-C0 note Cover, Rear Seat Leg Side, NO.4
2015-01 → 2016-12 ended
—
79968G — Cover, Rear Seat Leg Side, NO.5
79968-36030-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968-36040-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968H — Cover, Rear Seat Leg Side, NO.5
79968-36030-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968-36040-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968J — Cover, Rear Seat Leg Side, NO.5
79968-36030-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968K — Cover, Rear Seat Leg Side, NO.5
79968-36030-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
79968-36040-C0 note Cover, Rear Seat Leg Side, NO.5
2015-01 → 2016-12 ended
—
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
