Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

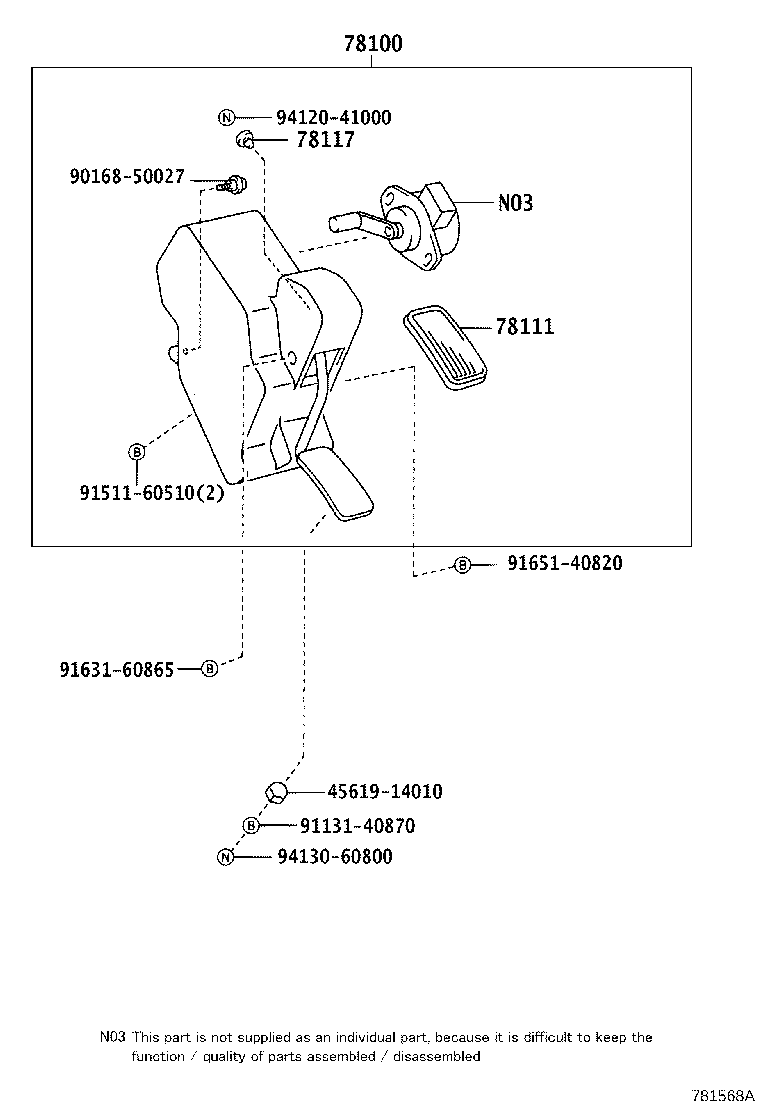

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78100 — Link Assy, Accelerator | ||||
| 78100-36010 |
Link Assy, Accelerator
1993-01 → 1997-05
ended
|
BB40 | — | |
| 78100-36011 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
BB40 | — | |
| 78100-36020 |
Link Assy, Accelerator
1995-05 → 1999-07
ended
|
HZB50 WC GEN 4FC | — | |
| 78100-36030 |
Link Assy, Accelerator
1993-01 → 1997-05
ended
|
BB42 RHD | — | |
| 78100-36031 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
BB42 RHD | — | |
| 78100-36040 note |
Link Assy, Accelerator
1993-01 → 1995-05
ended
|
BB42 LHD WC GEN | — | |
| 78100-36040 note |
Link Assy, Accelerator
1993-01 → 1995-05
ended
|
BB42 LHD WOC GEN | — | |
| 78100-36040 note |
Link Assy, Accelerator
1995-05 → 1999-07
ended
|
BB42 LHD WOC GEN | — | |
| 78100-36040 note |
Link Assy, Accelerator
1995-05 → 1999-07
ended
|
BB42 LHD HRF | — | |
| 78100-36050 |
Link Assy, Accelerator
1993-01 → 1993-02
ended
|
HZB50 LHD | — | |
| 78100-36050 |
Link Assy, Accelerator
1993-02 → 1999-07
ended
|
HZB50 LHD DSL | — | |
| 78100-36060 |
Link Assy, Accelerator
1993-09 → 1997-05
ended
|
RZB40,50 | — | |
| 78100-36070 |
Link Assy, Accelerator
1993-01 → 1999-07
ended
|
HZB50 RHD 5F | — | |
| 78100-36080 |
Link Assy, Accelerator
1993-01 → 1999-07
ended
|
BB42 LHD | — | |
| 78100-36100 |
Link Assy, Accelerator
1993-02 → 1995-05
ended
|
HZB50 LHD TD | — | |
| 78100-36130 |
Link Assy, Accelerator
1996-05 → 1999-07
ended
|
BB50 RHD IV | — | |
| 78100-36140 |
Link Assy, Accelerator
1996-05 → 1999-07
ended
|
BB50 LHD EUR | — | |
| 78100-36170 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
BB43,50 RHD CBU | — | |
| 78100-36180 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
BB50 WC CBU | — | |
| 78100-36190 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
BB58;BB50 WC GEN IV | — | |
| 78100-36191 |
Link Assy, Accelerator
1997-11 → 1999-07
ended
|
BB50 WOC GEN IV | — | |
| 78100-36200 |
Link Assy, Accelerator
1997-05 → 1999-07
ended
|
RZB40,50 | — | |
| 78010-36010 |
Link Assy, Accelerator
2001-05 → 2004-06
ended
|
BB50,59 RHD TDEFI | — | |
| 78010-36011 |
Link Assy, Accelerator
2004-07 → 2004-08
ended
|
BB50,59 RHD | — | |
| 78010-36020 |
Link Assy, Accelerator
1999-07 → 2004-06
ended
|
BB50,58 LHD TDEFI | — | |
| 78010-36021 |
Link Assy, Accelerator
2004-07 → 2004-08
ended
|
BB50,58 LHD TDEFI | — | |
| 78100-36130 |
Link Assy, Accelerator
1999-07 → 2001-05
ended
|
BB50 RHD 6F | — | |
| 78100-36140 |
Link Assy, Accelerator
1999-07 → 2001-05
ended
|
BB50 LHD IV 6F | — | |
| 78100-36170 |
Link Assy, Accelerator
1999-07 → 2001-08
ended
|
BB43,50 RHD 5F | — | |
| 78100-36180 |
Link Assy, Accelerator
1999-07 → 2000-06
ended
|
BB50 STD CBU | — | |
| 78100-36181 |
Link Assy, Accelerator
2000-06 → 2001-07
ended
|
BB50 LHD CBU | — | |
| 78100-36191 |
Link Assy, Accelerator
1999-07 → 2001-08
ended
|
BB50 STD IV 5F | — | |
| 78010-36011 |
Link Assy, Accelerator
2004-08 → 2006-08
ended
|
BB50,59 RHD | — | |
| 78010-36021 |
Link Assy, Accelerator
2004-08 → 2006-08
ended
|
BB50,58 LHD TDEFI | — | |
| 78010-36030 |
Link Assy, Accelerator
2006-08 → 2015-01
ended
|
XZB40,5# RHD | — | |
| 78010-36040 |
Link Assy, Accelerator
2006-08 → 2015-01
ended
|
TRB40,50,XZB50 LHD | — | |
| 78010-36031 |
Link Assy, Accelerator
2015-01 → 2015-09
ended
|
XZB40,5# RHD | — | |
| 78010-36032 |
Link Assy, Accelerator
2015-10 → 2016-11
ended
|
XZB40,5# RHD | — | |
| 78010-36040 |
Link Assy, Accelerator
2015-01 → 2015-09
ended
|
TRB40,50,XZB40,50 LHD | — | |
| 78010-36041 |
Link Assy, Accelerator
2015-10 → 2016-11
ended
|
TRB40,50,XZB40,50 LHD | — | |
| 78111 — Pedal, Accelerator | ||||
| 78111-95110 |
Pedal, Accelerator
1995-05 → 1999-07
ended
|
HZB50 DSL;HZB50 RHD TD;BB4#,5#,RZB40,50 | — | |
| 78111-95110 |
Pedal, Accelerator
1993-01 → 1995-05
ended
|
BB4#,HZB50,RZB40,50 | — | |
| 78111-95110 |
Pedal, Accelerator
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 78111-95110 |
Pedal, Accelerator
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB4#,RZB40 +15 | — | |
| 78111-95110 |
Pedal, Accelerator
2001-07 → 2001-08
ended
|
BB50 6F TD | — | |
| 78111-95110 |
Pedal, Accelerator
1999-07 → 2002-11
ended
|
HZB50,RZB40,50 ARL,CHI | — | |
| 78111-95110 |
Pedal, Accelerator
2001-07 → 2002-11
ended
|
BB50 CHI | — | |
| 78111-95110 |
Pedal, Accelerator
1999-07 → 2004-08
ended
|
BB42 WC;BB50,RZB40 BB42,50,HZB50 EN) +24 | — | |
| 78111-95110 |
Pedal, Accelerator
2001-07 → 2004-08
ended
|
BB50 STD WC GEN +2 | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2015-01
ended
|
BB42 ZB40 LHD STD +5 | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2013-11
ended
|
XZB50 IV | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2006-08
ended
|
BZB50 EX;BB5# TDEFI | — | |
| 78111-95110 |
Pedal, Accelerator
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 78111-95110 |
Pedal, Accelerator
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# | — | |
| 78117 — Cushion (FOR ACCELERATOR ROD) | ||||
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
1993-01 → 1999-07
ended
|
BB4#,5#,HZB50,RZB40,50 | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
1999-07 → 2001-05
ended
|
BB50 WOC 6F;BB50 STD +2 | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2001-07 → 2004-08
ended
|
BB50 STD WC GEN +2 | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
1999-07 → 2004-08
ended
|
BB42 WC;BB50,RZB40 BB42,50,HZB50 EN) +24 | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2001-07 → 2002-11
ended
|
BB50 CHI | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
1999-07 → 2002-11
ended
|
HZB50,RZB40,50 ARL,CHI | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2001-07 → 2001-08
ended
|
BB50 6F TD | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
1999-07 → 2001-08
ended
|
BB50 22S) WOC GEN;BB4#,RZB40 +15 | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2005-02
ended
|
BB5# TDEFI | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2004-08 → 2015-01
ended
|
BB42 RHD;BB42 LHD SRF;BB50,BZB40,50,HZB50 +2 | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2005-03 → 2006-08
ended
|
BB5# TDEFI | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2005-03 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2005-03 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2005-03 → 2013-11
ended
|
XZB50 IV | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2005-03 → 2015-01
ended
|
TRB40,50,XZB40,59;XZB50 (20S,21S) WC | — | |
| 90541-06036 |
Cushion (FOR ACCELERATOR ROD)
2015-01 → —
|
BB42,BZB40,50,HZB50 | — | |
| 90541-06038 |
Cushion (FOR ACCELERATOR ROD)
2015-01 → —
|
TRB40,50,XZB40,5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
