Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General

Discontinued model Data version 2016-12

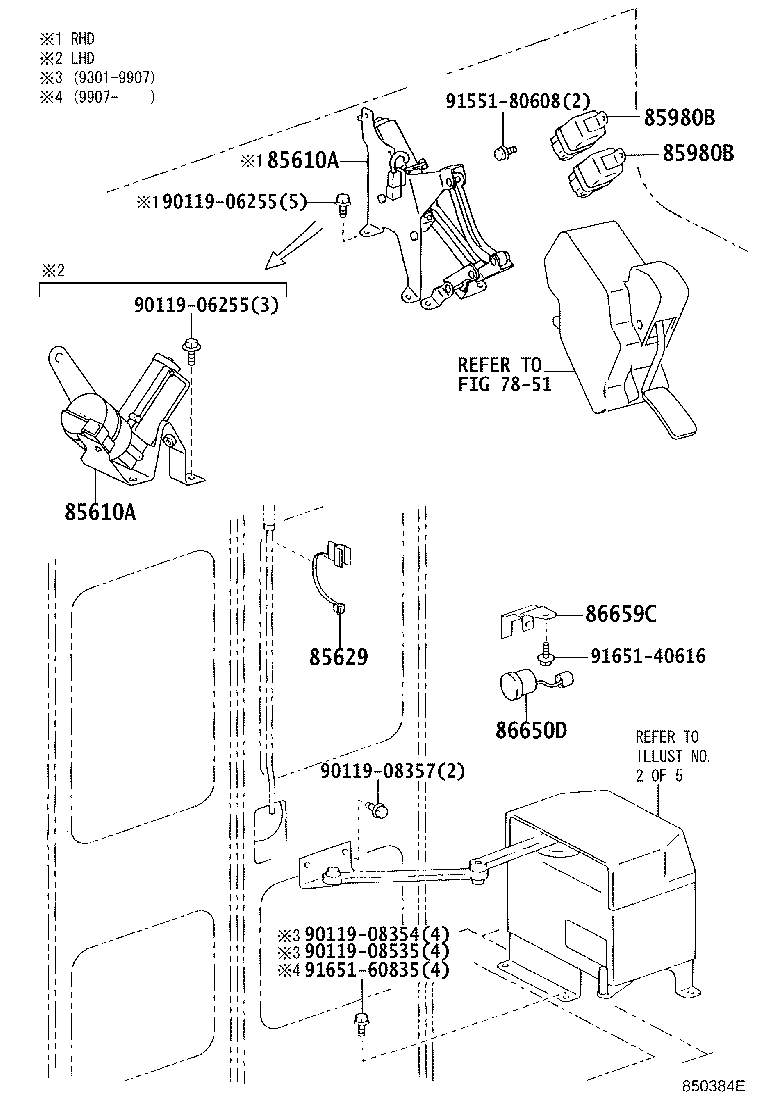

Exploded illustration 850384E 85610A — ACTUATOR ASSY, ACCEL INTERLOCK (39 parts) 9011906255 — not listed in this catalogue 9155180608 — not listed in this catalogue 85980B — RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) (48 parts) 85980B — RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) (48 parts) 86659C — BRACKET, BUZZER, AUTOMATIC DOOR (16 parts) 86650D — BUZZER ASSY (26 parts) 9165140616 — not listed in this catalogue 9011908535 — not listed in this catalogue 9011908357 — not listed in this catalogue 85629 — HOLDER, AUTOMATIC DOOR (15 parts) 9011908354 — not listed in this catalogue 9165160835 — not listed in this catalogue 85610A — ACTUATOR ASSY, ACCEL INTERLOCK (39 parts) 9011906255 — not listed in this catalogue 7851 — not listed in this catalogue
850384E · 7 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
144 parts on this figure
Part number Description Fitment Price
85610A — Actuator Assy, Accel Interlock
85610-36010 note Actuator Assy, Accel Interlock
1993-01 → 1995-05 ended
HZB50 RHD SRF;BB42,HZB50 RHD +2 —
85610-36020 Actuator Assy, Accel Interlock
1993-01 → 1997-05 ended
BB4#,HZB50 RHD DSL —
85610-36020 Actuator Assy, Accel Interlock
1997-05 → 1999-07 ended
HZB50 RHD (DX,EX);BB42,43,50 RHD +5 —
85610-36030 note Actuator Assy, Accel Interlock
1993-01 → 1997-05 ended
RZB40,50;BB42,HZB50 LHD WOC DSL —
85610-36030 note Actuator Assy, Accel Interlock
1997-05 → 1999-07 ended
RZB40,50 —
85610-36040 Actuator Assy, Accel Interlock
1993-01 → 1997-12 ended
BB42,50,HZB50 LHD CBU —
85610-36040 Actuator Assy, Accel Interlock
1997-12 → 1999-07 ended
BB42,5#,HZB50 LHD CBU —
85610-36031 note Actuator Assy, Accel Interlock
1999-07 → 2001-08 ended
RZB40 22S GEN;BB42,RZB40 WOC +1 —
85610-36031 note Actuator Assy, Accel Interlock
1999-07 → 2004-08 ended
BB42,HZB50,RZB40 LHD WOC GEN;RZB40,50 +3 —
85610-36031 note Actuator Assy, Accel Interlock
1999-07 → 2002-11 ended
RZB40,50 CHI —
85610-36041 Actuator Assy, Accel Interlock
1999-07 → 2002-11 ended
BB50 CHI —
85610-36041 Actuator Assy, Accel Interlock
1999-07 → 2001-08 ended
BB42 WOC GCC;BB42,50 19S,22S —
85610-36041 Actuator Assy, Accel Interlock
1999-07 → 2004-08 ended
BB42 3S,30S) WC (GCC,GEN) +7 —
85610-36060 Actuator Assy, Accel Interlock
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
85610-36060 Actuator Assy, Accel Interlock
1999-07 → 2002-11 ended
HZB50 ARL —
85610-36060 Actuator Assy, Accel Interlock
1999-07 → 2003-05 ended
BB42 EN RHD 5F +10 —
85610-36060 Actuator Assy, Accel Interlock
2003-05 → 2004-08 ended
BB42,50,59,HZB50 RHD (ARL,GEN) —
85610-36070 Actuator Assy, Accel Interlock
2001-08 → 2003-05 ended
BZB40;BZB50 EX —
85610-36070 Actuator Assy, Accel Interlock
2003-05 → 2004-08 ended
BZB40,50 —
85610-36031 Actuator Assy, Accel Interlock
2007-08 → 2015-01 ended
TRB40,50 —
85610-36031 note Actuator Assy, Accel Interlock
2004-08 → 2015-01 ended
BB42,HZB50 LHD WOC —
85610-36031 note Actuator Assy, Accel Interlock
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
85610-36031 Actuator Assy, Accel Interlock
2009-08 → 2015-01 ended
XZB50 TAIW —
85610-36031 note Actuator Assy, Accel Interlock
2004-08 → 2006-02 ended
RZB40 HRF GCC —
85610-36041 note Actuator Assy, Accel Interlock
2004-08 → 2009-08 ended
XZB50 TAIW —
85610-36041 note Actuator Assy, Accel Interlock
2004-08 → 2011-08 ended
BB42 LHD HRF —
85610-36041 note Actuator Assy, Accel Interlock
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
85610-36041 note Actuator Assy, Accel Interlock
2004-08 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50 LHD +1 —
85610-36060 Actuator Assy, Accel Interlock
2004-08 → 2006-08 ended
BB50,59 RHD (ARL,GEN) —
85610-36060 Actuator Assy, Accel Interlock
2004-08 → 2008-03 ended
XZB50 STD GEN —
85610-36060 Actuator Assy, Accel Interlock
2004-08 → 2009-08 ended
XZB40,59;XZB50 RHD (20S,21S) —
85610-36060 Actuator Assy, Accel Interlock
2004-08 → 2015-01 ended
BB42,HZB50 RHD —
85610-36070 Actuator Assy, Accel Interlock
2009-08 → 2015-01 ended
XZB40,5# ARL,GEN —
85610-36070 Actuator Assy, Accel Interlock
2004-08 → 2006-08 ended
BZB50 EX —
85610-36070 Actuator Assy, Accel Interlock
2004-08 → 2015-01 ended
BZB40,50 STD —
85610-36031 note Actuator Assy, Accel Interlock
2015-01 → —
BB42,HZB50 LHD WOC;TRB40,50,XZB40,50 LHD —
85610-36041 note Actuator Assy, Accel Interlock
2015-01 → —
BB42,HZB50 LHD —
85610-36060 note Actuator Assy, Accel Interlock
2015-01 → —
BB42,HZB50 RHD —
85610-36070 note Actuator Assy, Accel Interlock
2015-01 → —
BZB40,50,XZB40,5# RHD —
85629 — Holder, Automatic Door
85629-90B01 Holder, Automatic Door
1993-01 → 1997-05 ended
HZB50 SCO;BB4#,HZB50,RZB40,50 STD CBU —
85629-90B01 Holder, Automatic Door
1997-05 → 1999-07 ended
BB50 EX;BB50 WOC GEN;BB4#,58,HZB50,RZB40,50 +2 —
85629-36010 Holder, Automatic Door
2003-09 → 2004-08 ended
BB50 (17S,20S,21S,30S) (EX,STD);BB42,58,BZB40,50,HZB50,RZB40,50 STD —
85629-90B01 Holder, Automatic Door
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
85629-90B01 Holder, Automatic Door
1999-07 → 2001-08 ended
HZB50 WOC 4FC;BB50 GEN;BB4#,50,RZB40 +10 —
85629-90B01 Holder, Automatic Door
1999-07 → 2002-11 ended
BB42 LHD ,23S,30S;HZB50,RZB40 TDEFI) +27 —
85629-90B01 Holder, Automatic Door
2002-11 → 2003-05 ended
BB50 (20S,21S,30S) (EX,STD);BB42,58,BZB40,HZB50,RZB40,50 STD —
85629-90B01 Holder, Automatic Door
2003-05 → 2003-09 ended
BB50 (17S,20S,21S,30S) (EX,STD);BB42,58,BZB40,50,HZB50,RZB40,50 STD —
85629-36010 Holder, Automatic Door
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
85629-36010 Holder, Automatic Door
2004-08 → 2012-09 ended
BB42 50,XZB40 RHD;BB42 STD +6 —
85629-36010 Holder, Automatic Door
2004-08 → 2011-08 ended
BB42 LHD HRF —
85629-36010 Holder, Automatic Door
2004-08 → 2009-08 ended
XZB50 WOC CBU —
85629-36010 Holder, Automatic Door
2004-08 → 2008-03 ended
XZB50 STD GEN —
85629-36010 Holder, Automatic Door
2004-08 → 2006-08 ended
BB50,58 (17S,20S,21S,23S) (EX,STD) —
85629-36010 Holder, Automatic Door
2004-08 → 2006-02 ended
RZB40 HRF GCC —
85980B — Relay Assy, Door Control (FOR AUTOMATIC DOOR)
85980-36080 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1993-01 → 1993-03 ended
BB42 SCO —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1993-01 → 1993-09 ended
BB40;BB42 WC;HZB50 WOC ARL;HZB50 +6 —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1997-12 → 1999-07 ended
BB43,58 —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1997-11 → 1999-07 ended
BB50 WC GEN IV —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1997-05 → 1999-07 ended
BB42,50,HZB50 (GCC,GEN,SCO) CBU 5F —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1995-05 → 1997-05 ended
BB4#,HZB50 19S,20S,22S,26S,30S —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1994-02 → 1995-05 ended
HZB50 SCO;BB4#,HZB50 STD (ARL,GCC,GEN) —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1993-09 → 1994-02 ended
BB40;BB42 TD) WC;HZB50 WC +8 —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1993-01 → 1994-02 ended
HZB50 RHD SRF;BB42,HZB50 WOC +1 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1995-05 → 1997-05 ended
RZB40,50;BB42,HZB50 LHD WOC DSL —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1993-01 → 1995-05 ended
RZB40,50;HZB50 RHD SRF;BB42,HZB50 WOC +1 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1997-05 → 1999-07 ended
RZB40,50 —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2001-08 ended
BB42 WOC GCC;BB42,50 19S,22S —
85980-36090 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2001-08 → 2004-08 ended
BB50 WOC TD;BB50 GEN +1 —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2002-11 ended
BB50 CHI —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2004-08 ended
BB42 WC GCC;BB58,HZB50 LHD;BB42 +9 —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2003-05 → 2004-08 ended
BB42,50,59,HZB50 RHD (ARL,GEN) —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2003-05 ended
BB42 EN RHD 5F +10 —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2002-11 ended
HZB50 ARL —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2001-08 ended
HZB50 WOC RHD GEN +8 —
85980-36120 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2001-08 → 2003-05 ended
BZB40;BZB50 EX —
85980-36120 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2003-05 → 2004-08 ended
BZB40,50 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2004-08 ended
BB42,HZB50,RZB40 LHD WOC GEN;RZB40,50 +3 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2001-08 ended
RZB40 22S GEN;BB42,RZB40 WOC +1 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
1999-07 → 2002-11 ended
RZB40,50 CHI —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2006-08 ended
BB50,58 GEN 6F —
85980-36090 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2008-09 ended
BB42,50,HZB50,XZB50 LHD CBU 5F —
85980-36091 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2008-10 → 2009-08 ended
XZB50 TAIW —
85980-36091 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2008-10 → 2015-01 ended
BB42 LHD SRF;BB50,HZB50 LHD —
85980-36091 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2008-10 → 2011-08 ended
BB42 LHD HRF —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2006-08 ended
BB50,59 RHD (ARL,GEN) —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2008-09 ended
XZB50 RHD (20S,21S);BB42,HZB50,XZB40,59 RHD —
85980-36110 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2008-03 ended
XZB50 STD GEN —
85980-36111 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2008-10 → 2009-08 ended
XZB40,5# ARL,GEN —
85980-36111 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2008-10 → 2015-01 ended
BB42,HZB50 RHD —
85980-36120 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2015-01 ended
BZB40,50 STD —
85980-36120 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2009-08 → 2015-01 ended
XZB40,5# ARL,GEN —
85980-36120 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2006-08 ended
BZB50 EX —
85980-36150 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2011-08 → 2015-01 ended
BB42,HZB50 LHD WOC;TRB40,50,XZB50 LHD +1 —
88630-14010 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2009-08 → 2011-08 ended
XZB50 TAIW —
88630-14010 Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2007-08 → 2011-08 ended
TRB40,50 —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2011-08 ended
BB42,HZB50 LHD WOC —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
88630-14010 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2004-08 → 2006-02 ended
RZB40 HRF GCC —
85980-36091 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2015-01 → —
BB42,HZB50 LHD —
85980-36111 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2015-01 → —
BB42,HZB50 RHD —
85980-36120 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2015-01 → —
BZB40,50,XZB40,5# RHD —
85980-36150 note Relay Assy, Door Control (FOR AUTOMATIC DOOR)
2015-01 → —
BB42,HZB50 LHD WOC;TRB40,50,XZB40,50 LHD —
86650D — Buzzer Assy
86650-36050 note Buzzer Assy
1993-01 → 1995-05 ended
RZB40,50;HZB50 RHD SRF;BB42,HZB50 WOC +1 —
86650-36050 note Buzzer Assy
1995-05 → 1999-07 ended
RZB40,50;BB42,HZB50 LHD WOC DSL —
86650-36060 note Buzzer Assy
1993-01 → 1997-11 ended
BB4#,5#,HZB50 CBU —
86650-36060 note Buzzer Assy
1997-11 → 1999-07 ended
BB4#,5#,HZB50 ARL,GCC,GEN,SCO —
86650-36050 note Buzzer Assy
1999-07 → 2001-08 ended
RZB40 22S GEN;BB42,RZB40 WOC +1 —
86650-36050 note Buzzer Assy
1999-07 → 2002-11 ended
RZB40 22S CHI;BB42,HZB50,RZB40 LHD +4 —
86650-36050 note Buzzer Assy
2003-05 → 2004-08 ended
BZB40,50,RZB40,50;BB42,HZB50 LHD WOC —
86650-36050 note Buzzer Assy
2002-11 → 2003-05 ended
BZB50 EX;BZB40,RZB40,50;BB42,HZB50 LHD WOC —
86650-36060 note Buzzer Assy
2003-05 → 2004-08 ended
BB42,5#,HZB50 ARL,GCC,GEN —
86650-36060 note Buzzer Assy
1999-07 → 2001-08 ended
BB50 B50 WOC RHD +14 —
86650-36060 note Buzzer Assy
1999-07 → 2002-11 ended
BB42 GEN RF WC +26 —
86650-36060 note Buzzer Assy
2002-11 → 2003-05 ended
BB42,58,59,HZB50;BB50 19S,20S,21S,30S —
86650-36060 note Buzzer Assy
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
86650-36050 note Buzzer Assy
2004-08 → 2006-02 ended
RZB40 HRF GCC —
86650-36050 note Buzzer Assy
2004-08 → 2006-08 ended
BZB50 EX —
86650-36050 note Buzzer Assy
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
86650-36050 note Buzzer Assy
2004-08 → 2012-09 ended
TRB50 SRF;TRB50 GEN;BZB40,50,TRB40 STD;BB42,HZB50 +2 —
86650-36050 note Buzzer Assy
2009-08 → 2012-09 ended
XZB40,50 STD CBU —
86650-36050 note Buzzer Assy
2004-08 → 2015-01 ended
TRB50 HRF GCC —
86650-36050 note Buzzer Assy
2009-08 → 2015-01 ended
XZB5# DX,EX —
86650-36060 note Buzzer Assy
2004-08 → 2006-08 ended
BB5# (ARL,GEN) TDEFI —
86650-36060 note Buzzer Assy
2004-08 → 2008-03 ended
XZB50 STD GEN —
86650-36060 note Buzzer Assy
2004-08 → 2009-08 ended
XZB40,59;XZB50 20S,21S —
86650-36060 note Buzzer Assy
2004-08 → 2011-08 ended
BB42 LHD HRF —
86650-36060 note Buzzer Assy
2004-08 → 2012-09 ended
BB42 RHD;BB42 LHD SRF;BB50,HZB50 +1 —
86650-36050 Buzzer Assy
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
86659C — Bracket, Buzzer, Automatic Door
86659-36010 Bracket, Buzzer, Automatic Door
1993-01 → 1997-11 ended
BB4#,5#,HZB50,RZB40,50 CBU —
86659-36010 Bracket, Buzzer, Automatic Door
1997-11 → 1999-07 ended
BB4#,5#,HZB50,RZB40,50 ARL,GCC,GEN,SCO —
86659-36010 Bracket, Buzzer, Automatic Door
1999-07 → 2001-05 ended
BB50 STD WC IV +1 —
86659-36010 Bracket, Buzzer, Automatic Door
1999-07 → 2001-08 ended
BB50 22S) WOC GEN;BB42,HZB50 +15 —
86659-36010 Bracket, Buzzer, Automatic Door
1999-07 → 2002-11 ended
BB42 50 .5F;HZB50,RZB40 #,BZB40,RZB50 +31 —
86659-36010 Bracket, Buzzer, Automatic Door
2002-11 → 2003-05 ended
BB50,BZB50 19S,20S,21S,30S;BB42,58,59,BZB40,HZB50,RZB40,50 —
86659-36010 Bracket, Buzzer, Automatic Door
2003-05 → 2004-08 ended
BB42,5#,BZB40,50,HZB50,RZB40,50 ARL,GCC,GEN —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2006-02 ended
RZB40 HRF GCC —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2006-08 ended
BZB50 EX;BB5# (ARL,GEN) TDEFI —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2007-08 ended
RZB50;RZB40 GEN;RZB40 SRF GCC —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2008-03 ended
XZB50 STD GEN —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2009-08 ended
XZB50 WOC CBU —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2011-08 ended
BB42 LHD HRF —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2012-09 ended
BB42 0,BZB40,50,HZB50,TRB40,XZB40 RHD;BB42,TRB50 STD +7 —
86659-36010 Bracket, Buzzer, Automatic Door
2004-08 → 2015-01 ended
XZB5# DX,EX;TRB50 HRF GCC —
86659-36010 Bracket, Buzzer, Automatic Door
2015-01 → —
XZB5# DX,EX;TRB50 HRF GCC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
