Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

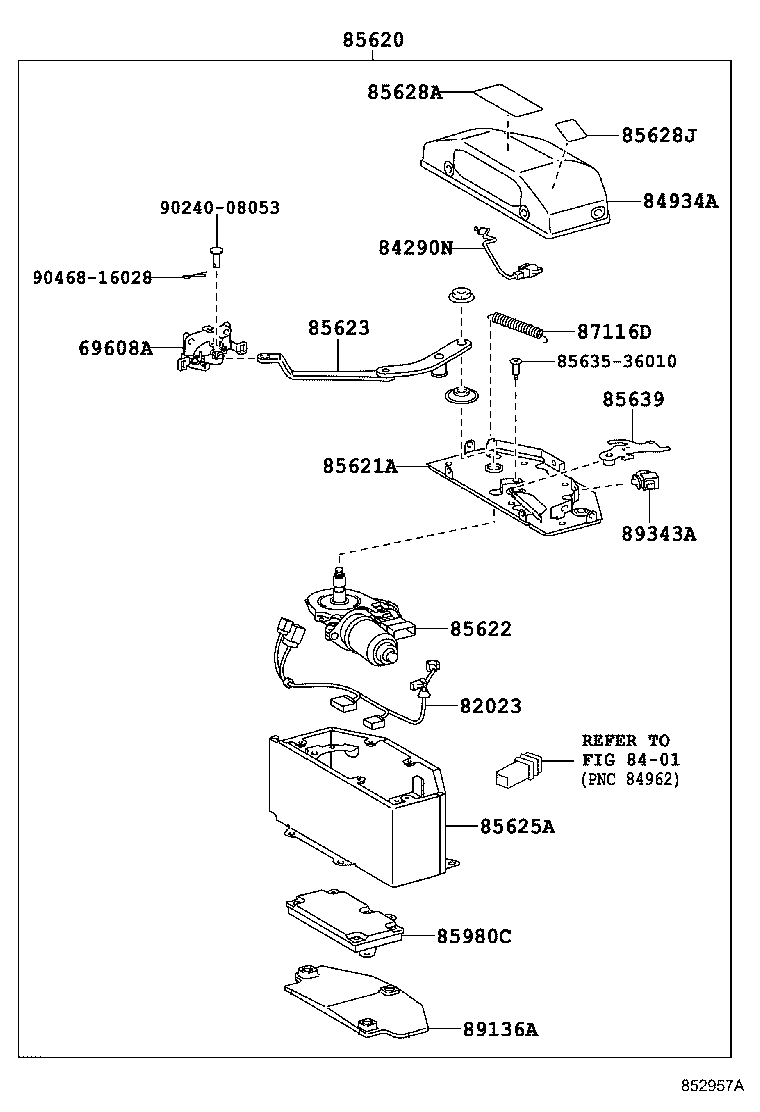

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69608A — Link Sub-assy, Center Door Remote Control | ||||
| 69608-36030 |
Link Sub-assy, Center Door Remote Control
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 69608-36040 |
Link Sub-assy, Center Door Remote Control
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 69608-36030 |
Link Sub-assy, Center Door Remote Control
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 69608-36040 |
Link Sub-assy, Center Door Remote Control
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 82023 — Wiring Sub-assy, Auto Door | ||||
| 82023-36010 note |
Wiring Sub-assy, Auto Door
2012-09 → 2015-01
ended
|
BZB40,50,XZB40,50 RHD (EX,STD) CBU | — | |
| 82023-36020 note |
Wiring Sub-assy, Auto Door
2012-09 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 82023-36030 note |
Wiring Sub-assy, Auto Door
2012-09 → 2015-01
ended
|
BB42,HZB50 LHD WOC;TRB40,50,XZB50 LHD +1 | — | |
| 82023-36040 note |
Wiring Sub-assy, Auto Door
2012-09 → 2015-01
ended
|
BB42,50,HZB50 LHD | — | |
| 82023-36010 note |
Wiring Sub-assy, Auto Door
2015-01 → —
|
BZB40,50,XZB40,50 RHD (EX,STD) 5F | — | |
| 82023-36020 note |
Wiring Sub-assy, Auto Door
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 82023-36030 note |
Wiring Sub-assy, Auto Door
2015-01 → —
|
BB42,HZB50 LHD WOC;TRB40,50,XZB40,50 LHD | — | |
| 82023-36040 note |
Wiring Sub-assy, Auto Door
2015-01 → —
|
BB42,HZB50 LHD | — | |
| 84290N — Switch Assy, Limit | ||||
| 84290-36010 |
Switch Assy, Limit
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 84290-36010 |
Switch Assy, Limit
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
| 84934A — Cover, Door Control Switch | ||||
| 84934-36010 |
Cover, Door Control Switch
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 84934-36010 |
Cover, Door Control Switch
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
| 85620 — Motor Assy, Automatic Door Regulator | ||||
| 85620-36060 |
Motor Assy, Automatic Door Regulator
1993-01 → 1995-05
ended
|
BB42,HZB50 LHD STD DSL | — | |
| 85620-36070 |
Motor Assy, Automatic Door Regulator
1995-05 → 1998-10
ended
|
BB50 WOC GEN;BB42,58,HZB50 LHD +2 | — | |
| 85620-36071 |
Motor Assy, Automatic Door Regulator
1998-10 → 1999-07
ended
|
BB50 WOC GEN;BB42,58,HZB50 LHD +1 | — | |
| 85620-36080 |
Motor Assy, Automatic Door Regulator
1993-01 → 1994-11
ended
|
HZB50 RHD (DX,EX) | — | |
| 85620-36080 |
Motor Assy, Automatic Door Regulator
1994-11 → 1995-05
ended
|
HZB50 DX | — | |
| 85620-36080-E0 note |
Motor Assy, Automatic Door Regulator
1994-11 → 1995-05
ended
|
HZB50 RHD EX | — | |
| 85620-36081 |
Motor Assy, Automatic Door Regulator
1995-05 → 1997-05
ended
|
HZB50 DX,EX | — | |
| 85620-36090 |
Motor Assy, Automatic Door Regulator
1993-09 → 1994-11
ended
|
RZB40 EX | — | |
| 85620-36090-E0 note |
Motor Assy, Automatic Door Regulator
1994-11 → 1995-05
ended
|
RZB40 EX | — | |
| 85620-36091 |
Motor Assy, Automatic Door Regulator
1995-05 → 1997-05
ended
|
RZB40 EX | — | |
| 85620-36100 |
Motor Assy, Automatic Door Regulator
1993-01 → 1994-11
ended
|
HZB50 LHD EX | — | |
| 85620-36100-E0 note |
Motor Assy, Automatic Door Regulator
1994-11 → 1995-05
ended
|
HZB50 LHD EX | — | |
| 85620-36110 note |
Motor Assy, Automatic Door Regulator
1993-01 → 1995-05
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +2 | — | |
| 85620-36120 note |
Motor Assy, Automatic Door Regulator
1993-04 → 1995-05
ended
|
HZB50 SCO | — | |
| 85620-36120 |
Motor Assy, Automatic Door Regulator
1993-01 → 1995-05
ended
|
BB4#,HZB50 RHD STD DSL | — | |
| 85620-36120 note |
Motor Assy, Automatic Door Regulator
1993-01 → 1993-04
ended
|
HZB50 SCO | — | |
| 85620-36130 |
Motor Assy, Automatic Door Regulator
1993-09 → 1995-05
ended
|
RZB40,50 STD | — | |
| 85620-36130 note |
Motor Assy, Automatic Door Regulator
1993-01 → 1995-05
ended
|
BB42,HZB50 LHD WOC DSL | — | |
| 85620-36160 |
Motor Assy, Automatic Door Regulator
1997-05 → 1998-10
ended
|
BB4#,HZB50 RHD STD (ARL,GEN) | — | |
| 85620-36160 note |
Motor Assy, Automatic Door Regulator
1997-05 → 1998-10
ended
|
BB50 EX | — | |
| 85620-36160 |
Motor Assy, Automatic Door Regulator
1995-05 → 1997-05
ended
|
BB4#,HZB50 RHD STD DSL | — | |
| 85620-36160 note |
Motor Assy, Automatic Door Regulator
1995-05 → 1997-05
ended
|
HZB50 SCO | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
1998-10 → 1999-07
ended
|
HZB50 RHD STD;BB4#,50 RHD +1 | — | |
| 85620-36170 note |
Motor Assy, Automatic Door Regulator
1995-05 → 1998-10
ended
|
BB42,HZB50 LHD WOC DSL | — | |
| 85620-36170 |
Motor Assy, Automatic Door Regulator
1995-05 → 1998-10
ended
|
RZB40,50 STD | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
1998-10 → 1999-07
ended
|
RZB40,50 STD;BB42,HZB50 LHD WOC | — | |
| 85620-36190 |
Motor Assy, Automatic Door Regulator
1997-11 → 1998-10
ended
|
HZB50 DX,EX;BB50 WC GEN | — | |
| 85620-36190 |
Motor Assy, Automatic Door Regulator
1997-05 → 1997-11
ended
|
BB50 CBU;HZB50 DX,EX | — | |
| 85620-36191 |
Motor Assy, Automatic Door Regulator
1998-10 → 1999-07
ended
|
HZB50 DX,EX;BB50 WC GEN | — | |
| 85620-36200 |
Motor Assy, Automatic Door Regulator
1997-05 → 1998-10
ended
|
RZB40 EX | — | |
| 85620-36201 |
Motor Assy, Automatic Door Regulator
1998-10 → 1999-07
ended
|
RZB40 EX | — | |
| 85620-36071 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85620-36071 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2001-08
ended
|
BB42 22S;BB50 WOC 5F;BB42 +2 | — | |
| 85620-36071 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2004-08
ended
|
BB42 WC GCC;HZB50 LHD +4 | — | |
| 85620-36071 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2002-11
ended
|
BB50 STD CHI | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2003-05
ended
|
BB42 5F RHD SRF;BB50 +8 | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
2003-05 → 2004-08
ended
|
BB42,50,HZB50 RHD (EX,STD) CBU | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2001-08
ended
|
RZB40 22S GEN;BB42,RZB40 WOC +1 | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2004-08
ended
|
HZB50 LHD WOC;BB42 LHD +3 | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
1999-07 → 2004-08
ended
|
RZB40 WOC GEN;BB42 LHD +5 | — | |
| 85620-36201 |
Motor Assy, Automatic Door Regulator
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85620-36201 |
Motor Assy, Automatic Door Regulator
1999-07 → 2004-08
ended
|
RZB40 EX | — | |
| 85620-36220 |
Motor Assy, Automatic Door Regulator
2001-08 → 2002-11
ended
|
BB50 CHI;HZB50 DX | — | |
| 85620-36220 |
Motor Assy, Automatic Door Regulator
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50 STD +2 | — | |
| 85620-36220 |
Motor Assy, Automatic Door Regulator
2001-08 → 2004-08
ended
|
BB50 DX;BB59,HZB50 EX;BB50 (19S,20S,30S) +2 | — | |
| 85620-36230 |
Motor Assy, Automatic Door Regulator
2002-11 → 2004-08
ended
|
BZB50 EX | — | |
| 85620-36280 |
Motor Assy, Automatic Door Regulator
2003-05 → 2004-08
ended
|
BZB40,50 STD | — | |
| 85620-36280 |
Motor Assy, Automatic Door Regulator
2001-08 → 2003-05
ended
|
BZB40 | — | |
| 85620-36071 |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB58 | — | |
| 85620-36071 |
Motor Assy, Automatic Door Regulator
2004-08 → 2008-08
ended
|
BB42,50,HZB50,XZB50 LHD CBU 5F | — | |
| 85620-36072 |
Motor Assy, Automatic Door Regulator
2008-09 → 2009-08
ended
|
BB42,50,HZB50,XZB50 LHD CBU | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB50 RHD (EX,STD) CBU | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85620-36161 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2008-08
ended
|
BB42,HZB50,XZB50 RHD (20S,21S,26S,30S) (EX,STD) | — | |
| 85620-36161 |
Motor Assy, Automatic Door Regulator
2008-03 → 2008-08
ended
|
XZB40 | — | |
| 85620-36162 note |
Motor Assy, Automatic Door Regulator
2008-09 → 2009-08
ended
|
BB42,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85620-36171 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2008-08
ended
|
TRB40,50;BB42,HZB50 LHD WOC | — | |
| 85620-36172 note |
Motor Assy, Automatic Door Regulator
2008-09 → 2009-08
ended
|
TRB40,50;BB42,HZB50 LHD WOC | — | |
| 85620-36220 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-10
ended
|
XZB5# DX,EX;BB50 WC TD | — | |
| 85620-36220 note |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB59;BB50 DX;BB50 19S,20S | — | |
| 85620-36221 note |
Motor Assy, Automatic Door Regulator
2006-11 → 2009-08
ended
|
XZB50 DX,EX;BB50,XZB59 WC | — | |
| 85620-36230 |
Motor Assy, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 85620-36280 |
Motor Assy, Automatic Door Regulator
2004-08 → 2008-08
ended
|
BZB40,50 STD | — | |
| 85620-36281 |
Motor Assy, Automatic Door Regulator
2008-09 → 2009-08
ended
|
BZB40,50 | — | |
| 85620-36380 |
Motor Assy, Automatic Door Regulator
2009-08 → 2012-09
ended
|
BB42,HZB50 RHD | — | |
| 85620-36390 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2012-09
ended
|
BB42,HZB50 LHD WOC;TRB40,50,XZB50 LHD +1 | — | |
| 85620-36400 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85620-36400 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2012-09
ended
|
BB42 LHD SRF;BB50,HZB50 LHD | — | |
| 85620-36430 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2012-09
ended
|
BZB40,50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85620-36440 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2012-08
ended
|
XZB5# DX,EX | — | |
| 85620-36441 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85620-36460 note |
Motor Assy, Automatic Door Regulator
2009-08 → 2011-08
ended
|
BB50 WC | — | |
| 85620-36470 note |
Motor Assy, Automatic Door Regulator
2011-08 → 2012-08
ended
|
TRB50 HRF GCC | — | |
| 85620-36471 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85620-36500 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BZB40,50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85620-36510 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,HZB50 RHD | — | |
| 85620-36520 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,HZB50 LHD WOC;TRB40,50,XZB50 LHD +1 | — | |
| 85620-36530 note |
Motor Assy, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,50,HZB50 LHD | — | |
| 85620-36441 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
XZB5# DX,EX | — | |
| 85620-36471 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
TRB50 HRF GCC | — | |
| 85620-36500 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
BZB40,50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85620-36510 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50 RHD | — | |
| 85620-36520 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50 LHD WOC;TRB40,50,XZB40,50 LHD | — | |
| 85620-36530 note |
Motor Assy, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50 LHD | — | |
| 85621A — Switch & Base, Auto Door | ||||
| 85621-36021 |
Switch & Base, Auto Door
2009-08 → 2012-09
ended
|
BZB40,50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85621-36040 |
Switch & Base, Auto Door
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85621-36050 |
Switch & Base, Auto Door
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 85621-36040 |
Switch & Base, Auto Door
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85621-36050 |
Switch & Base, Auto Door
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 85622 — Motor & Gear, Automatic Door Regulator | ||||
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
1993-09 → 1999-07
ended
|
RZB40 EX | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1997-11
ended
|
BB50 CBU;HZB50 DX,EX | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
1997-11 → 1999-07
ended
|
HZB50 DX,EX;BB50 WC GEN | — | |
| 85622-36030 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1995-05
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +2 | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1997-05
ended
|
HZB50 SCO | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1997-05
ended
|
BB4#,HZB50 RHD STD DSL | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1997-05 → 1999-07
ended
|
HZB50 RHD STD;BB4#,50 RHD +1 | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1999-07
ended
|
RZB40,50 STD;BB42,HZB50 LHD WOC +1 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
1993-01 → 1999-07
ended
|
BB50 WOC GEN;BB42,58,HZB50 LHD +2 | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2004-08
ended
|
BZB50,RZB40 EX | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50 STD +2 | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
2001-08 → 2004-08
ended
|
BB50 DX;BB59,HZB50 EX;BB50 (19S,20S,30S) +2 | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
2001-08 → 2002-11
ended
|
BB50 CHI;HZB50 DX | — | |
| 85622-36030 note |
Motor & Gear, Automatic Door Regulator
2003-05 → 2004-08
ended
|
BZB40,50 STD | — | |
| 85622-36030 note |
Motor & Gear, Automatic Door Regulator
2001-08 → 2003-05
ended
|
BZB40 | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2003-05
ended
|
BB42 5F RHD SRF;BB50 +8 | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
2003-05 → 2004-08
ended
|
BB42,50,HZB50 RHD (EX,STD) CBU | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2001-08
ended
|
RZB40 22S GEN;BB42,RZB40 WOC +1 | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2004-08
ended
|
BB42,HZB50,RZB40 LHD WOC GEN;RZB40,50 +3 | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2004-08
ended
|
BB42 WC GCC;HZB50 LHD +4 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2001-08
ended
|
BB42 22S;BB50 WOC 5F;BB42 +2 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
1999-07 → 2002-11
ended
|
BB50 STD CHI | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
2011-08 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BZB50 EX | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
2009-08 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB59;BB50 DX;BB50 19S,20S | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2011-08
ended
|
BB50 WC TD | — | |
| 85622-36020 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2009-08
ended
|
XZB5# DX,EX | — | |
| 85622-36030 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2012-09
ended
|
BZB40,50 STD | — | |
| 85622-36030 note |
Motor & Gear, Automatic Door Regulator
2009-08 → 2012-09
ended
|
XZB40,50 RHD (EX,STD) CBU | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2009-08
ended
|
XZB40;XZB50 RHD (20S,21S) (EX,STD) | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2012-09
ended
|
BB42,HZB50 RHD | — | |
| 85622-36040 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB50 RHD (EX,STD) CBU | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2012-09
ended
|
TRB40,50;BB42,HZB50 LHD WOC | — | |
| 85622-36050 note |
Motor & Gear, Automatic Door Regulator
2009-08 → 2012-09
ended
|
XZB50 TAIW | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB58 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2012-09
ended
|
BB42 LHD SRF;BB50,HZB50 LHD +1 | — | |
| 85622-36060 note |
Motor & Gear, Automatic Door Regulator
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85622-36070 note |
Motor & Gear, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,HZB50 LHD WOC;BZB40,50,TRB40,50,XZB40,50 (EX,STD) +1 | — | |
| 85622-36080 note |
Motor & Gear, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,50,HZB50 | — | |
| 85622-36010 note |
Motor & Gear, Automatic Door Regulator
2015-01 → —
|
XZB5# DX,EX;TRB50 HRF GCC | — | |
| 85622-36070 note |
Motor & Gear, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50 LHD WOC;BZB40,50,TRB40,50,XZB40,50 (EX,STD) +1 | — | |
| 85622-36080 note |
Motor & Gear, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50 | — | |
| 85623 — Link, Automatic Door Regulator | ||||
| 85623-36010 |
Link, Automatic Door Regulator
1993-01 → 1995-05
ended
|
HZB50,RZB40 DX,EX | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
1997-11 → 1999-07
ended
|
BB50 WC GEN;HZB50,RZB40 DX,EX | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
1995-05 → 1997-11
ended
|
BB50 CBU;HZB50,RZB40 DX,EX | — | |
| 85623-36020 note |
Link, Automatic Door Regulator
1993-01 → 1995-05
ended
|
HZB50 SCO;BB4#,HZB50,RZB40,50 STD CBU | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB4#,58,HZB50,RZB40,50 +2 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
1995-05 → 1997-05
ended
|
HZB50 SCO | — | |
| 85623-36021 |
Link, Automatic Door Regulator
1995-05 → 1997-05
ended
|
BB4#,HZB50,RZB40,50 STD CBU | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50,RZB40,50 STD +2 | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2001-08 → 2002-11
ended
|
RZB40,50 CHI;BB50 WC CBU;BB59,HZB50,RZB40 +1 | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2002-11 → 2004-08
ended
|
BB50 DX;BB50 (19S,20S,30S) WC;BB59,BZB50,HZB50,RZB40 +1 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
1999-07 → 2001-08
ended
|
HZB50 WOC 4FC;BB50 GEN;BB4#,50,RZB40 +10 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
1999-07 → 2002-11
ended
|
BB42 LHD ,23S,30S;HZB50,RZB40 TDEFI) +27 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2002-11 → 2003-05
ended
|
BB50 (20S,21S,30S) (EX,STD);BB42,58,BZB40,HZB50,RZB40,50 STD | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2003-05 → 2004-08
ended
|
BB50 (17S,20S,21S,30S) (EX,STD);BB42,58,BZB40,50,HZB50,RZB40,50 STD | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2004-08 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2011-08 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2004-08 → 2011-08
ended
|
BB50 WC TD | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB50 DX;BB50 19S,20S;BB59,BZB50 EX | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2008-08
ended
|
BB42,BZB40,50,HZB50 RHD STD;XZB50 RHD +2 | — | |
| 85623-36021 |
Link, Automatic Door Regulator
2008-03 → 2008-08
ended
|
XZB40 | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2008-09
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU 5F | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2006-08
ended
|
BB50,58 (17S,20S,21S,23S) (EX,STD) | — | |
| 85623-36021 note |
Link, Automatic Door Regulator
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85623-36030 note |
Link, Automatic Door Regulator
2008-09 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 85623-36030 note |
Link, Automatic Door Regulator
2008-09 → 2012-09
ended
|
XZB50 RHD (EX,STD) WC +2 | — | |
| 85623-36040 |
Link, Automatic Door Regulator
2008-09 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85623-36040 |
Link, Automatic Door Regulator
2008-09 → 2012-09
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +1 | — | |
| 85623-36050 note |
Link, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85623-36060 note |
Link, Automatic Door Regulator
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 85623-36011 note |
Link, Automatic Door Regulator
2015-01 → —
|
XZB5# DX,EX;TRB50 HRF GCC | — | |
| 85623-36050 note |
Link, Automatic Door Regulator
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85623-36060 note |
Link, Automatic Door Regulator
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 85625A — Rack, Automatic Door | ||||
| 85625-36010 note |
Rack, Automatic Door
1993-01 → 1997-11
ended
|
BB50 CBU;HZB50,RZB40 DX,EX | — | |
| 85625-36010 note |
Rack, Automatic Door
1997-11 → 1999-07
ended
|
BB50 WC GEN;HZB50,RZB40 DX,EX | — | |
| 85625-36020 note |
Rack, Automatic Door
1993-01 → 1997-05
ended
|
HZB50 SCO;BB4#,HZB50,RZB40,50 STD CBU | — | |
| 85625-36020 note |
Rack, Automatic Door
1997-05 → 1999-07
ended
|
BB50 EX;BB50 WOC GEN;BB4#,58,HZB50,RZB40,50 +2 | — | |
| 85625-36010 note |
Rack, Automatic Door
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50,RZB40,50 STD +2 | — | |
| 85625-36010 note |
Rack, Automatic Door
2002-11 → 2004-08
ended
|
BB50 DX;BB50 (19S,20S,30S) WC;BB59,BZB50,HZB50,RZB40 +1 | — | |
| 85625-36010 note |
Rack, Automatic Door
2001-08 → 2002-11
ended
|
RZB40,50 CHI;BB50 WC CBU;BB59,HZB50,RZB40 +1 | — | |
| 85625-36020 note |
Rack, Automatic Door
2003-05 → 2004-08
ended
|
BB50 (17S,20S,21S,30S) (EX,STD);BB42,58,BZB40,50,HZB50,RZB40,50 STD | — | |
| 85625-36020 note |
Rack, Automatic Door
2002-11 → 2003-05
ended
|
BB50 (20S,21S,30S) (EX,STD);BB42,58,BZB40,HZB50,RZB40,50 STD | — | |
| 85625-36020 note |
Rack, Automatic Door
1999-07 → 2001-08
ended
|
HZB50 WOC 4FC;BB50 GEN;BB4#,50,RZB40 +10 | — | |
| 85625-36020 note |
Rack, Automatic Door
1999-07 → 2002-11
ended
|
BB42 LHD ,23S,30S;HZB50,RZB40 TDEFI) +27 | — | |
| 85625-36020 note |
Rack, Automatic Door
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85625-36010 note |
Rack, Automatic Door
2004-08 → 2006-08
ended
|
BB50 DX;BB50 19S,20S;BB59,BZB50 EX | — | |
| 85625-36010 note |
Rack, Automatic Door
2011-08 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85625-36010 note |
Rack, Automatic Door
2004-08 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85625-36010 note |
Rack, Automatic Door
2004-08 → 2011-08
ended
|
BB50 WC TD | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85625-36020 note |
Rack, Automatic Door
2008-03 → 2012-09
ended
|
XZB40;BB42 RHD SRF WC | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2012-09
ended
|
BB42 B40,50,HZB50,TRB40,50 WOC;BB42 STD +9 | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85625-36020 note |
Rack, Automatic Door
2004-08 → 2006-08
ended
|
BB50,58 (17S,20S,21S,23S) (EX,STD) | — | |
| 85625-36030 note |
Rack, Automatic Door
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85625-36040 note |
Rack, Automatic Door
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 85625-36010 note |
Rack, Automatic Door
2015-01 → —
|
XZB5# DX,EX;TRB50 HRF GCC | — | |
| 85625-36030 note |
Rack, Automatic Door
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85625-36040 note |
Rack, Automatic Door
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 85628A — Label, Automatic Door, NO.2 | ||||
| 85628-36050 note |
Label, Automatic Door, NO.2
1993-01 → 1999-07
ended
|
HZB50 SCO;BB4#,50 RHD CBU;HZB50 +3 | — | |
| 85628-36060 |
Label, Automatic Door, NO.2
1993-01 → 1999-07
ended
|
BB50 WOC GEN;BB42,58,HZB50,RZB40,50 LHD +2 | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
1997-11 → 1999-07
ended
|
BB50 WC GEN;HZB50,RZB40 DX,EX | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
1993-01 → 1997-11
ended
|
BB50 CBU;HZB50,RZB40 DX,EX | — | |
| 85628-36050 |
Label, Automatic Door, NO.2
2003-05 → 2004-08
ended
|
BB50,BZB50 17S | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
1999-07 → 2004-08
ended
|
BB42 C RHD GEN +9 | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
1999-07 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
1999-07 → 2002-11
ended
|
BB50,RZB40,50 STD CHI | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
1999-07 → 2004-08
ended
|
BB42 8,HZB50,RZB50 WC LHD +11 | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
1999-07 → 2001-08
ended
|
BB50 WOC 5F;BB42,RZB40 22S +3 | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2001-08 → 2002-11
ended
|
HZB50 DX;BB50,RZB40,50 CHI | — | |
| 85628-36080 |
Label, Automatic Door, NO.2
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50,RZB40,50 STD +2 | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2001-08 → 2004-08
ended
|
BB50 DX;BB59,BZB50,HZB50,RZB40 EX;BB50 (19S,20S,30S) +2 | — | |
| 85628-36050 |
Label, Automatic Door, NO.2
2008-03 → 2012-09
ended
|
XZB40;BB42 RHD SRF WC | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
2004-08 → 2012-09
ended
|
BB42 .WC RHD WOC;BB42,BZB40,50,HZB50 +6 | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
2004-08 → 2009-08
ended
|
XZB50 WOC CBU | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85628-36050 note |
Label, Automatic Door, NO.2
2004-08 → 2006-08
ended
|
BB50 RHD (EX,STD) CBU | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
2004-08 → 2006-08
ended
|
BB58 | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
2004-08 → 2012-09
ended
|
BB42 LHD SRF;BB50,HZB50,TRB40,50,XZB50 LHD +2 | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85628-36060 note |
Label, Automatic Door, NO.2
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2004-08 → 2006-08
ended
|
BB50 DX;BB50 19S,20S;BB59,BZB50 EX | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2004-08 → 2011-08
ended
|
BB50 WC TD | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2004-08 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2011-08 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85628-36210 note |
Label, Automatic Door, NO.2
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85628-36220 note |
Label, Automatic Door, NO.2
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 85628-36080 note |
Label, Automatic Door, NO.2
2015-01 → —
|
XZB5# DX,EX;TRB50 HRF GCC | — | |
| 85628-36210 note |
Label, Automatic Door, NO.2
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85628-36220 note |
Label, Automatic Door, NO.2
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 85628J — Label, Automatic Door NO.6 | ||||
| 85628-36230 |
Label, Automatic Door NO.6
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 85628-36230 |
Label, Automatic Door NO.6
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
| 85639 — Plate, Automatic Door | ||||
| 85639-36020 |
Plate, Automatic Door
2012-09 → 2015-01
ended
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) CBU | — | |
| 85639-36030 |
Plate, Automatic Door
2012-09 → 2015-01
ended
|
BB42,50,HZB50,TRB40,50,XZB50 LHD CBU | — | |
| 85639-36020 |
Plate, Automatic Door
2015-01 → —
|
BB42,BZB40,50,HZB50,XZB40,50 RHD (EX,STD) 5F | — | |
| 85639-36030 |
Plate, Automatic Door
2015-01 → —
|
BB42,HZB50,TRB40,50,XZB40,50 LHD | — | |
| 85980C — Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36020 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-09 → 1994-07
ended
|
RZB40 EX | — | |
| 85980-36021 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1994-07 → 1999-07
ended
|
RZB40 EX | — | |
| 85980-36030 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1994-07
ended
|
HZB50 DX,EX | — | |
| 85980-36031 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1997-11 → 1999-07
ended
|
HZB50 DX,EX;BB50 WC GEN | — | |
| 85980-36031 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1994-07 → 1997-11
ended
|
BB50 CBU;HZB50 DX,EX | — | |
| 85980-36040 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1995-05
ended
|
HZB50 RHD SRF;BB42,HZB50 RHD +2 | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1997-05
ended
|
HZB50 SCO | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1997-05 → 1999-07
ended
|
HZB50 RHD STD;BB4#,50 RHD +1 | — | |
| 85980-36050 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1997-05
ended
|
BB4#,HZB50 RHD STD DSL | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1999-07
ended
|
RZB40,50 STD;BB42,HZB50 LHD WOC +1 | — | |
| 85980-36070 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1993-01 → 1999-07
ended
|
BB50 WOC GEN;BB42,58,HZB50 LHD +2 | — | |
| 85980-36021 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85980-36021 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2004-08
ended
|
BZB50,RZB40 EX | — | |
| 85980-36031 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2001-08
ended
|
BB50 CBU 6F;BB50 STD +2 | — | |
| 85980-36031 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2001-08 → 2002-11
ended
|
BB50 CHI;HZB50 DX | — | |
| 85980-36031 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2001-08 → 2004-08
ended
|
BB50 DX;BB59,HZB50 EX;BB50 (19S,20S,30S) +2 | — | |
| 85980-36040 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2003-05 → 2004-08
ended
|
BZB40,50 STD | — | |
| 85980-36040 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2001-08 → 2003-05
ended
|
BZB40 | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2001-08
ended
|
HZB50 4FC;HZB50 RHD SRF;BB43,50 +6 | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2002-11
ended
|
HZB50 STD ARL | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2003-05
ended
|
BB42 5F RHD SRF;BB50 +8 | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2003-05 → 2004-08
ended
|
BB42,50,HZB50 RHD (EX,STD) CBU | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2001-08
ended
|
RZB40 22S GEN;BB42,RZB40 WOC +1 | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2002-11
ended
|
RZB40,50 CHI | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2004-08
ended
|
BB42,HZB50,RZB40 LHD WOC GEN;RZB40,50 +3 | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2002-11
ended
|
BB50 STD CHI | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2001-08
ended
|
BB42 22S;BB50 WOC 5F;BB42 +2 | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2001-05
ended
|
BB50 STD WC IV +1 | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
1999-07 → 2004-08
ended
|
BB42 WC GCC;HZB50 LHD +4 | — | |
| 85980-36021 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2011-08 → 2015-01
ended
|
TRB50 HRF GCC | — | |
| 85980-36021 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2015-01
ended
|
BZB50 EX | — | |
| 85980-36021 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2009-08 → 2015-01
ended
|
XZB5# DX,EX | — | |
| 85980-36031 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2006-08
ended
|
BB59;BB50 DX;BB50 19S,20S | — | |
| 85980-36031 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2009-08
ended
|
XZB5# DX,EX | — | |
| 85980-36031 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2011-08
ended
|
BB50 WC TD | — | |
| 85980-36040 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2009-08 → 2012-09
ended
|
XZB40,50 RHD (EX,STD) CBU | — | |
| 85980-36040 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2012-09
ended
|
BZB40,50 STD | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2009-08
ended
|
XZB40;XZB50 RHD (20S,21S) (EX,STD) | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2012-09
ended
|
BB42,HZB50 RHD | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2008-03
ended
|
XZB50 STD GEN | — | |
| 85980-36050 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2006-08
ended
|
BB50 RHD (EX,STD) CBU | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2007-08
ended
|
RZB50;RZB40 GEN;RZB40 SRF GCC | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2012-09
ended
|
TRB40,50;BB42,HZB50 LHD WOC | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2006-02
ended
|
RZB40 HRF GCC | — | |
| 85980-36060 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2009-08 → 2012-09
ended
|
XZB50 TAIW | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2012-09
ended
|
BB42 LHD SRF;BB50,HZB50 LHD +1 | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2011-08
ended
|
BB42 LHD HRF | — | |
| 85980-36070 |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2009-08
ended
|
XZB50 TAIW | — | |
| 85980-36070 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2004-08 → 2006-08
ended
|
BB58 | — | |
| 85980-36190 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2012-09 → 2015-01
ended
|
BB42,HZB50 LHD WOC;BZB40,50,TRB40,50,XZB40,50 (EX,STD) +1 | — | |
| 85980-36210 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2012-09 → 2015-01
ended
|
BB42,50,HZB50 | — | |
| 85980-36021 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2015-01 → 2016-12
ended
|
XZB5# DX,EX;TRB50 HRF GCC | — | |
| 85980-36190 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2015-01 → 2016-12
ended
|
BB42,HZB50 LHD WOC;BZB40,50,TRB40,50,XZB40,50 (EX,STD) +1 | — | |
| 85980-36210 note |
Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
2015-01 → 2016-12
ended
|
BB42,HZB50 | — | |
| 87116D — Spring, Holding | ||||
| 87116-36010 |
Spring, Holding
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 87116-36010 |
Spring, Holding
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
| 89136A — Cover, Ecu Aggregation, NO.1 | ||||
| 89136-36010 |
Cover, Ecu Aggregation, NO.1
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 89136-36010 |
Cover, Ecu Aggregation, NO.1
2015-01 → —
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
| 89343A — Buzzer, Clearance Warning | ||||
| 89343-30010 |
Buzzer, Clearance Warning
2012-09 → 2015-01
ended
|
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) CBU | — | |
| 89343-30010 |
Buzzer, Clearance Warning
2015-01 → 2016-12
ended
|
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50 (EX,STD) 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
