Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

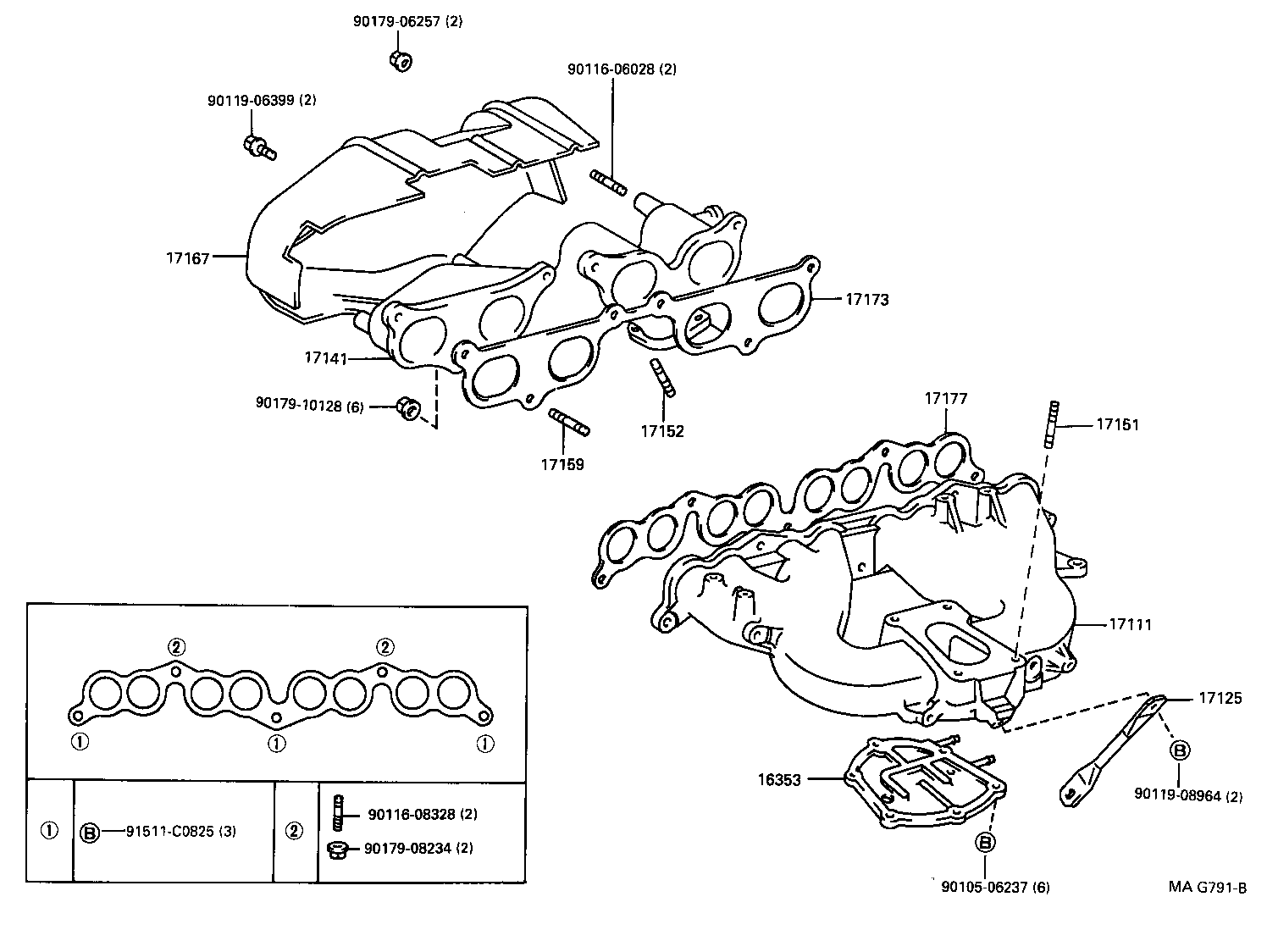

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16353 — Flange, Water By-pass | ||||
| 16353-75020 |
Flange, Water By-pass
1993-09 → 1997-08
ended
|
3RZF RZB40,50 | — | |
| 16353-75021 |
Flange, Water By-pass
1997-08 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17111 — Manifold, Intake | ||||
| 17111-17011 |
Manifold, Intake
1993-01 → 1997-09
ended
|
1HZ# HZB50 | — | |
| 17111-17012 |
Manifold, Intake
1997-09 → 1998-05
ended
|
1HZ HZB50 | — | |
| 17111-17013 |
Manifold, Intake
1998-05 → 1999-05
ended
|
1HZ HZB50 | — | |
| 17111-17014 |
Manifold, Intake
1999-05 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17111-56190 |
Manifold, Intake
1993-01 → 1995-05
ended
|
14B BB42 | — | |
| 17111-56200 |
Manifold, Intake
1993-01 → 1995-05
ended
|
3B BB40 | — | |
| 17111-58030 |
Manifold, Intake
1996-05 → 1997-03
ended
|
15BFT BB50 | — | |
| 17111-58031 |
Manifold, Intake
1997-03 → 1999-07
ended
|
15BFT BB50 EUR;15BFT BB43,50 +1 | — | |
| 17111-58040 |
Manifold, Intake
1997-05 → 1999-07
ended
|
15BFT BB58;15BFT BB50 GEN +1 | — | |
| 17111-58060 |
Manifold, Intake
1995-05 → 1999-07
ended
|
14B BB42 | — | |
| 17111-58090 |
Manifold, Intake
1995-05 → 1999-07
ended
|
3B BB40 | — | |
| 17111-75040 |
Manifold, Intake
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17101-48011 |
Manifold, Intake
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17111-17014 |
Manifold, Intake
1999-07 → 2000-02
ended
|
1HZ HZB50 | — | |
| 17111-17015 |
Manifold, Intake
2000-02 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17111-17015 |
Manifold, Intake
2000-02 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17111-17015 |
Manifold, Intake
2000-02 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17111-58031 |
Manifold, Intake
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17111-58031 |
Manifold, Intake
1999-07 → 2001-08
ended
|
15BFT BB50 CBU 6F;15BFT +3 | — | |
| 17111-58031 |
Manifold, Intake
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17111-58031 |
Manifold, Intake
1999-07 → 2001-05
ended
|
15BFT BB50 IV 6F | — | |
| 17111-58040 |
Manifold, Intake
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F | — | |
| 17111-58040 |
Manifold, Intake
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +2 | — | |
| 17111-58060 |
Manifold, Intake
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17111-58060 |
Manifold, Intake
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17111-58120 |
Manifold, Intake
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17111-75070 |
Manifold, Intake
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17101-48011 |
Manifold, Intake
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17101-48011 |
Manifold, Intake
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17111-17015 |
Manifold, Intake
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17111-58031 |
Manifold, Intake
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17111-58060 |
Manifold, Intake
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17111-58060 |
Manifold, Intake
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17111-58120 |
Manifold, Intake
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17111-75070 |
Manifold, Intake
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17111-78050 |
Manifold, Intake
2006-08 → 2009-08
ended
|
N04C XZB40,5# | — | |
| 17111-78100 |
Manifold, Intake
2009-08 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 17120-0C020 |
Manifold, Intake
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17101-48011 |
Manifold, Intake
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17111-17015 |
Manifold, Intake
2015-01 → —
|
1HZ HZB50 | — | |
| 17111-58060 |
Manifold, Intake
2015-01 → —
|
14B BB42 | — | |
| 17111-E0210 |
Manifold, Intake
2015-01 → 2016-12
ended
|
N04C XZB40,50 LHD GEN | — | |
| 17111-E0230 |
Manifold, Intake
2015-01 → 2016-12
ended
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17120-0C020 |
Manifold, Intake
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17125 — Stay, Surge Tank, NO.1 | ||||
| 17125-75020 |
Stay, Surge Tank, NO.1
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17125-75030 |
Stay, Surge Tank, NO.1
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17125-75030 |
Stay, Surge Tank, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17141 — Manifold, Exhaust | ||||
| 17141-17010 |
Manifold, Exhaust
1993-01 → 1998-05
ended
|
1HZ HZB50 | — | |
| 17141-17011 |
Manifold, Exhaust
1998-05 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17141-17020 |
Manifold, Exhaust
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17141-56060 |
Manifold, Exhaust
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17141-58050 |
Manifold, Exhaust
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17141-75040 |
Manifold, Exhaust
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17141-17011 |
Manifold, Exhaust
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17141-17011 |
Manifold, Exhaust
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17141-17011 |
Manifold, Exhaust
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17141-56060 |
Manifold, Exhaust
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17141-56060 |
Manifold, Exhaust
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17141-58031 |
Manifold, Exhaust
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17141-58051 |
Manifold, Exhaust
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17141-58051 |
Manifold, Exhaust
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17141-58051 |
Manifold, Exhaust
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17141-58051 |
Manifold, Exhaust
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17141-58070 |
Manifold, Exhaust
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17141-75080 |
Manifold, Exhaust
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17141-17011 |
Manifold, Exhaust
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17141-56060 |
Manifold, Exhaust
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17141-56060 |
Manifold, Exhaust
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17141-58031 |
Manifold, Exhaust
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17141-58031 |
Manifold, Exhaust
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17141-58051 |
Manifold, Exhaust
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17141-58070 |
Manifold, Exhaust
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17141-75080 |
Manifold, Exhaust
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17141-75101 |
Manifold, Exhaust
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17141-78090 |
Manifold, Exhaust
2009-08 → 2010-05
ended
|
N04C XZB40,5# | — | |
| 17141-78100 |
Manifold, Exhaust
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 17141-78100 |
Manifold, Exhaust
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17141-E0370 |
Manifold, Exhaust
2010-05 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17141-E0370 |
Manifold, Exhaust
2010-05 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17141-17011 |
Manifold, Exhaust
2015-01 → —
|
1HZ HZB50 | — | |
| 17141-56060 |
Manifold, Exhaust
2015-01 → —
|
14B BB42 | — | |
| 17141-58031 |
Manifold, Exhaust
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17141-75101 |
Manifold, Exhaust
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17141-E0360 |
Manifold, Exhaust
2015-01 → —
|
N04C XZB40,50 LHD GEN | — | |
| 17141-E0370 |
Manifold, Exhaust
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17151 — Bolt, Stud(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08388 |
Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1994-12 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 92122-60845 |
Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1993-09 → 1994-12
ended
|
3RZF RZB40,50 | — | |
| 17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1993-01 → 1995-05
ended
|
14B,3B BB4# | — | |
| 90116-10149 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1995-05 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 90116-10149 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4#,50 +12 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1999-07 → 2004-08
ended
|
14B WOC;15BFTE,1BZFPE BB42 BB5#,BZB40,50;15BFT +17 | — | |
| 90031-16091 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90031-16091 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90031-16091 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90031-16091 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90116-10149 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2015-01 → —
|
1HZ HZB50 | — | |
| 90126-10006 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| SZ126-10015 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2015-01 → —
|
N04C XZB40,5# | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10163 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 90116-10063 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 90116-10163 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 90116-10198 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 92132-60820 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 90031-16069 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90031-16069 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90031-16069 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2012-03
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 90031-16085 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90031-16085 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90031-16085 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90031-16085 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 90031-16109 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2012-03 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 90031-16109 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2012-03 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90116-10063 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90116-10163 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 90116-10198 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 92132-60820 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90116-10171 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2015-01 → —
|
1HZ HZB50 | — | |
| SZ126-08007 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2015-01 → —
|
N04C XZB40,5# | — | |
| SZ126-10006 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2015-01 → —
|
N04C XZB40,5# | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-17030 |
Insulator, Exhaust Manifold Heat, NO.1
1993-01 → 1998-02
ended
|
1HZ HZB50 | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
1998-02 → 1999-07
ended
|
1HZ HZB50 | — | |
| 17167-17040 |
Insulator, Exhaust Manifold Heat, NO.1
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17167-75030 |
Insulator, Exhaust Manifold Heat, NO.1
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17167-58040 |
Insulator, Exhaust Manifold Heat, NO.1
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17167-58060 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2001-08
ended
|
15BFTE BB5# | — | |
| 17167-58061 |
Insulator, Exhaust Manifold Heat, NO.1
2001-08 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17167-75100 |
Insulator, Exhaust Manifold Heat, NO.1
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17167-58040 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17167-58040 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17167-58050 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17167-58061 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17167-75100 |
Insulator, Exhaust Manifold Heat, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17167-75170 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2014-10
ended
|
2TRFE TRB40,50 | — | |
| 17167-75171 |
Insulator, Exhaust Manifold Heat, NO.1
2014-11 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17167-17031 |
Insulator, Exhaust Manifold Heat, NO.1
2015-01 → —
|
1HZ HZB50 | — | |
| 17167-56060 |
Insulator, Exhaust Manifold Heat, NO.1
2015-01 → —
|
14B BB42 | — | |
| 17167-58040 |
Insulator, Exhaust Manifold Heat, NO.1
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17167-75171 |
Insulator, Exhaust Manifold Heat, NO.1
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
1993-01 → 1999-07
ended
|
1HZ# HZB50 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
1993-01 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
1996-05 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17173-75020 |
Gasket, Exhaust Manifold TO Head
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17173-58030 |
Gasket, Exhaust Manifold TO Head
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17173-58050 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17173-75020 |
Gasket, Exhaust Manifold TO Head
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17173-58030 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17173-58030 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 17173-58040 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17173-58050 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17173-75020 |
Gasket, Exhaust Manifold TO Head
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17173-75030 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17173-78040 |
Gasket, Exhaust Manifold TO Head
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17173-78040 |
Gasket, Exhaust Manifold TO Head
2006-08 → 2011-06
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 17173-78040 |
Gasket, Exhaust Manifold TO Head
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| S1710-41880 |
Gasket, Exhaust Manifold TO Head
2011-06 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| S1710-41880 |
Gasket, Exhaust Manifold TO Head
2011-06 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17173-17010 |
Gasket, Exhaust Manifold TO Head
2015-01 → —
|
1HZ HZB50 | — | |
| 17173-56040 |
Gasket, Exhaust Manifold TO Head
2015-01 → —
|
14B BB42 | — | |
| 17173-58030 |
Gasket, Exhaust Manifold TO Head
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17173-75030 |
Gasket, Exhaust Manifold TO Head
2015-01 → —
|
2TRFE TRB40,50 | — | |
| S1710-41880 |
Gasket, Exhaust Manifold TO Head
2015-01 → 2016-12
ended
|
N04C XZB40,5# | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-75020 |
Gasket, Intake Manifold TO Head, NO.1
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17177-75030 |
Gasket, Intake Manifold TO Head, NO.1
1999-07 → 2004-08
ended
|
3RZFE RZB40,50 | — | |
| 17177-0C010 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 17177-75030 |
Gasket, Intake Manifold TO Head, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 | — | |
| 17177-0C010 |
Gasket, Intake Manifold TO Head, NO.1
2015-01 → —
|
2TRFE TRB40,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
