Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

60 part groups · 13 illustrations

Illustrations

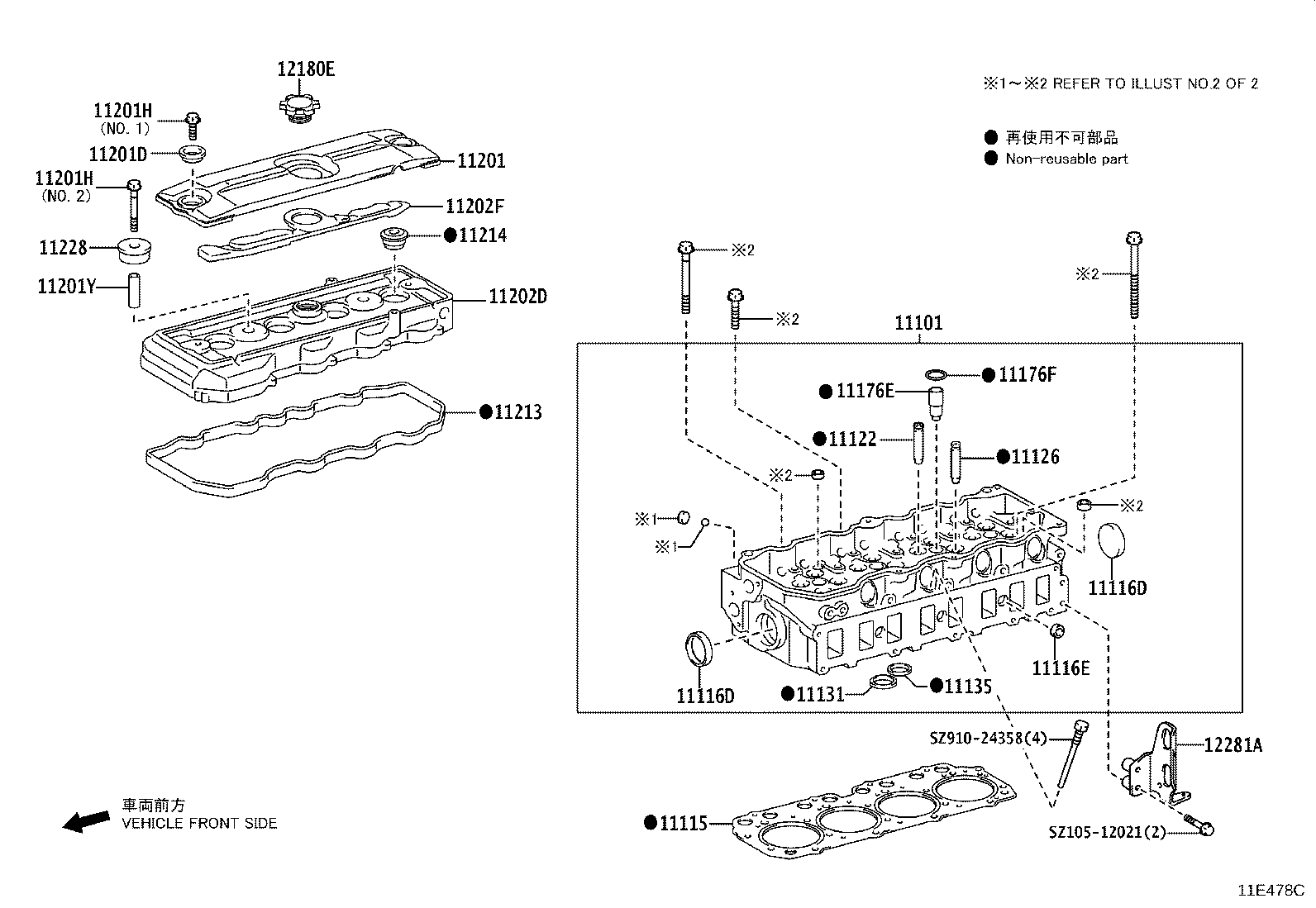

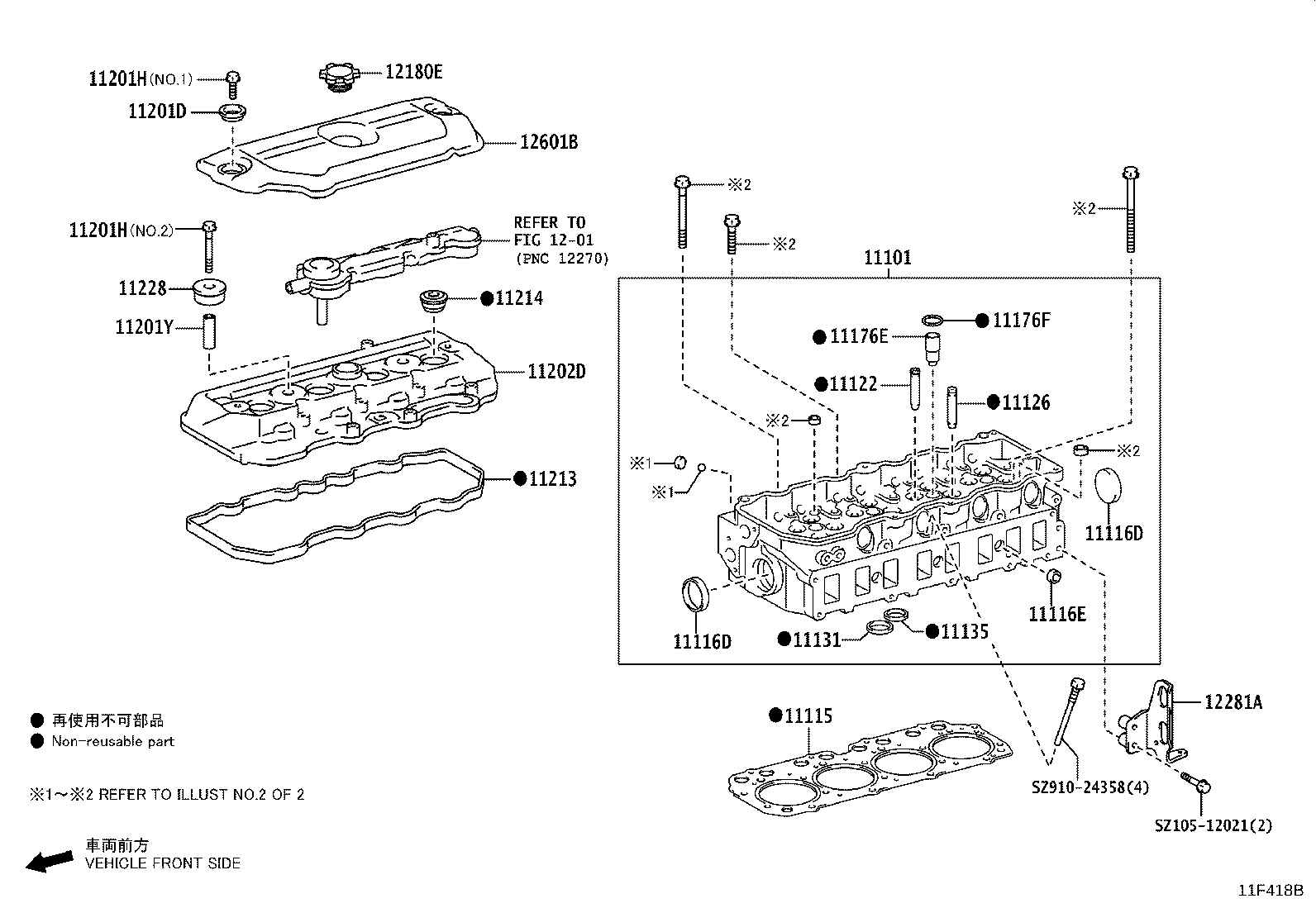

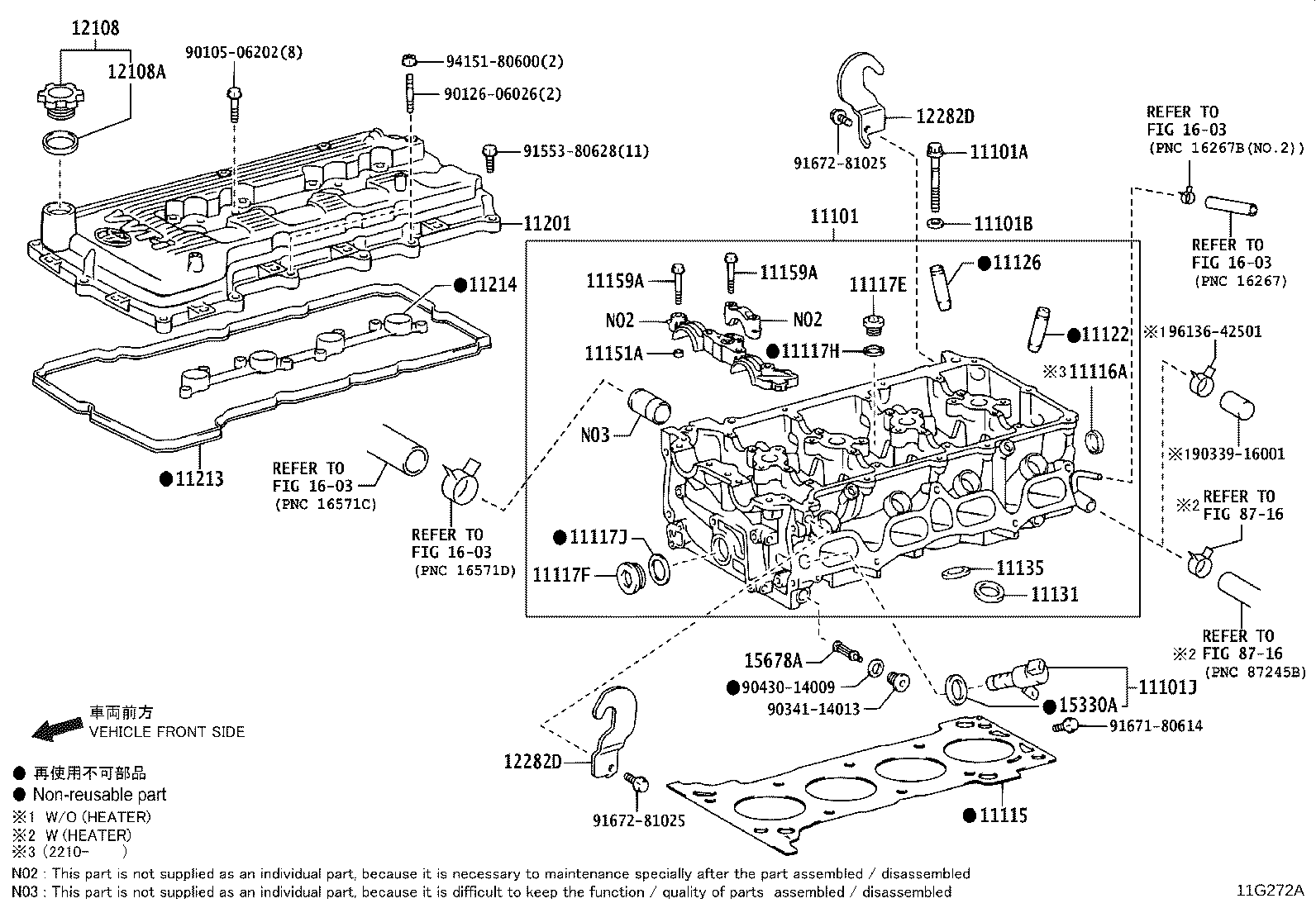

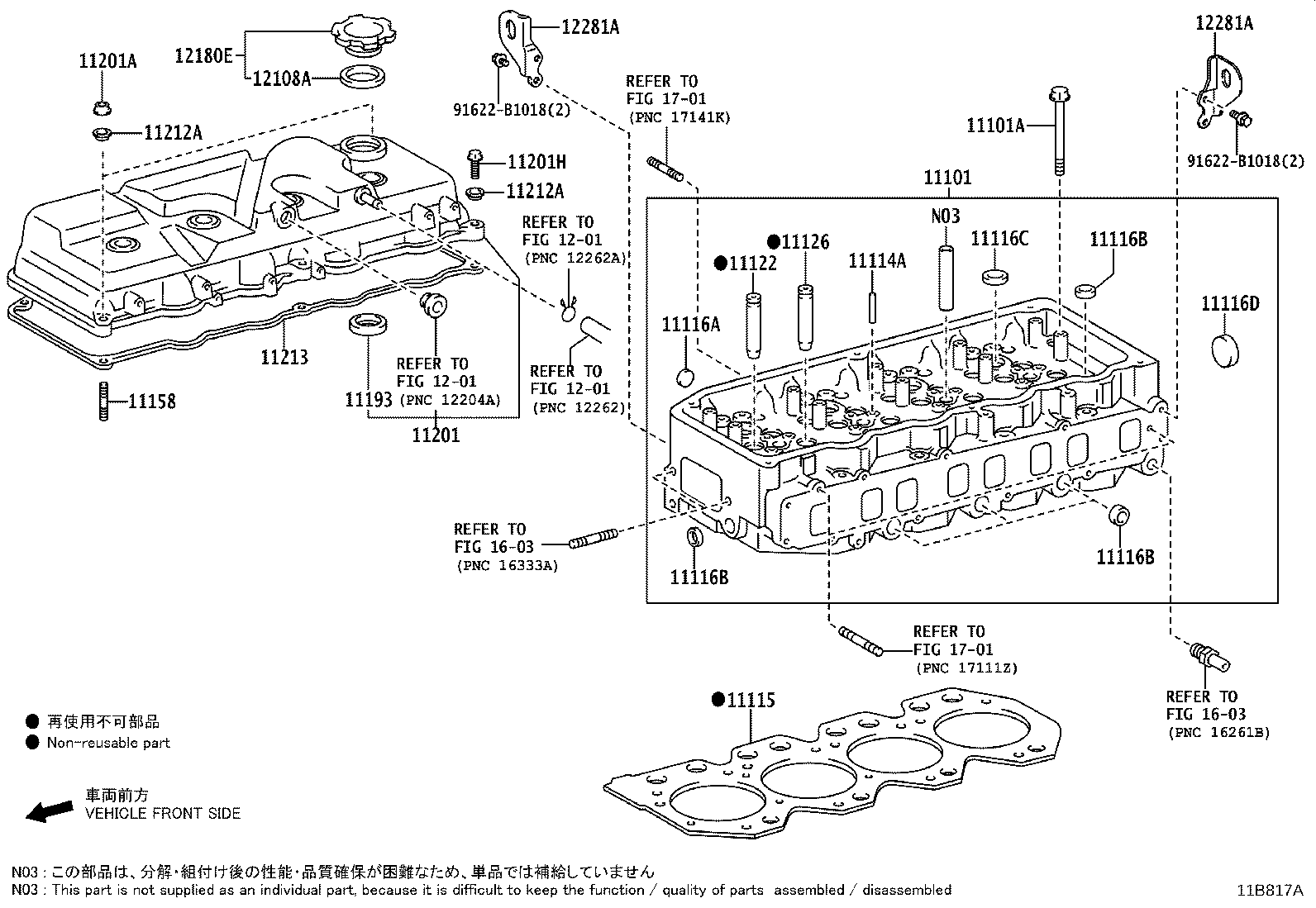

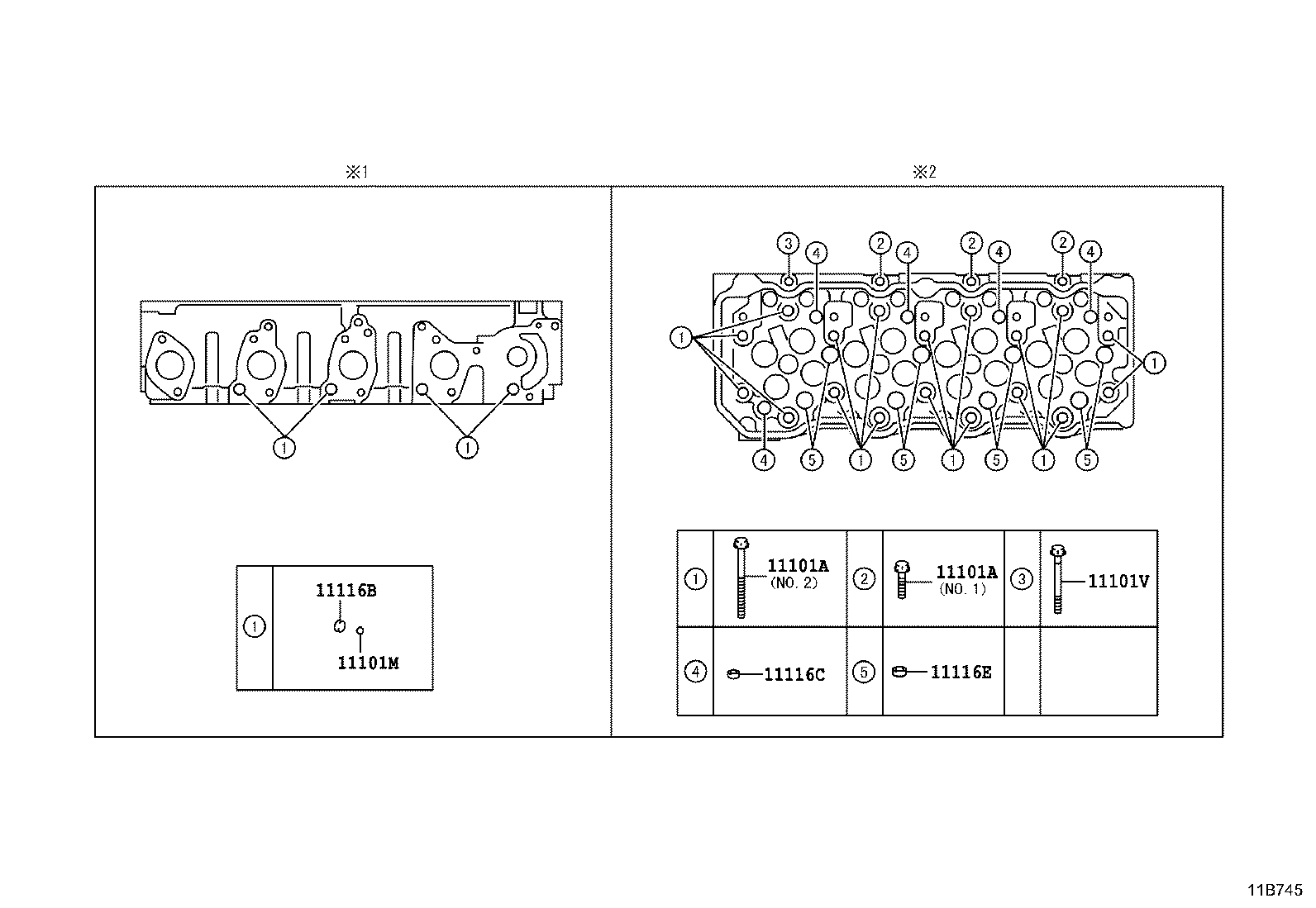

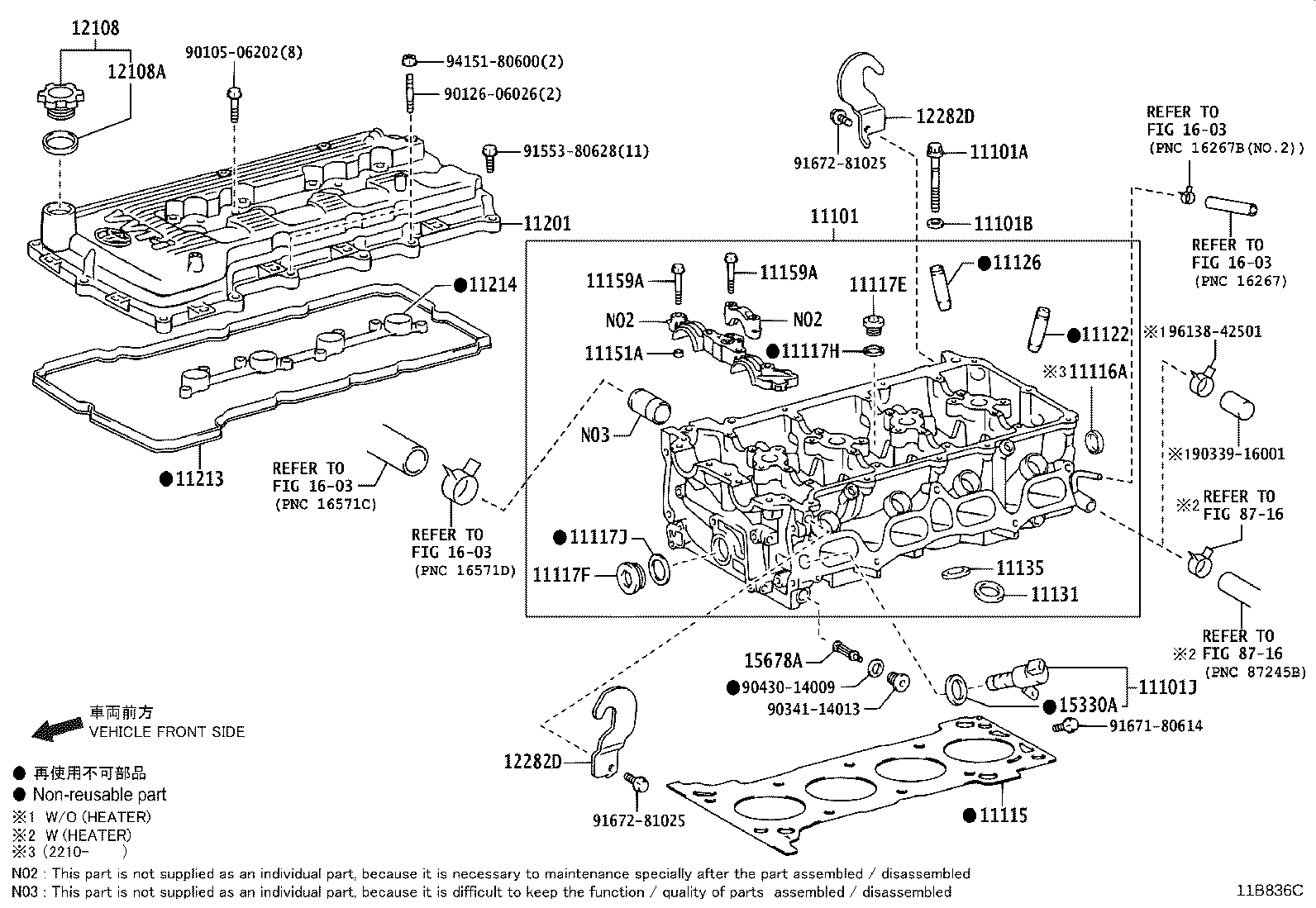

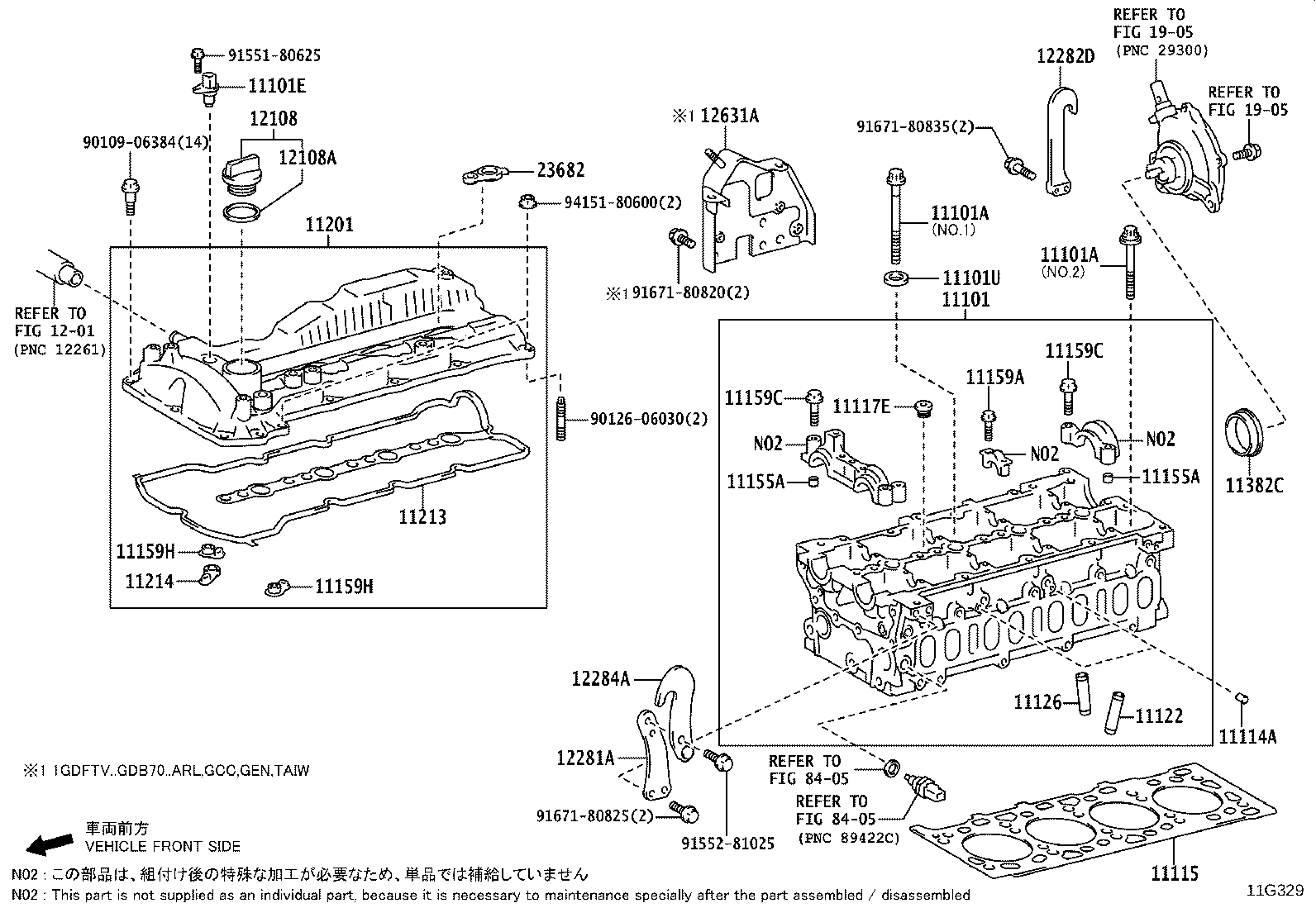

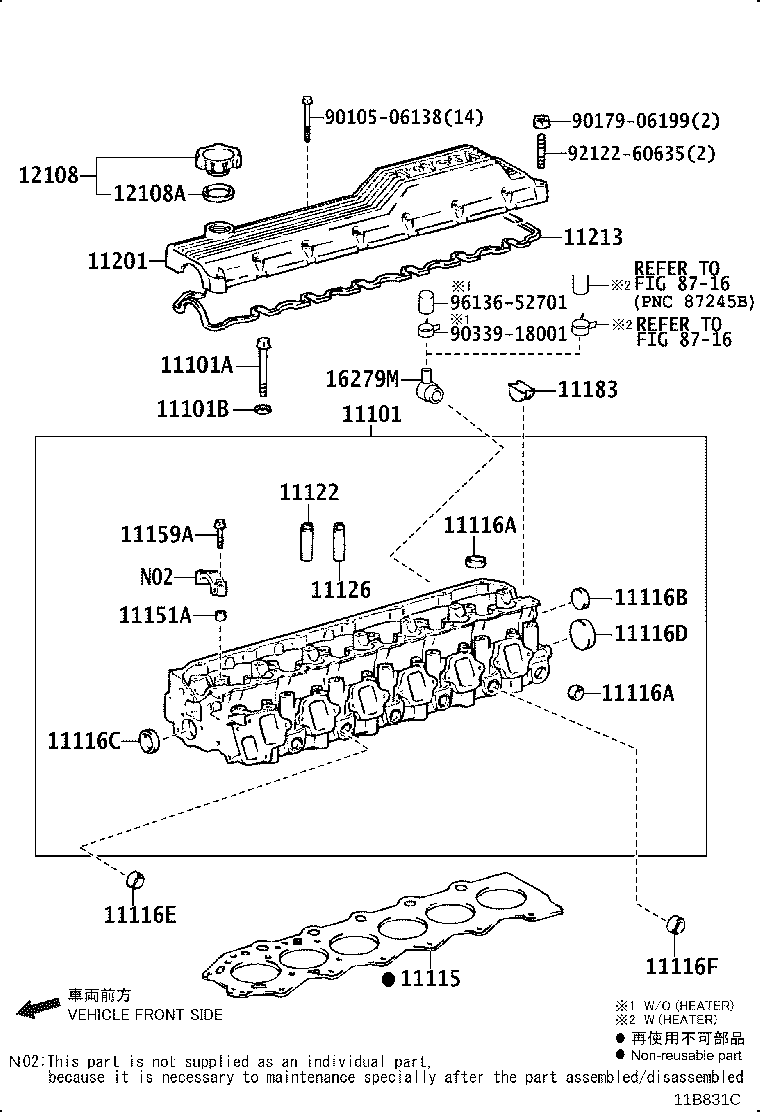

Figure 11B818A 11B818A 2017-01 → — Figure 11B817A 11B817A 2017-01 → — Figure 11G329 11G329 2022-01 → — Figure 11B831C 11B831C 2017-01 → — Figure 11B836C 11B836C 2017-01 → 2022-01 Figure 11B836C 11B836C 2017-01 → — Figure 11G272A 11G272A 2022-01 → — Figure 11G272A 11G272A 2025-01 → — Figure 11F417B 11F417B 2017-01 → 2019-08 Figure 11E478C 11E478C 2019-08 → — Figure 11F418B 11F418B 2019-08 → — Figure 11F455B 11F455B 2021-01 → — Figure 11B745 11B745 2017-01 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11101M Ball NO.1(FOR CYLINDER HEAD)
11101U Spacer(FOR CYLINDER HEAD SET BOLT)
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11116F Plug, Tight, NO.6
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159H Gasket, Camshaft Bearing Cap Oil Hole
11176E Seat, Injection Nozzle
11176F Gasket (FOR INJECTION NOZZLE SEAT)
11183 Plug, Semicircular
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201D Washer, Lock(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201Y Spacer(FOR CYLINDER HEAD COVER)
11202D Cover Sub-assy, Cylinder Head, NO.2
11202F Rubber, Cushion(FOR CYLINDER HEAD COVER)
11212A Cushion, Cylinder Head Cover
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11228 Cushion, Cylinder Head Cover
11382C Retainer, Camshaft Oil Seal
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12284A Hanger, Engine, NO.1 Upper
12601B Cover Sub-assy, Engine, NO.1
12631A Bracket, Engine Cover
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
16279M Pipe, Water By-pass, NO.3
23682 Gasket, Nozzle Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
