Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Timing Gear Cover & Rear End Plate

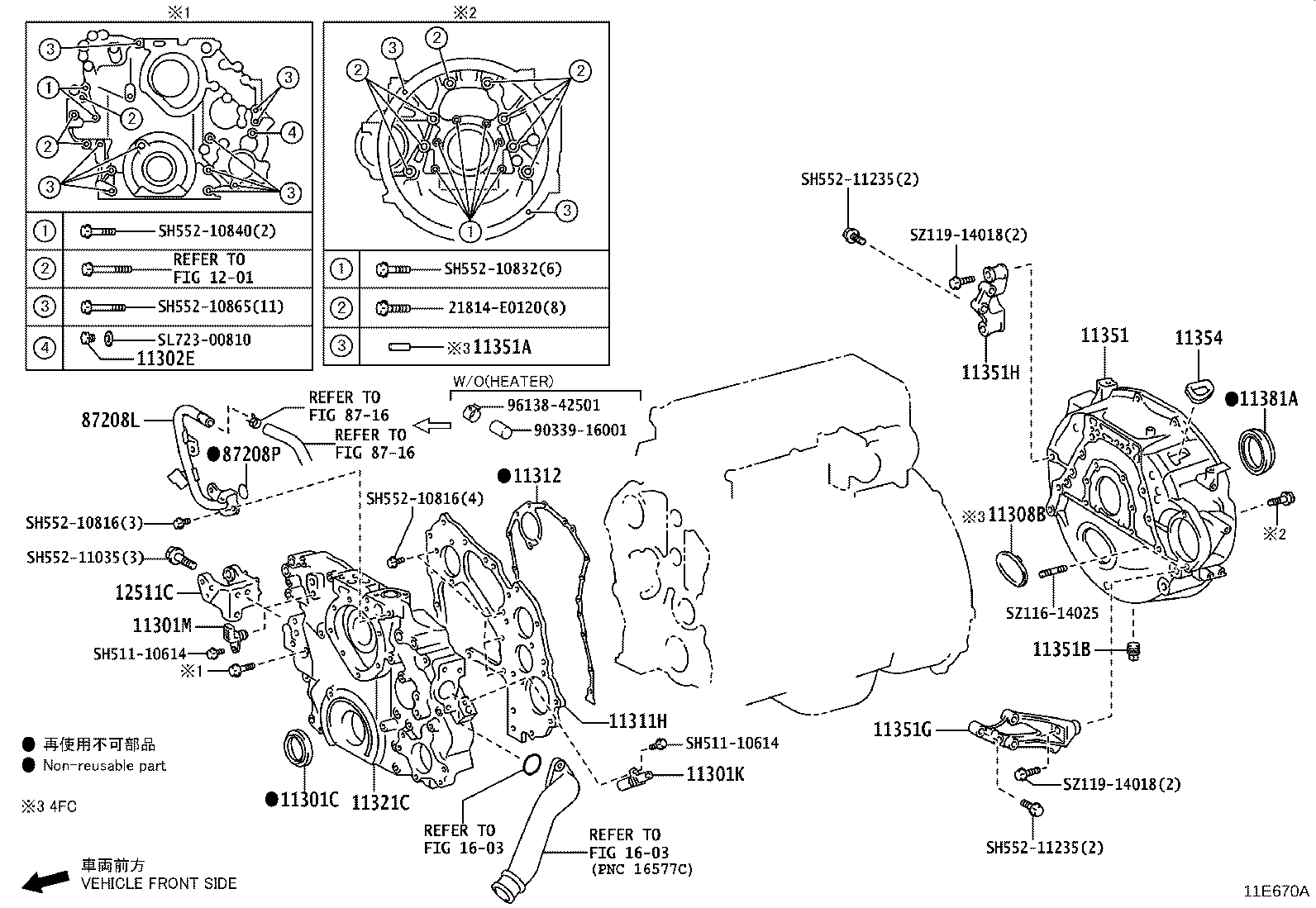

51 part groups · 12 illustrations

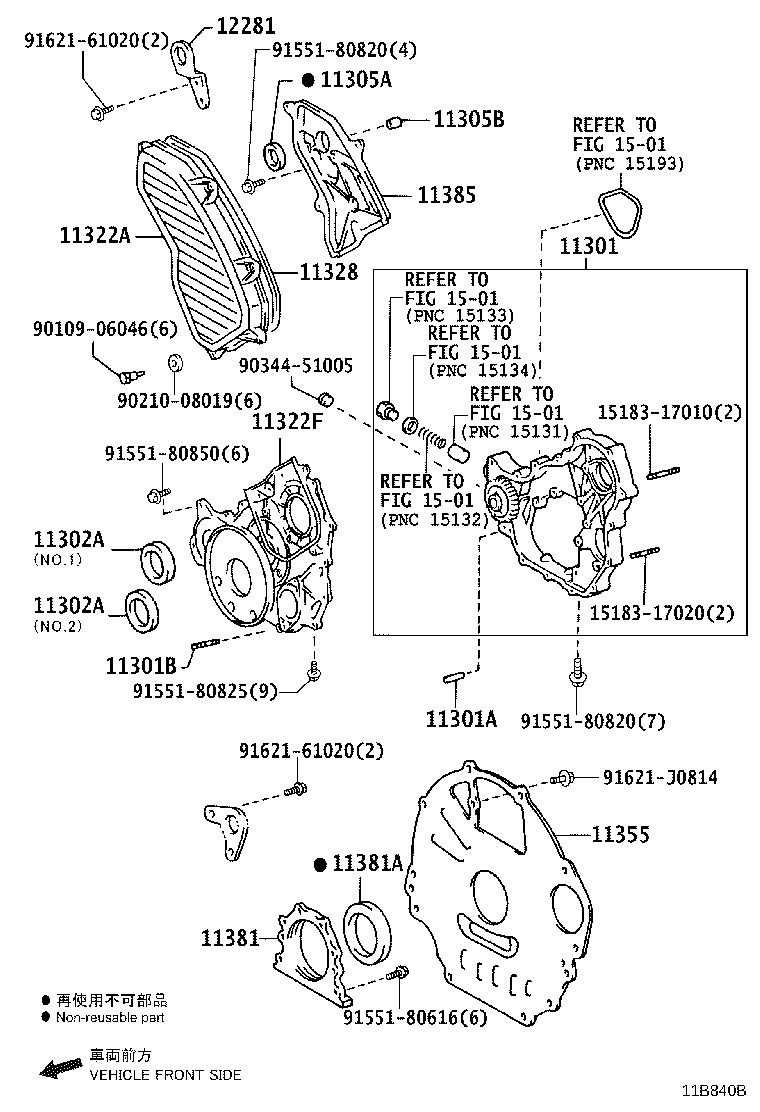

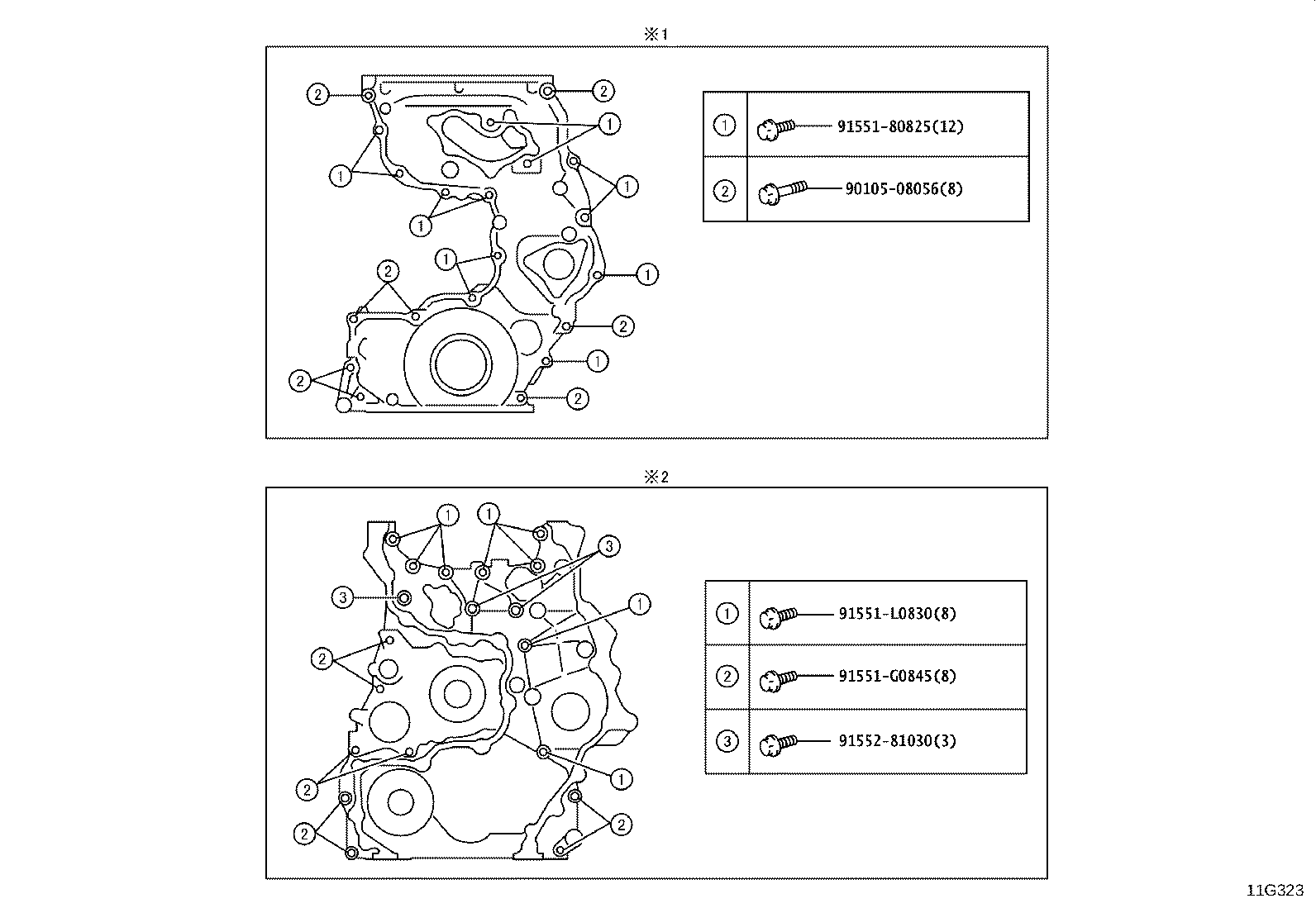

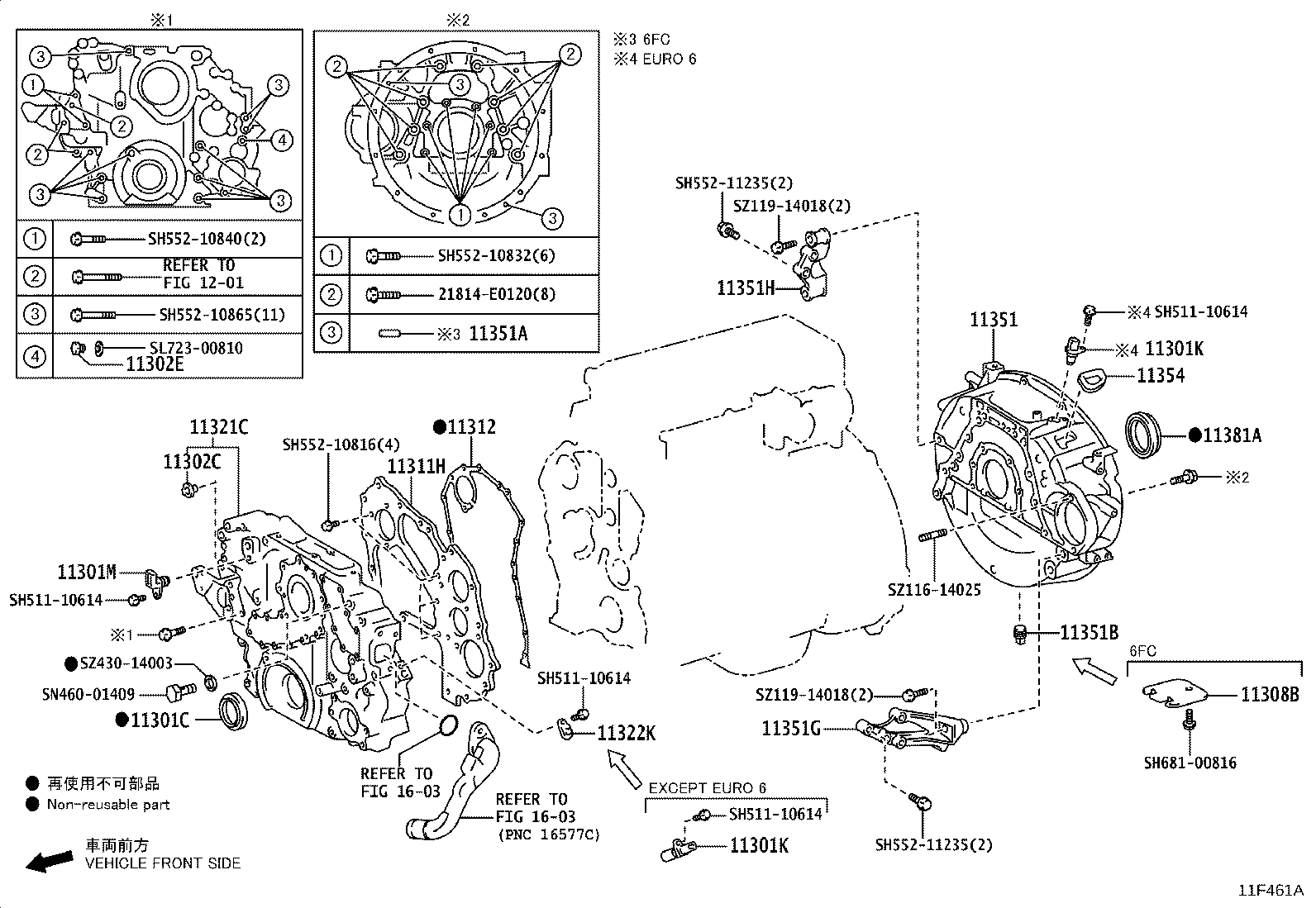

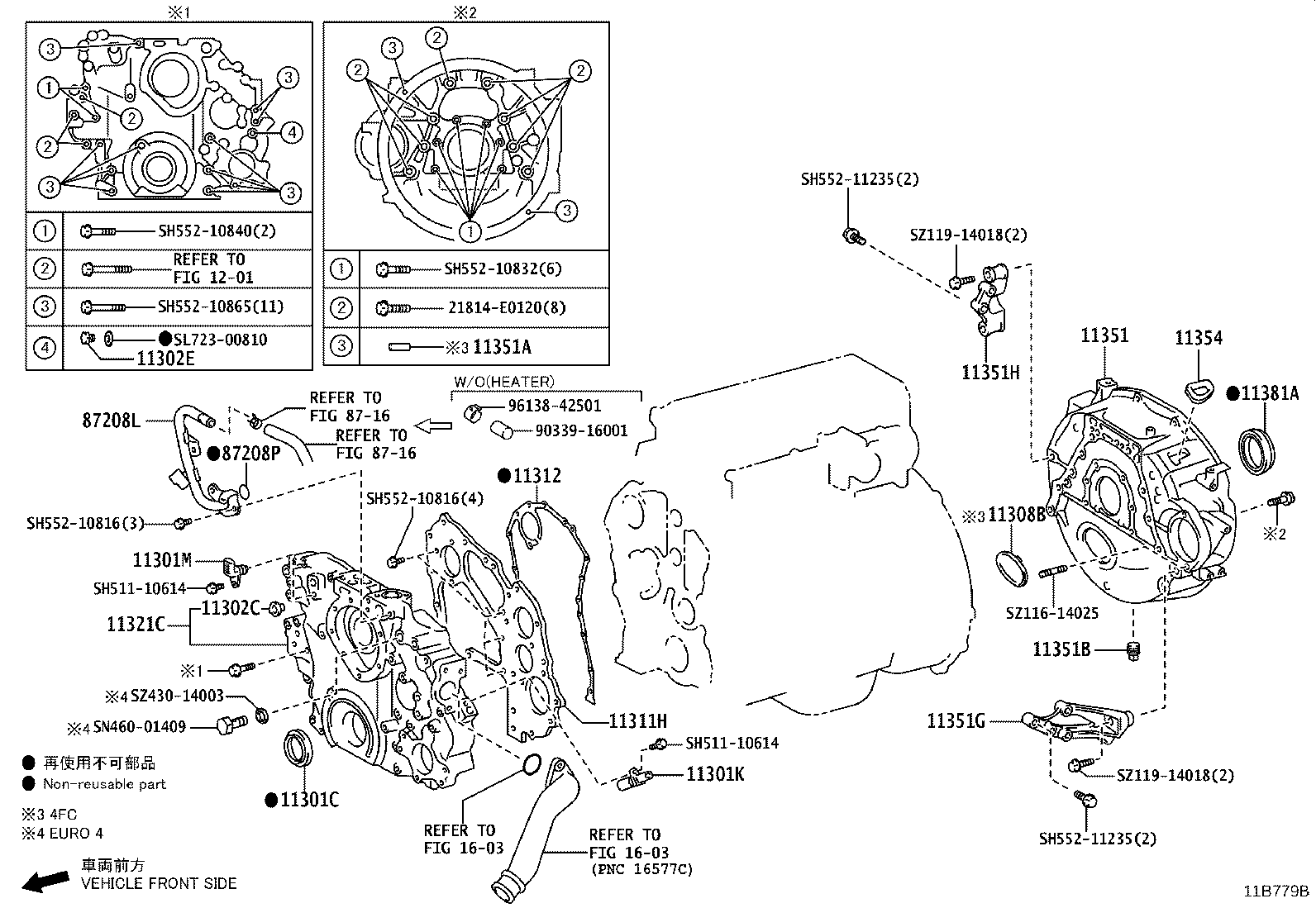

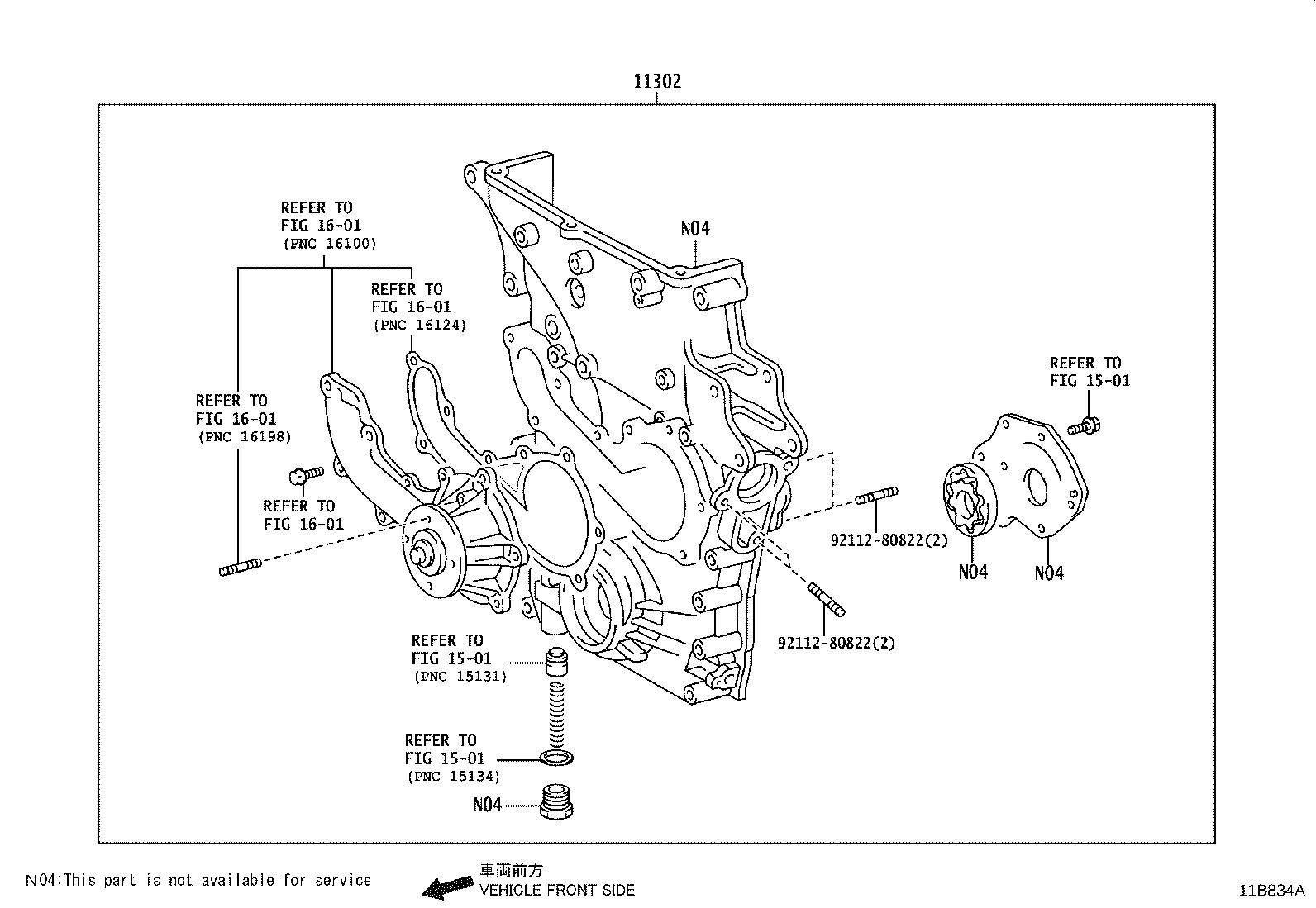

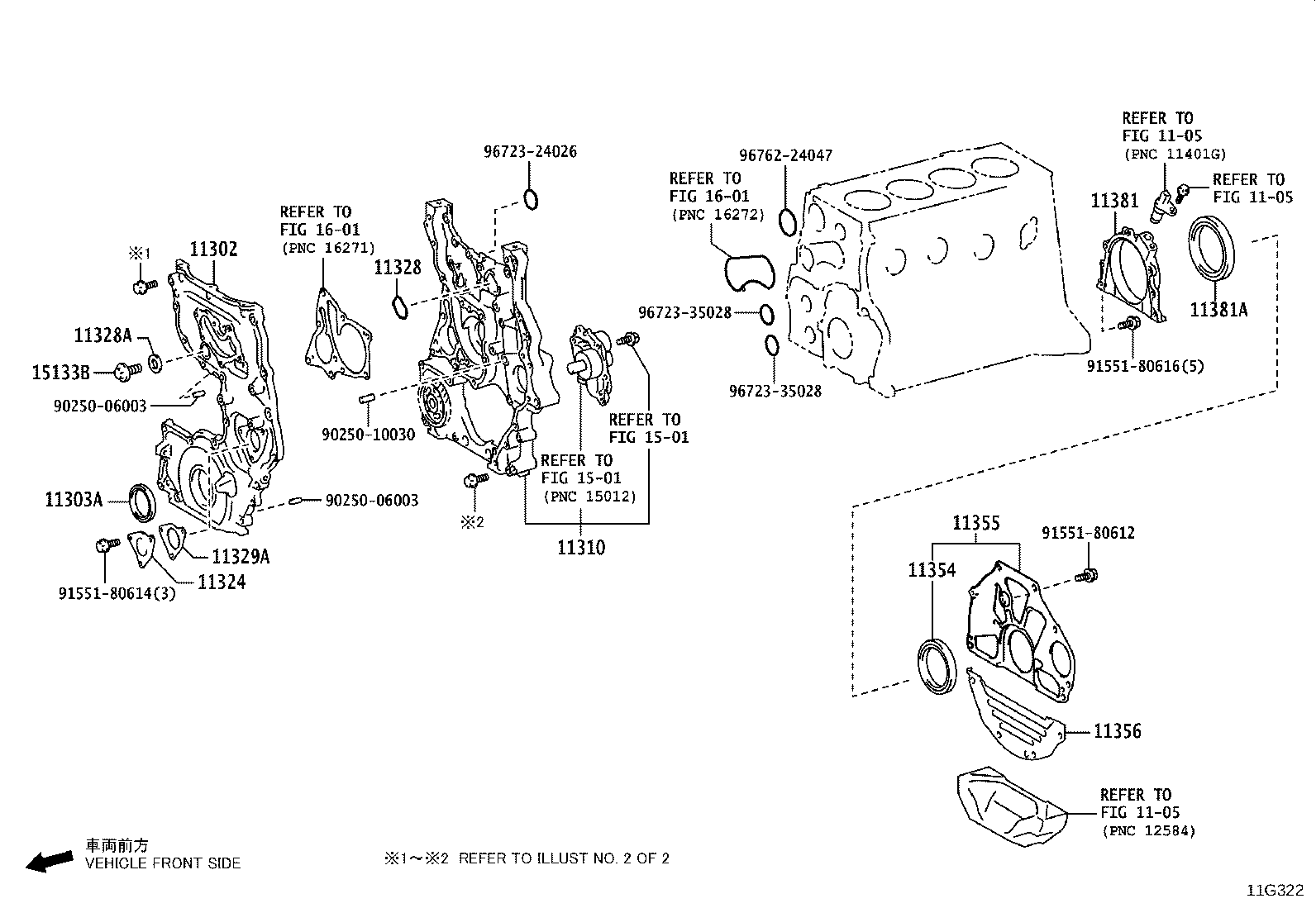

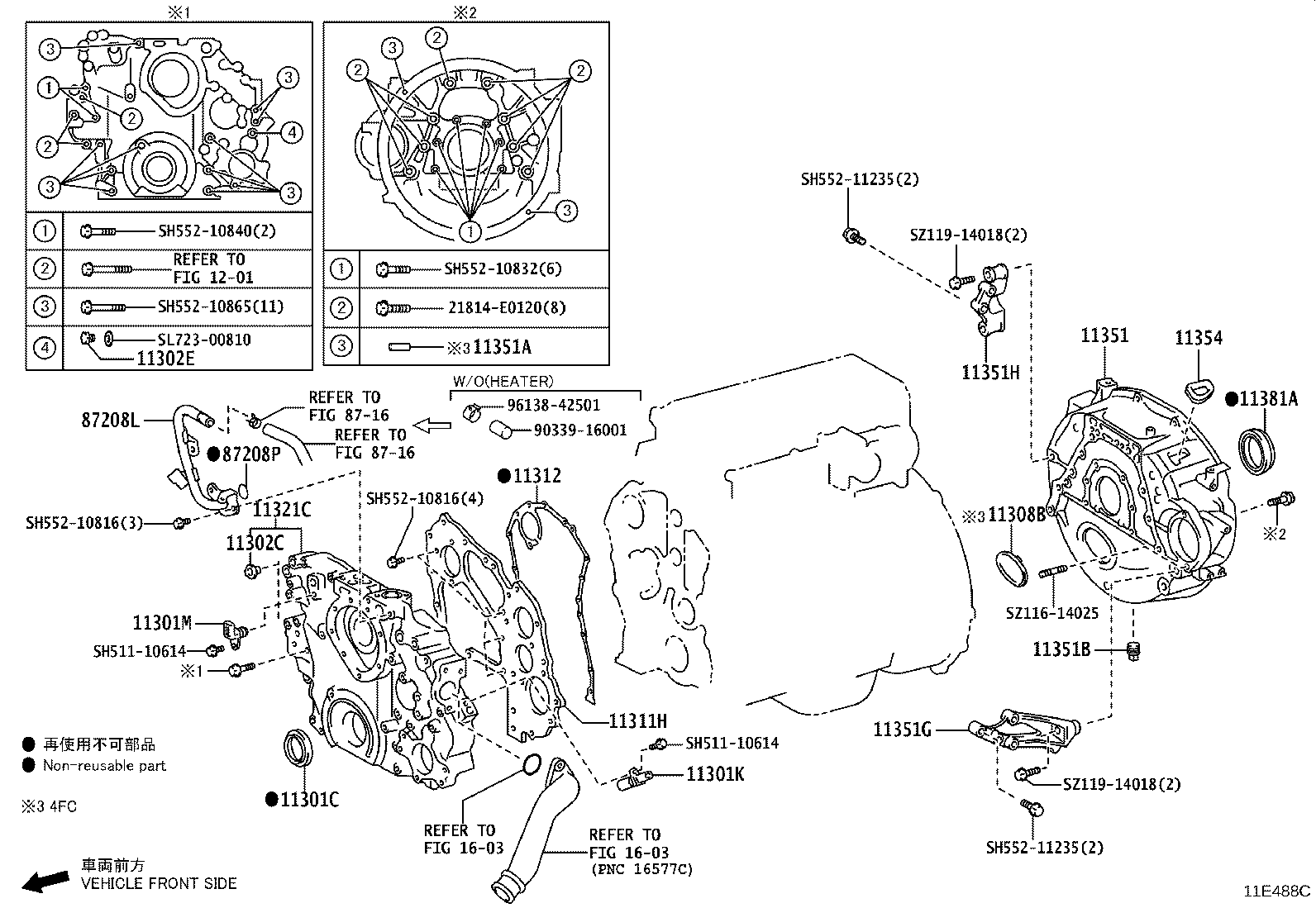

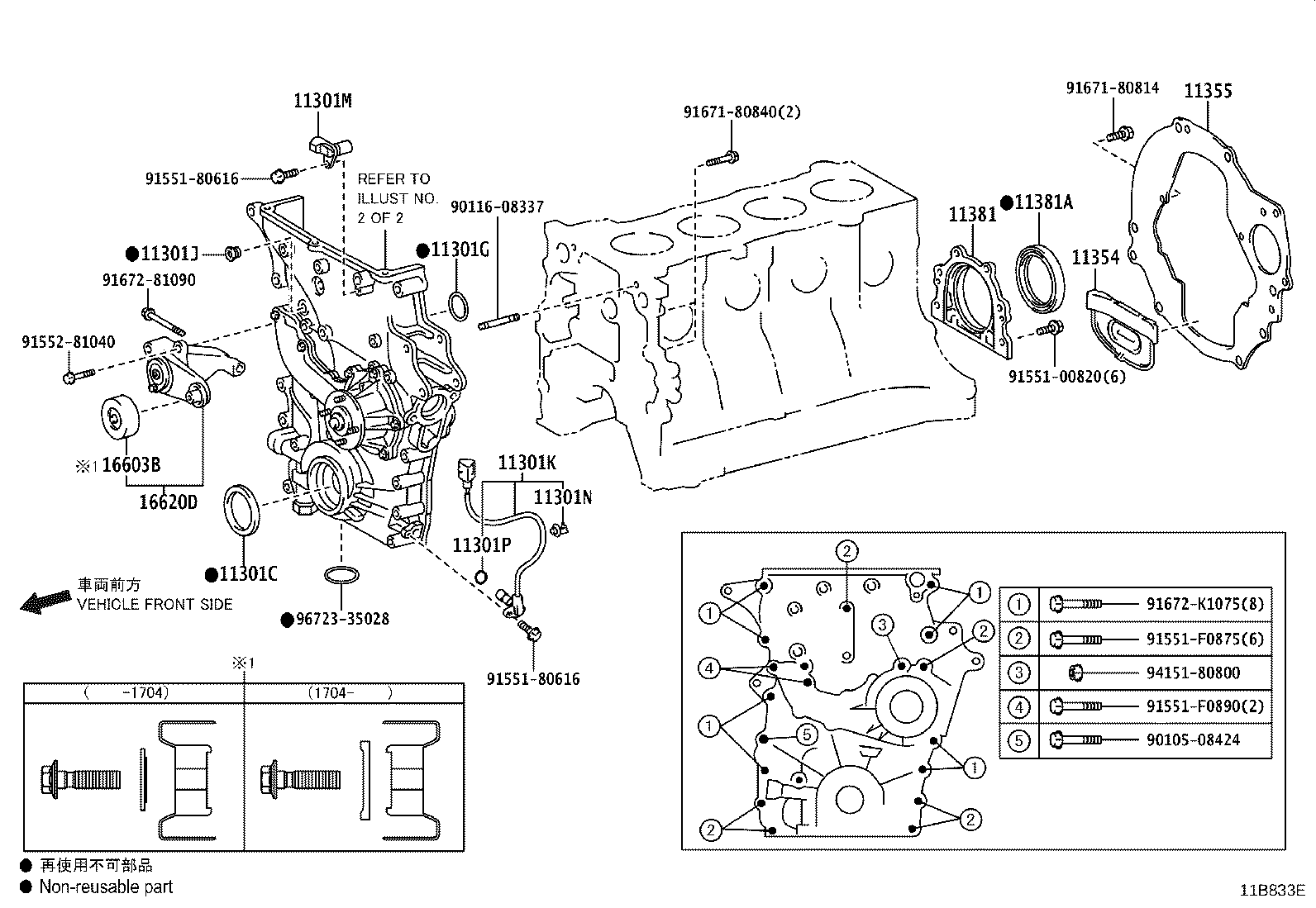

Illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301G | Ring, O(FOR TIMING GEAR CASE, UPPER) |
| 11301J | Plug, W/Head Straight Screw(FOR TIMING GEAR CASE) |
| 11301K | Sensor, Crank Position |
| 11301M | Sensor, Cam Position |
| 11301N | Clamp |
| 11301P | O Ring, Crank Position Sensor |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11302C | Spacer(FOR TIMING GEAR COVER) |
| 11302E | Plug, Straight(FOR TIMING GEAR COVER) |
| 11302Q | Cover Sub-assy, Timing Gear |
| 11302W | Seal, Oil(FOR TIMING GEAR COVER) |
| 11303A | Seal, Oil(FOR CRANKSHAFT FRONT) |
| 11305A | Seal, Oil(FOR OIL SEAL RETAINER, NO.2) |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11308B | Cover(FOR FLYWHEEL HOUSING) |
| 11310 | Cover Assy, Timing Chain |
| 11311H | Plate Sub-assy, Cylinder Block |
| 11312 | Gasket, Front End Plate |
| 11321C | Cover, Timing Gear |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322F | Cover, Timing Gear, NO.2 |
| 11322K | Plug, Hole |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11328A | Gasket, Timing Belt Cover, NO.1 |
| 11329A | Gasket, Timing Belt OR Chain Cover, NO.2 |
| 11345 | Bearing, Injection Pump Gear Thrust |
| 11351 | Housing, Flywheel |
| 11351A | Pin, Straight(FOR FLYWHEEL HOUSING) |
| 11351B | Plug, Hole(FOR FLYWHEEL HOUSING) |
| 11351G | Stay, LH(FOR FLYWHEEL HOUSING) |
| 11351H | Stay, RH(FOR FLYWHEEL HOUSING) |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11356 | Plate, Rear End, NO.2 |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11385 | Retainer, Camshaft Oil Seal |
| 12281 | Hanger, Engine, NO.1 |
| 12511C | Bracket, Alternator |
| 15133B | Plug, Oil Pump Relief Valve |
| 16603B | Pulley Sub-assy, Idler |
| 16620D | Tensioner Assy, V-ribbed Belt |
| 87208L | Pipe Sub-assy, Water |
| 87208P | O-ring(FOR WATER PIPE SUB-ASSY) |
