Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

22 part groups · 6 illustrations

Illustrations

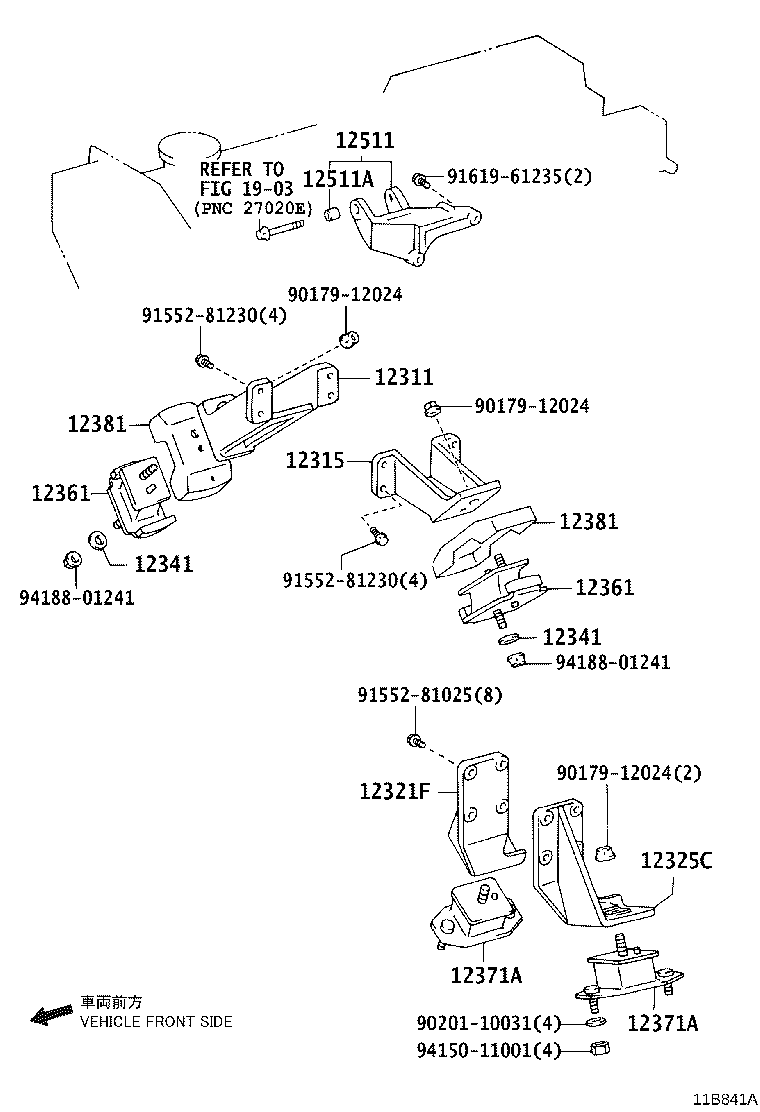

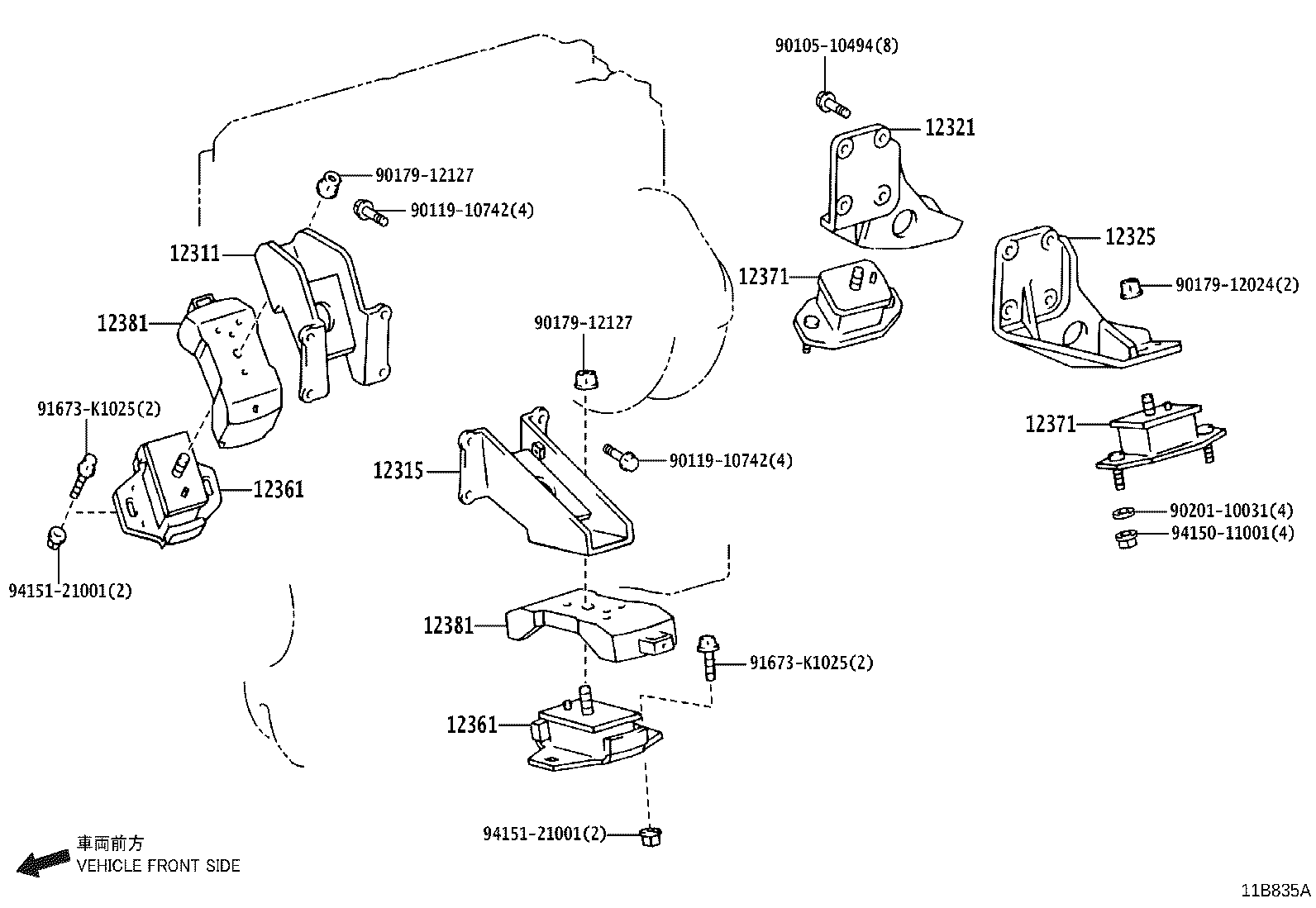

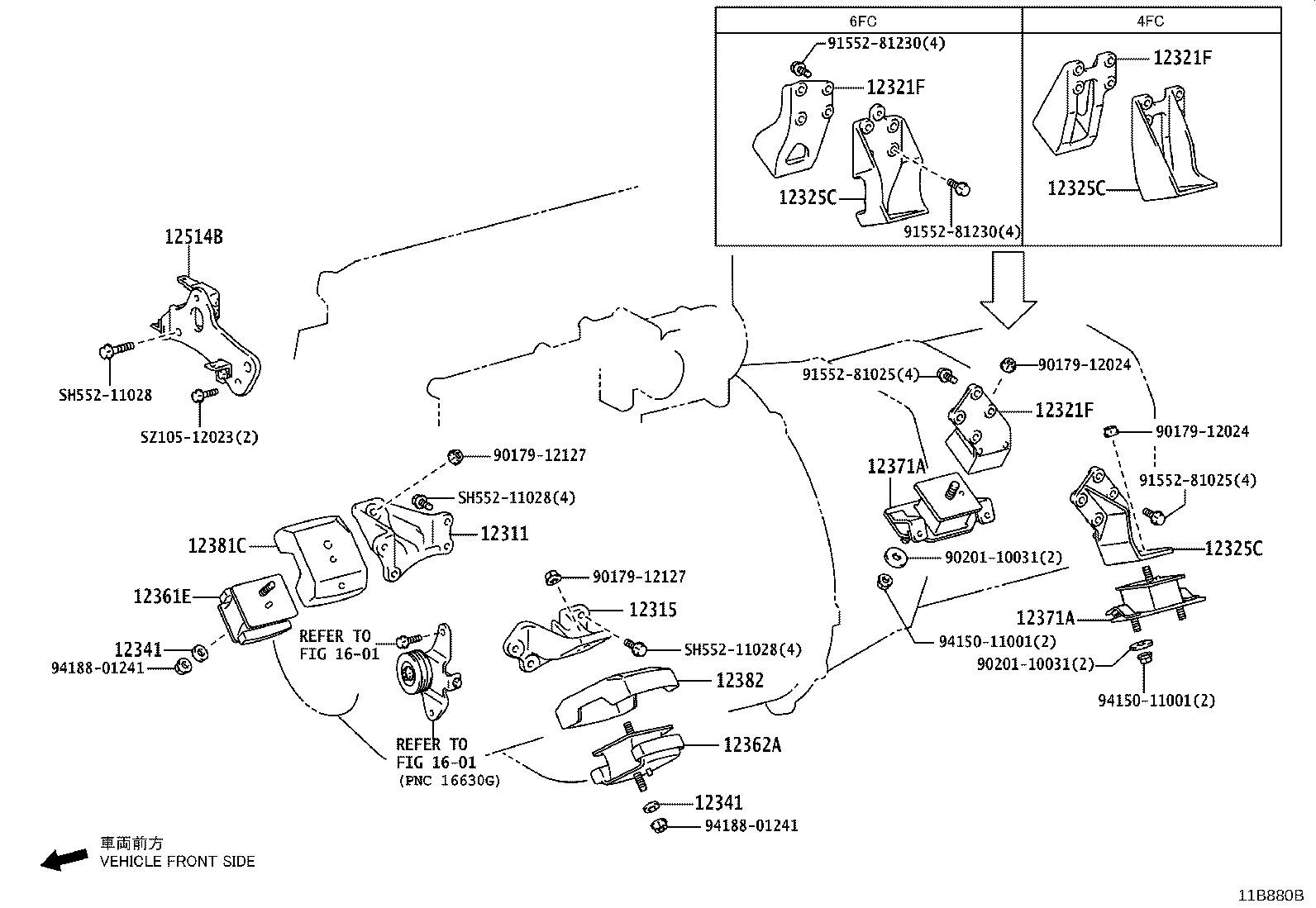

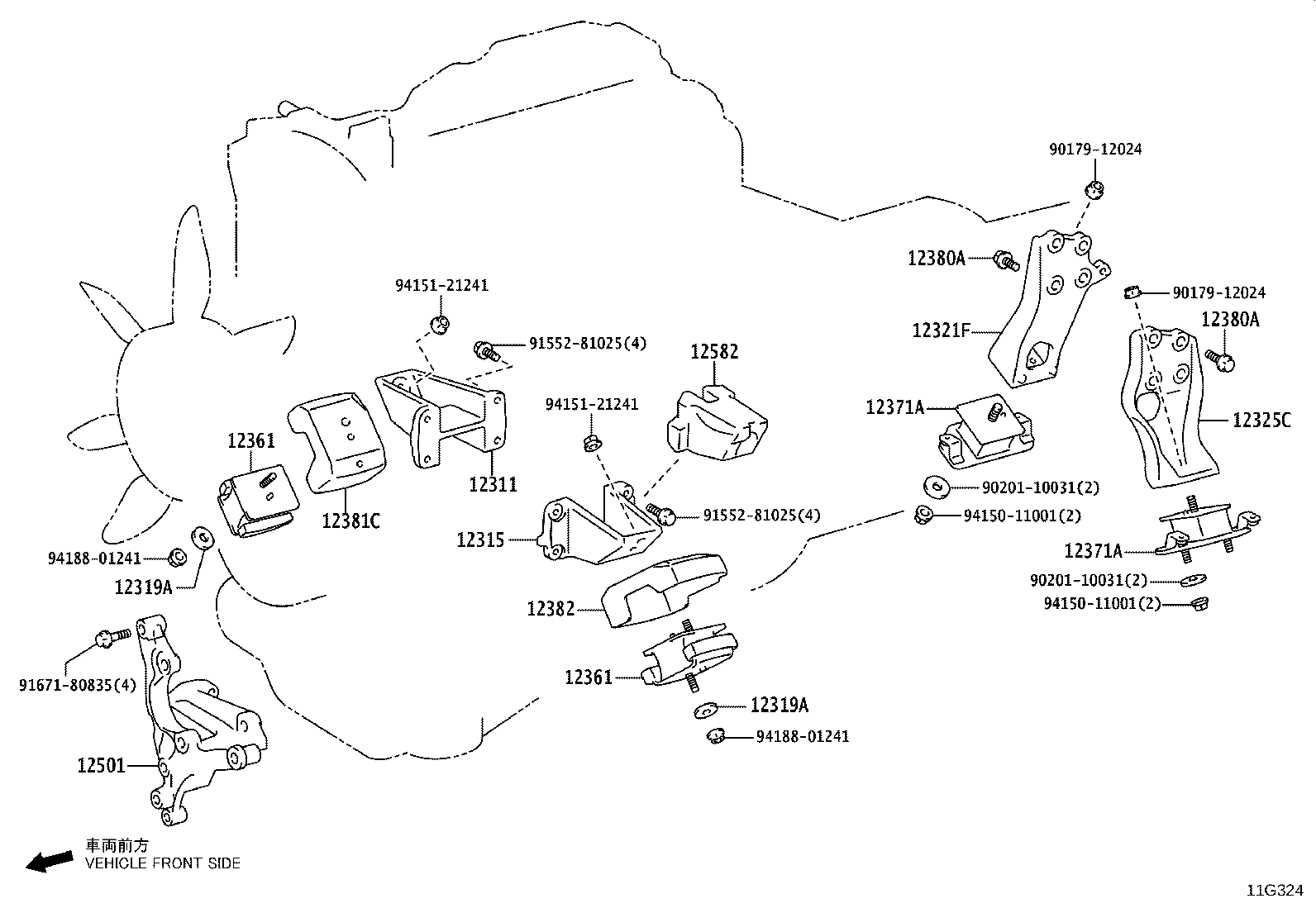

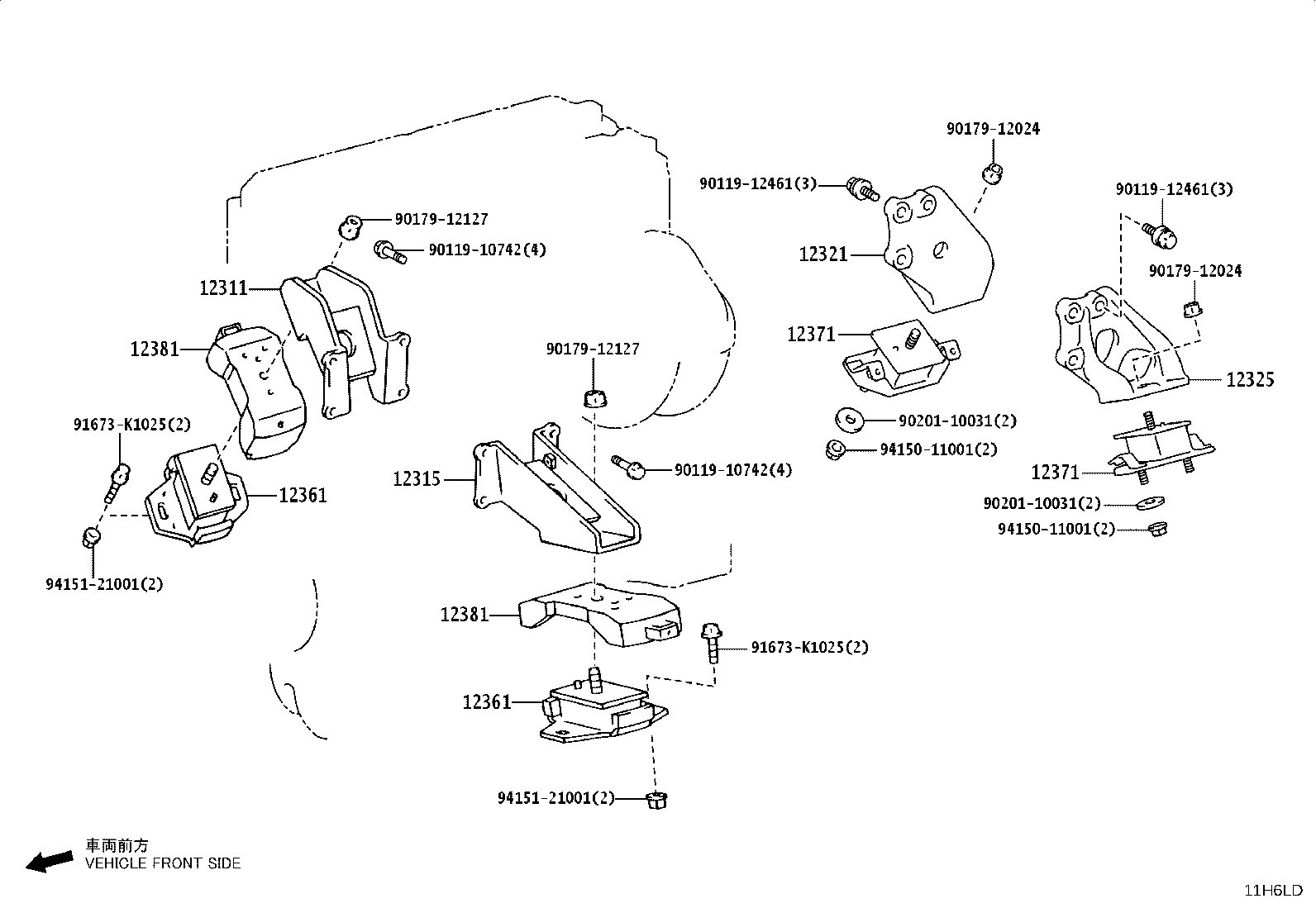

Figure 11B712 11B712 2017-01 → — Figure 11G324 11G324 2022-01 → — Figure 11B841A 11B841A 2017-01 → — Figure 11B835A 11B835A 2017-01 → — Figure 11H6LD 11H6LD 2025-01 → — Figure 11B880B 11B880B 2017-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12319A Spacer, Engine Front Support
12321 Bracket, Engine Mounting, Rear, NO.1
12321F Bracket, Engine Mounting, Rear RH
12325 Bracket, Engine Mounting, NO.3
12325C Bracket, Engine Mounting, Rear LH
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12361E Insulator, Engine Mounting, Front RH
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12381C Stabilizer, Engine Mounting, RH
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514B Brace Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
