Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

25 part groups · 11 illustrations

Illustrations

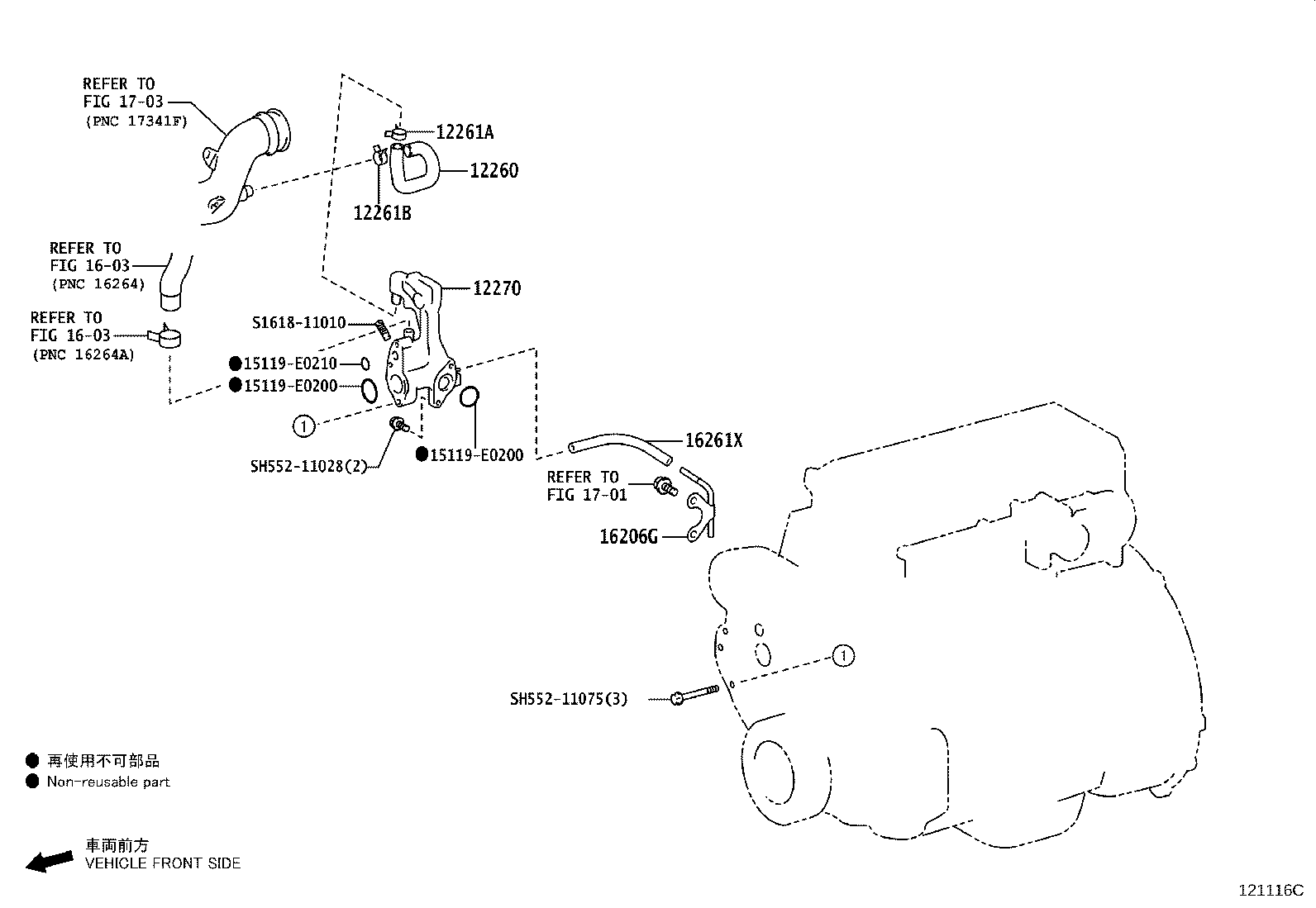

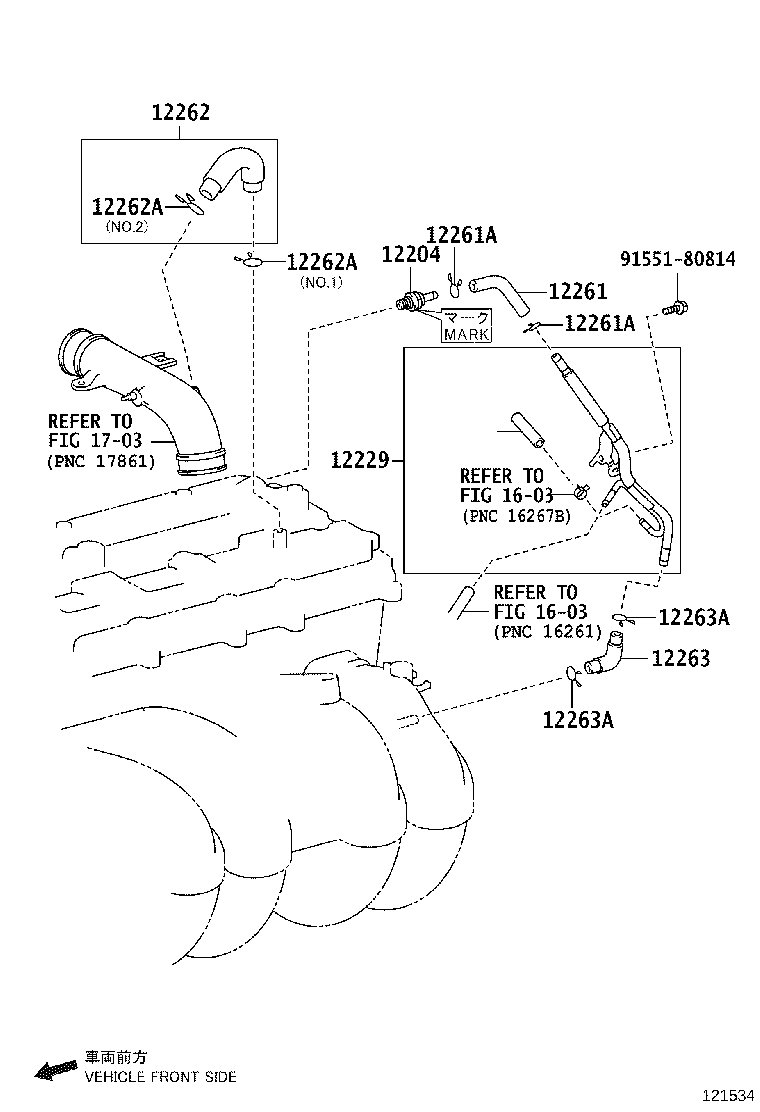

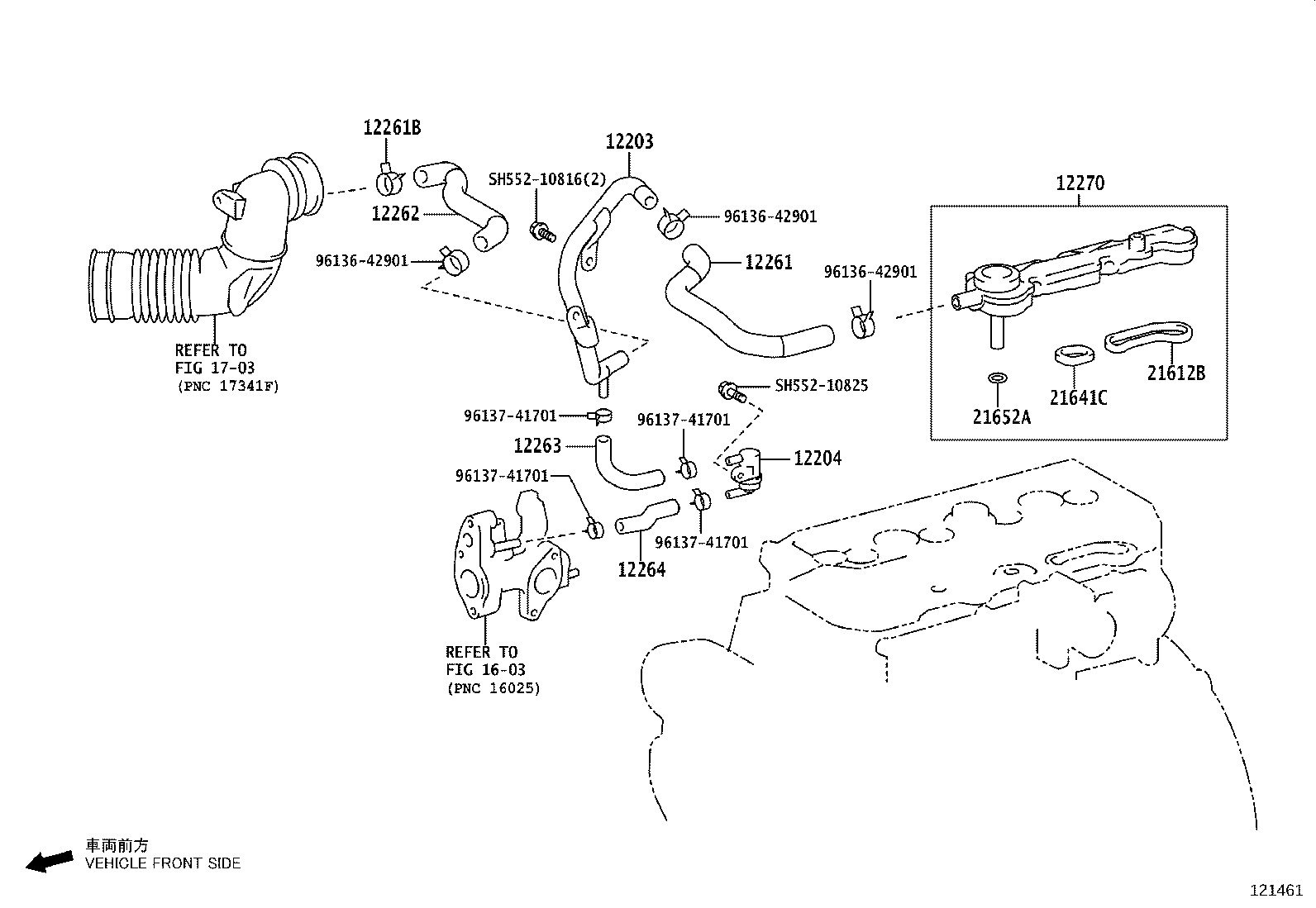

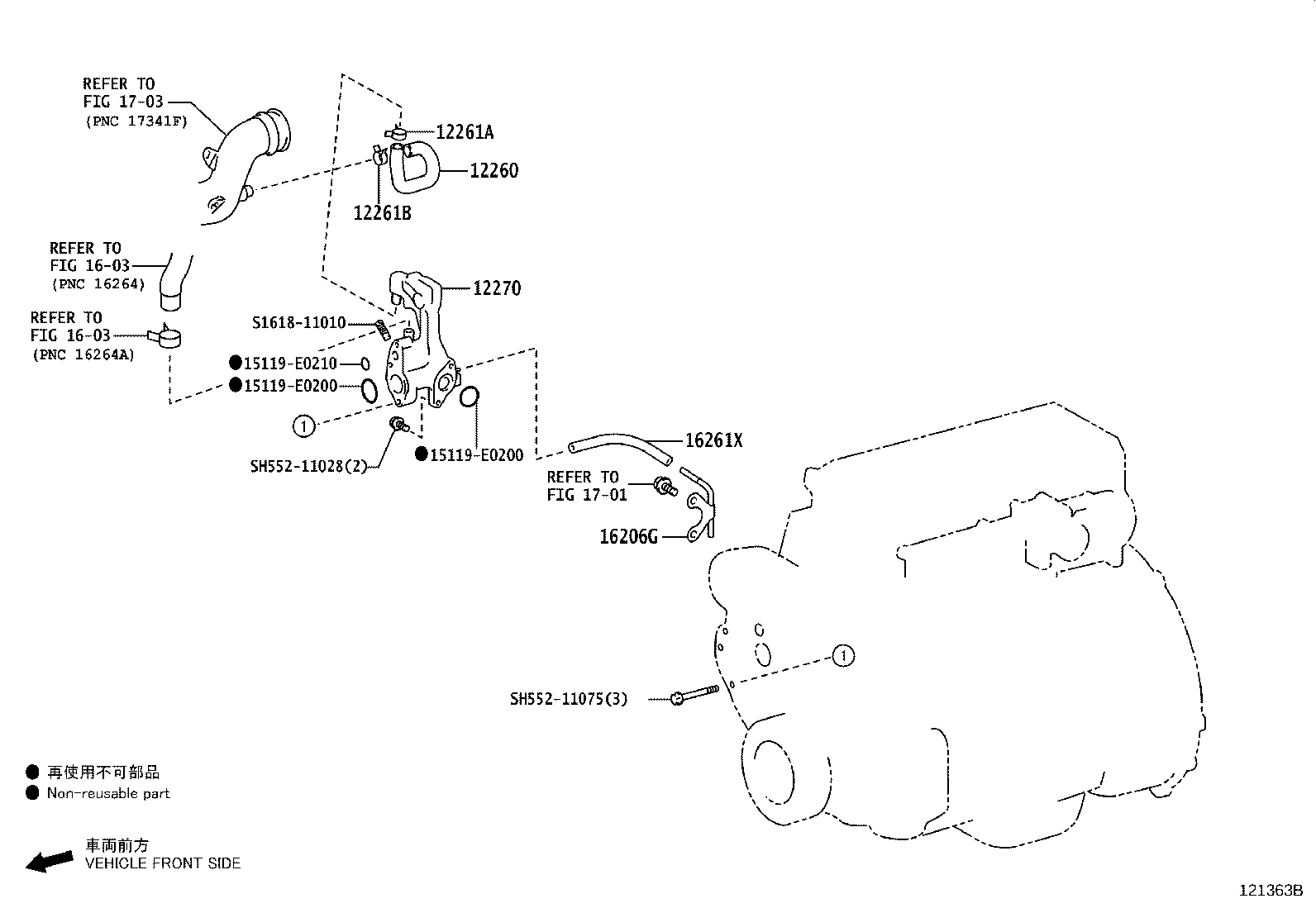

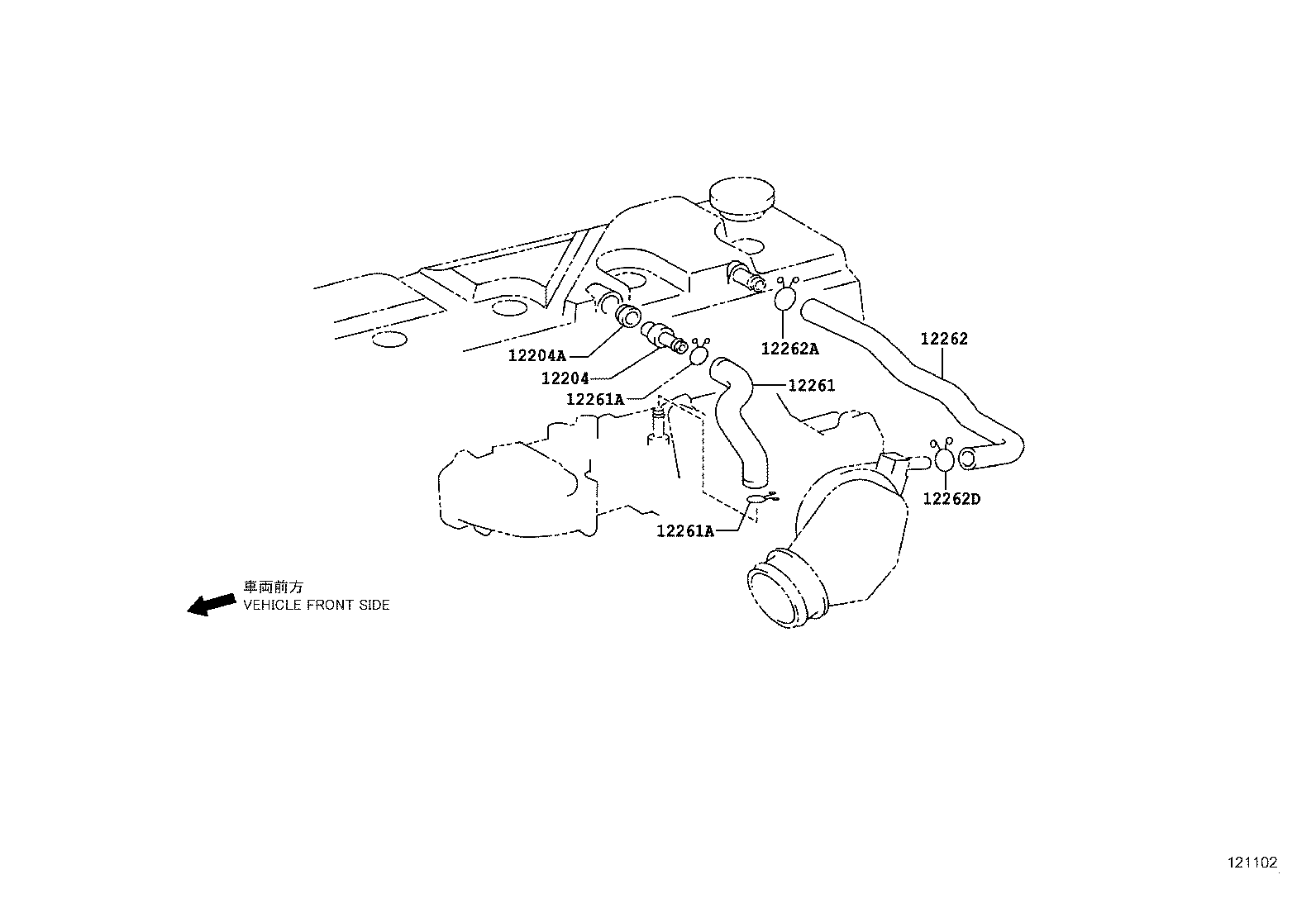

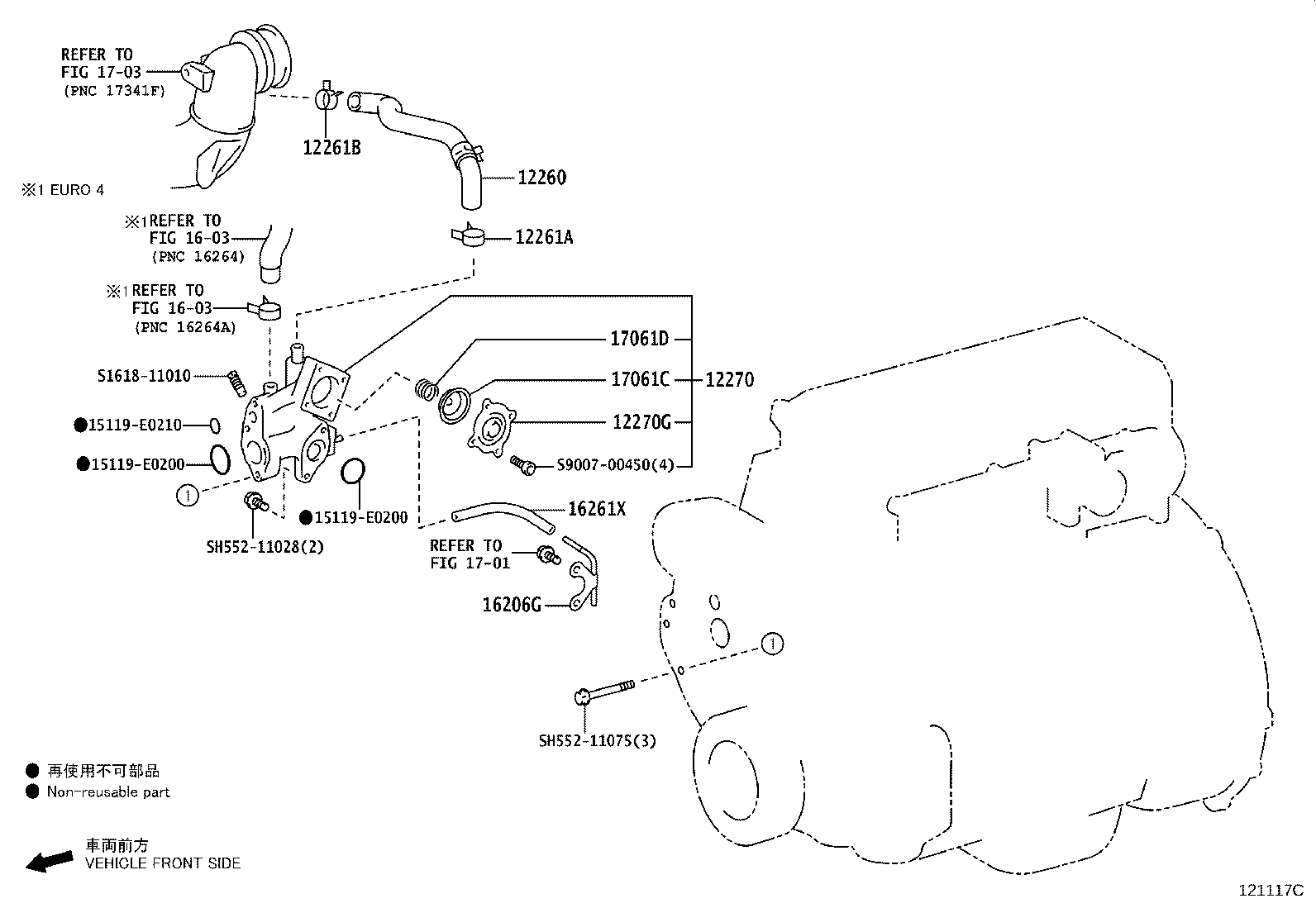

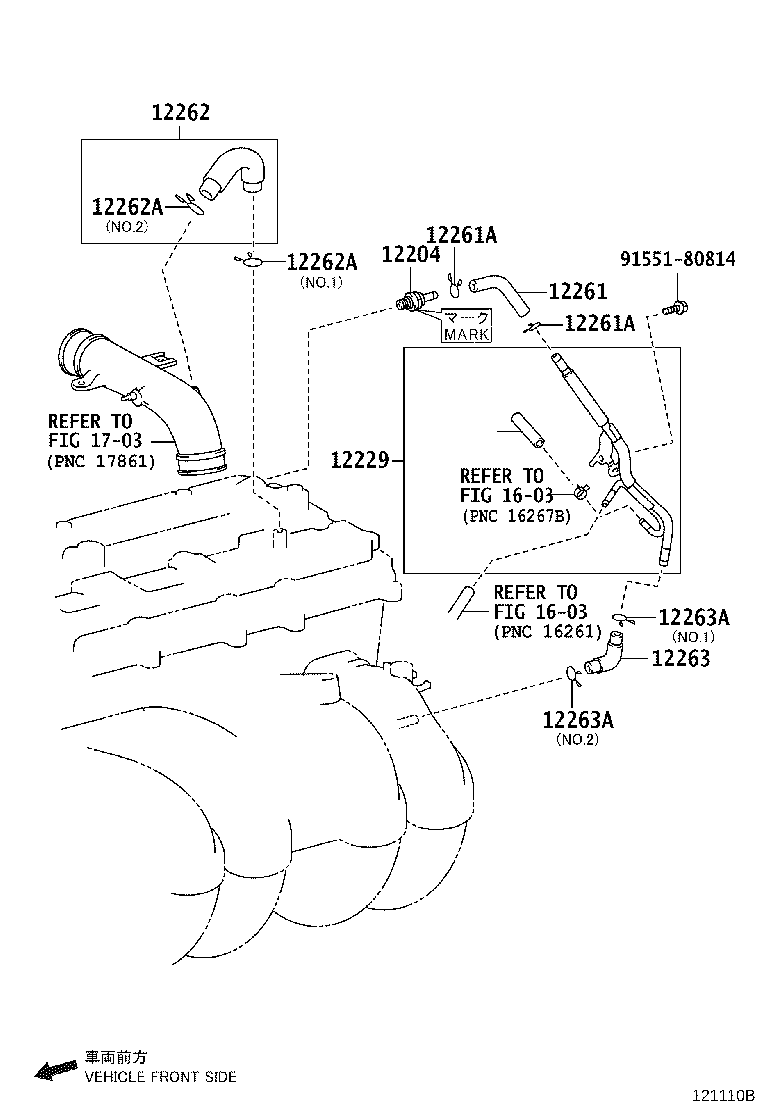

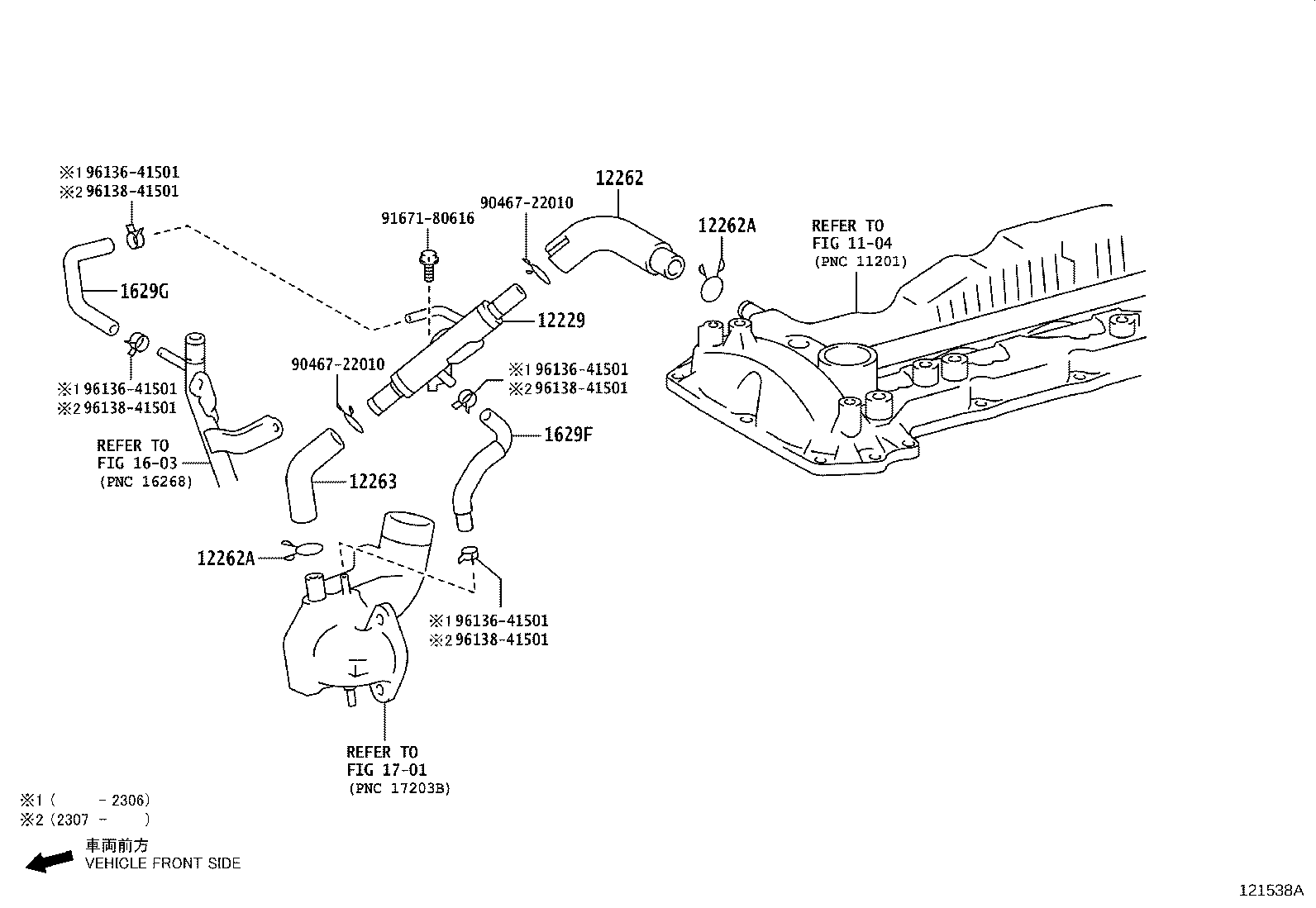

Figure 121101 121101 2017-01 → — Figure 121102 121102 2017-01 → — Figure 121538A 121538A 2022-01 → — Figure 121111 121111 2017-01 → — Figure 121110B 121110B 2017-01 → 2020-05 Figure 121534 121534 2020-05 → — Figure 121116C 121116C 2017-01 → 2019-08 Figure 121117C 121117C 2017-01 → 2019-08 Figure 121363B 121363B 2019-08 → — Figure 121362A 121362A 2019-08 → — Figure 121461 121461 2021-01 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12229 Pipe, Ventilation
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12270 Separator Assy, Oil
12270G Cover
16206G Pipe Sub-assy, Coolant By-pass
16261X Hose, Water
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
17061C Diaphragm Sub-assy
17061D Spring L
21612B Gasket
21641C Gasket
21652A Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
