Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

15 part groups · 8 illustrations

Illustrations

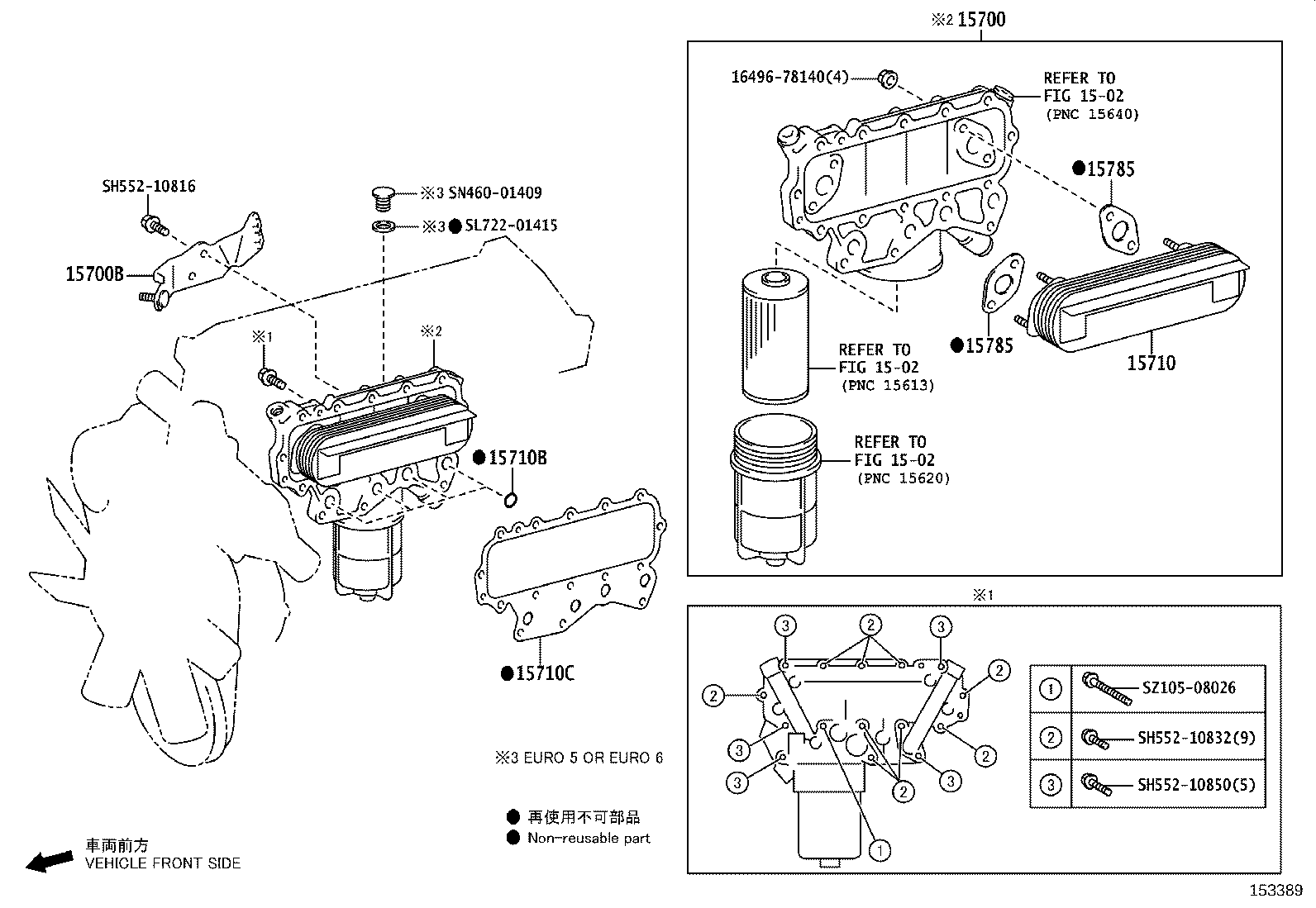

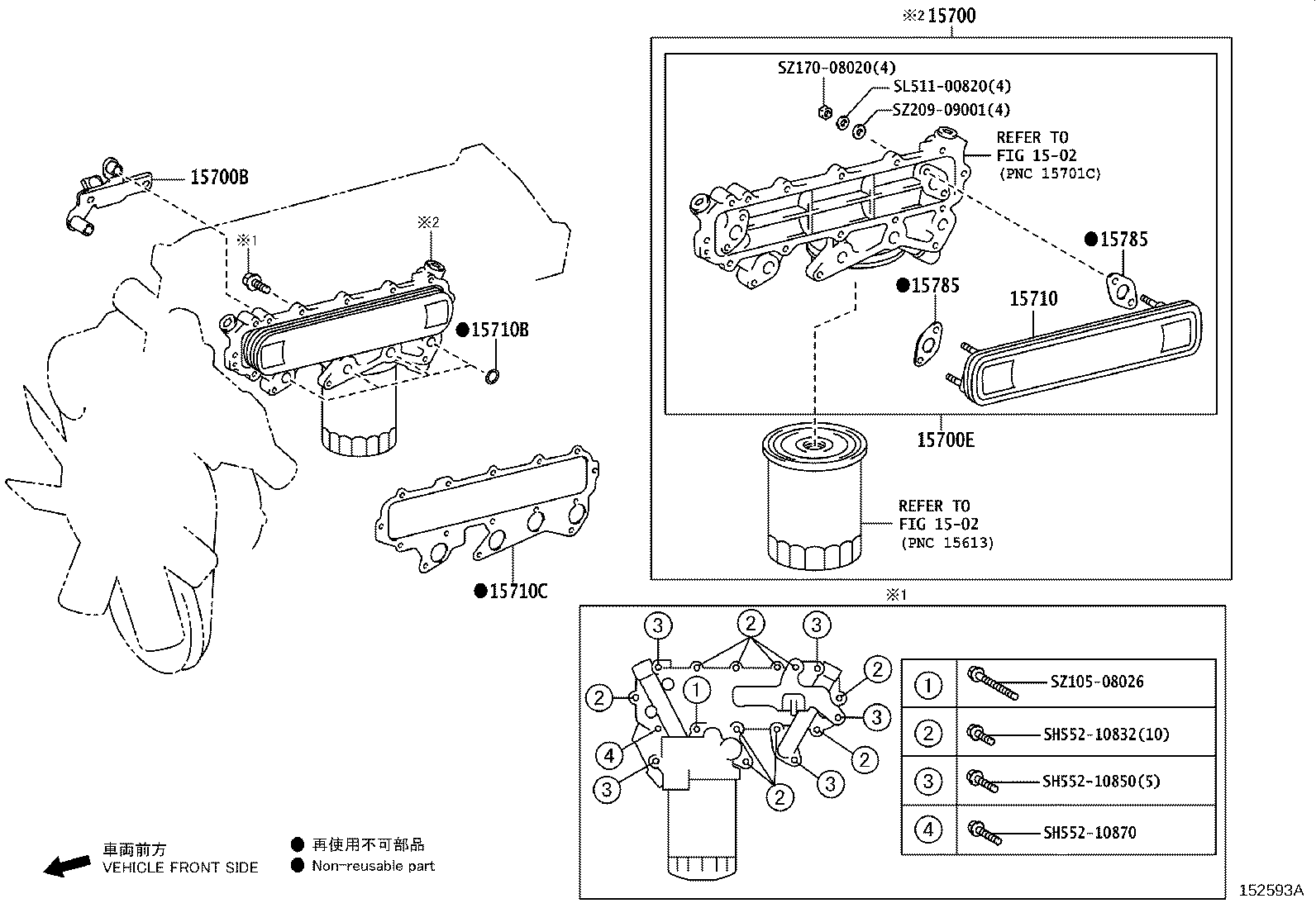

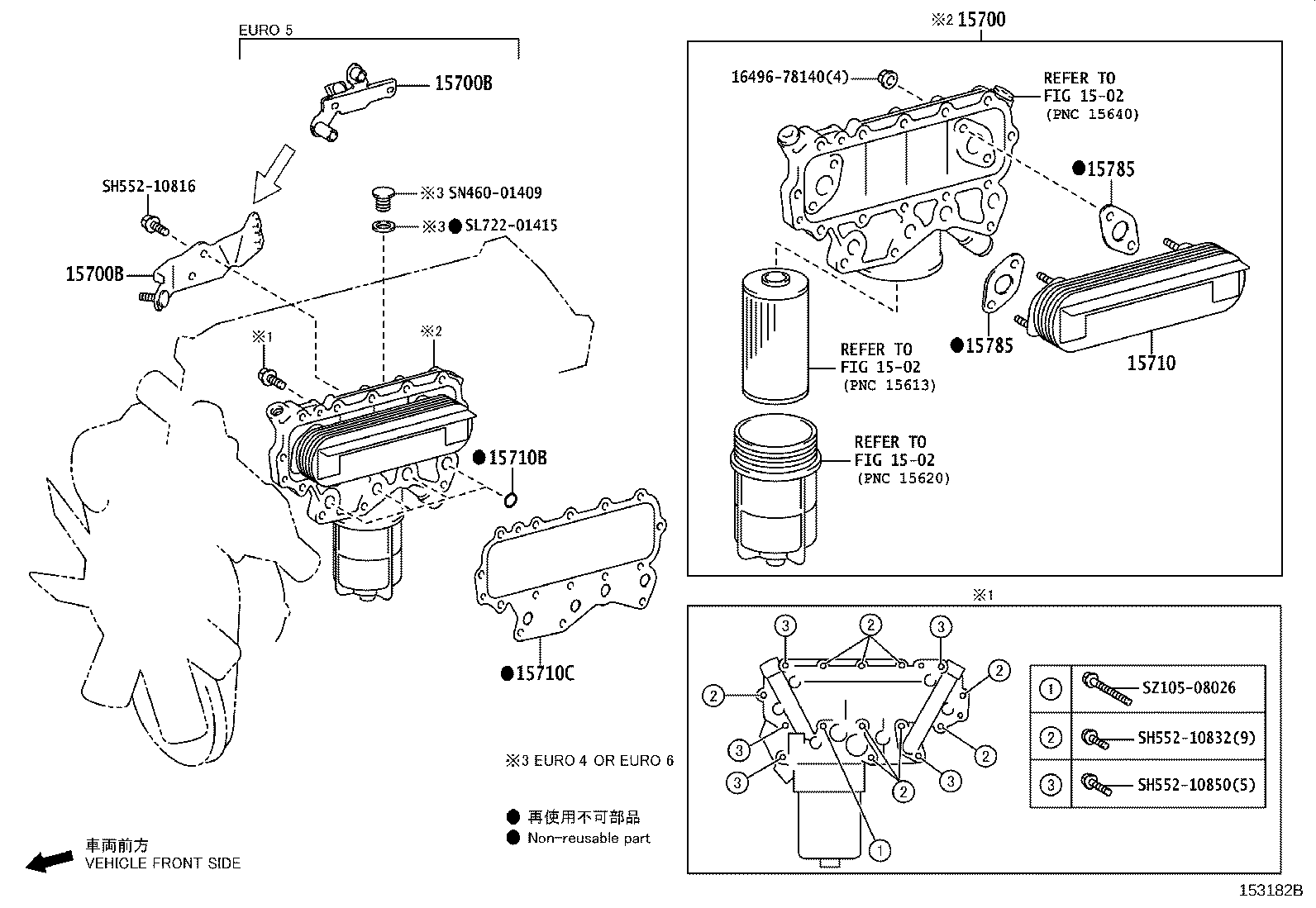

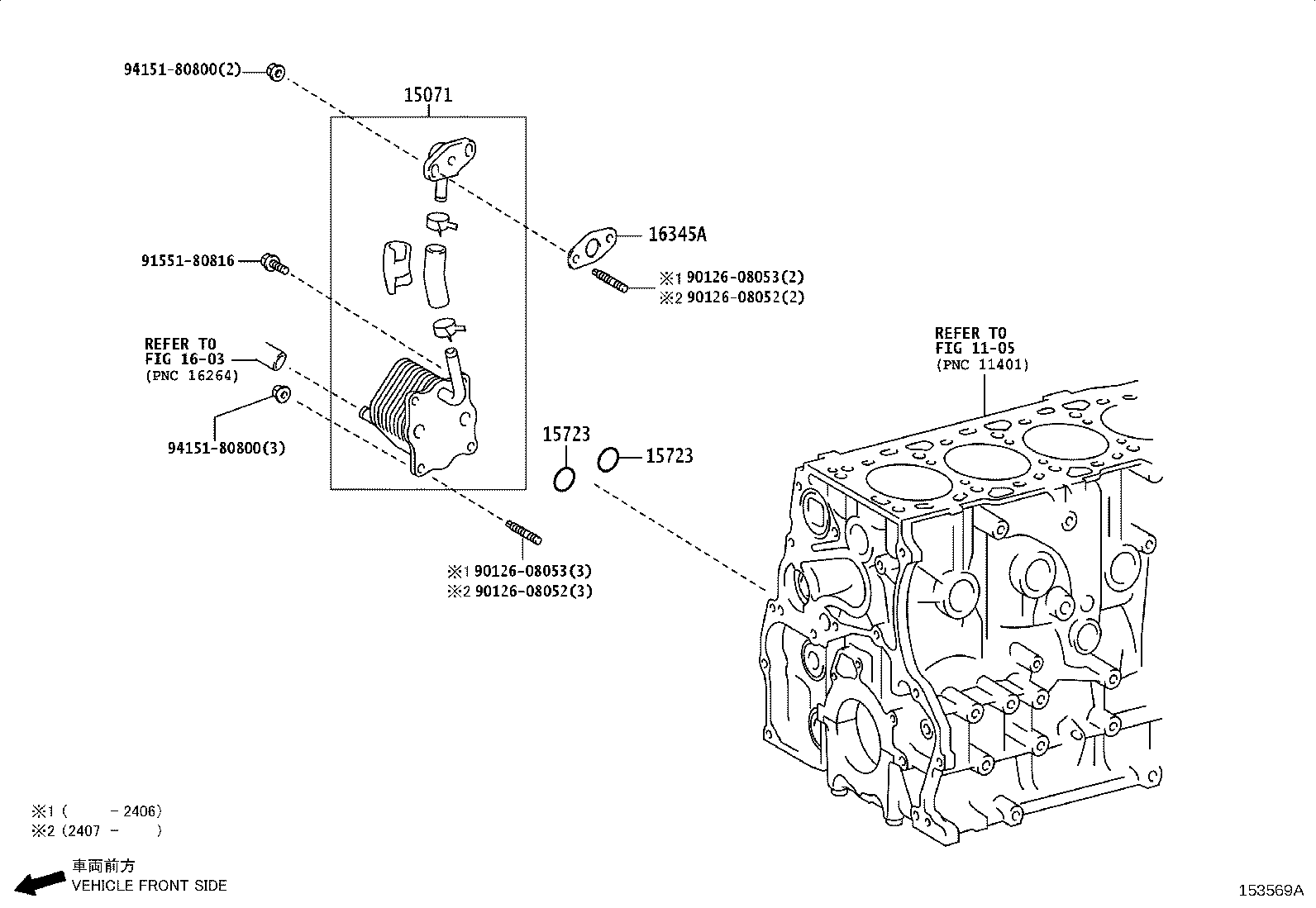

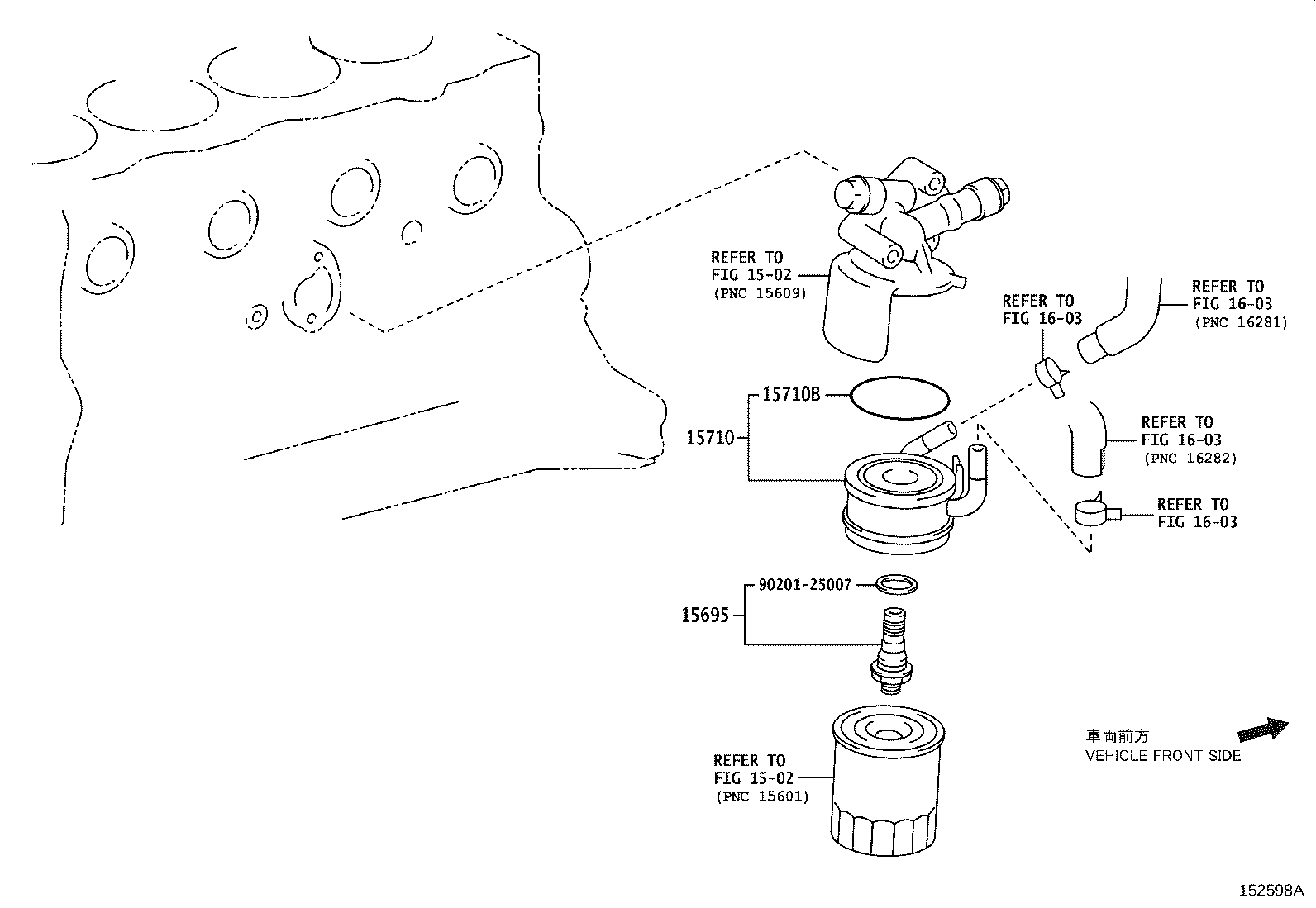

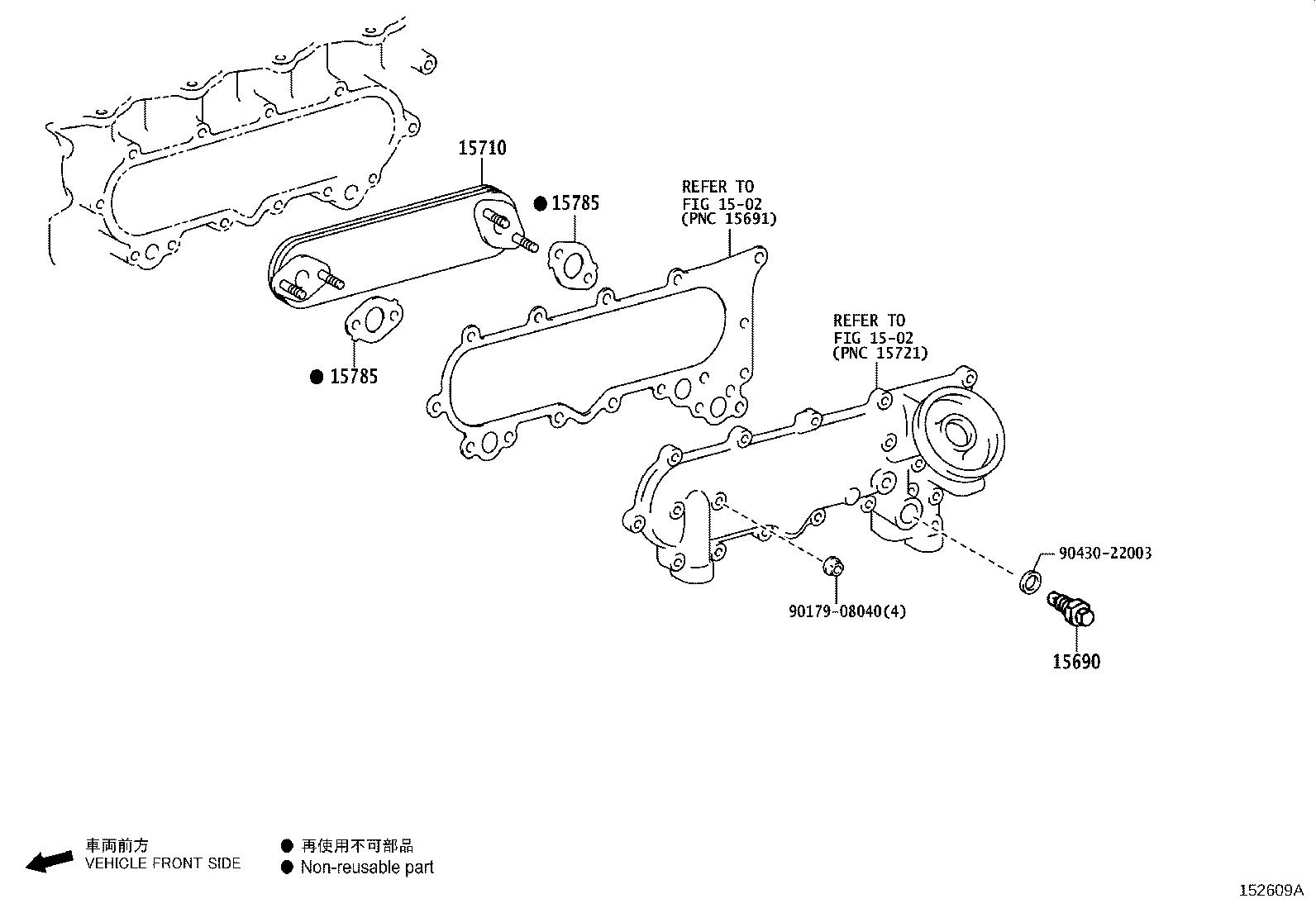

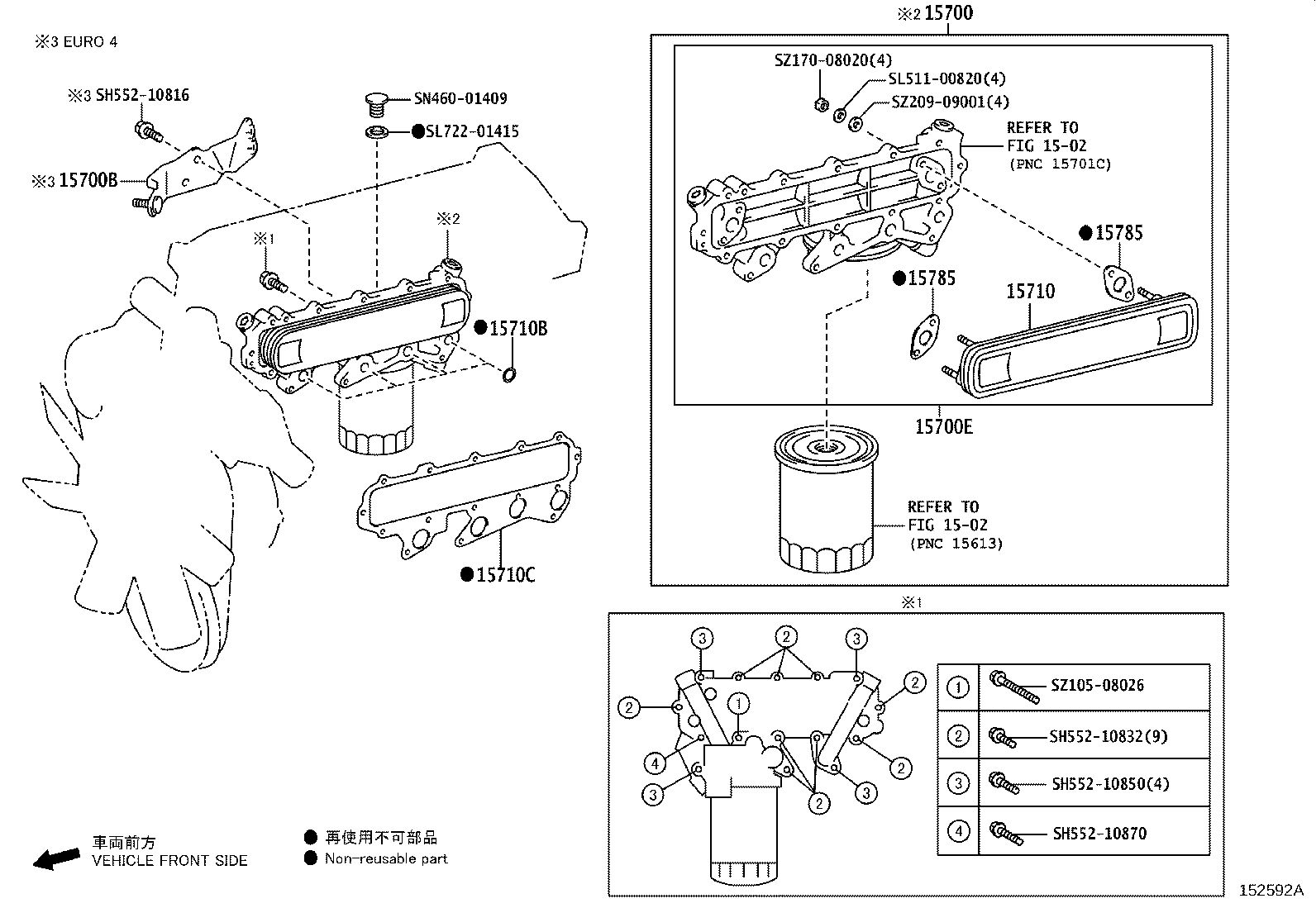

Figure 152585A 152585A 2017-01 → — Figure 153569A 153569A 2022-01 → — Figure 152609A 152609A 2017-01 → — Figure 152598A 152598A 2017-01 → — Figure 152592A 152592A 2017-01 → 2019-08 Figure 152593A 152593A 2017-01 → 2019-08 Figure 153182B 153182B 2019-08 → — Figure 153389 153389 2021-01 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15529A Plug
15690 Valve Assy, Oil Cooler Relief
15695 Bolt, Oil Cooler Union
15700 Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15700E Cooler Sub-assy, Oil, W/O Oil Filter
15701B Cover Sub-assy, Oil Cooler
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15723 Ring, O
15725 Gasket, Oil Cooler Cover
15785 Gasket, Oil Cooler
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
