Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

17 part groups · 9 illustrations

Illustrations

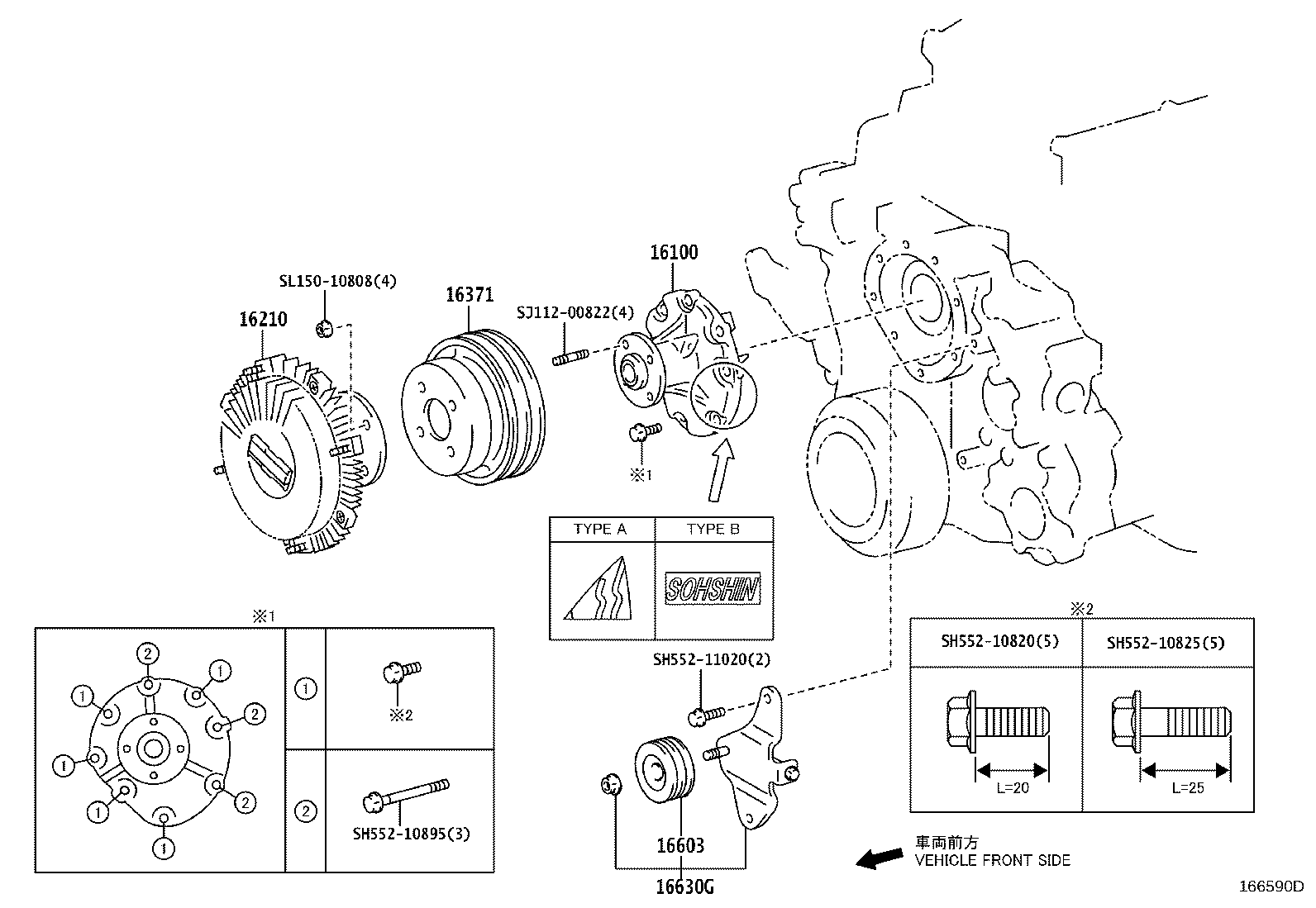

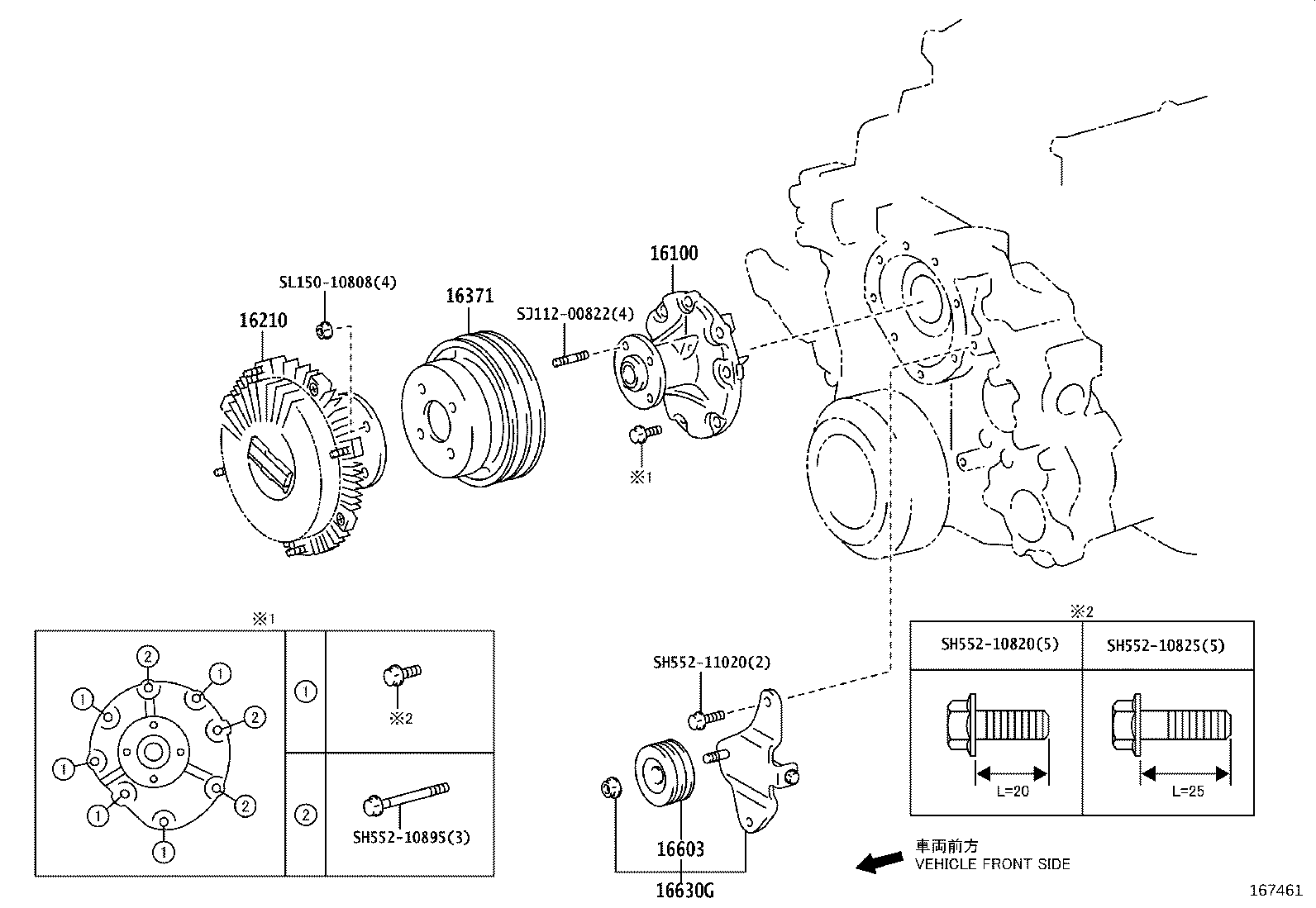

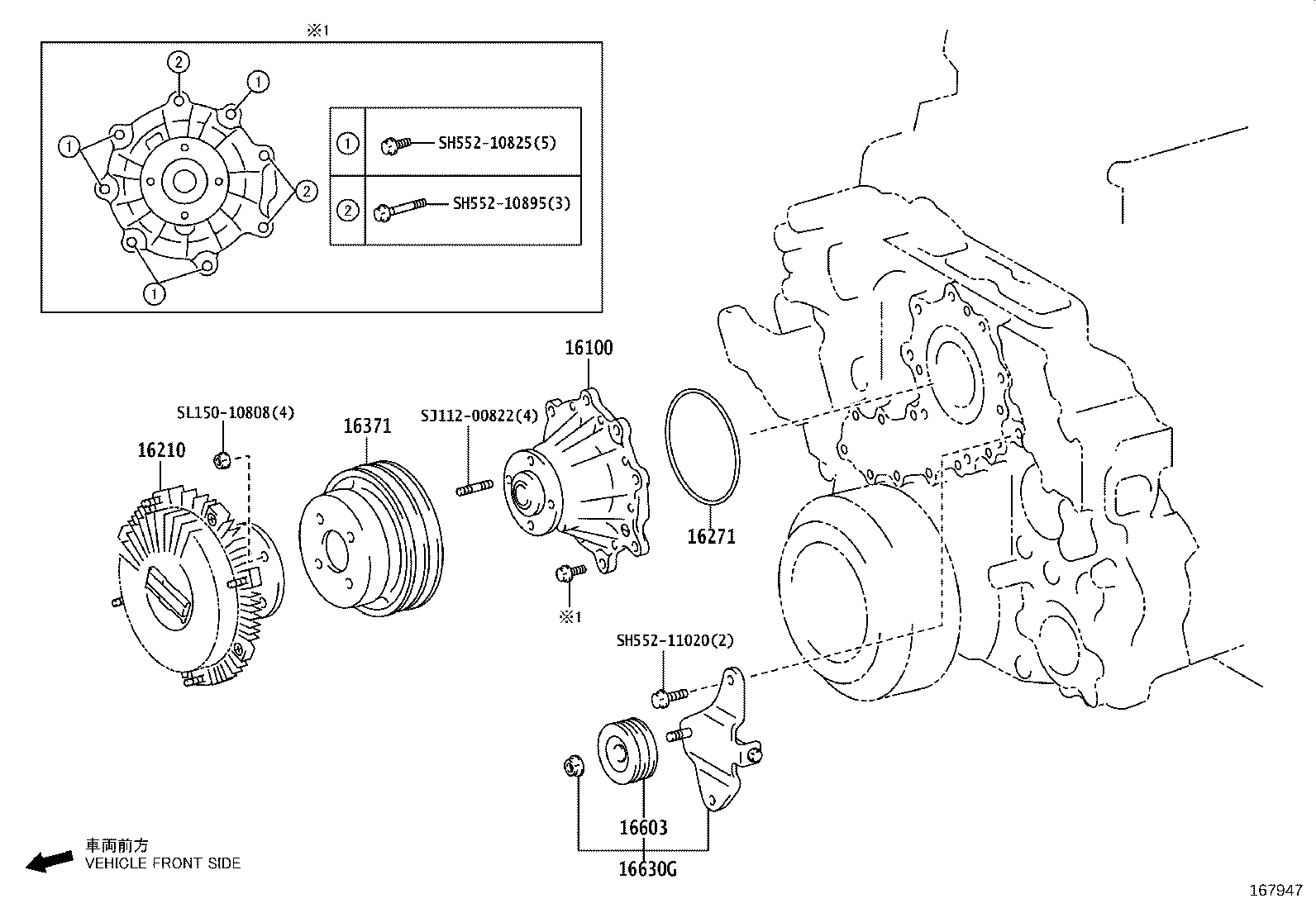

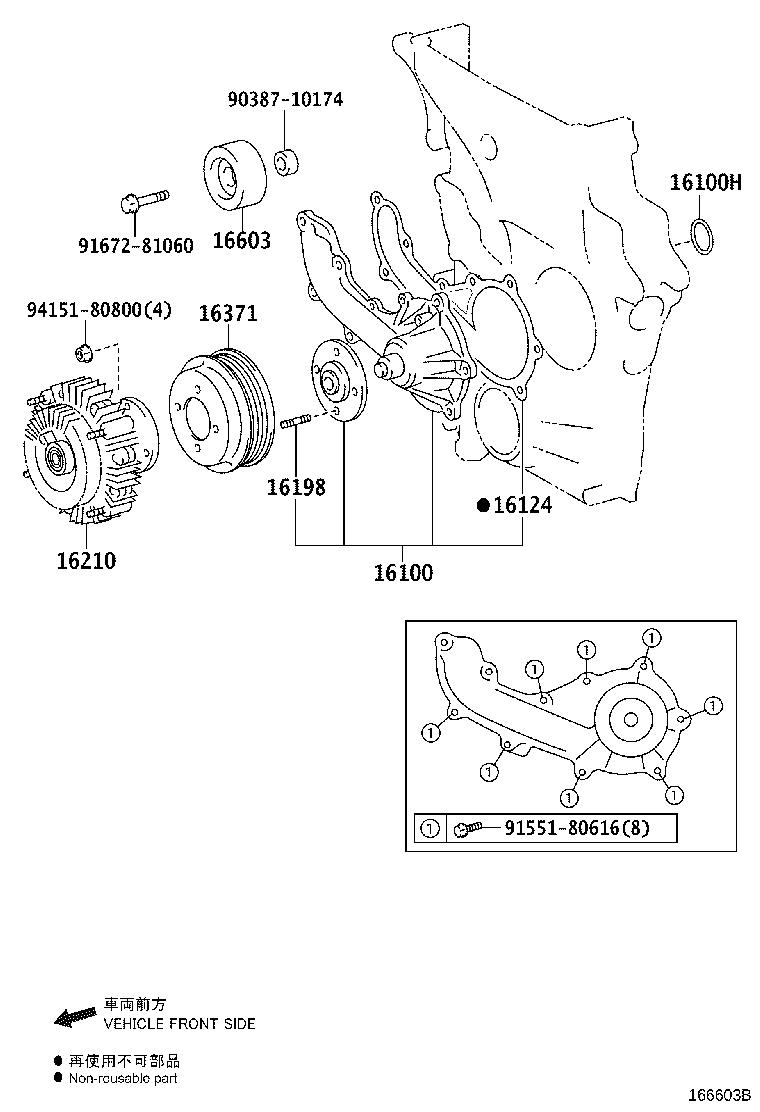

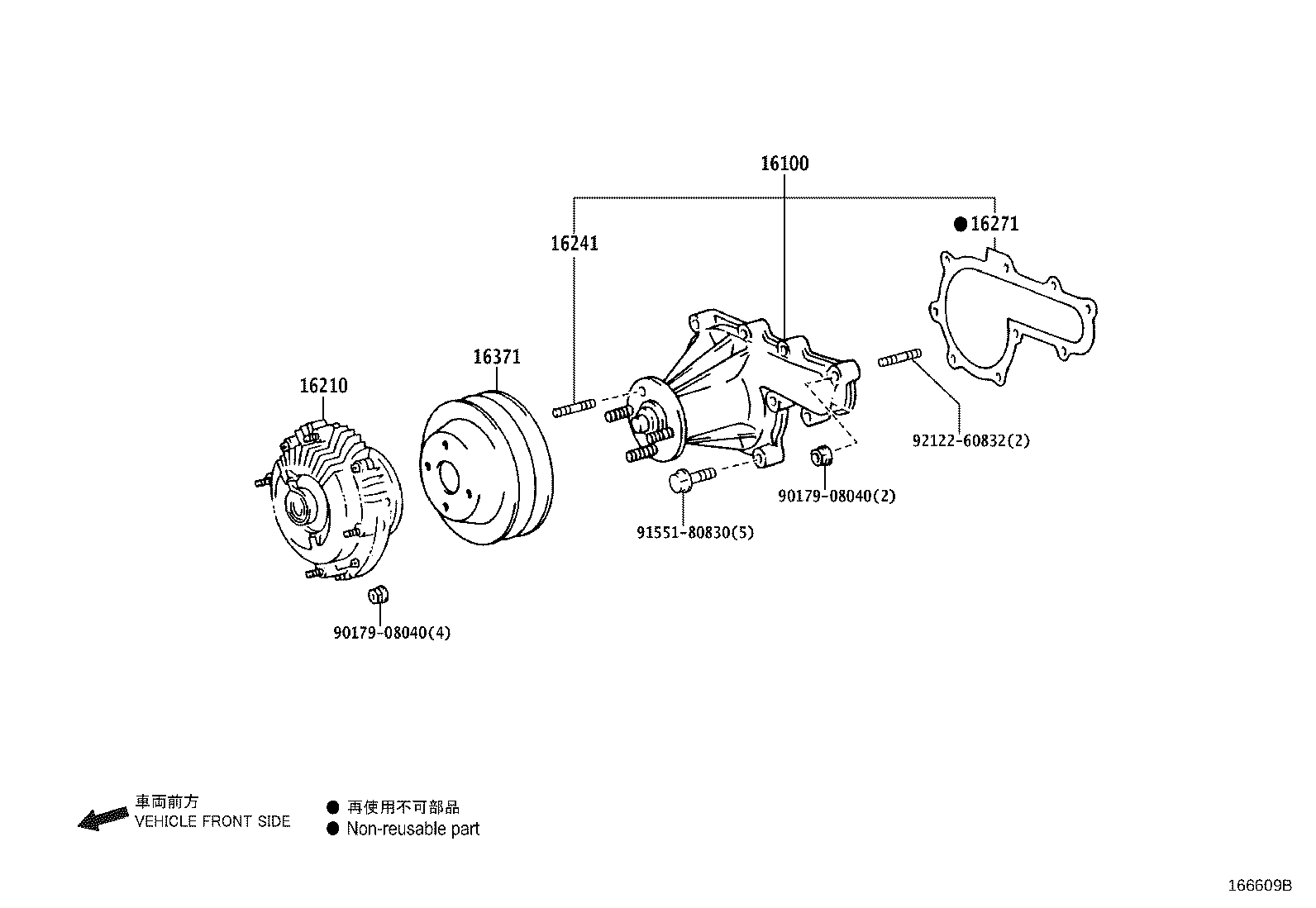

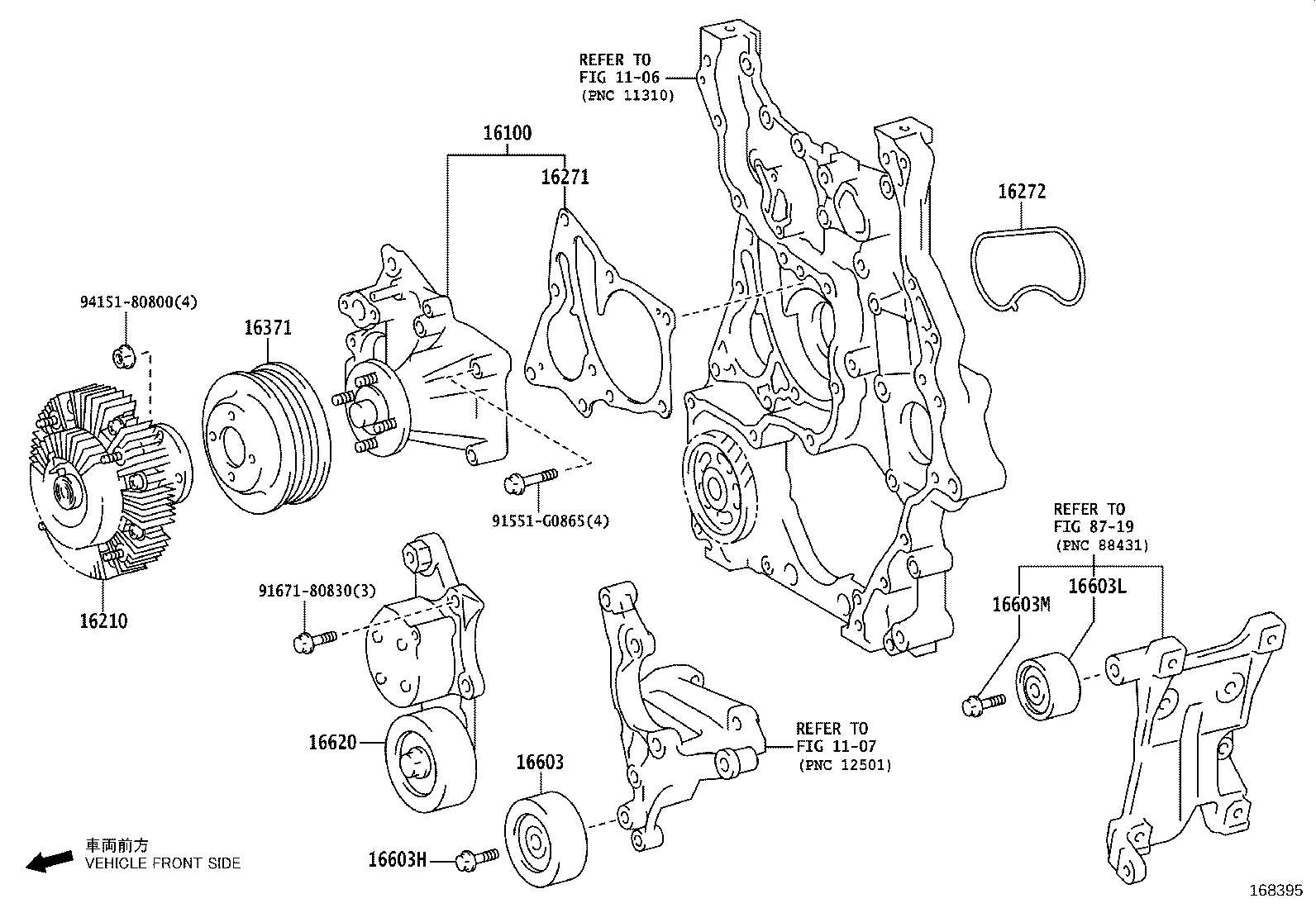

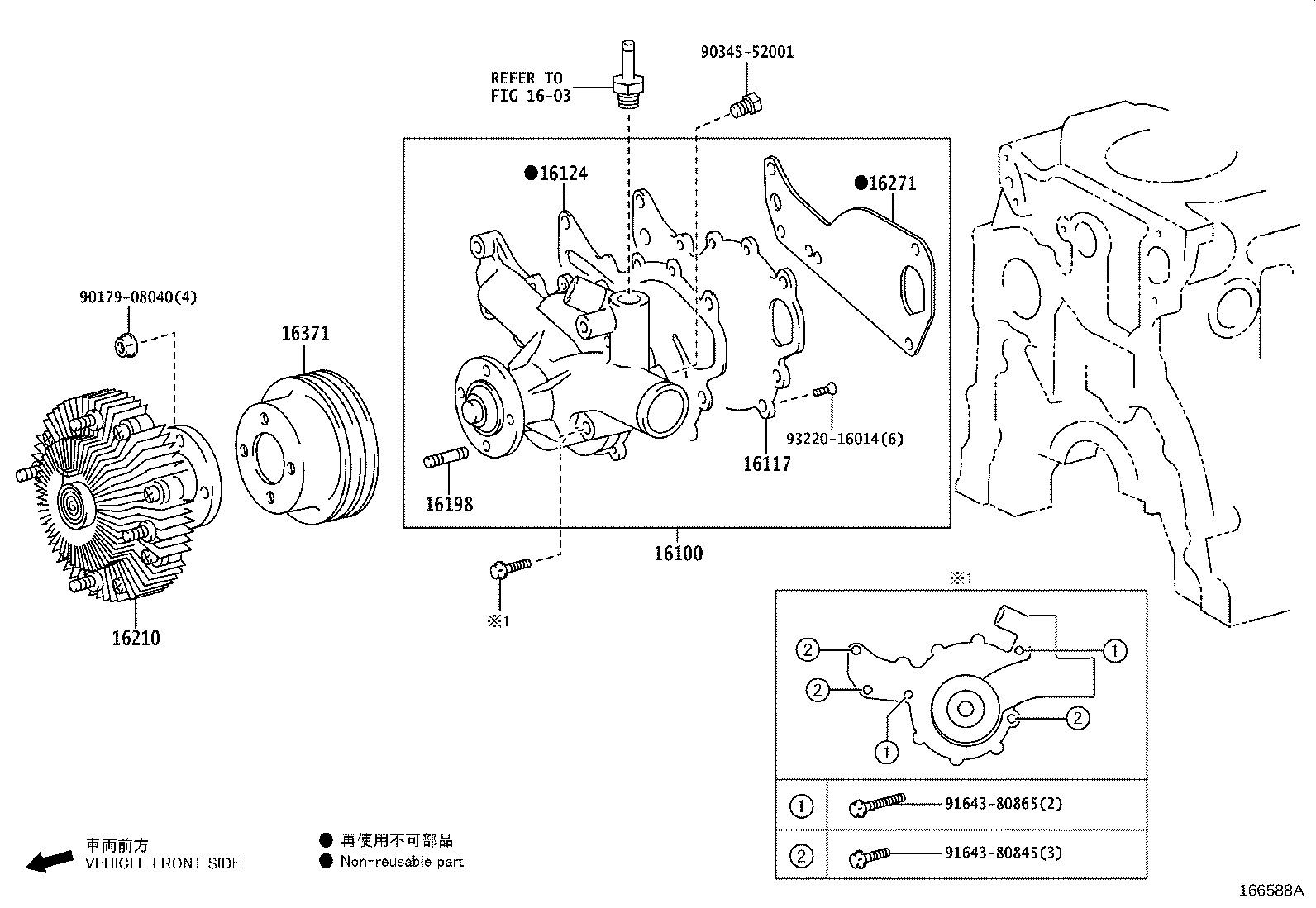

Figure 166587A 166587A 2017-01 → — Figure 166588A 166588A 2017-01 → — Figure 168395 168395 2022-01 → — Figure 166609B 166609B 2017-01 → — Figure 166603B 166603B 2017-01 → — Figure 166590D 166590D 2017-01 → 2019-08 Figure 167461 167461 2019-08 → — Figure 168390 168390 2019-08 → — Figure 167947 167947 2021-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100A Plug, Water Pump
16100H Ring, O(FOR WATER PUMP)
16117 Plate, Water Pump
16124 Gasket, Water Pump Cover
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16272 Gasket, Water Pump, NO.2
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16603H Bolt(FOR IDLER PULLEY)
16603L Pulley Sub-assy, Idler, NO.1
16603M Bolt(FOR IDLER PULLEY)
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
