Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

64 part groups · 38 illustrations

Illustrations

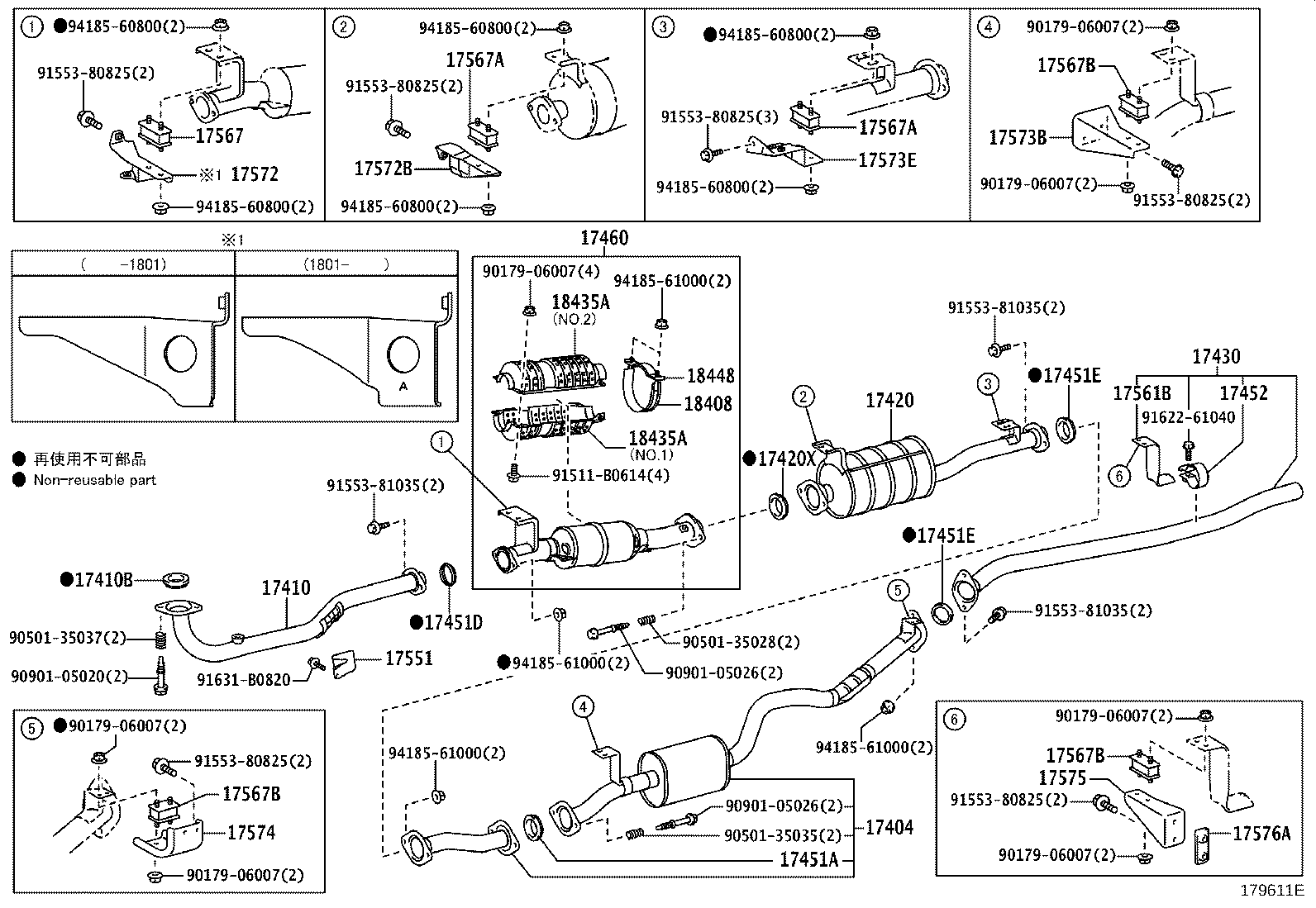

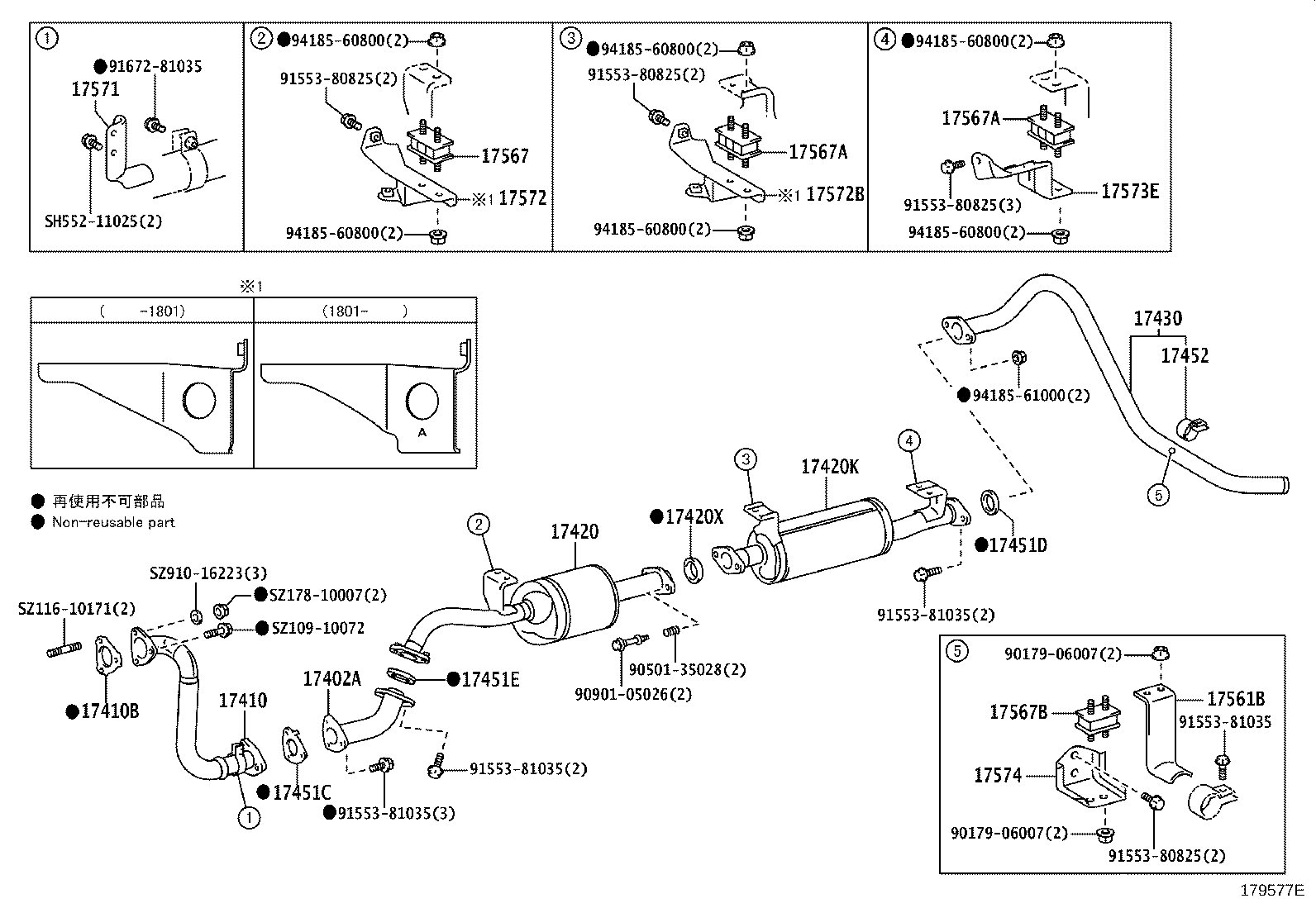

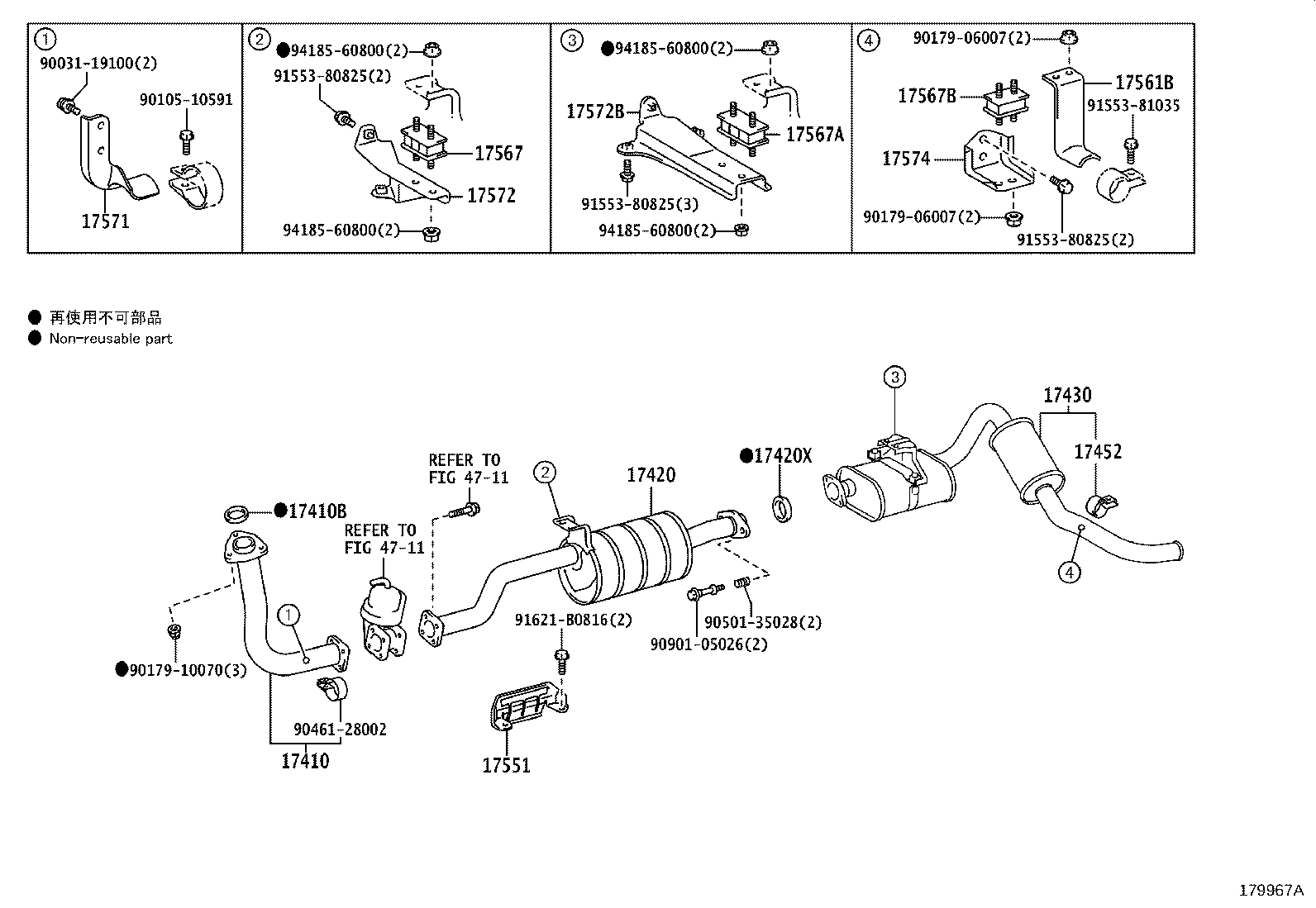

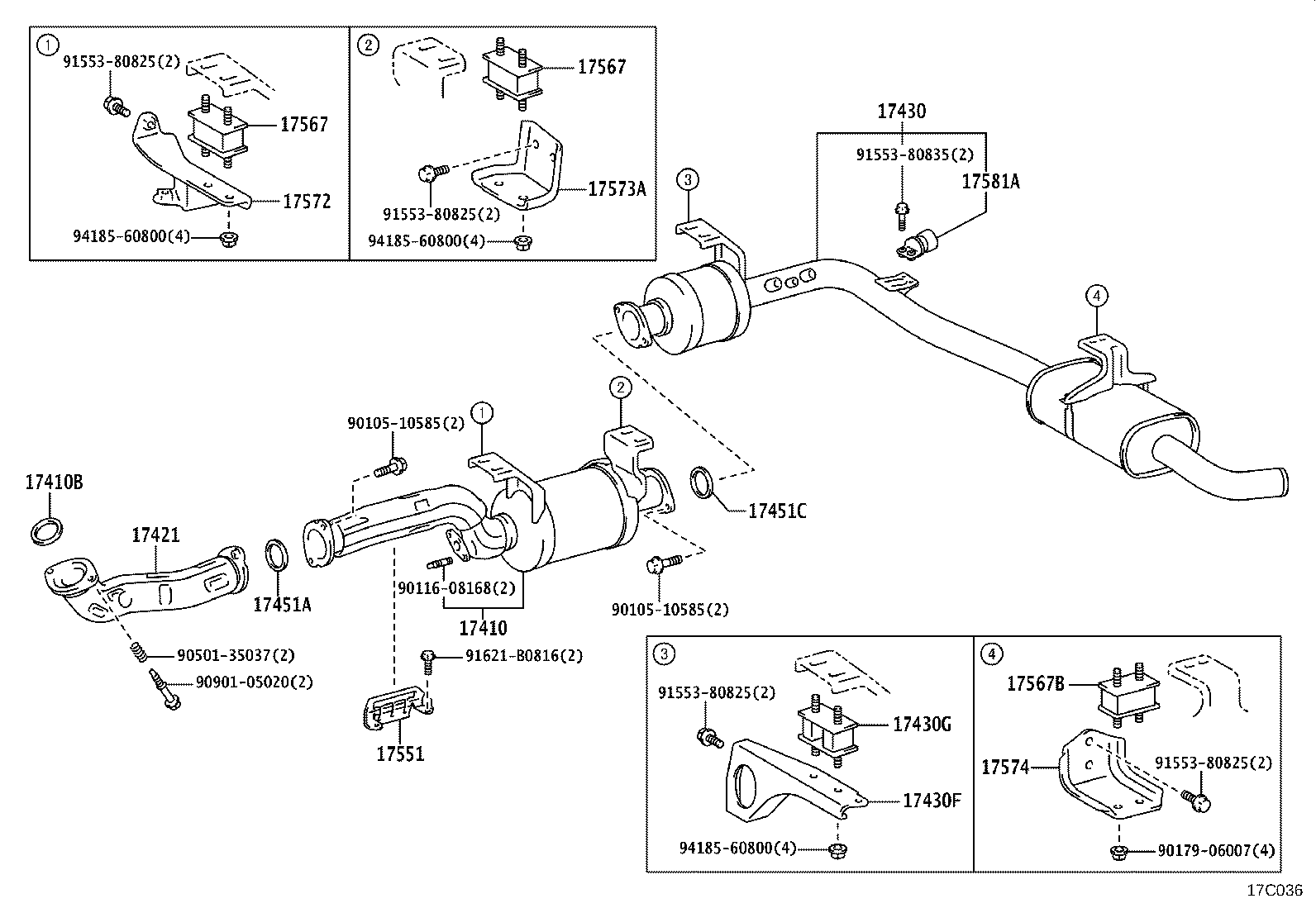

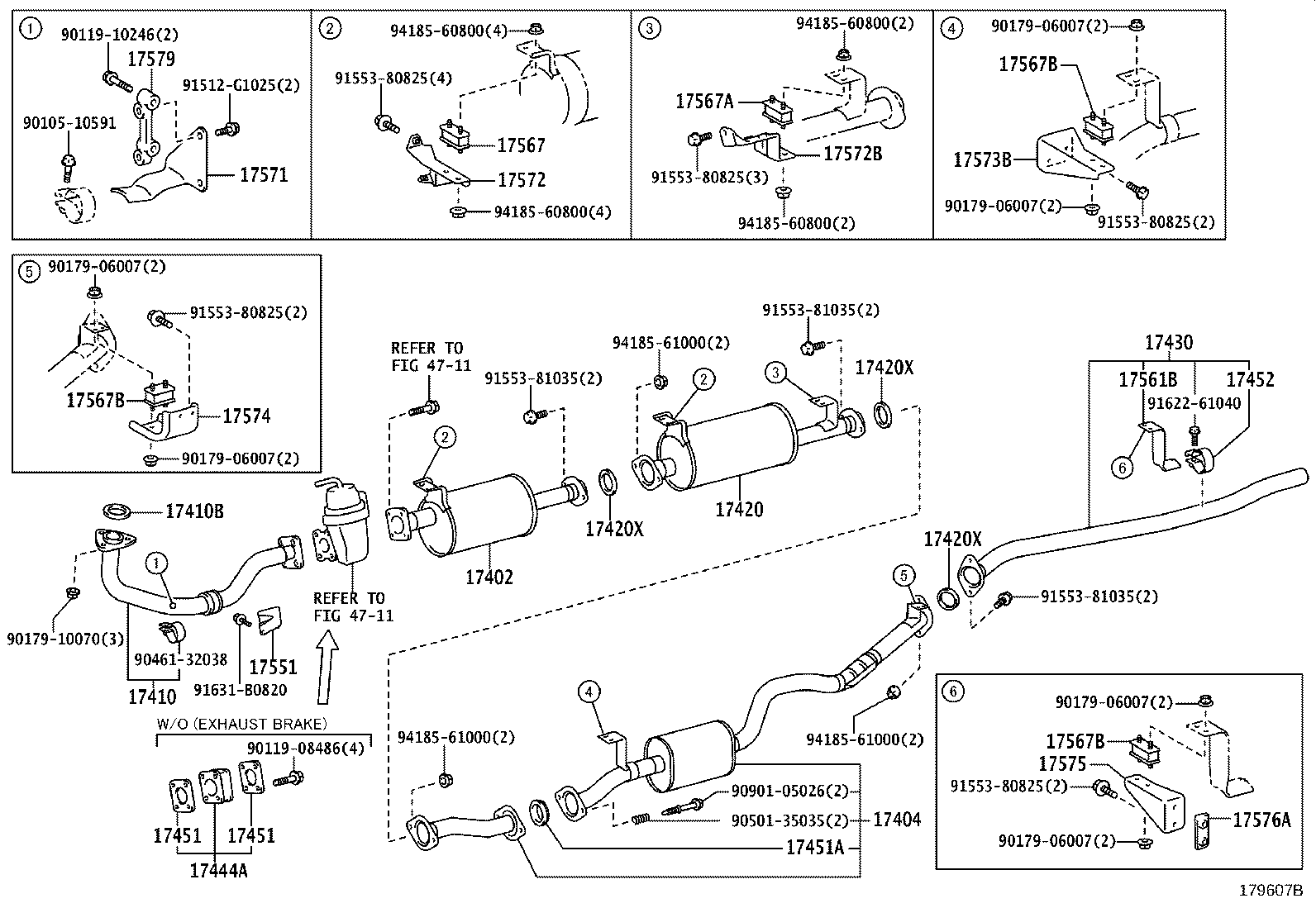

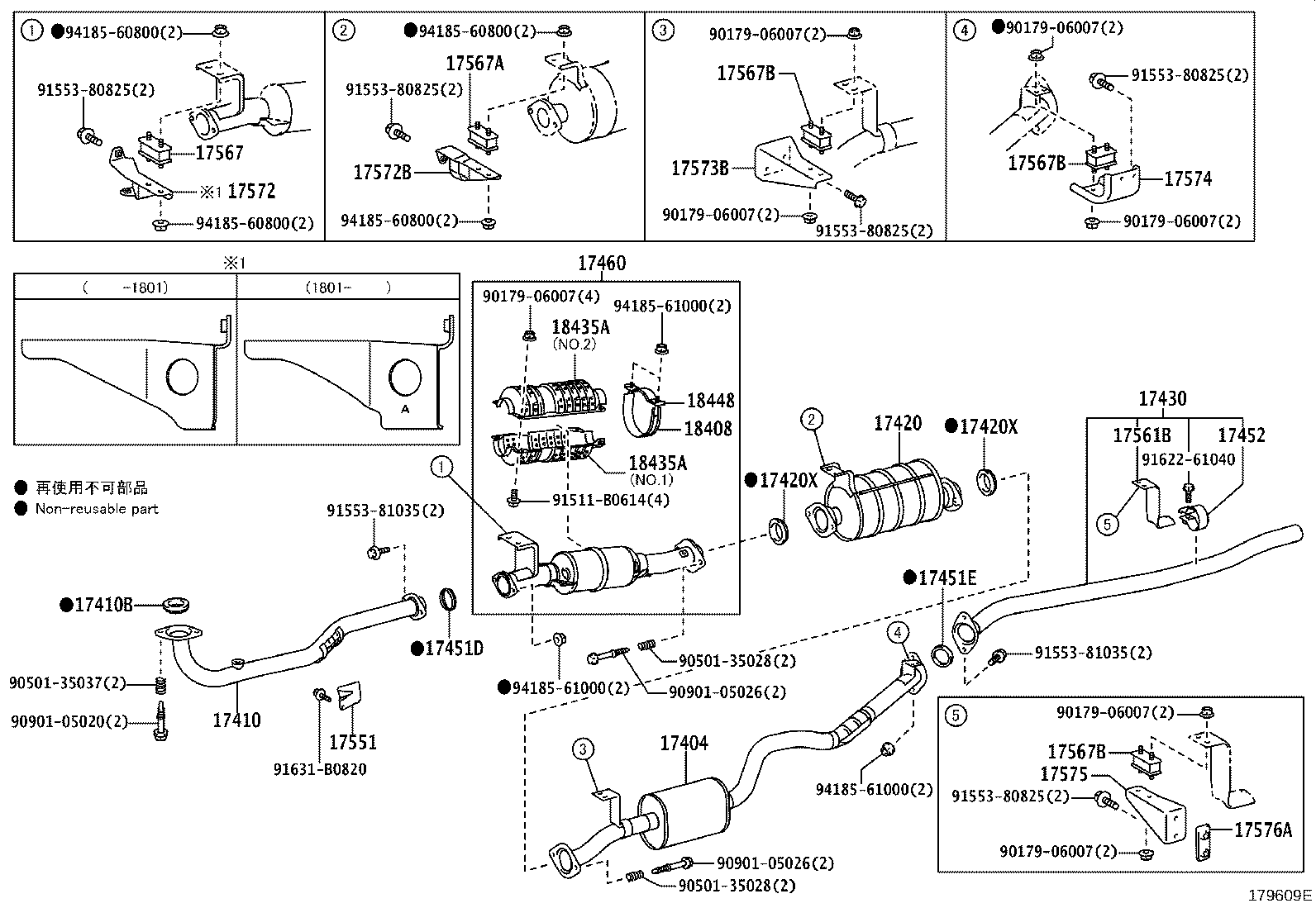

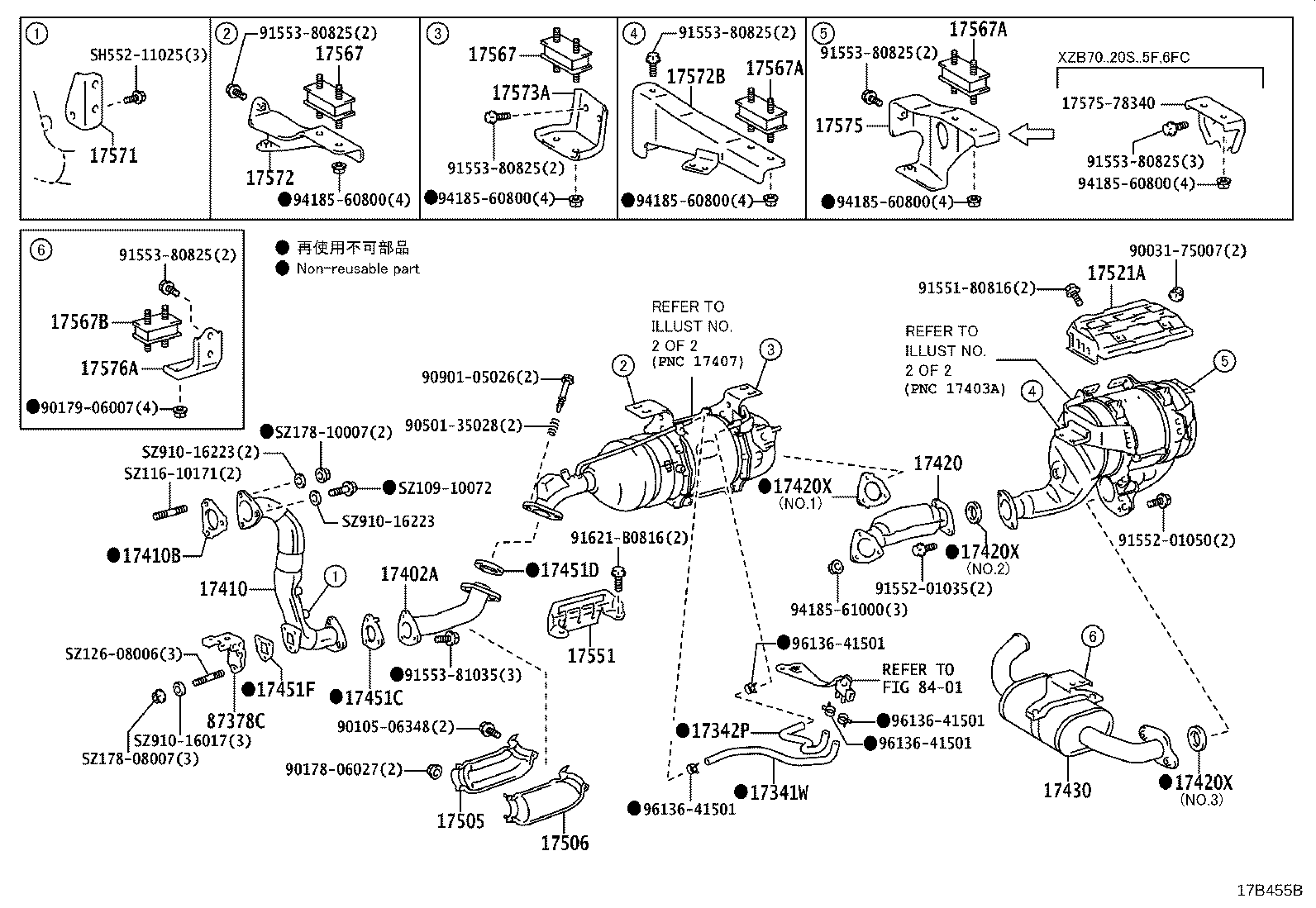

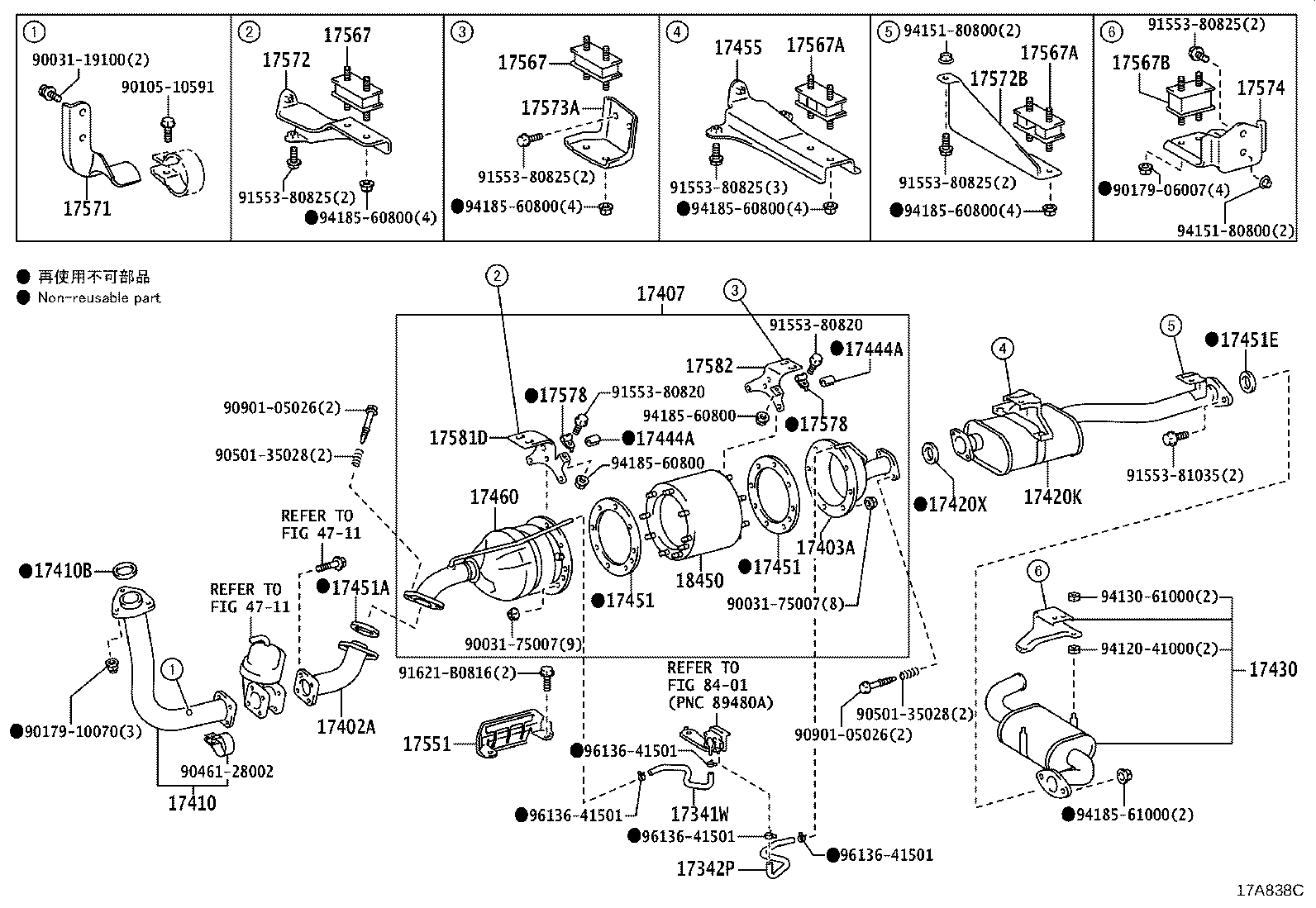

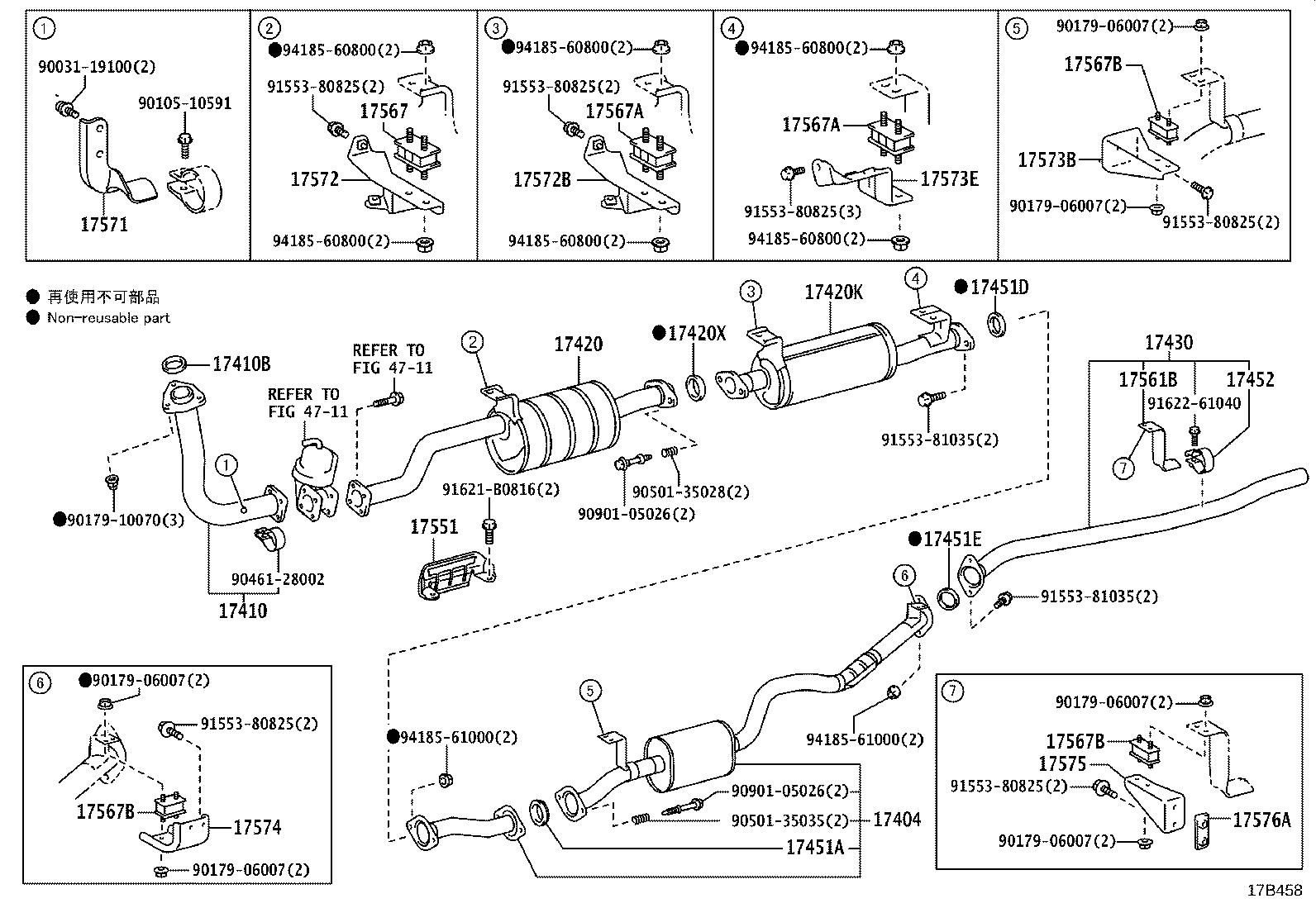

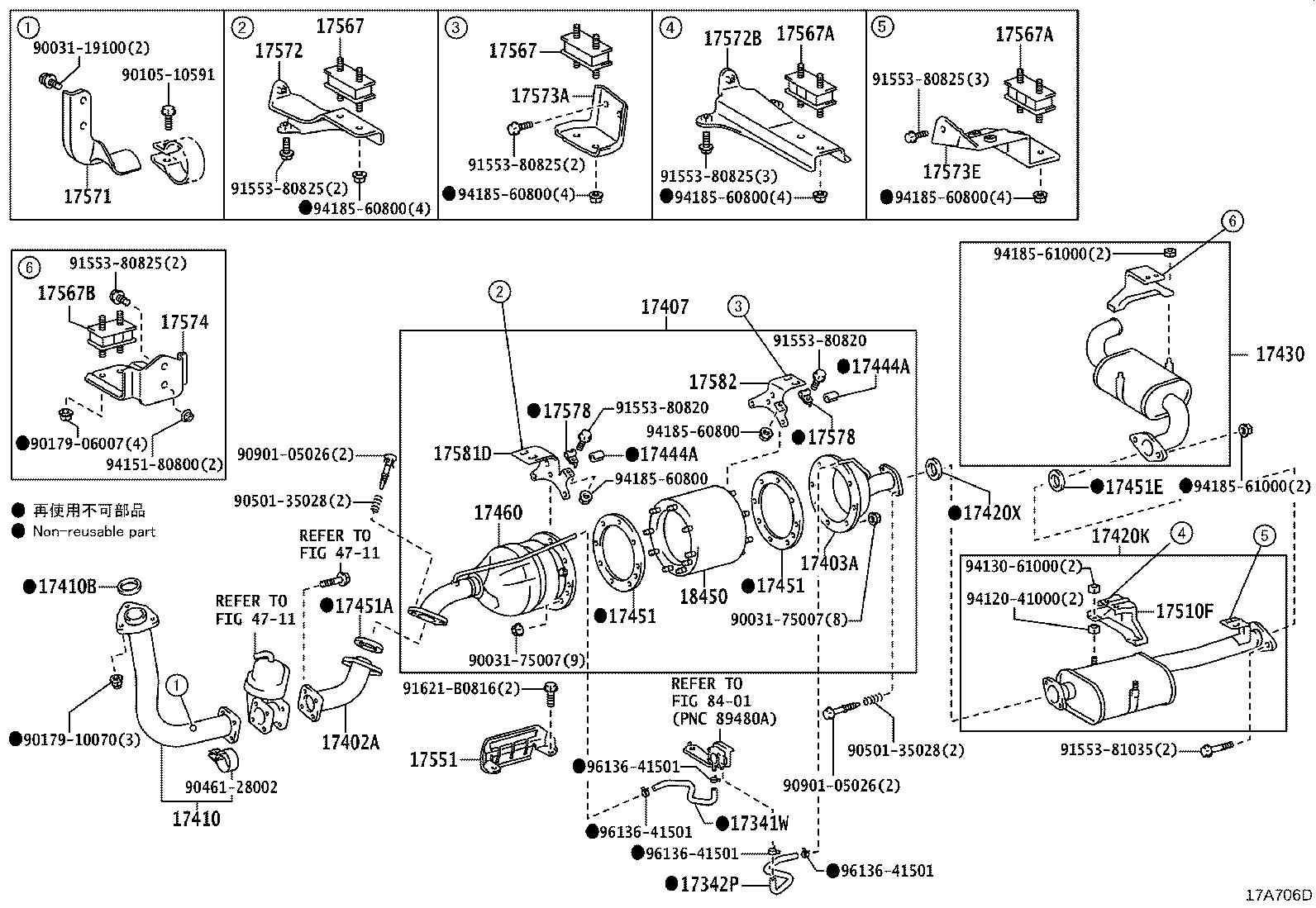

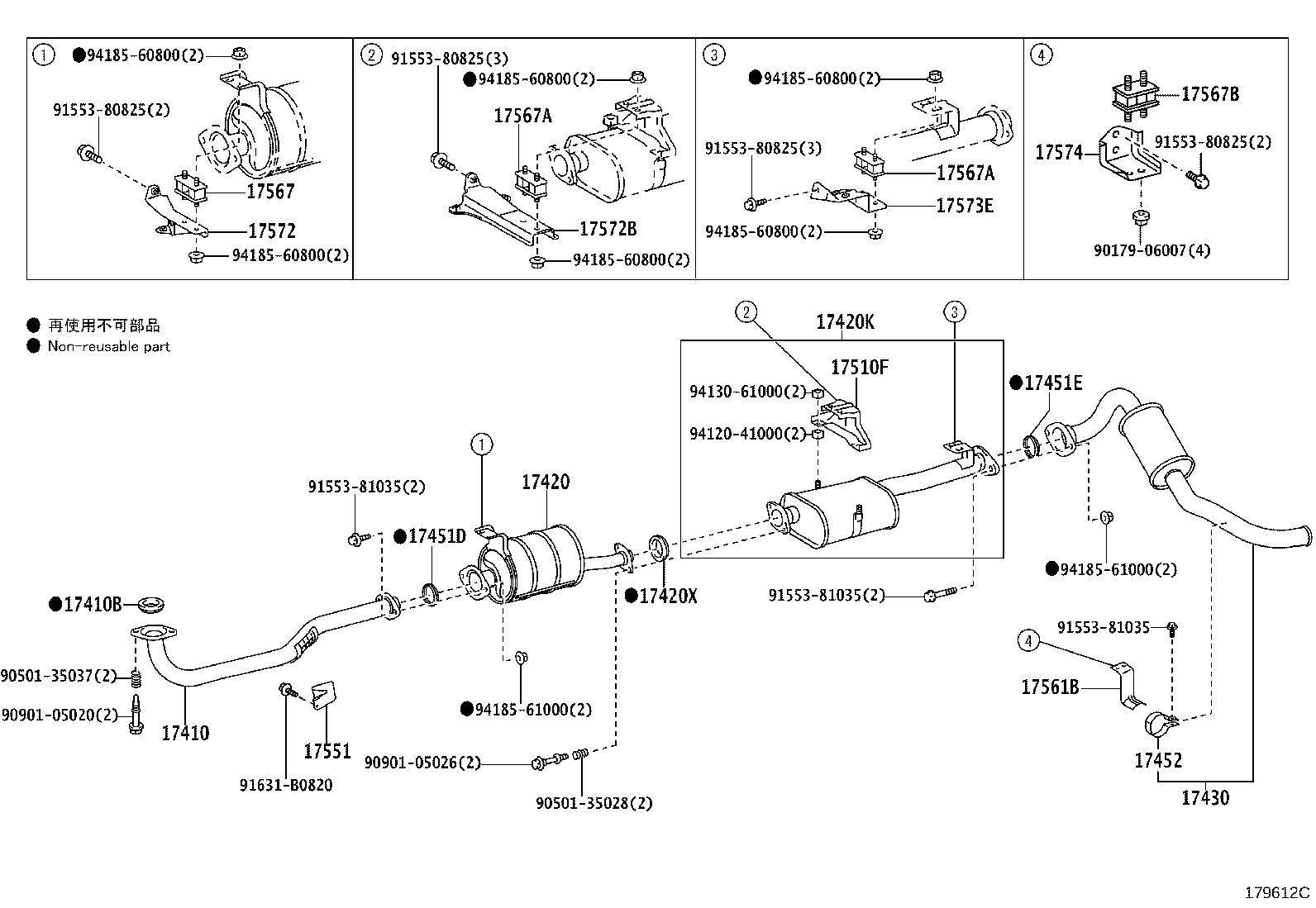

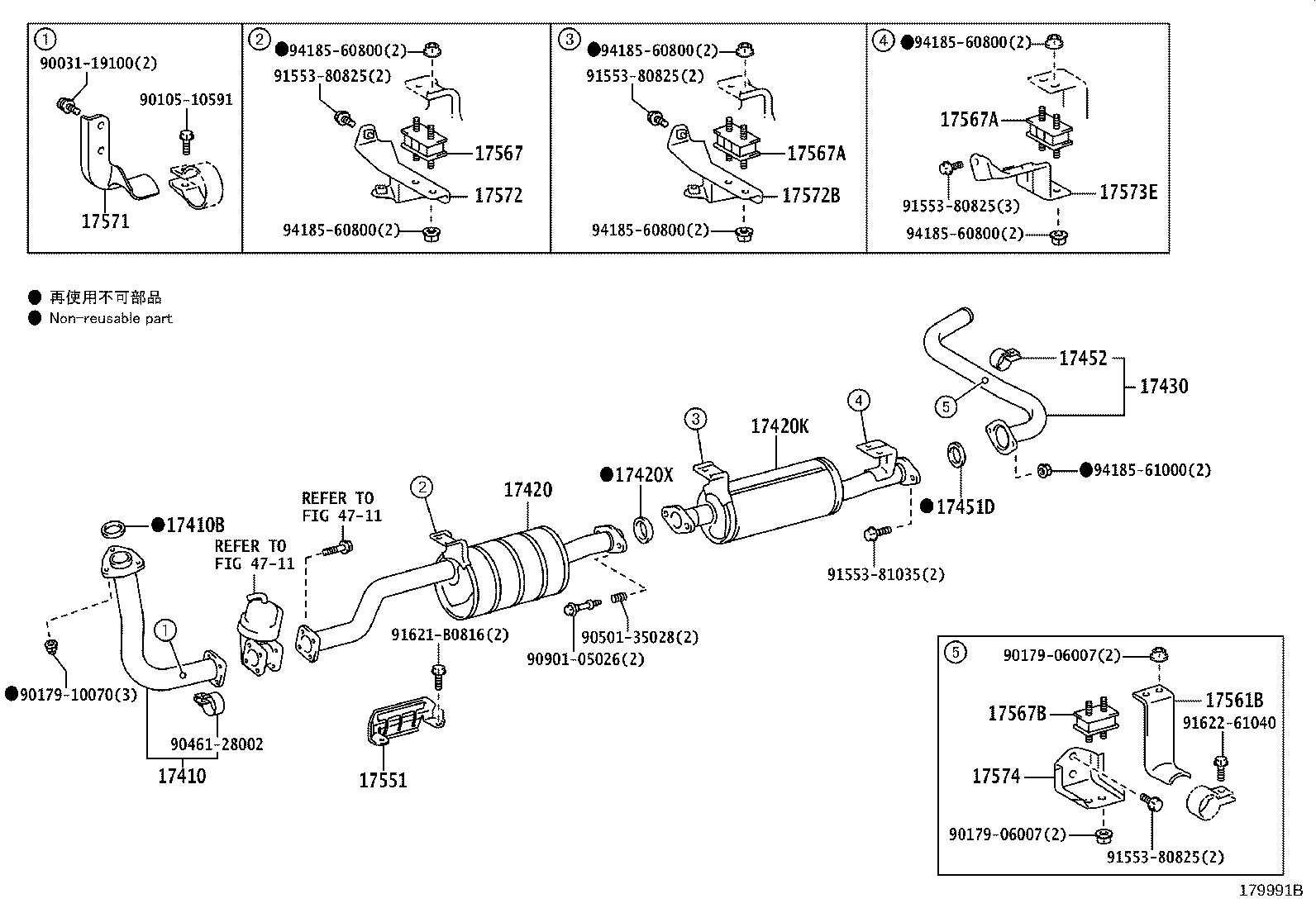

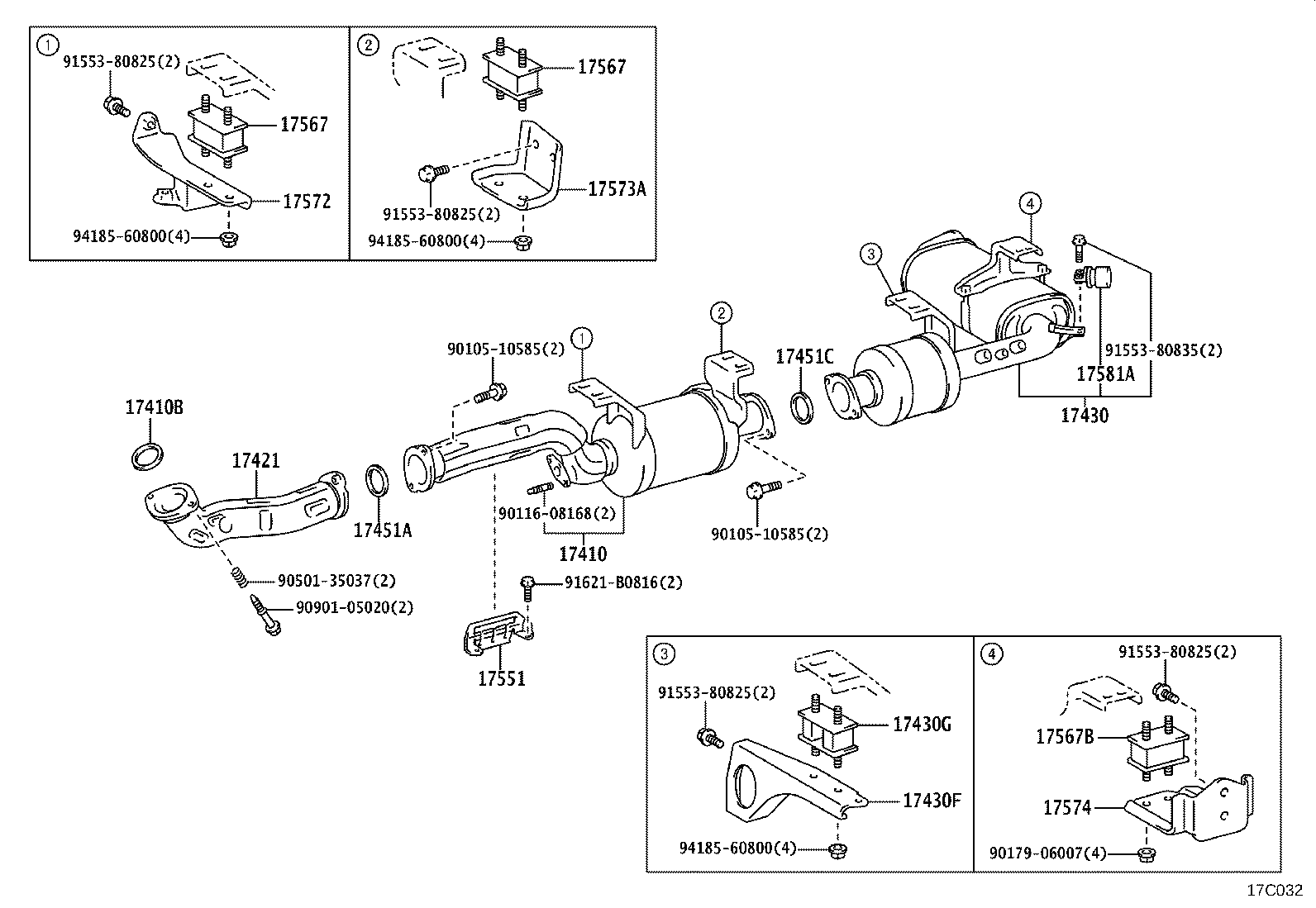

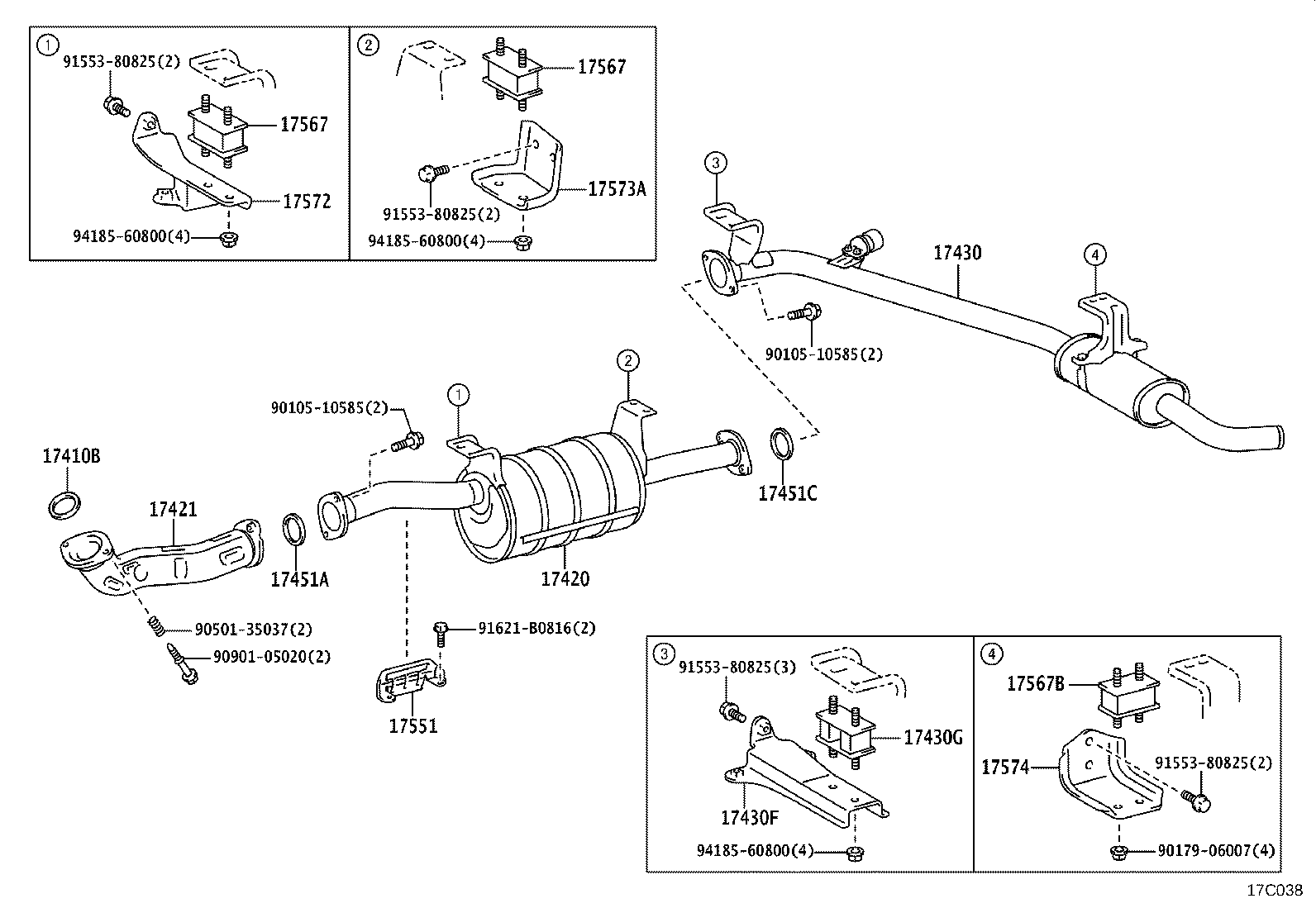

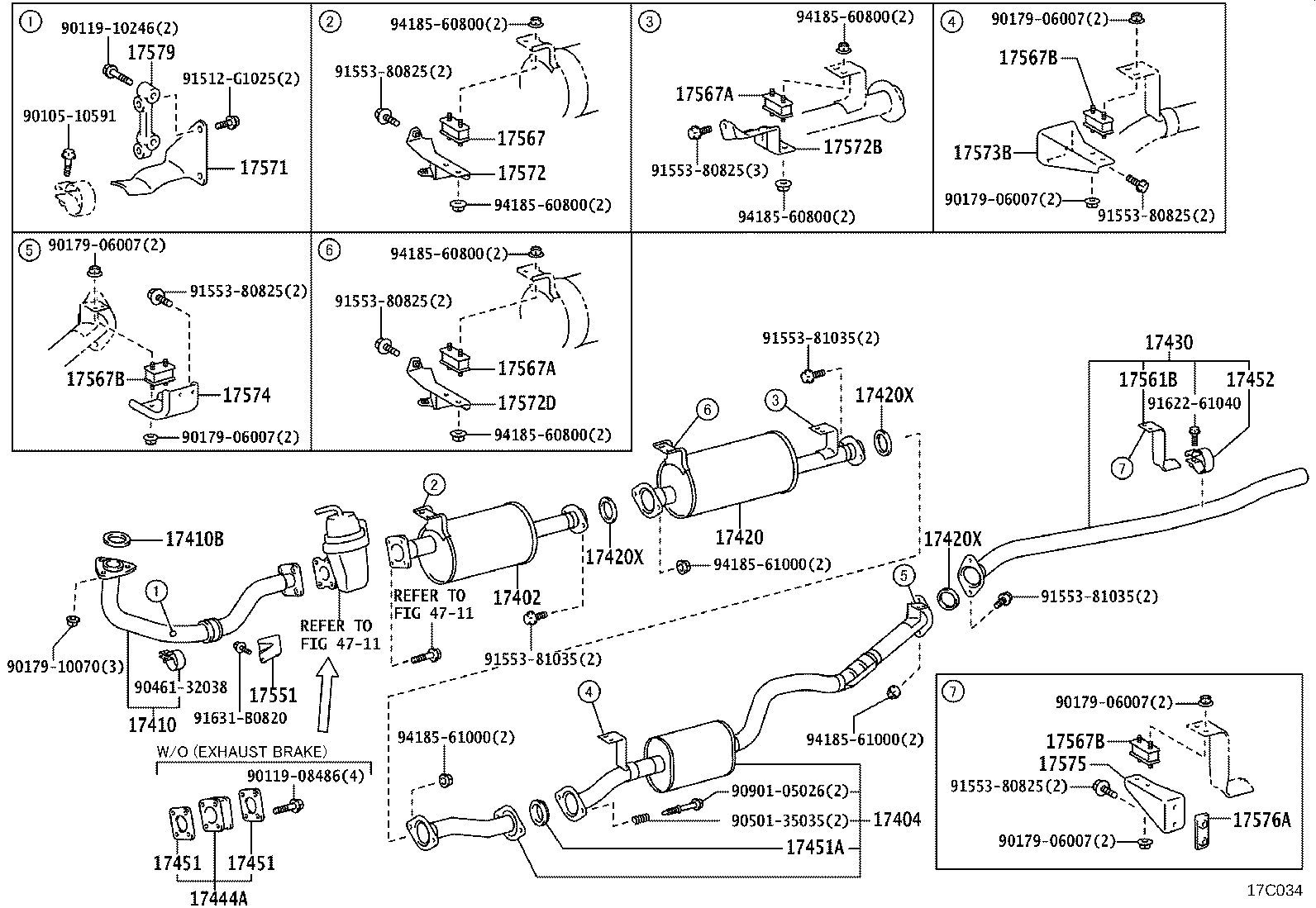

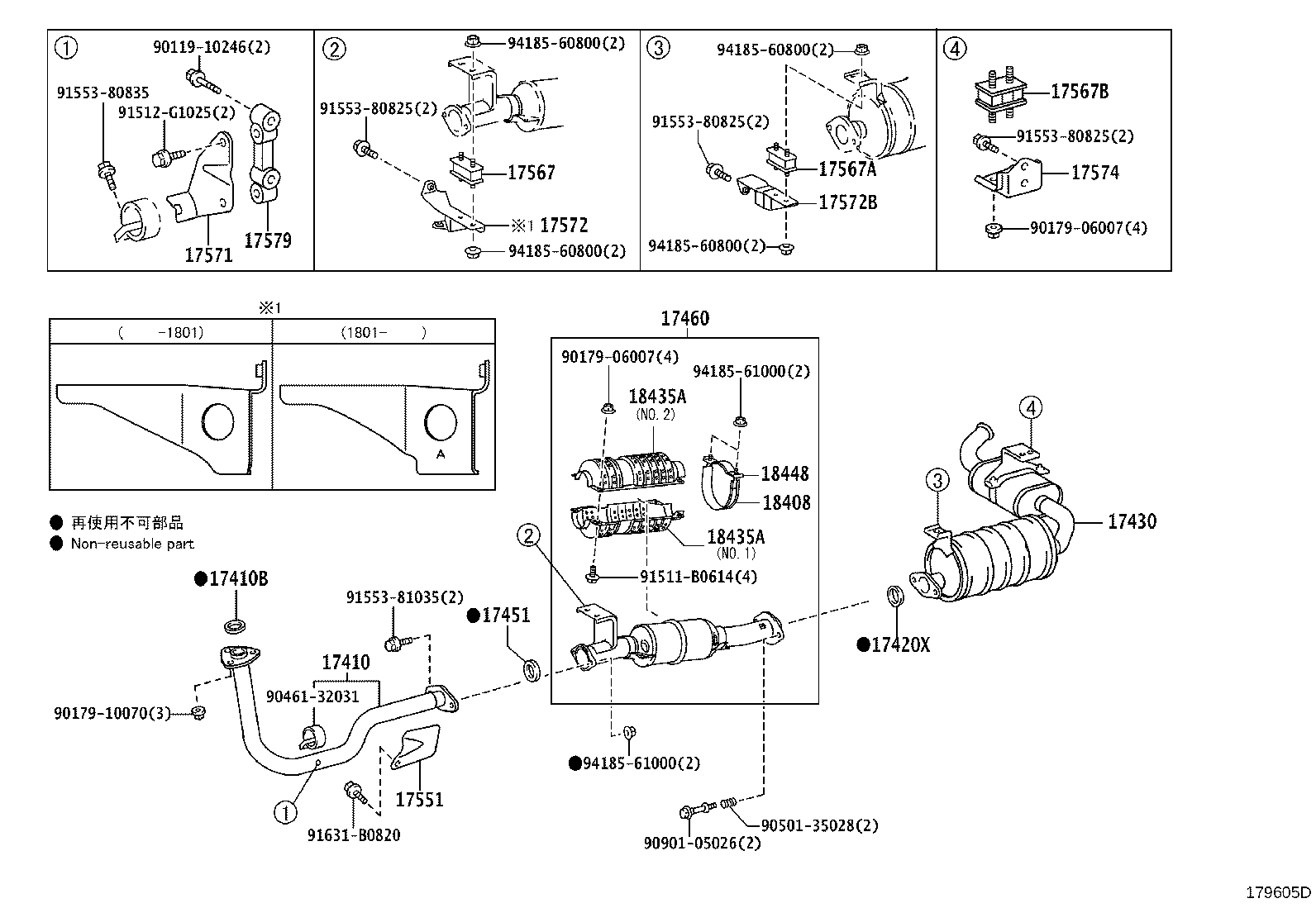

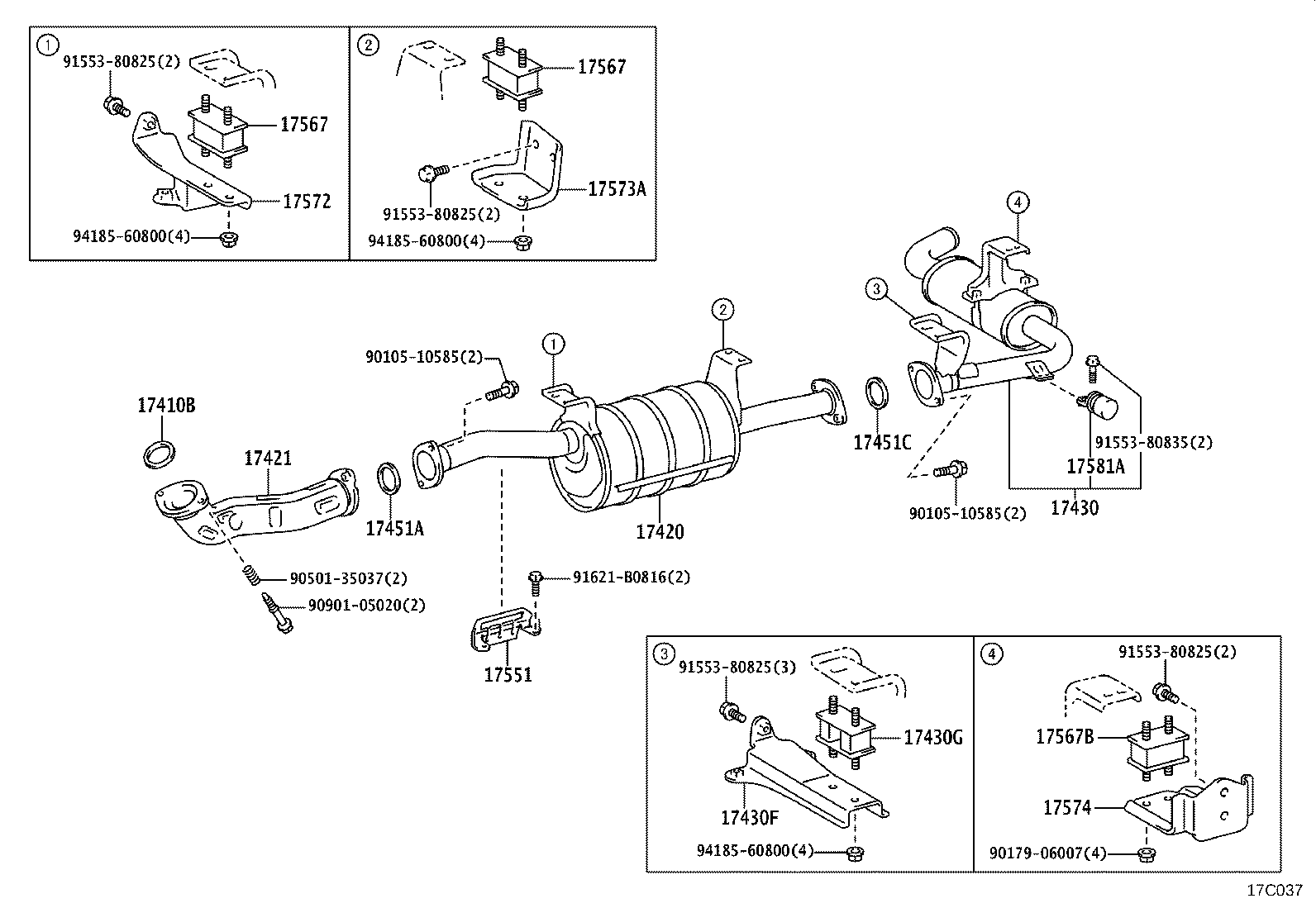

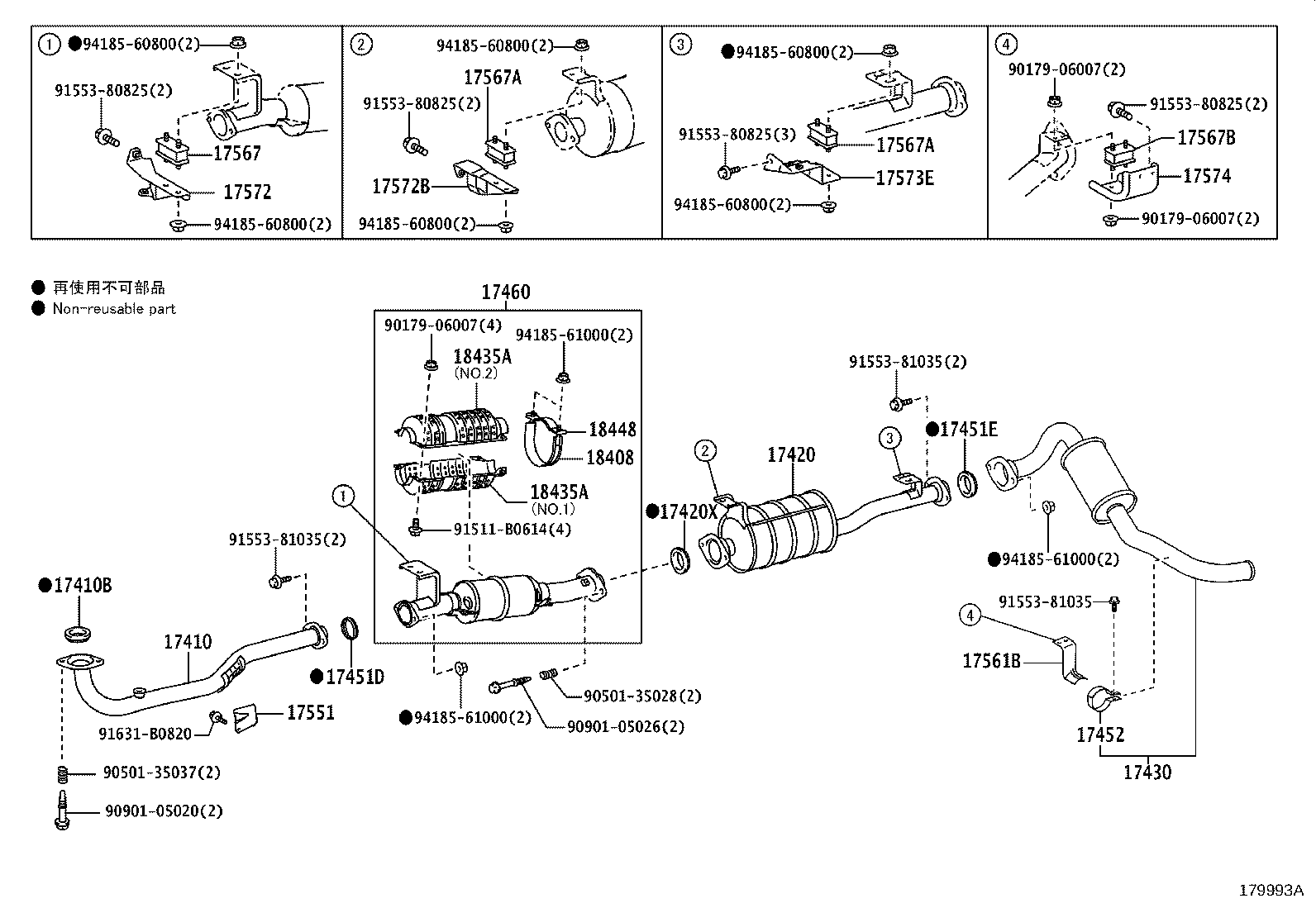

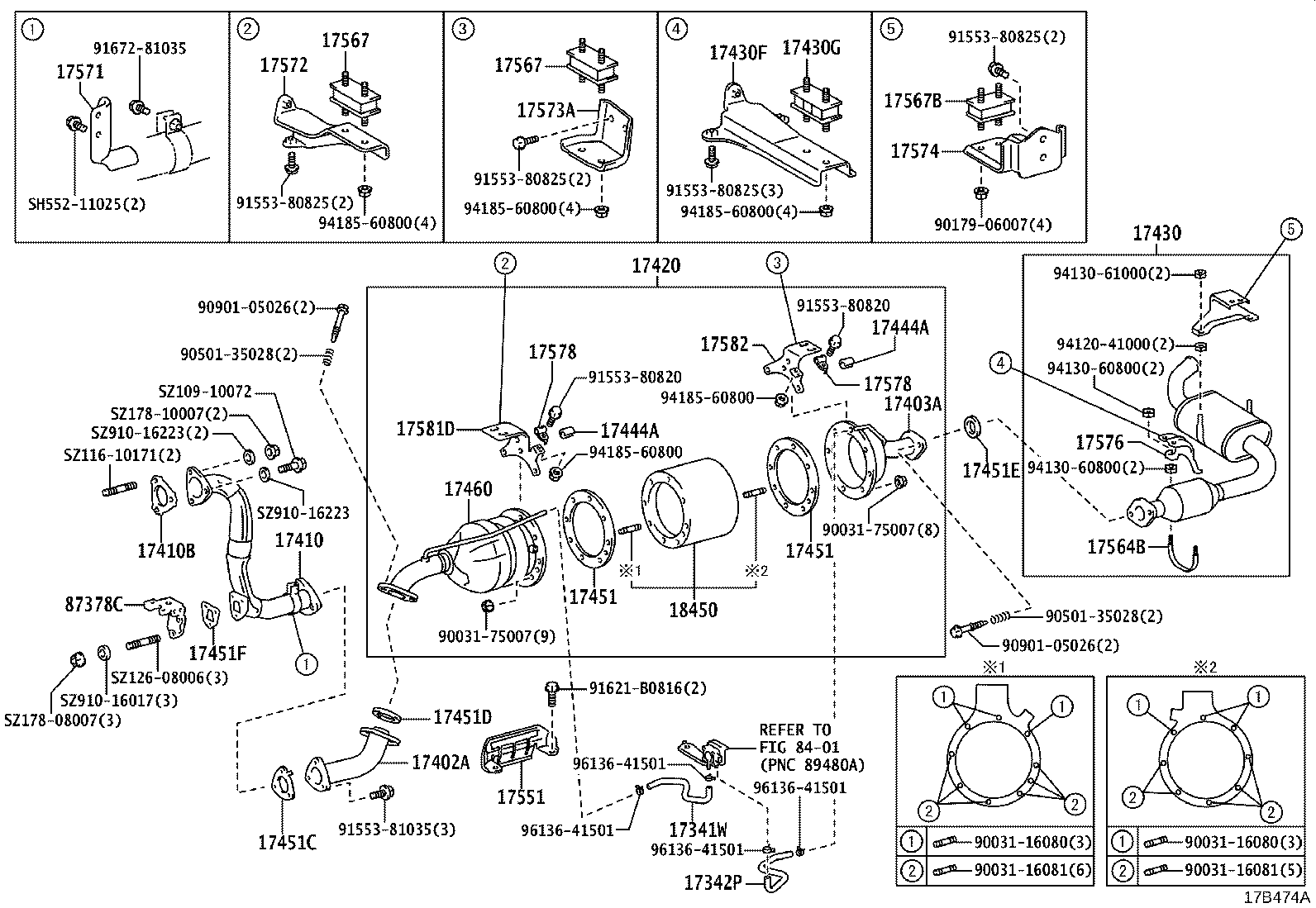

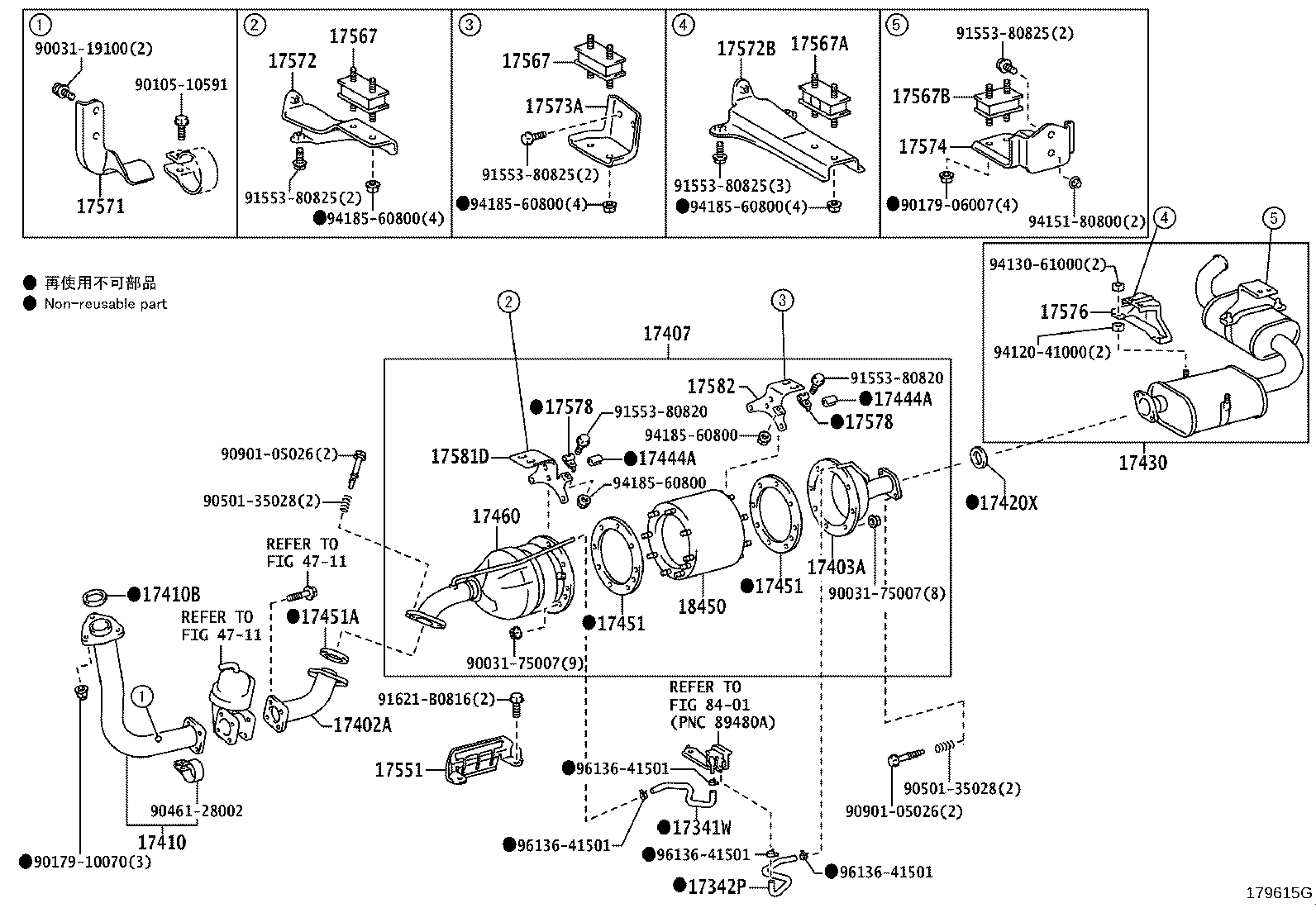

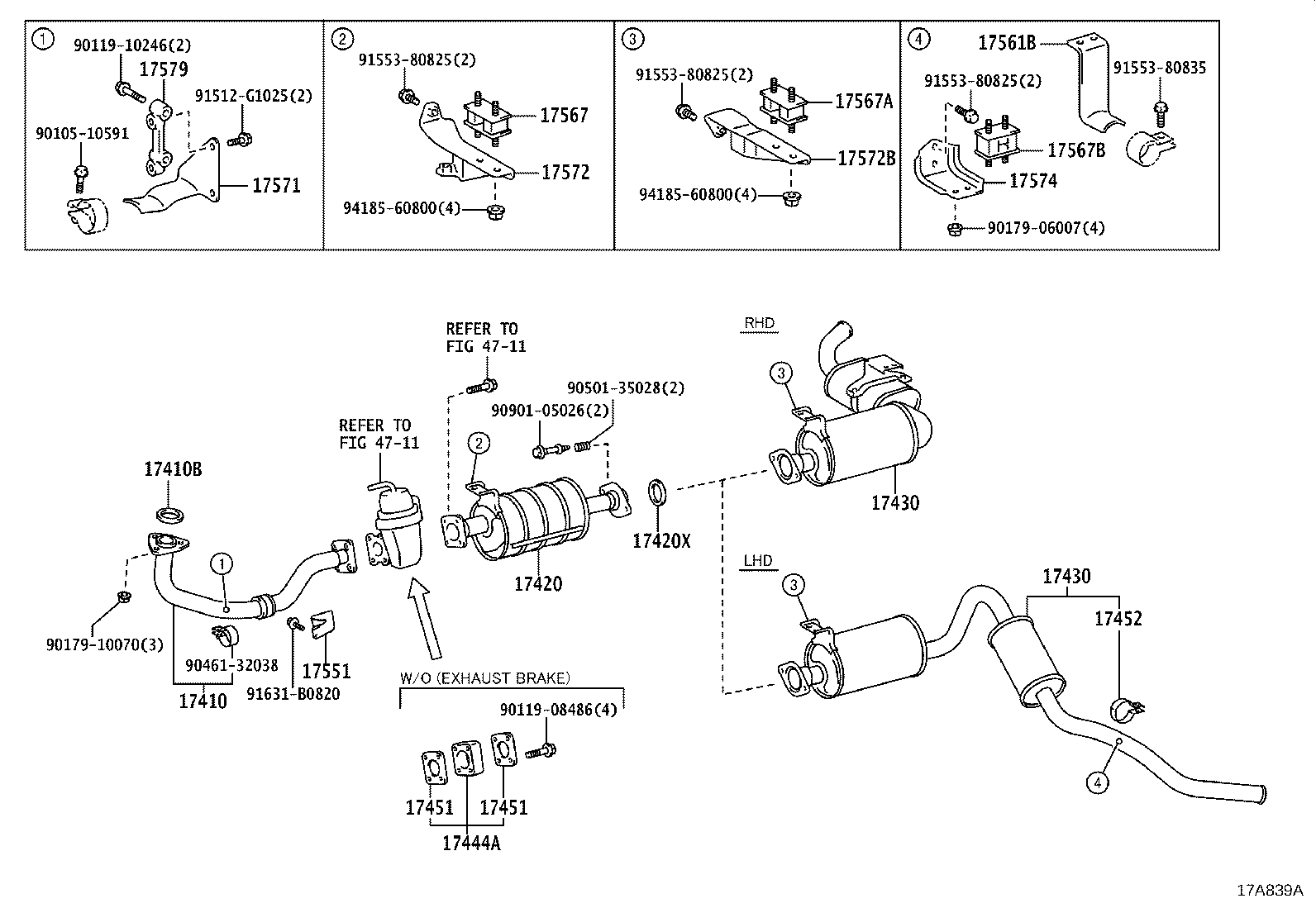

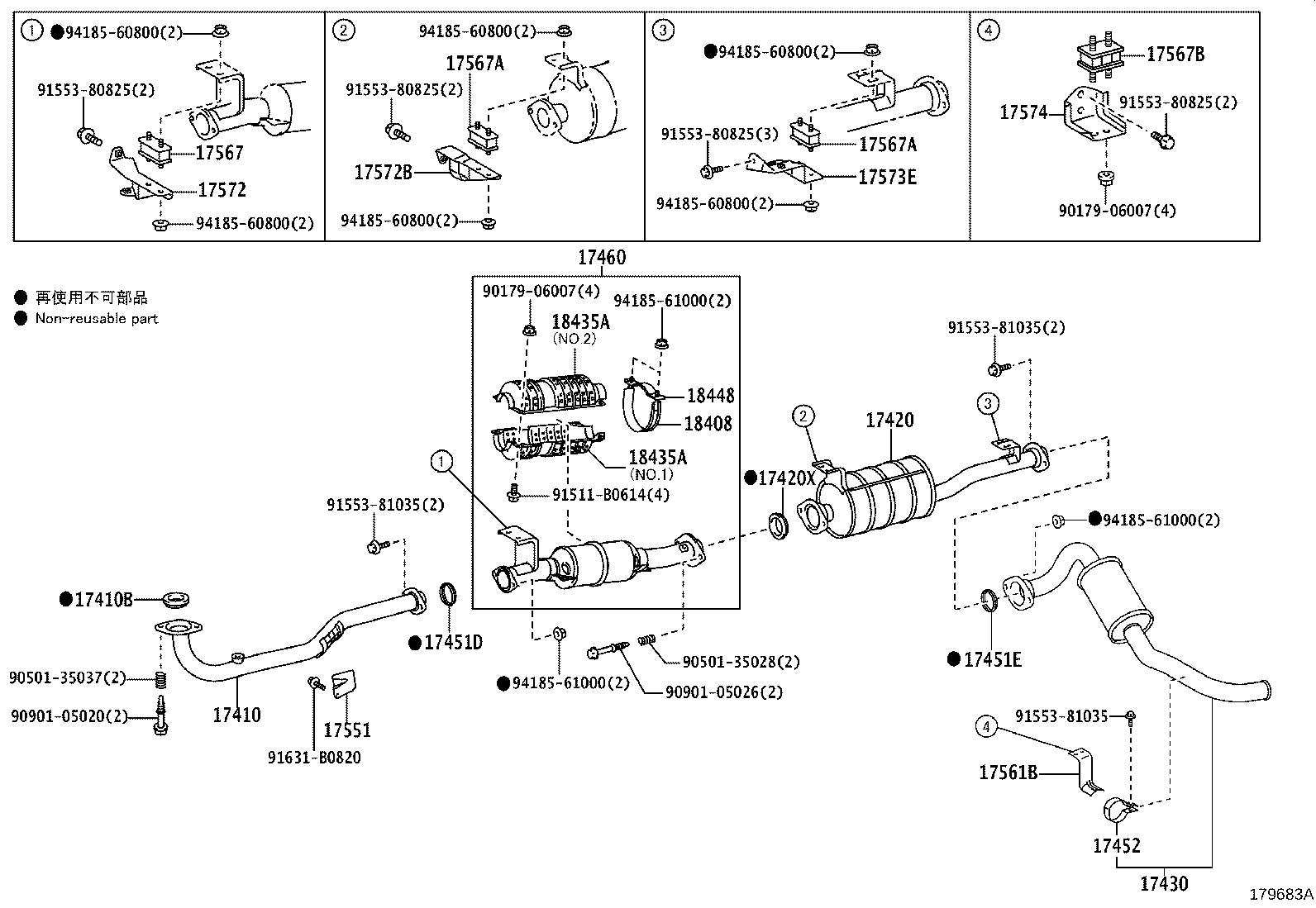

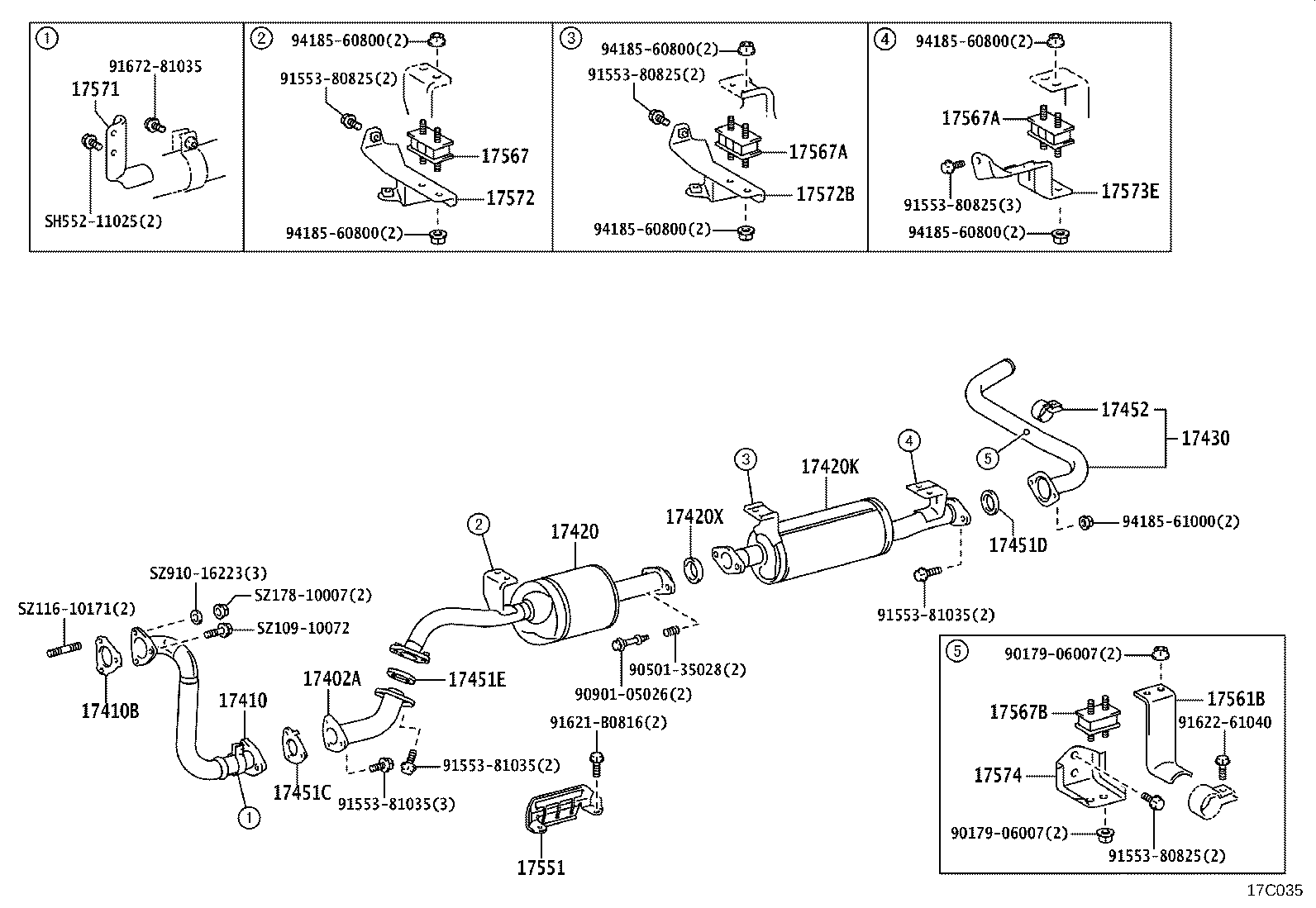

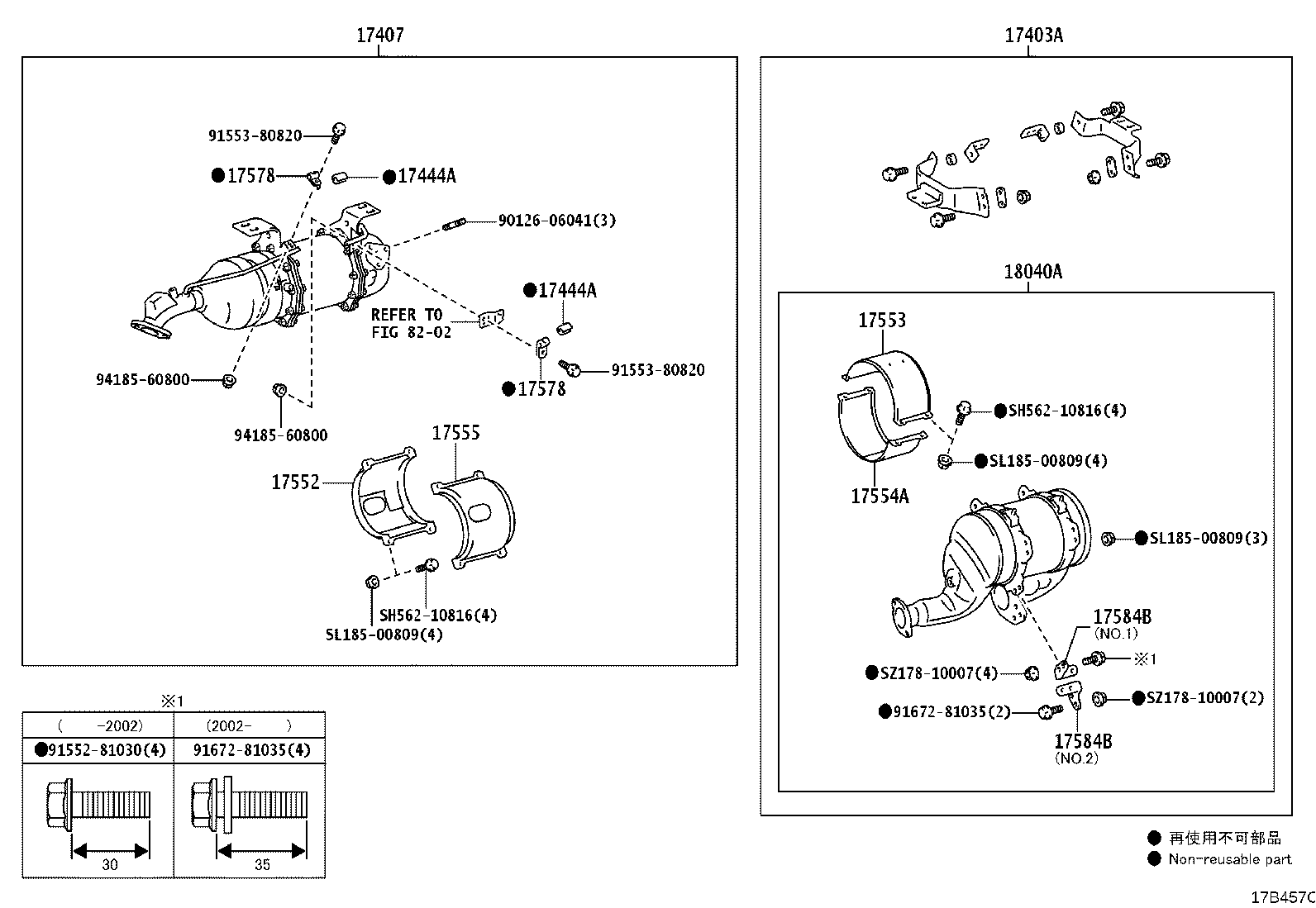

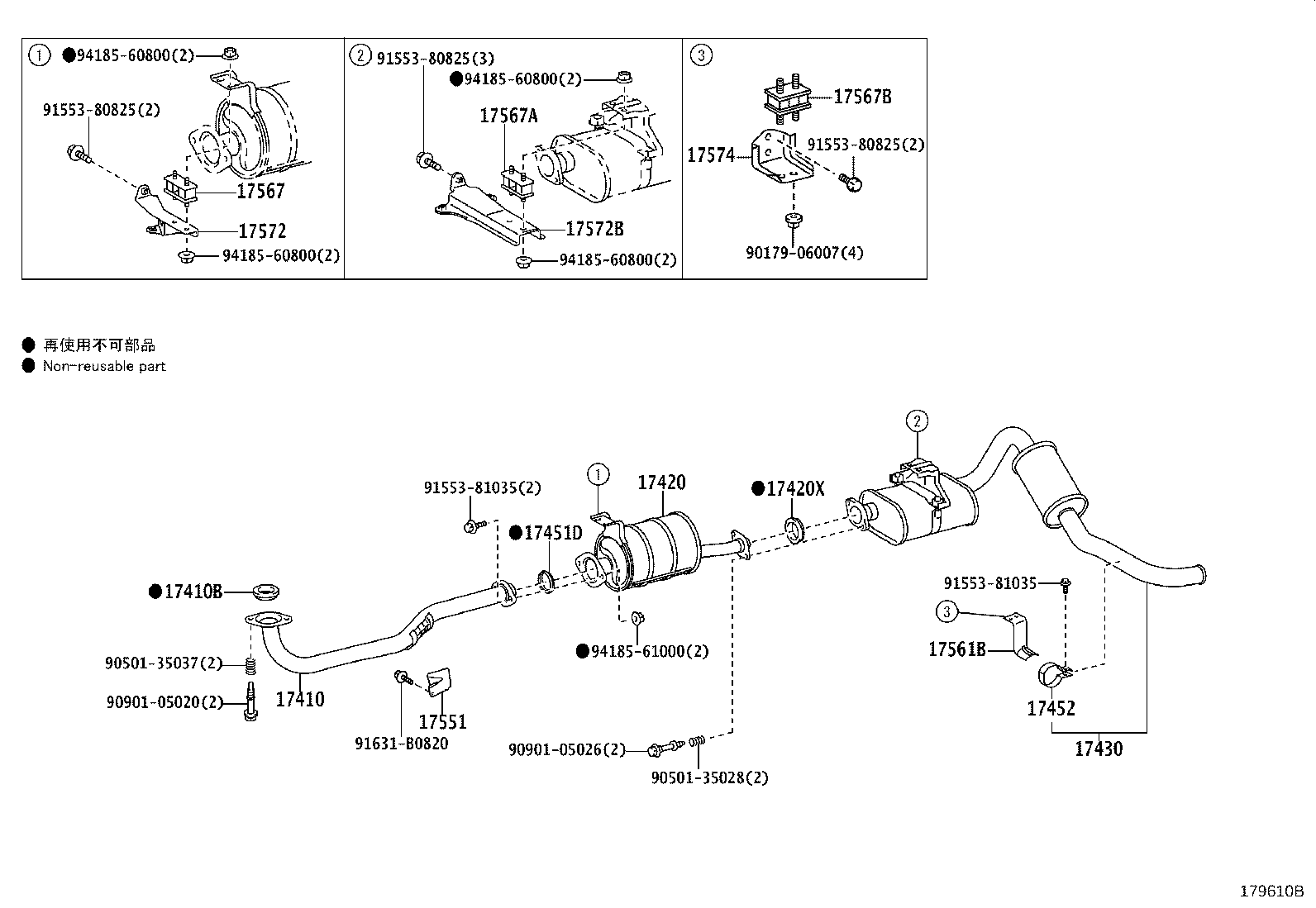

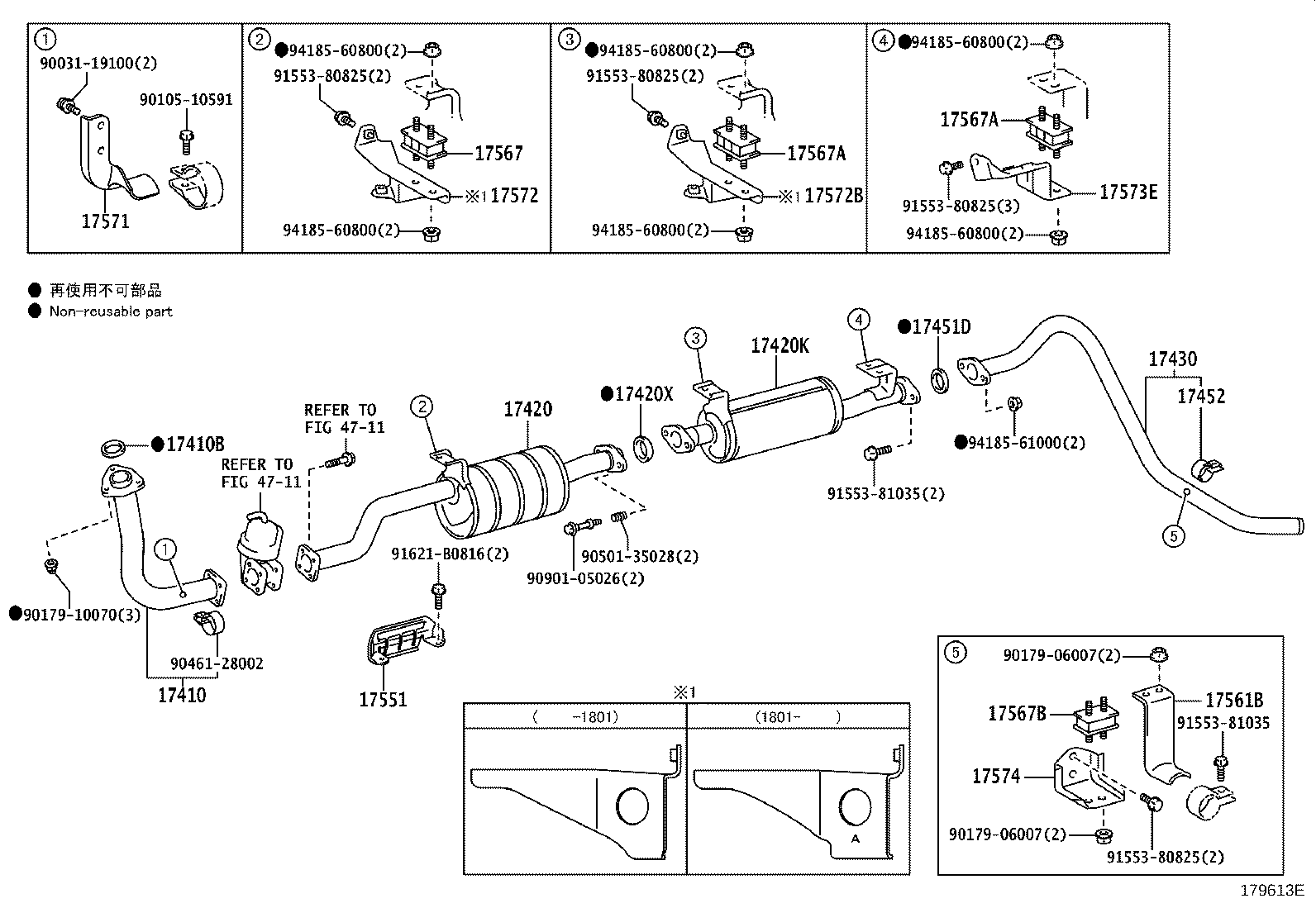

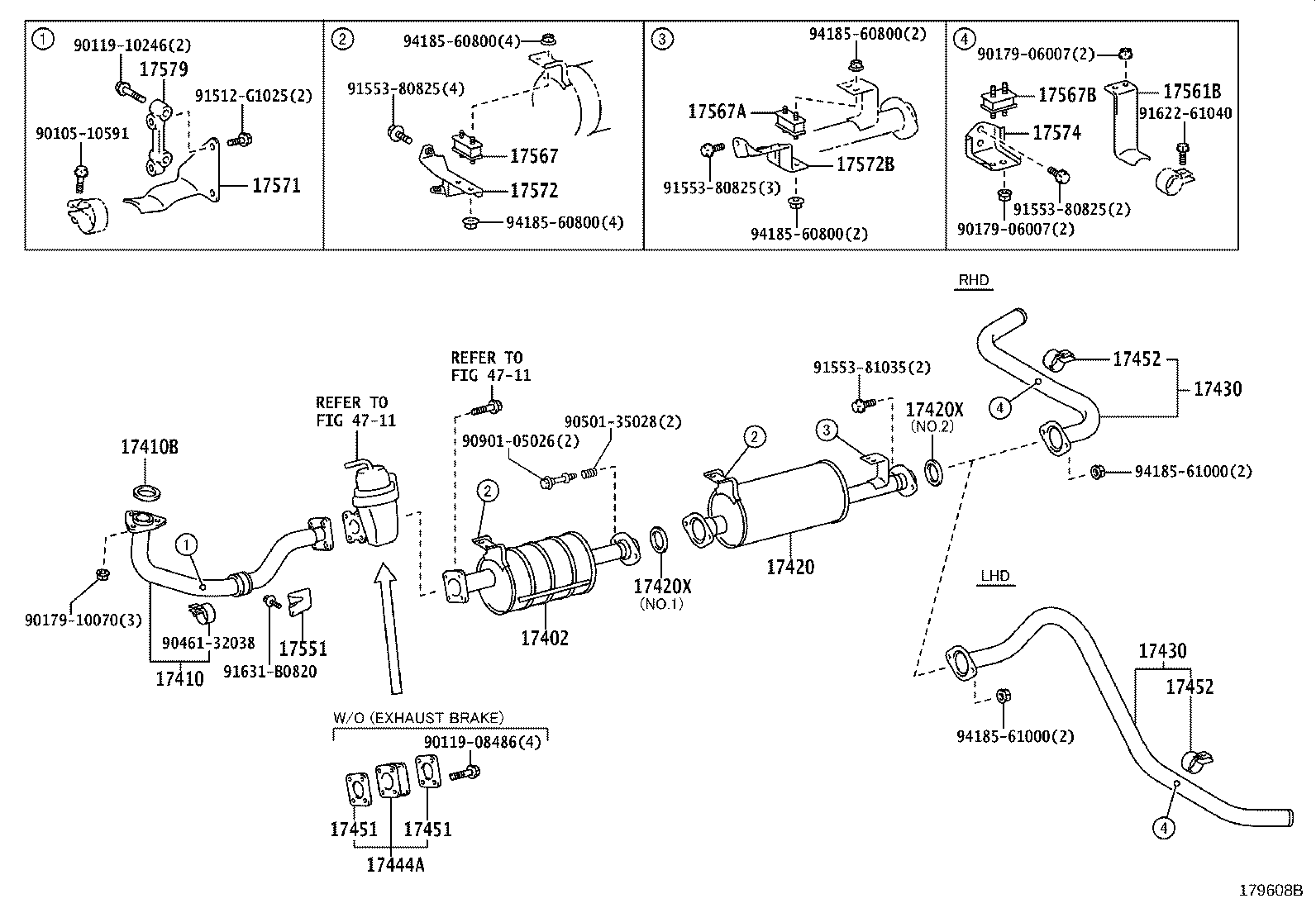

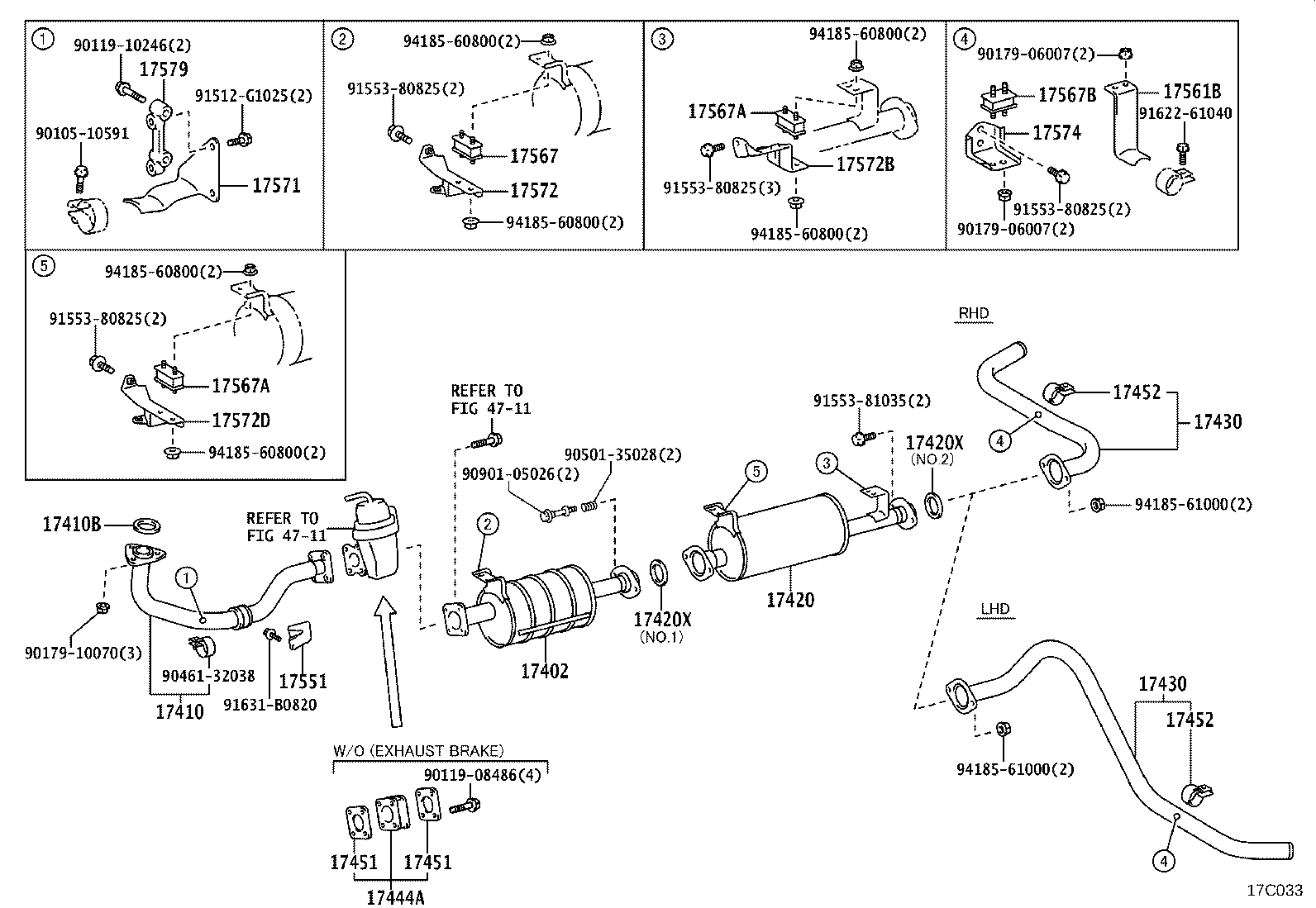

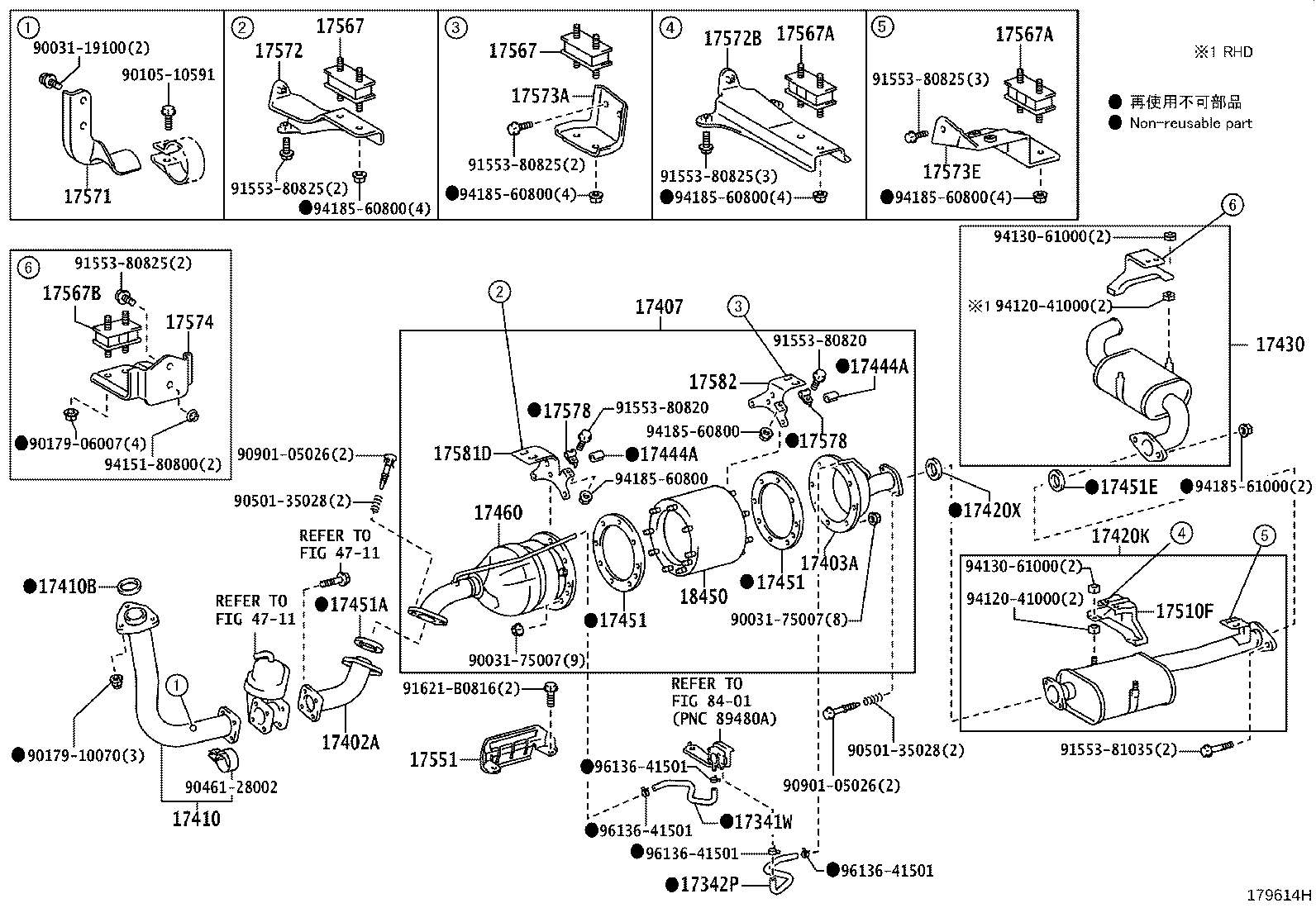

Figure 179606A 179606A 2017-01 → — Figure 179605D 179605D 2017-01 → — Figure 179607B 179607B 2017-01 → 2022-01 Figure 17C034 17C034 2022-01 → — Figure 179608B 179608B 2017-01 → 2022-01 Figure 17C033 17C033 2022-01 → — Figure 17A839A 17A839A 2019-08 → — Figure 179609E 179609E 2017-01 → — Figure 179610B 179610B 2017-01 → — Figure 179612C 179612C 2017-01 → — Figure 179611E 179611E 2017-01 → 2018-01 Figure 179683A 179683A 2018-01 → — Figure 179993A 179993A 2018-01 → — Figure 179615G 179615G 2017-01 → — Figure 179967A 179967A 2018-01 → — Figure 179614H 179614H 2017-01 → 2021-01 Figure 179614H 179614H 2017-01 → — Figure 179614H 179614H 2019-08 → — Figure 179613E 179613E 2017-01 → — Figure 179577E 179577E 2017-01 → — Figure 179991B 179991B 2018-01 → — Figure 17C035 17C035 2022-01 → — Figure 17B458 17B458 2018-01 → — Figure 17A706D 17A706D 2017-01 → — Figure 17B455B 17B455B 2019-08 → — Figure 17B455B 17B455B 2021-01 → — Figure 17B457C 17B457C 2019-08 → — Figure 17B457C 17B457C 2021-01 → — Figure 17A838C 17A838C 2019-08 → — Figure 17B474A 17B474A 2021-01 → — Figure 17C036 17C036 2022-01 → — Figure 17C032 17C032 2022-01 → — Figure 17C038 17C038 2022-01 → — Figure 17C037 17C037 2022-01 → 2024-01 Figure 17C037 17C037 2022-01 → — Figure 17C9D5 17C9D5 2024-01 → — Figure 17C9CY 17C9CY 2024-01 → — Figure 17C039 17C039 2022-01 → —

Part groups

PNCDescription
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17402 Pipe Sub-assy, Exhaust, Front NO.2
17402A Pipe Sub-assy, Exhaust, Center NO.1
17403A Pipe Sub-assy, Exhaust, Center NO.2
17404 Pipe Sub-assy, Exhaust Forked
17407 Pipe Sub-assy, Exhaust, Center NO.3
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420K Pipe Assy, Exhaust, Center NO.2
17420X Gasket, Exhaust Pipe, Center
17421 Pipe, Exhaust, NO.2
17430 Pipe Assy, Exhaust, Tail
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17451D Gasket, Exhaust Pipe, NO.4
17451E Gasket, Exhaust Pipe, NO.5
17451F Gasket, Exhaust Pipe, NO.6
17452 Clamp, Exhaust Pipe
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17506 Insulator Sub-assy, Exhaust Pipe Heat NO.2
17510F Bracket, Muffler, Rear
17521A Protector, Exhaust Pipe, Upper NO.1
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17554A Insulator, Exhaust Pipe Heat, NO.4
17555 Insulator, Exhaust Pipe Heat, NO.5
17561B Support, Exhaust Pipe, NO.1
17564B Support, Catalytic Converter
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17576A Bracket, Exhaust Pipe Support, NO.6
17578 Clamp, Pipe
17579 Bracket, Exhaust Pipe Support NO.1 Sub
17581A Damper, Exhaust Pipe
17581D Bracket, Catalytic Converter Support
17582 Bracket, Catalytic Converter Support, Upper
17584B Bracket, Exhaust Pipe NO.1 Support
18040A Converter Assy, Exhaust Pipe, NO.2
18408 Band Sub-assy, Convertor Protector Support
18435A Protector, Monolithic Converter
18448 Bracket, Converter Protector, Center
18450 Converter Assy, Monolithic
87378C Pipe, Exhaust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
