Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Air Cleaner
49 part groups · 14 illustrations

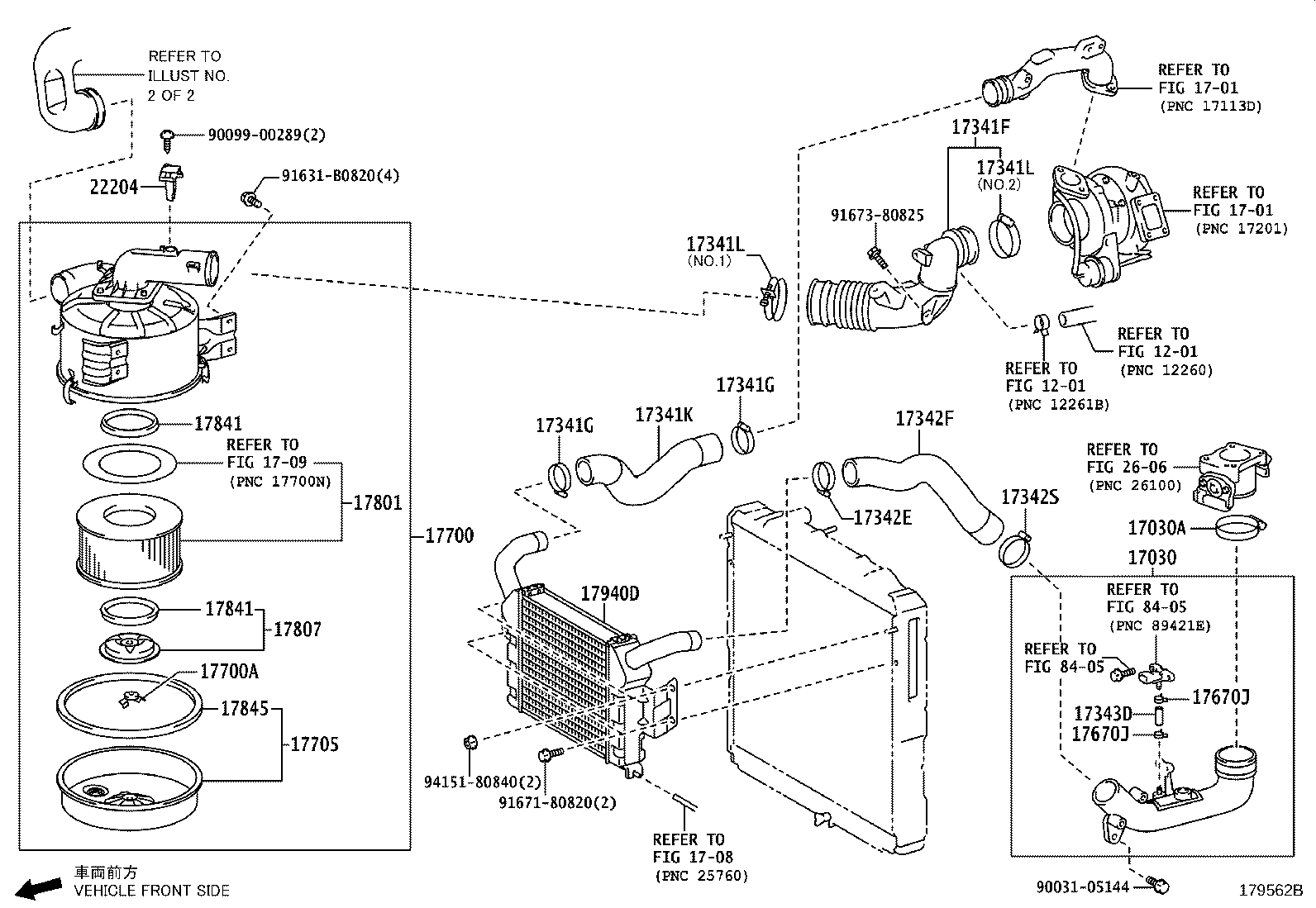

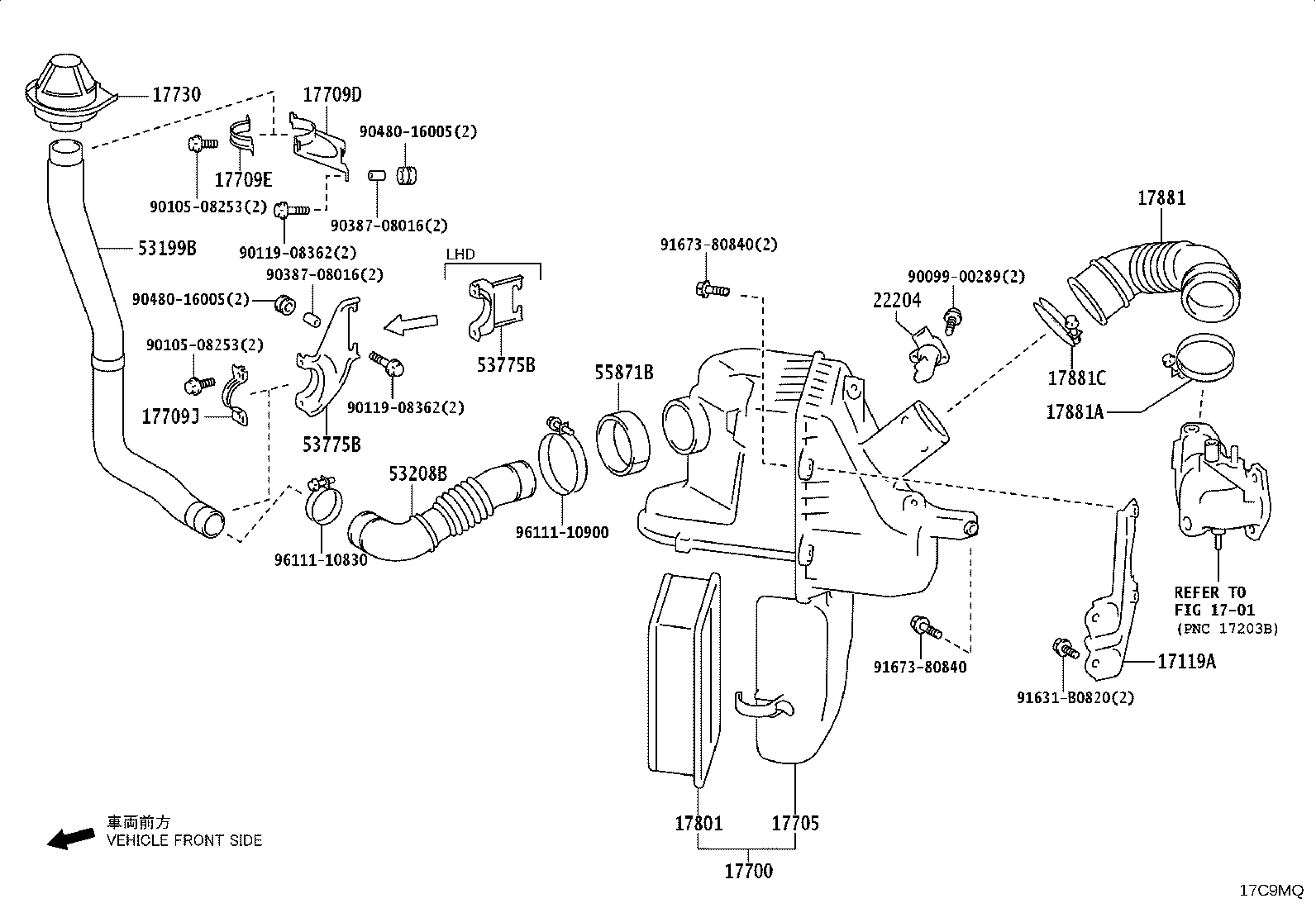

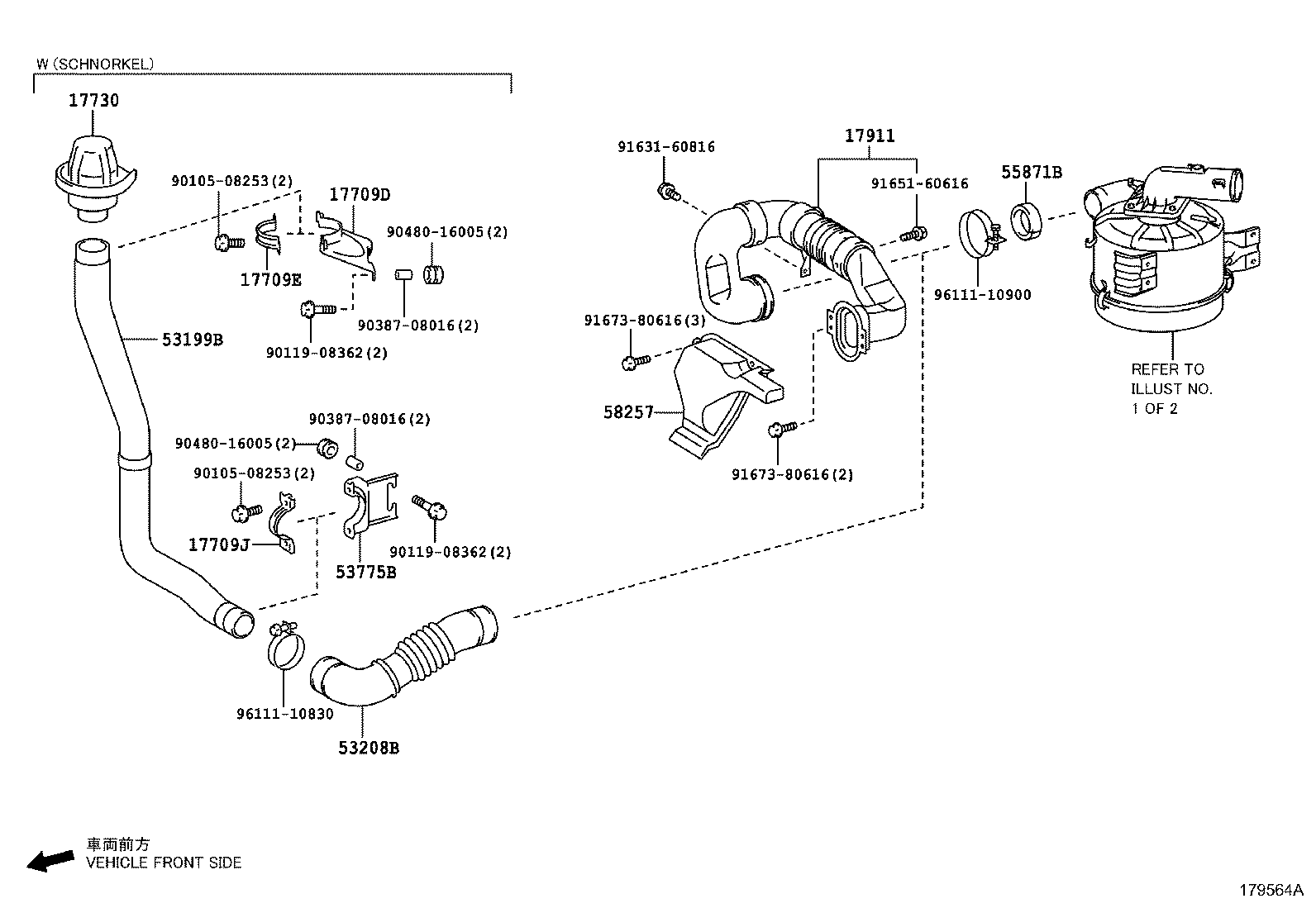

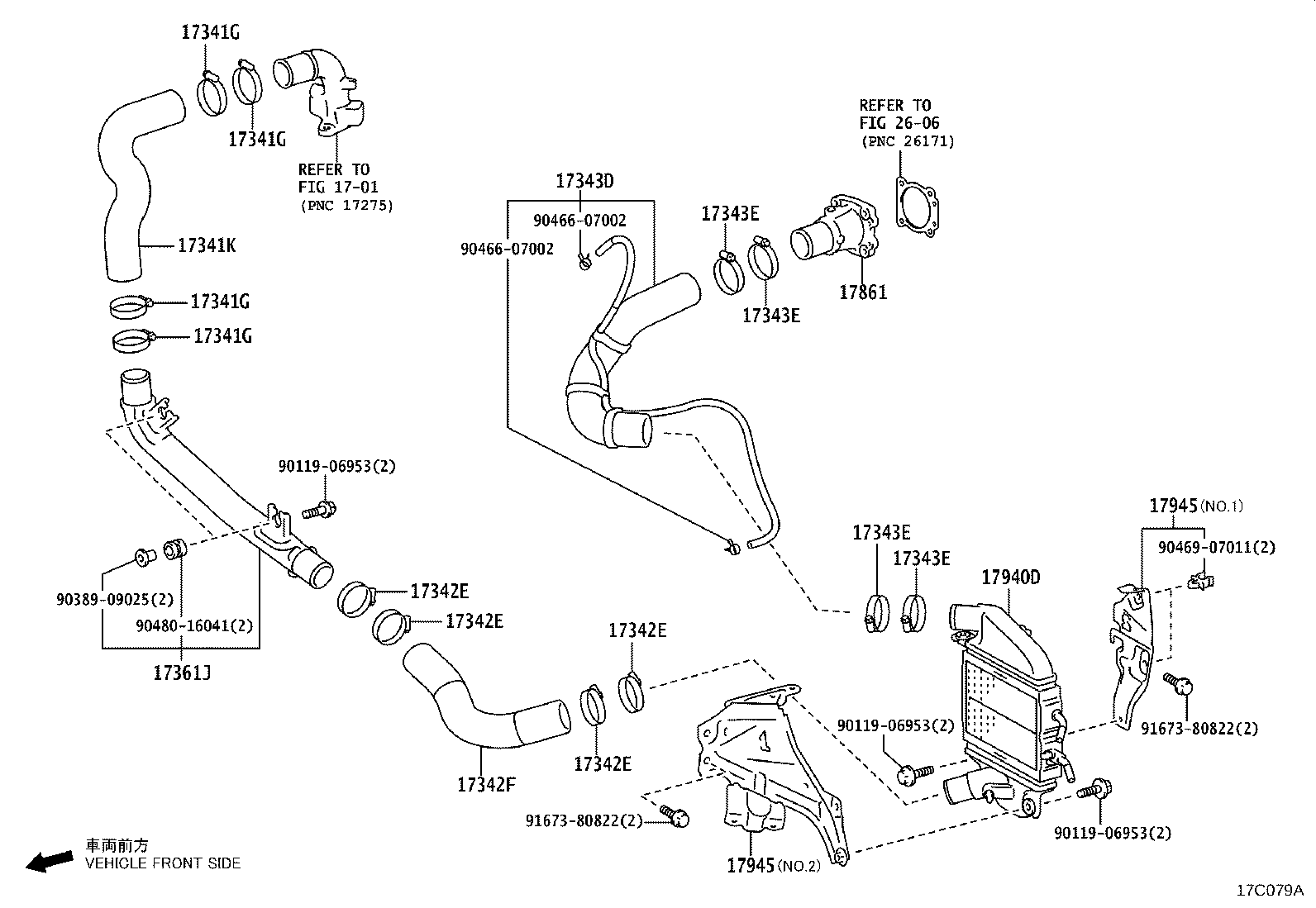

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17030 | Hose Assy, Air |
| 17030A | Clamp, Hose |
| 17119A | Bracket, Air Cleaner |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17341L | Clamp, Hose |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17342S | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17361J | Tube, Air, NO.1 |
| 17670J | Clip(FOR AIR HOSE NO.3) |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17709D | Bracket, Air Cleaner Inlet, NO.1 |
| 17709E | Bracket, Air Cleaner Inlet, NO.2 |
| 17709J | Bracket, Air Cleaner Inlet, NO.3 |
| 17730 | Precleaner Assy, Air W/Hose |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17807 | Plate Sub-assy, Air Cleaner Filter Set |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17849 | Gasket, Intake Air Connector |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17885 | Pipe, Air Cleaner |
| 17897 | Clamp, Hose(FOR AIR CLEANER) |
| 17911 | Duct, Cool Air Intake, NO.1 |
| 17940D | Intercooler Assy |
| 17945 | Bracket, Intercooler Support |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 25761 | Hose, Vaccum Transmitting, NO.1 |
| 53199B | Duct Sub-assy, Cool Air Intake |
| 53208B | Duct Sub-assy, Cool Air Intake, NO.2 |
| 53772A | Bracket, Air Cleaner Inlet, NO.2 |
| 53775B | Bracket, Cool Air Intake Duct Mounting |
| 55871B | Seal, Air Duct |
| 58257 | Plate, Air Cleaner House |
| 59133 | Hose, Cool Air Intake, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
