Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

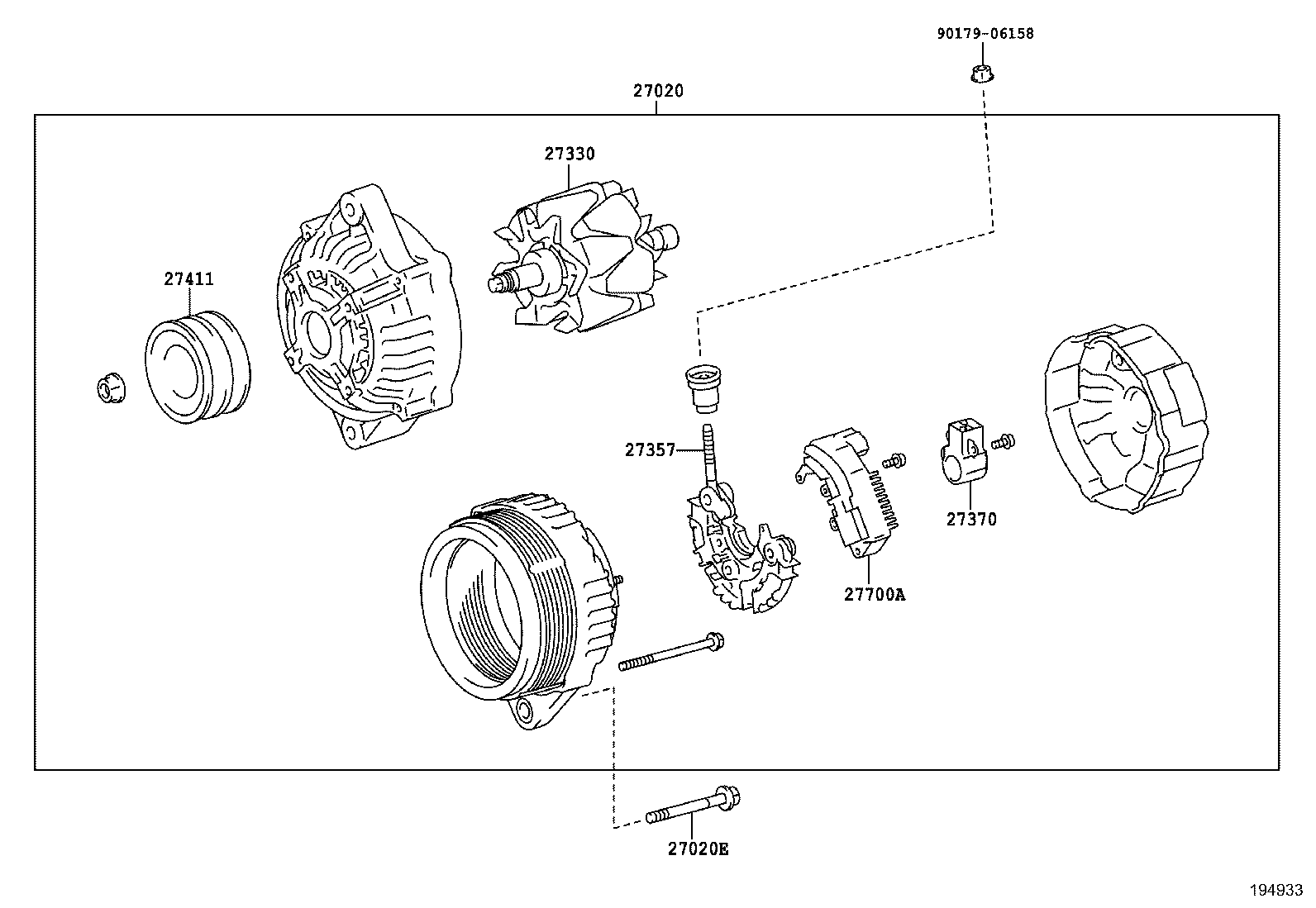

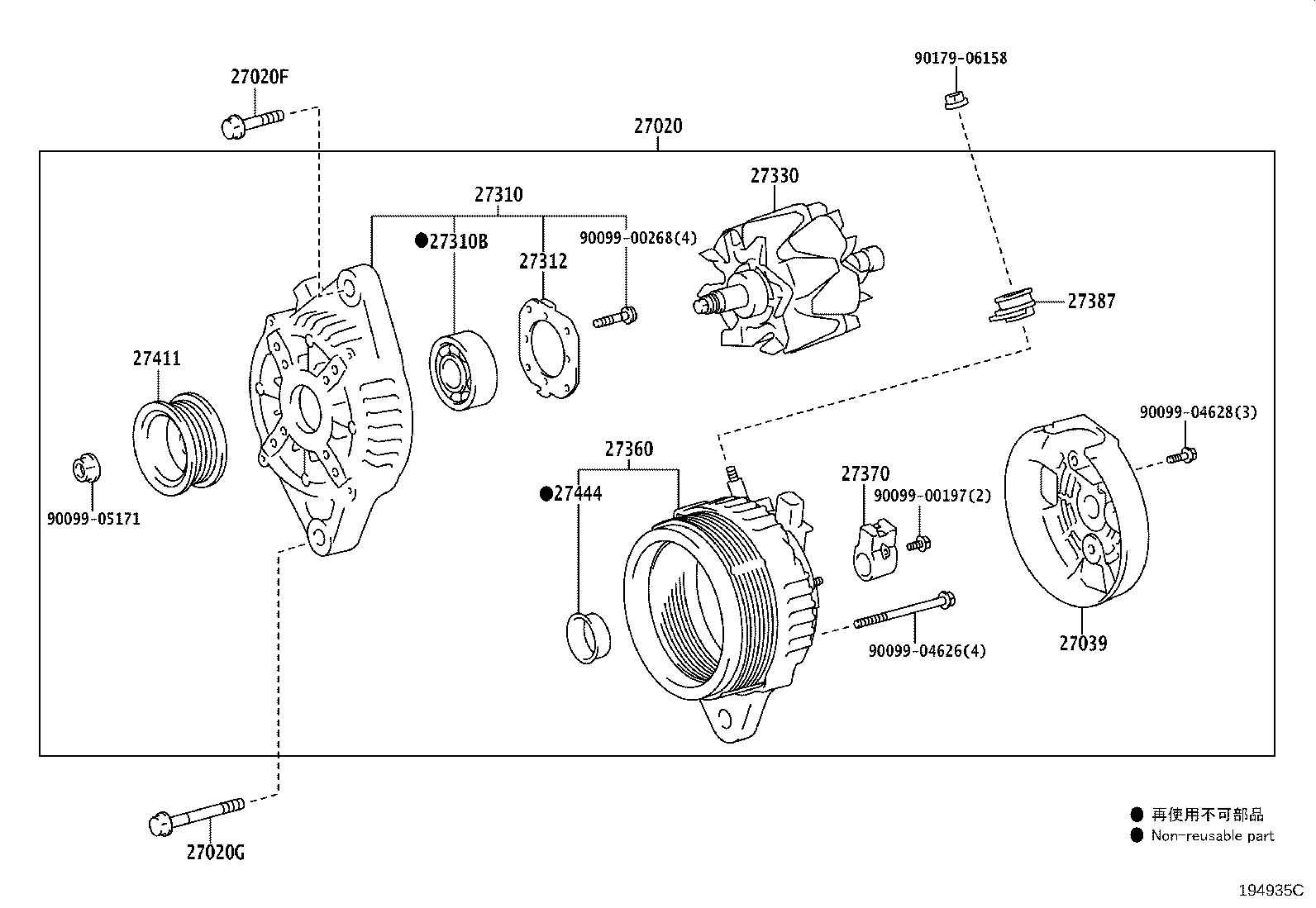

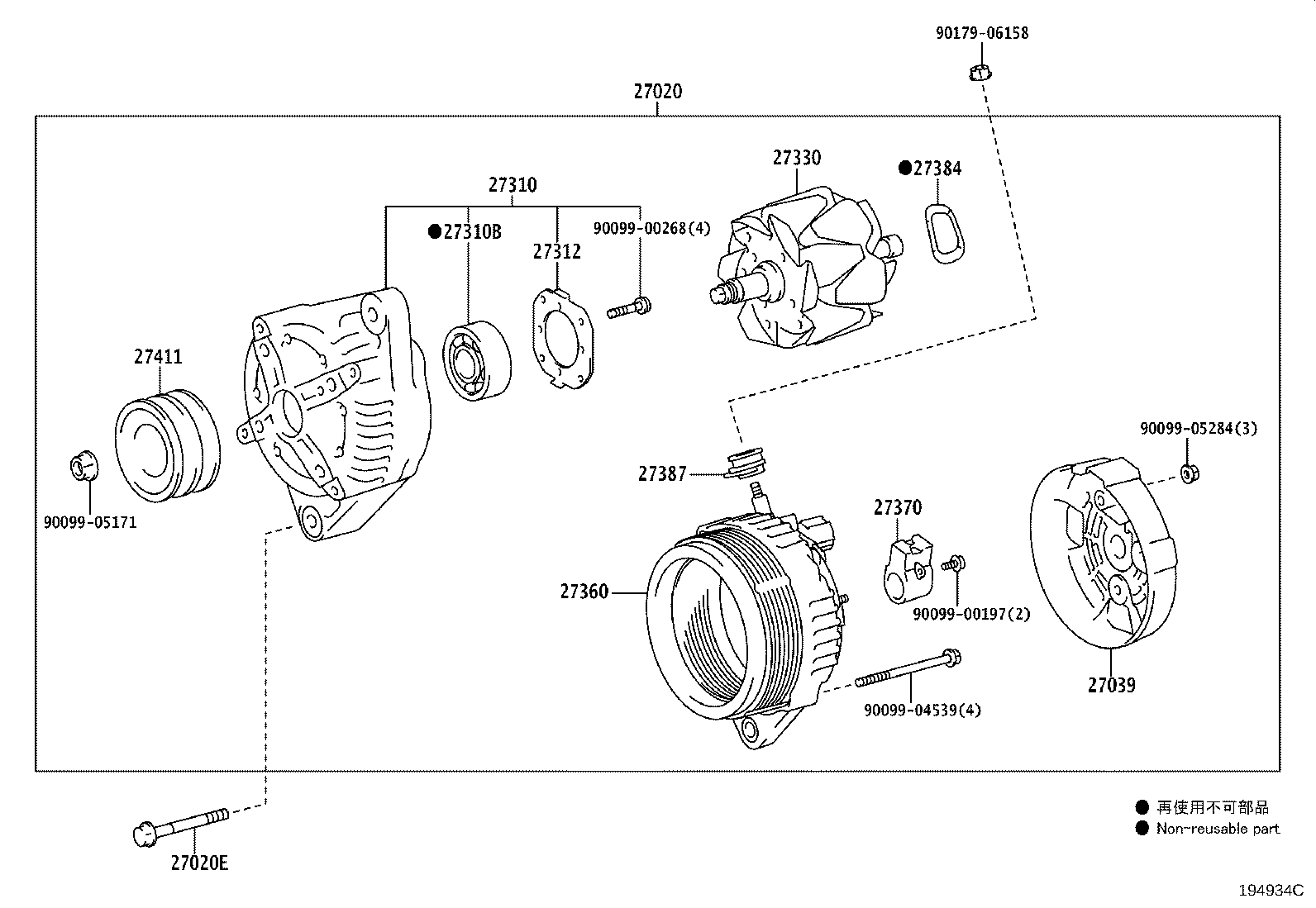

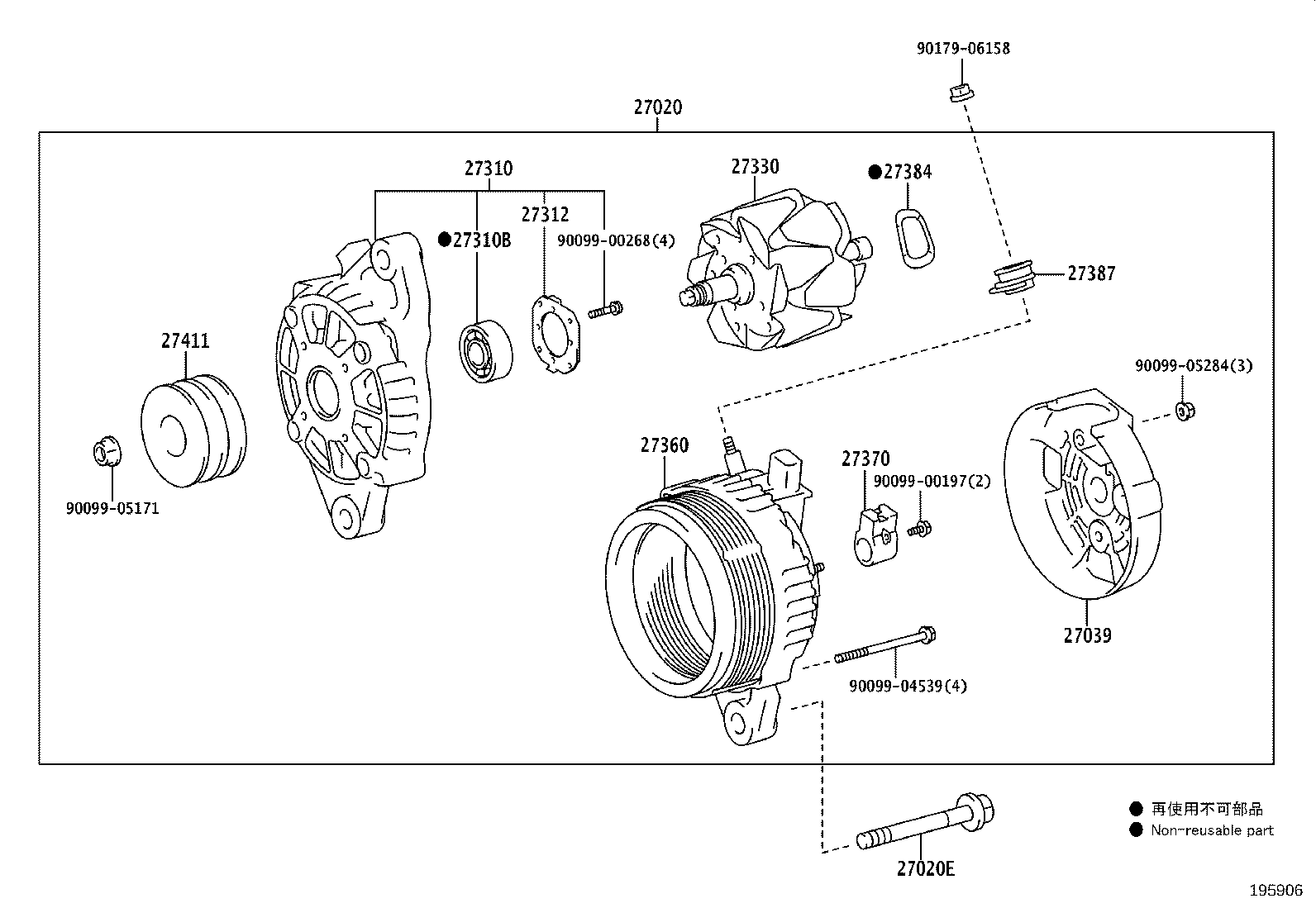

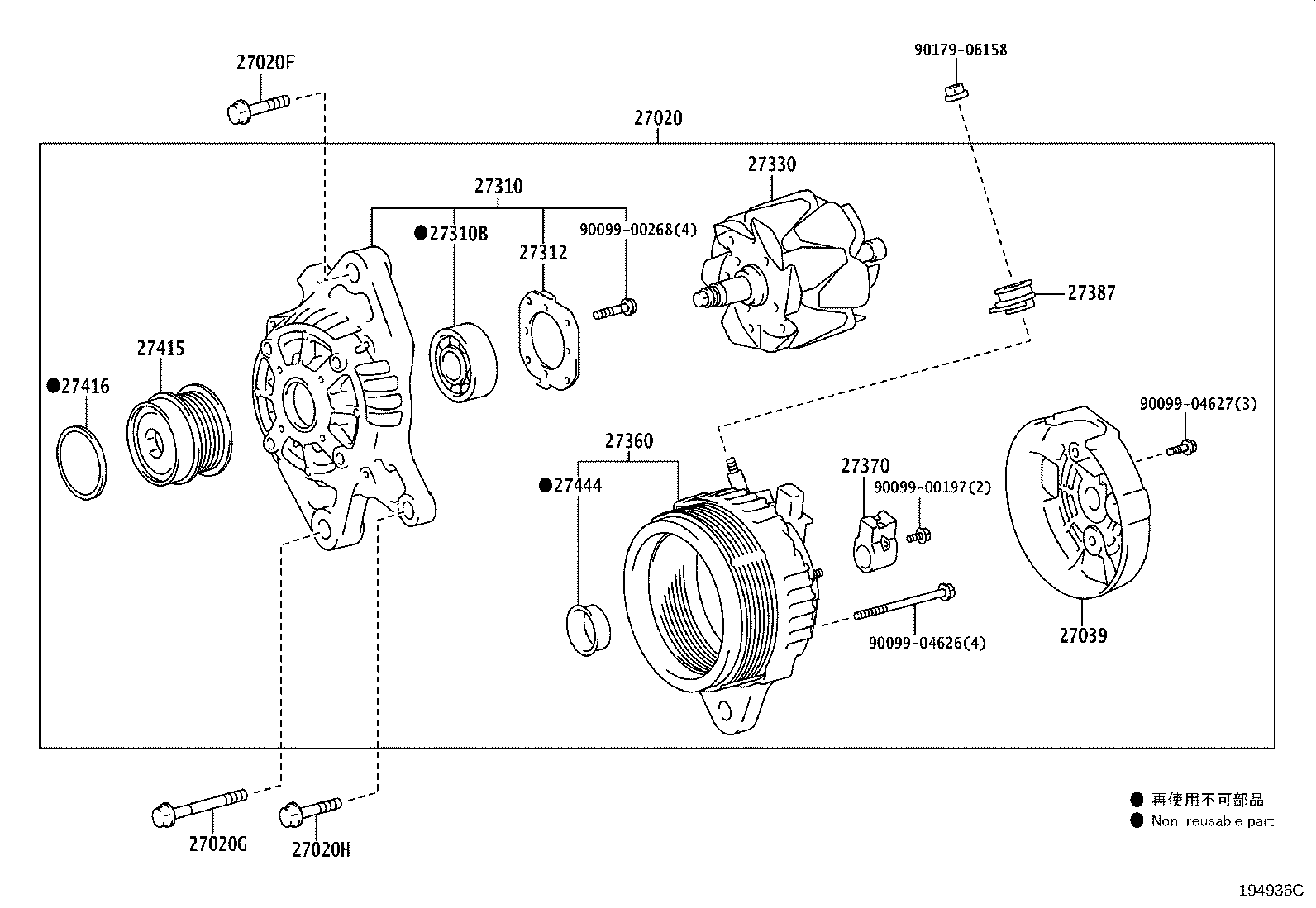

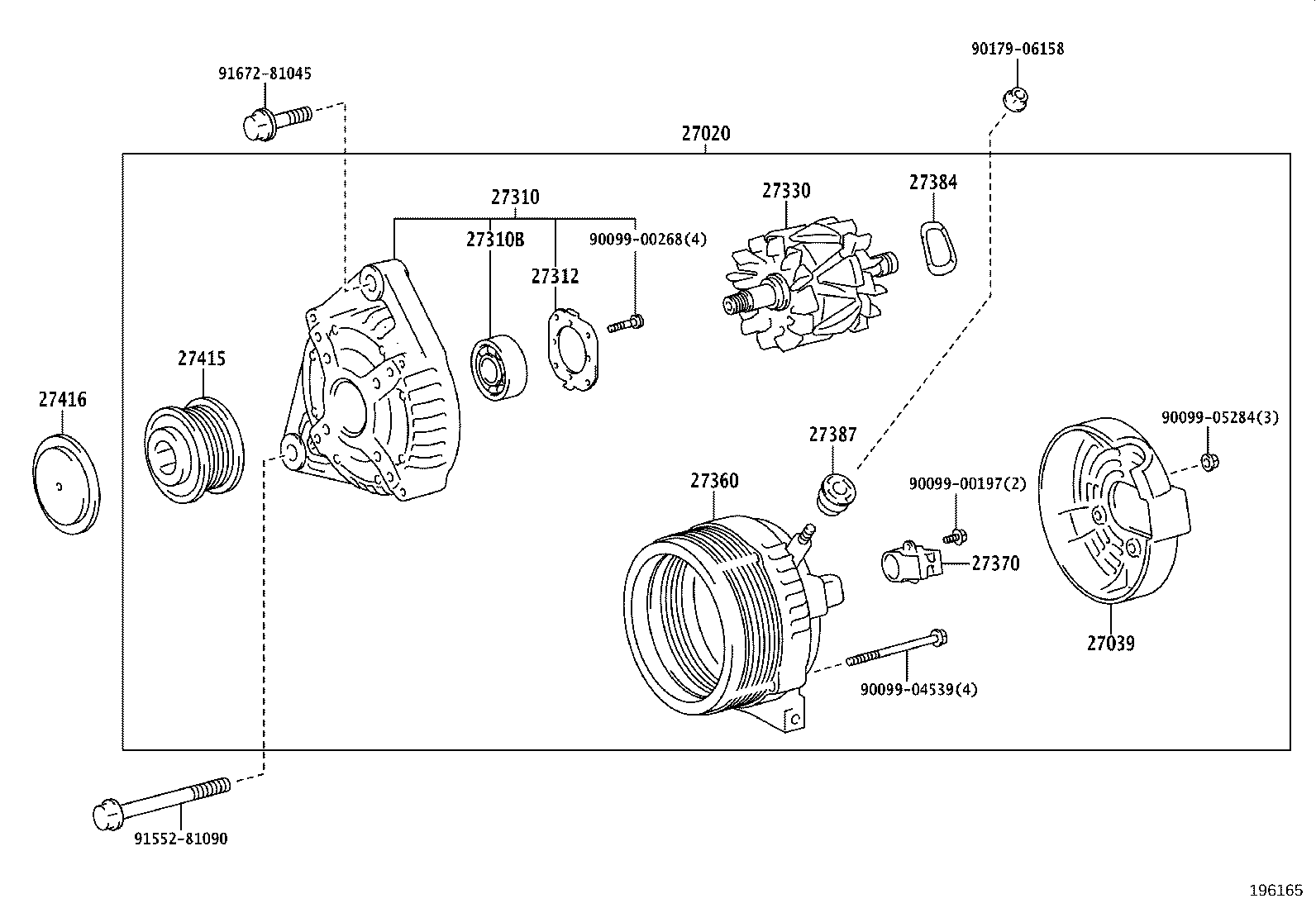

Alternator
20 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27020F | Bolt, NO.1(FOR ALTERNATOR) |
| 27020G | Bolt, NO.2(FOR ALTERNATOR) |
| 27020H | Bolt, NO.3(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27360 | Coil Assy, Alternator |
| 27370 | Holder Assy, Alternator Brush |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27411 | Pulley, Alternator |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27444 | Packing, Alternator Bearing Cover |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
