Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 6 illustrations

Illustrations

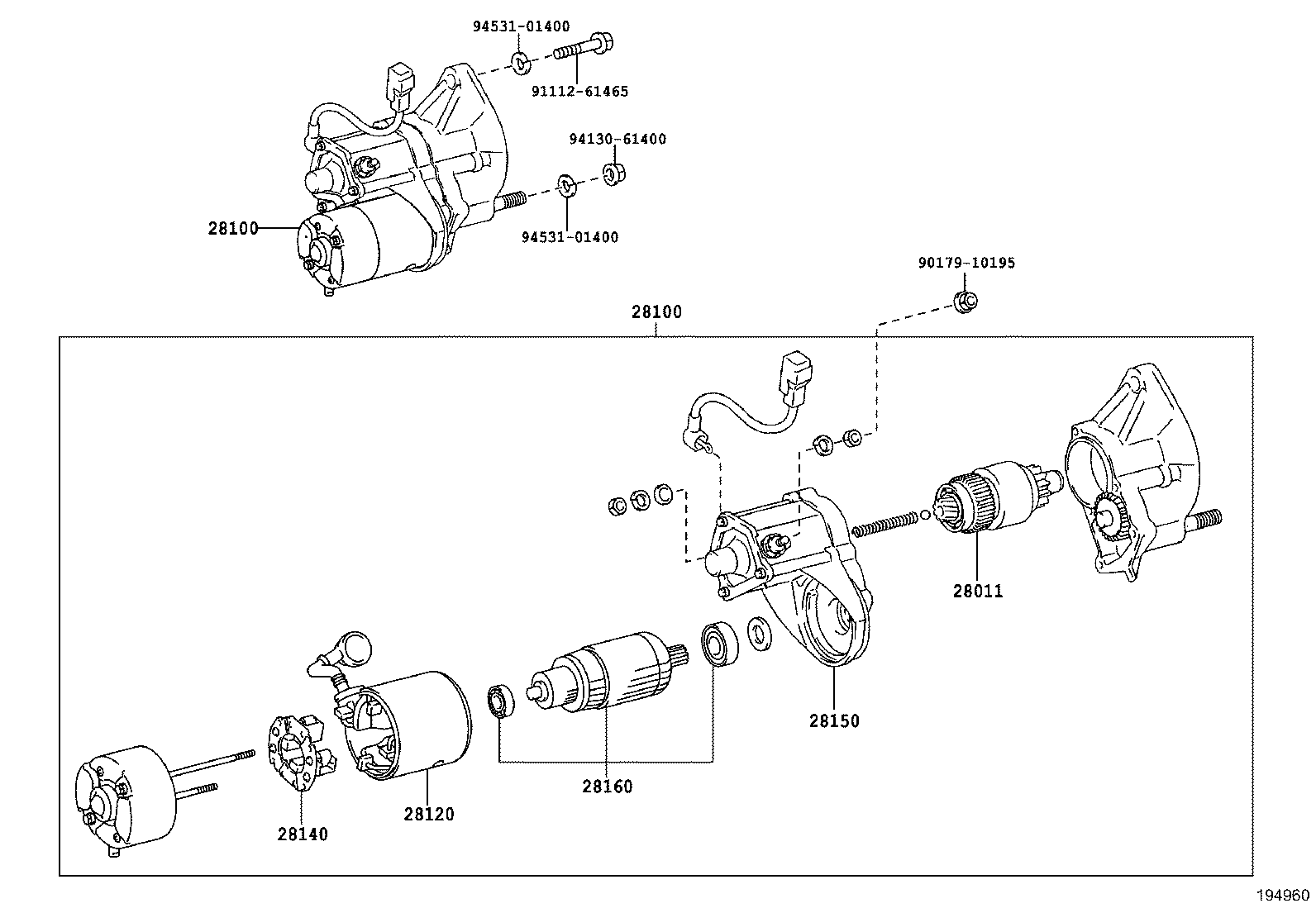

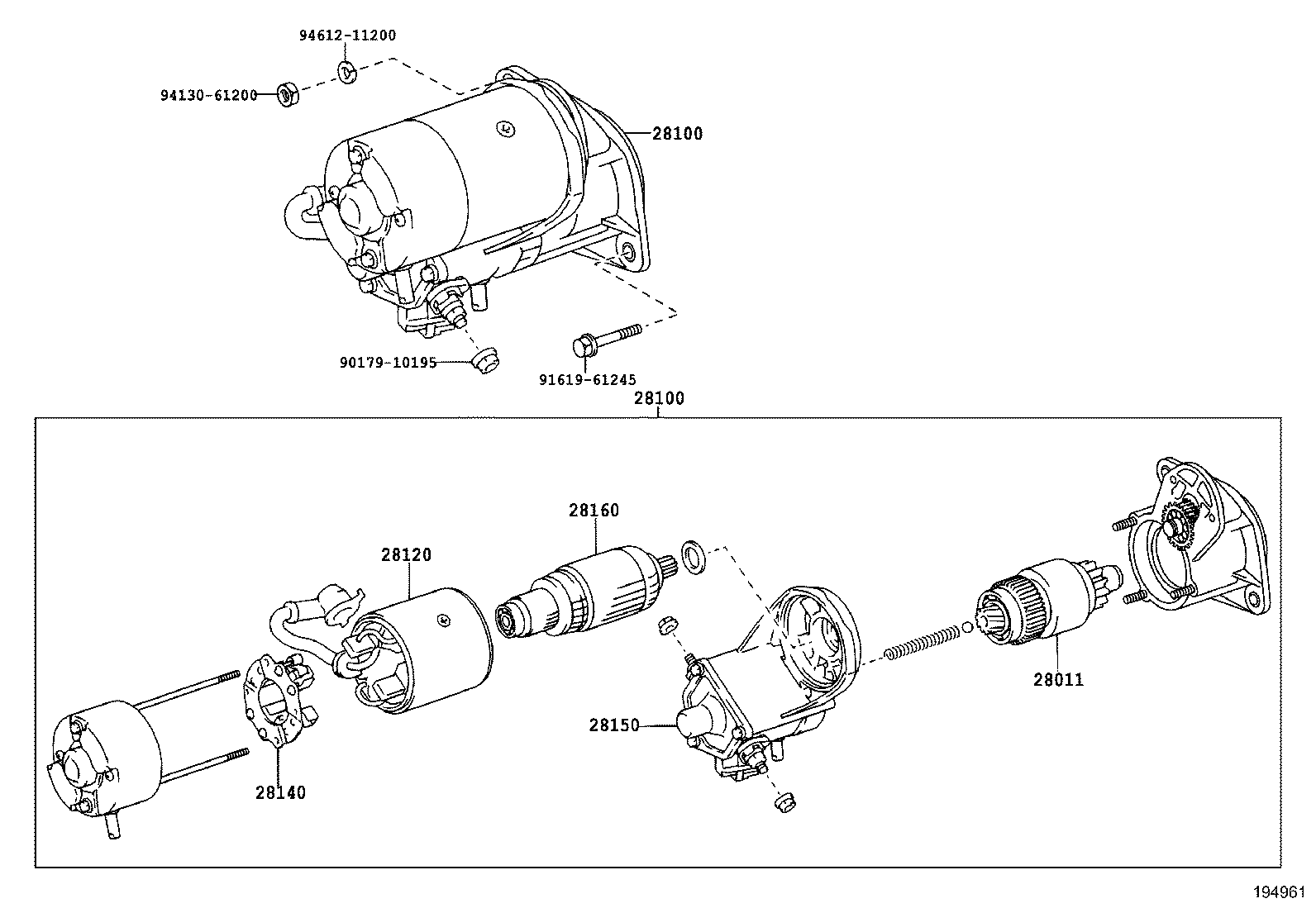

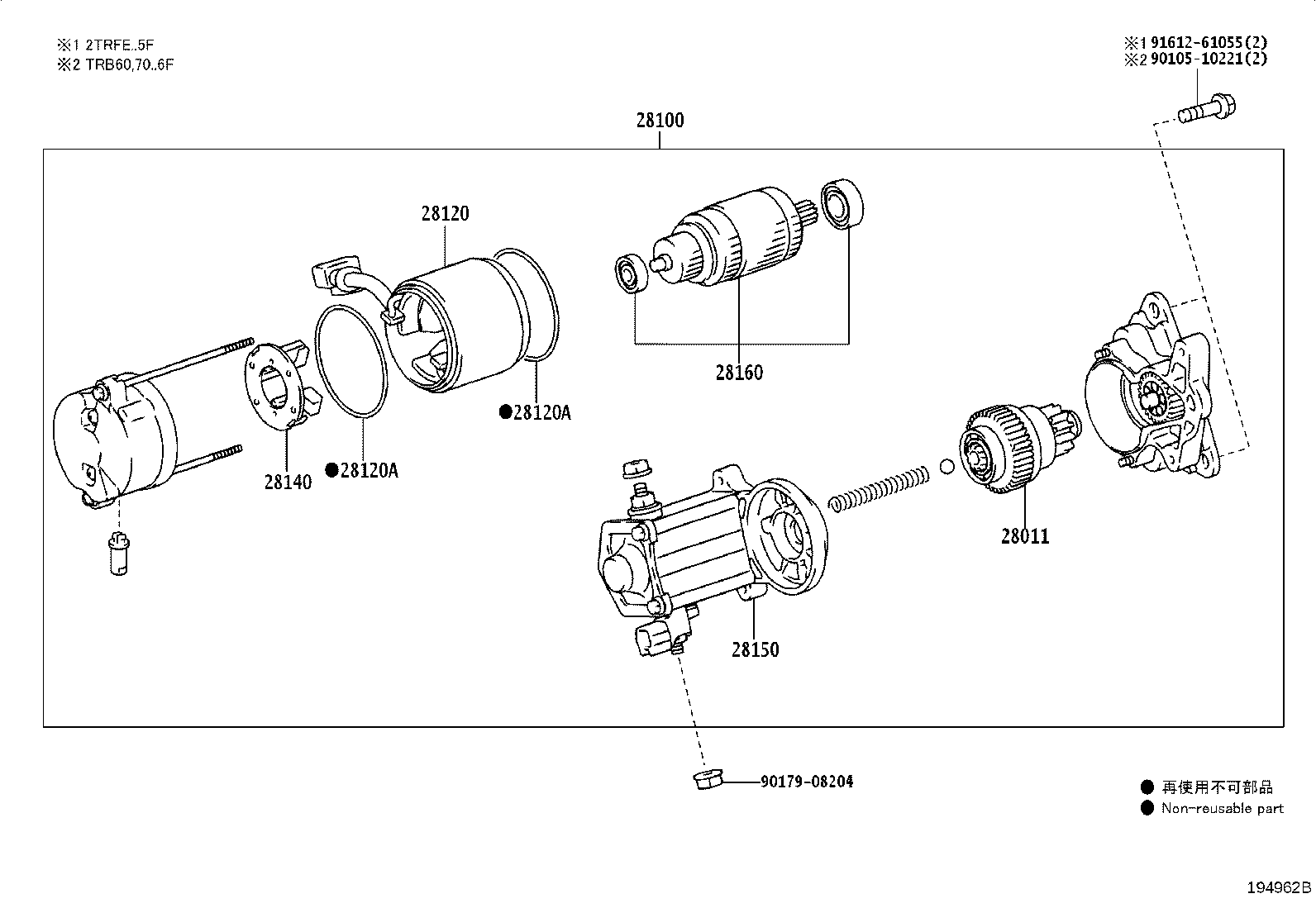

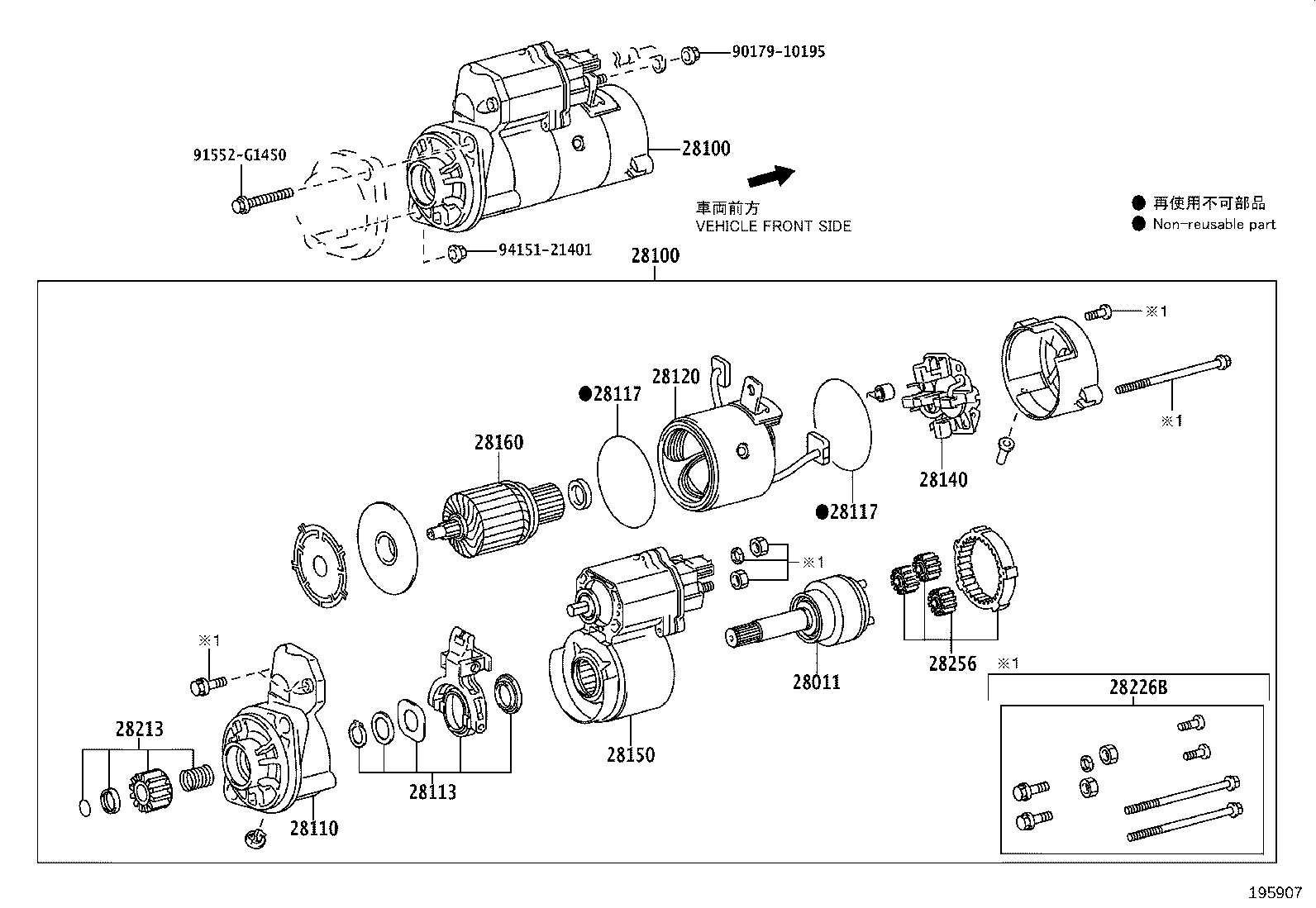

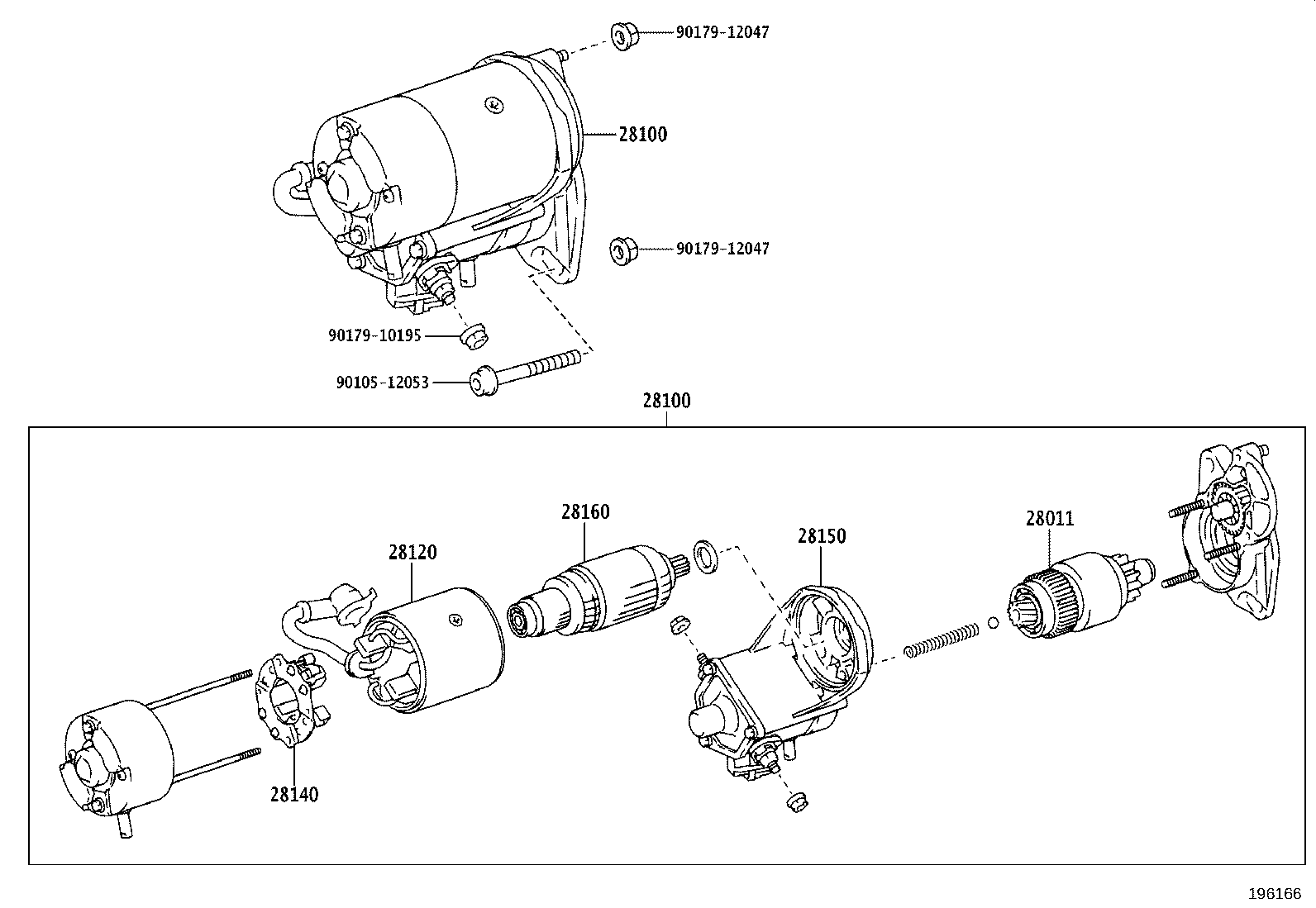

Figure 194959 194959 2017-01 → — Figure 194960 194960 2017-01 → — Figure 194961 194961 2017-01 → — Figure 194962B 194962B 2017-01 → — Figure 195907 195907 2017-01 → — Figure 196166 196166 2022-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
