Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

29 part groups · 11 illustrations

Illustrations

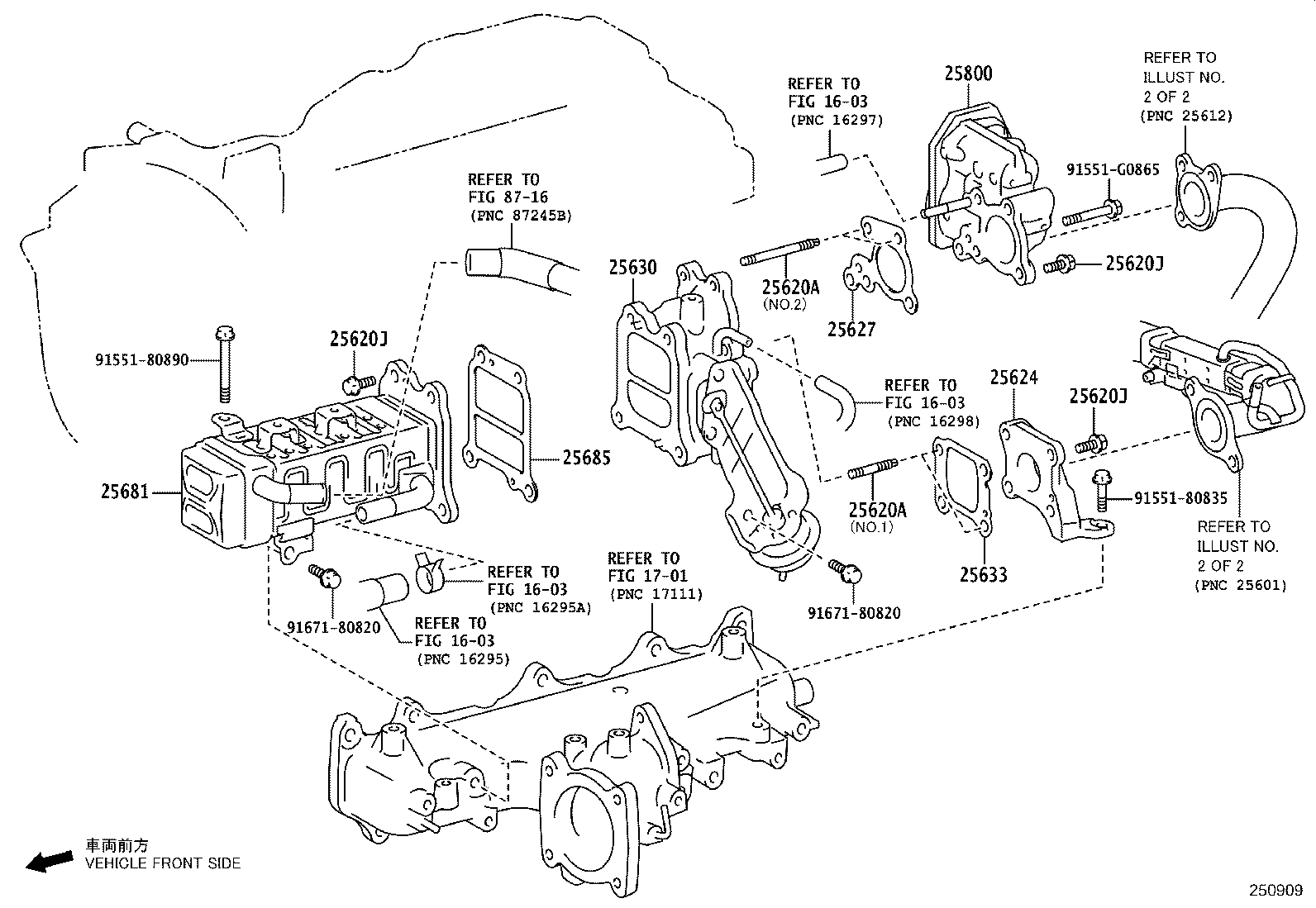

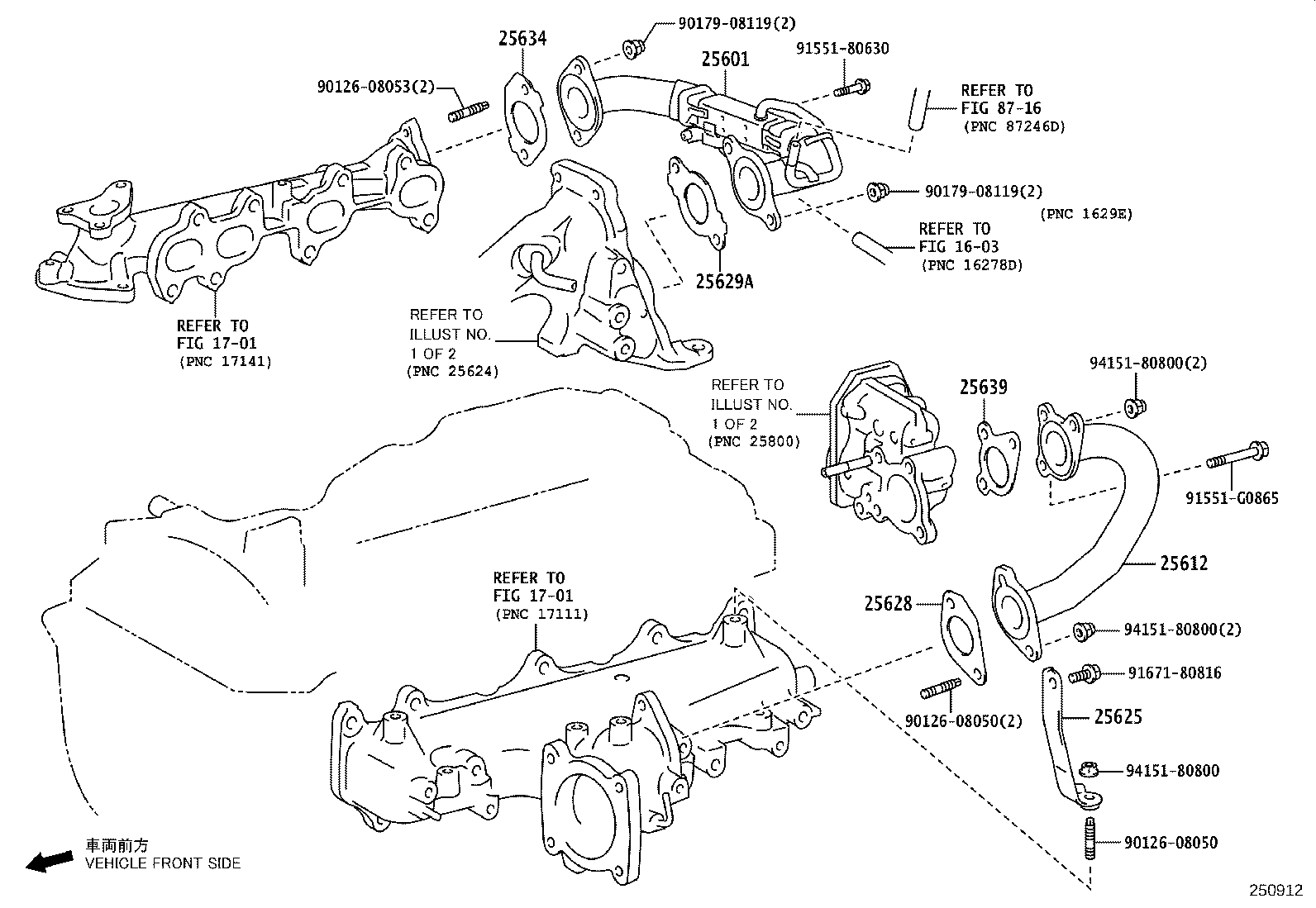

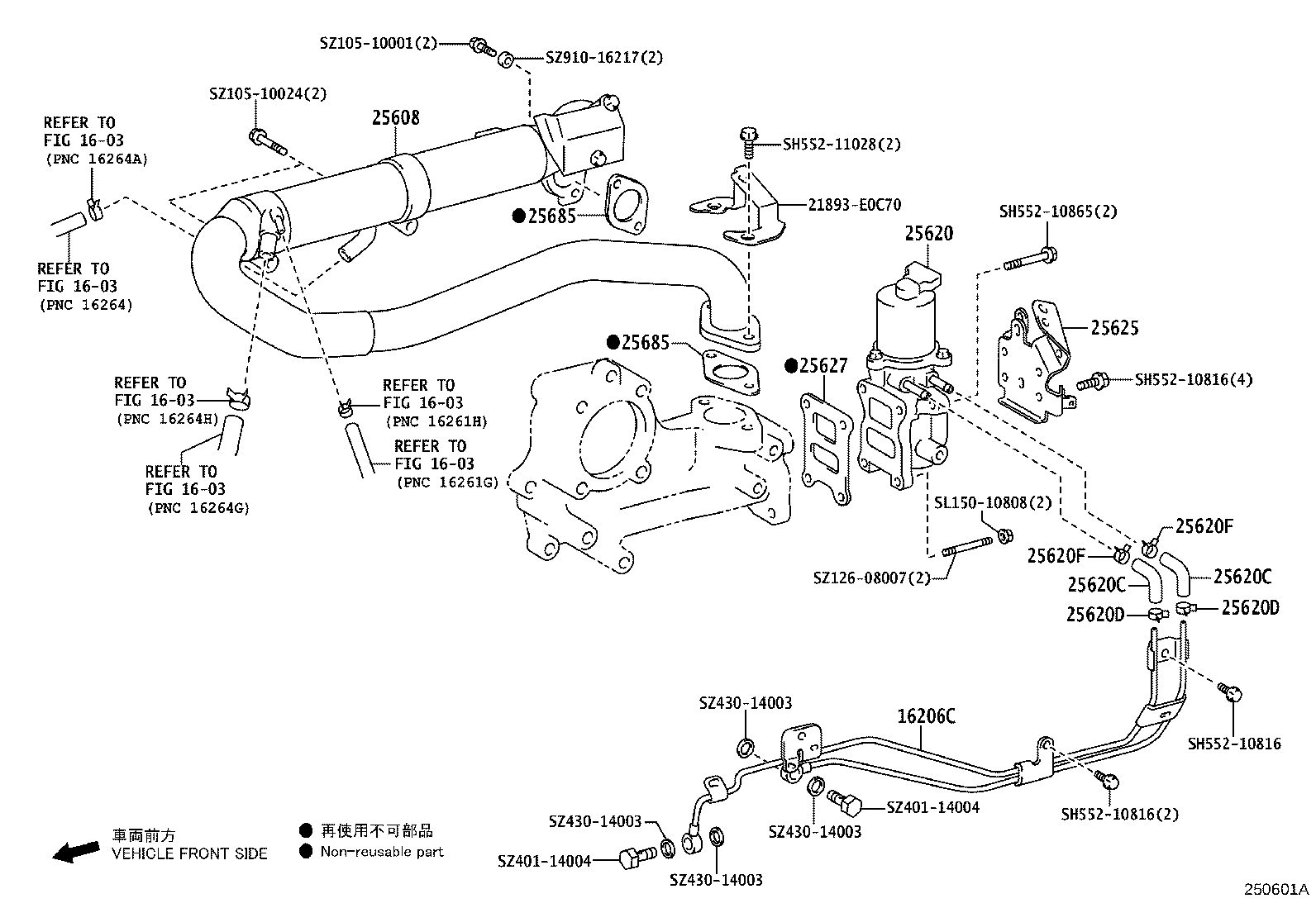

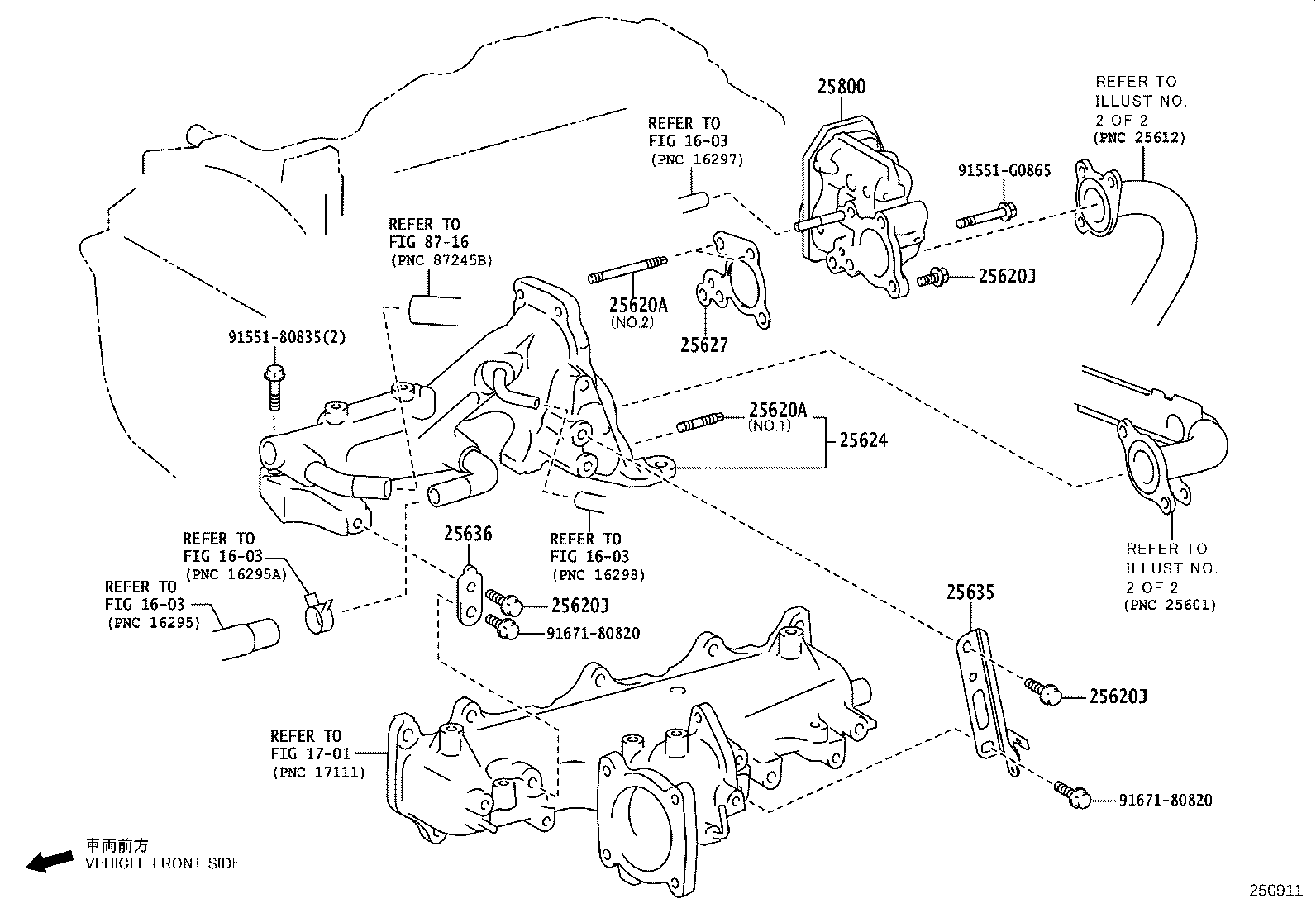

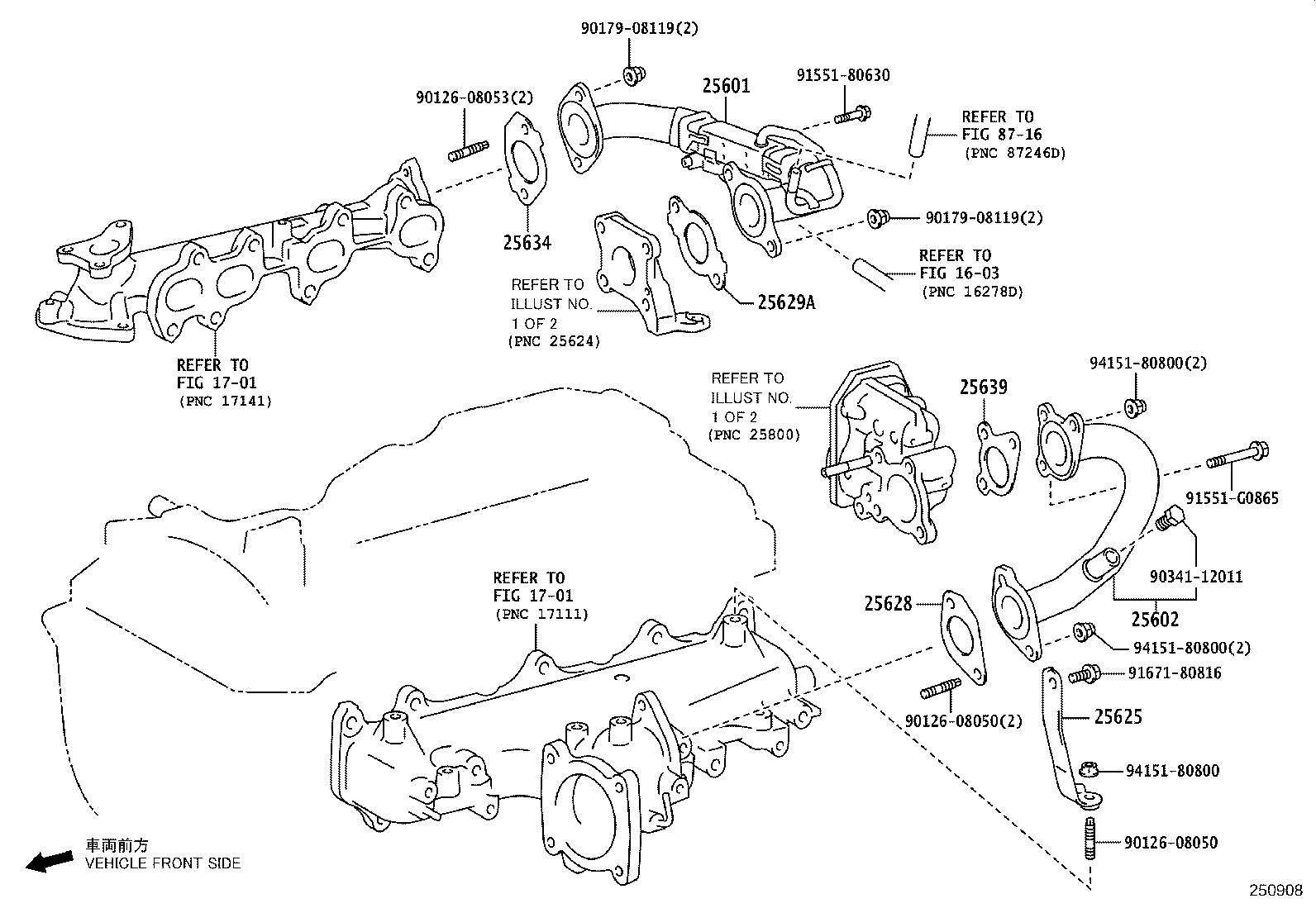

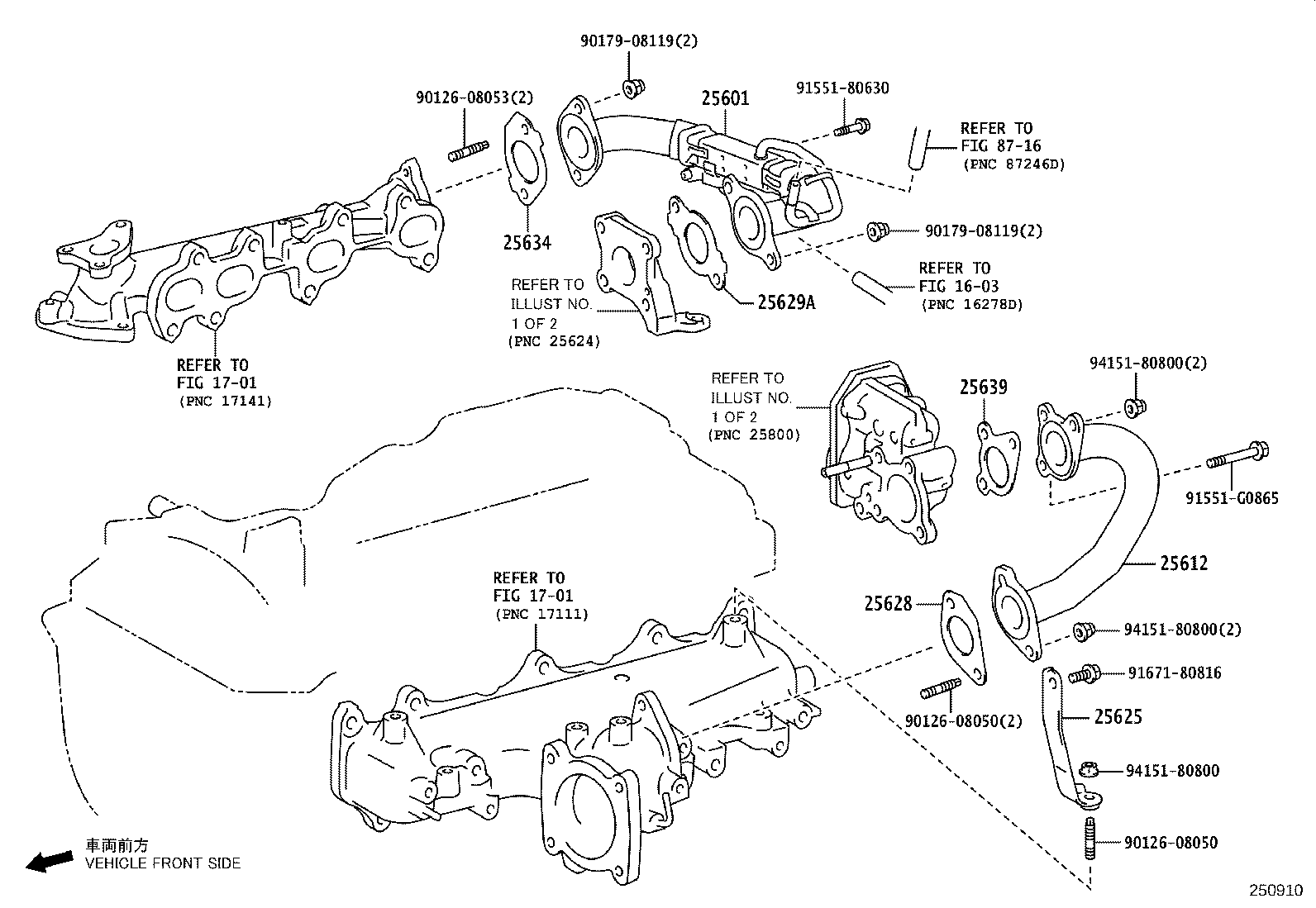

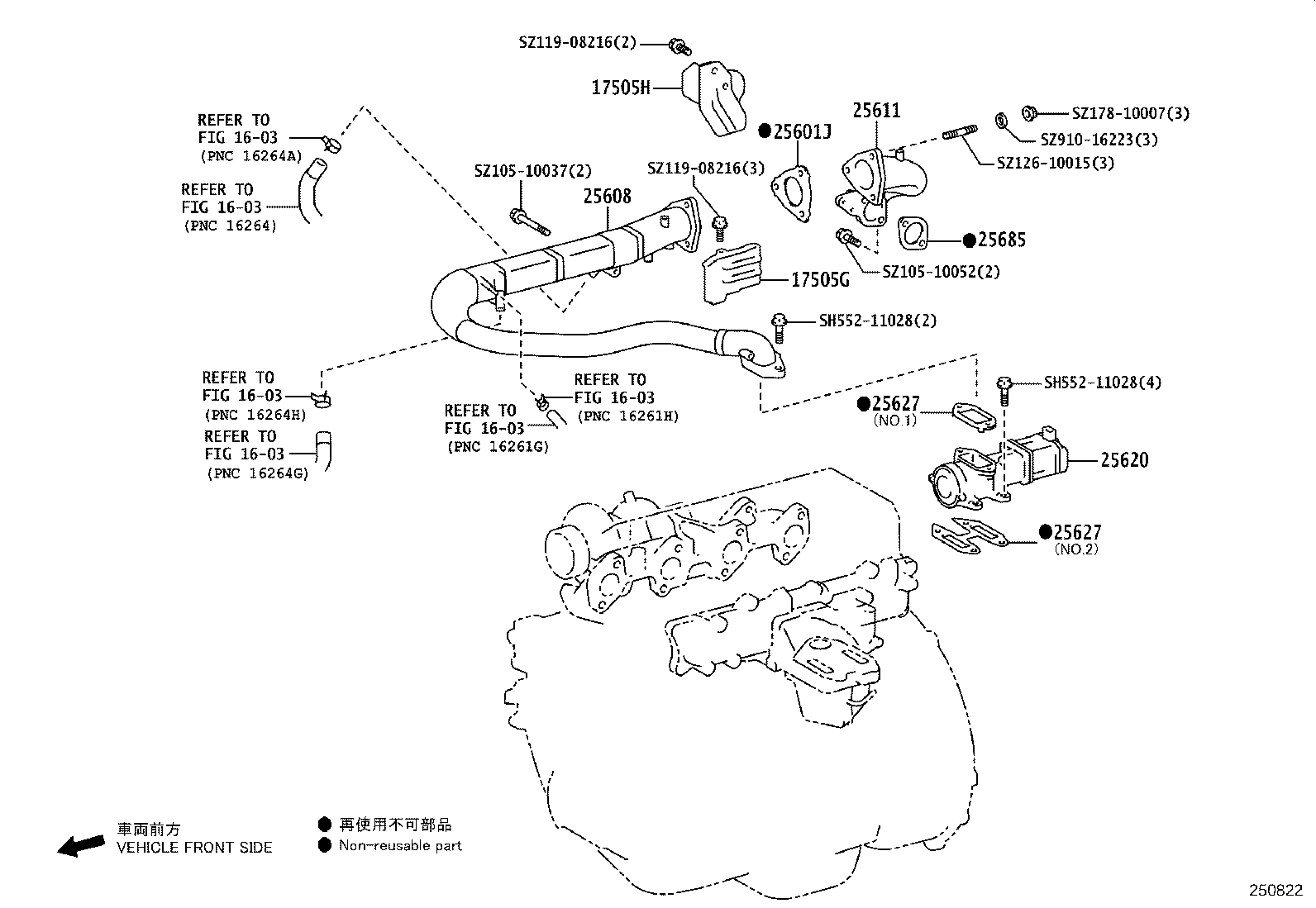

Figure 250907 250907 2022-01 → — Figure 250909 250909 2022-01 → — Figure 250911 250911 2022-01 → — Figure 250911 250911 2023-04 → — Figure 250908 250908 2022-01 → — Figure 250910 250910 2022-01 → — Figure 250912 250912 2022-01 → — Figure 250912 250912 2023-04 → — Figure 250601A 250601A 2017-01 → — Figure 250814 250814 2017-01 → — Figure 250822 250822 2021-01 → —

Part groups

PNCDescription
16206C Pipe Sub-assy, Water By-pass
17505G Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505H Insulator Sub-assy, Exhaust Pipe Heat NO.2
25601 Pipe Sub-assy, Egr, NO.1
25601J Gasket(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25608 Cooler Sub-assy, Egr
25611 Connector, Egr Pipe
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25620F Clip(FOR WATER BY-PASS HOSE, NO.2)
25620J Bolt(FOR EGR VALVE)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25636 Bracket, Egr Pipe, NO.2
25639 Gasket, Egr Pipe, NO.3
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
