Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Lpg OR Cng Regulator
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

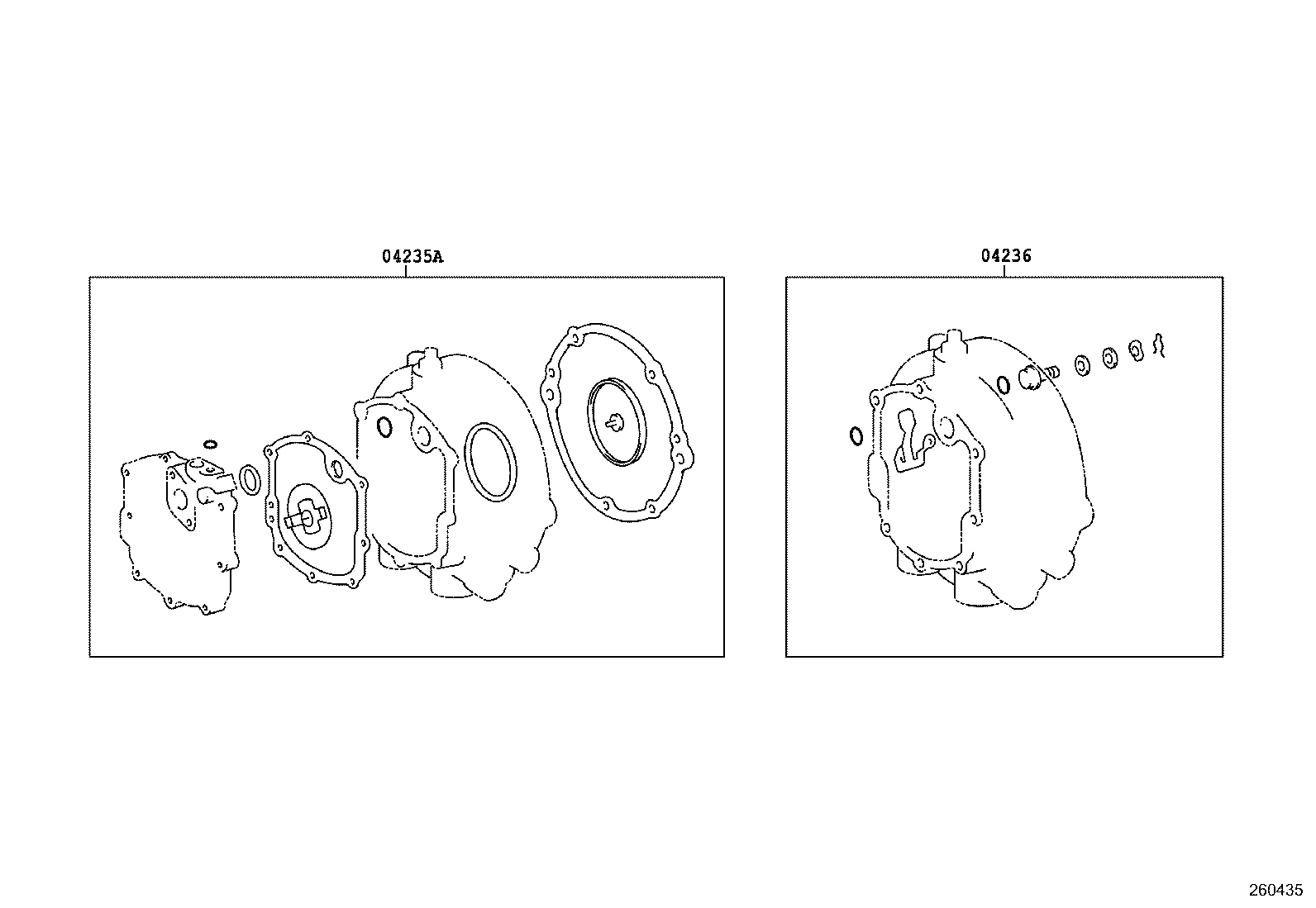

| 04235A | Diaphragm Kit, Lpg Regulator, W/O Valve |
| 04236 | Valve Kit, Lpg Regulator |
| 23051 | Valve Sub-assy, 1ST |
| 23058 | Valve Sub-assy, 2ND |
| 23500 | Regulator Assy, Lpg(CNG) |
| 23500W | Hose, Fuel(FOR LPG REGULATOR) |
| 23500X | Clip(FOR LPG REGULATOR FUEL HOSE) |
| 23507 | Valve Sub-assy, Solenoid Regulator |
| 23517A | Washer(FOR ELASTIC FACE VALVE SET) |
| 23517B | Ring, Snap(FOR ELASTIC FACE VALVE SET) |
| 23518 | Washer, Wave(FOR ELASTIC FACE VALVE SET) |
| 23523 | Cover, 1ST Regulator |
| 23532 | Ring, O, NO.2(FOR BULB) |
| 23537 | Screw(FOR 2ND REGULATOR COVER SET) |
| 23555A | Washer, Idle Adjust Screw |
| 23569 | Cock, Drain |
| 23571 | Screw(FOR VACUUM LOCK DIAPHRAGM RING SET) |
| 23574 | Ring, O, NO.1(FOR BULB) |
| 23585A | Ring, O(FOR PREHEATER) |
| 23589 | Filter, Lpg Regulator |
| 23591 | Union, NO.1, Fuel |
| 23592 | Union, NO.2, Fuel Hose |
| 23593 | Union, NO.3 |
| 23594 | Union, NO.4, Water Hose |
| 23595 | Union, NO.5 |
| 23596 | Plug(FOR LPG REGULATOR BODY) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
