Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

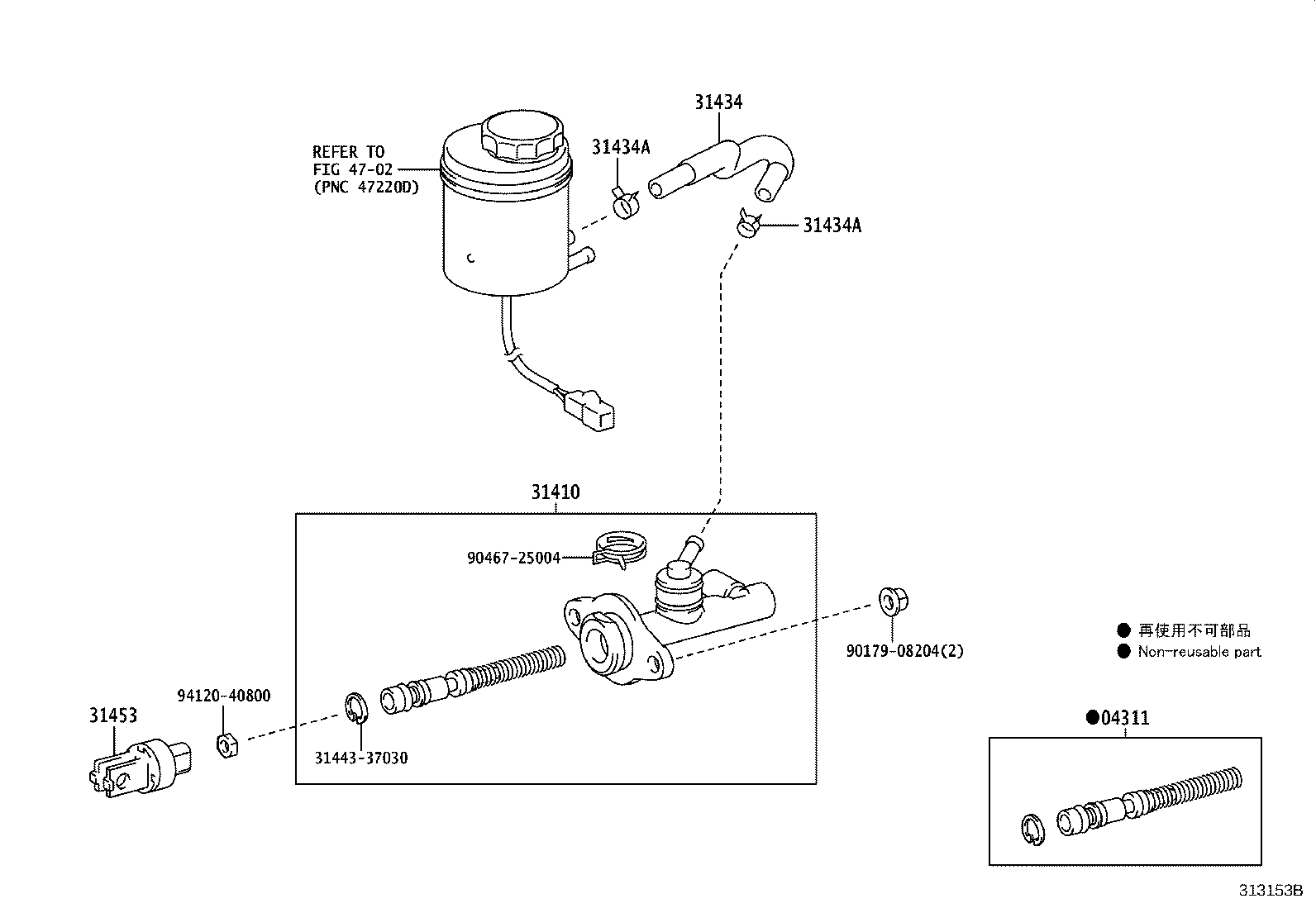

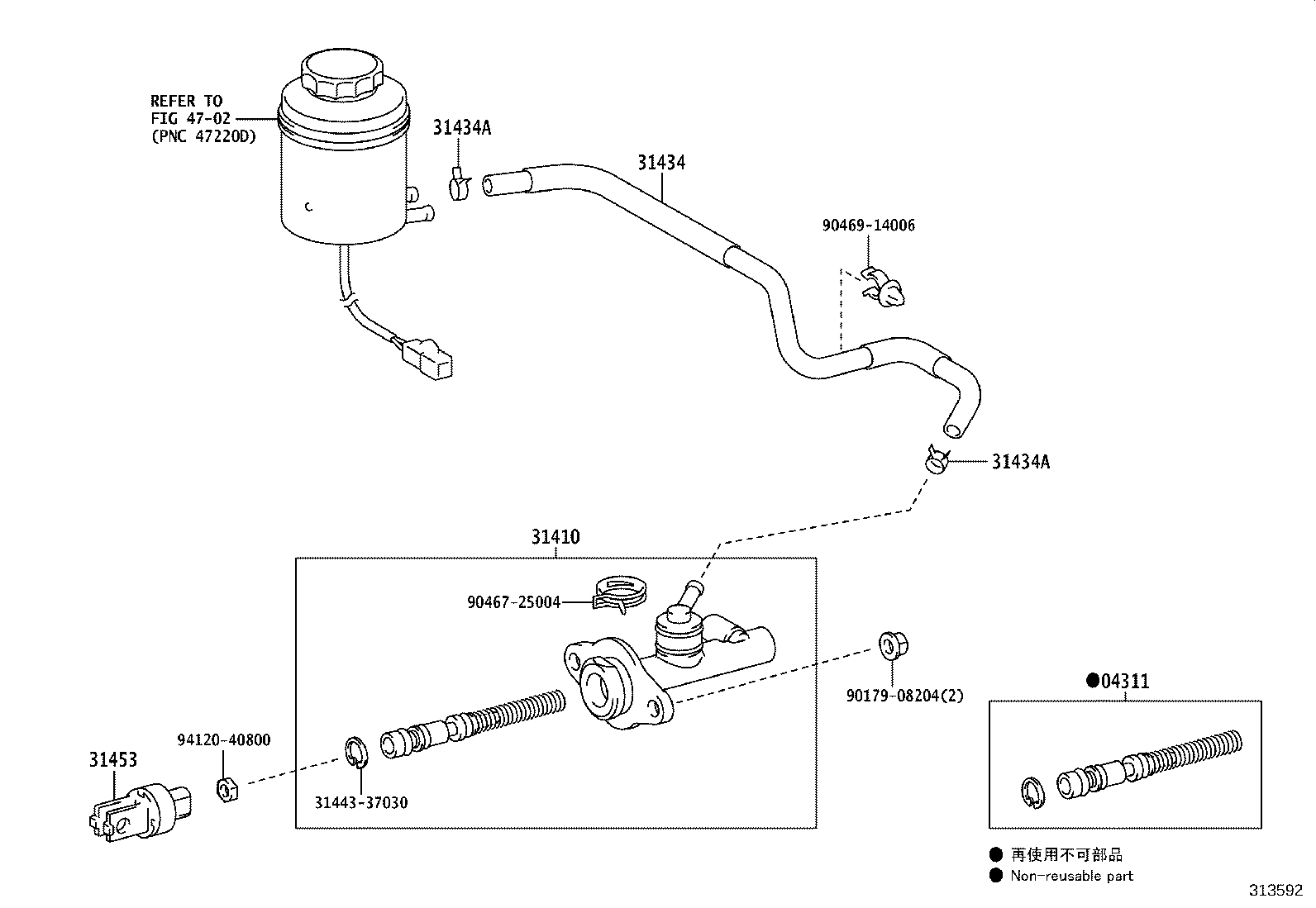

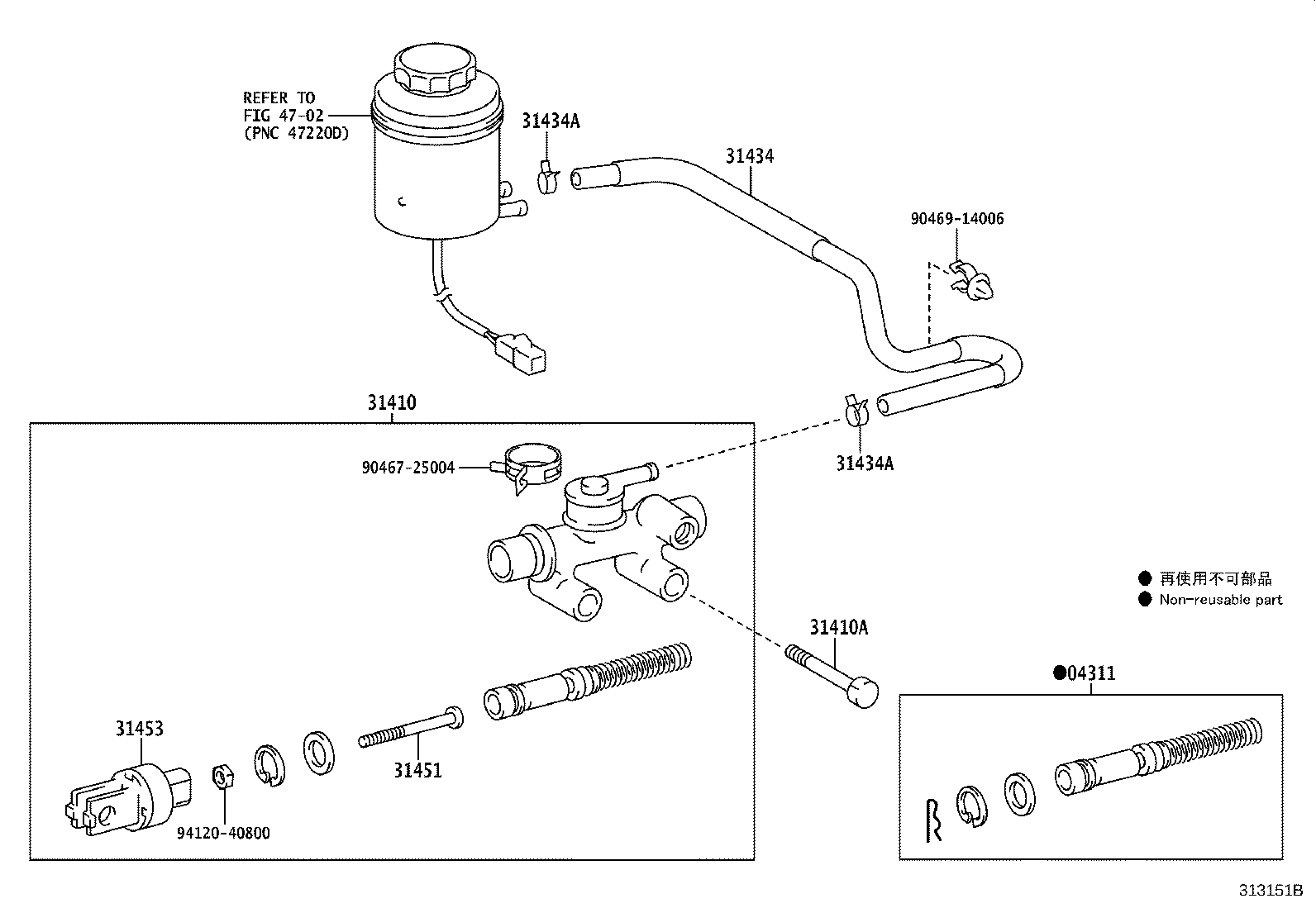

Clutch Master Cylinder
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31451 | Rod, Clutch Master Cylinder Push |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
