Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

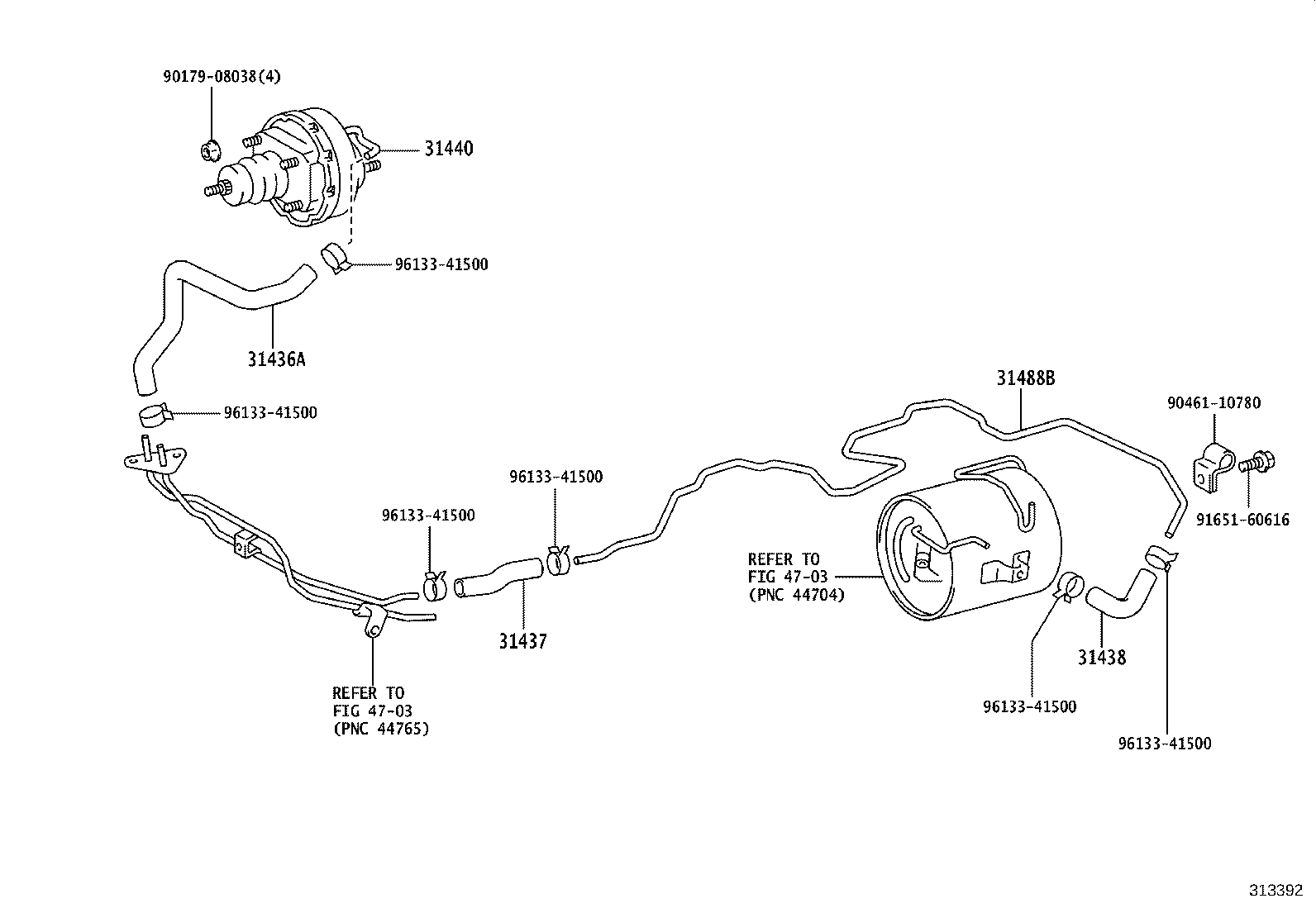

Clutch Booster
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31436A | Hose, NO.1(FOR CLUTCH BOOSTER VACUUM) |
| 31437 | Hose, NO.2(FOR CLUTCH BOOSTER VACUUM) |
| 31438 | Hose, NO.3(FOR CLUTCH BOOSTER VACUUM) |
| 31440 | Booster Assy, Clutch W/Air Cleaner |
| 31488B | Tube, Vacuum Hose TO Vacuum Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
