Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

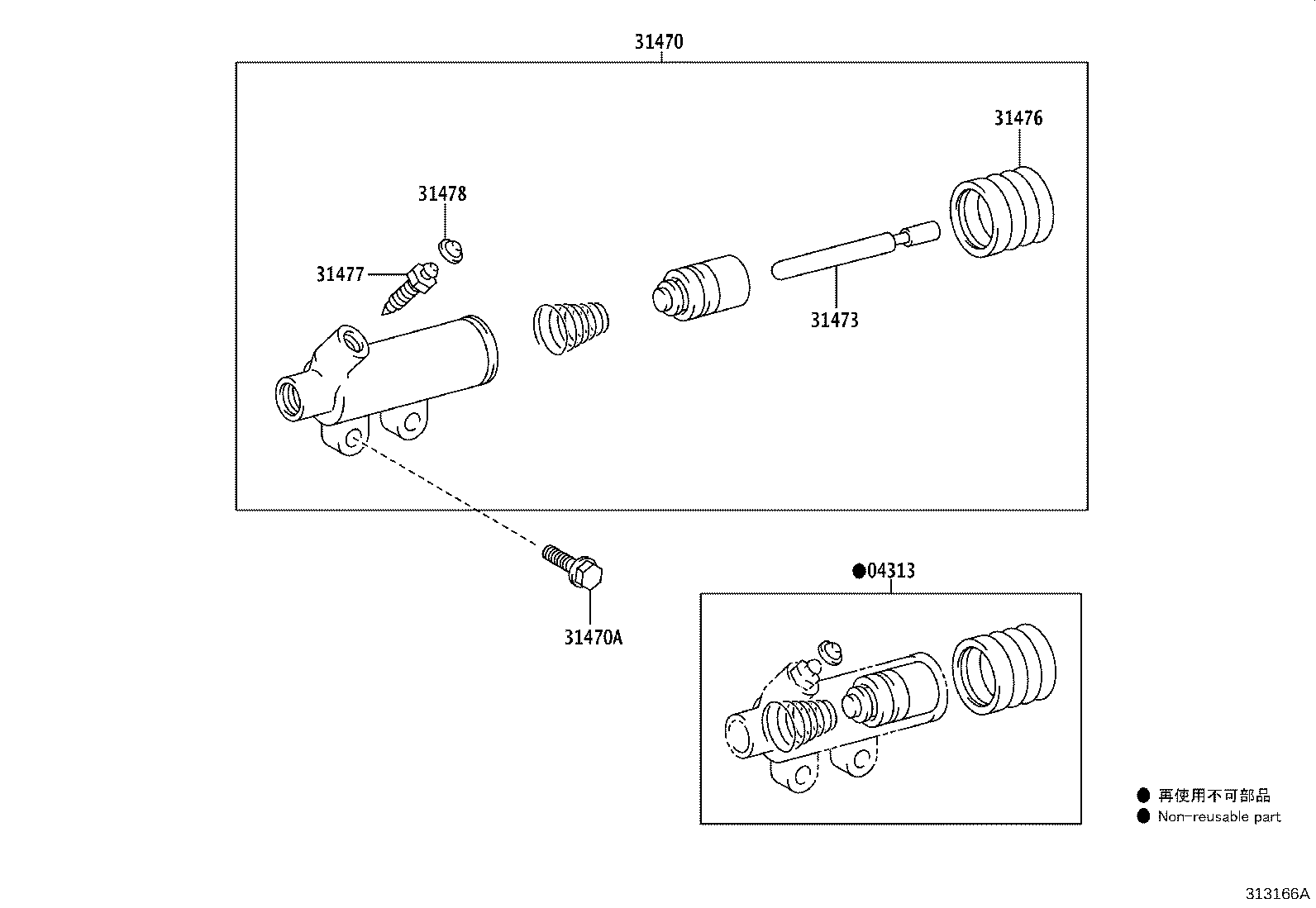

Clutch Release Cylinder
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04313 | Cylinder Kit, Clutch Release |
| 31470 | Cylinder Assy, Clutch Release |
| 31470A | Bolt(FOR CLUTCH RELEASE CYLINDER SETTING) |
| 31473 | Rod, Clutch Release Cylinder Push, NO.1 |
| 31476 | Boot, Clutch Release Cylinder |
| 31477 | Plug, Bleeder(FOR RELEASE CYLINDER) |
| 31478 | Cap, Bleeder Plug(FOR RELEASE CYLINDER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
