Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

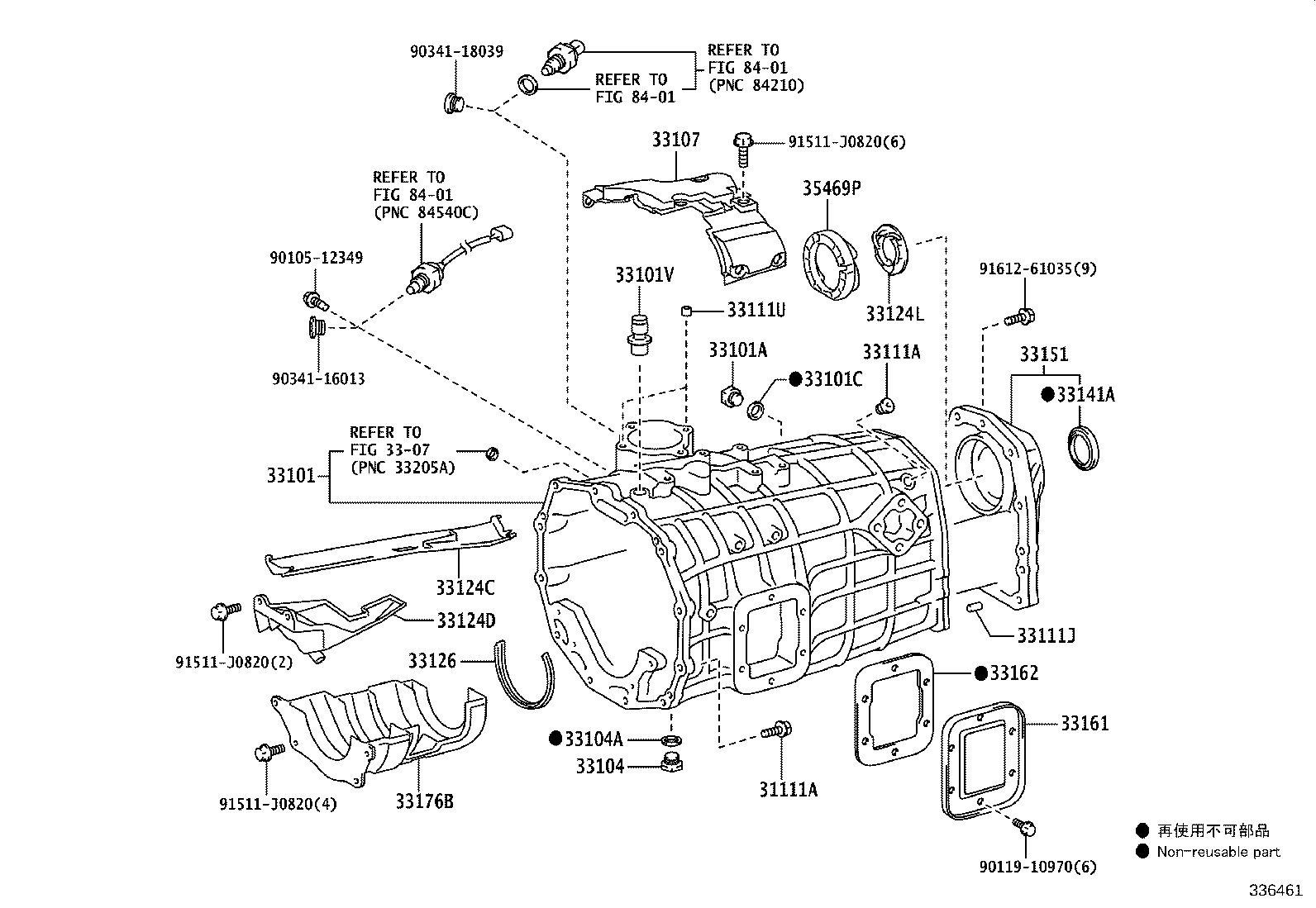

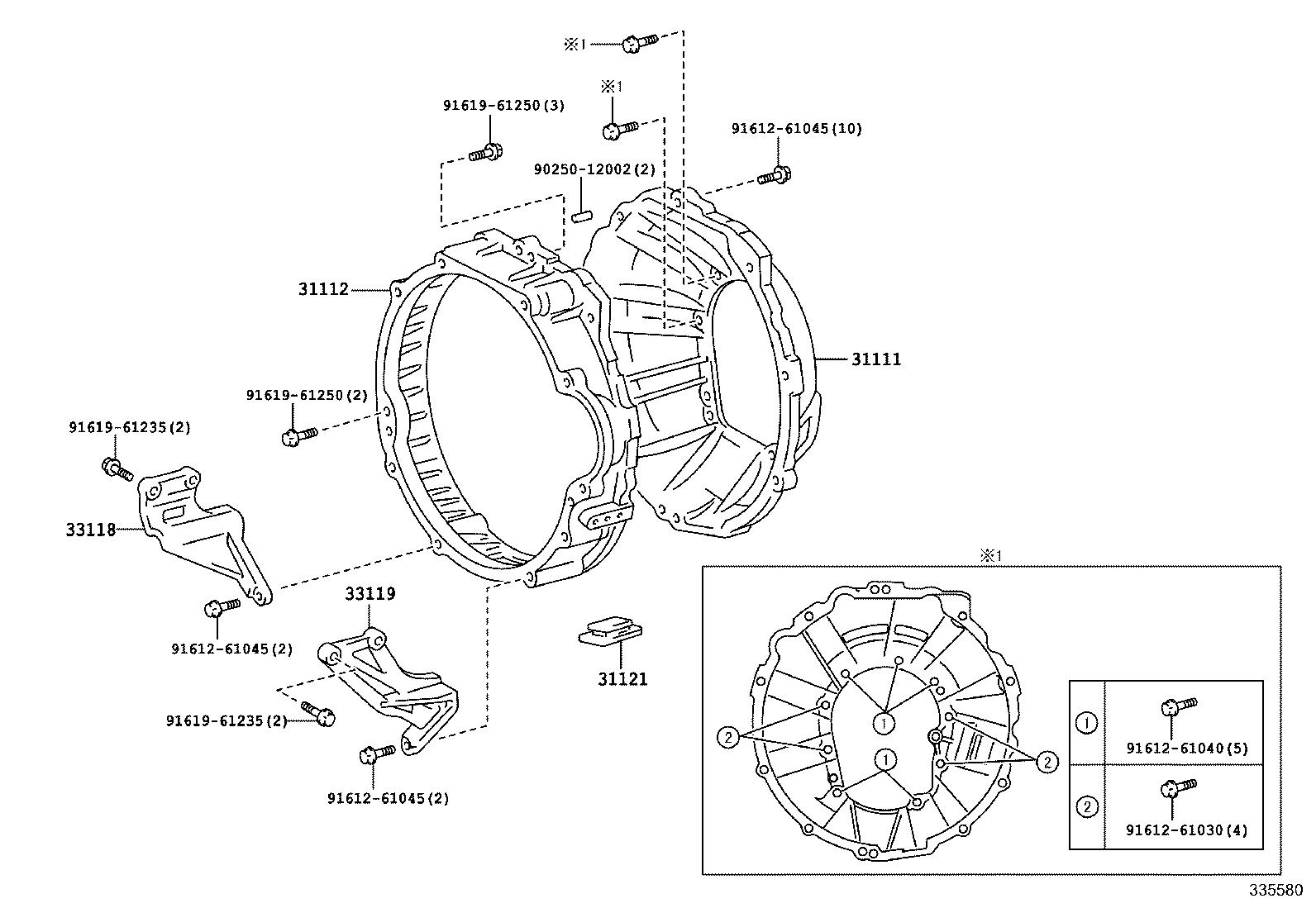

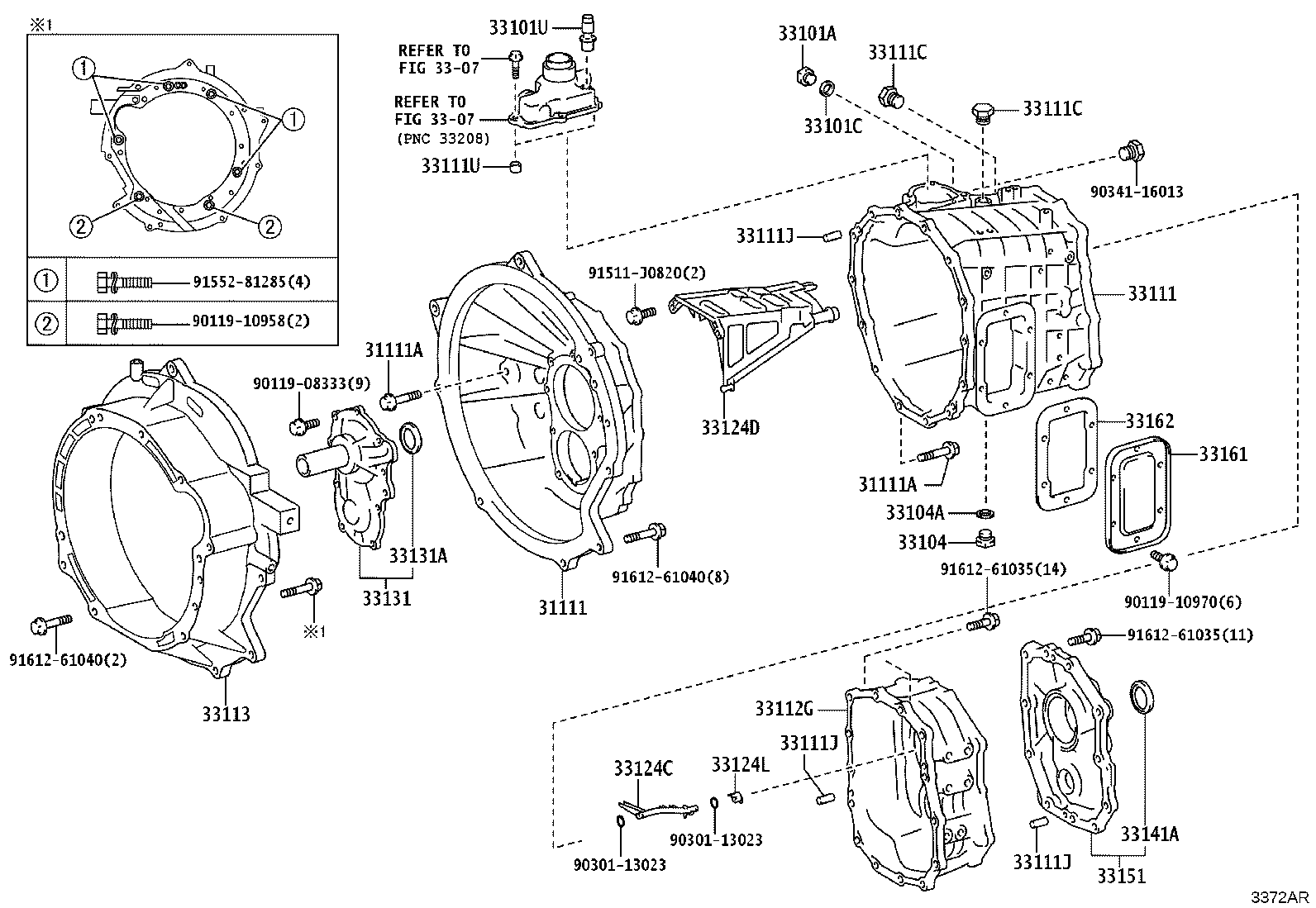

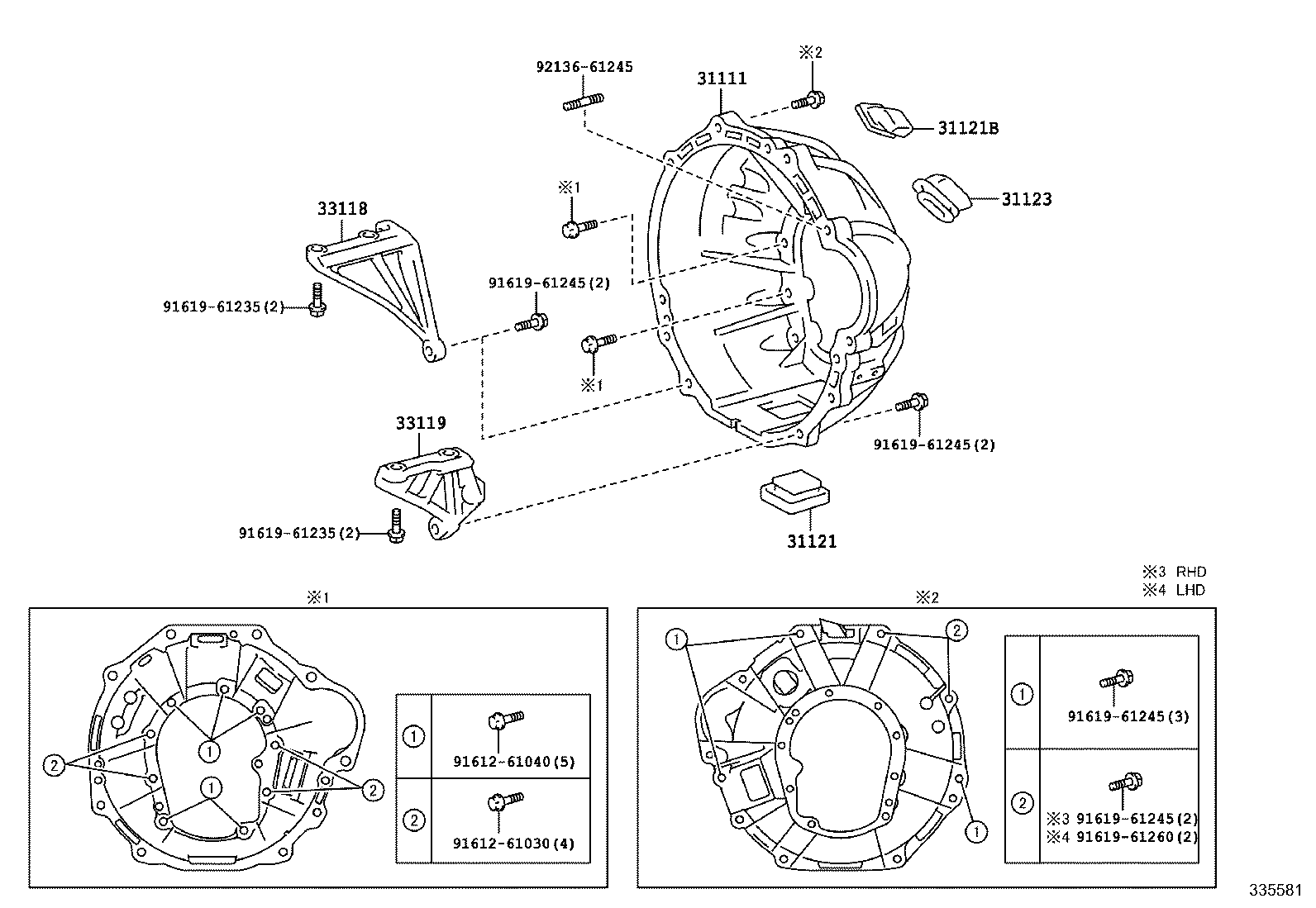

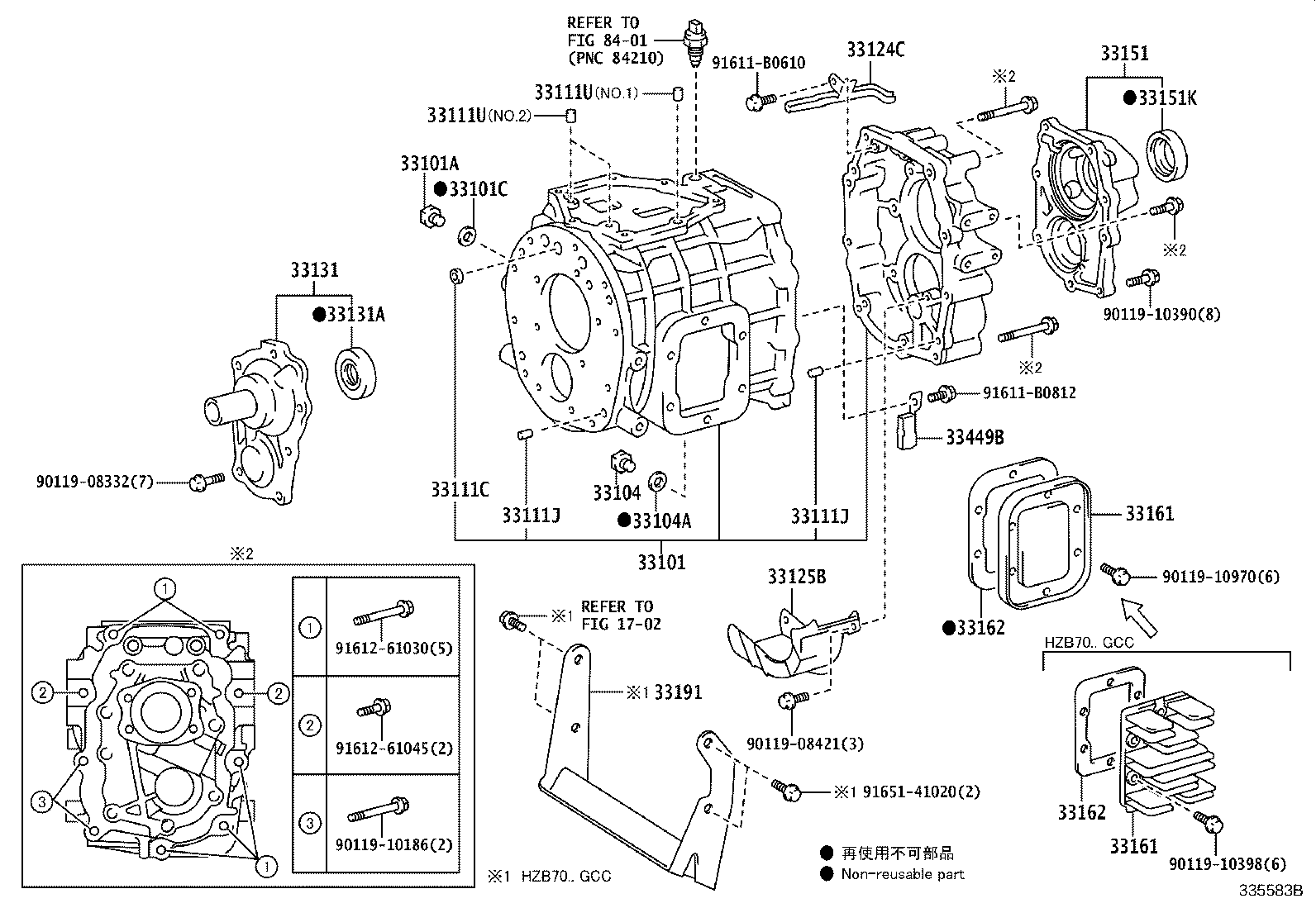

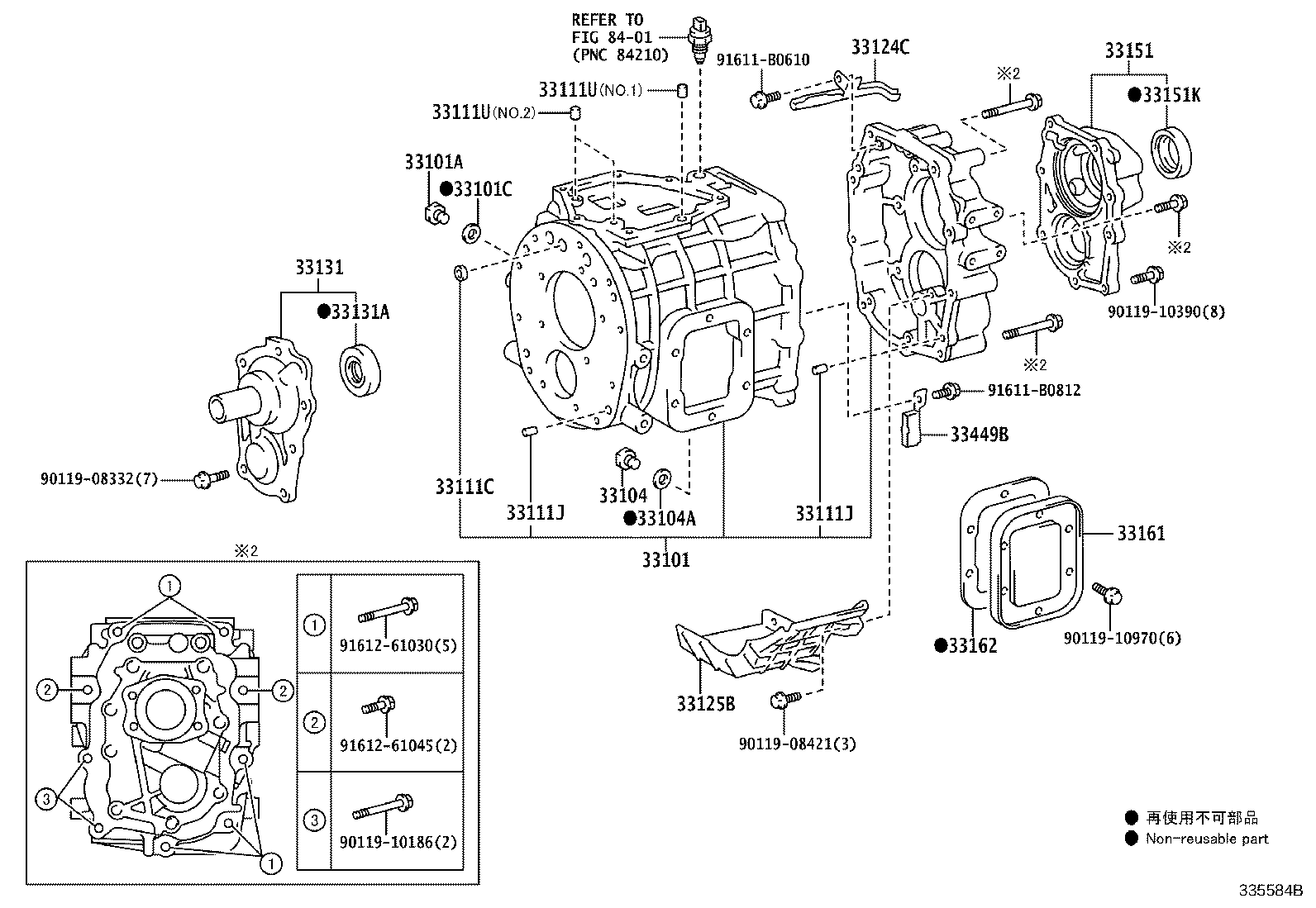

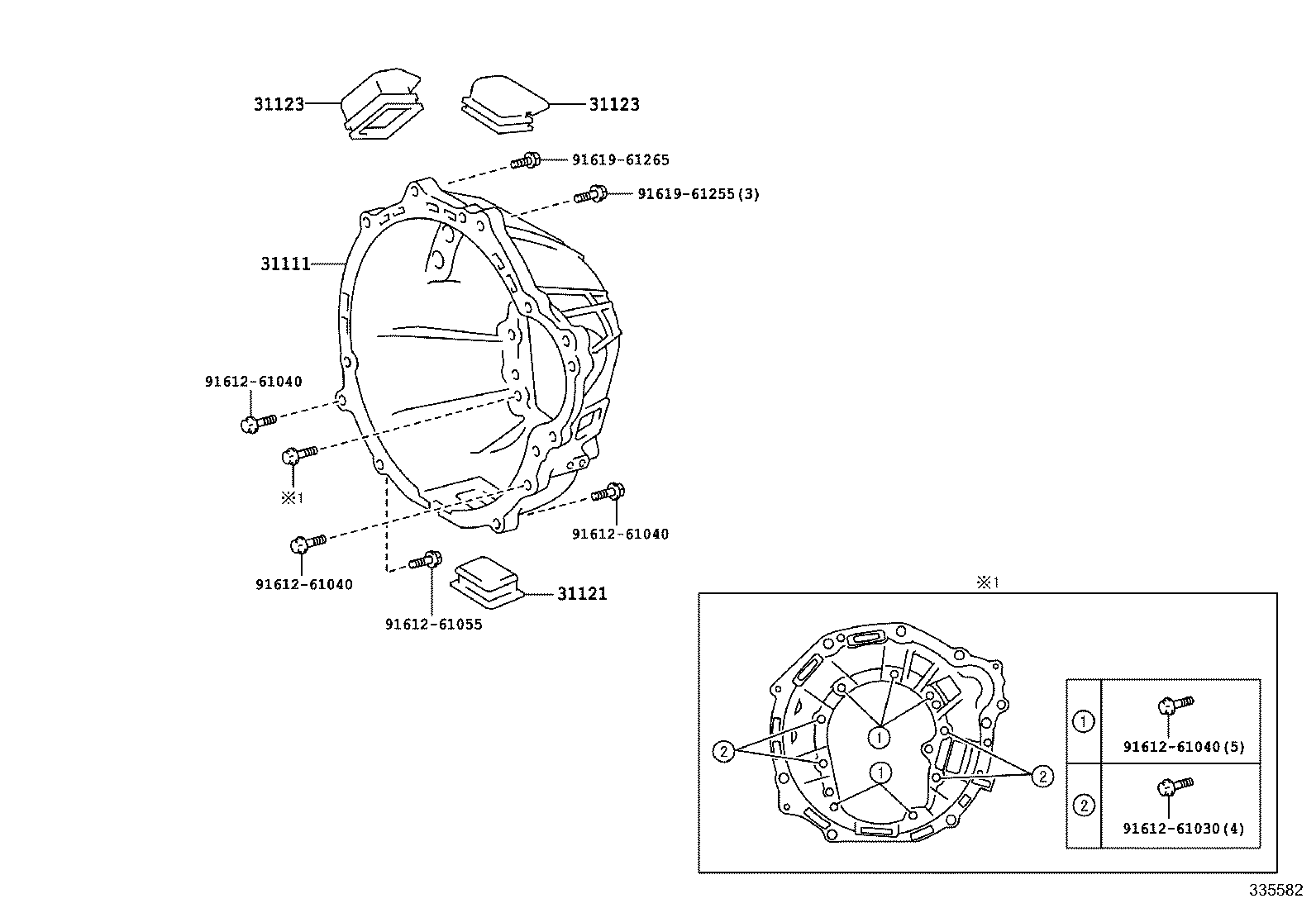

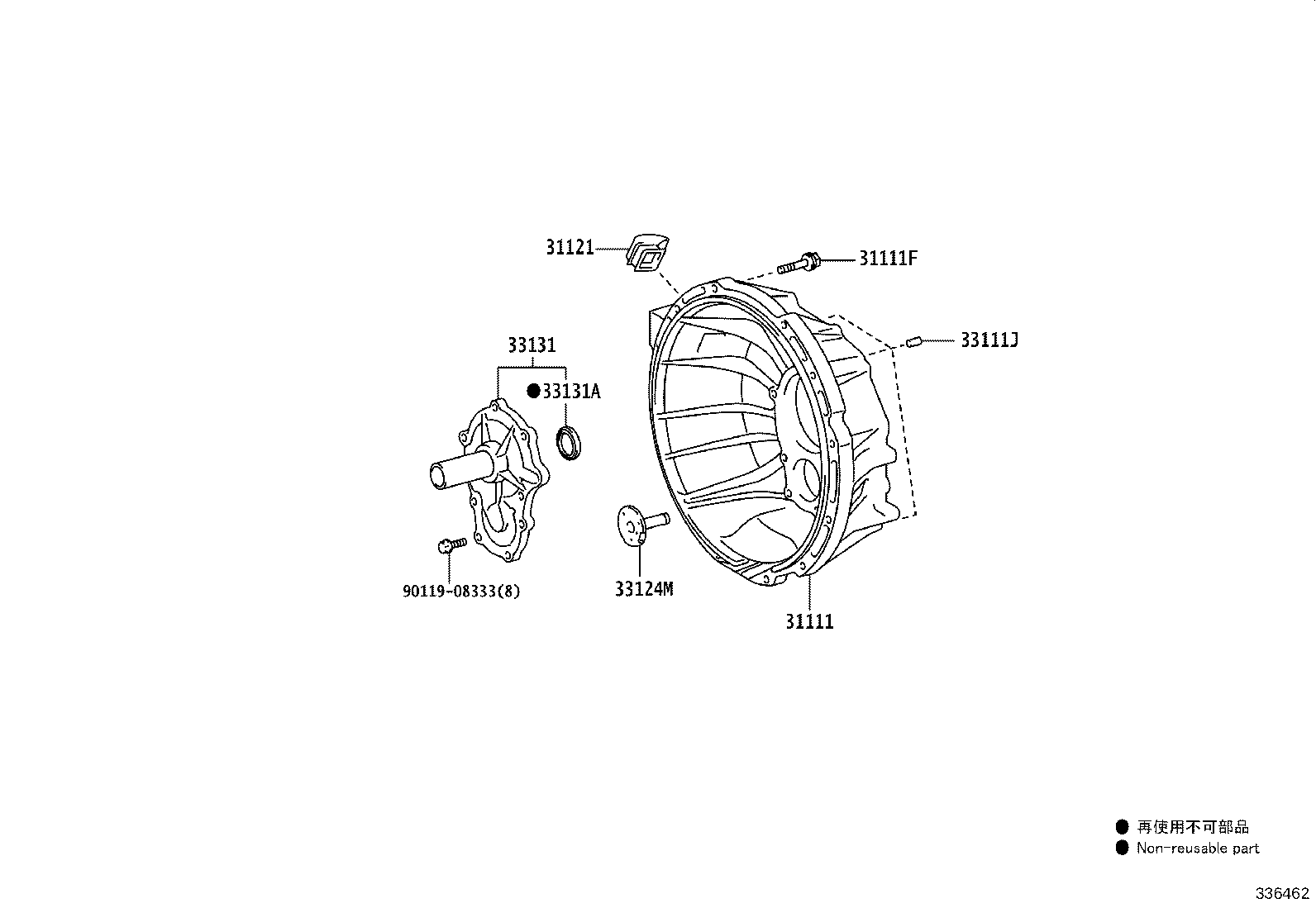

Clutch Housing & Transmission Case (MTM)
41 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31111A | Bolt(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) |
| 31111F | Bolt(FOR CLUTCH HOUSING & ENGINE SETTING) |
| 31112 | Housing, Clutch, Front |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31121B | Cover, Clutch Housing, NO.3 |
| 31123 | Cover, Clutch Housing, NO.2 |
| 33101 | Case Sub-assy, Manual Transmission |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33101V | Gasket(FOR MANUAL TRANSMISSION BREATHER PLUG) |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33107 | Cover Sub-assy, Transmission, Upper |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33112G | Case, Transmission, Rear |
| 33113 | Adapter, Transmission Case, Front |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124L | Pipe, Oil Receiver, N0.3(MTM) |
| 33124M | Pipe, Oil Receiver, N0.4(MTM) |
| 33125B | Receiver, Manual Transmission Case |
| 33126 | Seal, Oil Receiver |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33141A | Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33151K | Seal, Type T Oil |
| 33161 | Cover, Manual Transmission Power Take-off |
| 33162 | Gasket, Manual Transmission Power Take-off Cover |
| 33176B | Separator, Transmission Oil(MTM) |
| 33191 | Guide, Transmission Air |
| 33449B | Magnet, Transmission |
| 35469P | Spacer (FOR TRANSMISSION REAR RETAINER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
