Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

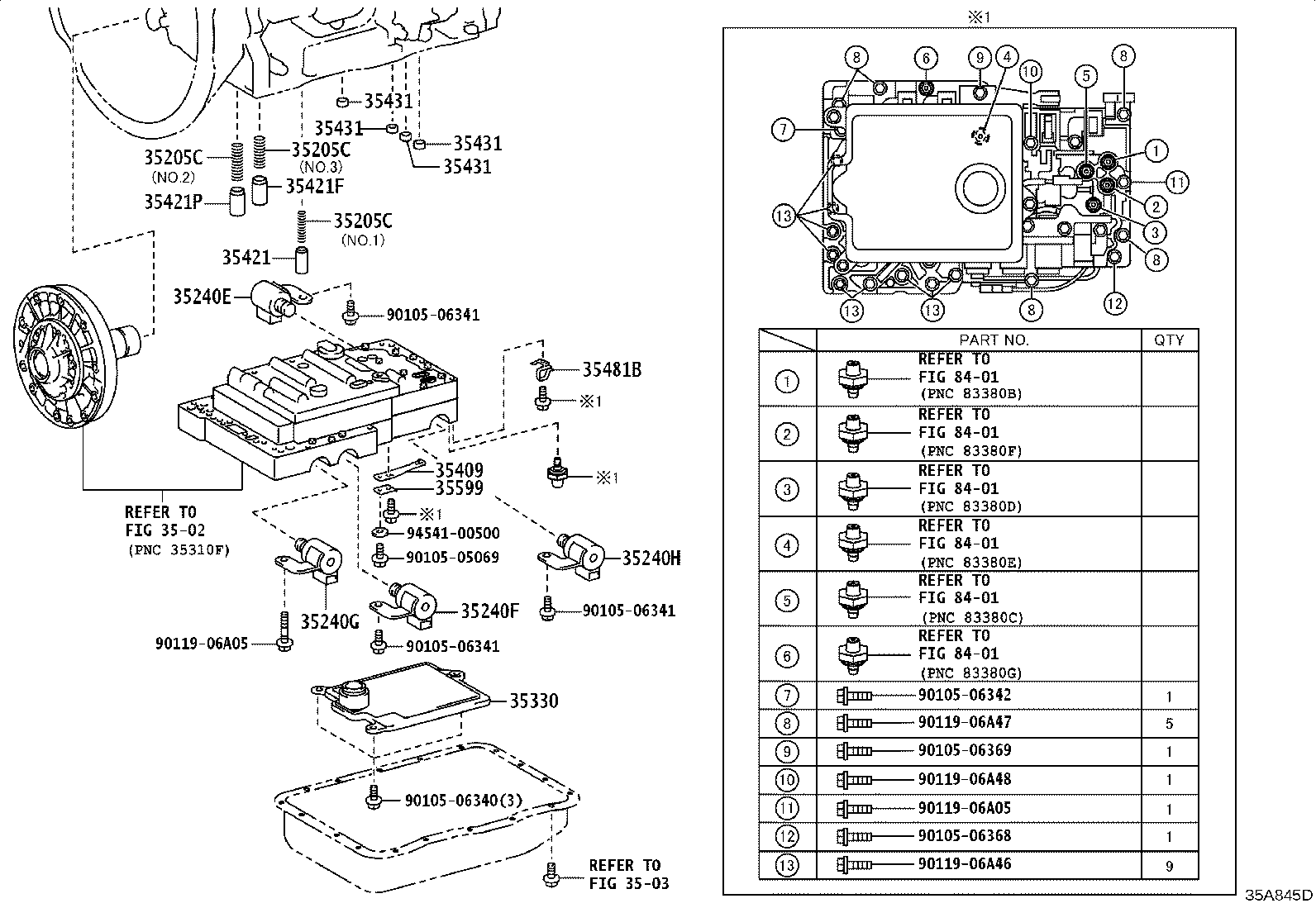

Valve Body & Oil Strainer (ATM)
47 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 34421 | Piston, Overdrive Brake Accumulator |
| 34421A | Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) |
| 34421B | Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) |
| 35112A | Cover, Front Clutch Accumulator |
| 35113 | Gasket, Front Clutch Accumlator, NO.2 |
| 35114 | Gasket, Front Clutch Accumlator, NO.1 |
| 35115 | Plate, Front Clutch Accumulator |
| 35205C | Spring Sub-assy, Accumulator |
| 35240D | Valve, Solenoid(SL) |
| 35240E | Valve, Solenoid(S1) |
| 35240F | Valve, Solenoid(S2) |
| 35240G | Valve, Solenoid(S3) |
| 35240H | Valve, Solenoid(S4) |
| 35250F | Valve, Solenoid(ST) |
| 35261A | Cylinder, Throttle Pressure Accumulator |
| 35290C | Valve, Solenoid(SLT) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |

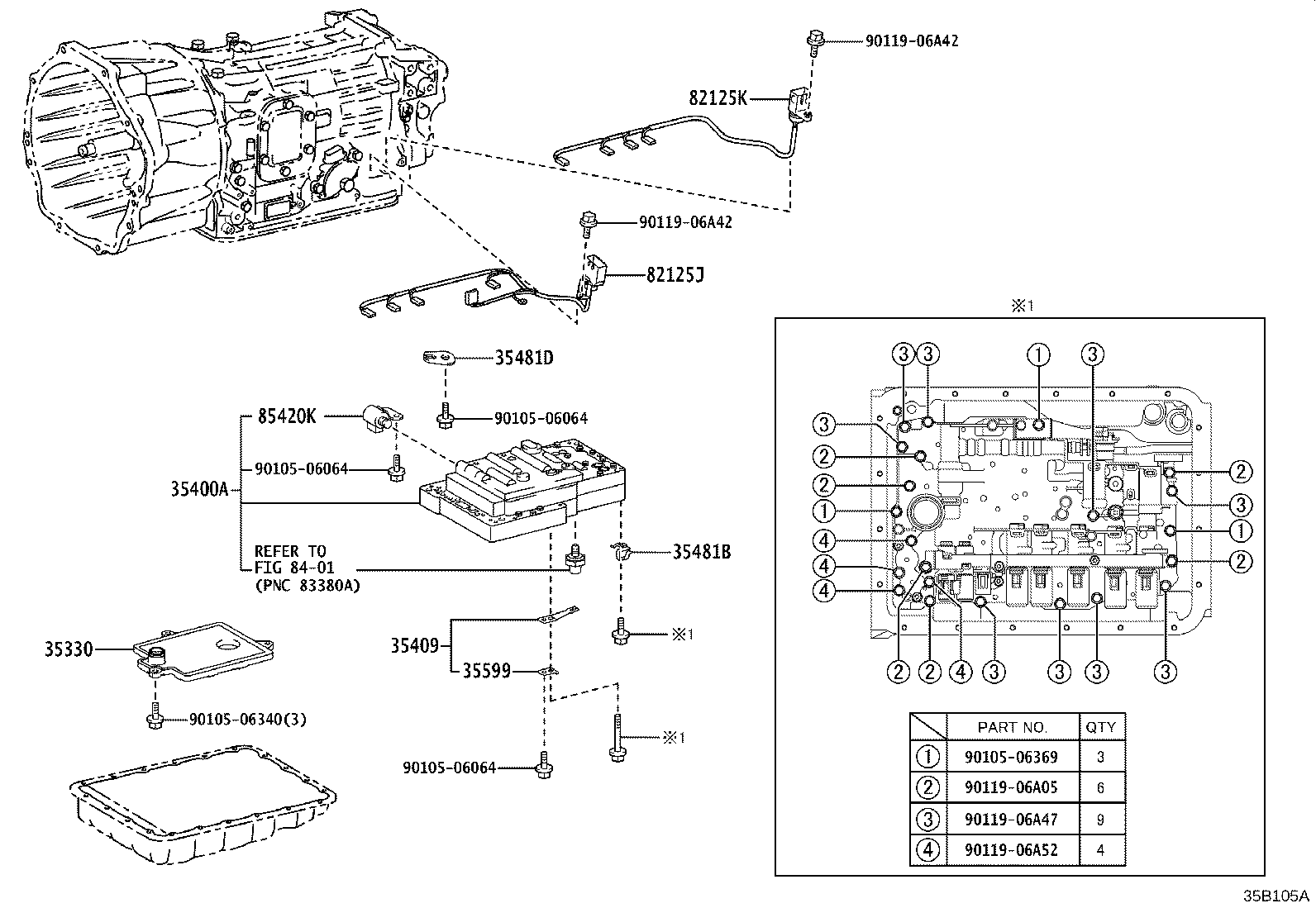

| 35400A | Body Assy, Transmission Valve W/Solenoid |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35419 | Valve, Check, NO.1 |
| 35419D | Valve, Check, NO.2 |
| 35419K | Spring, Compression (FOR CHECK VALVE NO.2) |
| 35419L | Spring, Compression (FOR CHECK VALVE NO.3) |
| 35419M | Spring, Compression (FOR CHECK VALVE NO.4) |
| 35421 | Piston, Accumulator, NO.1 |
| 35421F | Piston, Accumulator, NO.2 |
| 35421P | Piston, Accumulator, NO.3 |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35427P | Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON) |
| 35427R | Piston B-1 Accumulator |
| 35427S | Ring, O(FOR B-1 ACCUMULATOR PISTON) |
| 35431 | Gasket,Valve Body |
| 35481B | Clamp, Valve Body Wire Harness |
| 35481D | Clamp, Valve Body Wire Harness, NO.2 |
| 35599 | Cover, Manual Detent Spring |
| 35893 | Gasket, Center Support Apply |

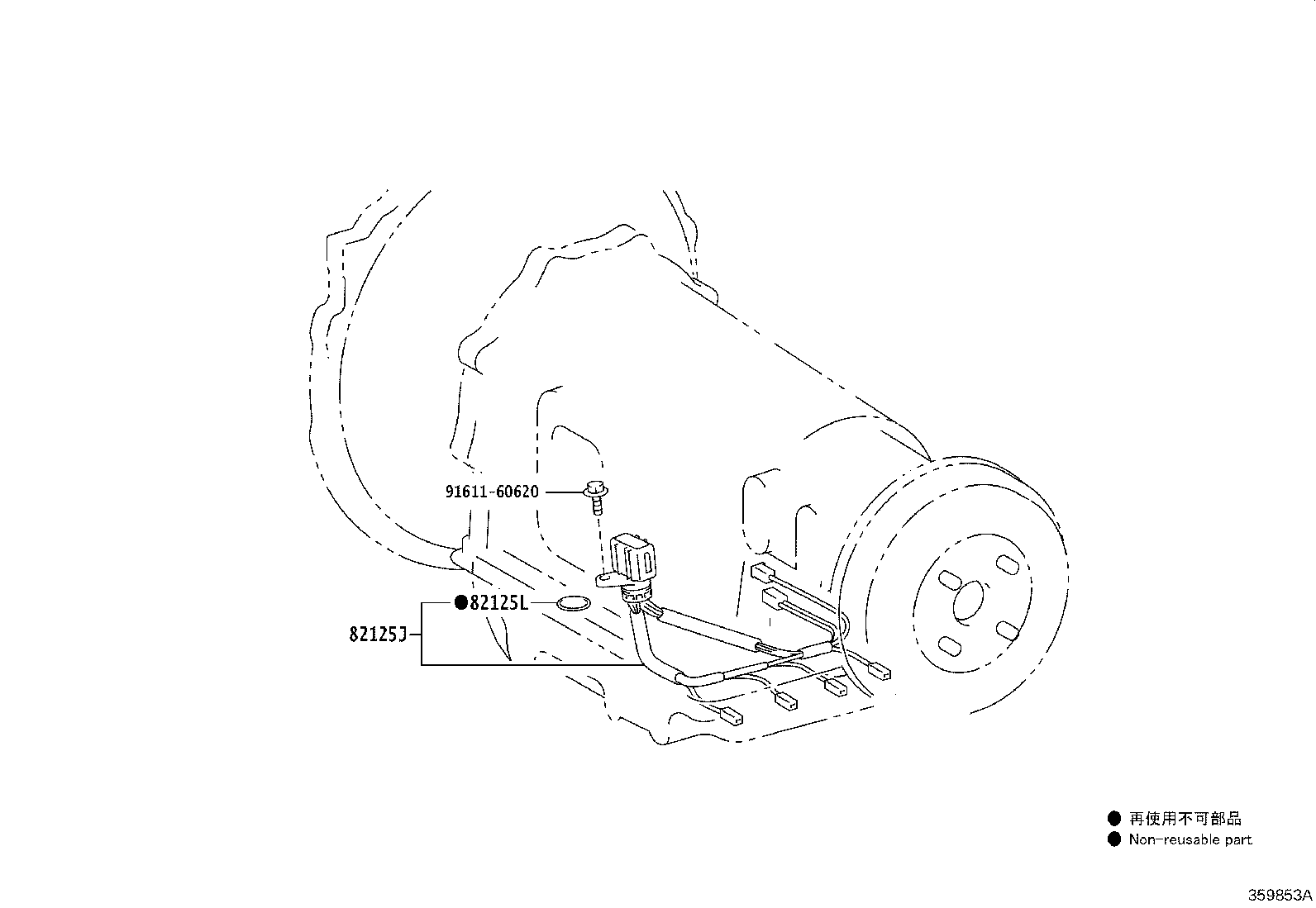

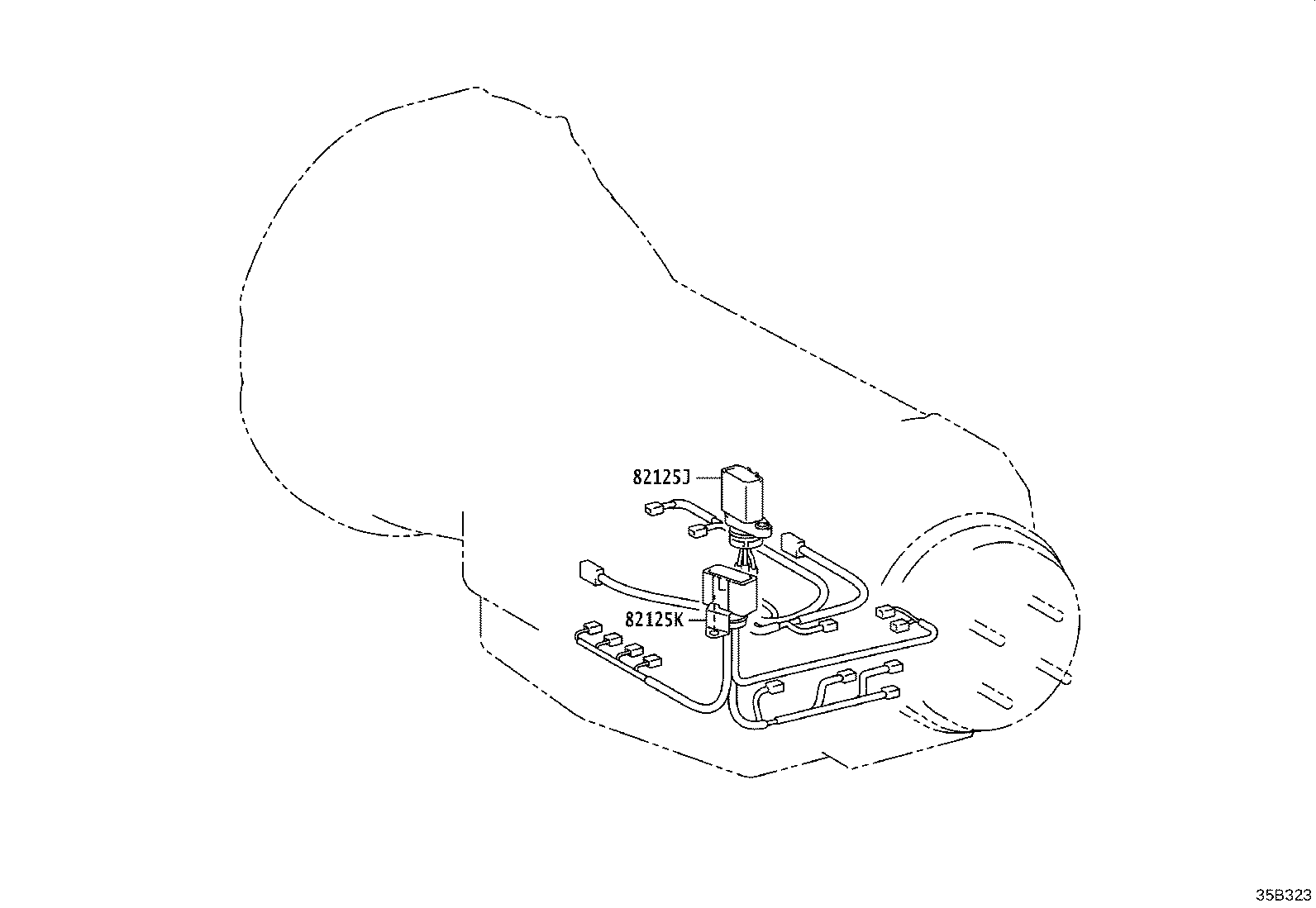

| 82125J | Wire, Transmission |
| 82125K | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
| 85420K | Solenoid Assy, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
