Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

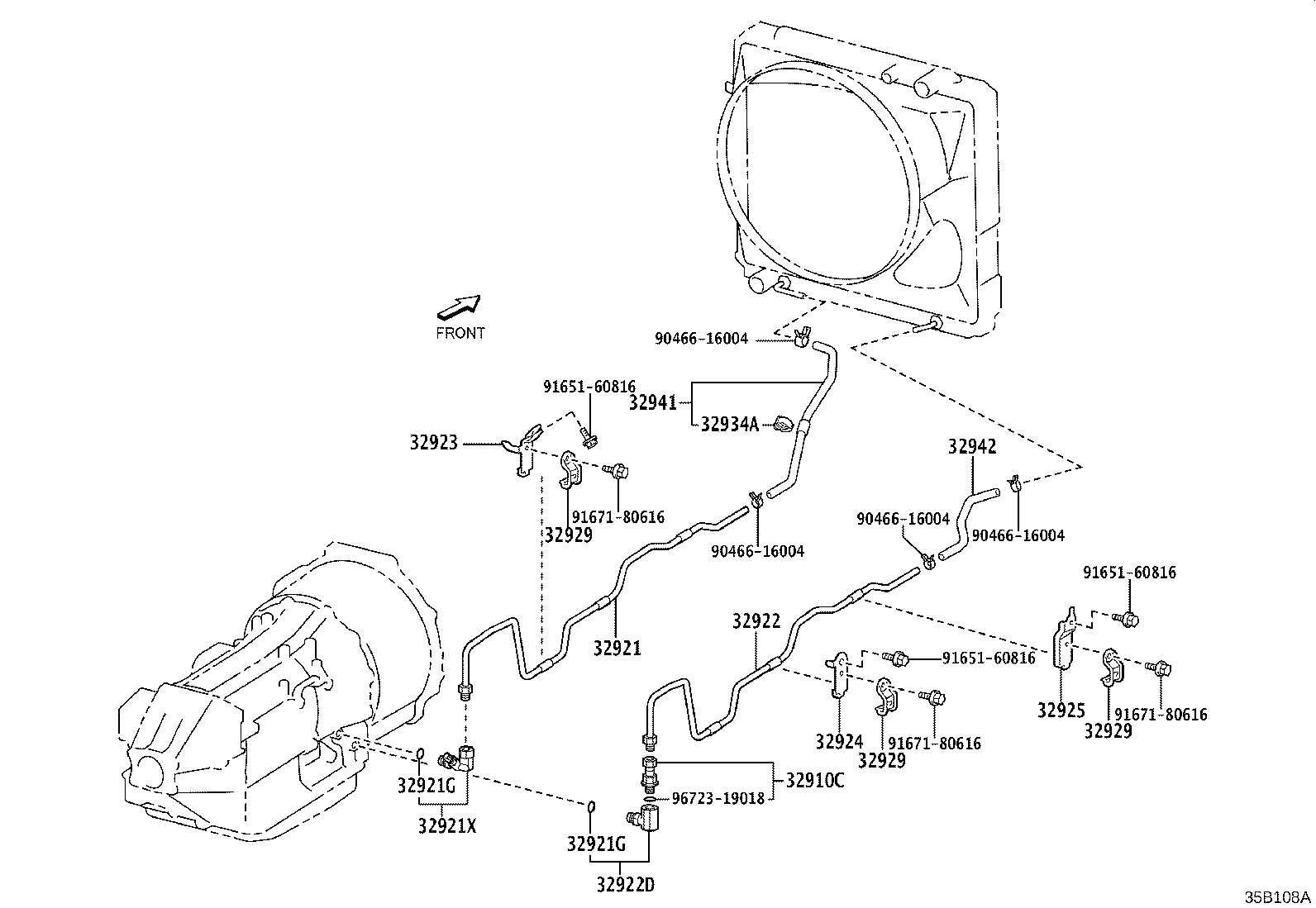

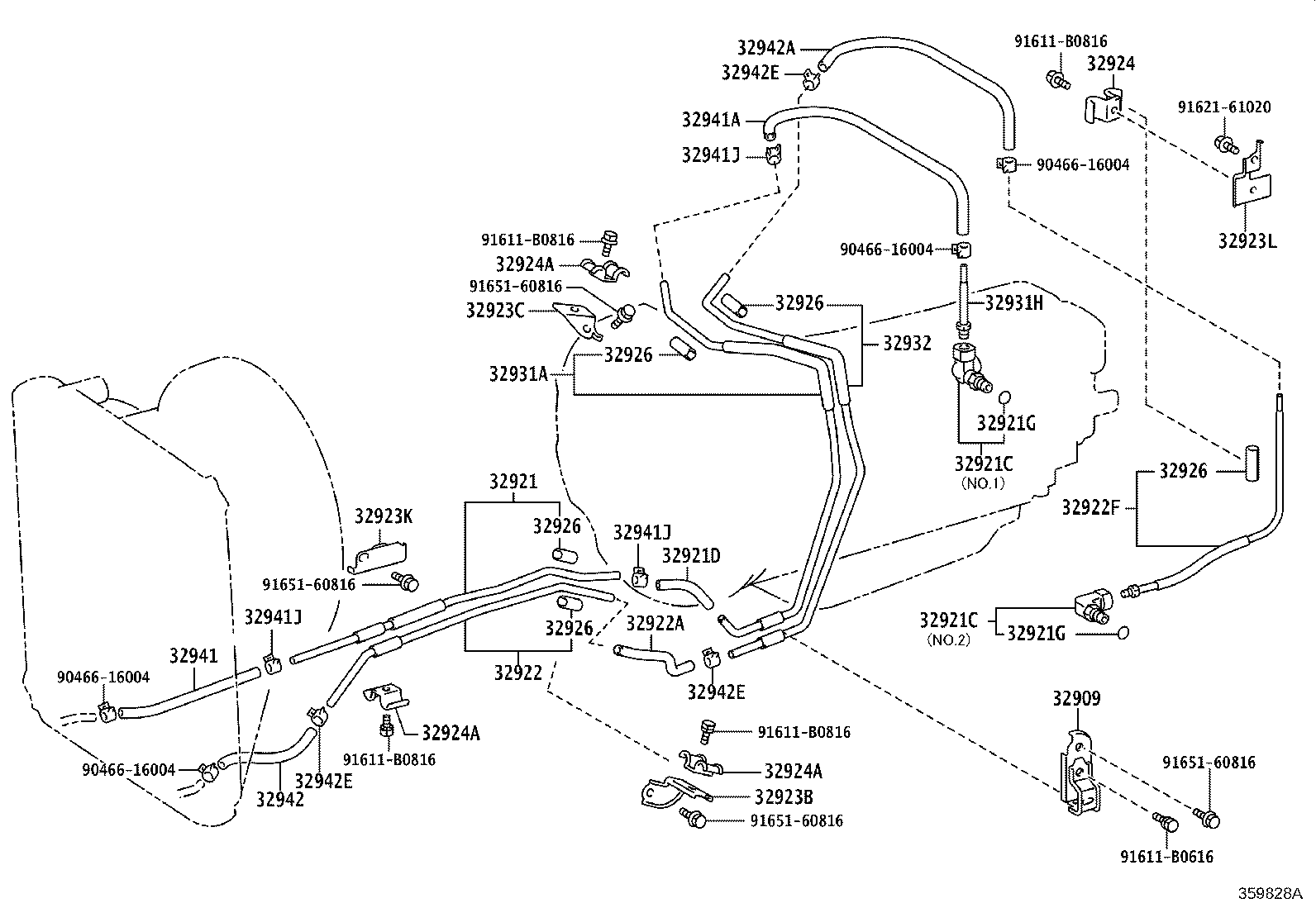

Oil Cooler & Tube (ATM)
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32909 | Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1 |
| 32910 | Cooler Assy, Oil |
| 32910C | Bolt, Union(FOR OIL COOLER) |
| 32913 | Bracket, Oil Cooler |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921W | Ring, O(FOR OIL COOLER TUBE ELBOW) |
| 32921X | Union OR Elbow, Oil Cooler Inlet |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32922D | Union OR Elbow, Oil Cooler Outlet |
| 32922F | Tube, Oil Cooler Outlet, NO.2 |
| 32923 | Clamp, Automatic Transmission Oil Cooler Tube |
| 32923B | Clamp, Automatic Transmission Oil Cooler Tube, NO.1 |
| 32923C | Clamp, Automatic Transmission Oil Cooler Tube, NO.4 |
| 32923K | Clamp, Automatic Transmission Oil Cooler Tube, NO.2 |
| 32923L | Clamp, Automatic Transmission Oil Cooler Tube, NO.3 |
| 32924 | Clamp, Oil Cooler Tube, NO.2 |
| 32924A | Clamp(FOR OIL COOLER TUBE, NO.2) |
| 32925 | Clamp, Oil Cooler Tube, NO.3 |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32929 | Clamp, Flexible Hose, NO.2 |
| 32931A | Tube, Oil Cooler Inlet |
| 32931H | Tube, Oil Cooler Inlet, NO.2 |
| 32932 | Tube, Oil Cooler Outlet |
| 32934A | Clamp(FOR OIL COOLER INLET HOSE) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941A | Hose, Oil Cooler Inlet, NO.2 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
| 32943C | Hose, Transmission Oil Cooler, NO.3 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32943H | Clip, NO.4(FOR OIL COOLER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
