Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

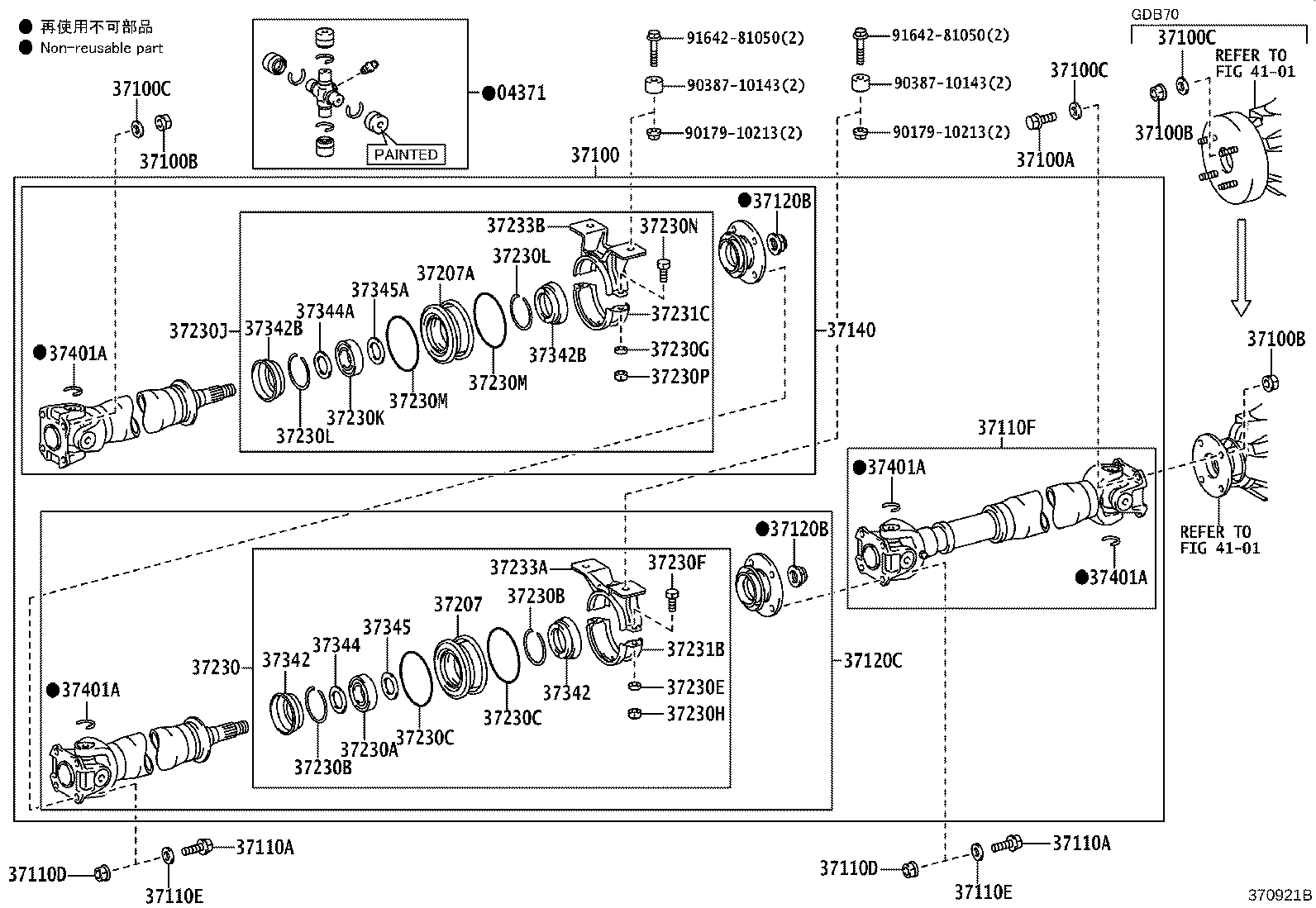

Propeller Shaft & Universal Joint
41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04371 | Spider Kit, Universal Joint(FOR PROPELLER SHAFT) |
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37100A | Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37100B | Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37100C | Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37110A | Bolt (FOR PROPELLER SHAFT) |

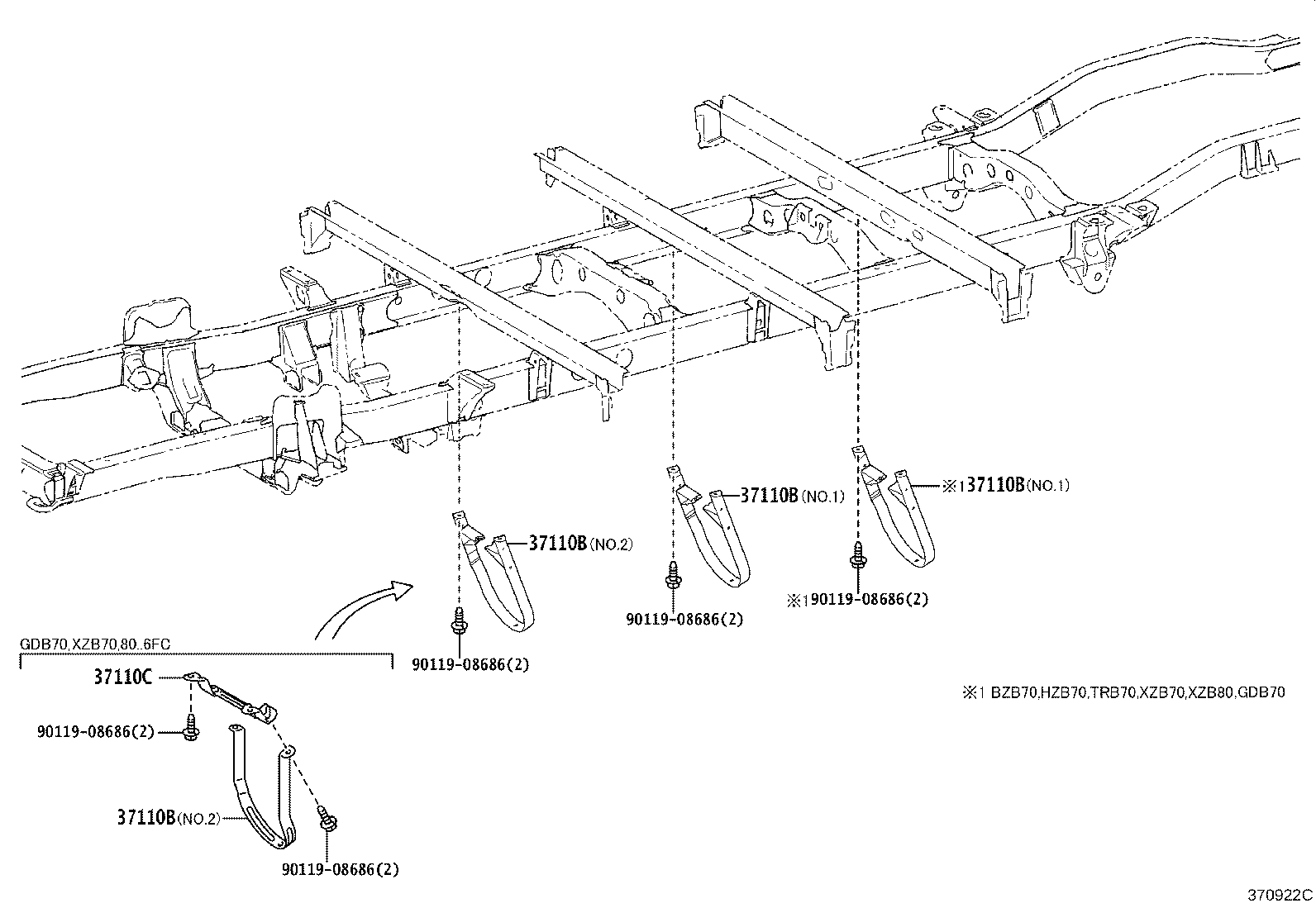

| 37110B | Guard, Propeller Shaft |
| 37110C | Bracket, Propeller Shaft Guard |
| 37110D | Nut (FOR PROPELLER SHAFT) |
| 37110E | Washer (FOR PROPELLER SHAFT) |
| 37110F | Shaft Assy, Propeller, Rear |
| 37120B | Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING) |
| 37120C | Shaft Assy, Propeller, Center |
| 37140 | Shaft Assy, Propeller, Front |
| 37207 | Cushion Sub-assy, Center Support Bearing, NO.1 |
| 37207A | Cushion Sub-assy, Center Support Bearing, NO.2 |
| 37230 | Bearing Assy, Center Support, NO.1 |
| 37230A | Bearing, NO.1 (FOR CENTER SUPPORT) |
| 37230B | Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230C | Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) |
| 37230E | Washer, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230F | Bolt, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230G | Washer, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230H | Nut, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230J | Bearing Assy, Center Support, NO.2 |
| 37230K | Bearing, NO.2 (FOR CENTER SUPPORT) |
| 37230L | Ring, Snap, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230M | Ring, Set, NO.2 (FOR CENTER SUPPORT BEARING CUSHION) |
| 37230N | Bolt, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37230P | Nut, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37231B | Housing, Center Support Bearing, NO.1 |
| 37231C | Housing, Center Support Bearing, NO.3 |
| 37233A | Housing, Center Support Bearing, NO.2 |
| 37233B | Housing, Center Support Bearing, NO.4 |
| 37342 | Deflector, Propeller Shaft Dust, NO.2 |
| 37342B | Deflector, Propeller Shaft Dust, NO.6 |
| 37344 | Deflector, Propeller Shaft Dust, NO.3 |
| 37344A | Deflector, Propeller Shaft Dust, NO.7 |
| 37345 | Deflector, Propeller Shaft Dust, NO.4 |
| 37345A | Deflector, Propeller Shaft Dust, NO.8 |
| 37401A | Ring, Hole Snap (FOR SPIDER BEARING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
