Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01

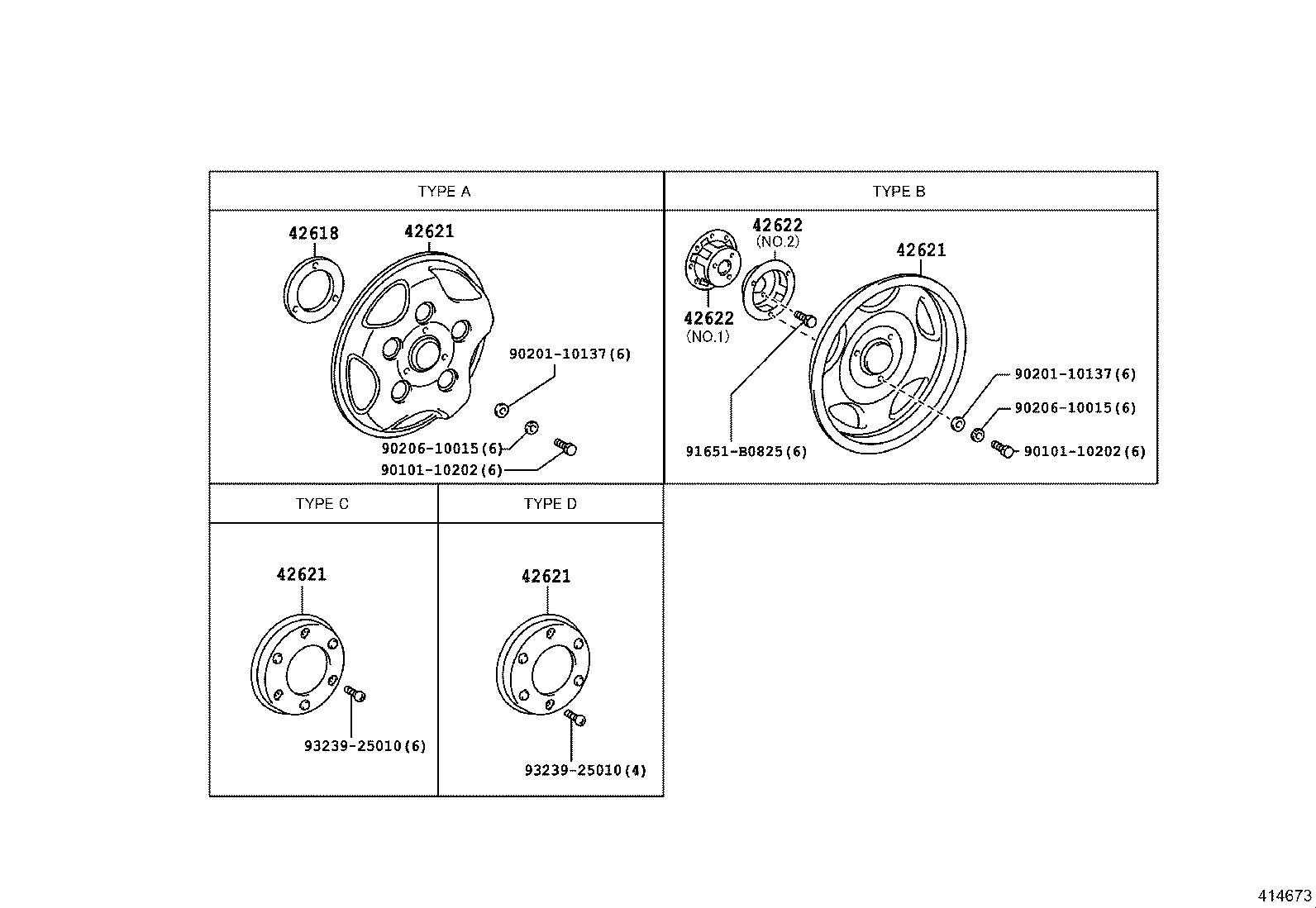

Disc Wheel & Wheel Cap
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601H | Nut,Hub (FOR FRONT AXLE) |
| 42601J | Nut,Hub (FOR REAR AXLE) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611Q | Clip (FOR TUBE) |
| 42611T | Washer (FOR TUBE) |
| 42613A | Ring, Disc Wheel Side |
| 42618 | Retainer, Wheel Cap |
| 42621 | Cap, Wheel |
| 42622 | Holder, Wheel Cap |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
