Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 10 illustrations

Illustrations

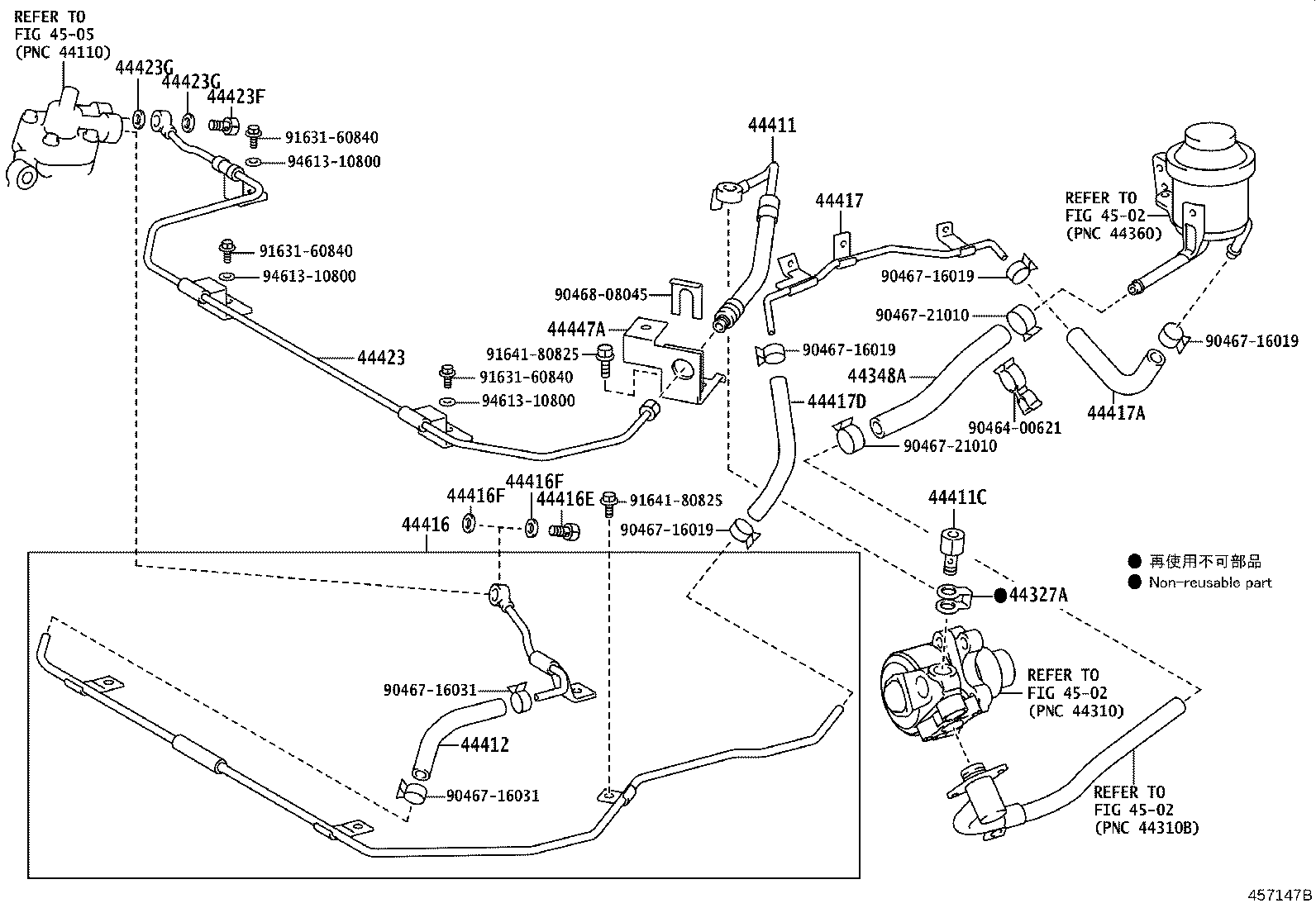

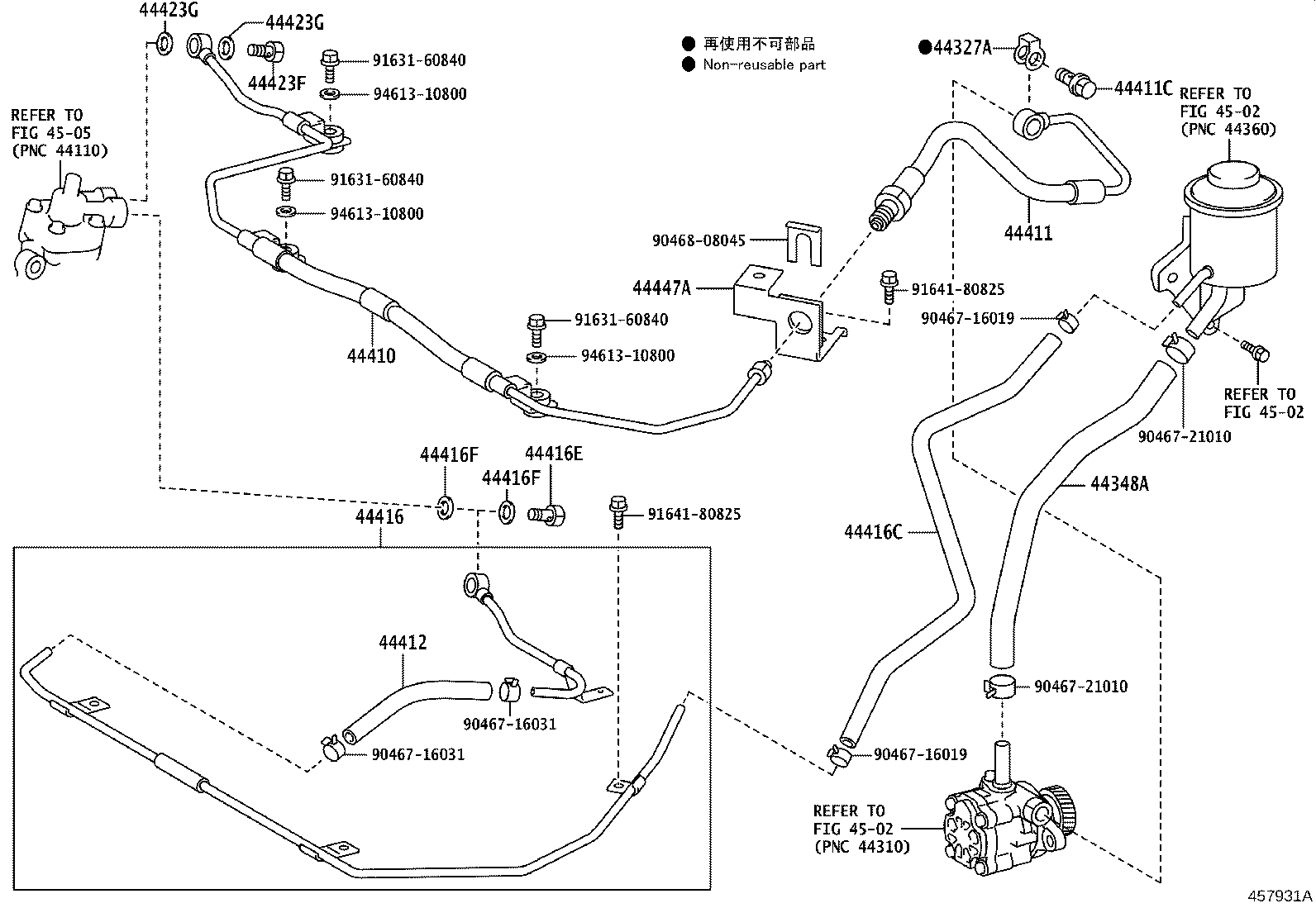

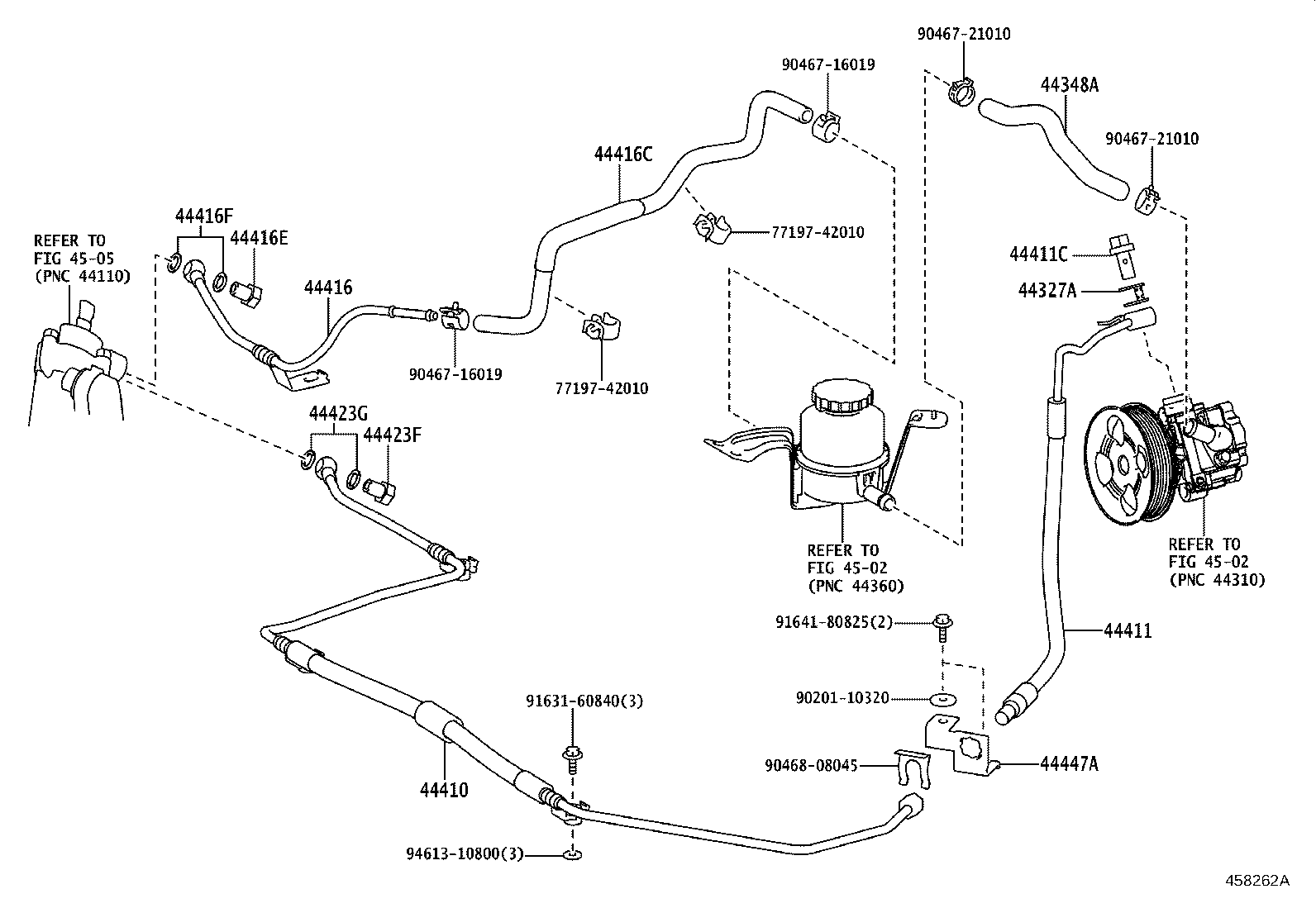

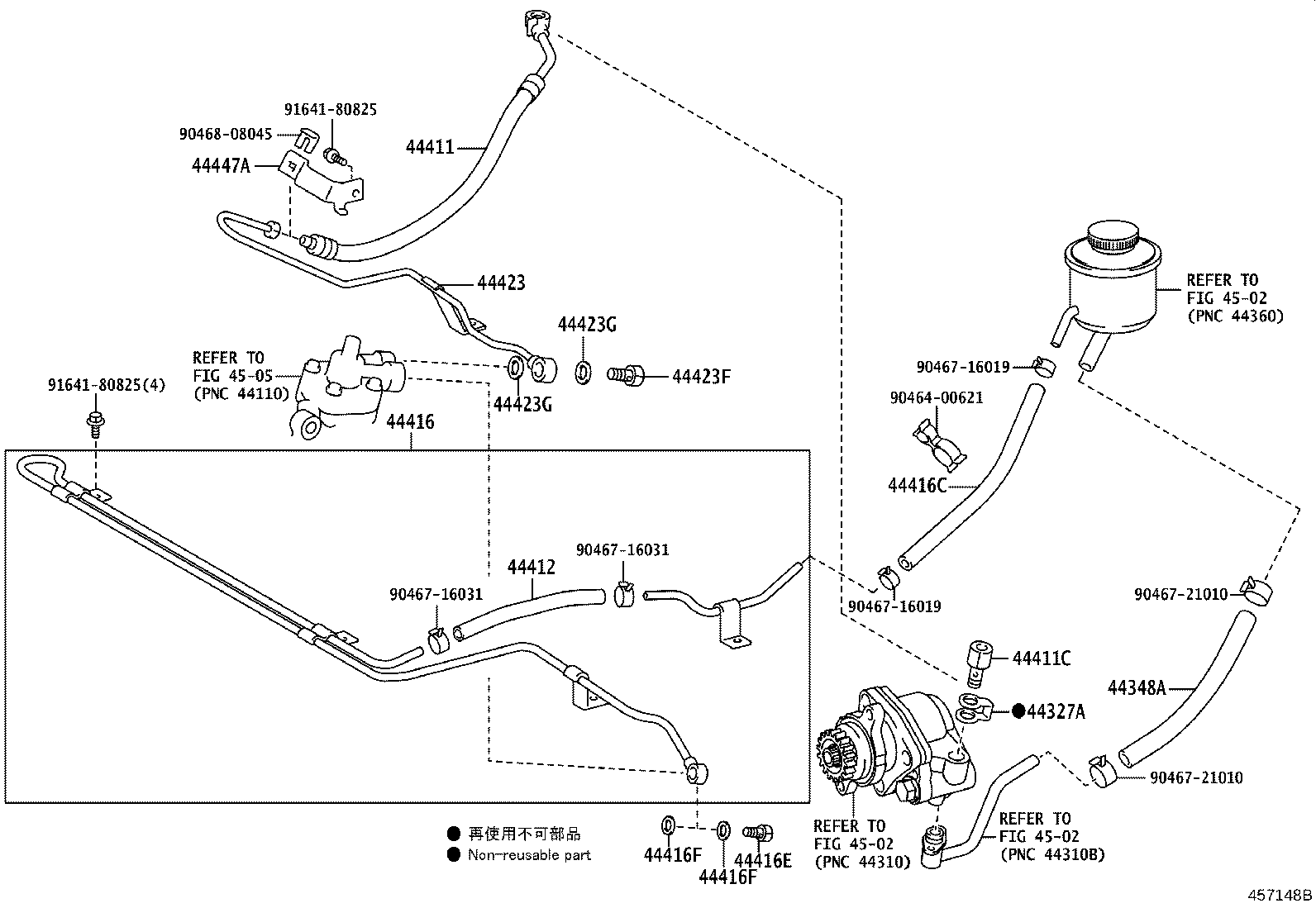

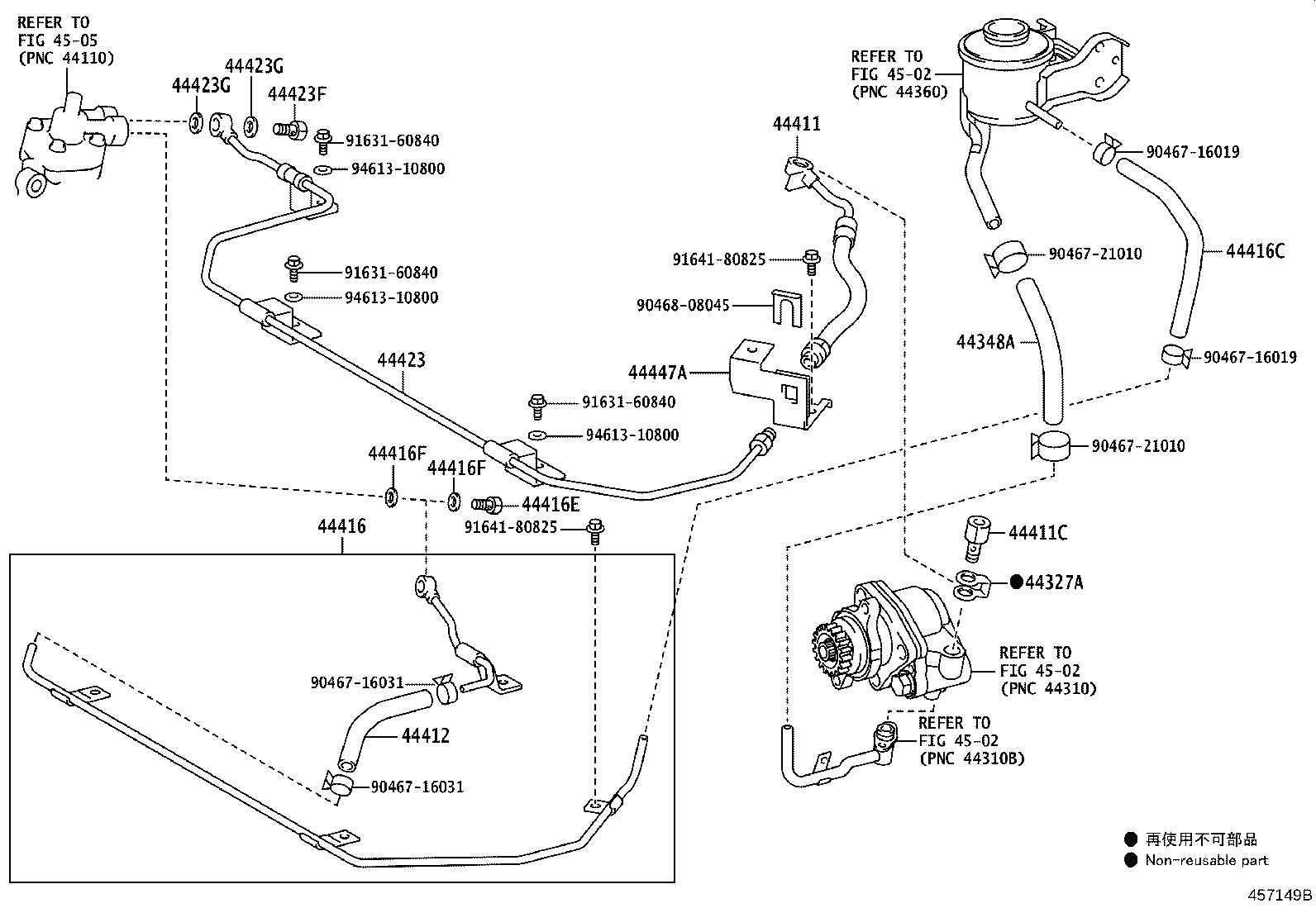

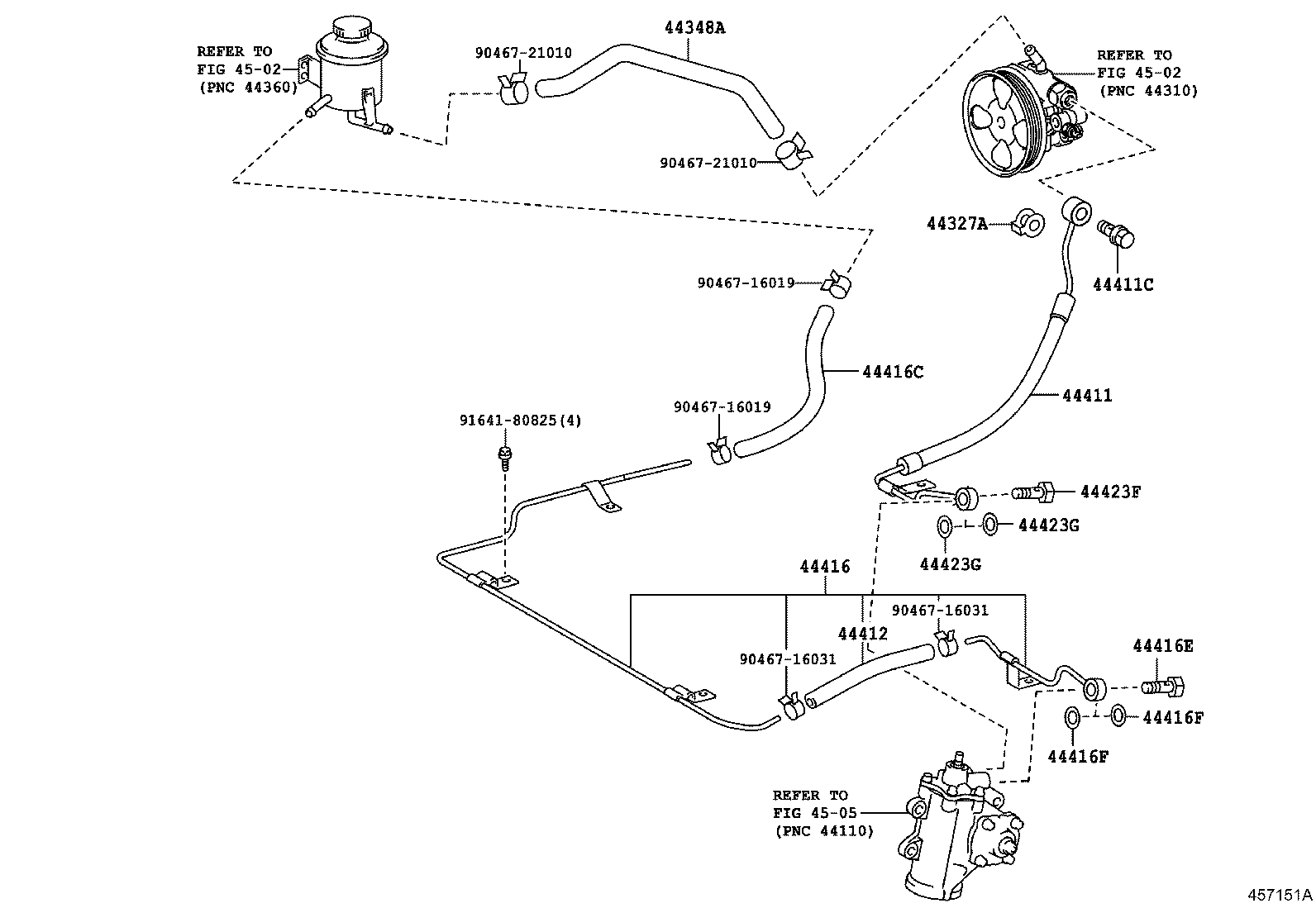

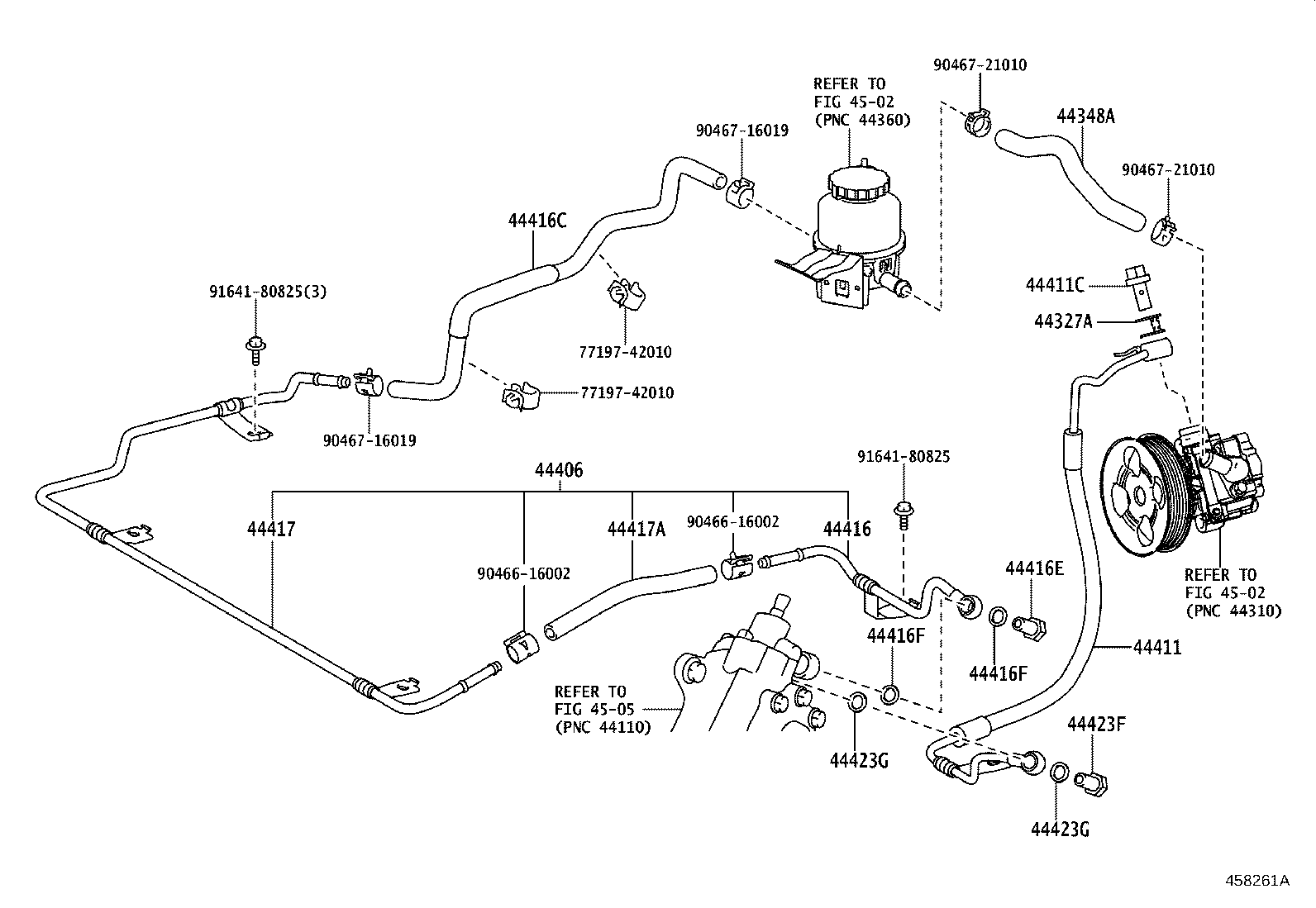

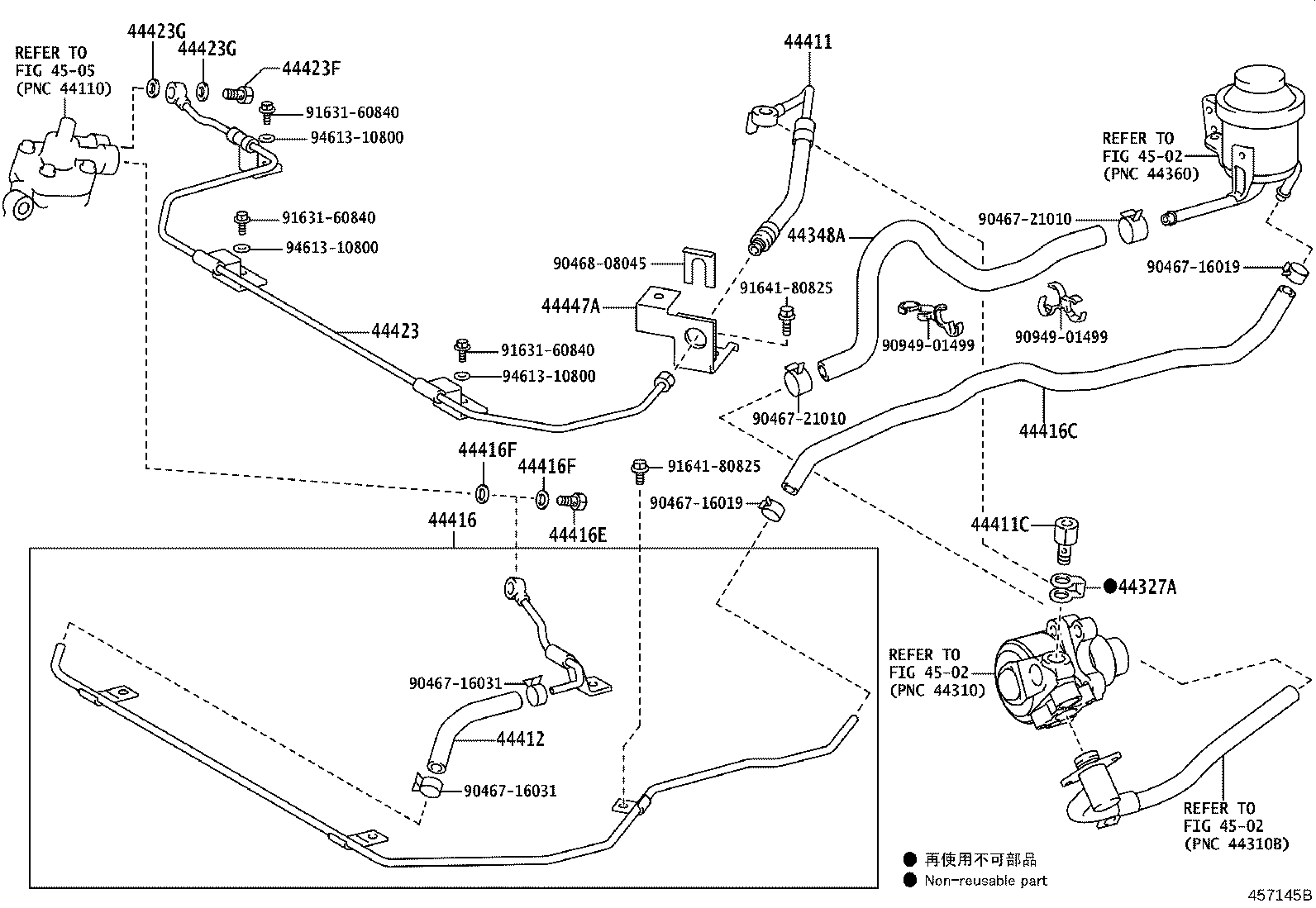

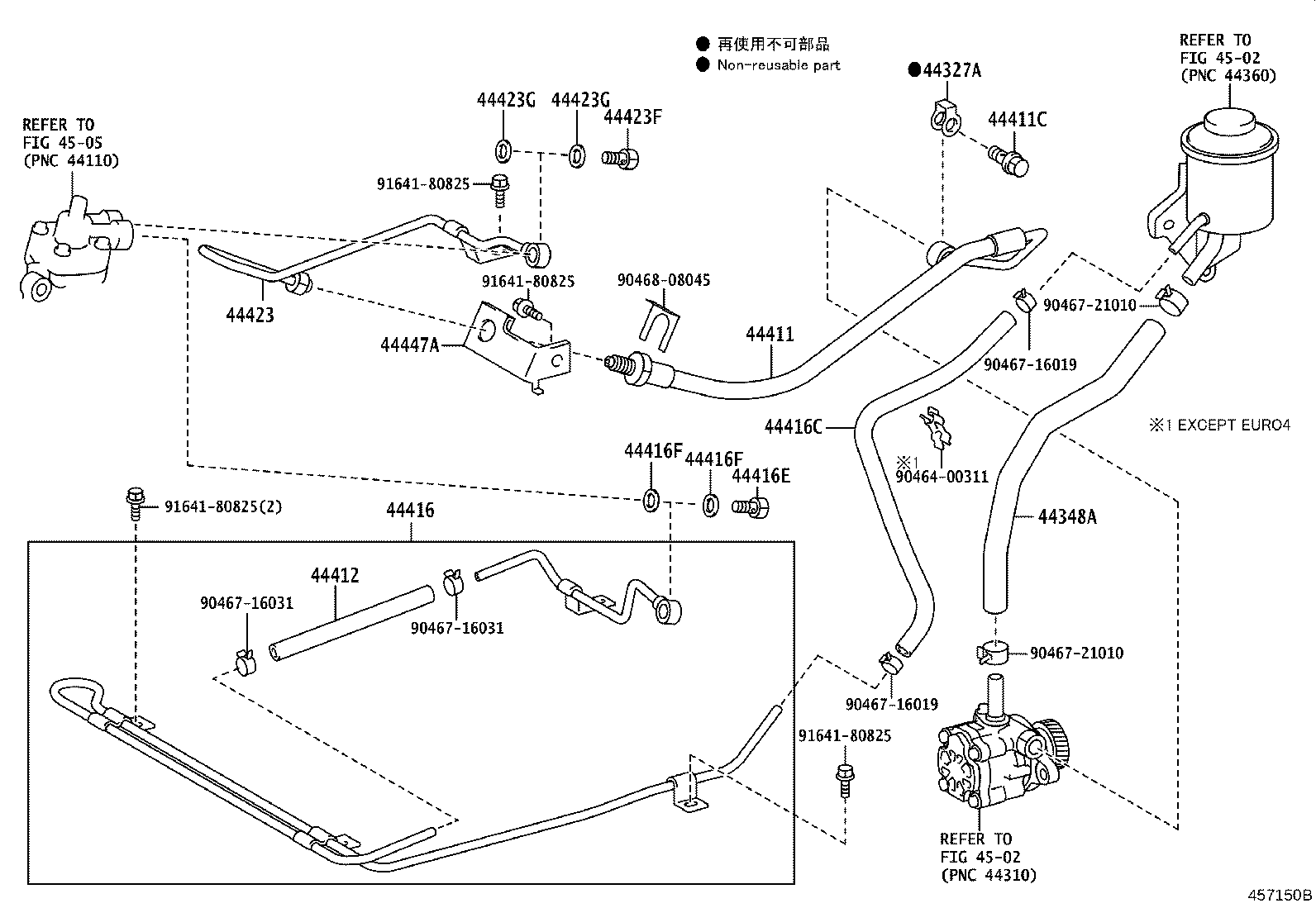

Figure 457146B 457146B 2017-01 → — Figure 457147B 457147B 2017-01 → — Figure 457145B 457145B 2017-01 → — Figure 457148B 457148B 2017-01 → — Figure 457149B 457149B 2017-01 → — Figure 457151A 457151A 2017-01 → — Figure 457150B 457150B 2017-01 → — Figure 457931A 457931A 2017-01 → — Figure 458261A 458261A 2022-01 → — Figure 458262A 458262A 2022-01 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44417 Tube, Return, NO.2
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44417D Hose(FOR RETURN TUBE TO RESERVOIR)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44423G Gasket, Union Bolt
44447A Bracket, Hose Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
