Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

28 part groups · 12 illustrations

Illustrations

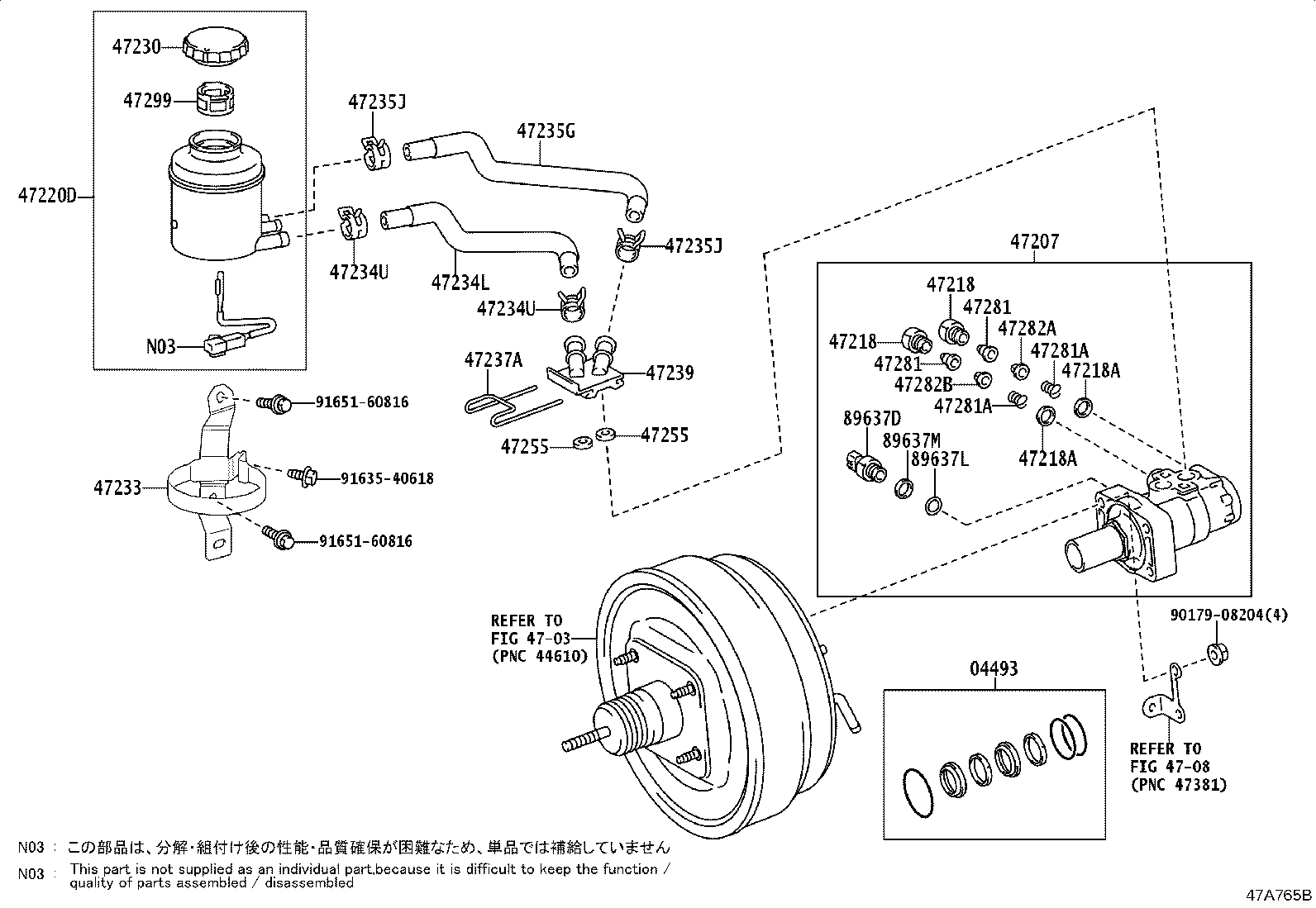

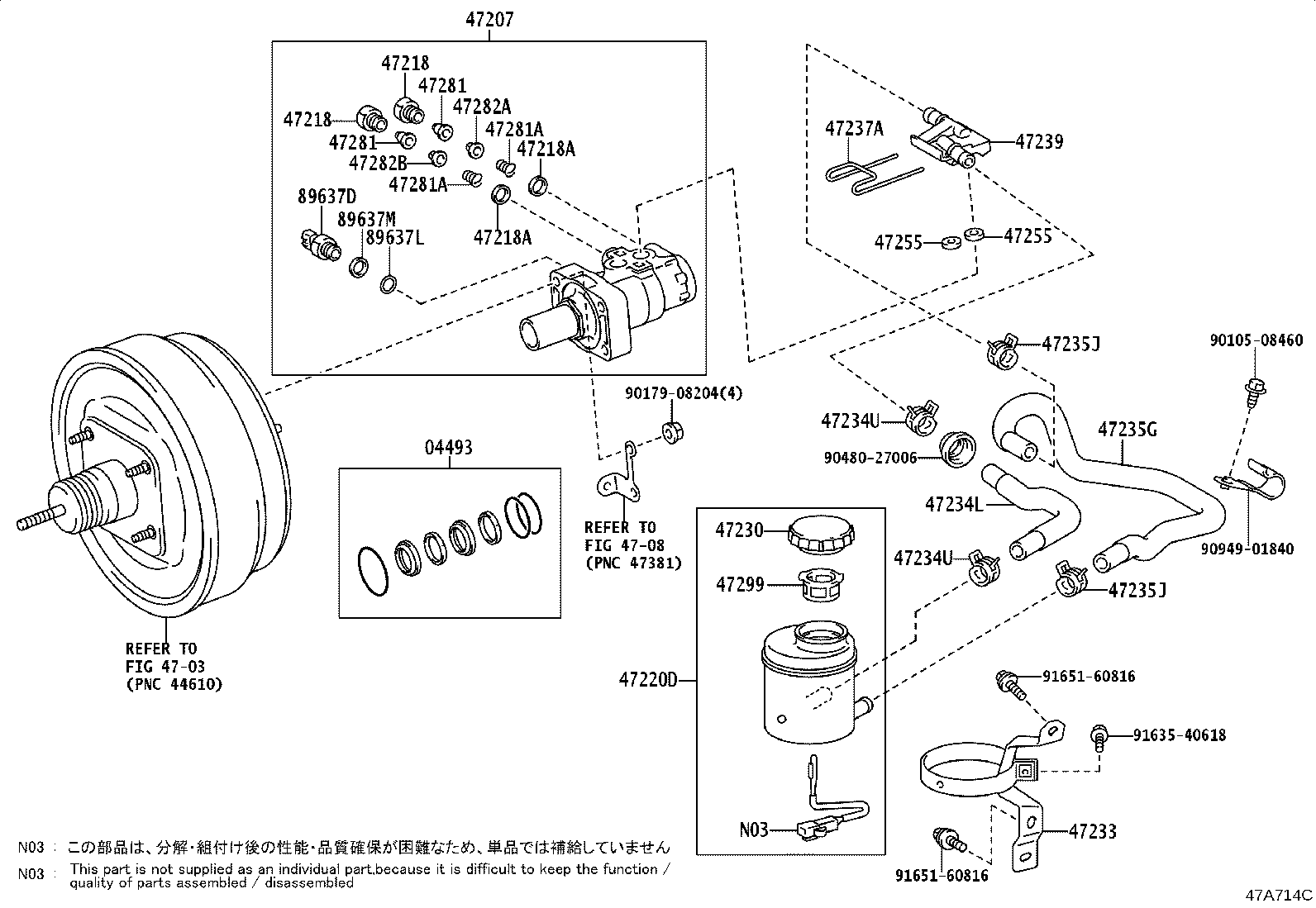

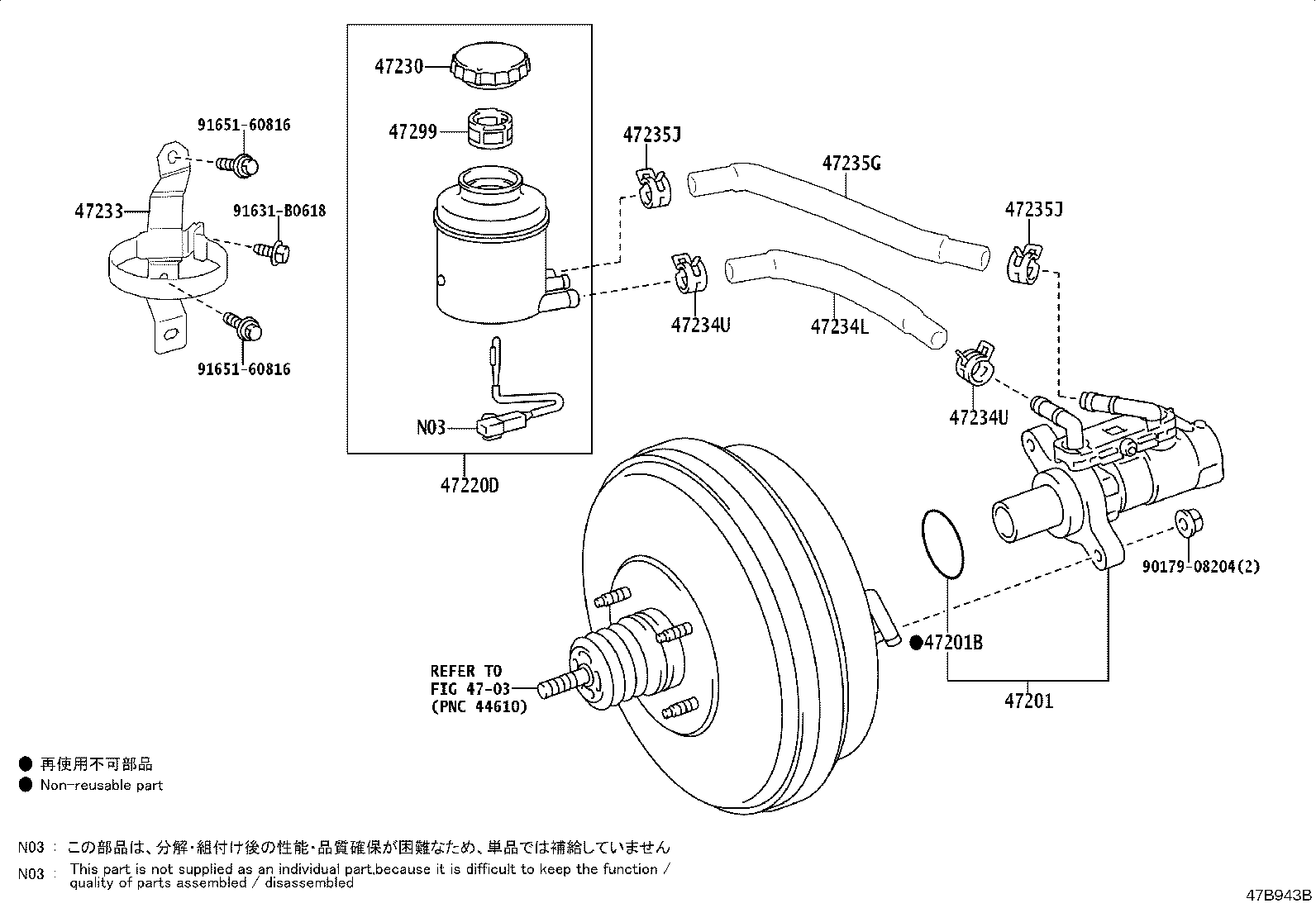

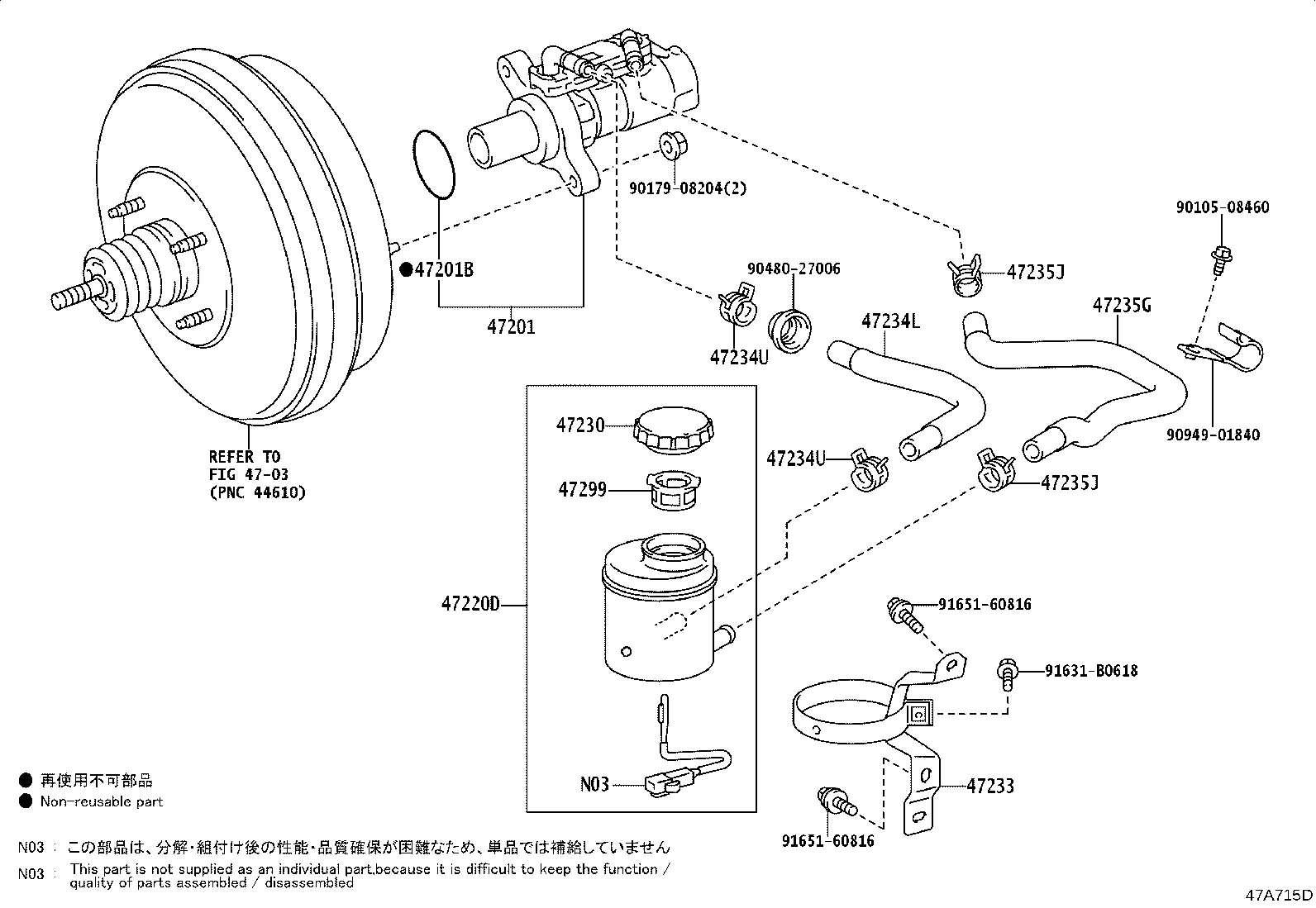

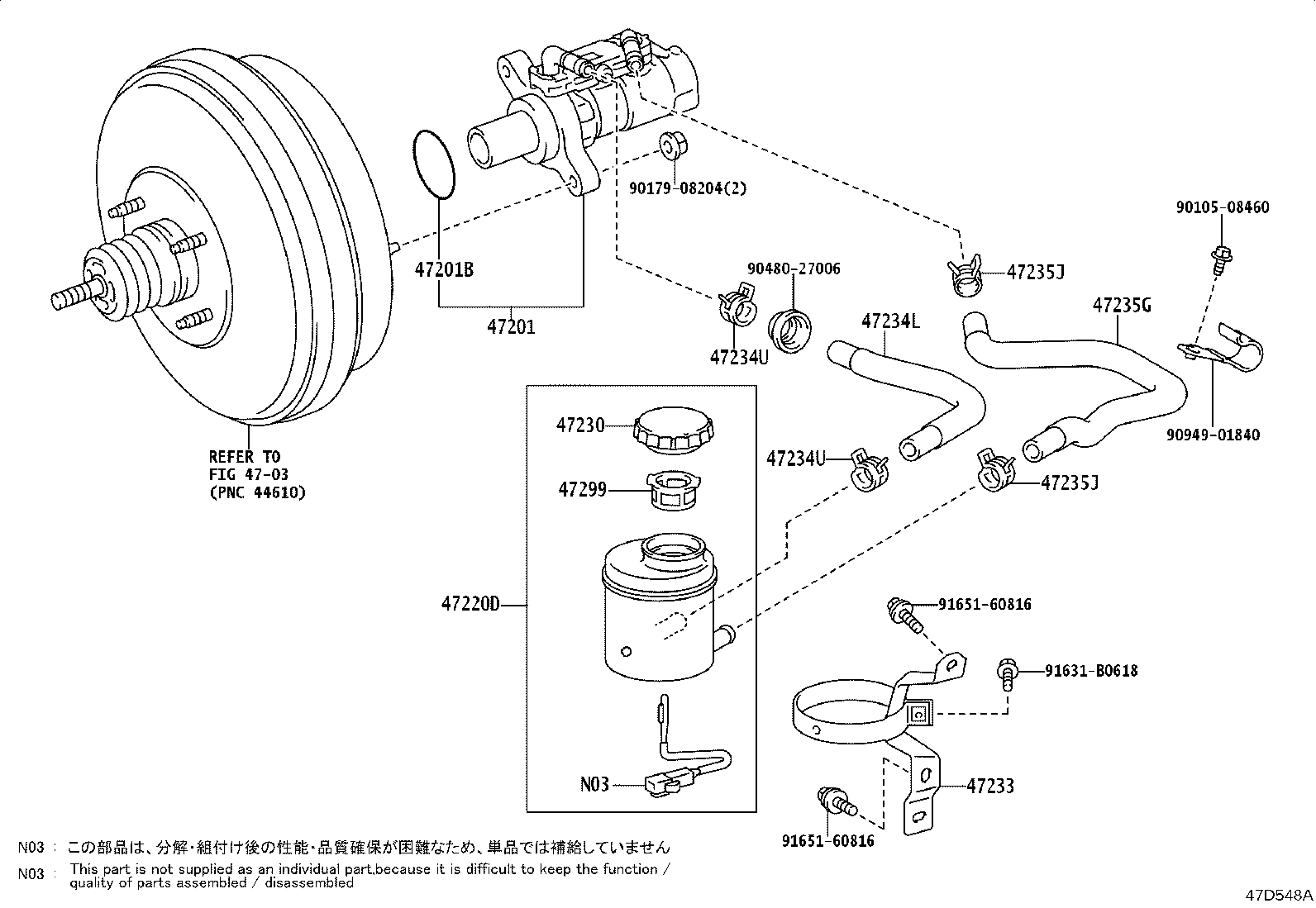

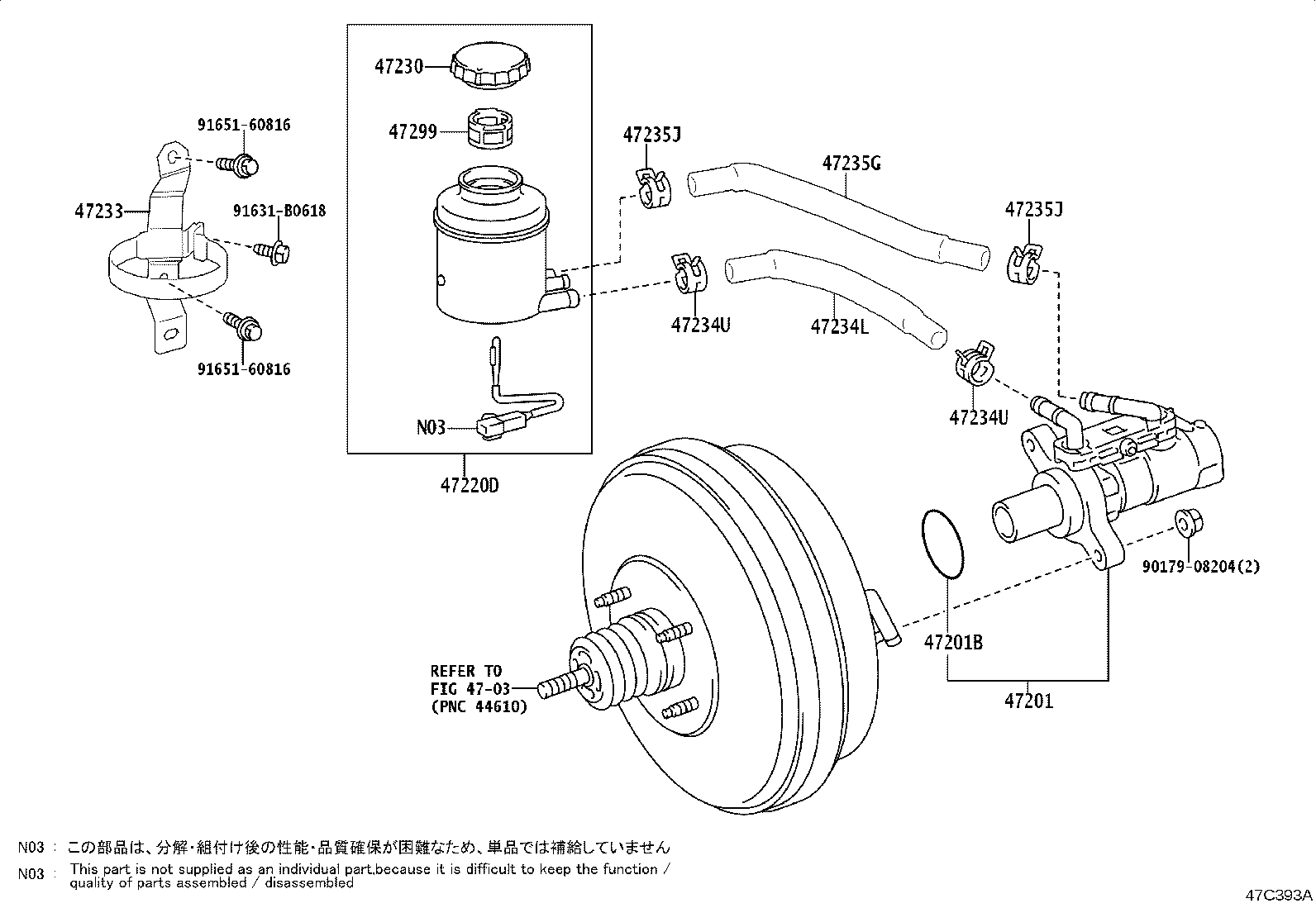

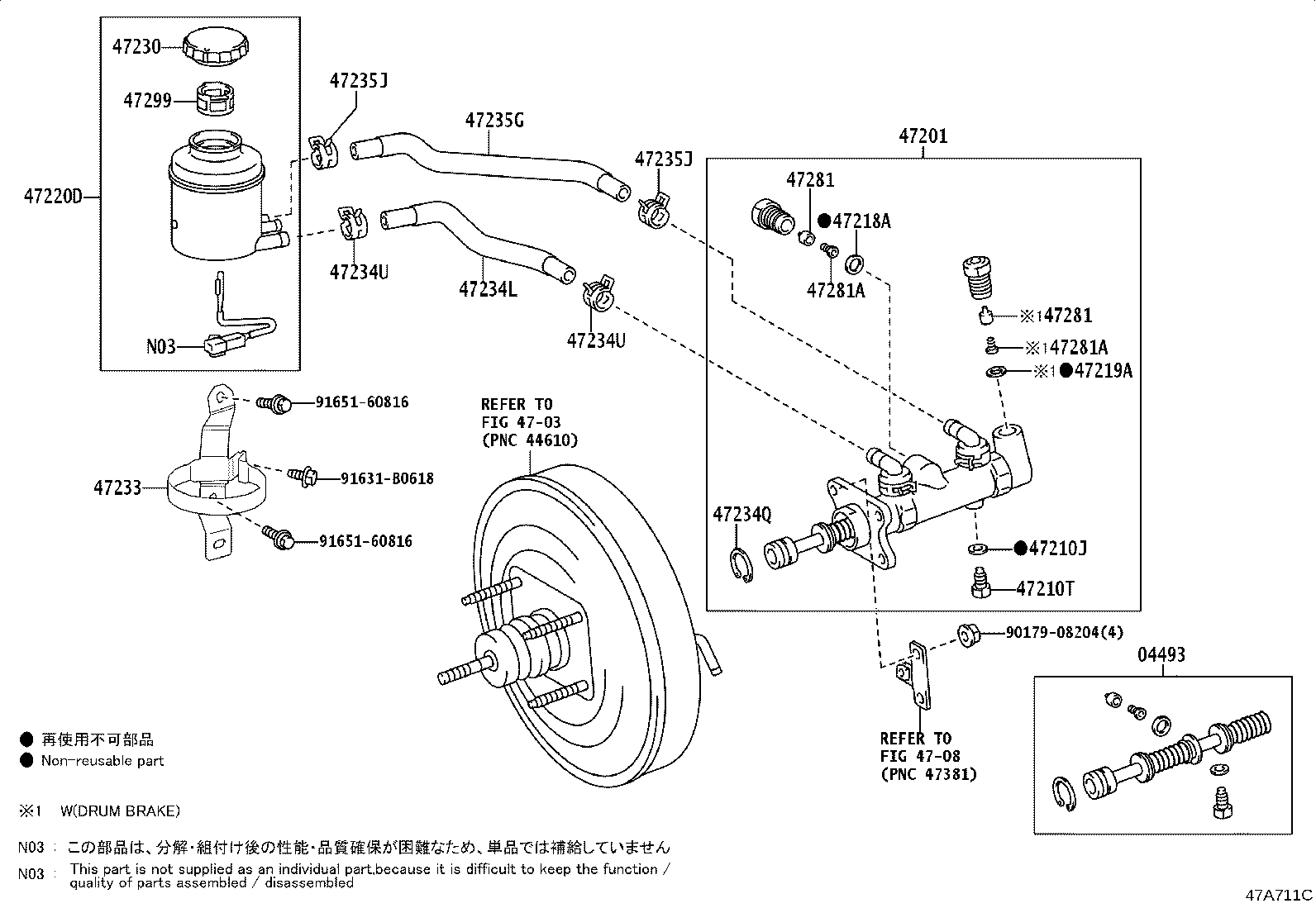

Figure 47A713D 47A713D 2017-01 → — Figure 47A714C 47A714C 2017-01 → 2021-01 Figure 47A715D 47A715D 2017-01 → — Figure 47A715D 47A715D 2021-01 → — Figure 47A711C 47A711C 2017-01 → — Figure 47A712B 47A712B 2017-01 → 2021-01 Figure 47A764D 47A764D 2017-01 → — Figure 47A765B 47A765B 2017-01 → 2021-01 Figure 47B943B 47B943B 2019-08 → — Figure 47C393A 47C393A 2021-01 → — Figure 47B094B 47B094B 2018-01 → — Figure 47D548A 47D548A 2022-01 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47207 Cylinder Sub-assy, Brake Master Less Reservoir Tank
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47218 Plug, Master Cylinder Fluid Outlet
47218A Gasket(FOR FLUID OUTLET PLUG)
47219A Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234L Hose, Reservoir, NO.1
47234Q Ring, Snap(FOR RESERVOIR TUBE)
47234U Clip(FOR RESERVOIR HOSE NO.1)
47235G Hose, Reservoir, NO.2
47235J Clip(FOR RESERVOIR HOSE NO.2)
47237A Stopper, Breke Master Cylinder Reservoir Tank
47239 Connector, Brake Master Cylinder Reservoir
47255 Grommet, Master Cylinder Reservoir
47281 Valve, Brake Master Cylinder Outlet Check
47281A Spring Compression(FOR OUTLET CHECK VALVE)
47282A Seat, Outlet Check Valve, NO.1
47282B Seat, Outlet Check Valve, NO.2
47299 Strainer, Brake Master Cylinder Reservoir
89637D Sensor, Oil Pressure
89637L Ring, O(FOR OIL PRESSURE SENSOR)
89637M Spacer(FOR OIL PRESSURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
